Introduction to Blue Light and the LED revolution

1. Introduction to Blue Light and the LED revolution • John Mellerio Blue Light: Benefits, Hazards and Sensitivities - November 2013

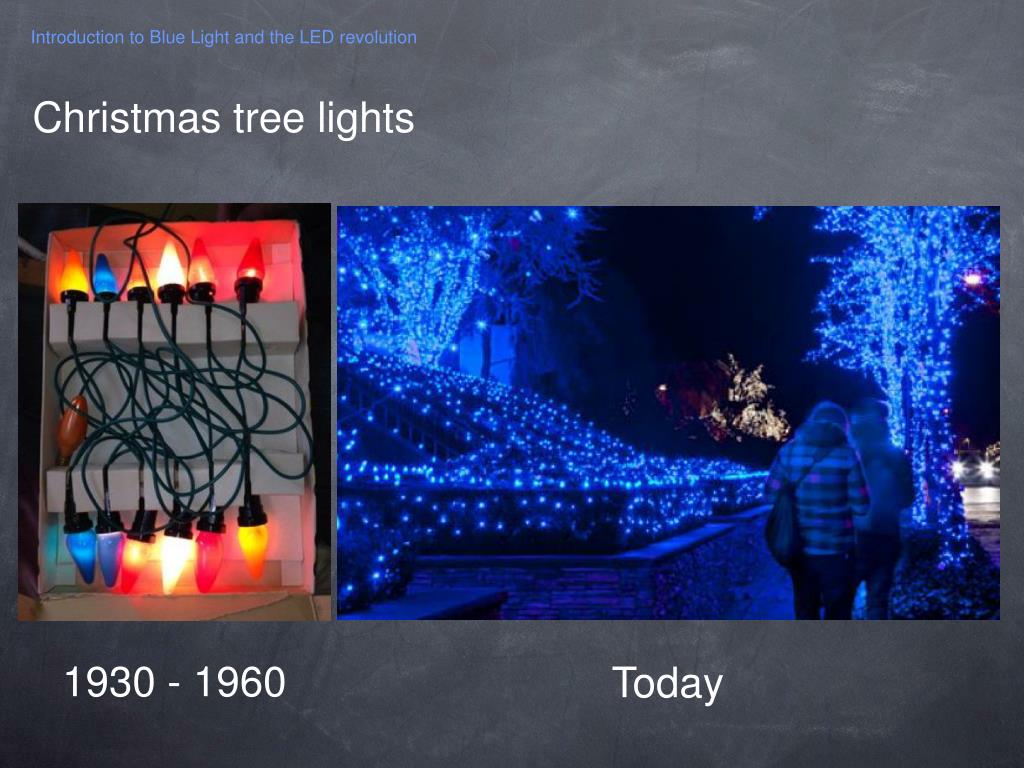

2. Introduction to Blue Light and the LED revolution Christmas tree lights 1930 - 1960 Today

3. Introduction to Blue Light and the LED revolution The tungsten lamp gives out energy which varies across the spectrum - a lot of ‘red’, little ‘blue’

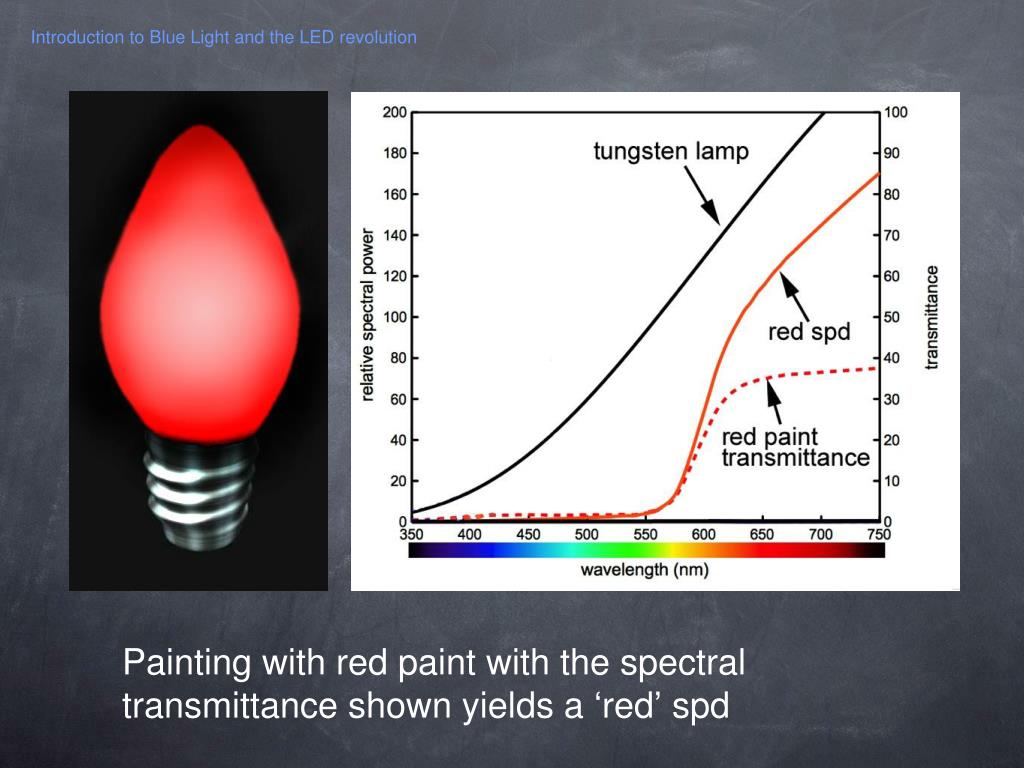

4. Introduction to Blue Light and the LED revolution Painting with red paint with the spectral transmittance shown yields a ‘red’ spd

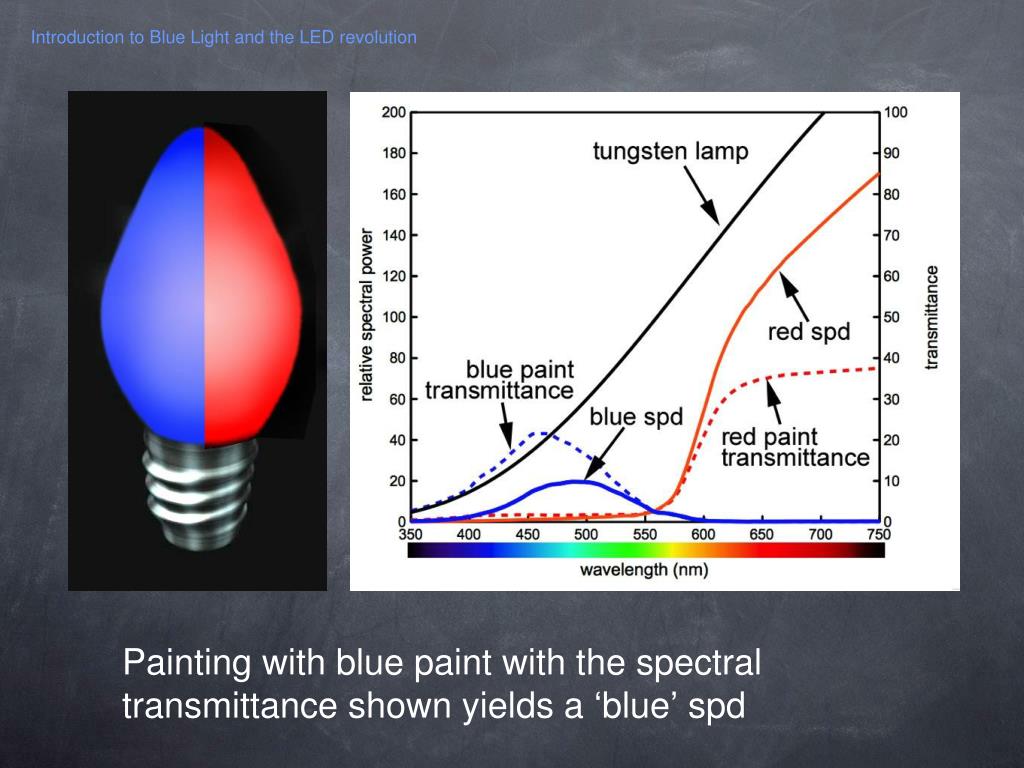

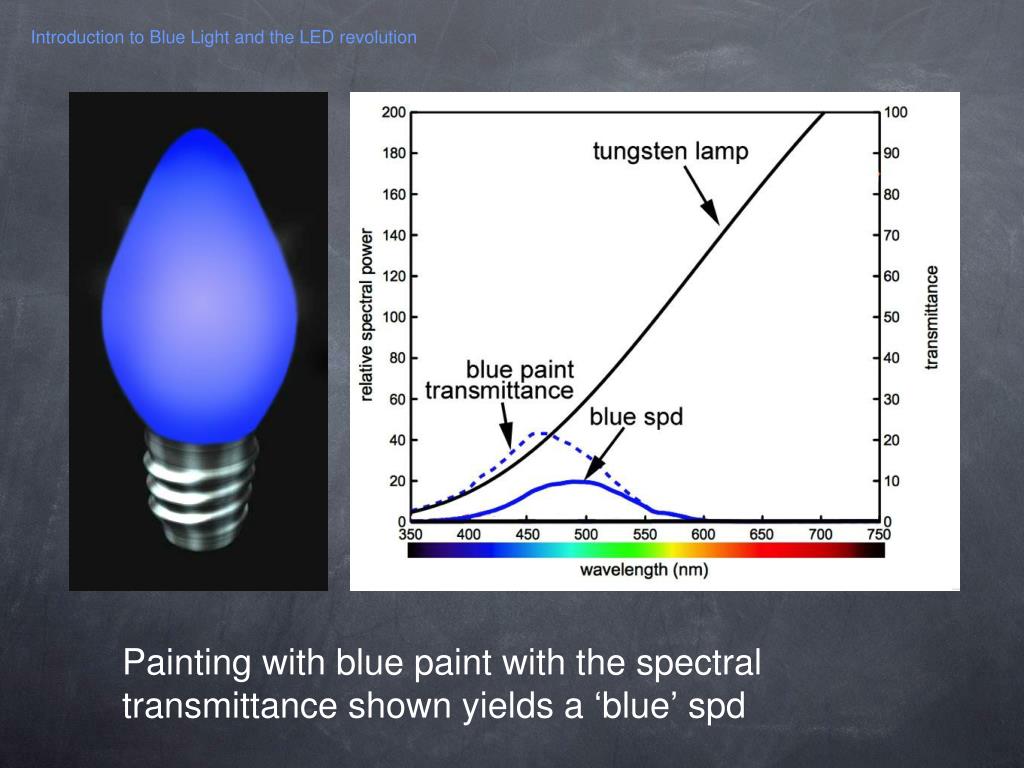

5. Introduction to Blue Light and the LED revolution Painting with blue paint with the spectral transmittance shown yields a ‘blue’ spd

6. Introduction to Blue Light and the LED revolution Painting with blue paint with the spectral transmittance shown yields a ‘blue’ spd

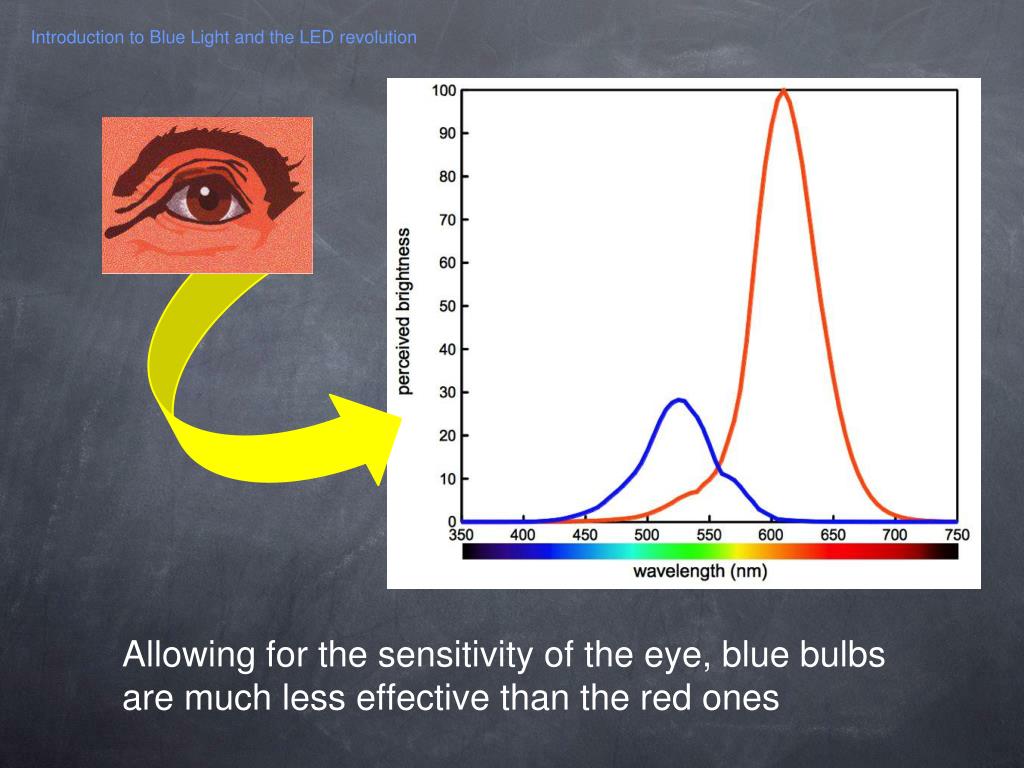

7. Introduction to Blue Light and the LED revolution Allowing for the sensitivity of the eye, blue bulbs are much less effective than the red ones

8. Introduction to Blue Light and the LED revolution SOME PHYSICS Each photon has an energy with which it can produce effectsThe energy depends on the wavelength, λ, according to the famous equation: E = h.c/λ where: h is Plank’s Constant (6.626 x 10-34 j.s) c is the velocity of light (3.0 x 108 m.s-1) and E is the photon energy in joules (which is usually quoted in electron volts by dividing by 1.602 x 10-19)

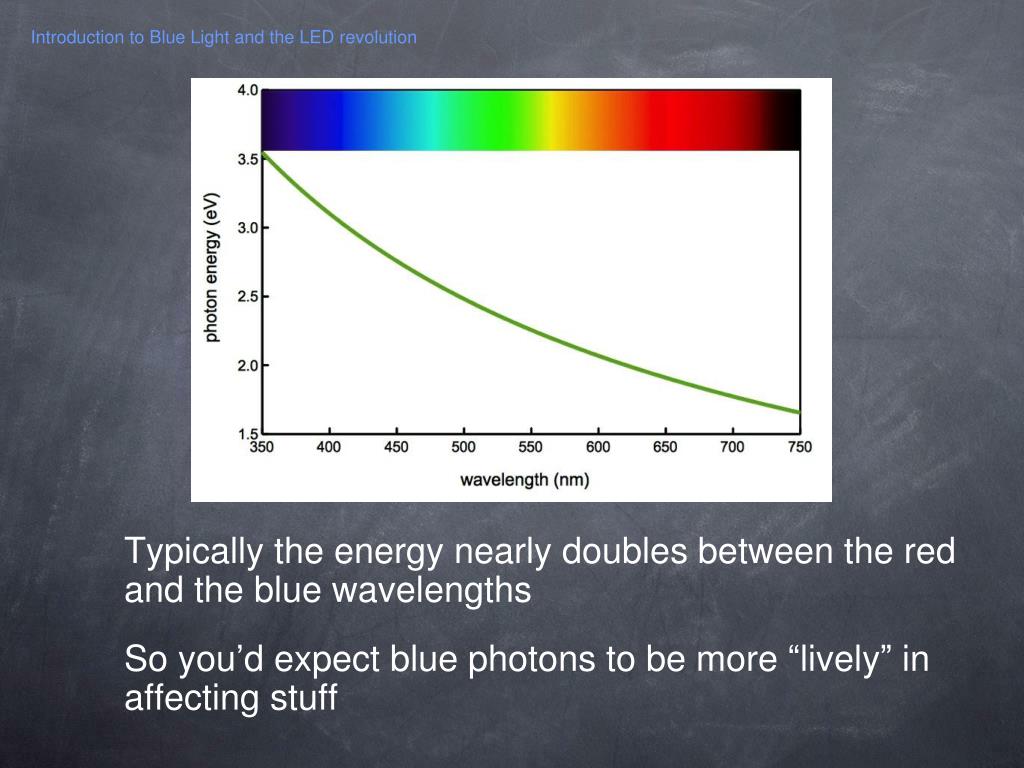

9. Introduction to Blue Light and the LED revolution Typically the energy nearly doubles between the red and the blue wavelengths So you’d expect blue photons to be more “lively” in affecting stuff

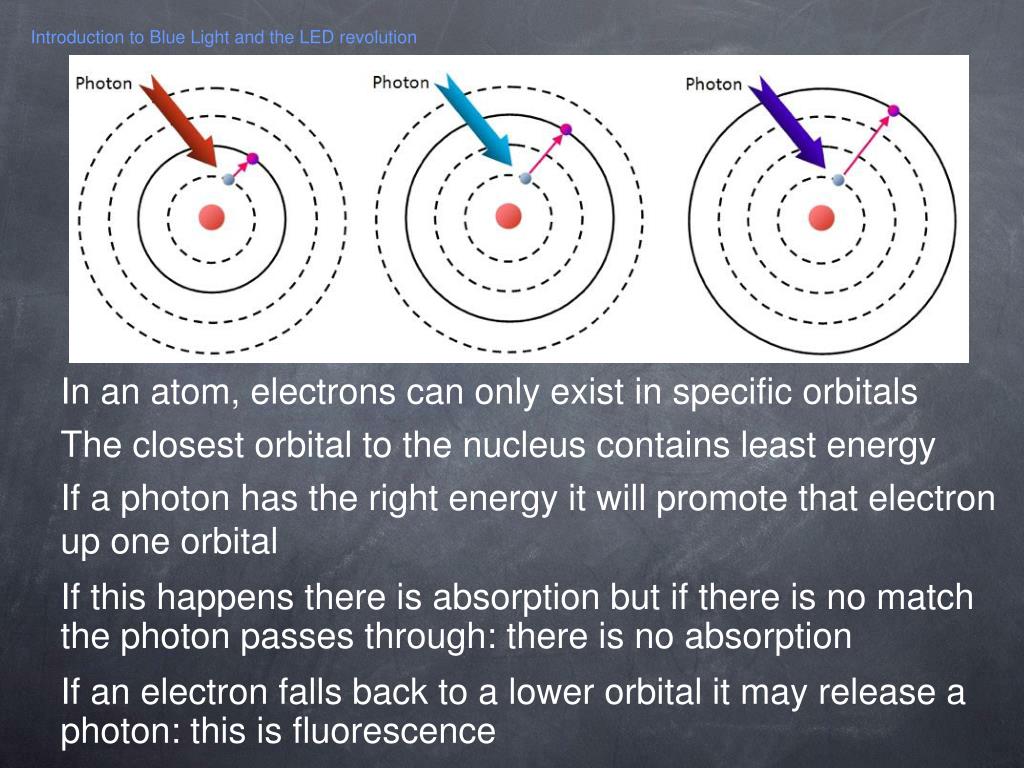

10. Introduction to Blue Light and the LED revolution In an atom, electrons can only exist in specific orbitals The closest orbital to the nucleus contains least energy If a photon has the right energy it will promote that electron up one orbital If this happens there is absorption but if there is no match the photon passes through: there is no absorption If an electron falls back to a lower orbital it may release a photon: this is fluorescence

11. Introduction to Blue Light and the LED revolution Excited atoms have energy and do things So we should expect effects where there is absorption Looking at tissues, e.g. in the eye, we can predict that tissues might be effected if they absorb the light

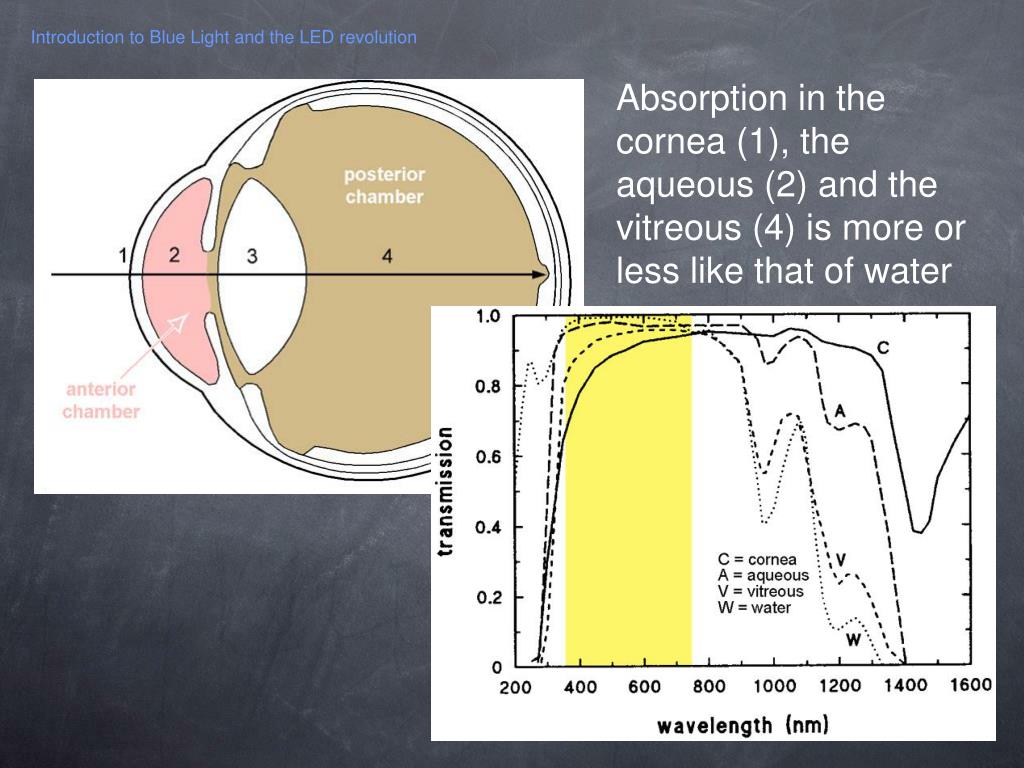

12. Introduction to Blue Light and the LED revolution Absorption in the cornea (1), the aqueous (2) and the vitreous (4) is more or less like that of water

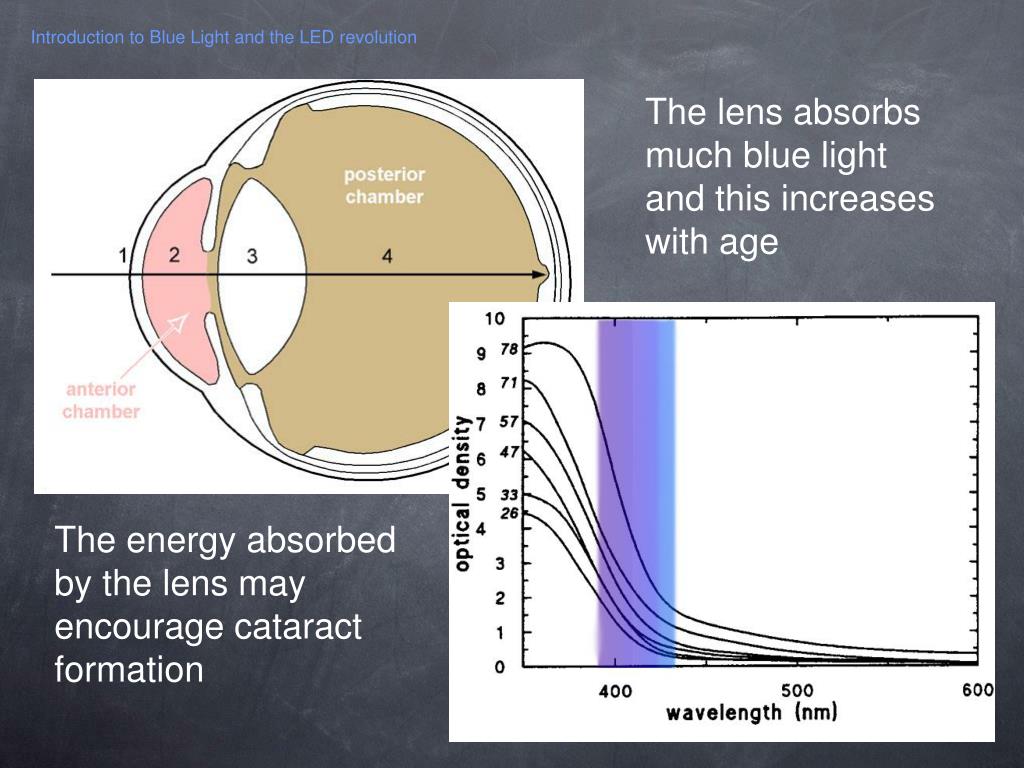

13. Introduction to Blue Light and the LED revolution The lens absorbs much blue light and this increases with age The energy absorbed by the lens may encourage cataract formation

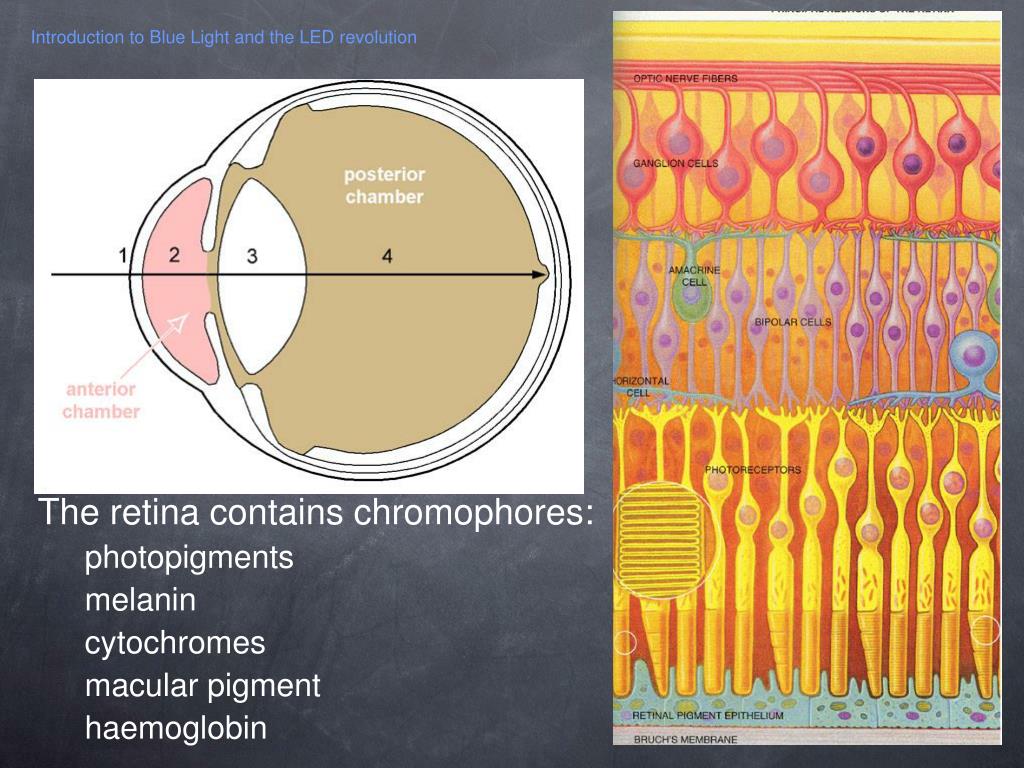

14. Introduction to Blue Light and the LED revolution The retina contains chromophores: photopigments melanin cytochromes macular pigment haemoglobin

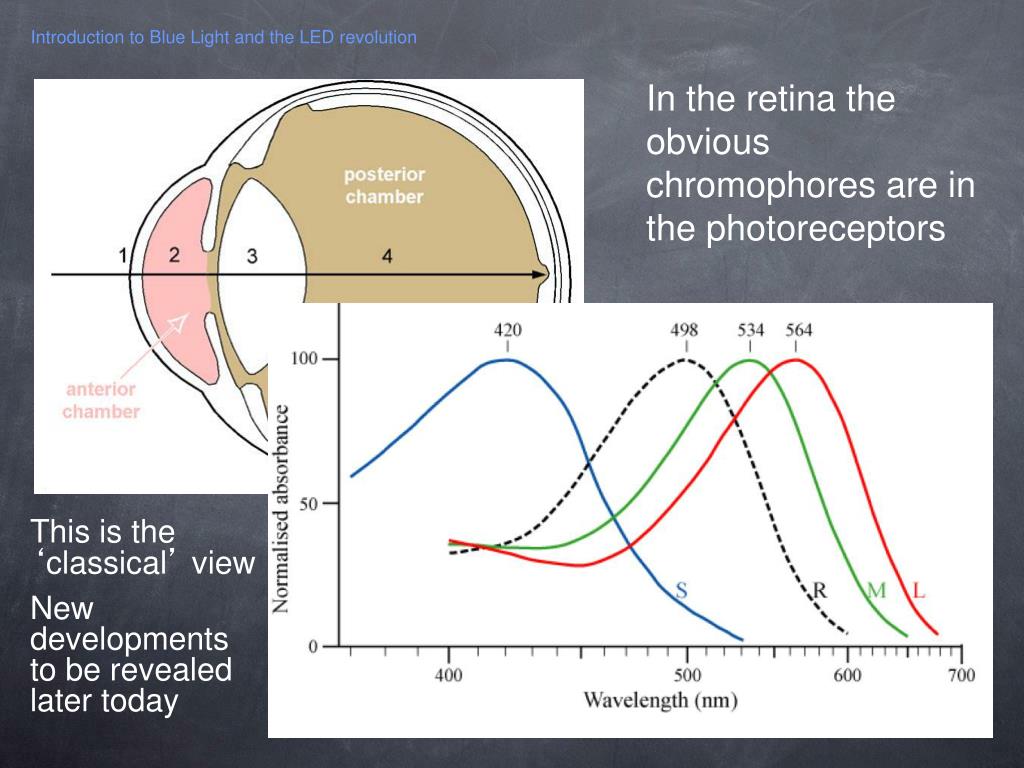

15. Introduction to Blue Light and the LED revolution In the retina the obvious chromophores are in the photoreceptors This is the ‘classical’ view New developments to be revealed later today

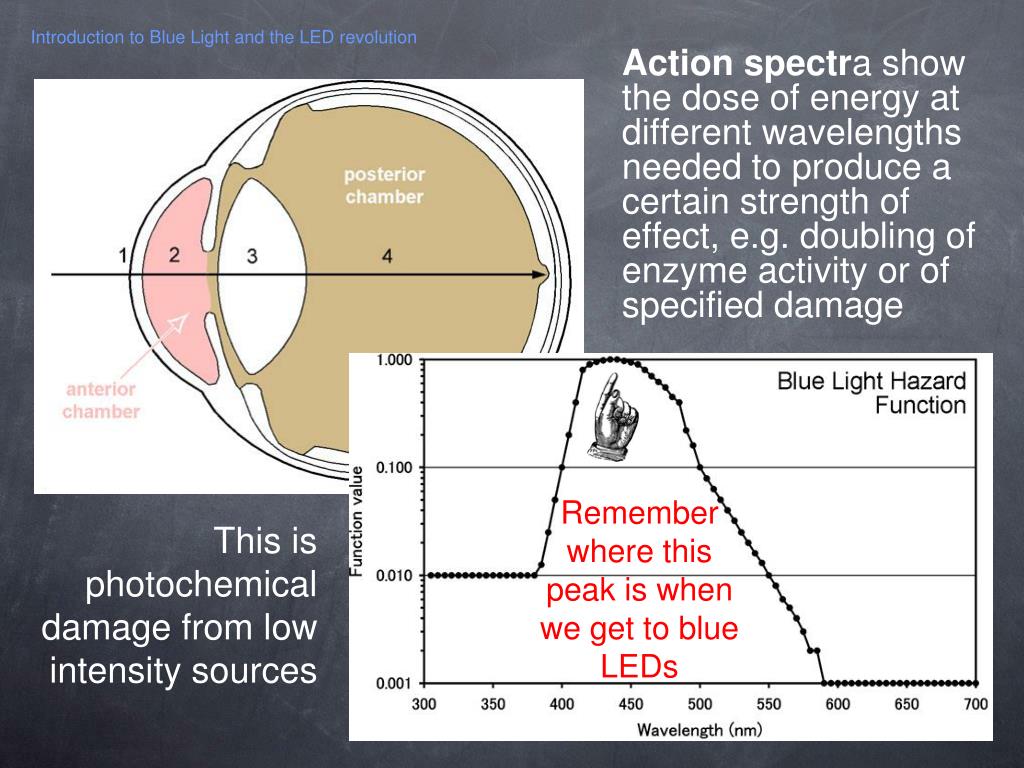

16. Introduction to Blue Light and the LED revolution Action spectra show the dose of energy at different wavelengths needed to produce a certain strength of effect, e.g. doubling of enzyme activityor of specified damage Remember where this peak is when we get to blue LEDs This is photochemical damage from low intensity sources

17. Introduction to Blue Light and the LED revolution SOURCES OFBLUE LIGHT Natural sources are nearly all of solar origin: solar disc blue sky reflections from snow, sand, water The quality changes with time of day – more later Other sources: lightning

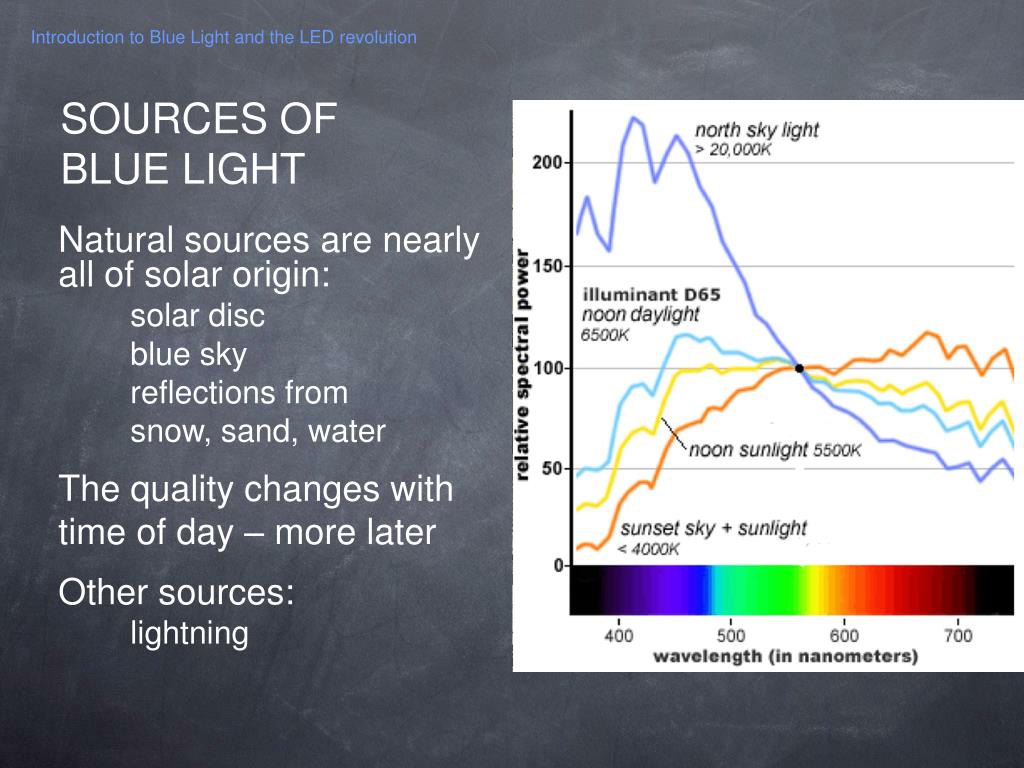

18. Introduction to Blue Light and the LED revolution SOURCES OFBLUE LIGHT Natural sources are nearly all of solar origin: solar disc blue sky reflections from snow, sand, water The quality changes with time of day – more later Other sources: lightning

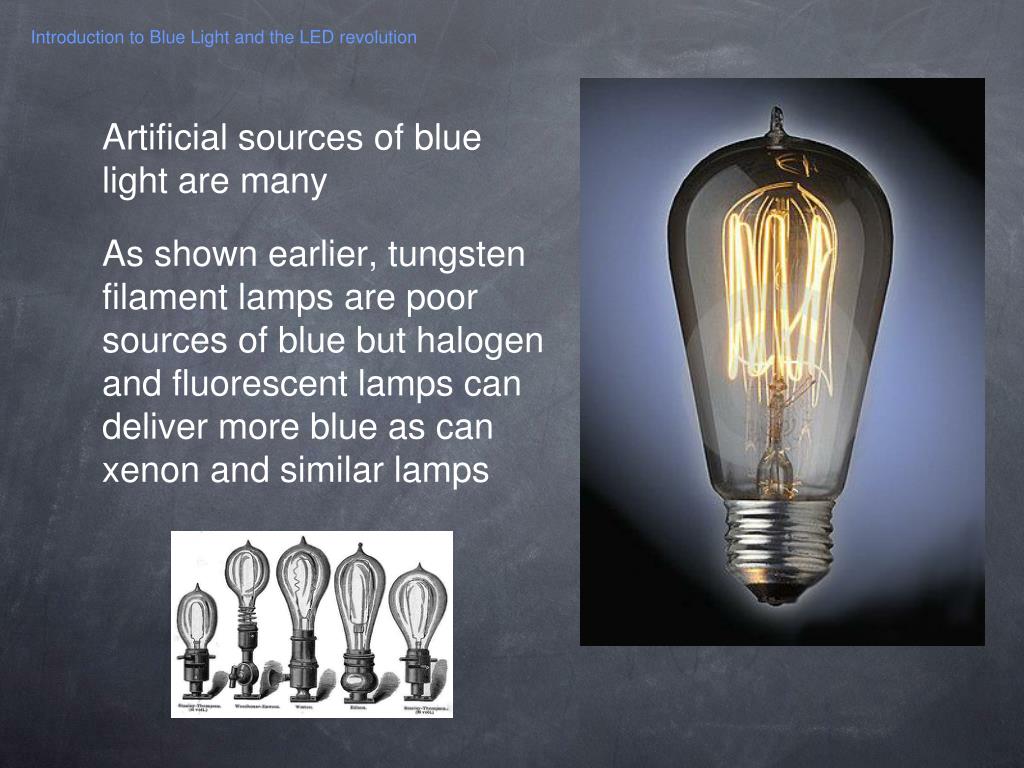

19. Introduction to Blue Light and the LED revolution Artificial sources of blue light are many As shown earlier, tungsten filament lamps are poor sources of blue but halogen and fluorescent lamps can deliver more blue as can xenon and similar lamps

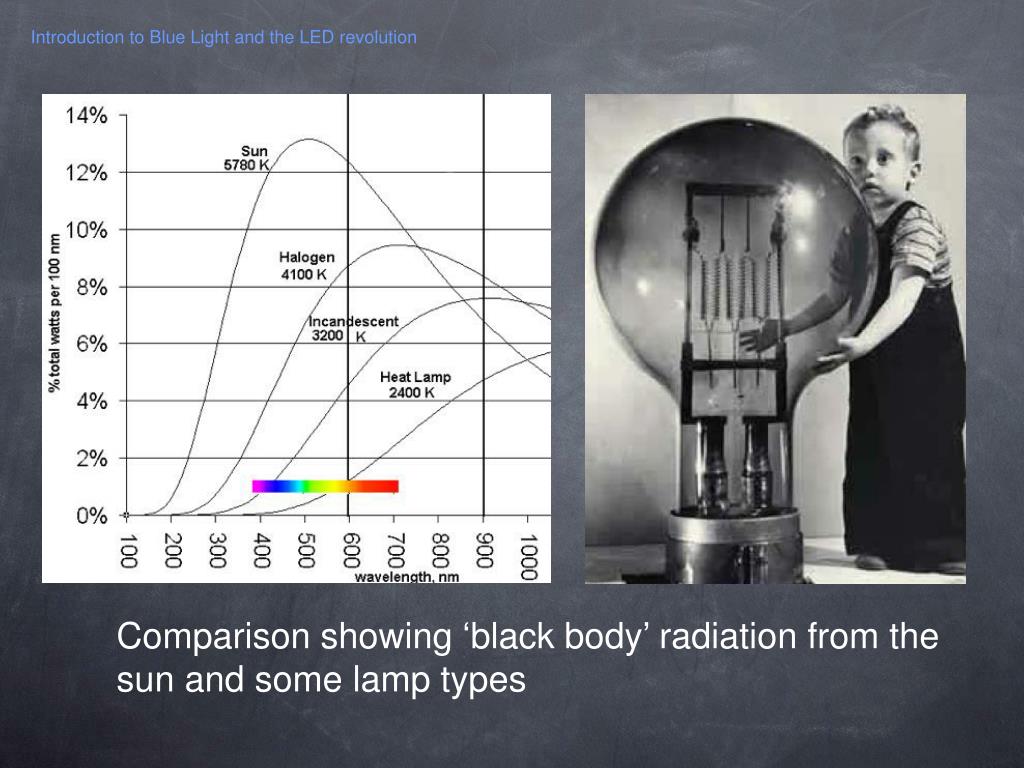

20. Introduction to Blue Light and the LED revolution Comparison showing ‘black body’ radiation from the sun and some lamp types

21. Introduction to Blue Light and the LED revolution 3 15 70 Luminous efficacy is the amount of light you get for every Watt of power used Lamp development is largely driven by seeking the highest luminous efficacy Theoretical max for the ‘perfect’ lamp is 680 lm/W

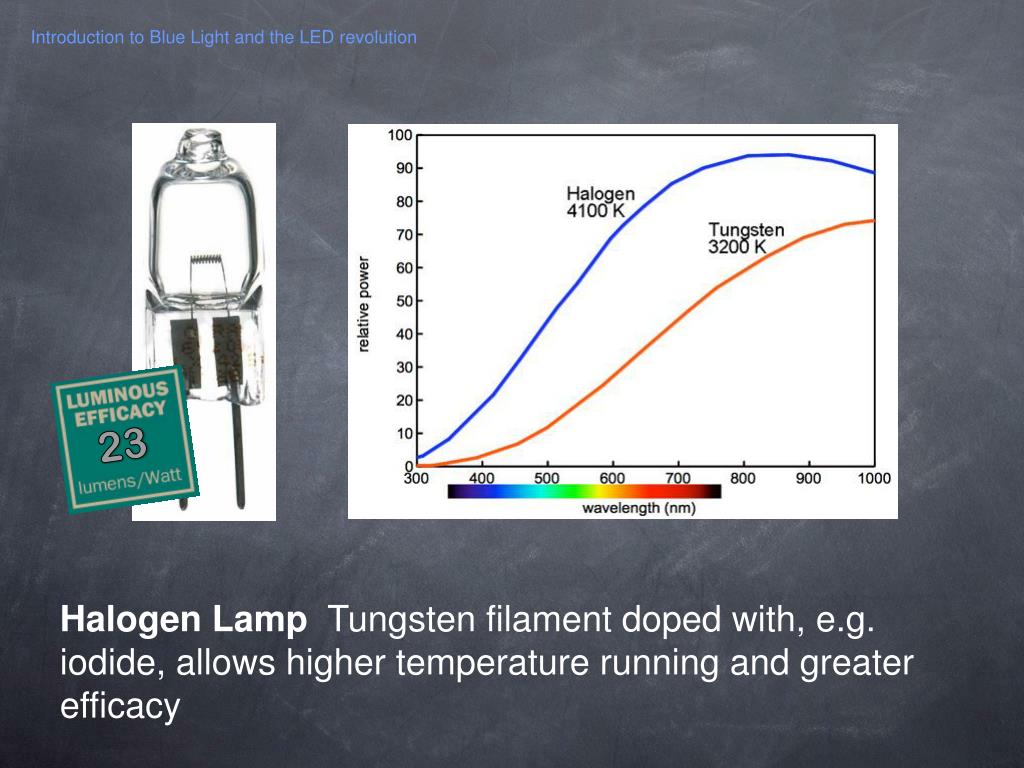

22. Introduction to Blue Light and the LED revolution 23 Halogen Lamp Tungsten filament doped with, e.g. iodide, allows higher temperature running and greater efficacy

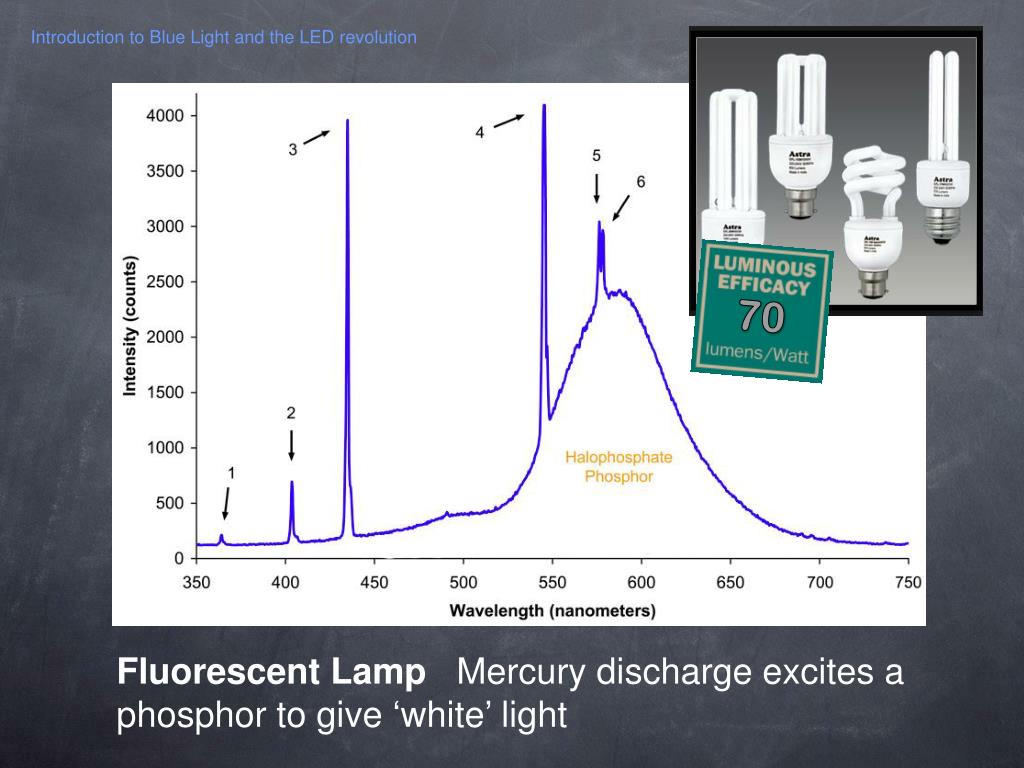

23. Introduction to Blue Light and the LED revolution 70 Fluorescent Lamp Mercury discharge excites a phosphor to give ‘white’ light

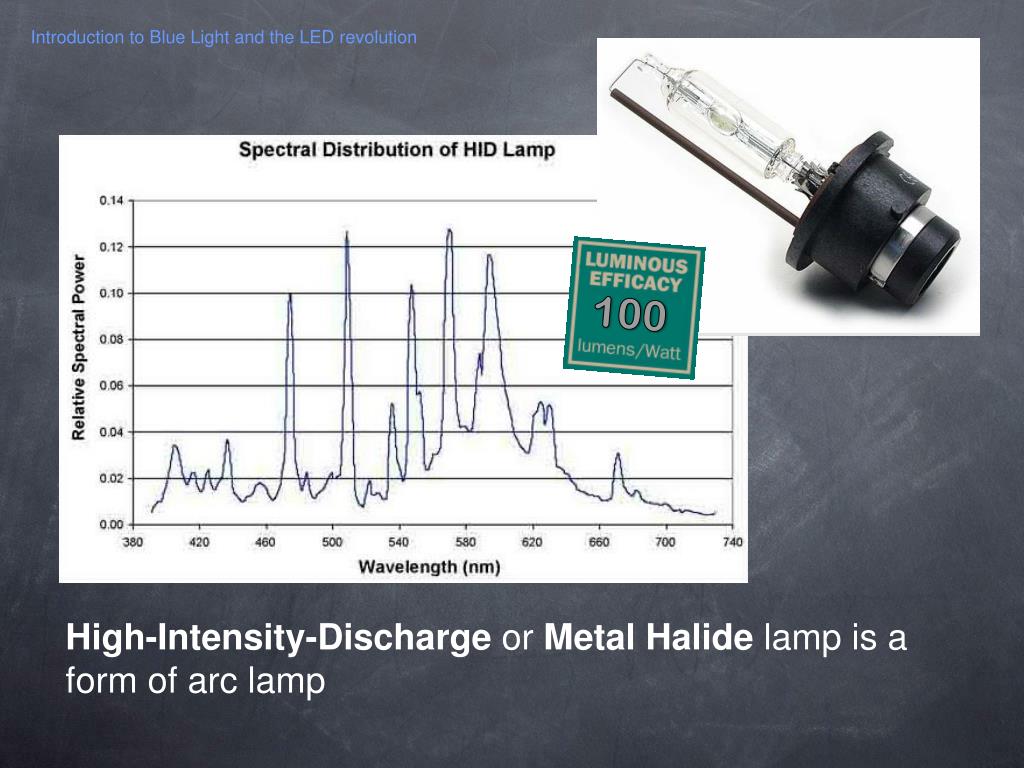

24. Introduction to Blue Light and the LED revolution 100 High-Intensity-Discharge or Metal Halide lamp is a form of arc lamp

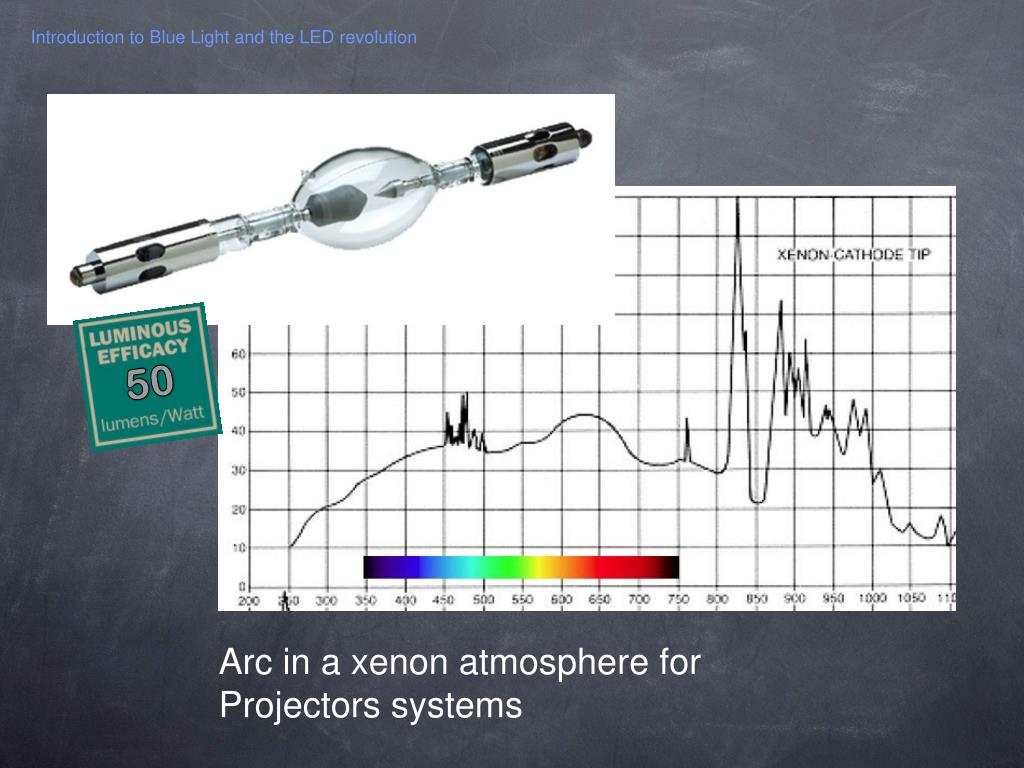

25. Introduction to Blue Light and the LED revolution 50 Arc in a xenon atmosphere for Projectors systems

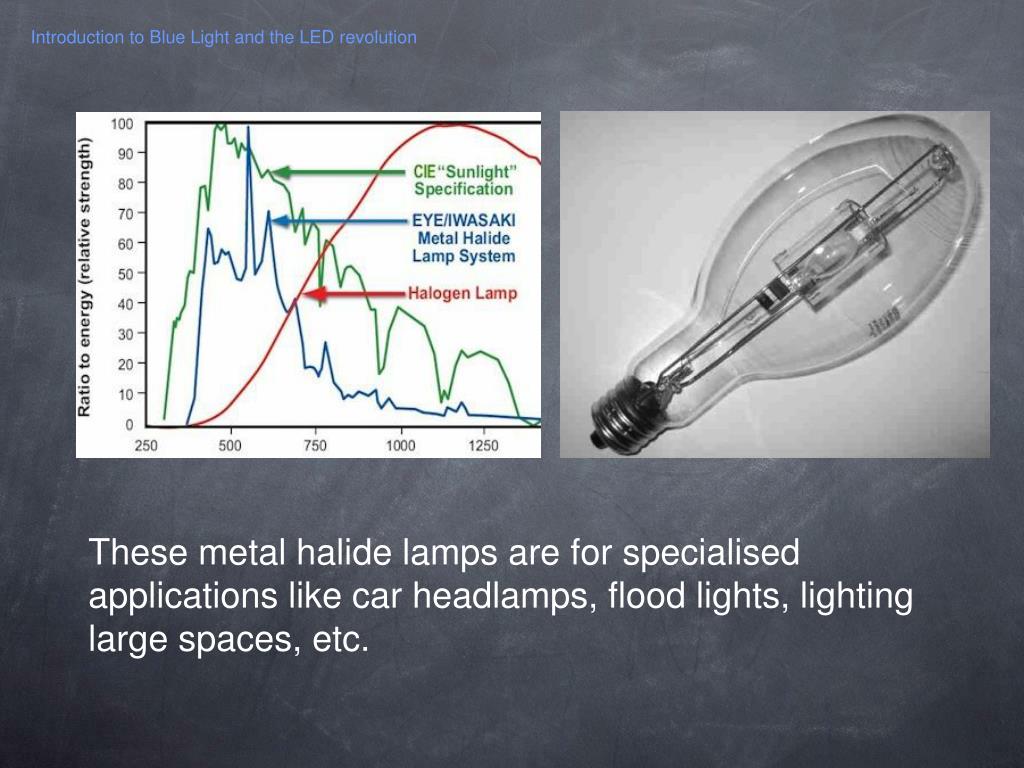

26. Introduction to Blue Light and the LED revolution These metal halide lamps are for specialised applications like car headlamps, flood lights, lighting large spaces, etc.

27. Introduction to Blue Light and the LED revolution Lasers can do all kinds of nasty things so we shall not look at them here though they can produce enough blue light to melt Fort Knox

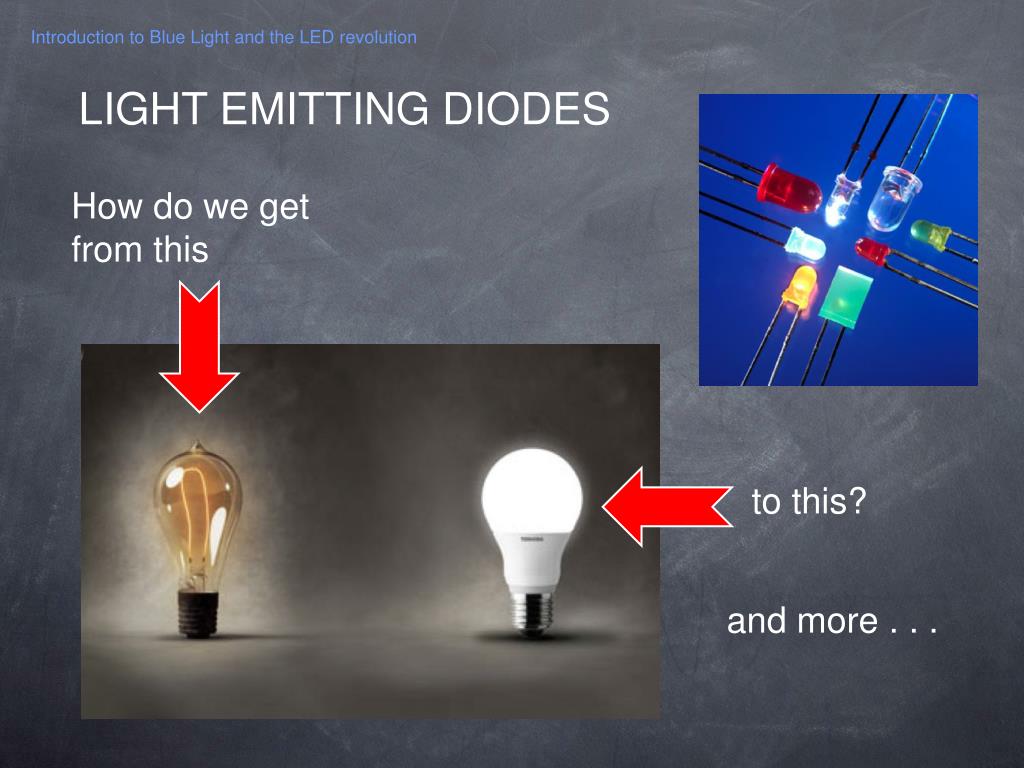

28. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES How do we getfrom this to this? and more . . .

29. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1907 J H Round at Marconi Labs noticed that some crystals used in the early crystal set radios emitted light when an electrical current passed through them – they called this electroluminescence

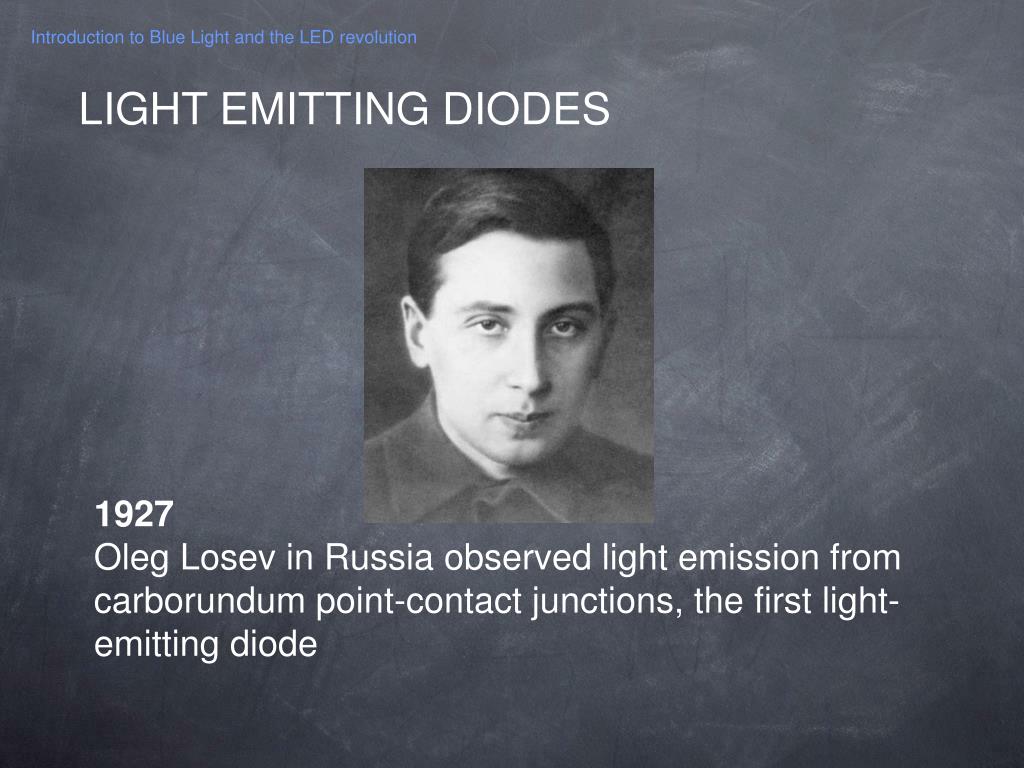

30. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1927 Oleg Losev in Russia observed light emission from carborundum point-contact junctions, the first light-emitting diode

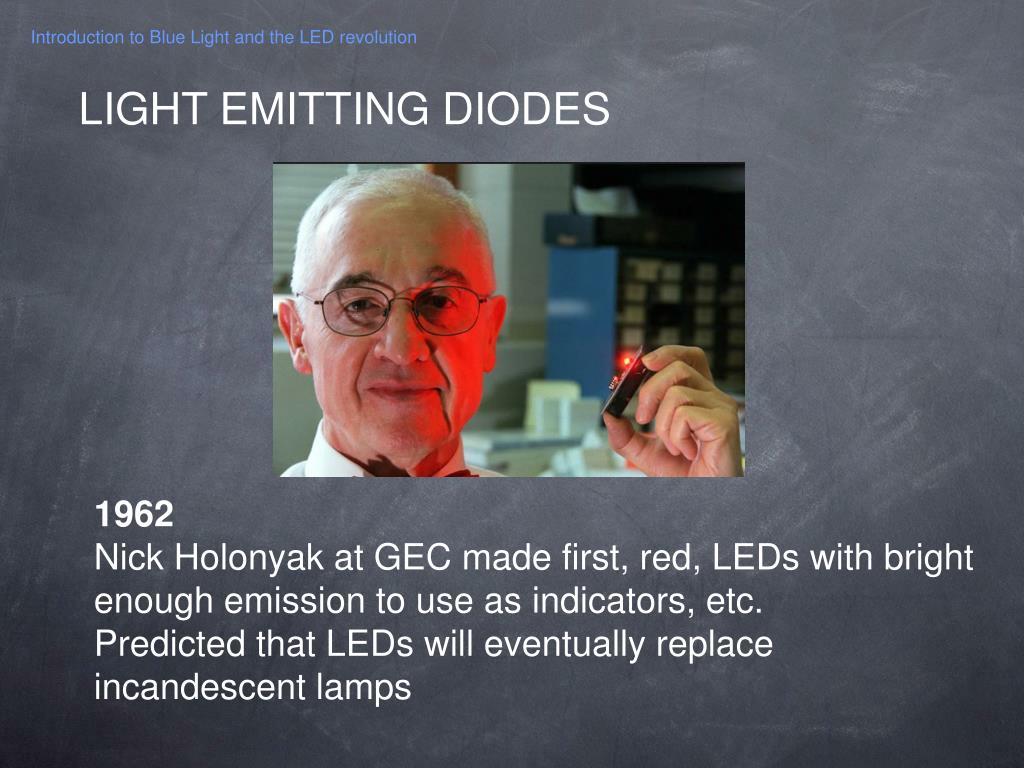

31. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1962 Nick Holonyak at GEC made first, red, LEDs with bright enough emission to use as indicators, etc. Predicted that LEDs will eventually replace incandescent lamps

32. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1968 First commercial use of mass-produced LEDs was in Hewlett Packard calculators. Did you have one?

33. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1972 First usable yellow and green LEDs but they are dim

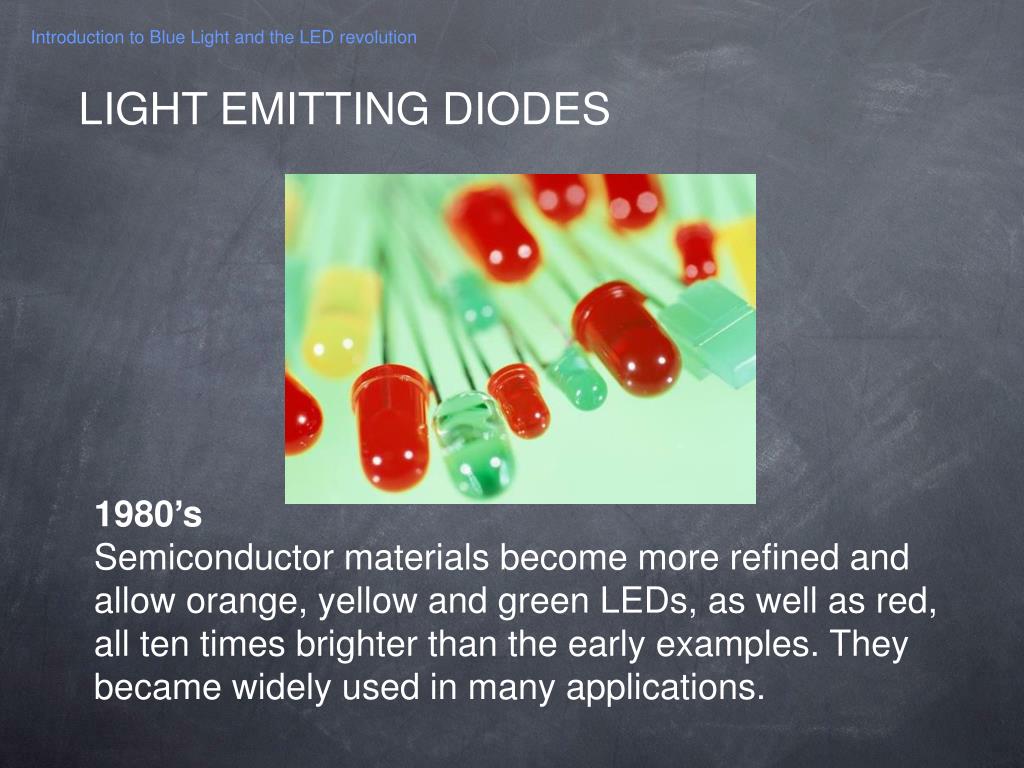

34. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1980’s Semiconductor materials become more refined and allow orange, yellow and green LEDs, as well as red, all ten times brighter than the early examples. They became widely used in many applications.

35. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1989 First LED traffic lights but they don’t catch on immediately as energy conservation was not a consideration then and there were some problems of compatibility with standard specs for colours

36. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 1993 First high brightness blue LEDs which opened the way for developing white LEDs

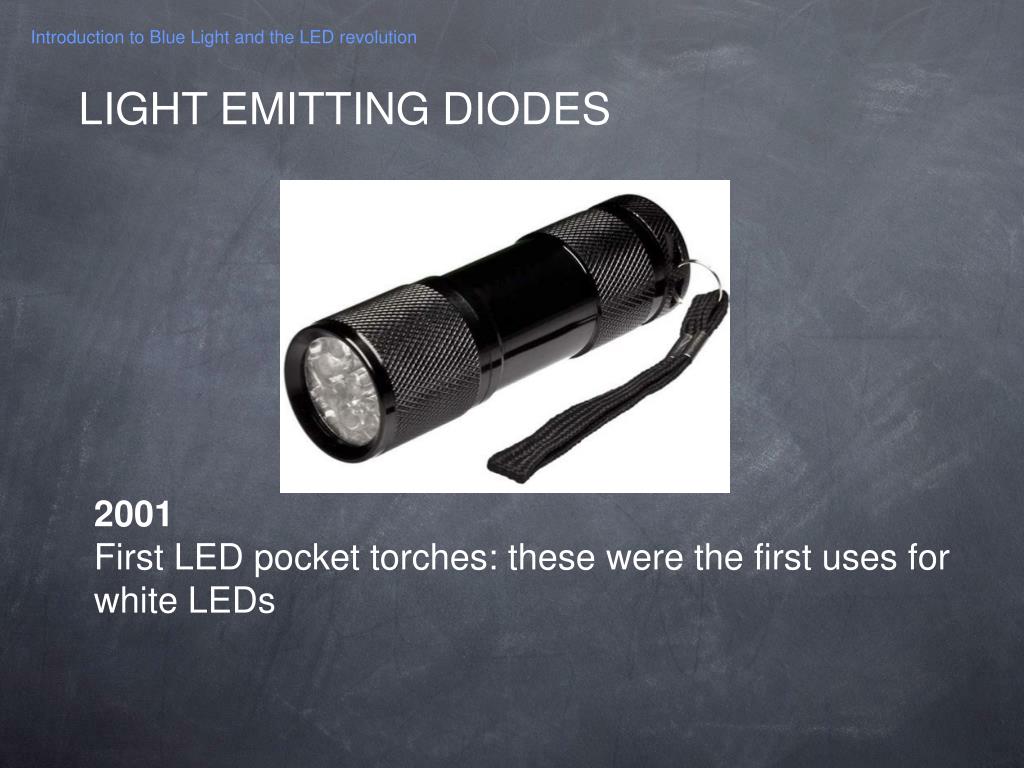

37. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 2001 First LED pocket torches: these were the first uses for white LEDs

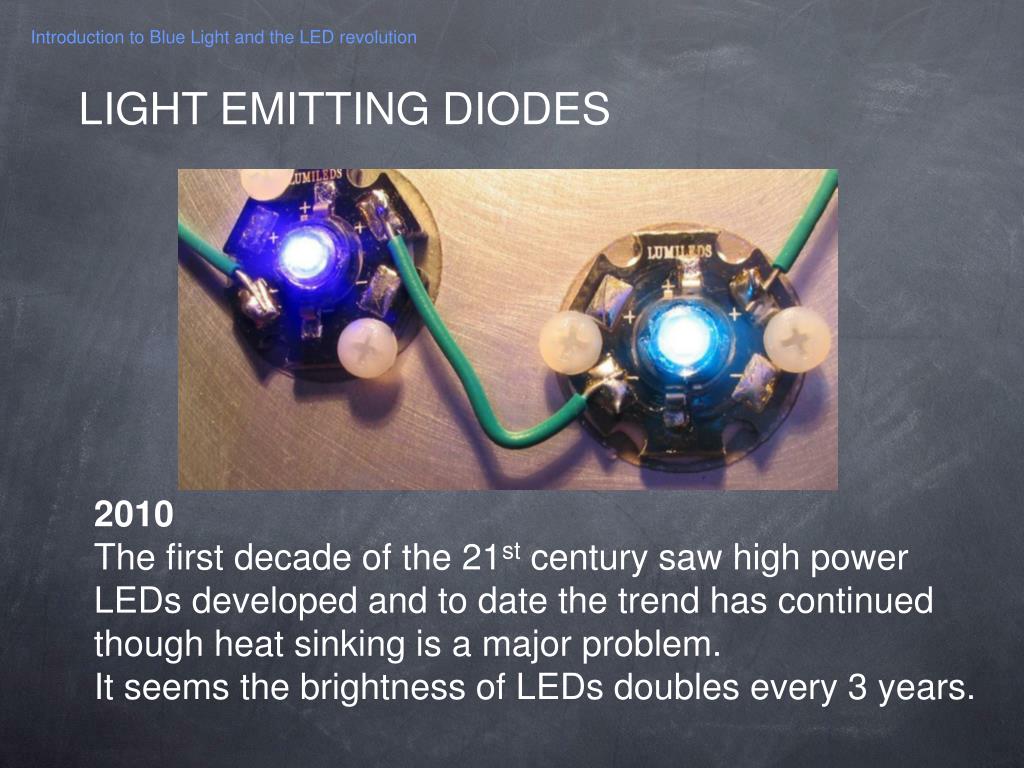

38. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES 2010 The first decade of the 21st century saw high power LEDs developed and to date the trend has continued though heat sinking is a major problem. It seems the brightness of LEDs doubles every 3 years.

39. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES High power LED’s are now found in many applications like LED TV’s, theatre lighting, projector lamps and general and point lighting in the home

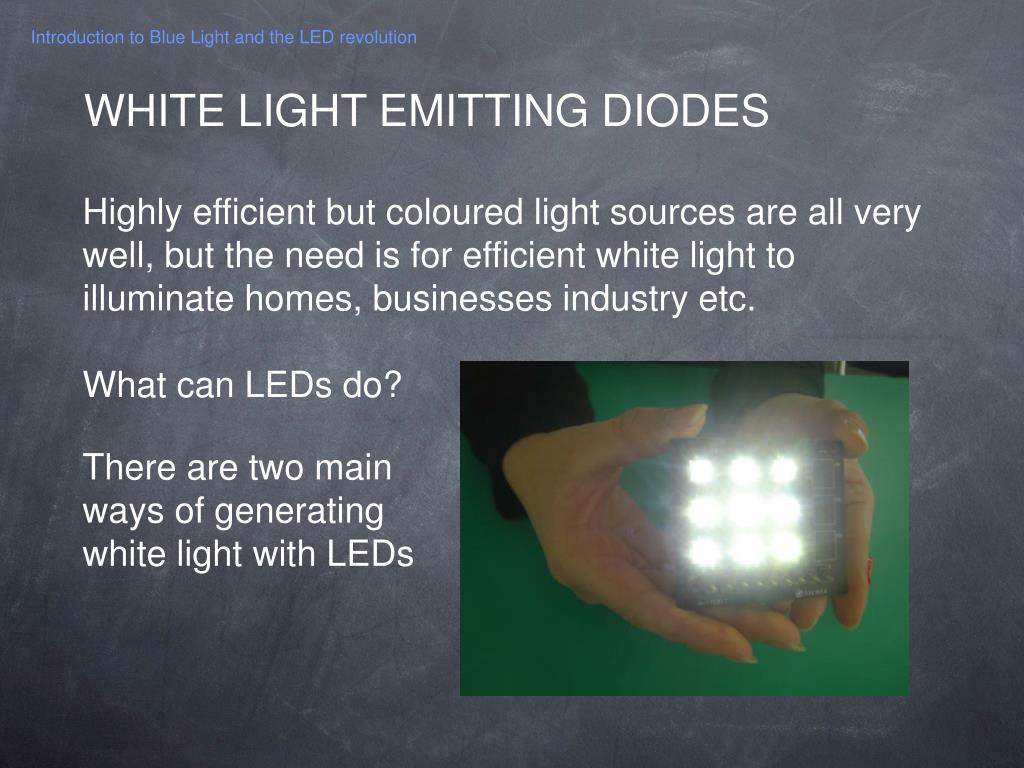

40. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Highly efficient but coloured light sources are all very well, but the need is for efficient white light to illuminate homes, businesses industry etc. What can LEDs do? There are two main ways of generating white light with LEDs

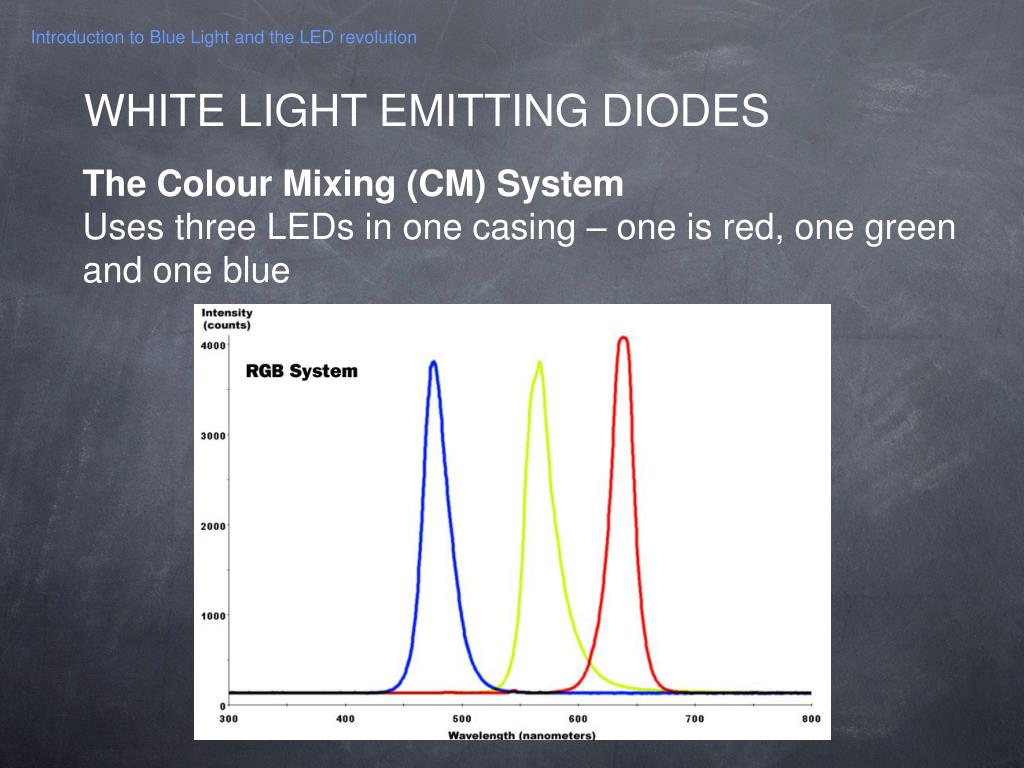

41. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES The Colour Mixing (CM) System Uses three LEDs in one casing – one is red, one green and one blue

42. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Phosphor-Coated (PC) System Uses a blue LED to excite a phosphor much as a Hg discharge does in a traditional fluorescent lamp

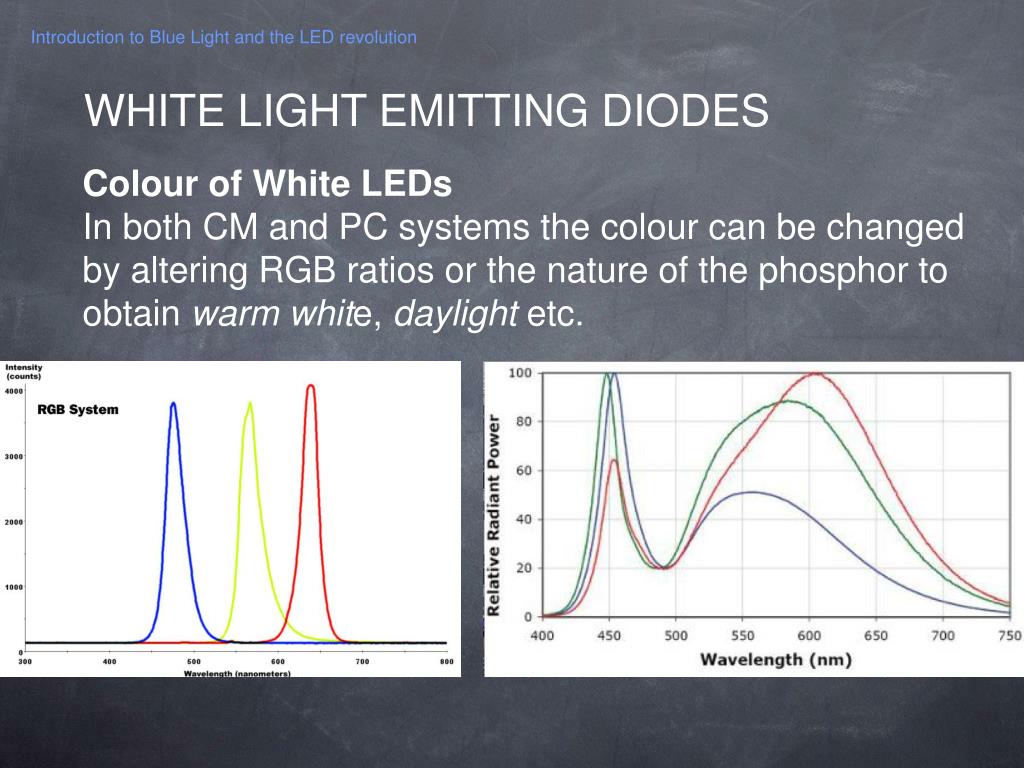

43. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Colour of White LEDs In both CM and PC systems the colour can be changed by altering RGB ratios or the nature of the phosphor to obtain warm white, daylight etc.

44. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Colour Rendering and Metamerism In both CM and PC systems not all wavelengths are present so strange colour matching may result and appearances are not constant

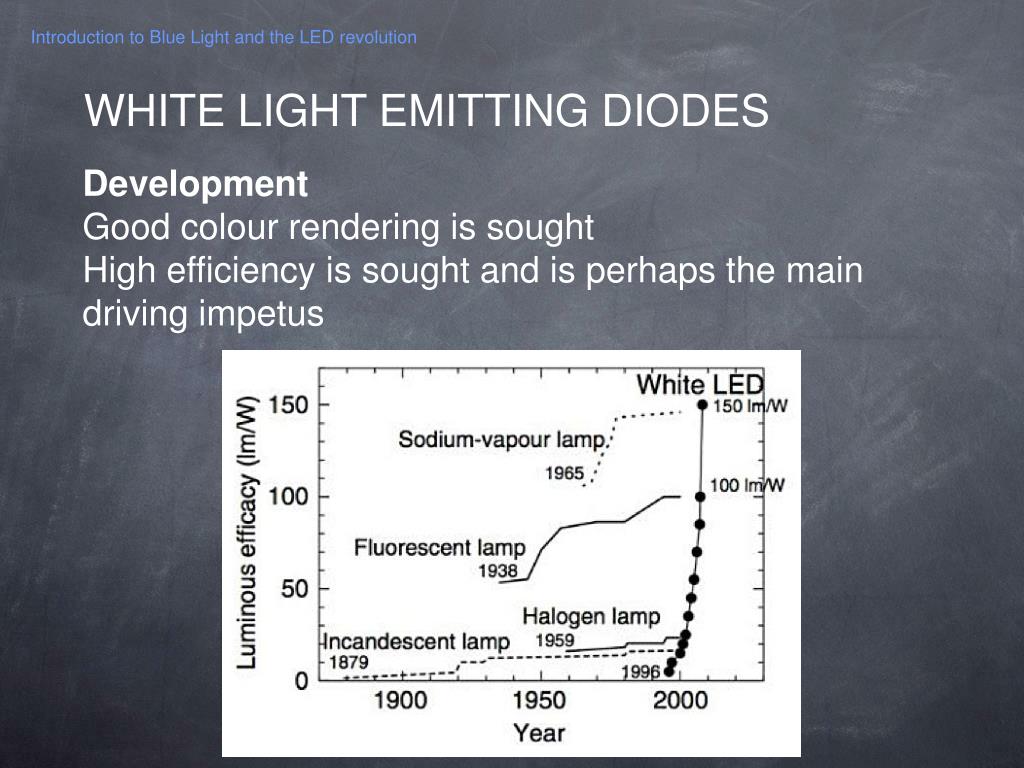

45. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Development Good colour rendering is sought High efficiency is sought and is perhaps the main driving impetus

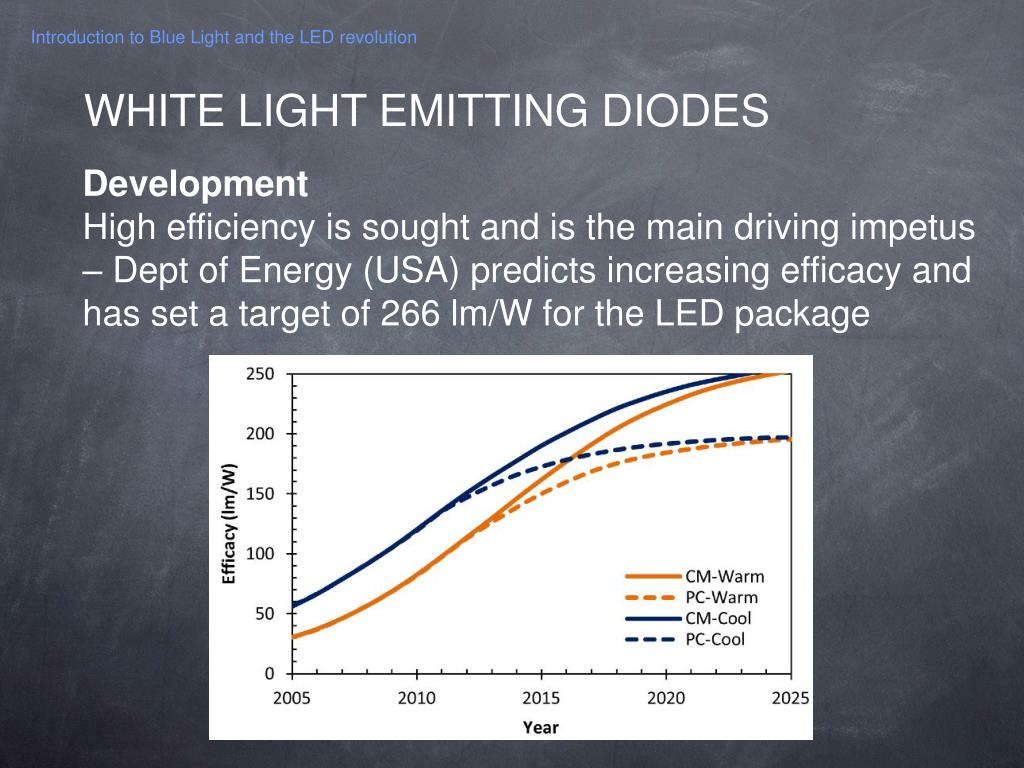

46. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Development High efficiency is sought and is the main driving impetus – Dept of Energy (USA) predicts increasing efficacy and has set a target of 266 lm/W for the LED package

47. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Development High efficiency is sought but in the real World LED packages and luminaires must both be considered

48. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Development If all the lights in the World were LEDs with 200 lm/W luminous efficacy, there would be a saving of 40% of the World’s generating capacity* * This controvertial figure is given by Philips – see: http://www.newscenter.philips.com/gb_en/standard/news/press/2013/20130411-philips-creates-the-world-s-most-energy-efficient-warm-white-led-lamp.wpd#.Unzy-eB21bs

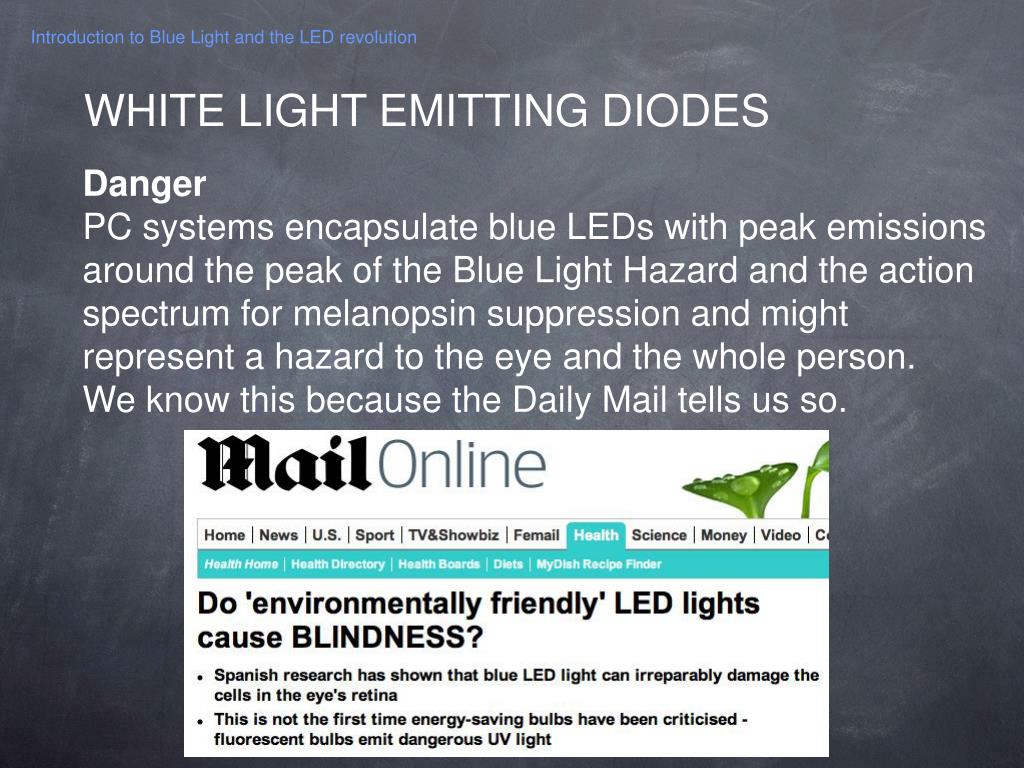

49. Introduction to Blue Light and the LED revolution WHITE LIGHT EMITTING DIODES Danger PC systems encapsulate blue LEDs with peak emissions around the peak of the Blue Light Hazard and the action spectrum for melanopsin suppression and might represent a hazard to the eye and the whole person. We know this because the Daily Mail tells us so.

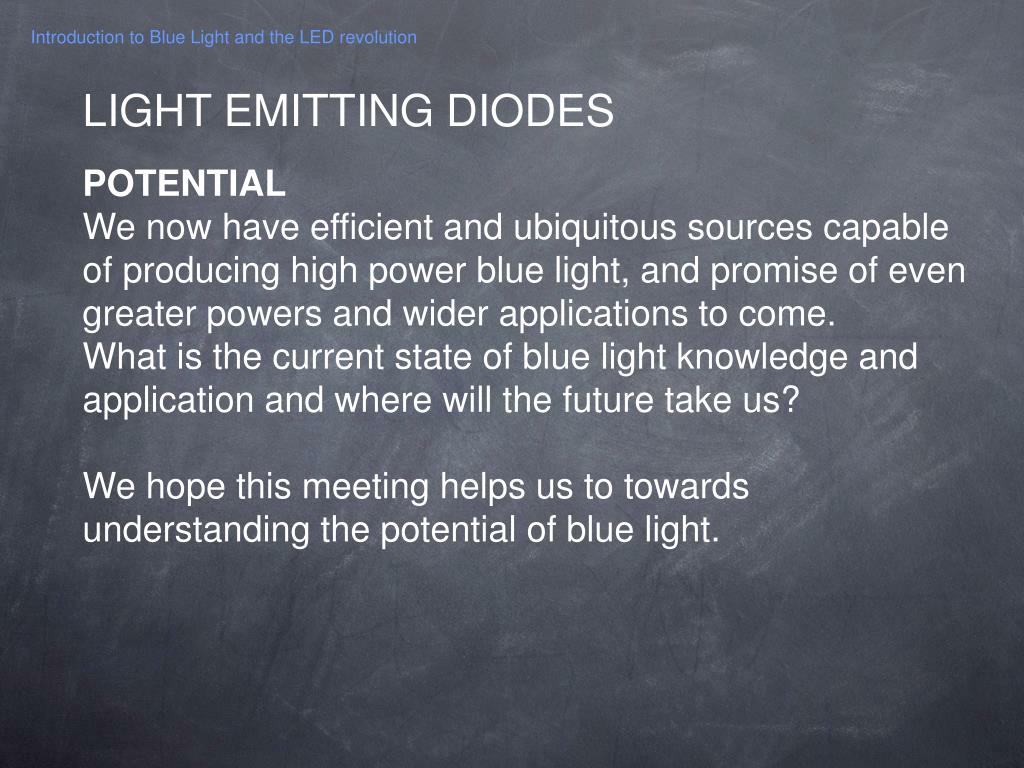

50. Introduction to Blue Light and the LED revolution LIGHT EMITTING DIODES POTENTIAL We now have efficient and ubiquitous sources capable of producing high power blue light, and promise of even greater powers and wider applications to come. What is the current state of blue light knowledge and application and where will the future take us? We hope this meeting helps us to towards understanding the potential of blue light.
