  1. Adiabatic Circuits Mohammad Sharifkhani

  2. Introduction • Applying slow input slopes reduces E below CV2 • Useful for driving large capacitors (Buffers) • Power reduction > 4 for pad drivers (1 MHz) Dissipated E over R

  3. Basic concepts If we slow down the powerclock’s risetime by a factor of N: • The time required increases by a factor of N. • The current decreases by a factor of N. • The power decreases by a factor of N 2 . • The dissipated energy per operation decreases by a factor of N. • The transferred charge and energy stored on Cap are unchanged. Regular Denker94 Adia.

  4. Basic concepts • The output has a predetermined “resting” level (ground in this case). Whenever the output makes a transition away from the resting level, it must be returned (“recharged”) to the resting level before the start of the next calculation. This recharge step carries a terrible price. • Three ways to do the recharge: • Retractile cascade schemes • Memory Scheme • Reverse function

  5. Retractile scheme • The input to stage 1 must be valid for 2M + 1 phases. • What’s worse is that the throughput is reduced by a factor of M or so, since no pipelining is possible.

  6. Memory scheme

  7. Memory Scheme Next stage

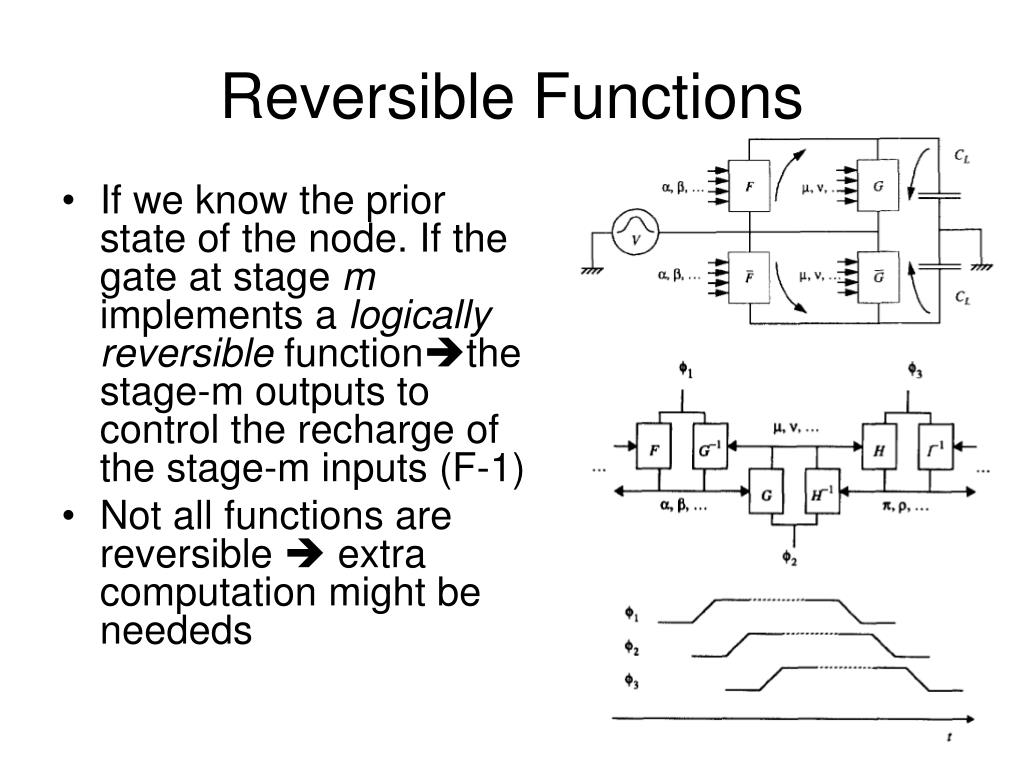

  8. Reversible Functions • If we know the prior state of the node. If the gate at stage m implements a logically reversible functionthe stage-m outputs to control the recharge of the stage-m inputs (F-1) • Not all functions are reversible  extra computation might be neededs

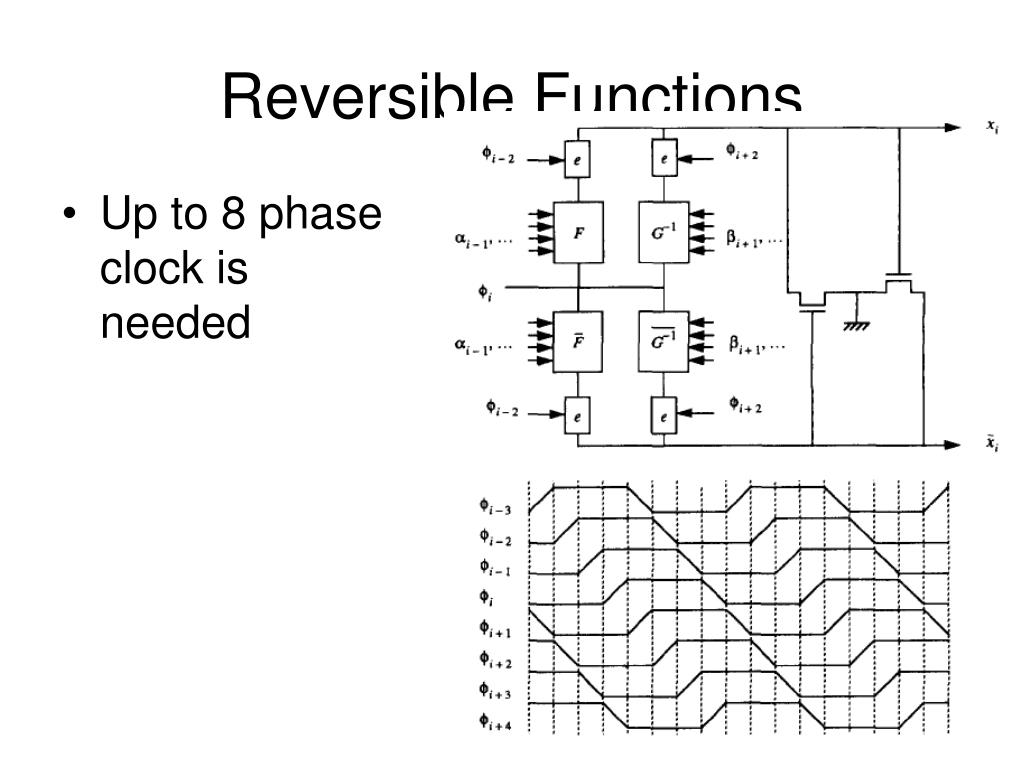

  9. Reversible Functions • Up to 8 phase clock is needed

  10. An adder the three-bit reversible adder requires 20 times the number of devices and 32 times the area of a conventional adder using the same technology and laid out by the same designer. Athas 94 TVLSI

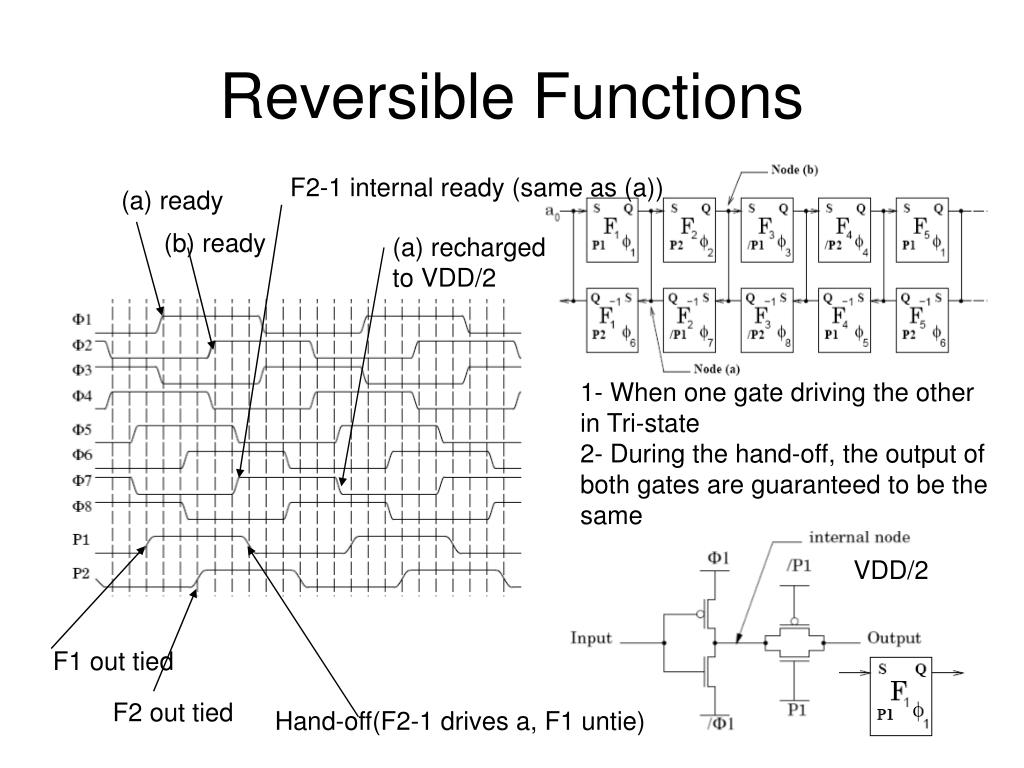

  11. Reversible Functions F2-1 internal ready (same as (a)) (a) ready (b) ready (a) recharged to VDD/2 1- When one gate driving the other in Tri-state 2- During the hand-off, the output of both gates are guaranteed to be the same VDD/2 F1 out tied F2 out tied Hand-off(F2-1 drives a, F1 untie)

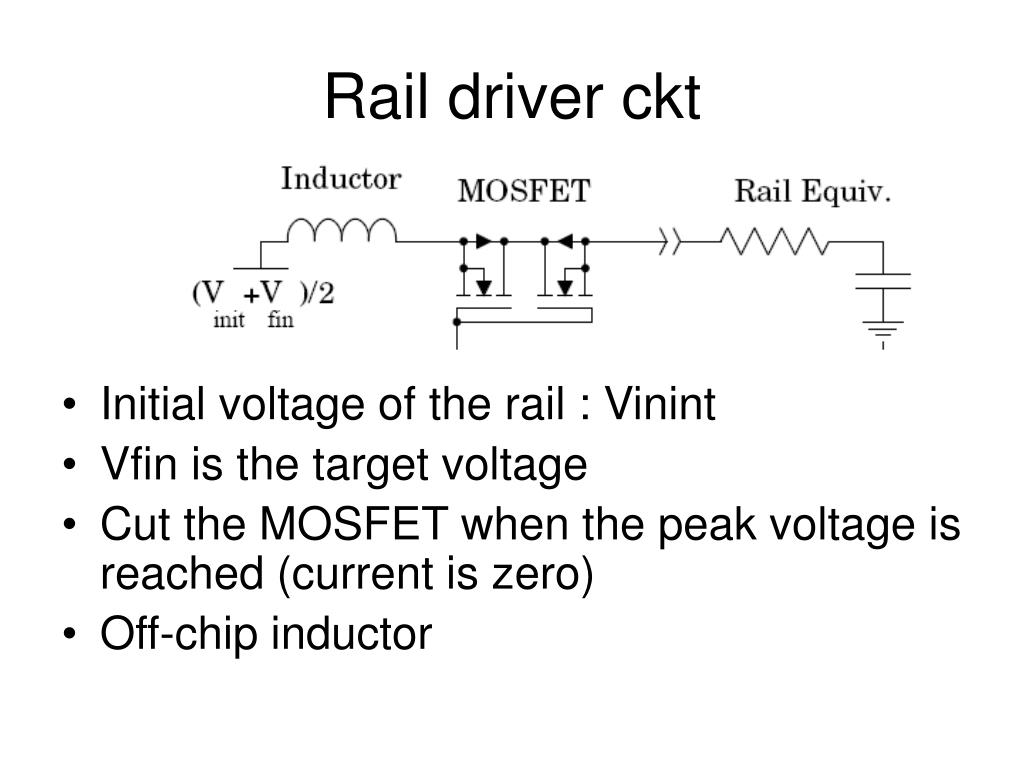

  12. Rail driver ckt • Initial voltage of the rail : Vinint • Vfin is the target voltage • Cut the MOSFET when the peak voltage is reached (current is zero) • Off-chip inductor

  13. Single phase/Memory based

  14. Single phase/Memory based • Arbitrary logic functions are implementable • Auxiliary clock is needed

  15. Single Pck + Reference Voltages Either MP1 or MP2 turns off Only the inputs set the IC at out, out_

  16. SOURCE-COUPLED ADIABATIC LOGIC N or P current sources conducting

  17. Adiabatic μP VDD+Vtn+Δ VDD+Vtn VDD Dynamically jumps up to more than VDD M2 blocks the pull back energy-recovery latch (E-R latch)

  18. Adiabatic μP : Two phase oscillator • Similar to what have been observed in LC tanks of RF circuits • For a constant capacitive load, the frequency will be stable and can be locked to a specific frequency with a varactor based phase-locked loop. • If synch with other blocks are needed: • We can use a FIFO and treat the adiabatic circuit as an asynch circuit

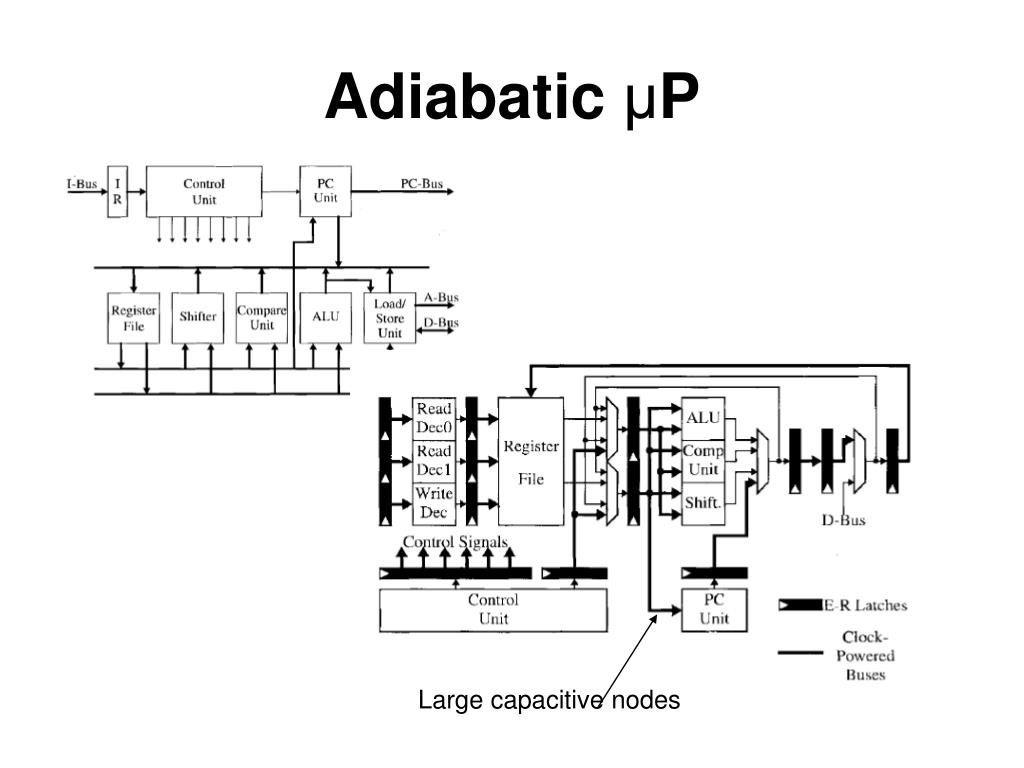

  19. Adiabatic μP Large capacitive nodes

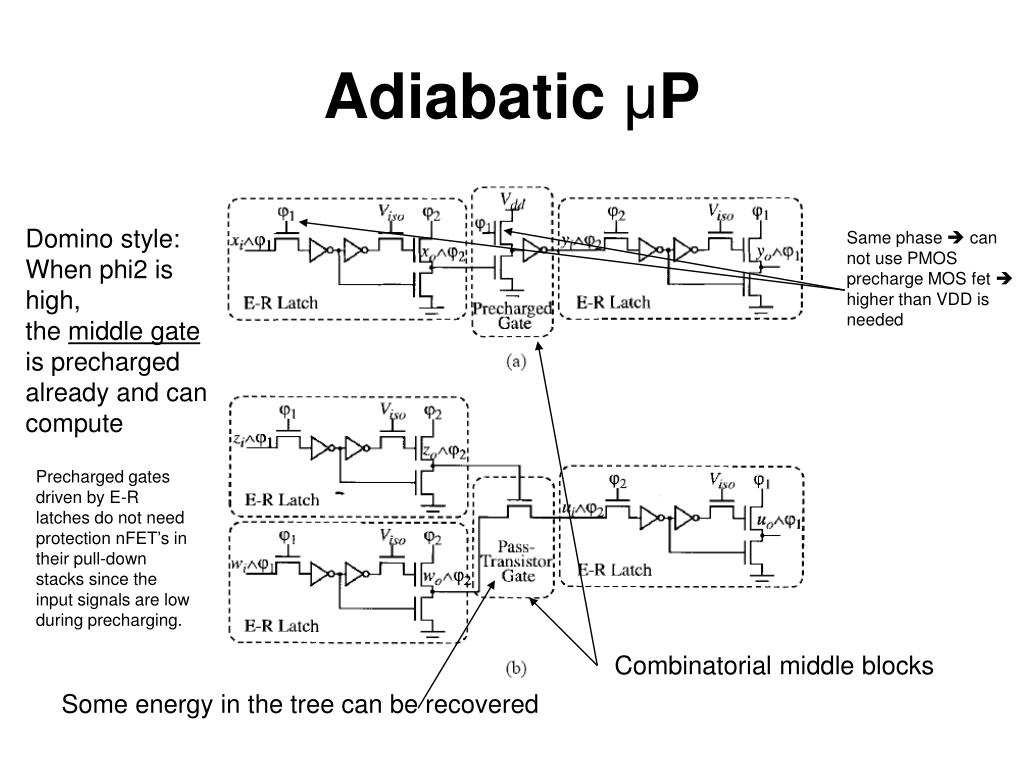

  20. Adiabatic μP Domino style: When phi2 is high, the middle gate is precharged already and can compute Same phase  can not use PMOS precharge MOS fet  higher than VDD is needed Precharged gates driven by E-R latches do not need protection nFET’s in their pull-down stacks since the input signals are low during precharging. Combinatorial middle blocks Some energy in the tree can be recovered
