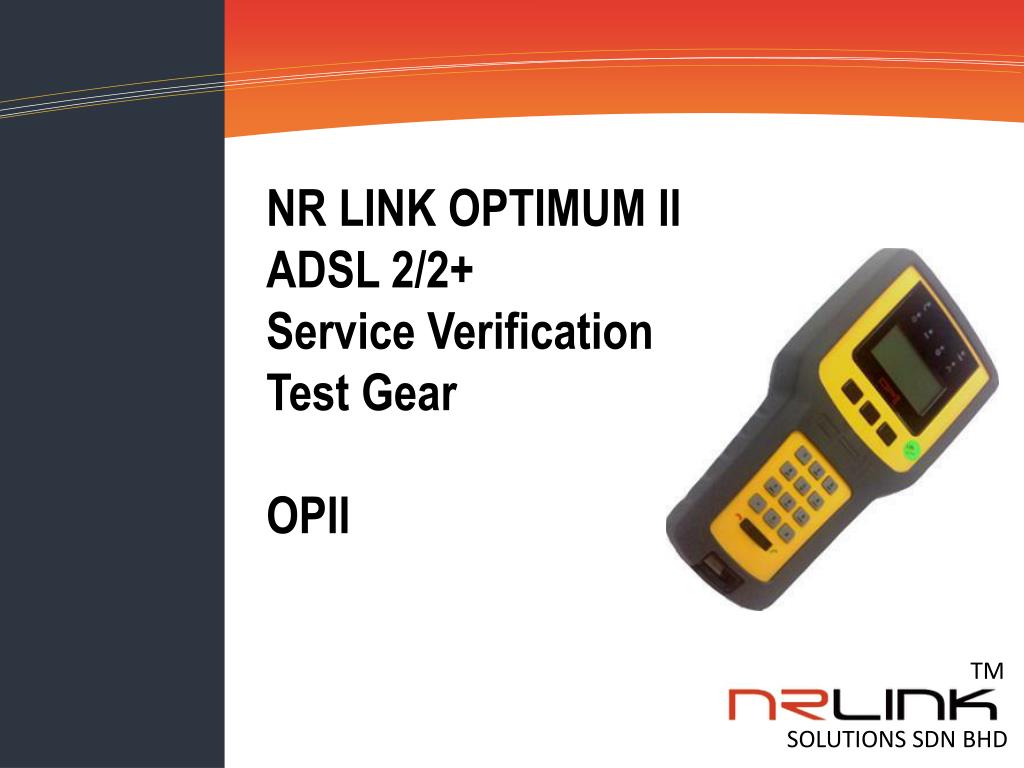

  1. NR LINK OPTIMUM II ADSL 2/2+ Service Verification Test Gear OPII TM SOLUTIONS SDN BHD

  2. AGENDA • OPTIMUS II Product Briefing • OPTIMUS II User Guide TM SOLUTIONS SDN BHD

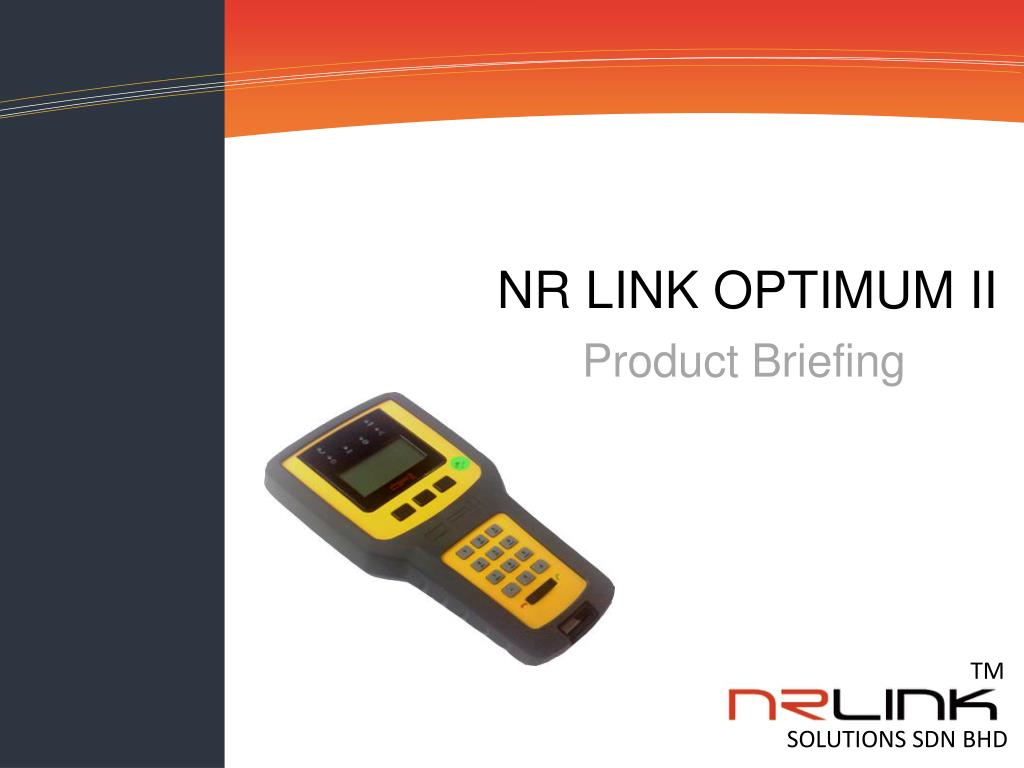

  3. NR LINK OPTIMUM II Product Briefing TM SOLUTIONS SDN BHD

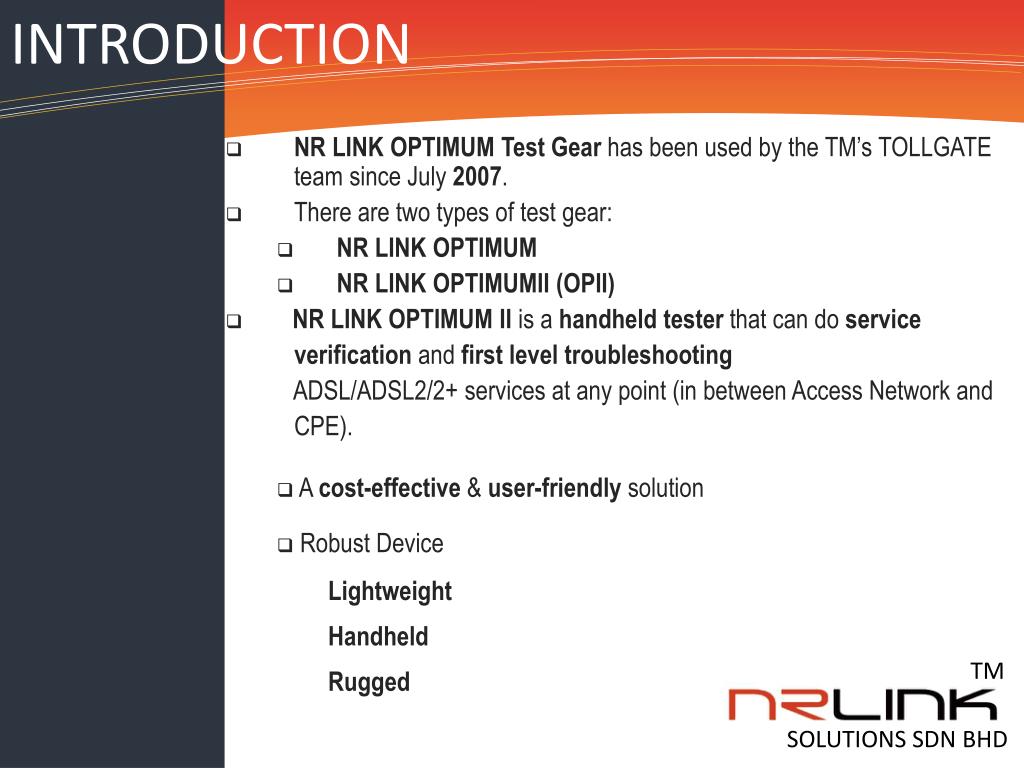

  4. INTRODUCTION • NR LINK OPTIMUMTest Gear has been used by the TM’s TOLLGATE team since July 2007. • There are two types of test gear: • NR LINK OPTIMUM • NR LINK OPTIMUMII (OPII) • NR LINK OPTIMUM II is a handheld tester that can do service • verification and first level troubleshooting • ADSL/ADSL2/2+ services at any point (in between Access Network and • CPE). • A cost-effective & user-friendly solution • Robust Device Lightweight Handheld Rugged TM SOLUTIONS SDN BHD

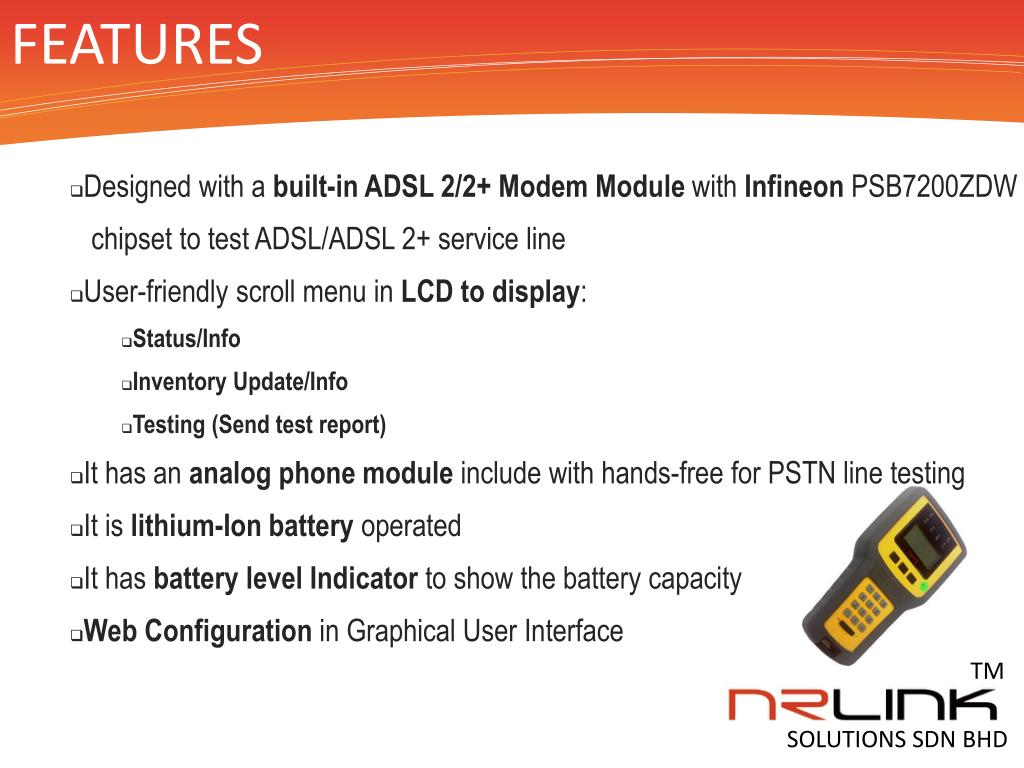

  5. FEATURES • Designed with a built-in ADSL 2/2+ Modem Module with Infineon PSB7200ZDW chipset to test ADSL/ADSL 2+ service line • User-friendly scroll menu in LCD to display: • Status/Info • Inventory Update/Info • Testing (Send test report) • It has an analog phone module include with hands-free for PSTN line testing • It is lithium-Ion battery operated • It has battery level Indicator to show the battery capacity • Web Configuration in Graphical User Interface TM SOLUTIONS SDN BHD

  6. ENHANCEMENT TM SOLUTIONS SDN BHD

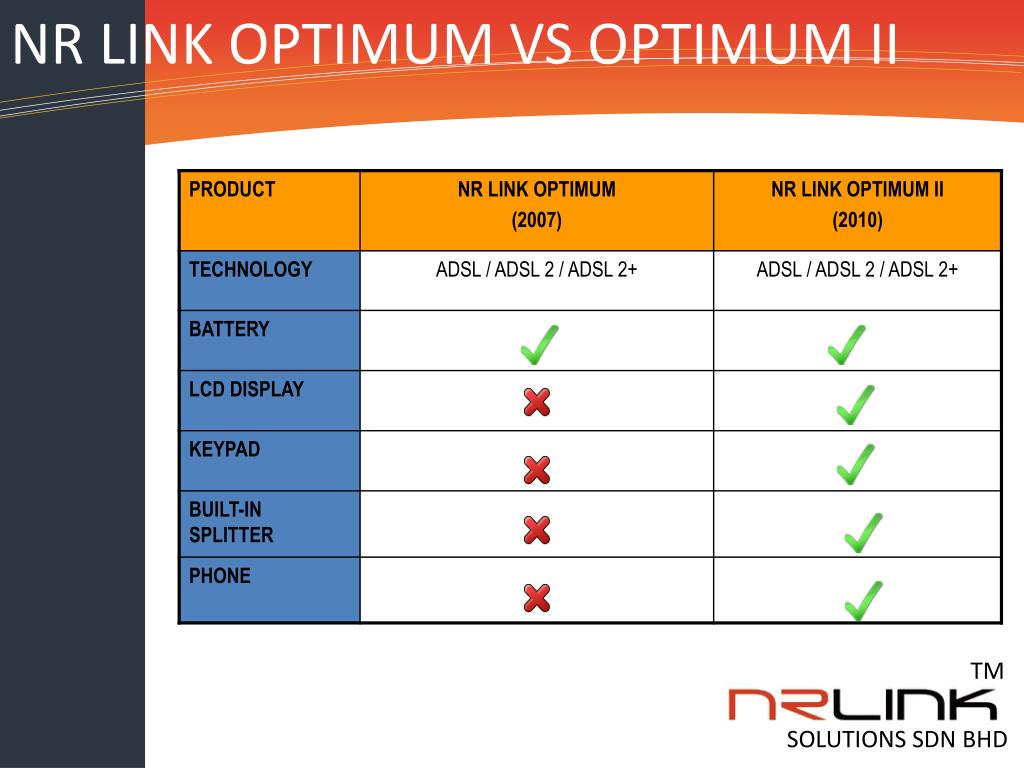

  7. NR LINK OPTIMUM VS OPTIMUM II TM SOLUTIONS SDN BHD

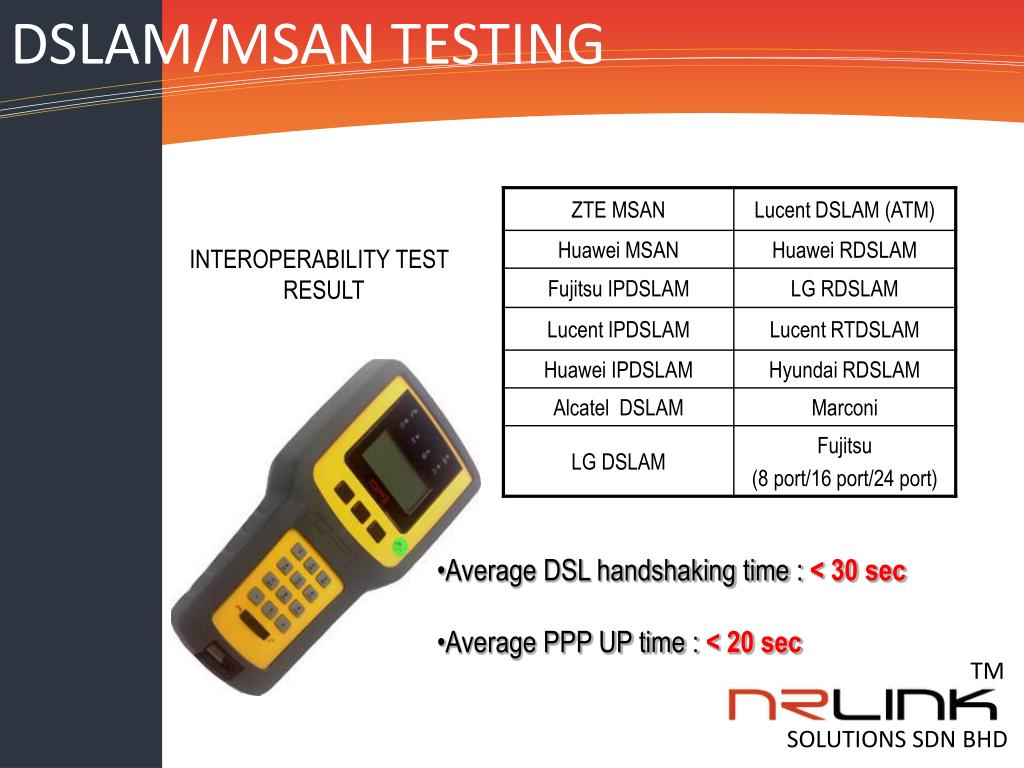

  8. DSLAM/MSAN TESTING • INTEROPERABILITY TEST • RESULT • Average DSL handshaking time : < 30 sec • Average PPP UP time : < 20 sec TM SOLUTIONS SDN BHD

  9. PRODUCT BROCHURE (NR LINK OPTIMUM 1.0)

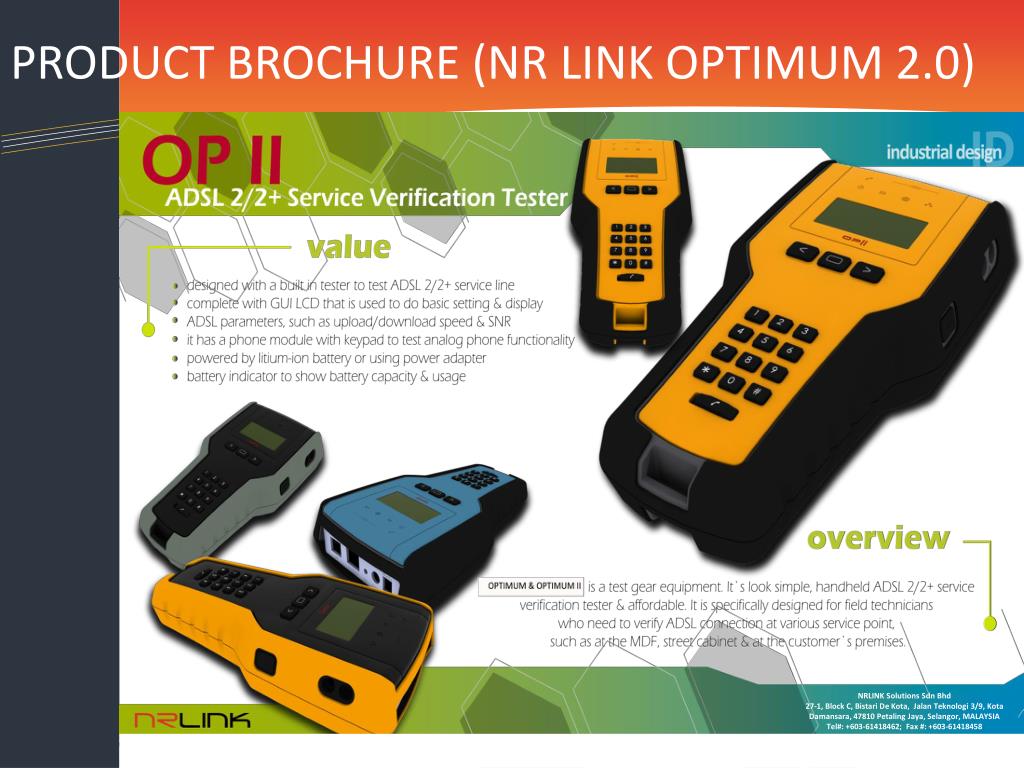

  10. PRODUCT BROCHURE (NR LINK OPTIMUM 2.0) NRLINK Solutions SdnBhd27-1, Block C, Bistari De Kota,  JalanTeknologi 3/9, Kota Damansara, 47810 Petaling Jaya, Selangor, MALAYSIATel#: +603-61418462;  Fax #: +603-61418458

  11. ACHIEVEMENTS (NR LINK OPTIMUM II) • MALAYSIA’S MOST INNOVATIVE PRODUCT, ITEX MALAYSIA 2009 • GOLD AWARD IN TELECOMMUNICATION PRODUCT, ITEX MALAYSIA 2009 • MOST OUTSTANDING INVENTION AWARD, TMR&D BREAKTHROUGH 2009 • GOLD AWARD IN TELECOMMUNICATION CATEGORY, TMR&D BREAKTHROUGH 2009 TM SOLUTIONS SDN BHD

  12. CAUTION • Operational time is estimated around 3 hours with continuously ON. • Prior to first time use, please ensure that the battery is charged for 8 hours minimum • Use ONLY the specified charger Model 3P10-L1004 (included with the device • While charging, the device MUST be completely SWITCHED-OFF • Use the device only with battery securely connected • The charging time is about 4 hours. • When battery is at the critical level, the low battery warning will be display at LCD and LED will blink in red. • Please do not leave the batteries inside when the test gear is not used for more than 5 days. • Please do not leave the batteries insidewhen • the test gear is not used formore than 5 days. TM SOLUTIONS SDN BHD

  13. OPTIMUM II UserGuide TM SOLUTIONS SDN BHD

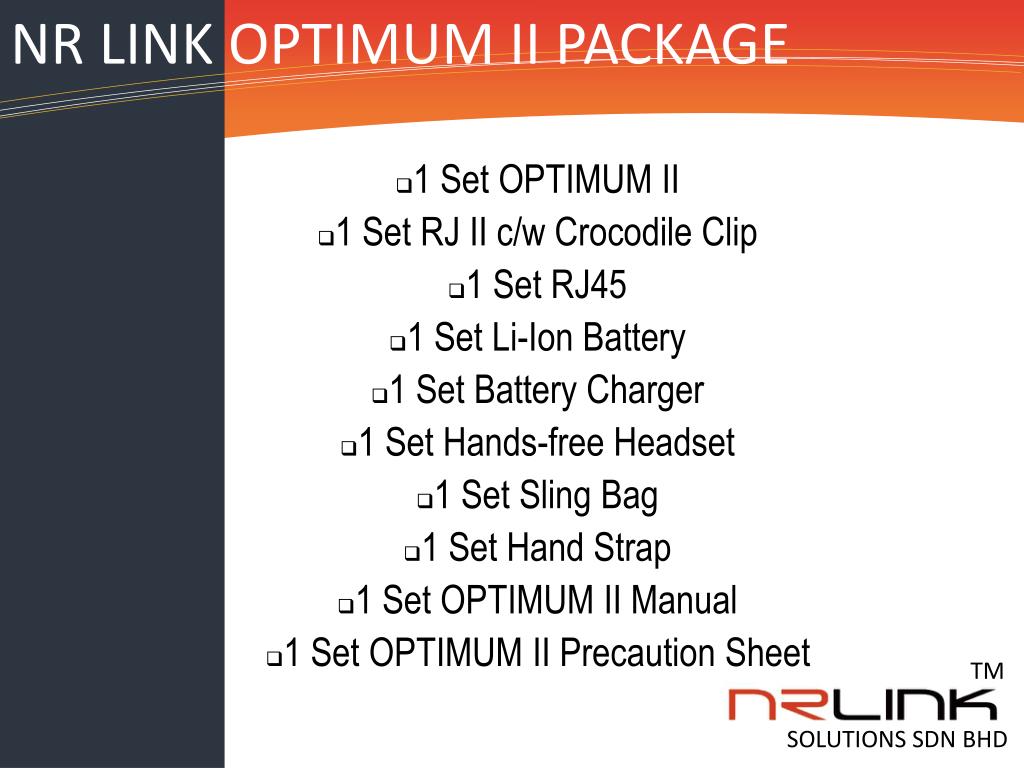

  14. NR LINK OPTIMUM II PACKAGE • 1 Set OPTIMUM II • 1 Set RJ II c/w Crocodile Clip • 1 Set RJ45 • 1 Set Li-Ion Battery • 1 Set Battery Charger • 1 Set Hands-free Headset • 1 Set Sling Bag • 1 Set Hand Strap • 1 Set OPTIMUM II Manual • 1 Set OPTIMUM II Precaution Sheet TM SOLUTIONS SDN BHD

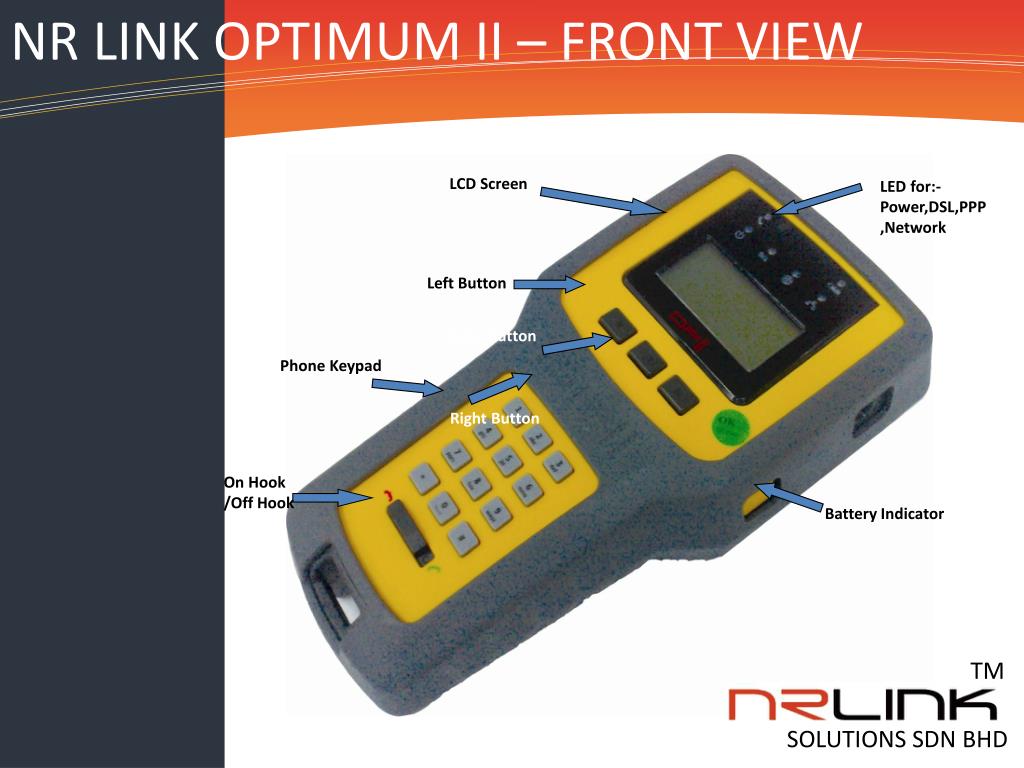

  15. NR LINK OPTIMUM II – FRONT VIEW LCD Screen LED for:- Power,DSL,PPP,Network Left Button Enter Button Phone Keypad Right Button On Hook /Off Hook Battery Indicator TM SOLUTIONS SDN BHD

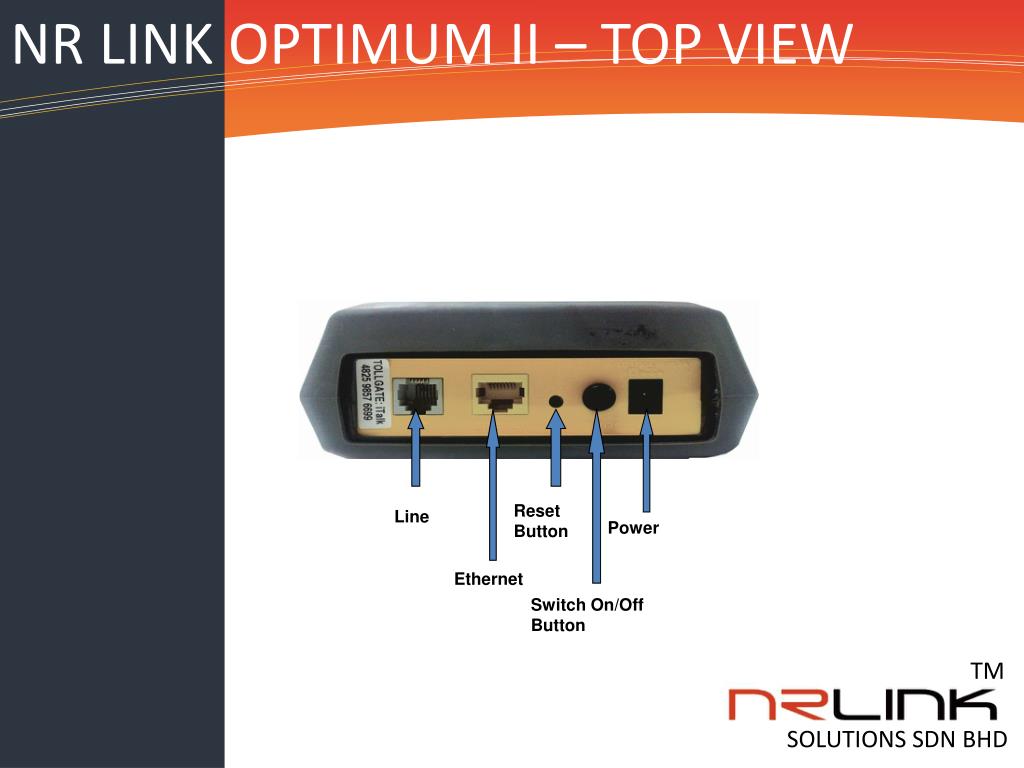

  16. NR LINK OPTIMUM II – TOP VIEW Reset Button Line Power Ethernet Switch On/Off Button TM SOLUTIONS SDN BHD

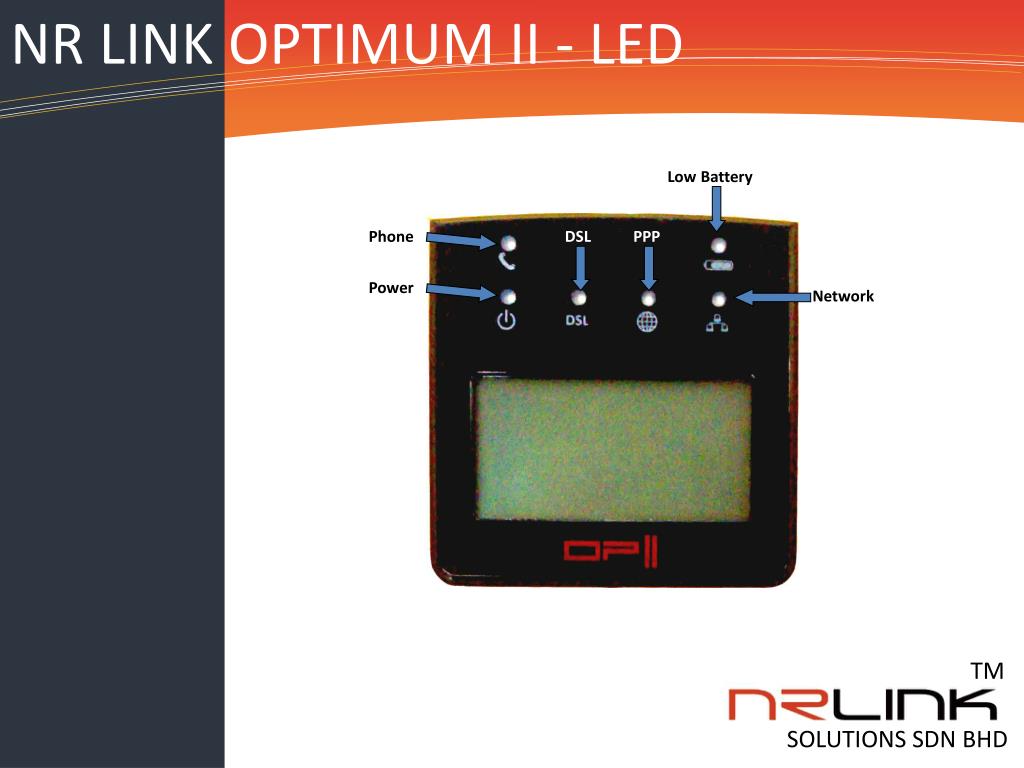

  17. NR LINK OPTIMUM II - LED Low Battery DSL PPP Power Phone Network TM SOLUTIONS SDN BHD

  18. MENU: Status/Info To display the ADSL information TM SOLUTIONS SDN BHD

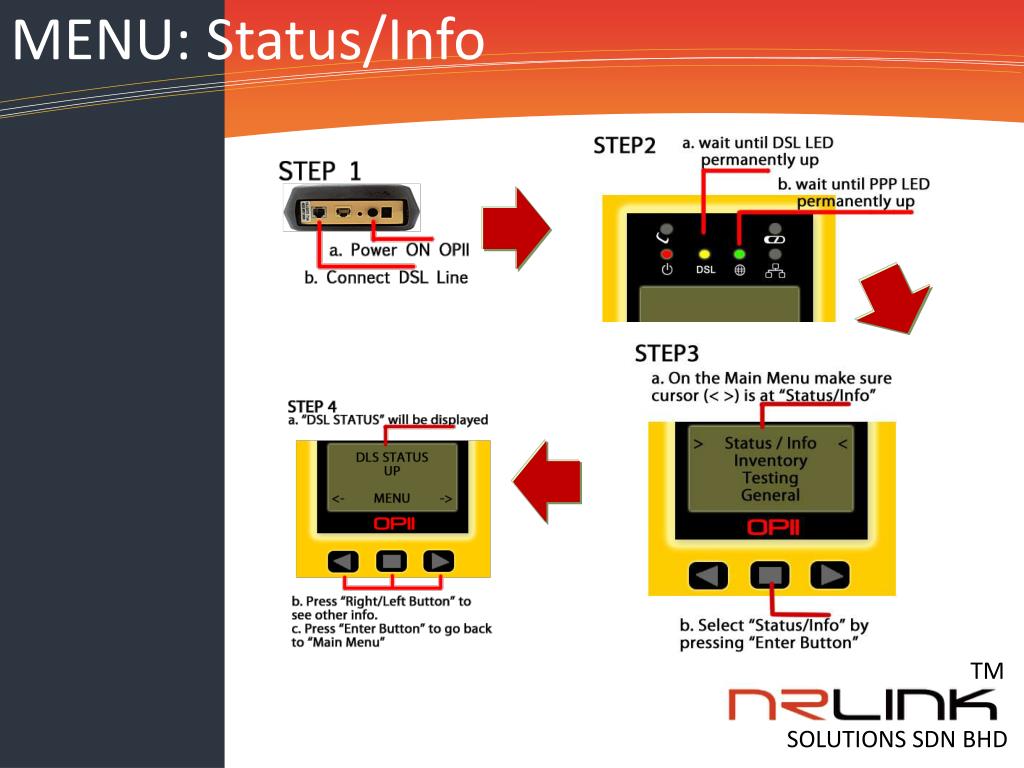

  19. MENU: Status/Info TM SOLUTIONS SDN BHD

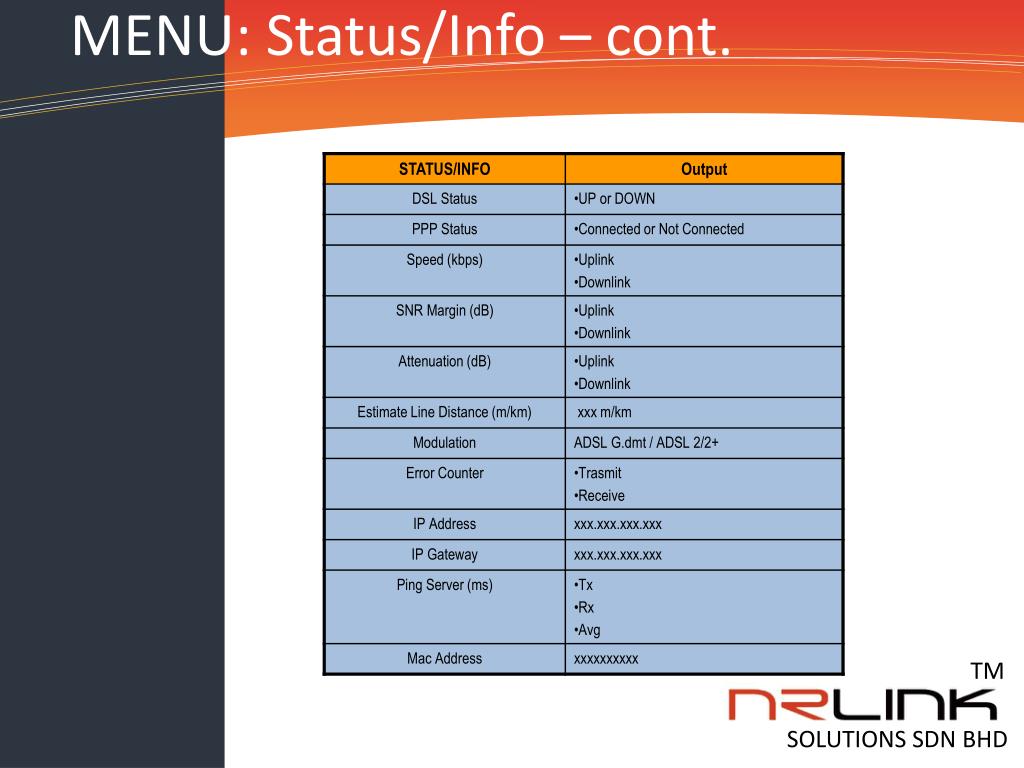

  20. MENU: Status/Info – cont. TM SOLUTIONS SDN BHD

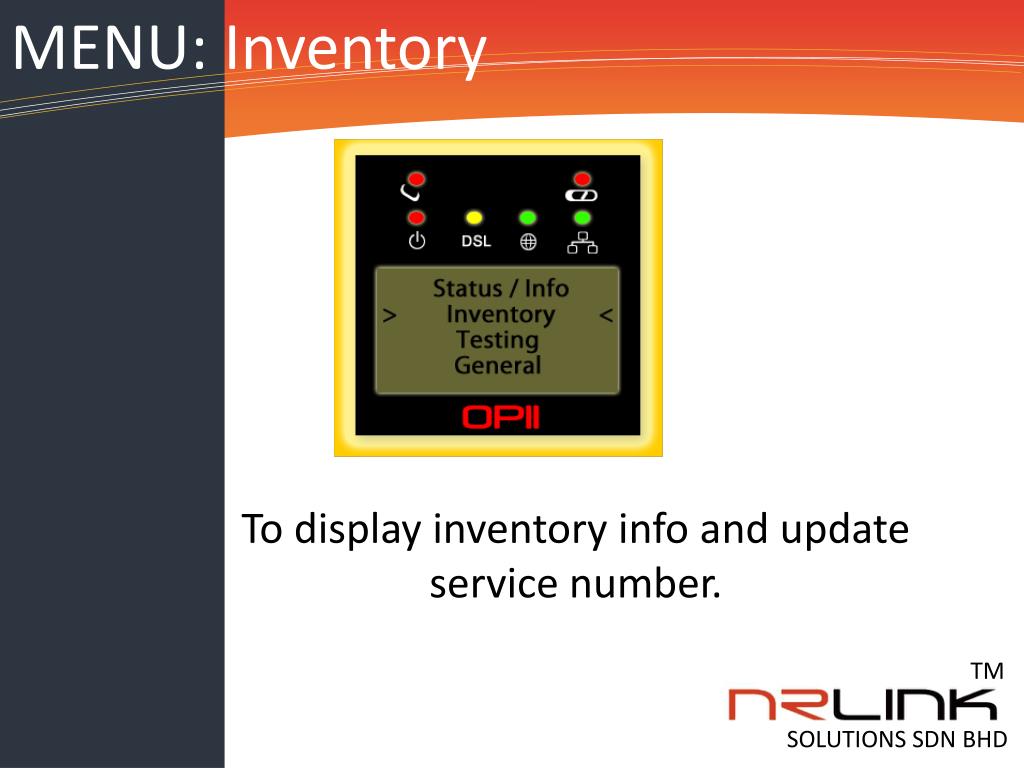

  21. MENU: Inventory To display inventory info and update service number. TM SOLUTIONS SDN BHD

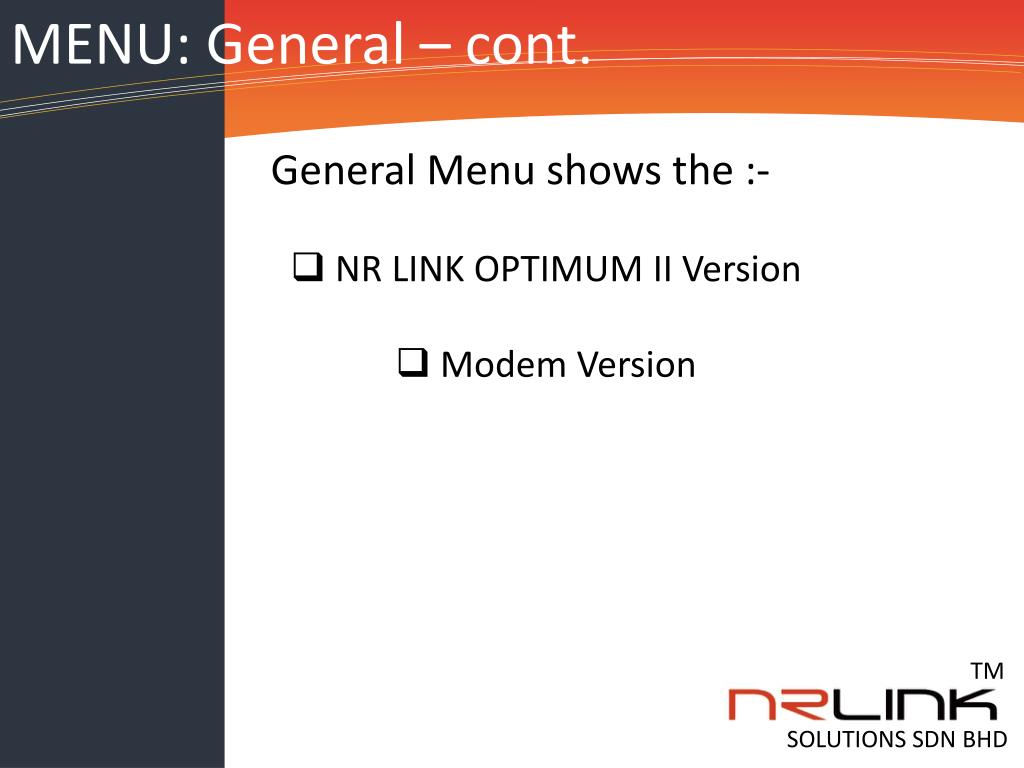

  22. MENU: General – cont. General Menu shows the :- • NR LINK OPTIMUM II Version • Modem Version TM SOLUTIONS SDN BHD

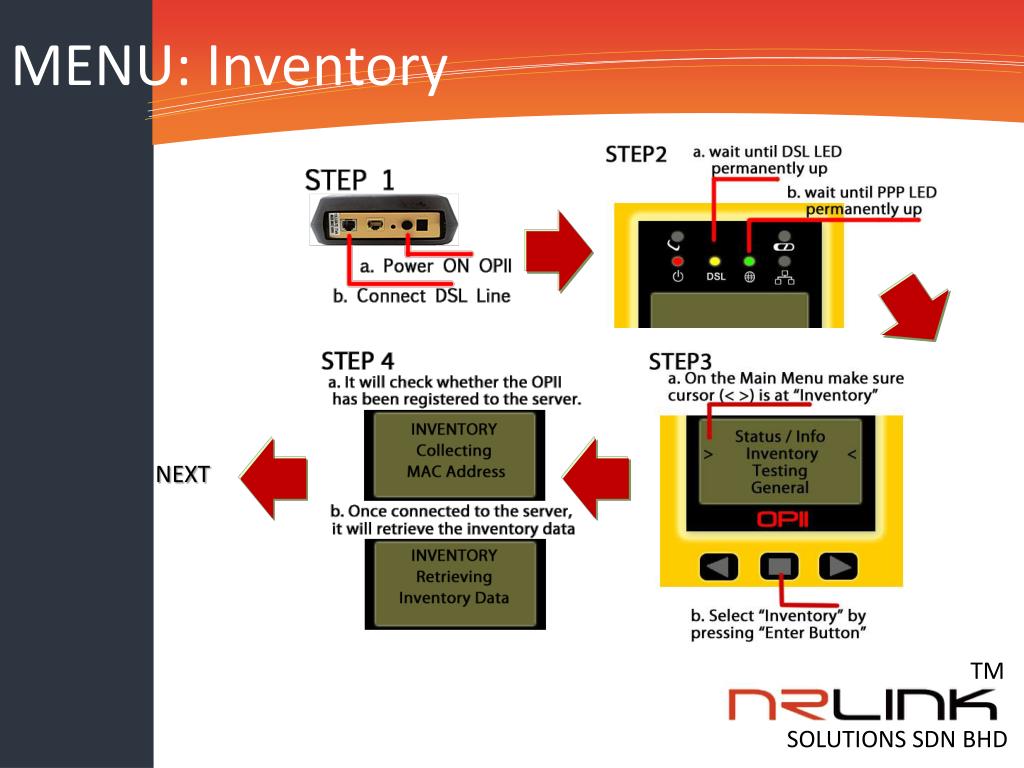

  23. MENU: Inventory NEXT TM SOLUTIONS SDN BHD

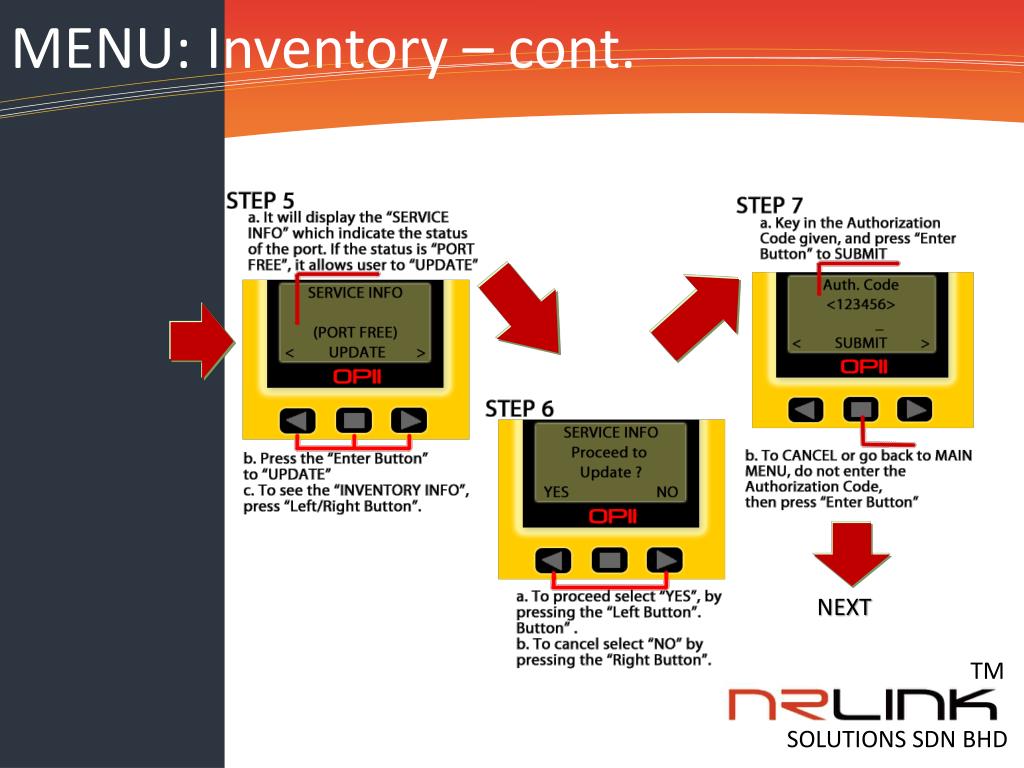

  24. MENU: Inventory – cont. NEXT TM SOLUTIONS SDN BHD

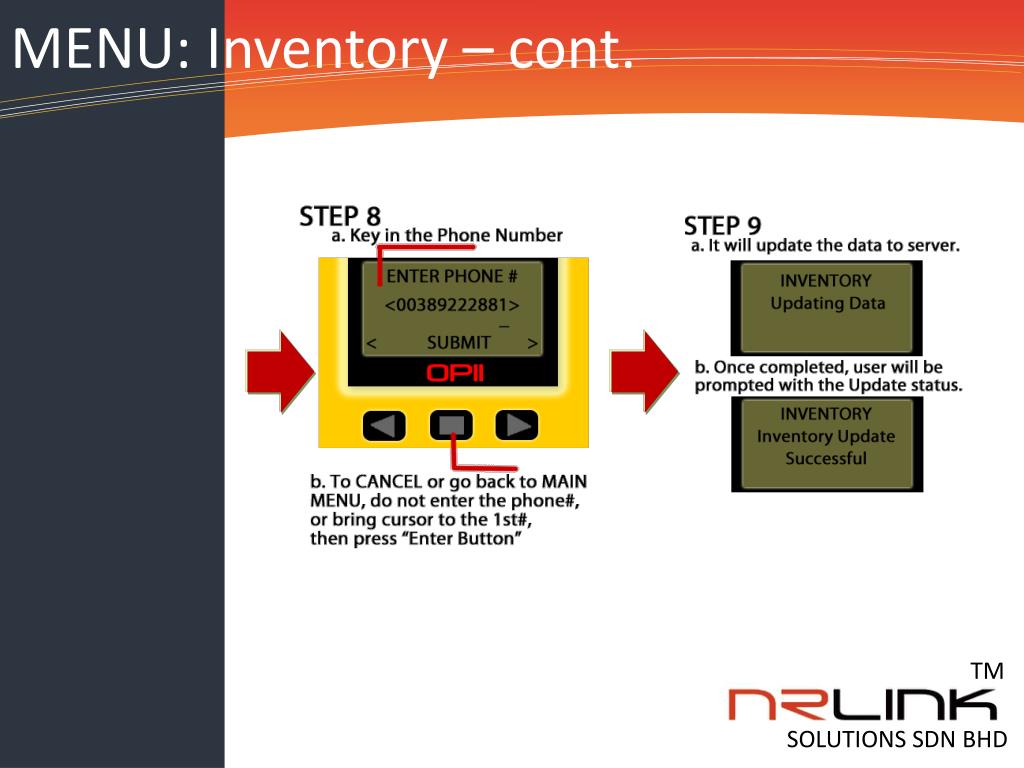

  25. MENU: Inventory – cont. TM SOLUTIONS SDN BHD

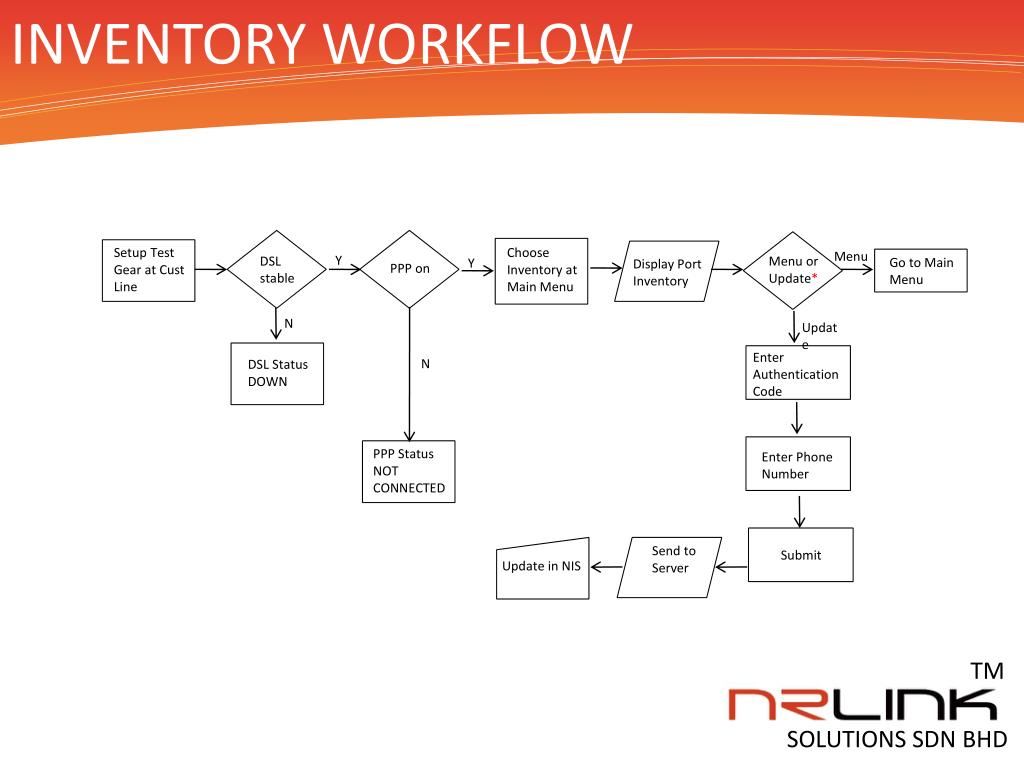

  26. INVENTORY WORKFLOW Choose Inventory at Main Menu Menu or Update* Display Port Inventory Menu Y Y Update in NIS Go to Main Menu Enter Authentication Code N Update PPP Status NOT CONNECTED Setup Test Gear at Cust Line N DSL Status DOWN DSL stable Enter Phone Number PPP on Send to Server Submit TM SOLUTIONS SDN BHD

  27. MENU: Testing To send test report. TM SOLUTIONS SDN BHD

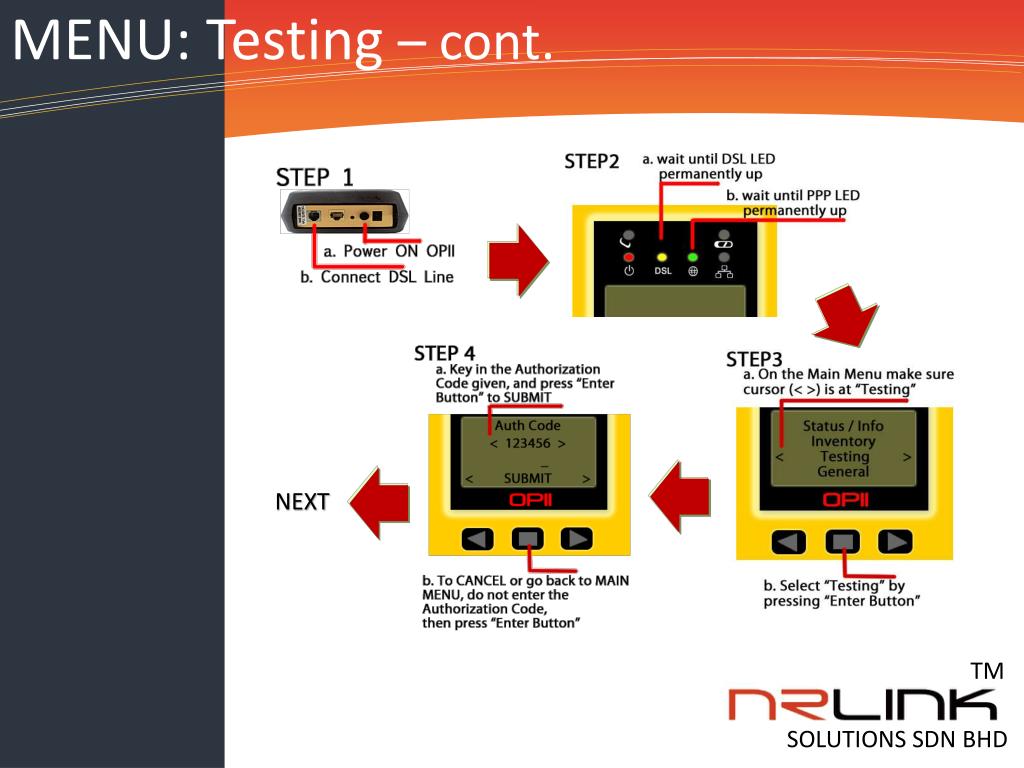

  28. MENU: Testing – cont. NEXT TM SOLUTIONS SDN BHD

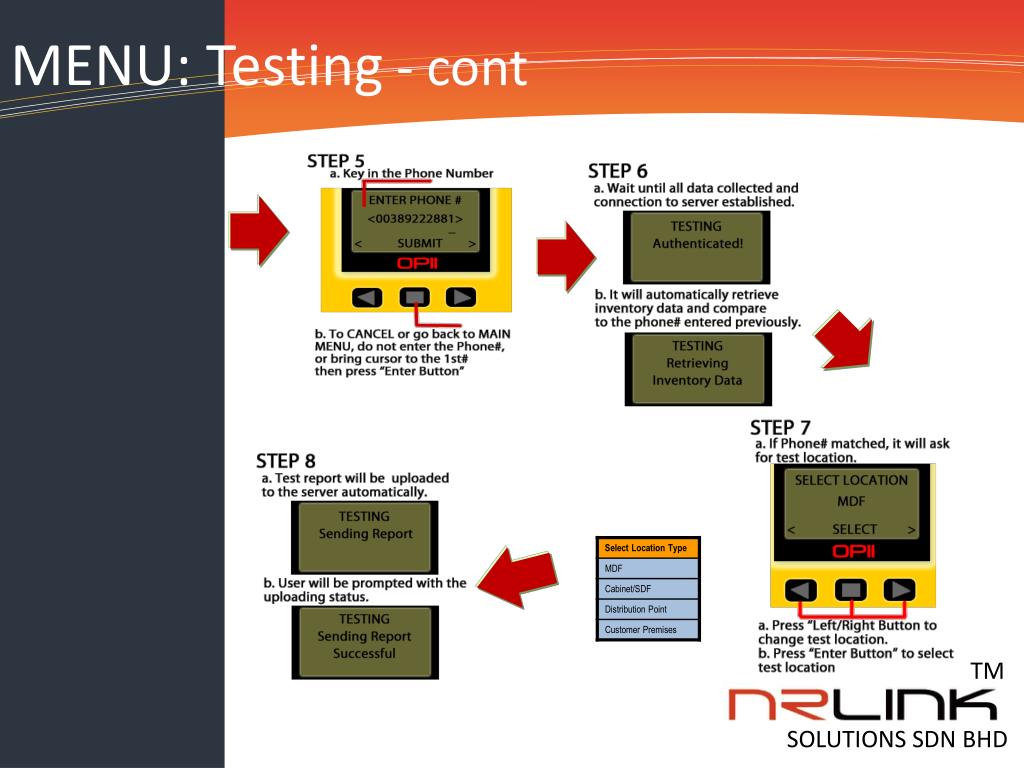

  29. MENU: Testing - cont TM SOLUTIONS SDN BHD

  30. SEND TEST REPORT WORKFLOW Choose Testing at Main Menu Match Y Y Update in Server Go to Main Menu Enter Authentication Code N N N PPP Status NOT CONNECTED Setup Test Gear at Cust Line DSL Status DOWN DSL stable Enter Phone Number Y Select Test Location PPP on Send to Server Display Message TM SOLUTIONS SDN BHD

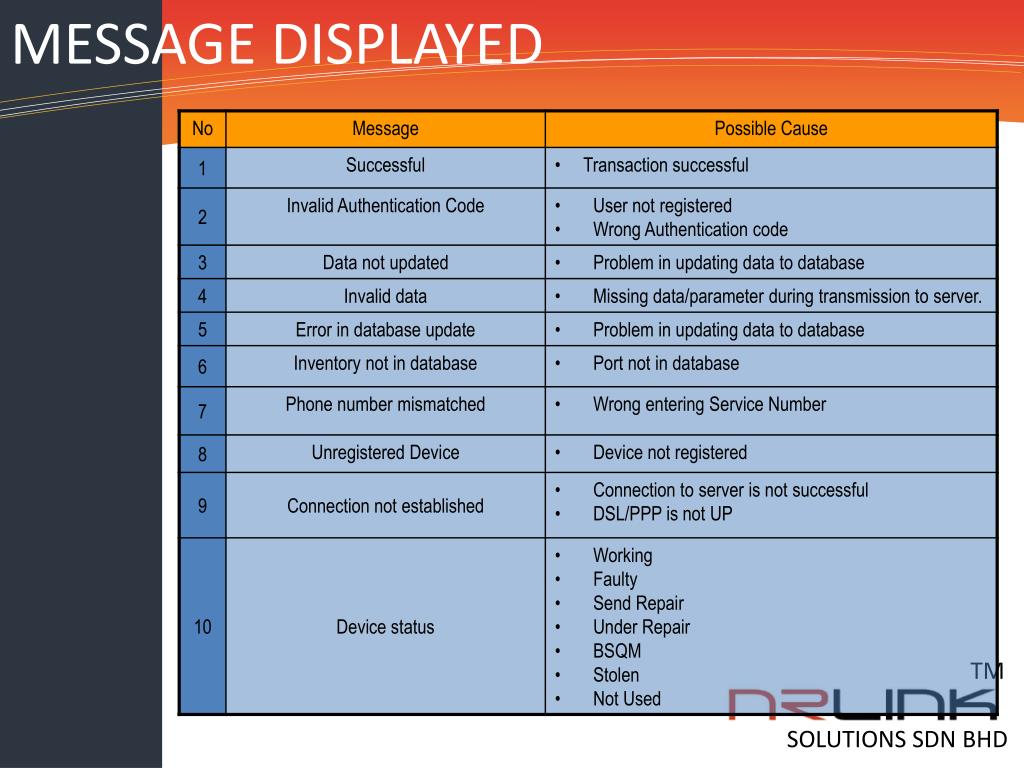

  31. MESSAGE DISPLAYED TM SOLUTIONS SDN BHD

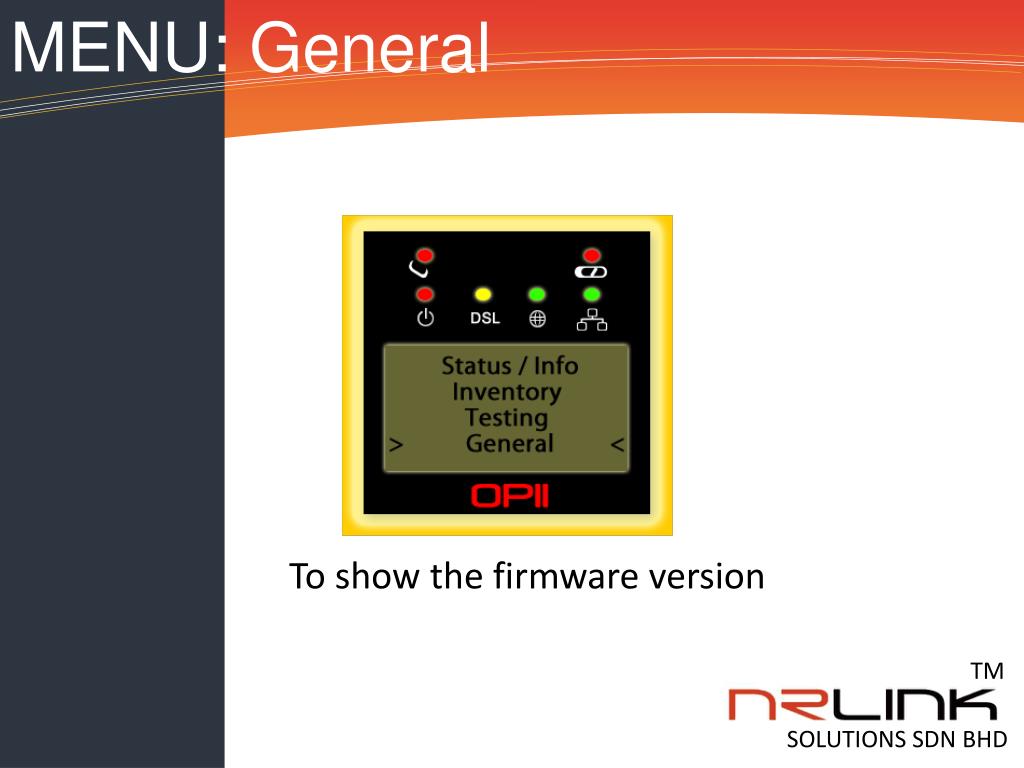

  32. MENU: General To show the firmware version TM SOLUTIONS SDN BHD

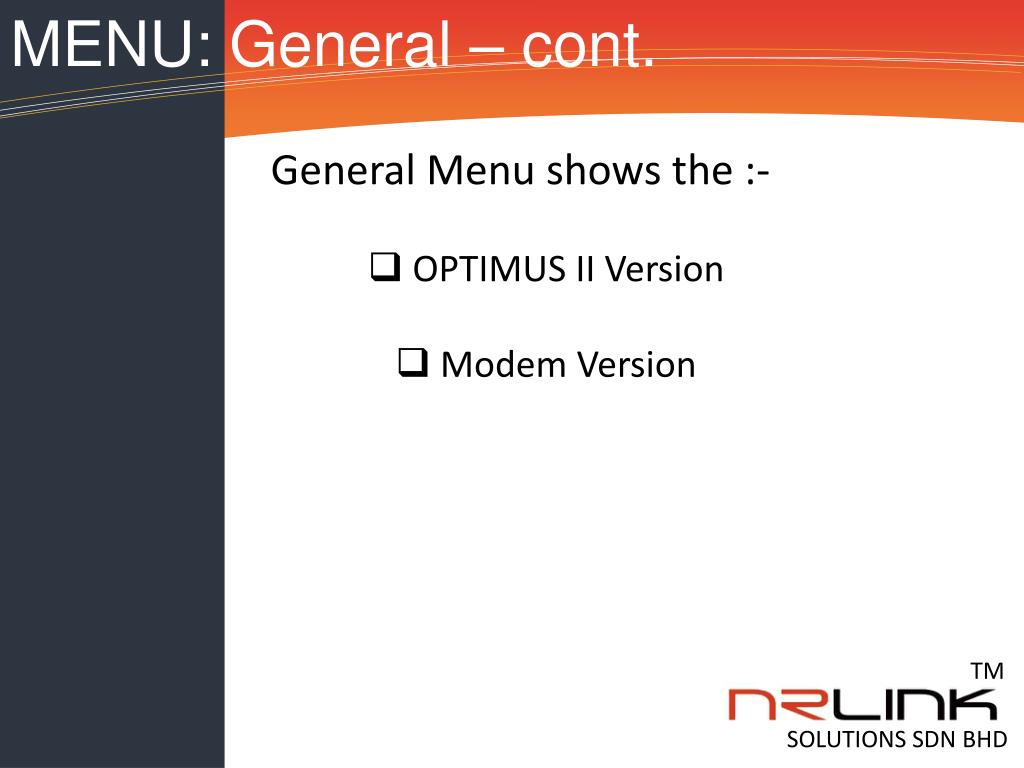

  33. MENU: General – cont. General Menu shows the :- • OPTIMUS II Version • Modem Version TM SOLUTIONS SDN BHD

  34. MENU: General TM SOLUTIONS SDN BHD

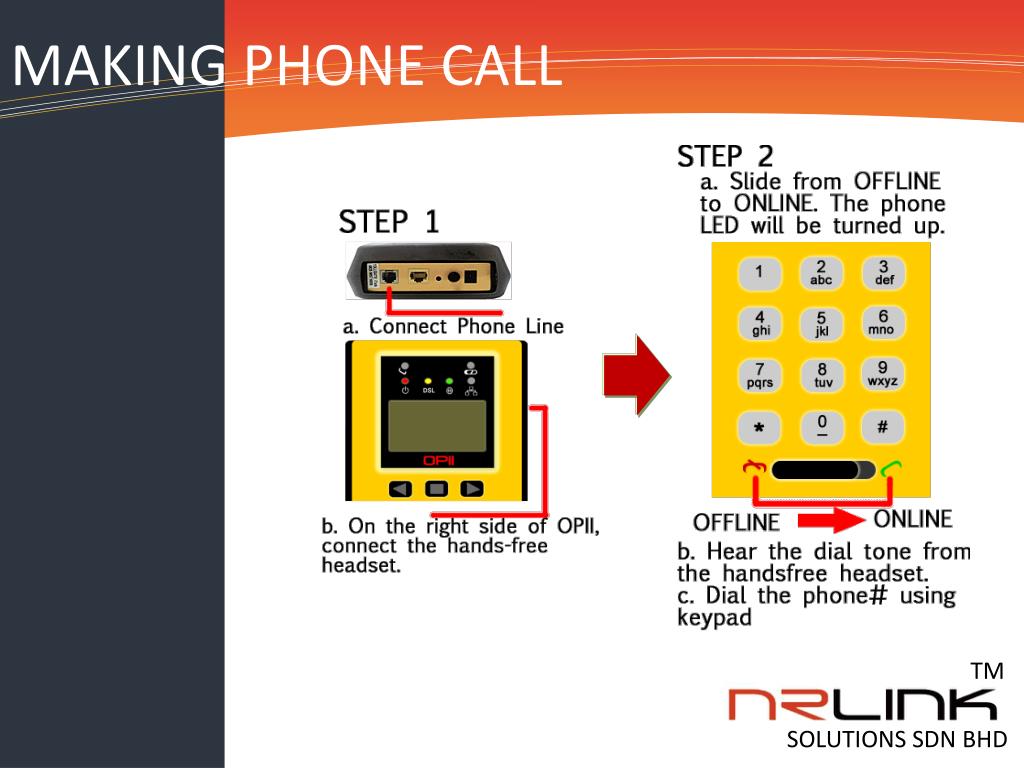

  35. MAKING PHONE CALL TM SOLUTIONS SDN BHD

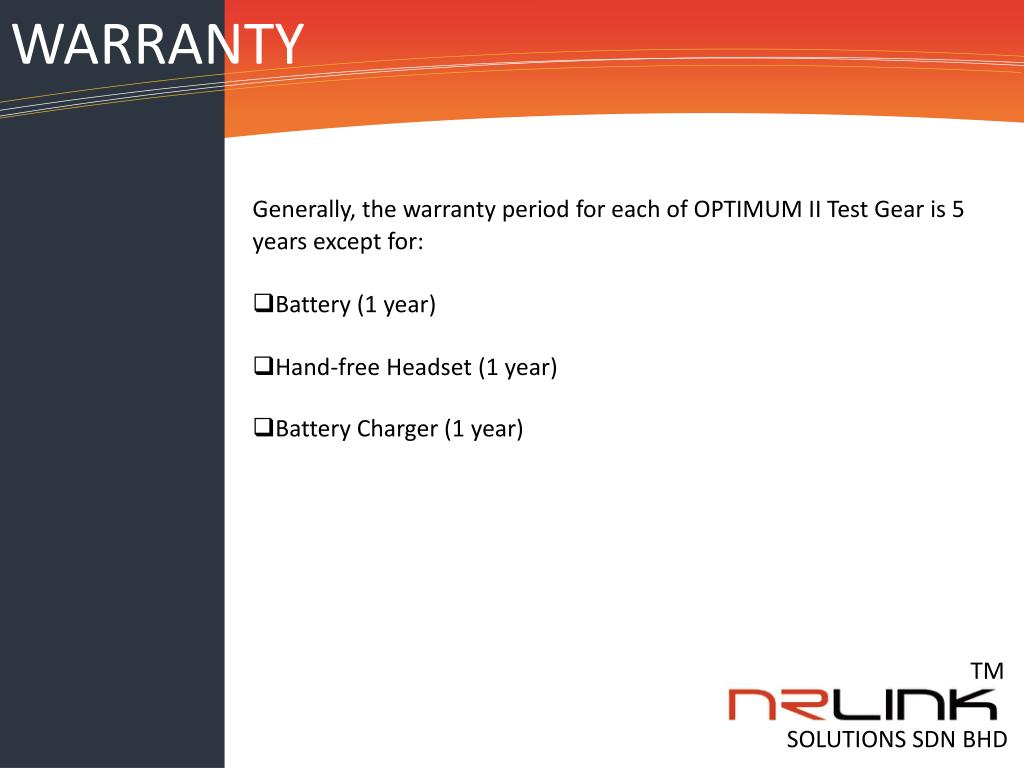

  36. WARRANTY • Generally, the warranty period for each of OPTIMUM II Test Gear is 5 years except for: • Battery (1 year) • Hand-free Headset (1 year) • Battery Charger (1 year) TM SOLUTIONS SDN BHD

  37. NRLINK SOLUTIONS SDN BHD (443863-M)‏(formerly known as ShannimpexSdnBhd)‏No.27-1, Block C, Bistari De KotaJalanTeknologi 3/9Kota Damansara47810 Petaling JayaSelangorMALAYSIA TM SOLUTIONS SDN BHD
