  1. Python Turtle Graphics ASFA Programming II 2010-2011

  2. A first Object: Logo Turtle • Dr. Seymour Papert at MIT invented the Turtle as a graphical and mathematical object to think with for the children’s programming language, Logo (1966)

  3. Robot Turtles • Children programmed robot turtles to draw pictures

  4. A turtle is an object. • Every turtle understands the same methods. • Every turtle has the same fields or instance variables. • Heading, body color, pen color, X and Y position. • Yet each turtle can have its own values for these fields. • Many modern programming languages, such as Python, continue to use turtles for drawing

  5. Think of a turtle crawling on a piece of paper, with a pen tied to its tail • Sheet of paper is a window on a display screen • Position specified with (x, y) coordinates • Cartesian coordinate system, with origin (0, 0) at the center of a window

  6. Imagine a turtle starting at (0, 0) • Give it the command turtle.forward(15), and it moves (on-screen) 15 pixels in the direction it is facing, drawing a line as it moves. • Give it the command turtle.left(25), and it rotates in-place 25 degrees counter-clockwise.

  7. Some Examples of Turtle Programs • A forest scene created with turtles • http://www.youtube.com/watch?v=Wwzv0FWJ5gQ • A Recursive Turtle Drawing Program • http://www.youtube.com/watch?feature=player_embedded&v=YummtrvNC2o

  8. Some Key Methods from turtle import * # pen/turtle starts at the center (x=0, y=0) of the turtle display area shape(“turtle”) color("green") # pen up, don't draw up() # centers the circle goto(0,-50) # pen down, draw down() # radius=50 center is 50 radius units above the turtle circle(50) up() # center the turtle again goto(0,0) down() tur2.py

  9. Turtle drawing with repetition from turtle import * def star(): color('red', 'purple') colormode(255) begin_fill() for i in range(36): pencolor(3*i + 100, 0 , 5*i) forward(200) left(85) forward(10) left(45) forward(40) left(-90) forward(40) left(85) forward(10) left(45) end_fill() setpos(100,45) color("white","yellow") shape("turtle") star() spyro.py

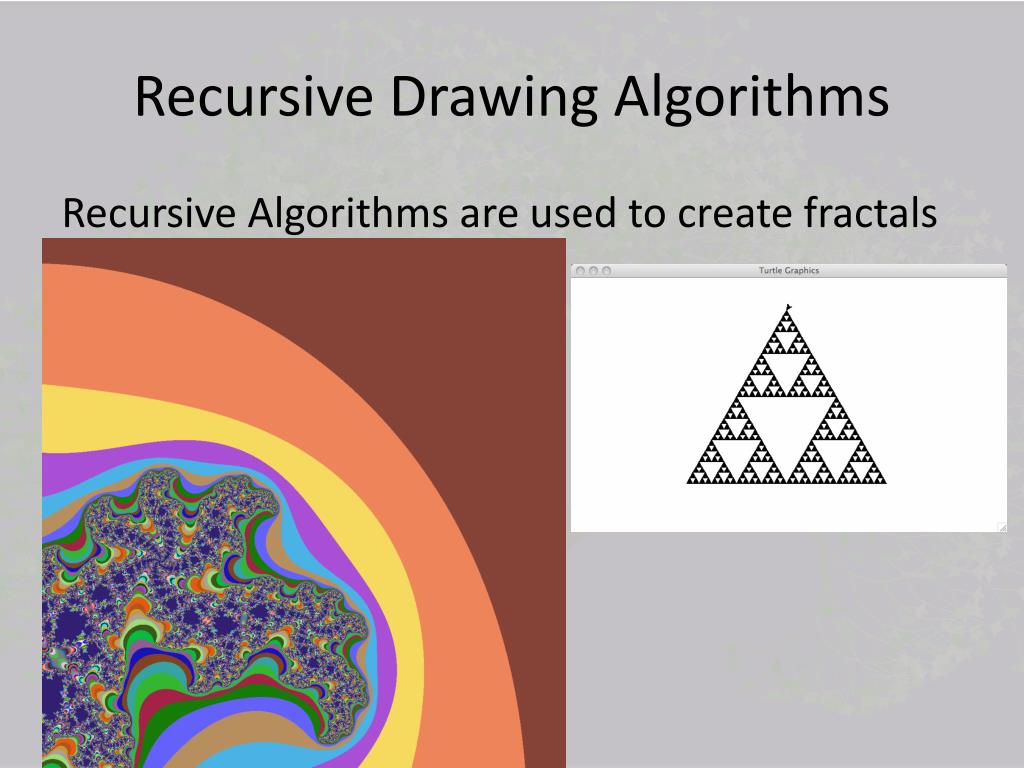

  10. Recursive Drawing Algorithms Recursive Algorithms are used to create fractals

  11. Documentation available explaining methods available • If you have trouble getting the docs from Python, you can go to http://docs.python.org/library/turtle.html

  12. Turtle library contains many methods

  13. Click on method you want to see

  14. Method usage documentation and examples

  15. Endless Artistic Possibilities

  16. What can you create?

  17. Assignment • Explore the documentation • Design and program a turtle drawing a picture Must include: • At least 4 colors • At least 4 shapes • A filled object • Looping • Show me the drawing creation • Email your program to me after checked off • Enrichment: recreate a picture or animate a story • Create a Recursive turtle drawing – art work
