  1. Securion A Secure Way to Experience Advanced Technologies Angers, Hôtel d’Anjou, July 5 – 6th 2005

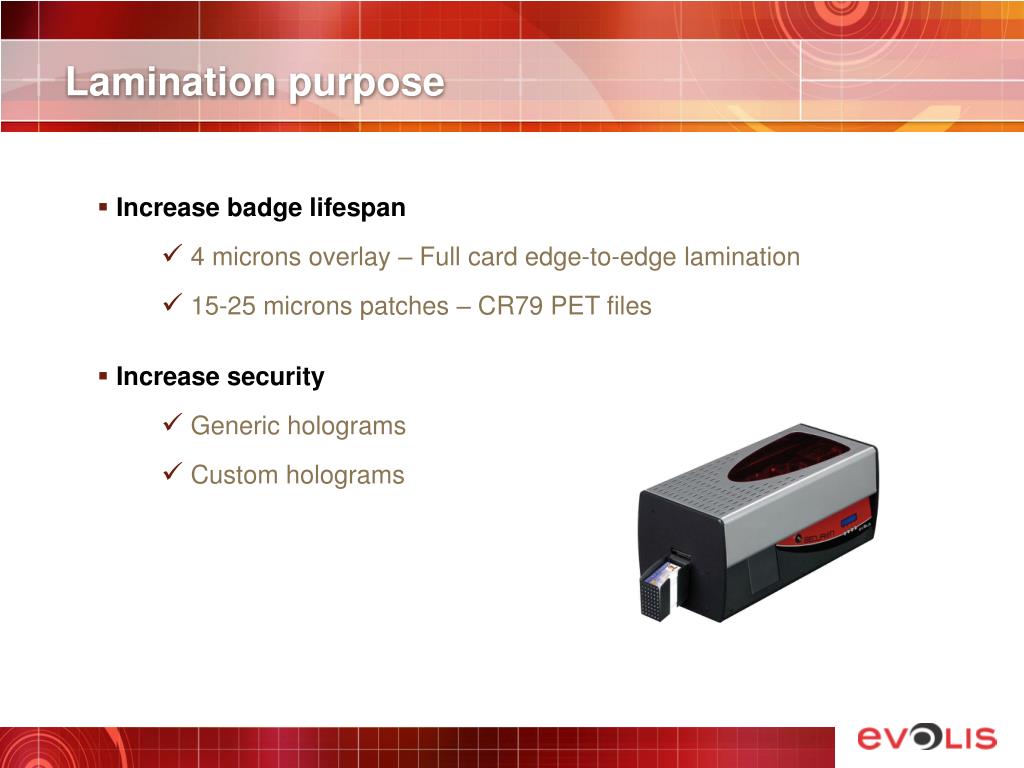

  2. Lamination purpose • Increase badge lifespan • 4 microns overlay – Full card edge-to-edge lamination • 15-25 microns patches – CR79 PET files • Increase security • Generic holograms • Custom holograms

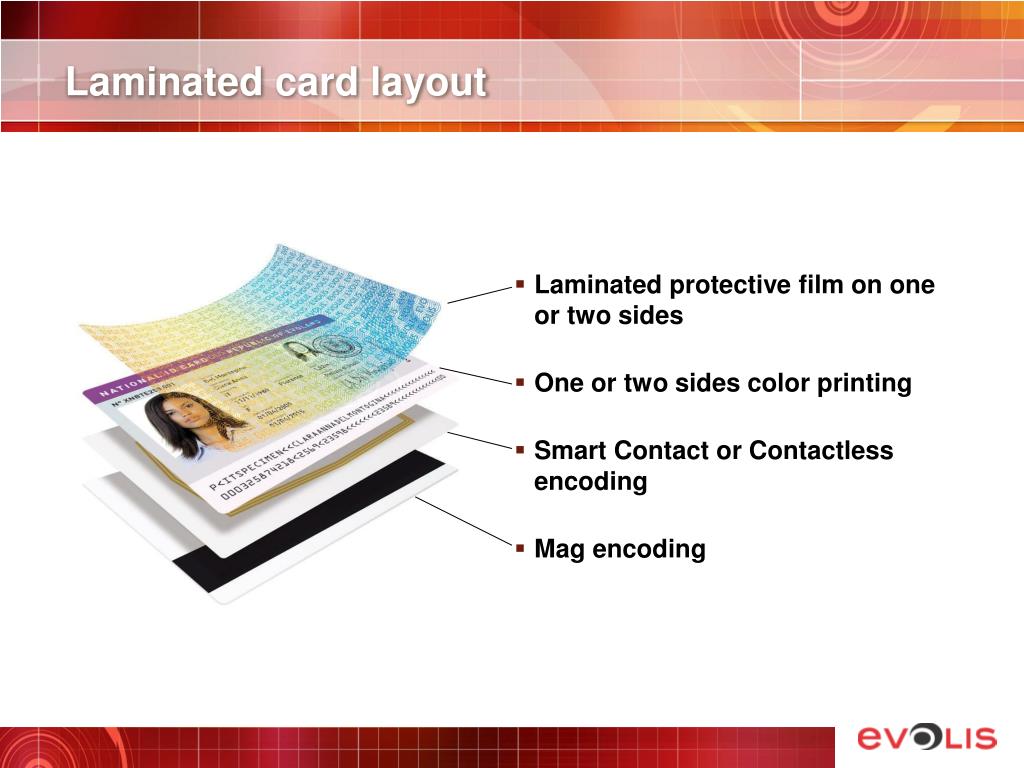

  3. Laminated card layout • Laminated protective film on one or two sides • One or two sides color printing • Smart Contact or Contactless encoding • Mag encoding

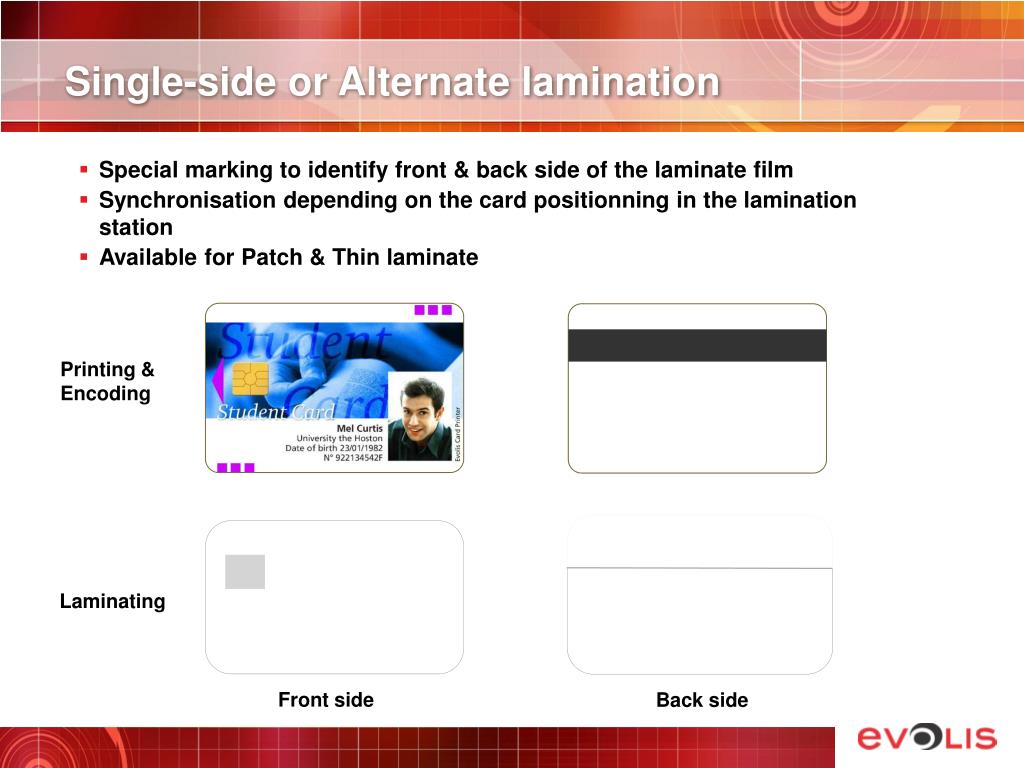

  4. Single-side or Alternate lamination • Special marking to identify front & back side of the laminate film • Synchronisation depending on the card positionning in the lamination station • Available for Patch & Thin laminate Printing & Encoding Laminating Front side Back side

  5. Generic or Custom laminates to suit any kind of needs • Driving license • International student cards • National ID cards • Refugee, Visa, and all other alternatives to National ID cards • Airport and Port authority cards • Airlines and transportation companies • Government employees and affiliates • Police, military and custom forces • Secured ID corporate cards • …

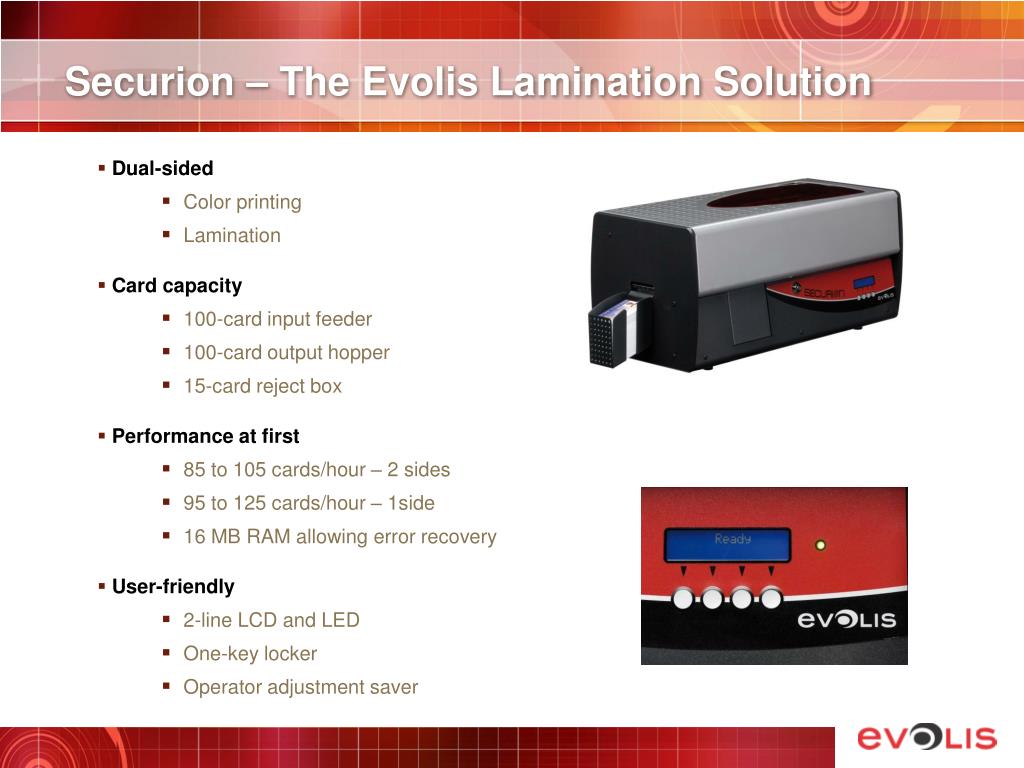

  6. Securion – The Evolis Lamination Solution • Dual-sided • Color printing • Lamination • Card capacity • 100-card input feeder • 100-card output hopper • 15-card reject box • Performance at first • 85 to 105 cards/hour – 2 sides • 95 to 125 cards/hour – 1side • 16 MB RAM allowing error recovery • User-friendly • 2-line LCD and LED • One-key locker • Operator adjustment saver

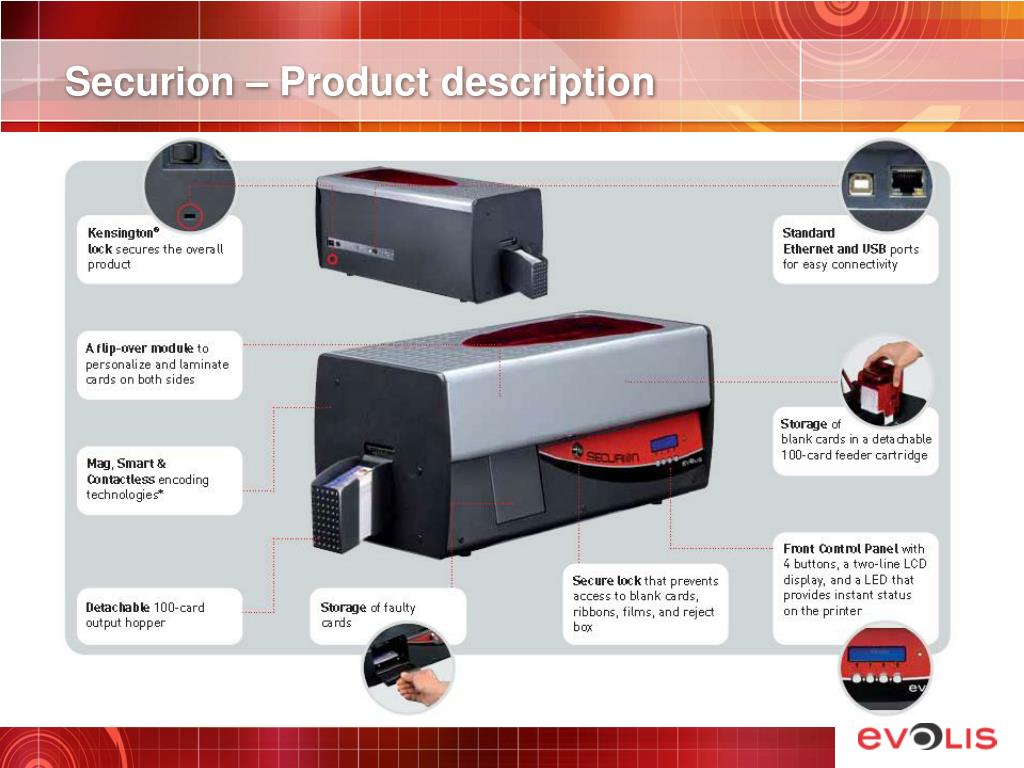

  7. Securion – Product description

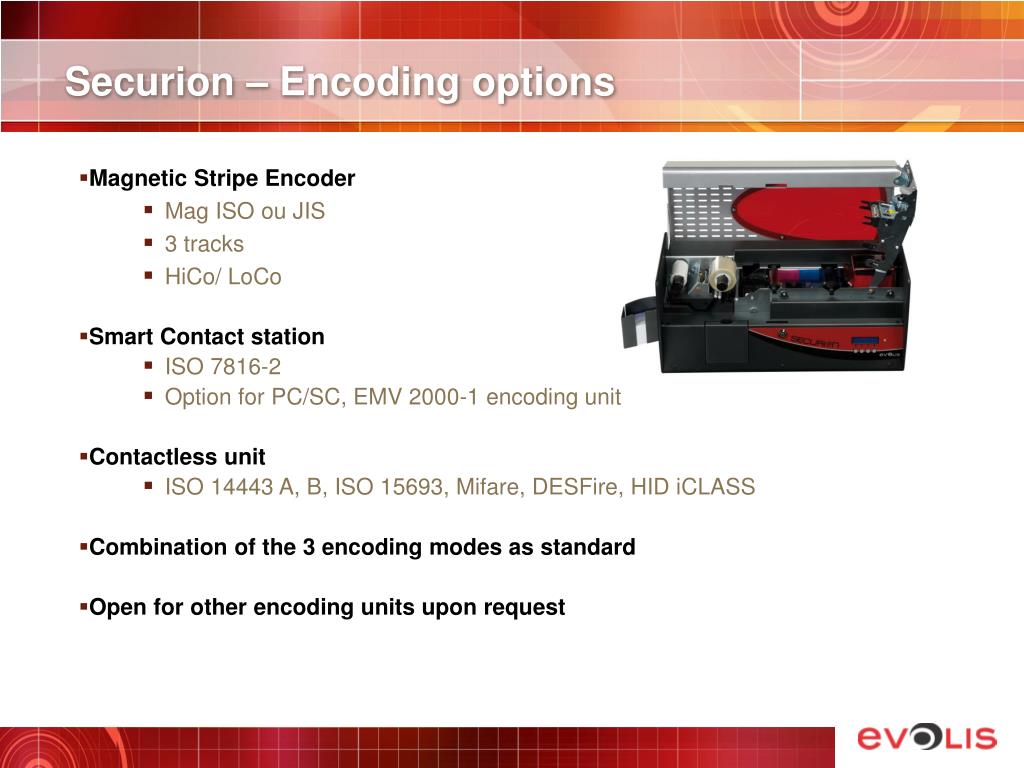

  8. Securion – Encoding options • Magnetic Stripe Encoder • Mag ISO ou JIS • 3 tracks • HiCo/ LoCo • Smart Contact station • ISO 7816-2 • Option for PC/SC, EMV 2000-1 encoding unit • Contactless unit • ISO 14443 A, B, ISO 15693, Mifare, DESFire, HID iCLASS • Combination of the 3 encoding modes as standard • Open for other encoding units upon request

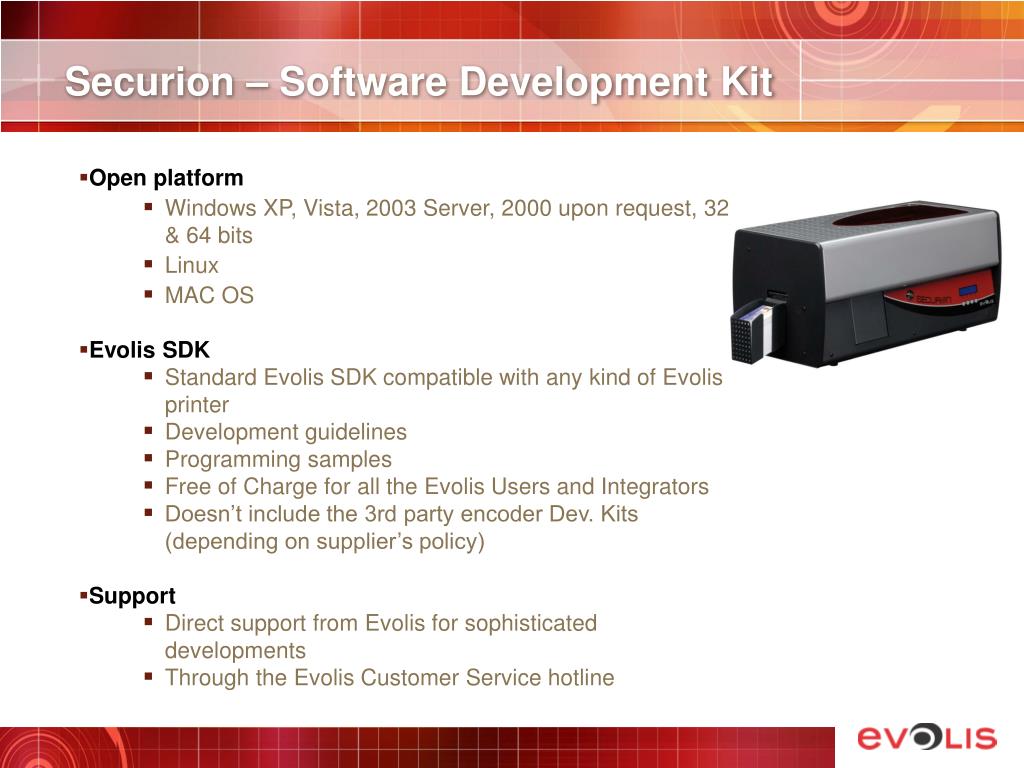

  9. Securion – Software Development Kit • Open platform • Windows XP, Vista, 2003 Server, 2000 upon request, 32 & 64 bits • Linux • MAC OS • Evolis SDK • Standard Evolis SDK compatible with any kind of Evolis printer • Development guidelines • Programming samples • Free of Charge for all the Evolis Users and Integrators • Doesn’t include the 3rd party encoder Dev. Kits (depending on supplier’s policy) • Support • Direct support from Evolis for sophisticated developments • Through the Evolis Customer Service hotline

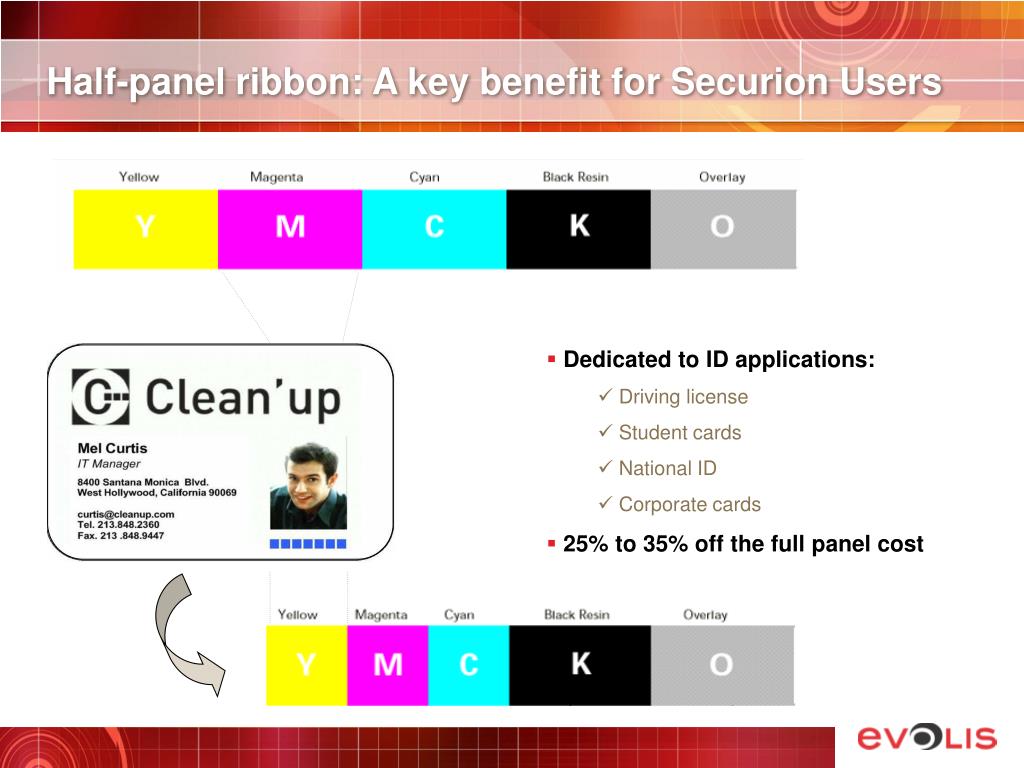

  10. Half-panel ribbon: A key benefit for Securion Users • Dedicated to ID applications: • Driving license • Student cards • National ID • Corporate cards • 25% to 35% off the full panel cost

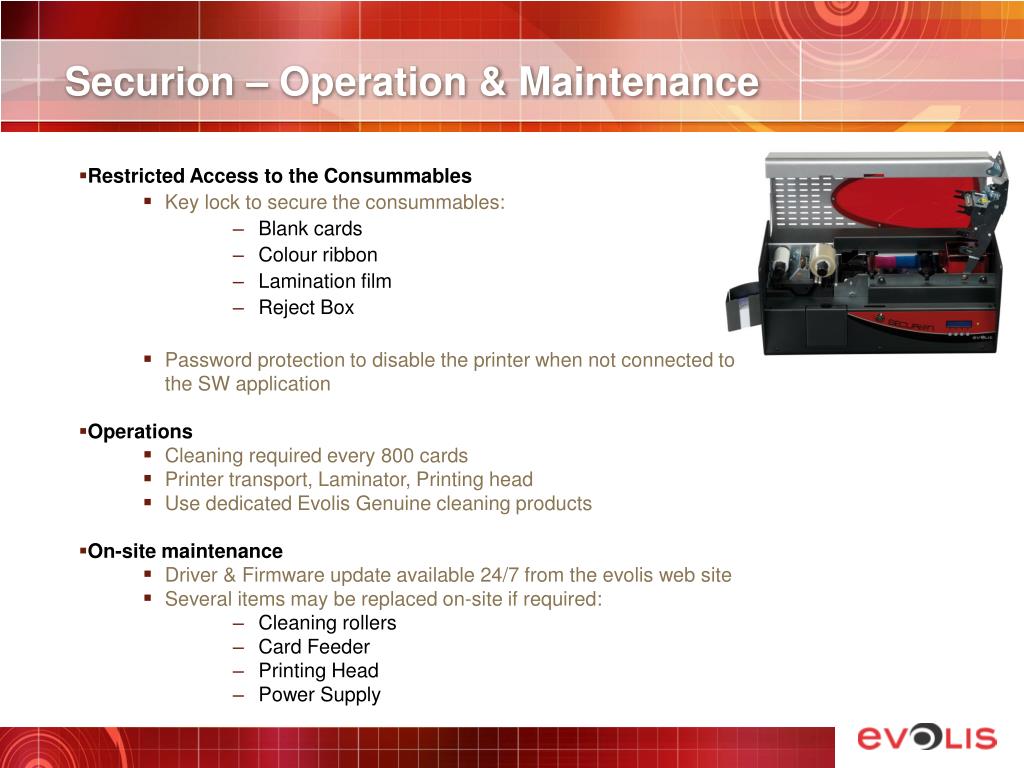

  11. Securion – Operation & Maintenance • Restricted Access to the Consummables • Key lock to secure the consummables: • Blank cards • Colour ribbon • Lamination film • Reject Box • Password protection to disable the printer when not connected to the SW application • Operations • Cleaning required every 800 cards • Printer transport, Laminator, Printing head • Use dedicated Evolis Genuine cleaning products • On-site maintenance • Driver & Firmware update available 24/7 from the evolis web site • Several items may be replaced on-site if required: • Cleaning rollers • Card Feeder • Printing Head • Power Supply

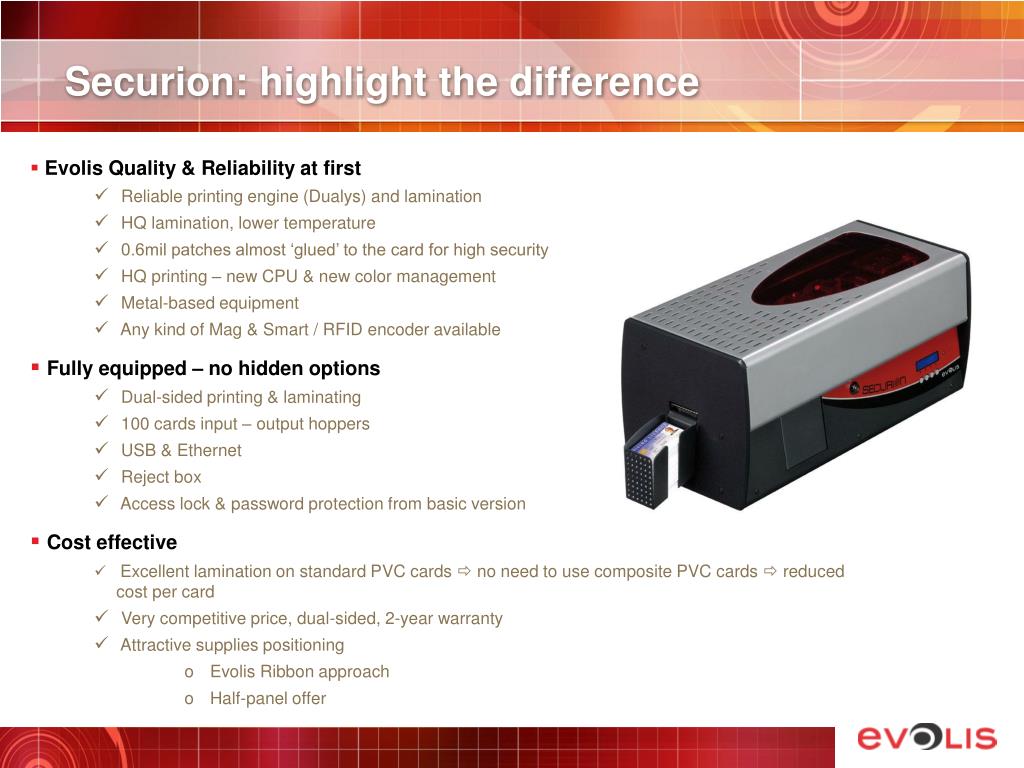

  12. Securion: highlight the difference • Evolis Quality & Reliability at first • Reliable printing engine (Dualys) and lamination • HQ lamination, lower temperature • 0.6mil patches almost ‘glued’ to the card for high security • HQ printing – new CPU & new color management • Metal-based equipment • Any kind of Mag & Smart / RFID encoder available • Fully equipped – no hidden options • Dual-sided printing & laminating • 100 cards input – output hoppers • USB & Ethernet • Reject box • Access lock & password protection from basic version • Cost effective • Excellent lamination on standard PVC cards  no need to use composite PVC cards  reduced cost per card • Very competitive price, dual-sided, 2-year warranty • Attractive supplies positioning • Evolis Ribbon approach • Half-panel offer

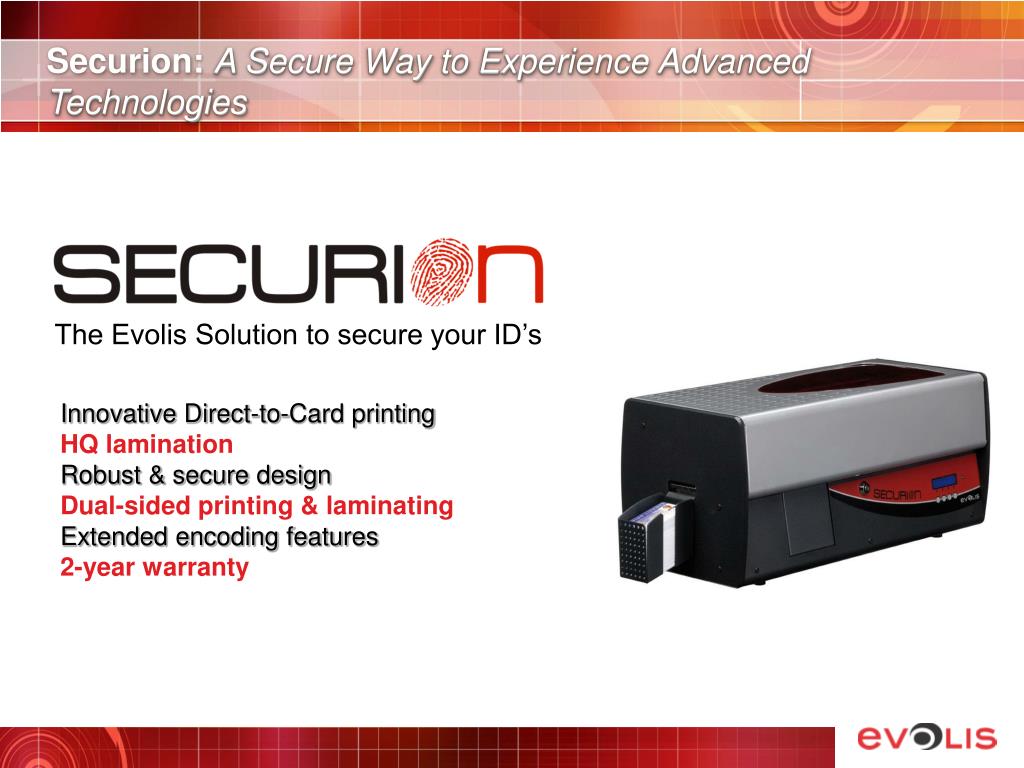

  13. Securion: A Secure Way to Experience Advanced Technologies The Evolis Solution to secure your ID’s Innovative Direct-to-Card printing HQ lamination Robust & secure design Dual-sided printing & laminating Extended encoding features 2-year warranty
