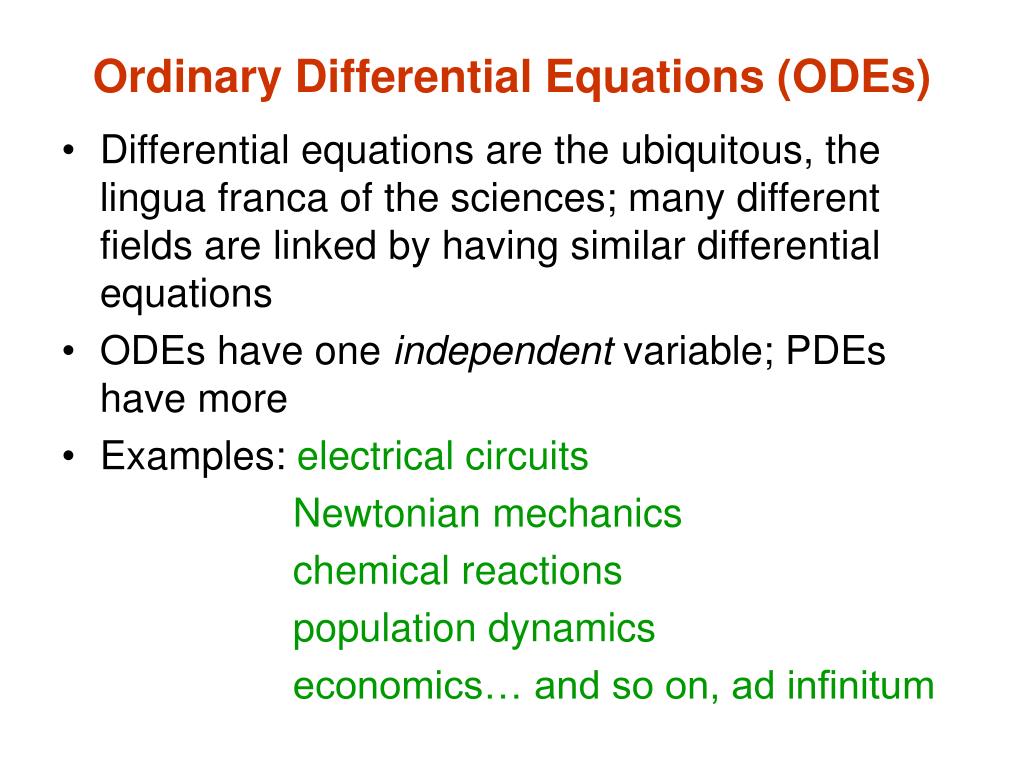

Ordinary Differential Equations (ODEs). Differential equations are the ubiquitous, the lingua franca of the sciences; many different fields are linked by having similar differential equations ODEs have one independent variable; PDEs have more Examples: electrical circuits

ciqala
Download Presentation

Ordinary Differential Equations (ODEs)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Ordinary Differential Equations (ODEs) • Differential equations are the ubiquitous, the lingua franca of the sciences; many different fields are linked by having similar differential equations • ODEs have one independent variable; PDEs have more • Examples: electrical circuits Newtonian mechanics chemical reactions population dynamics economics… and so on, ad infinitum

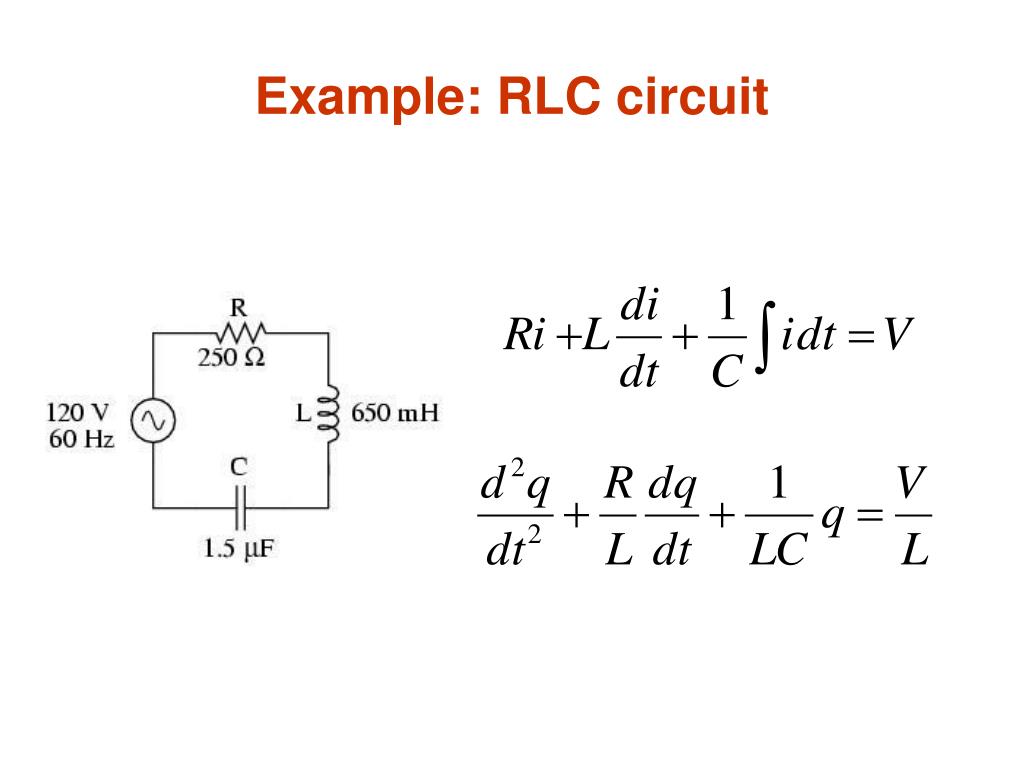

  2. Example: RLC circuit

  3. To illustrate: Population dynamics • 1798 Malthusian catastrophe • 1838 Verhulst, logistic growth • Predator-prey systems, Volterra-Lotka

  4. Population dynamics • Malthus: • Verhulst: Logistic growth  

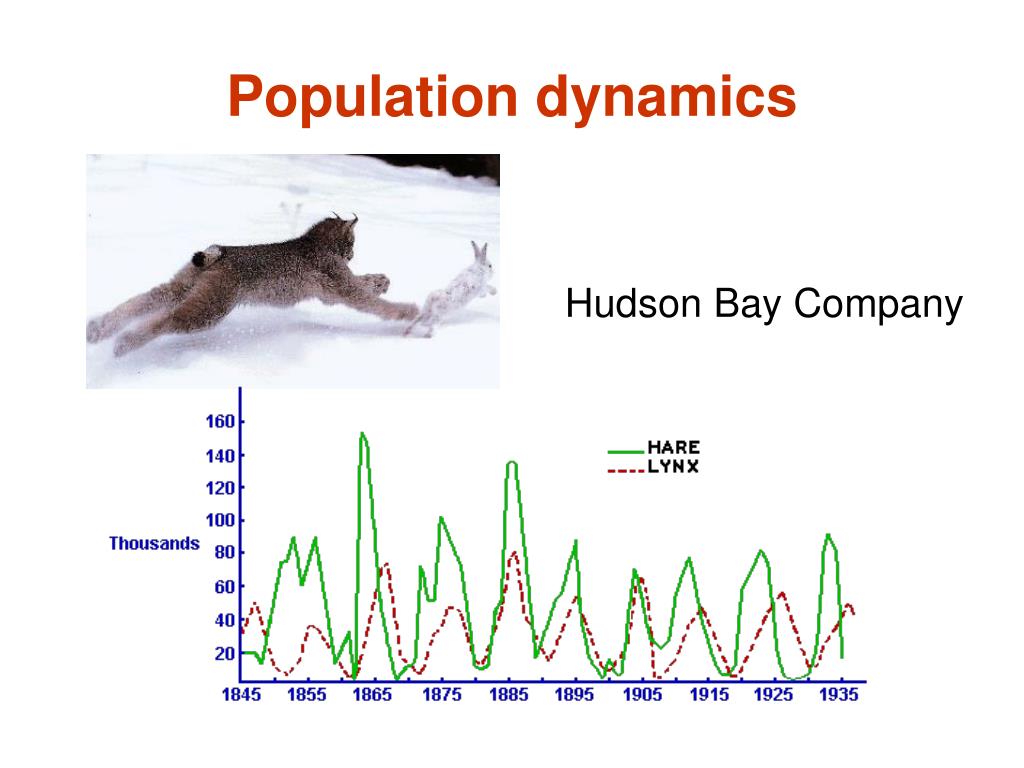

  5. Population dynamics Hudson Bay Company

  6. Population dynamics V .Volterra, commercial fishing in the Adriatic

  7. In the x1-x2 plane

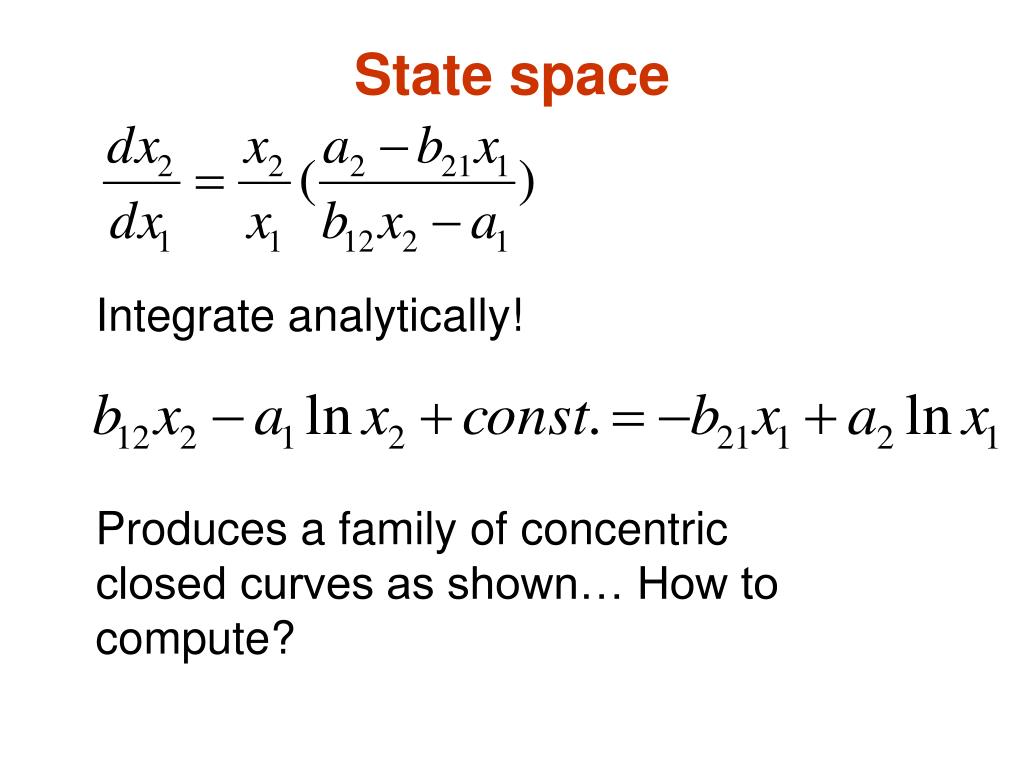

  8. State space Integrate analytically! Produces a family of concentric closed curves as shown… How to compute?

  9. Population dynamics self-limiting term  stable focus Delay  limit cycle

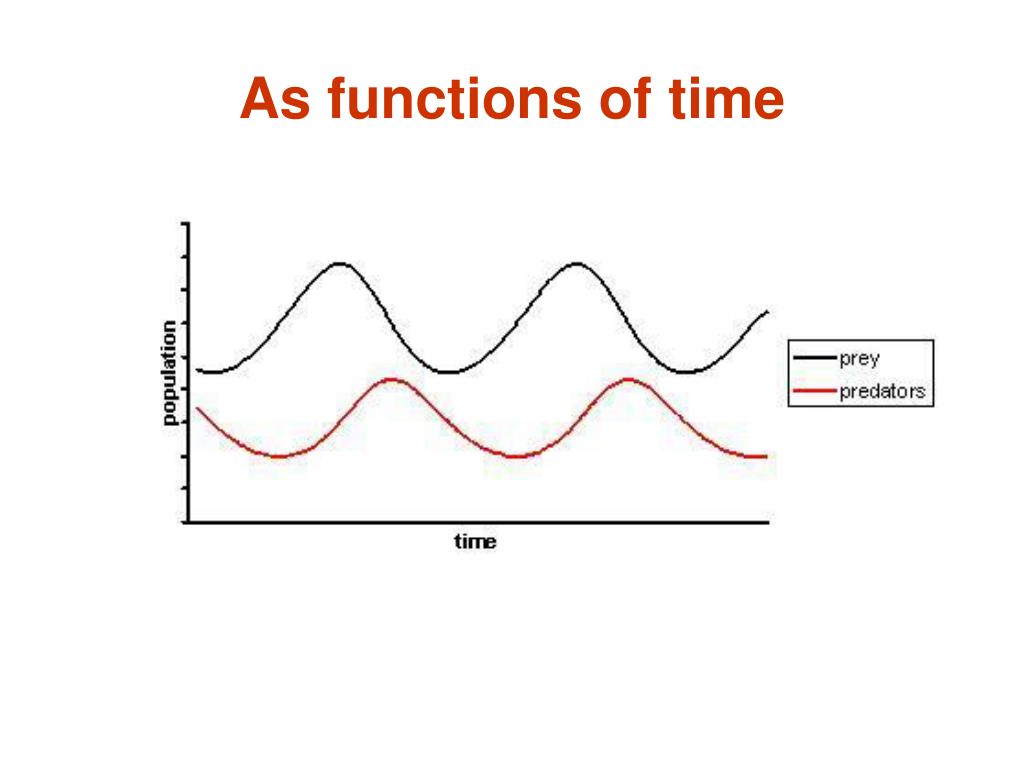

  10. As functions of time

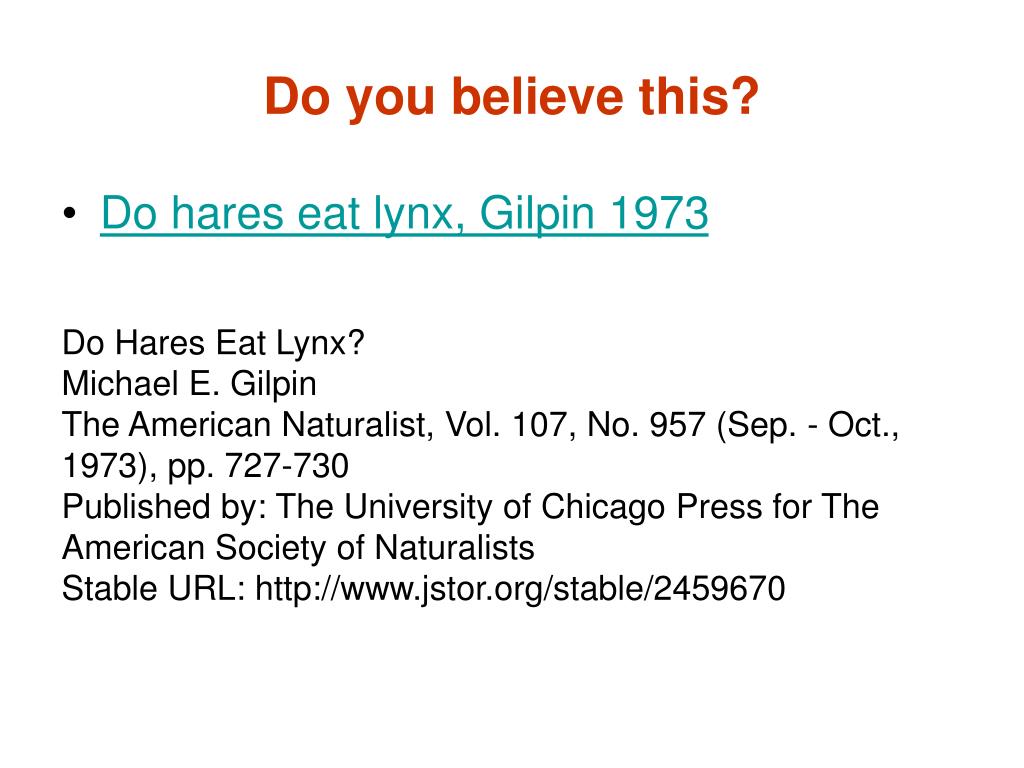

  11. Do you believe this? • Do hares eat lynx, Gilpin 1973 Do Hares Eat Lynx? Michael E. Gilpin The American Naturalist, Vol. 107, No. 957 (Sep. - Oct., 1973), pp. 727-730 Published by: The University of Chicago Press for The American Society of Naturalists Stable URL: http://www.jstor.org/stable/2459670

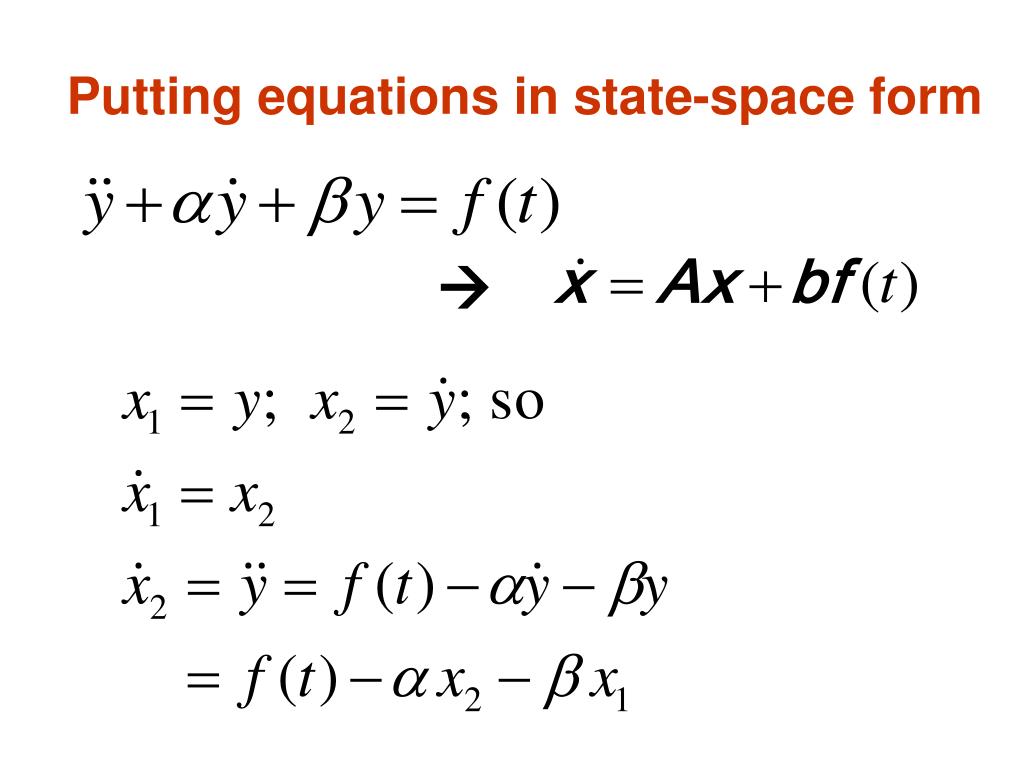

  12. Putting equations in state-space form

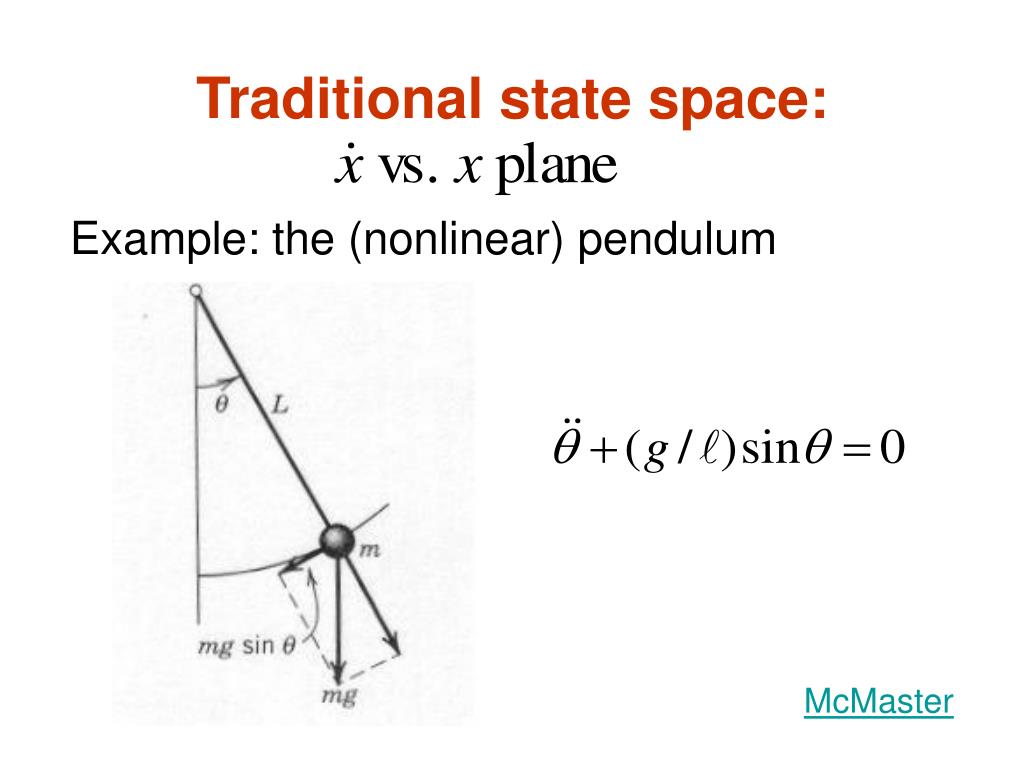

  13. Traditional state space: Example: the (nonlinear) pendulum McMaster

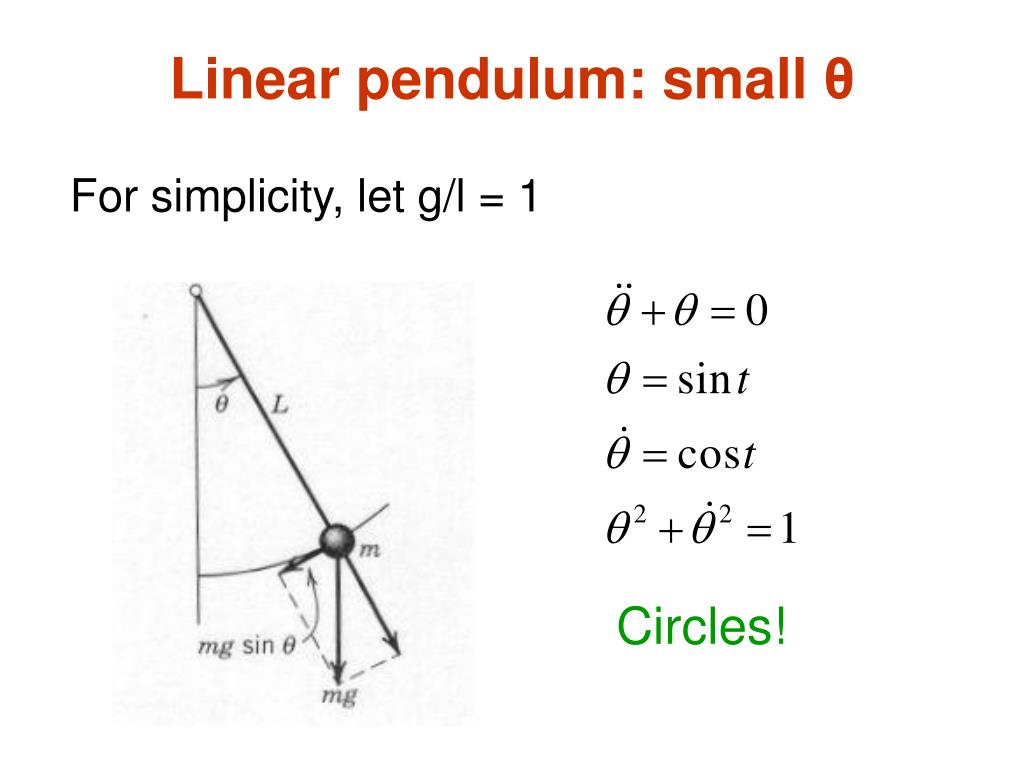

  14. Linear pendulum: small θ For simplicity, let g/l = 1 Circles!

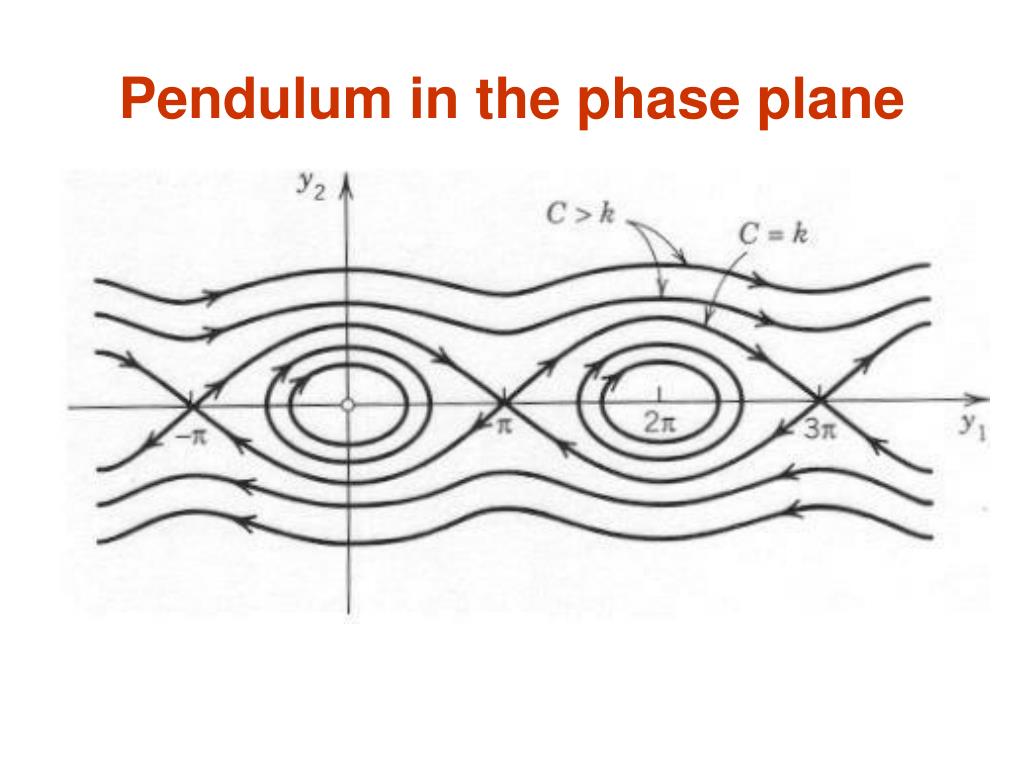

  15. Pendulum in the phase plane

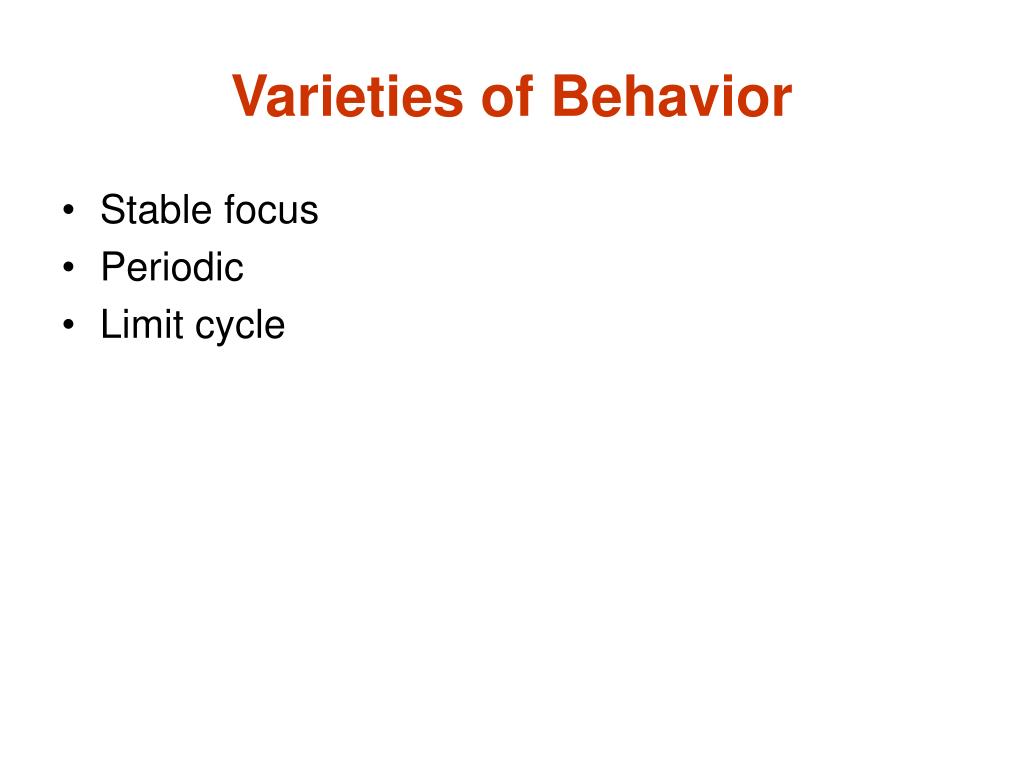

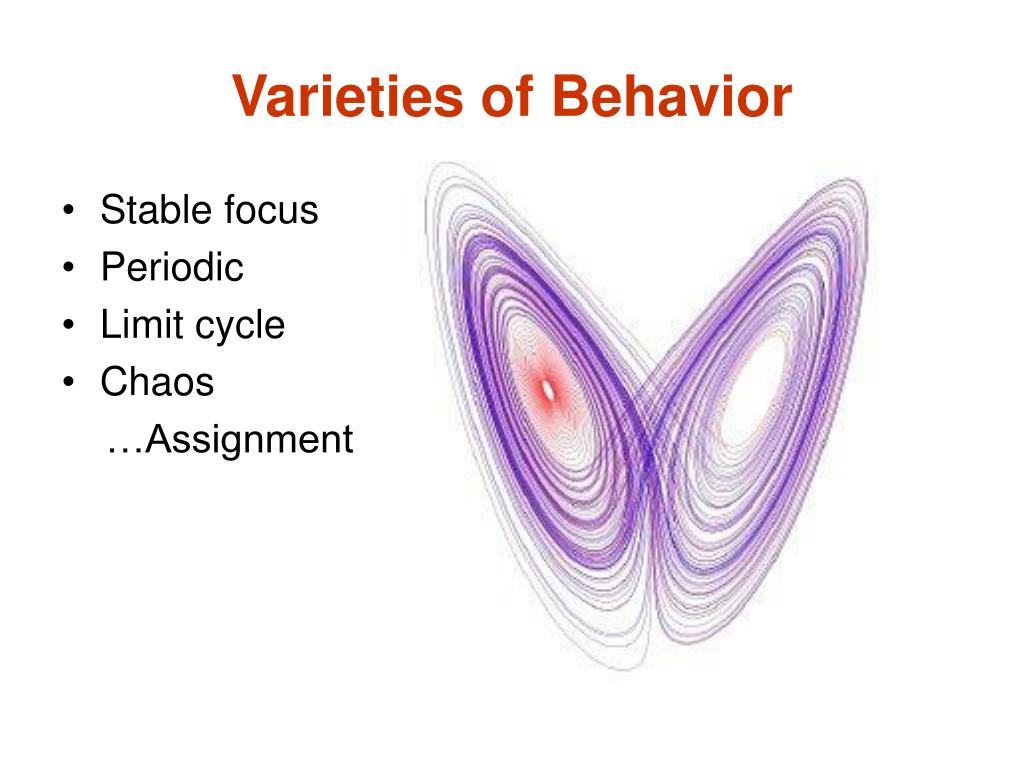

  16. Varieties of Behavior • Stable focus • Periodic • Limit cycle

  17. Varieties of Behavior • Stable focus • Periodic • Limit cycle • Chaos …Assignment

  18. Numerical integration of ODEs • Euler’s Method simple-minded, basis of many others • Predictor-corrector methods  can be useful • Runge-Kutta (usually 4th-order) workhorse, good enough for our work, but not state-of-the-art

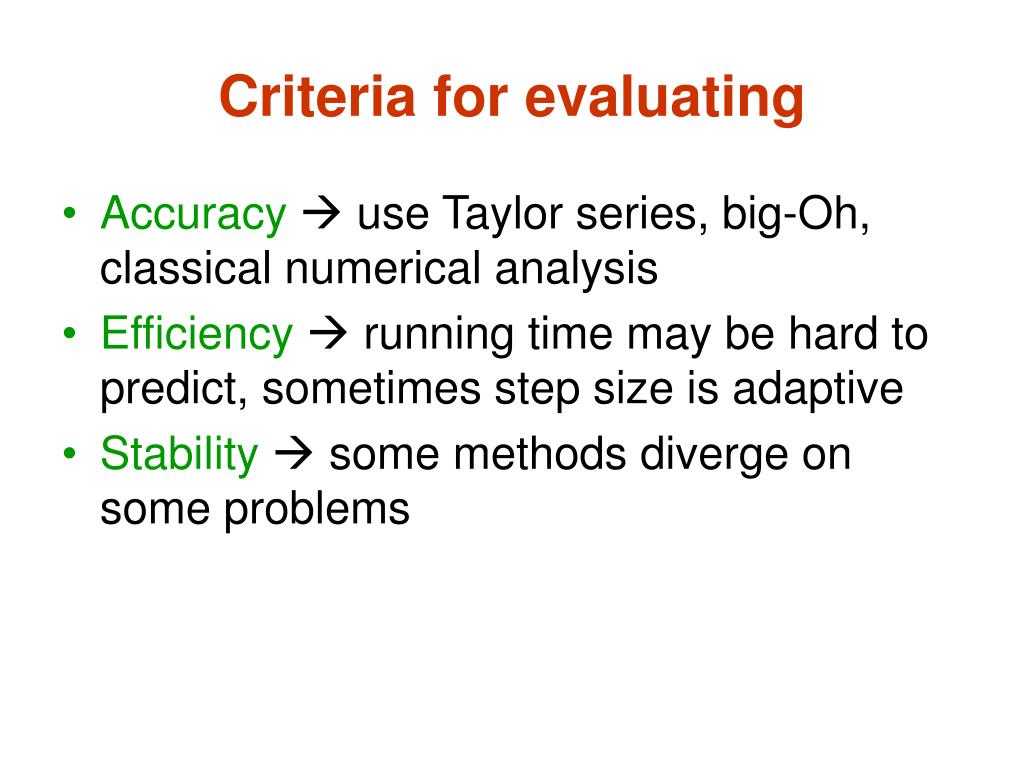

  19. Criteria for evaluating • Accuracy use Taylor series, big-Oh, classical numerical analysis • Efficiency  running time may be hard to predict, sometimes step size is adaptive • Stability  some methods diverge on some problems

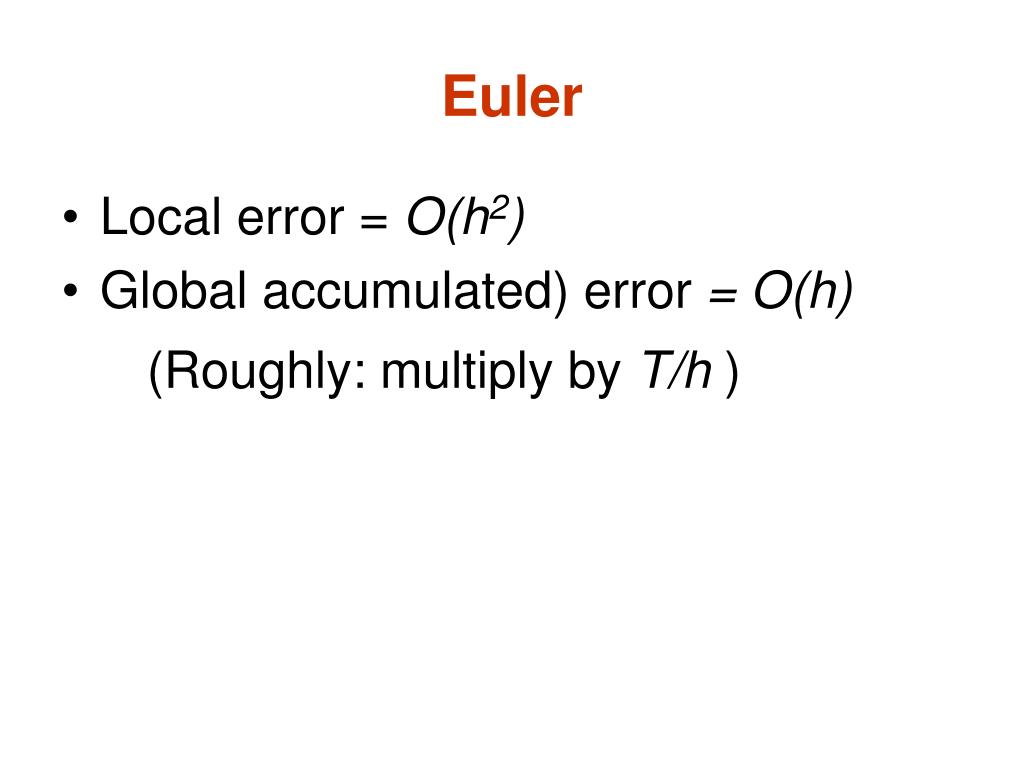

  20. Euler • Local error = O(h2) • Global accumulated) error = O(h) (Roughly: multiply by T/h )

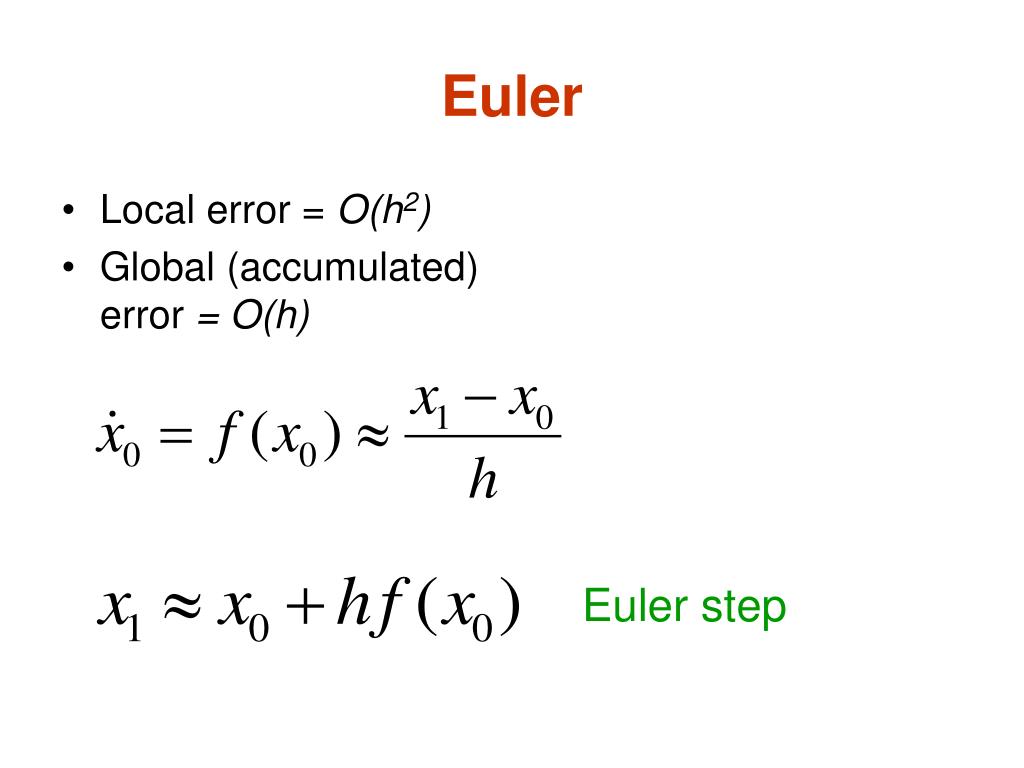

  21. Euler • Local error = O(h2) • Global (accumulated) error = O(h) Euler step

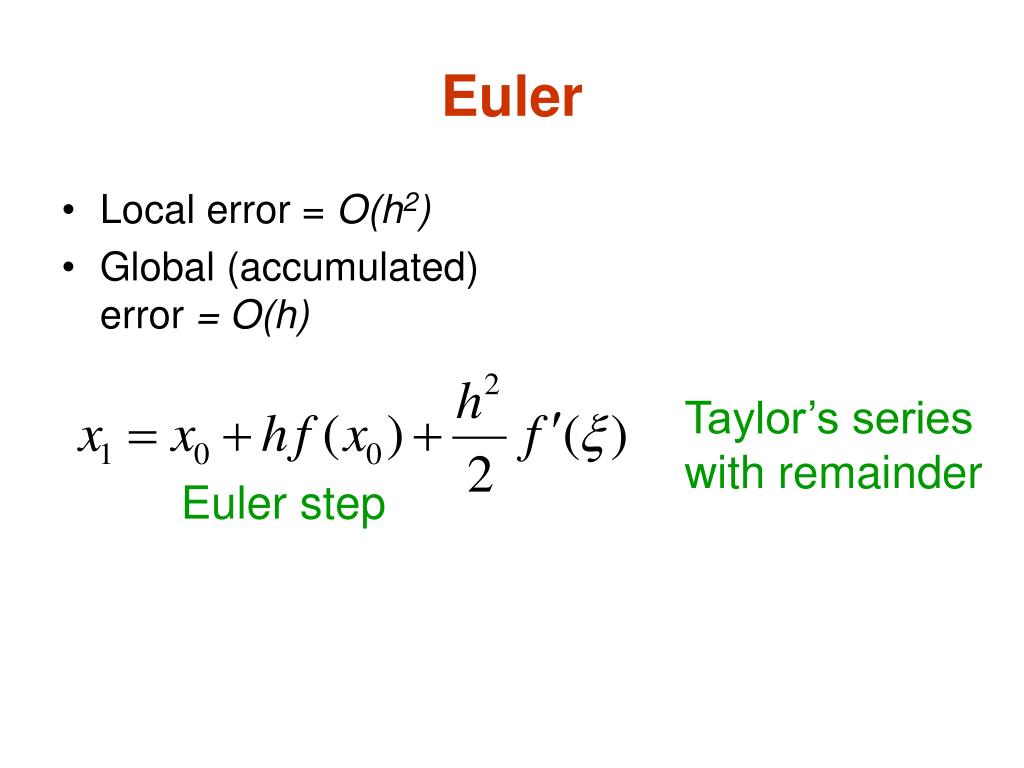

  22. Euler • Local error = O(h2) • Global (accumulated) error = O(h) Taylor’s series with remainder Euler step

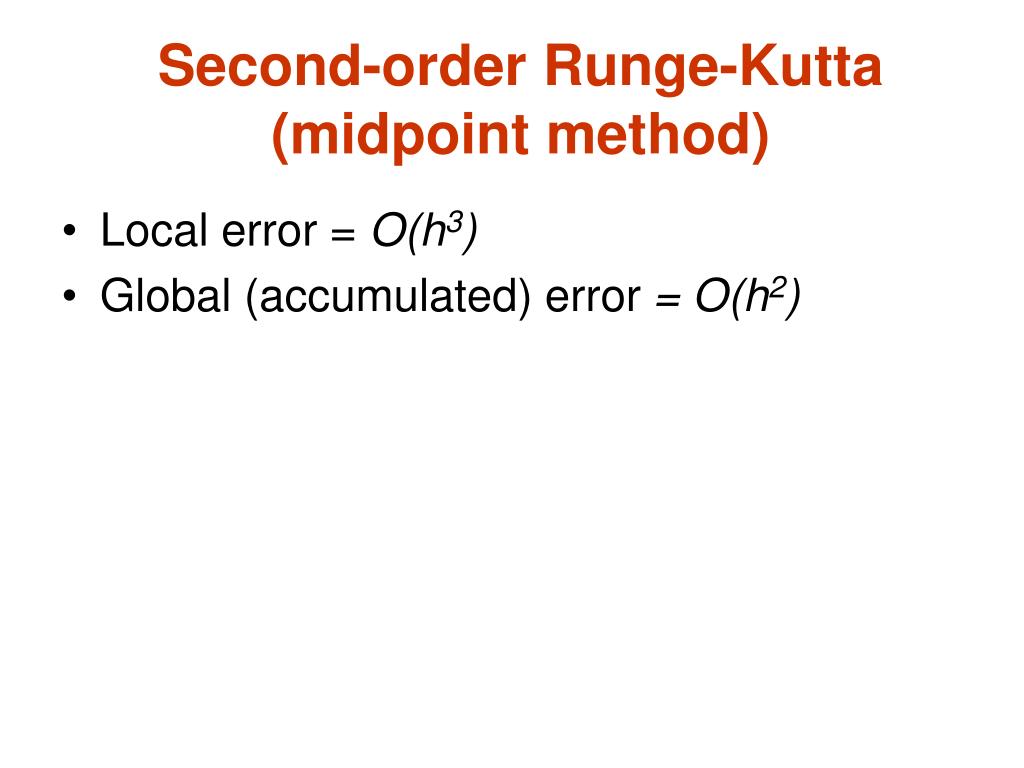

  23. Second-order Runge-Kutta (midpoint method) • Local error = O(h3) • Global (accumulated) error = O(h2)

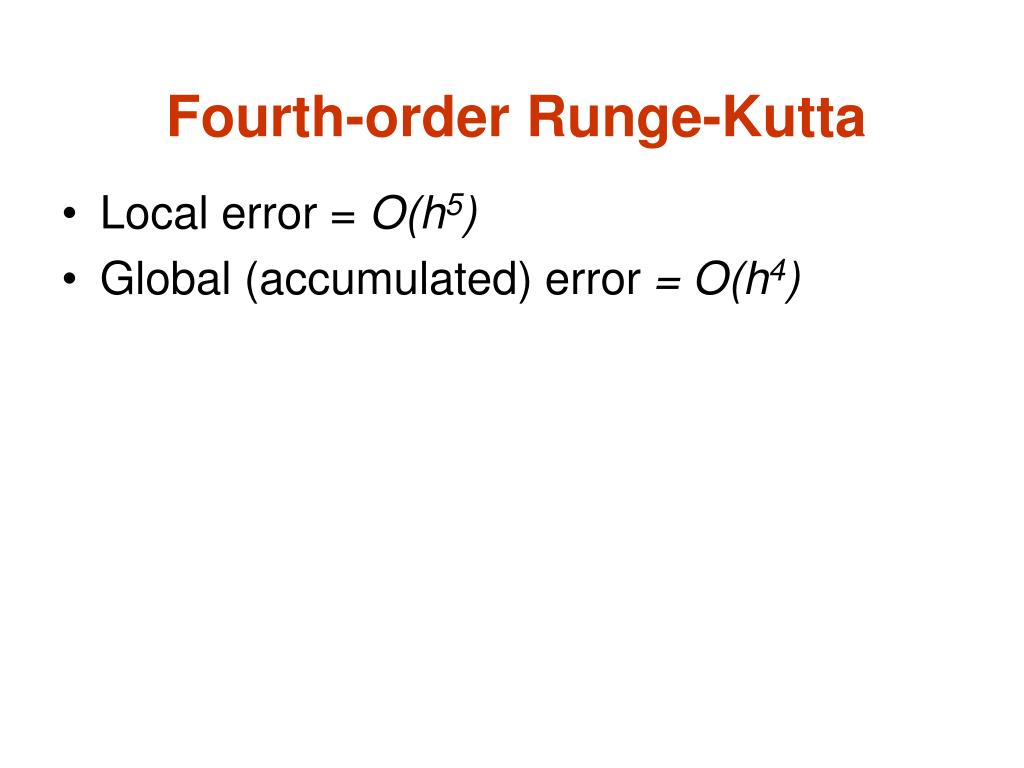

  24. Fourth-order Runge-Kutta • Local error = O(h5) • Global (accumulated) error = O(h4)

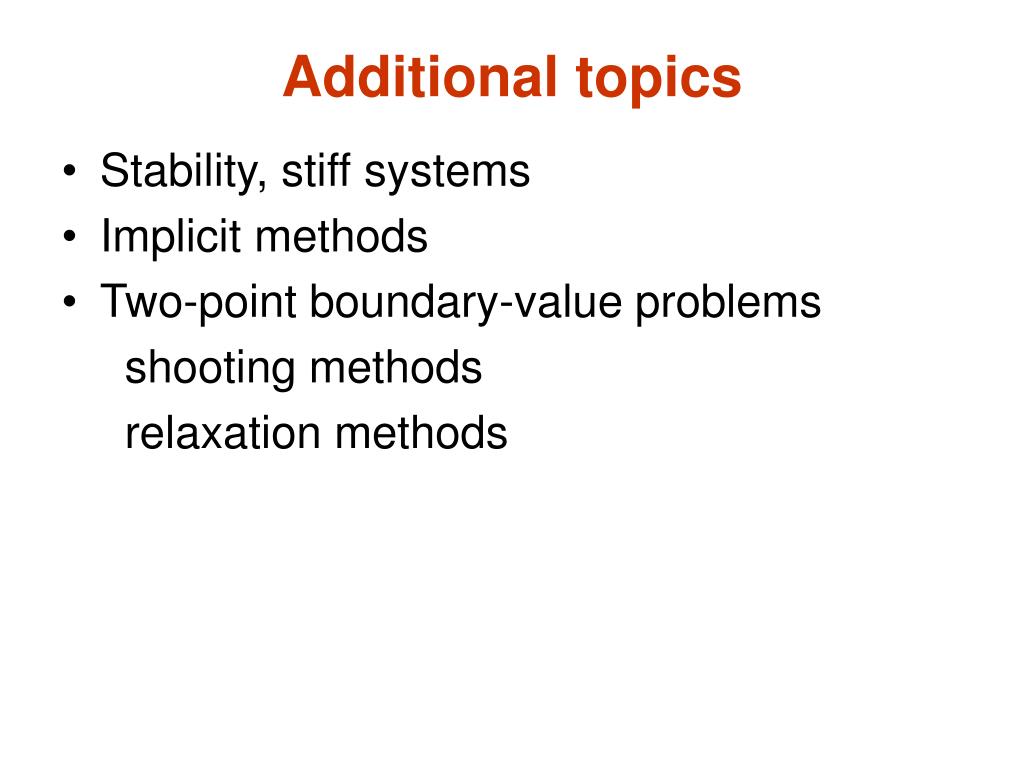

  25. Additional topics • Stability, stiff systems • Implicit methods • Two-point boundary-value problems shooting methods relaxation methods
