  1. Saturday Study Session 1Theme of the ClassEnthalpy Session 3 – Delta H Four Different Ways

  2. Enthalpy. Anyone not in Chemistry thinks you’re saying Empathy. I feel your pain.

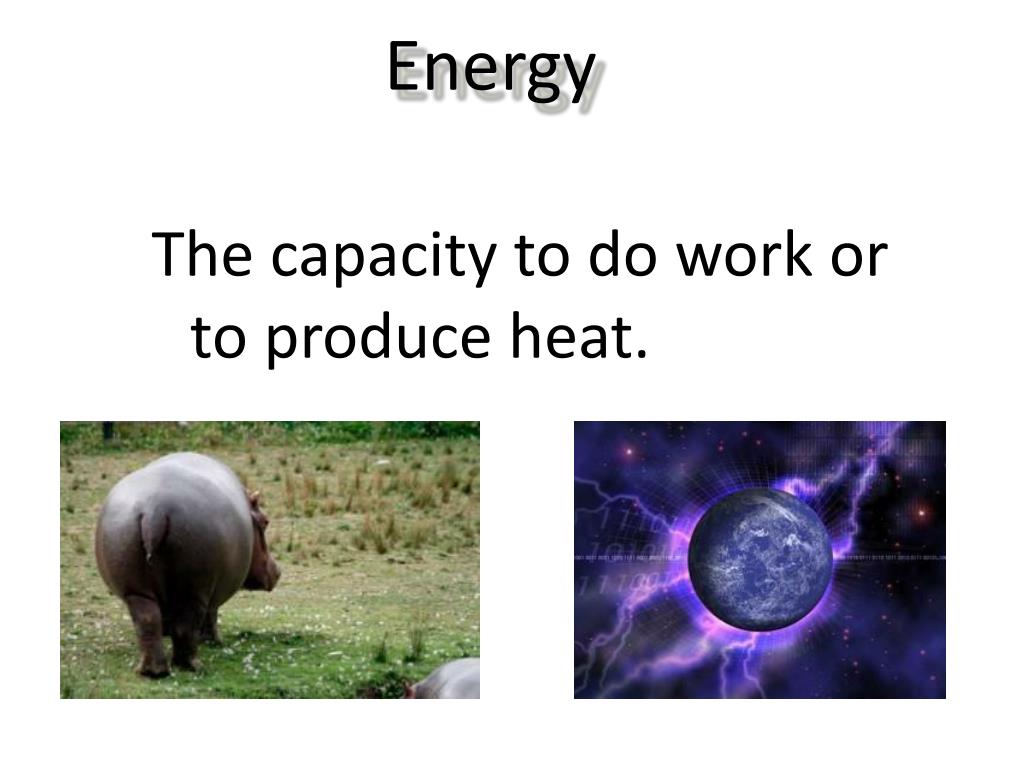

  3. Energy The capacity to do work or to produce heat.

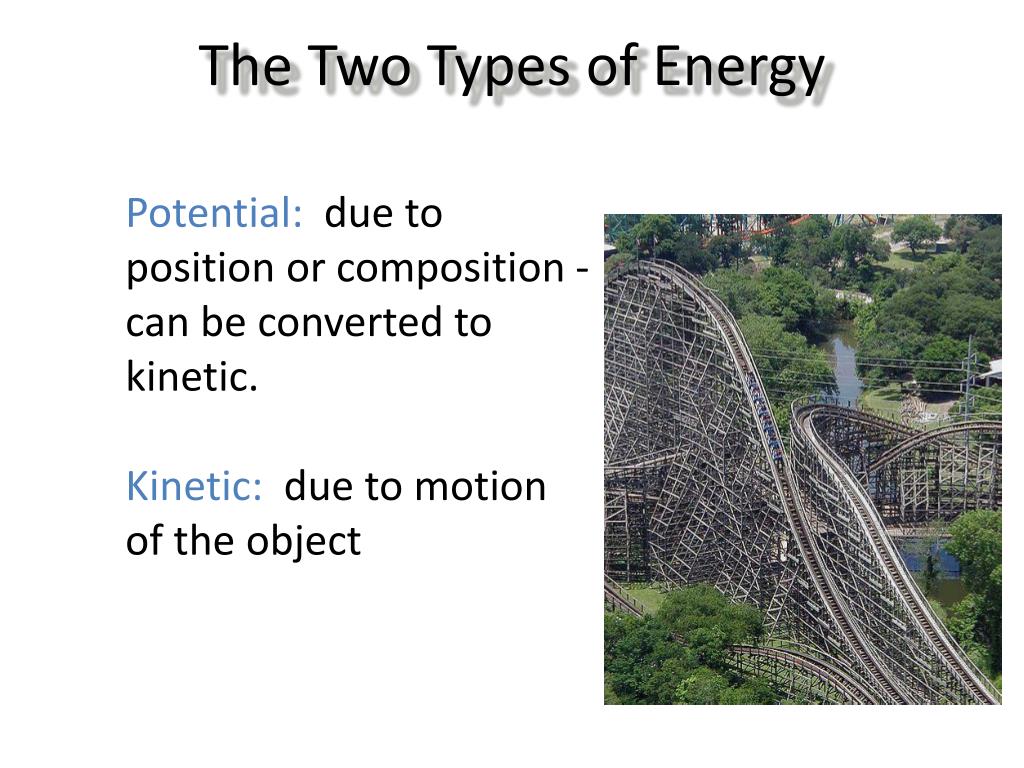

  4. The Two Types of Energy Potential:due to position or composition - can be converted to kinetic. Kinetic:due to motion of the object

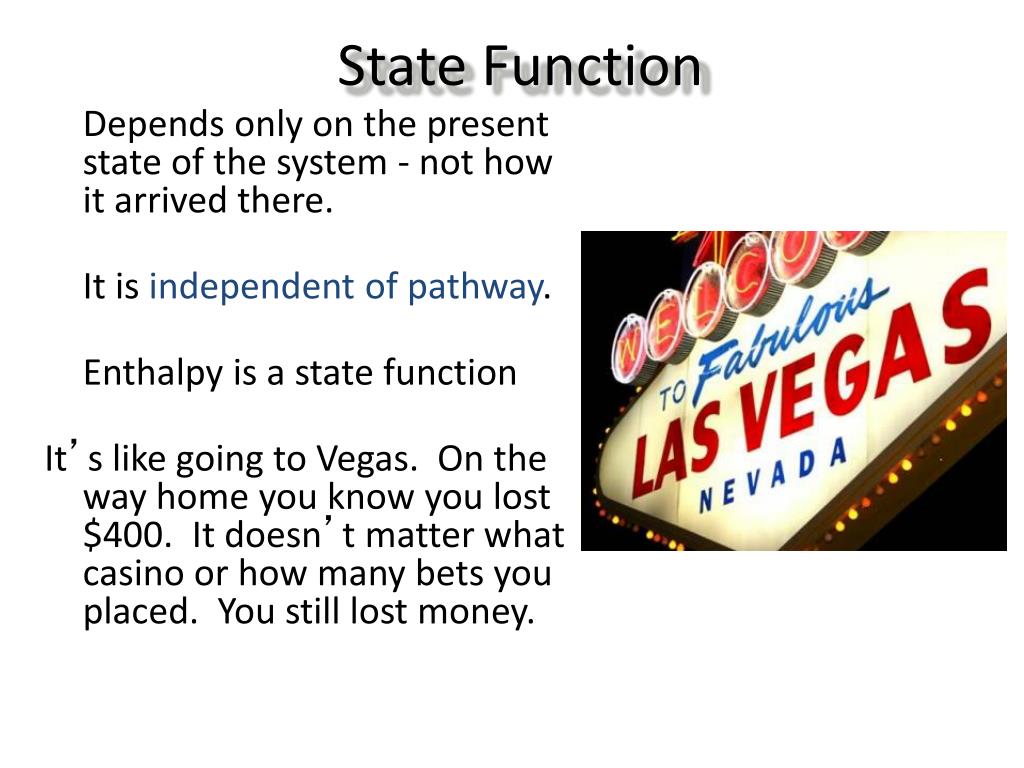

  5. State Function Depends only on the present state of the system - not how it arrived there. It is independent of pathway. Enthalpy is a state function It’s like going to Vegas. On the way home you know you lost $400. It doesn’t matter what casino or how many bets you placed. You still lost money.

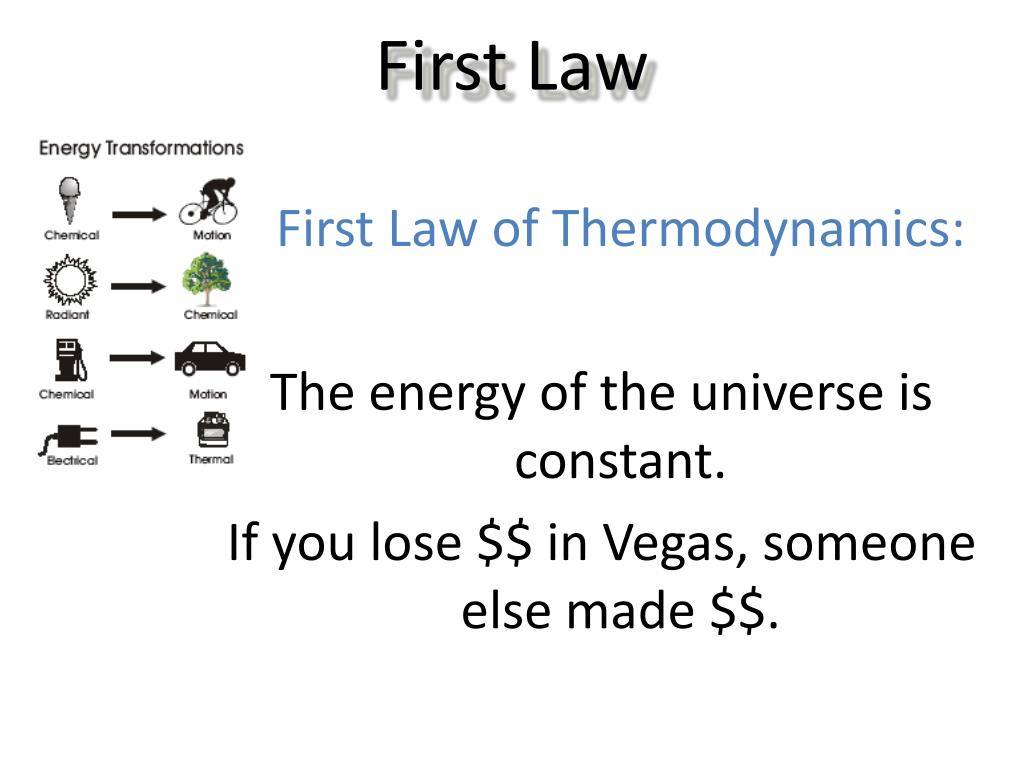

  6. First Law First Law of Thermodynamics: The energy of the universe is constant. If you lose $$ in Vegas, someone else made $$.

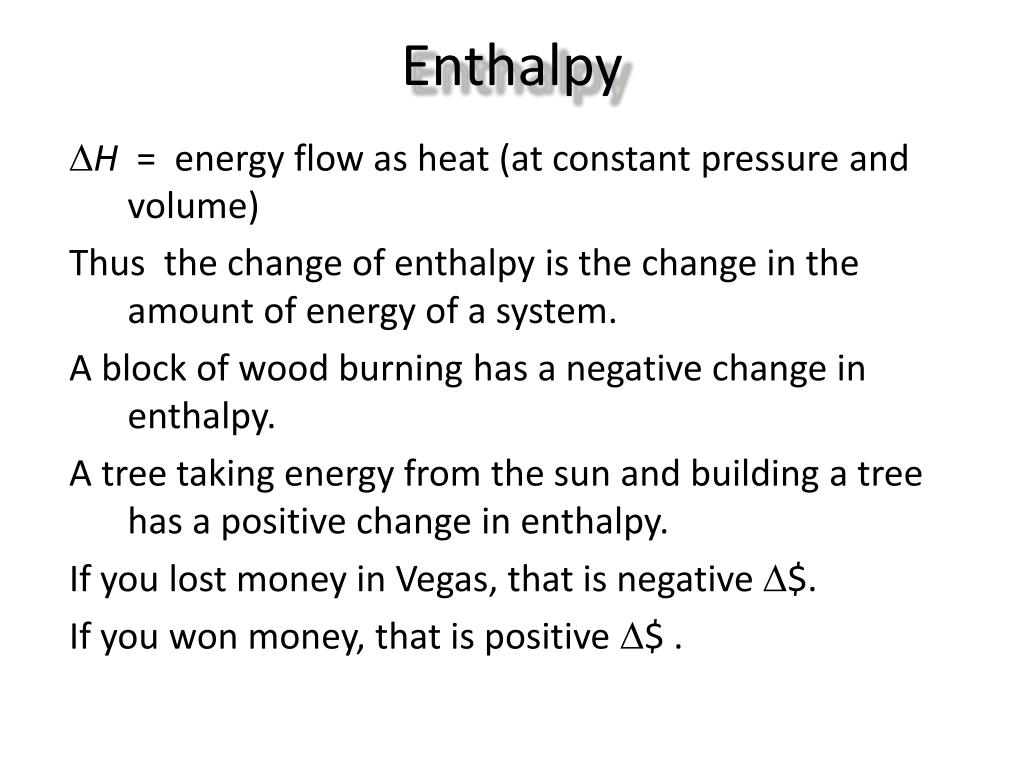

  7. Enthalpy H = energy flow as heat (at constant pressure and volume) Thus the change of enthalpy is the change in the amount of energy of a system. A block of wood burning has a negative change in enthalpy. A tree taking energy from the sun and building a tree has a positive change in enthalpy. If you lost money in Vegas, that is negative D$. If you won money, that is positive D$ .

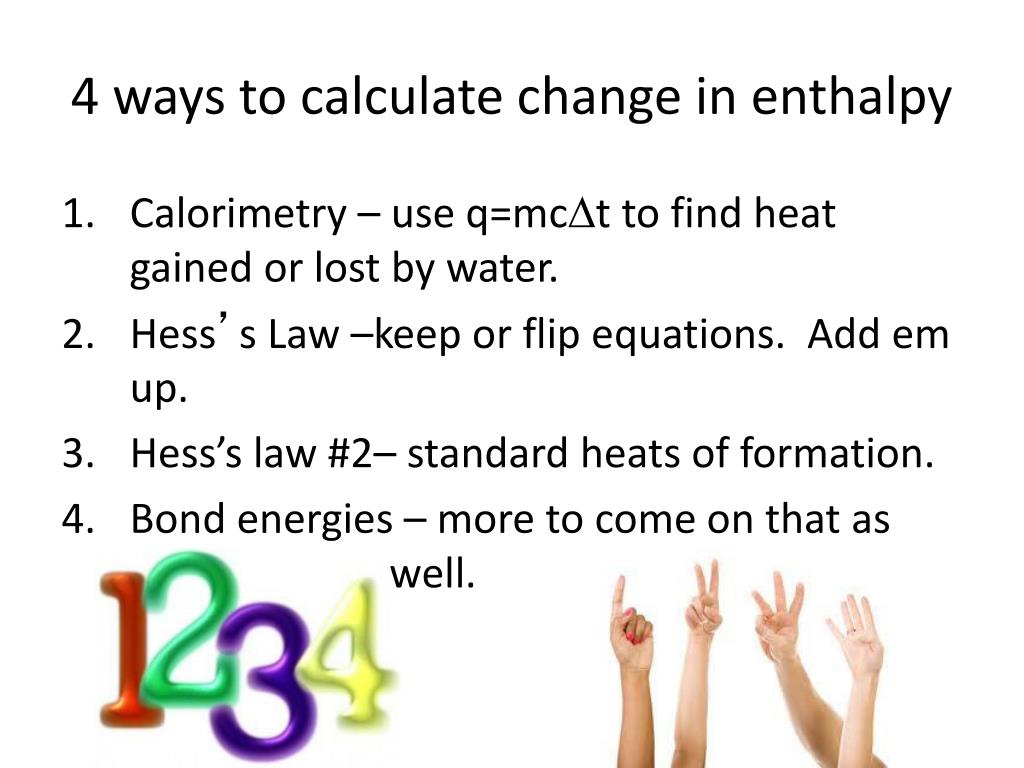

  8. 4 ways to calculate change in enthalpy • Calorimetry – use q=mcDt to find heat gained or lost by water. • Hess’s Law –keep or flip equations. Add em up. • Hess’s law #2– standard heats of formation. • Bond energies – more to come on that as well.

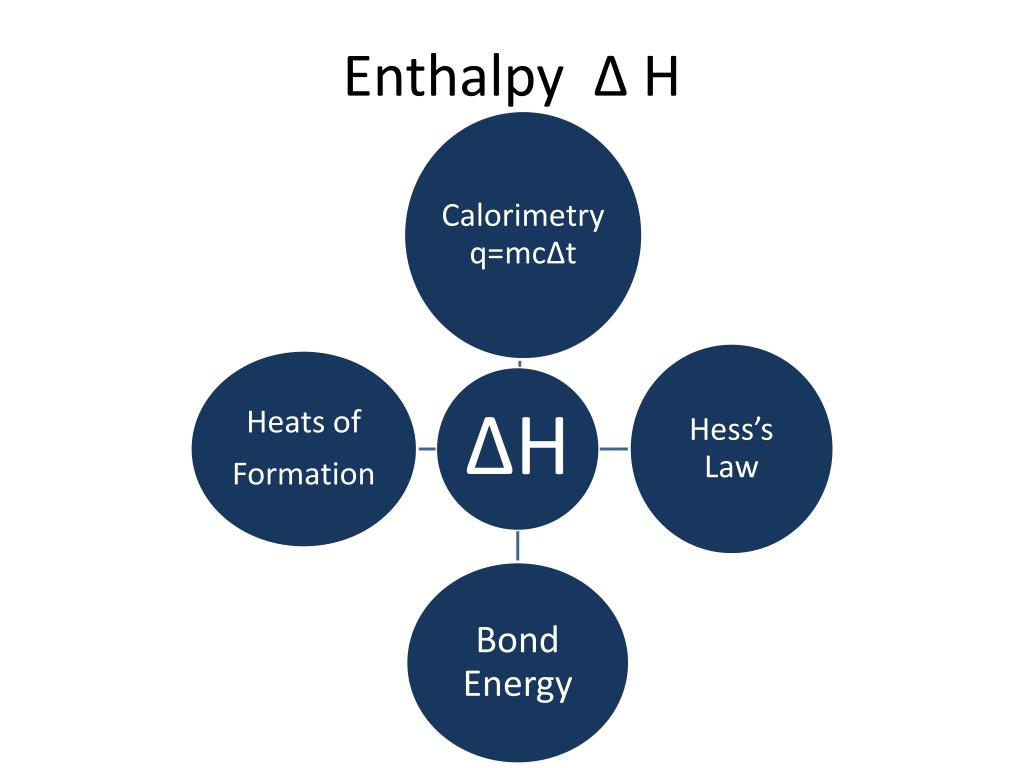

  9. Enthalpy Δ H

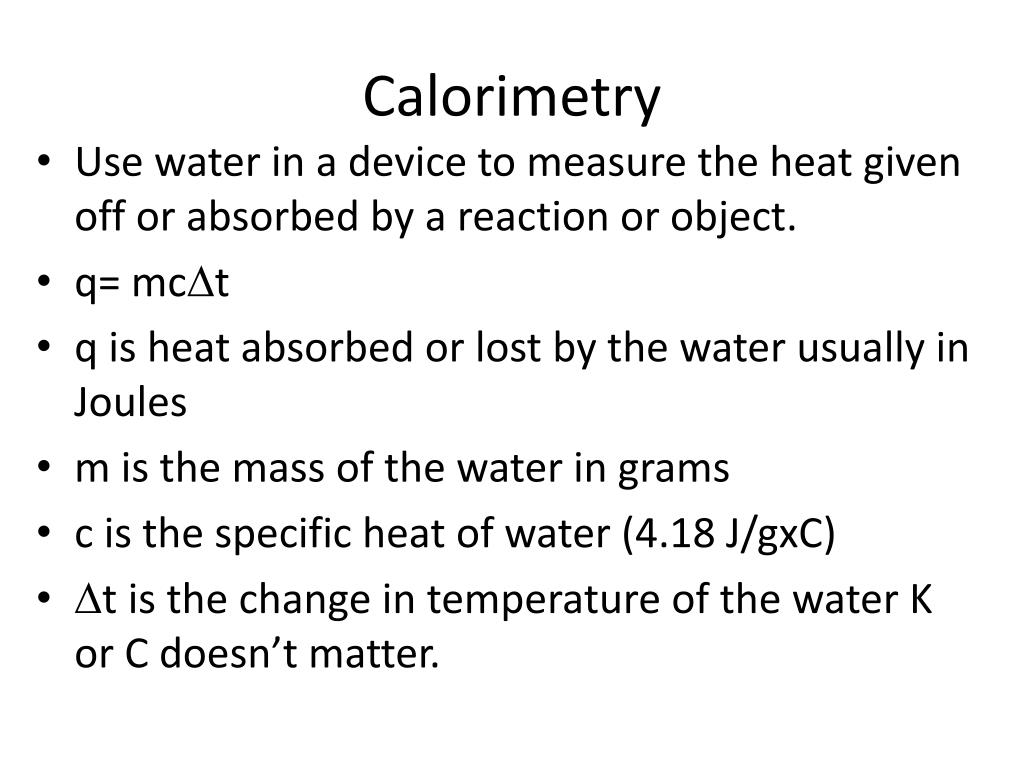

  10. Calorimetry • Use water in a device to measure the heat given off or absorbed by a reaction or object. • q= mcDt • q is heat absorbed or lost by the water usually in Joules • m is the mass of the water in grams • c is the specific heat of water (4.18 J/gxC) • Dt is the change in temperature of the water K or C doesn’t matter.

  11. Applying mcat • Find q for the water, don’t worry about the sign of anything. • If the water got warmer, the reaction was exothermic and DH will be negative. • If the water got cooler, the reaction was endothermic and DH will be positive.

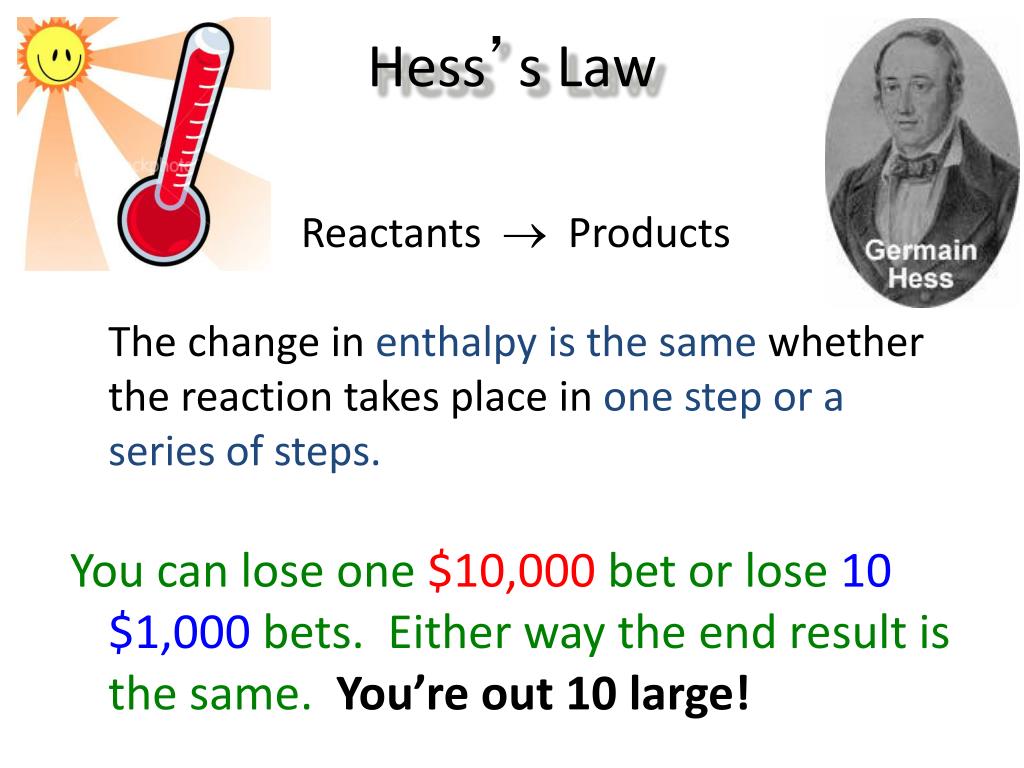

  12. Hess’s Law Reactants  Products The change in enthalpy is the samewhether the reaction takes place in one step or a series of steps. You can lose one $10,000 bet or lose 10 $1,000 bets. Either way the end result is the same. You’re out 10 large!

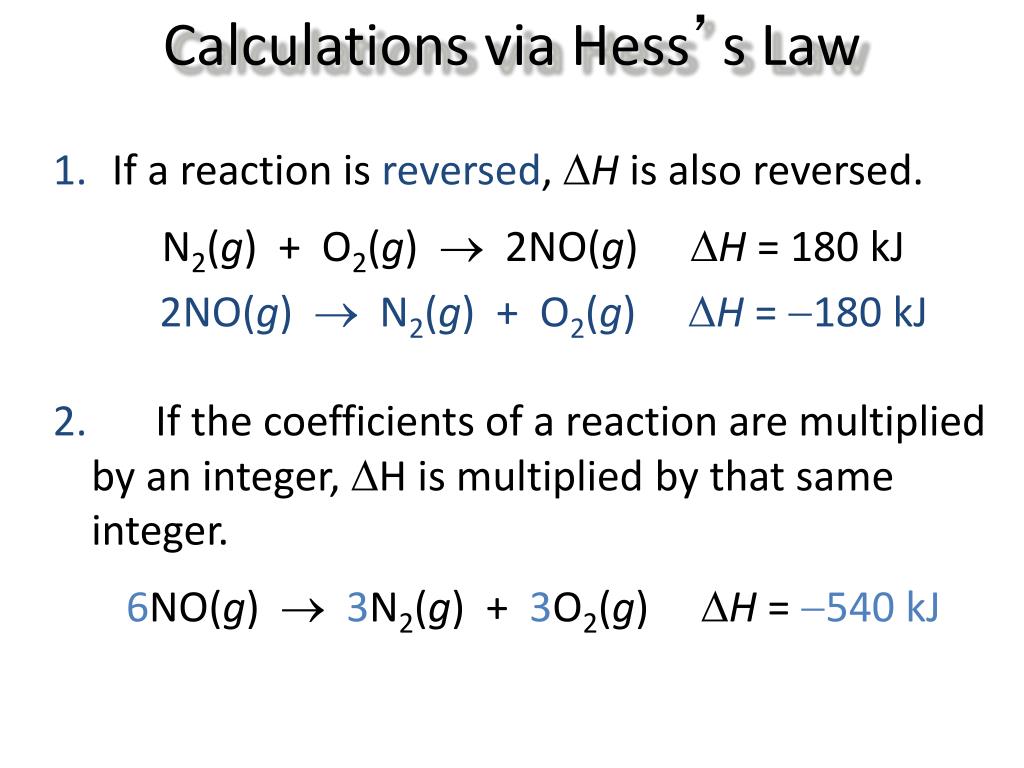

  13. Calculations via Hess’s Law 1. If a reaction is reversed, H is also reversed. N2(g) + O2(g)  2NO(g) H = 180 kJ 2NO(g)  N2(g) + O2(g) H = 180 kJ 2. If the coefficients of a reaction are multiplied by an integer, H is multiplied by that same integer. 6NO(g) 3N2(g) + 3O2(g) H = 540 kJ

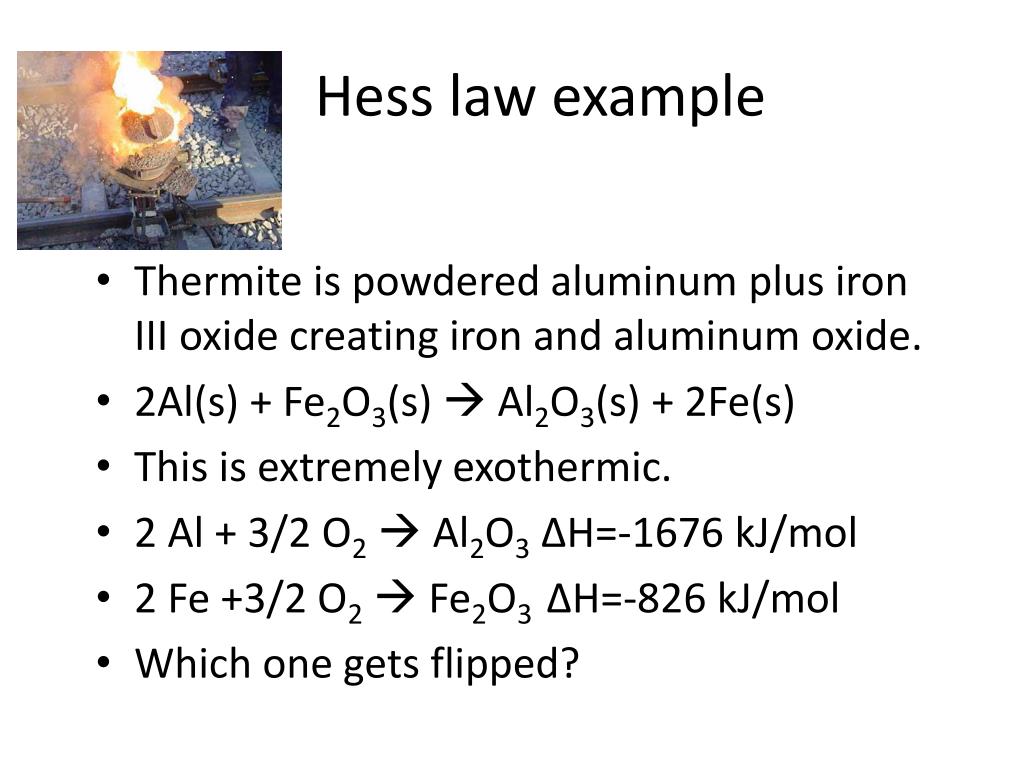

  14. Hess law example • Thermite is powdered aluminum plus iron III oxide creating iron and aluminum oxide. • 2Al(s) + Fe2O3(s)  Al2O3(s) + 2Fe(s) • This is extremely exothermic. • 2 Al + 3/2 O2  Al2O3 ∆H=-1676 kJ/mol • 2 Fe +3/2 O2  Fe2O3 ∆H=-826 kJ/mol • Which one gets flipped?

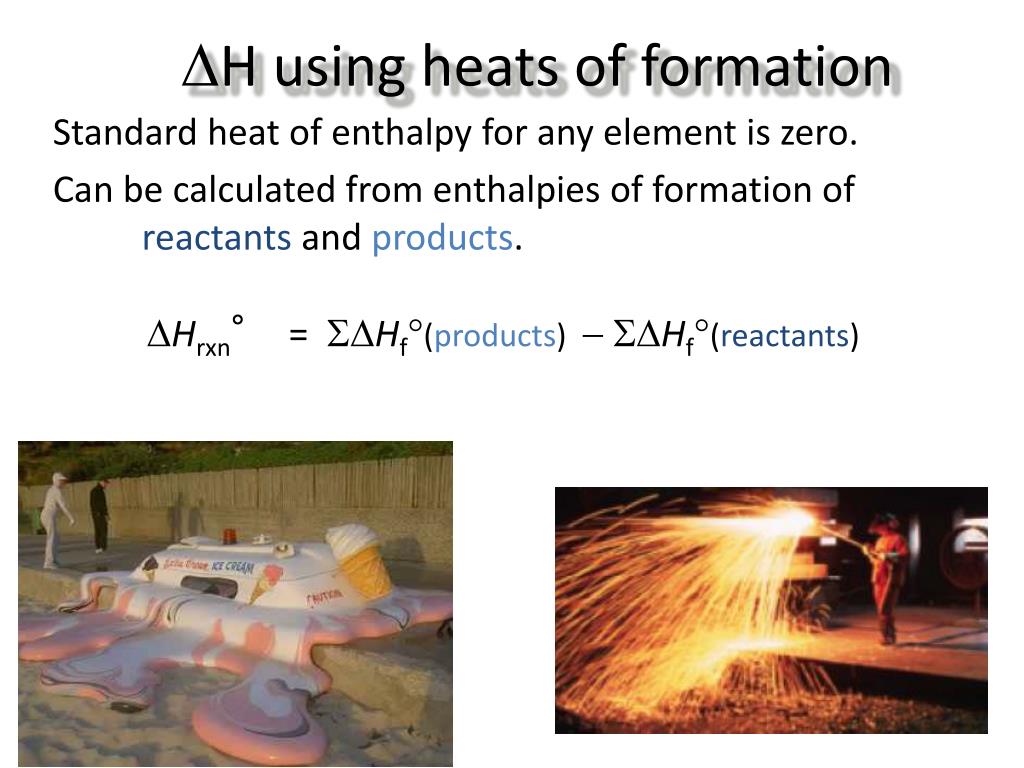

  15. DH using heats of formation Standard heat of enthalpy for any element is zero. Can be calculated from enthalpies of formation of reactants and products. Hrxn° = Hf(products) Hf(reactants)

  16. DH using Bond Energies Can be calculated from bond energies of reactants and products. DHrxn = S(bond energies of reactants) – S(bond energies of products) Notice this is opposite of the standard heats of formation. In other words breaking all the bonds takes energy (+ DH) and building new molecules with new bonds releases energy (-DH).

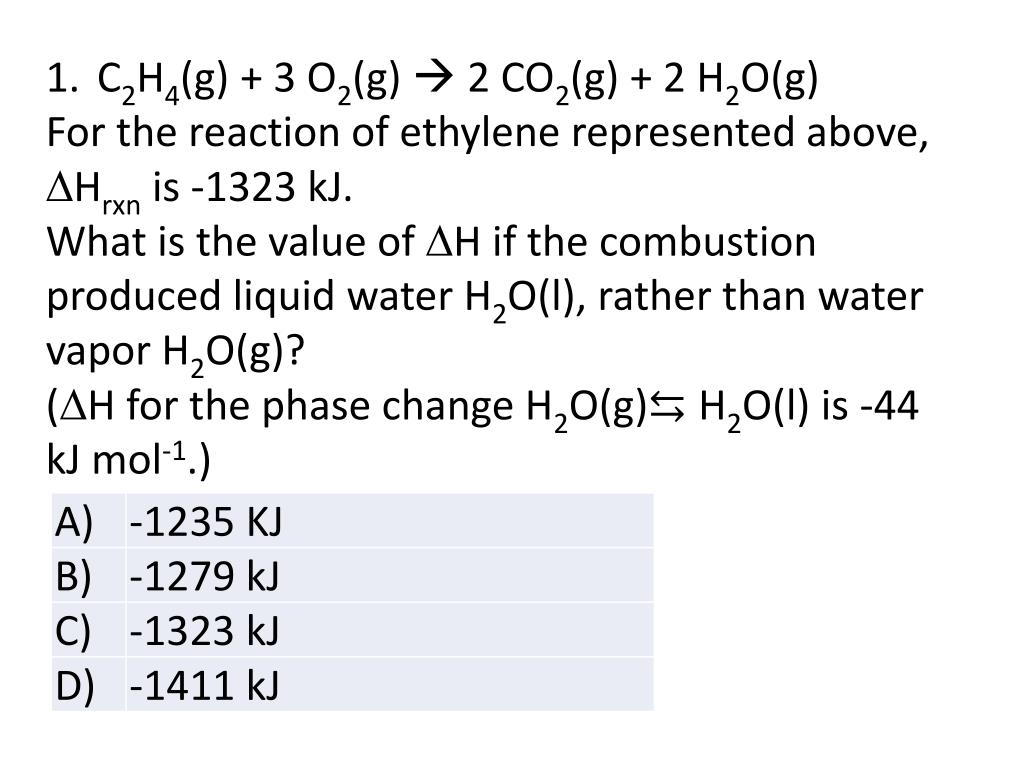

  17. 1. C2H4(g) + 3 O2(g)  2 CO2(g) + 2 H2O(g) For the reaction of ethylene represented above, DHrxn is -1323 kJ. What is the value of DH if the combustion produced liquid water H2O(l), rather than water vapor H2O(g)? (DH for the phase change H2O(g)⇆H2O(l) is -44 kJ mol-1.)

  18. Question 1 Answer D Clue: Multiply one of the equations to make it work.

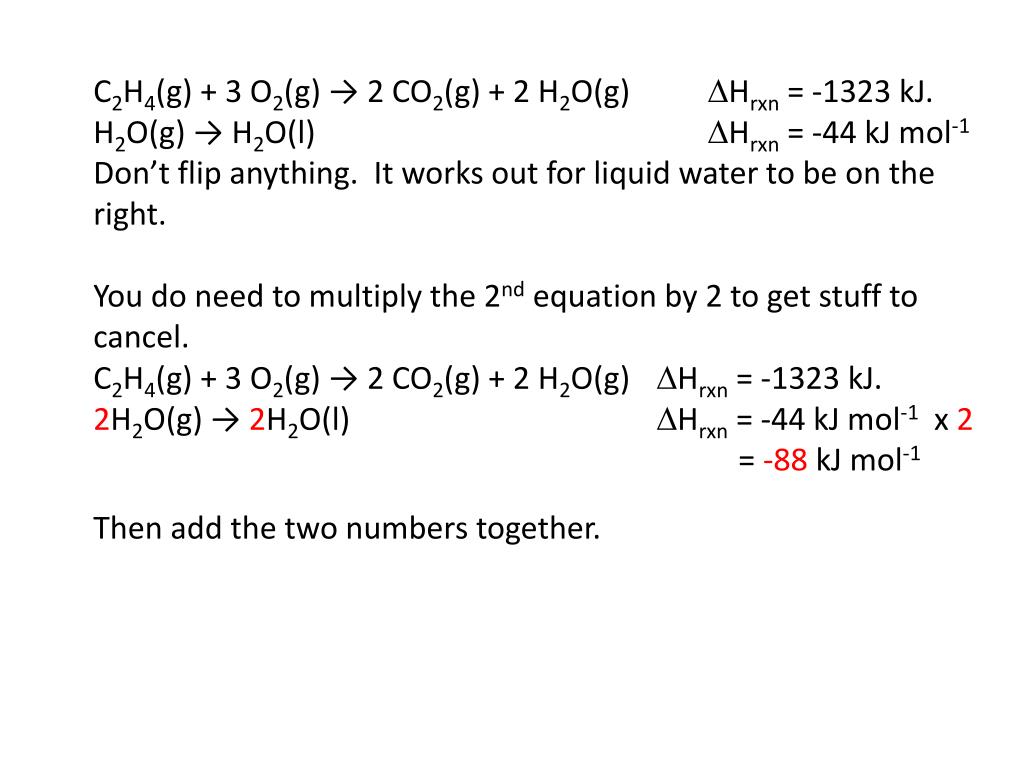

  19. C2H4(g) + 3 O2(g) → 2 CO2(g) + 2 H2O(g) DHrxn = -1323 kJ. H2O(g) → H2O(l) DHrxn = -44 kJ mol-1 Don’t flip anything. It works out for liquid water to be on the right. You do need to multiply the 2nd equation by 2 to get stuff to cancel. C2H4(g) + 3 O2(g) → 2 CO2(g) + 2 H2O(g) DHrxn = -1323 kJ. 2H2O(g) →2H2O(l) DHrxn = -44 kJ mol-1 x 2 = -88 kJ mol-1 Then add the two numbers together.

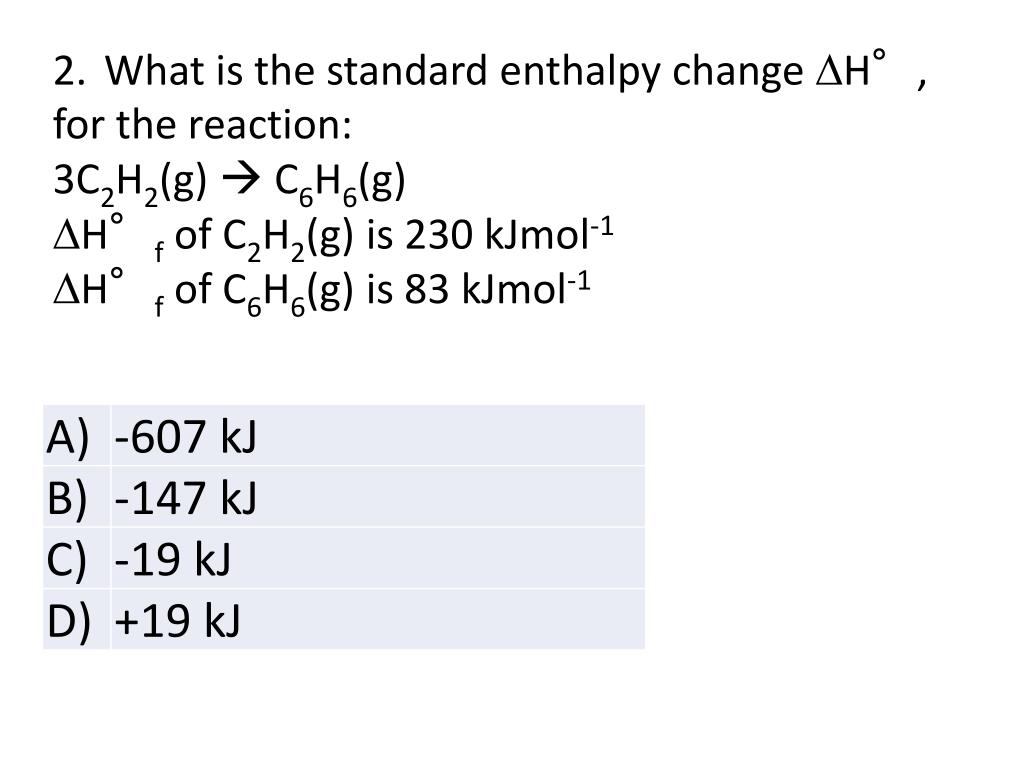

  20. 2. What is the standard enthalpy change DH°, for the reaction: 3C2H2(g)  C6H6(g) DH°f of C2H2(g) is 230 kJmol-1 DH°f of C6H6(g) is 83 kJmol-1

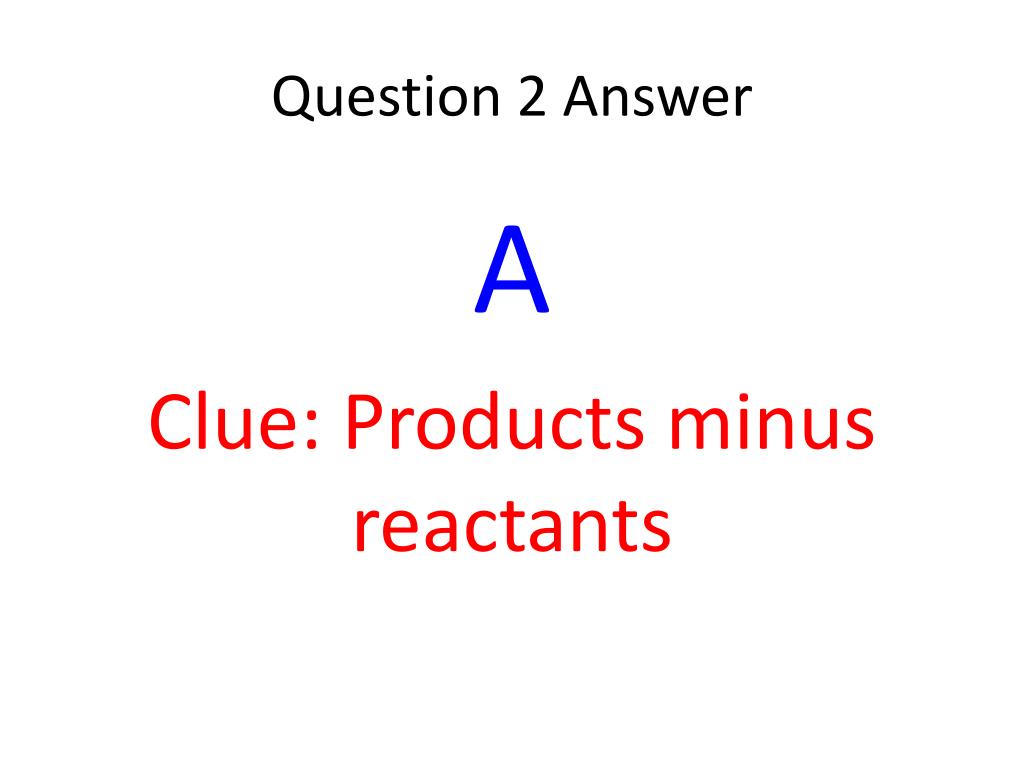

  21. Question 2 Answer A Clue: Products minus reactants

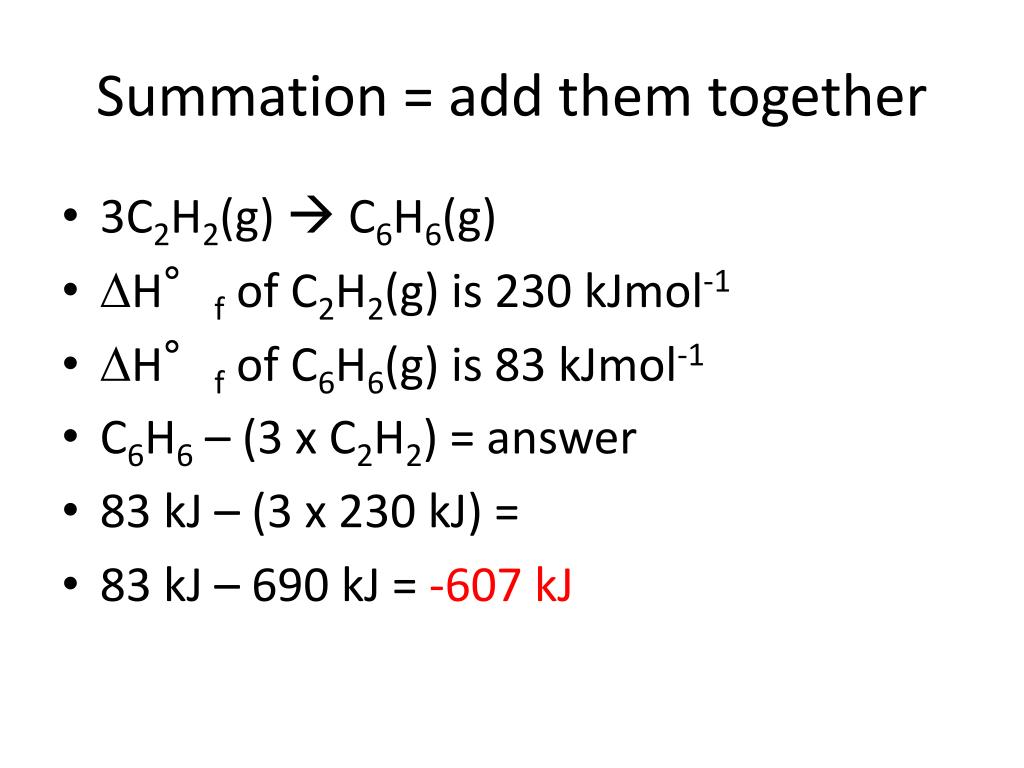

  22. Summation = add them together • 3C2H2(g)  C6H6(g) • DH°f of C2H2(g) is 230 kJmol-1 • DH°f of C6H6(g) is 83 kJmol-1 • C6H6 – (3 x C2H2) = answer • 83 kJ – (3 x 230 kJ) = • 83 kJ – 690 kJ = -607 kJ

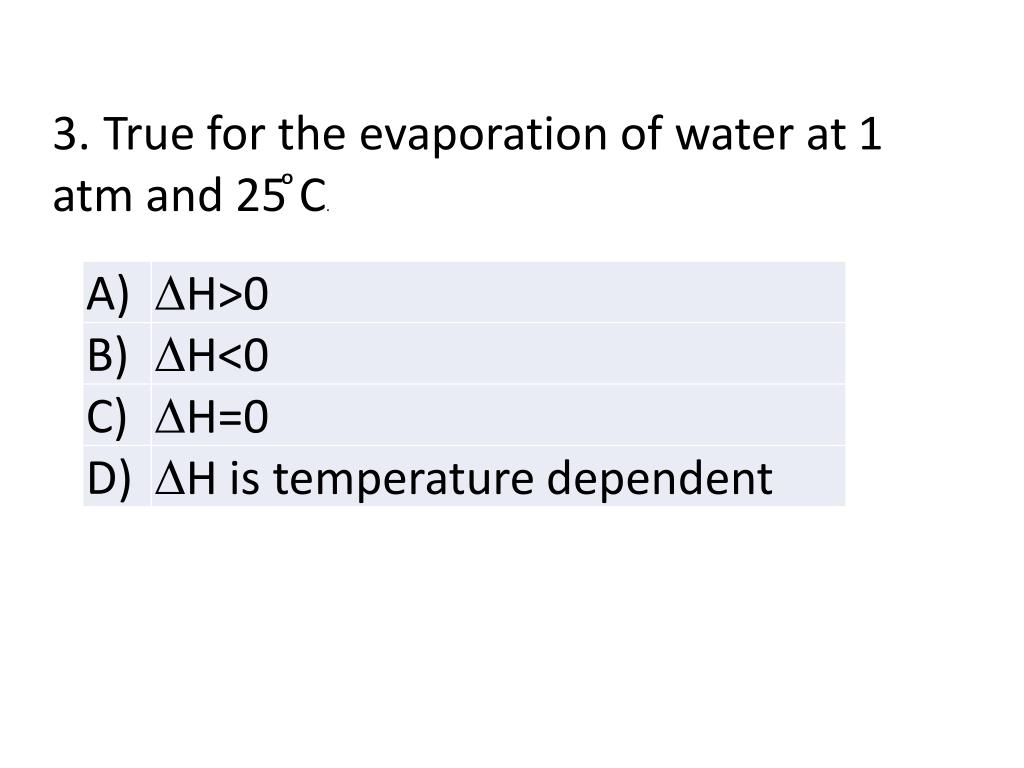

  23. 3. True for the evaporation of water at 1 atm and 25 ͦC.

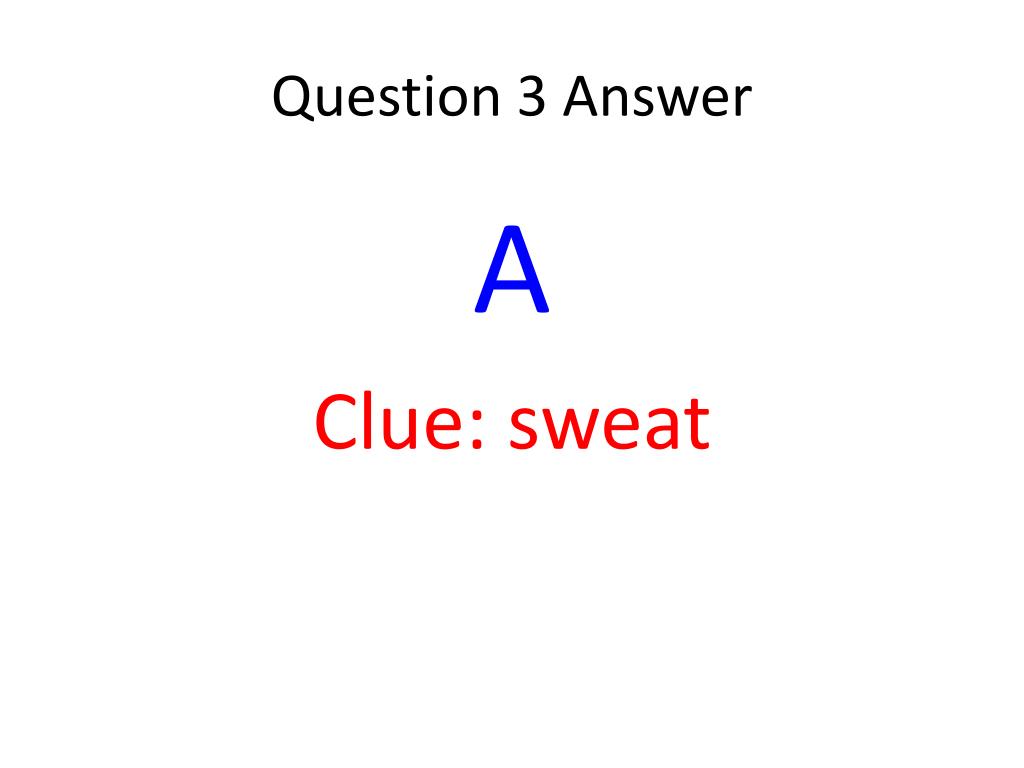

  24. Question 3 Answer A Clue: sweat

  25. When water evaporate it absorbs the energy and uses it to speed up the molecules so they can break free into a gas. Absorbing energy is + DH.

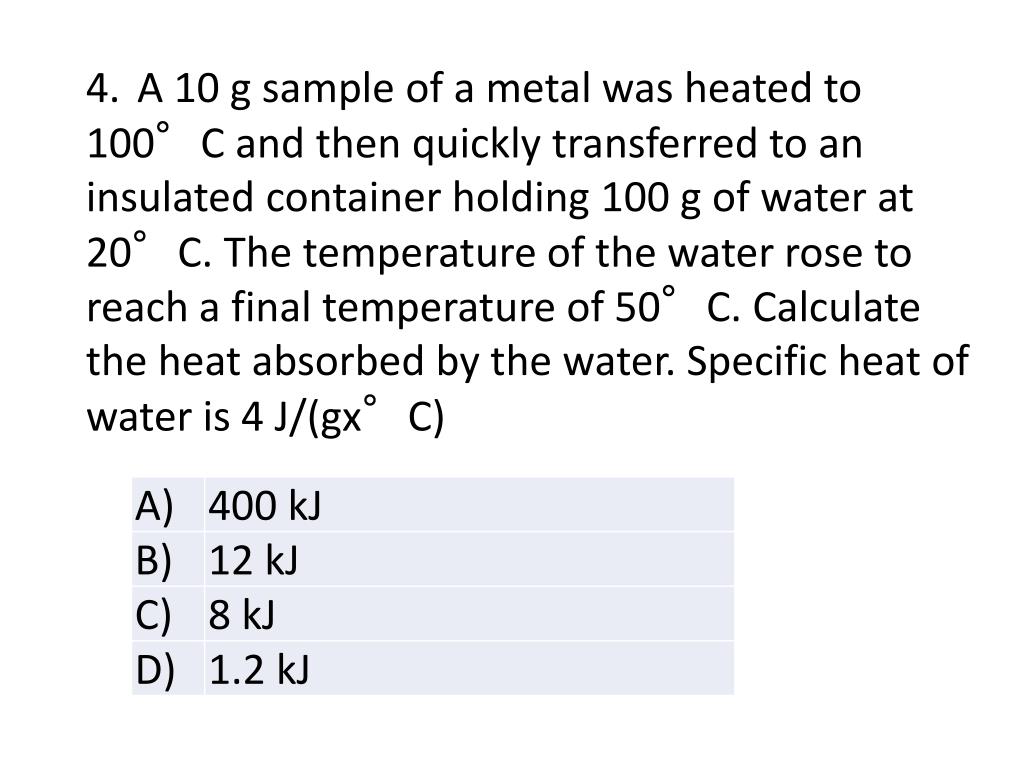

  26. 4. A 10 g sample of a metal was heated to 100°C and then quickly transferred to an insulatedcontainer holding 100 g of water at 20°C. The temperature of the water rose to reach a final temperature of 50°C. Calculate the heat absorbed by the water. Specific heat of water is 4 J/(gx°C)

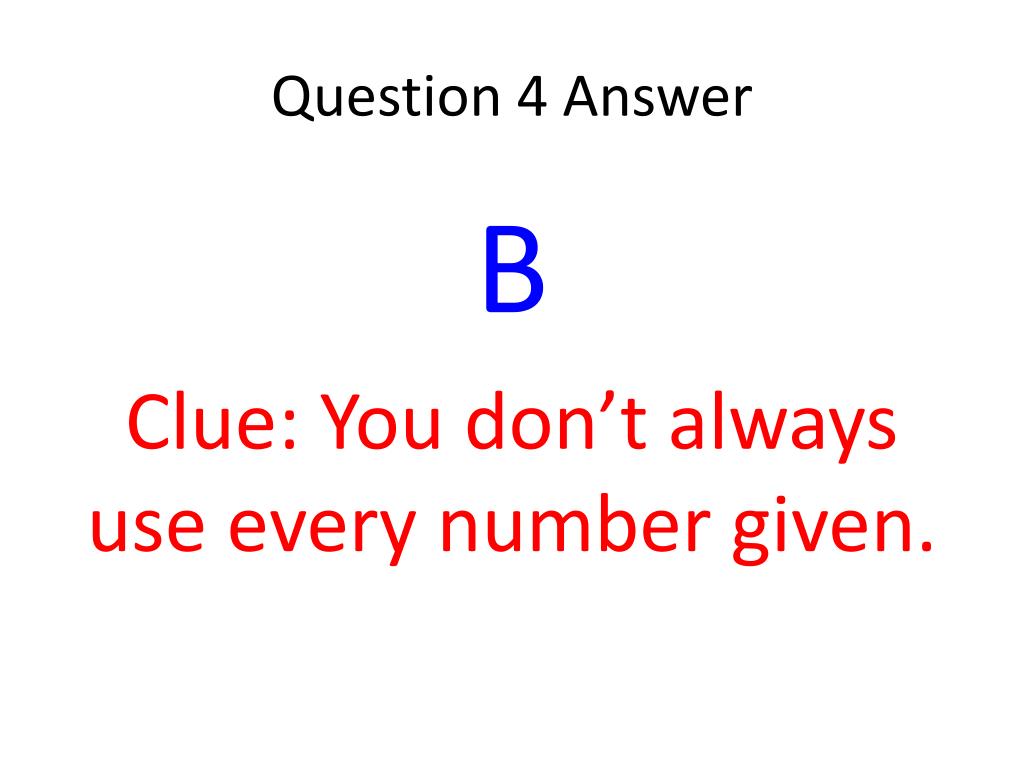

  27. Question 4 Answer B Clue: You don’t always use every number given.

  28. q = m c Dt for the water since that is what the question asks. q = 100 g x 4 J/(gx ⁰ C) x (50-20 ⁰C) q = 12000 J or 12 kJ

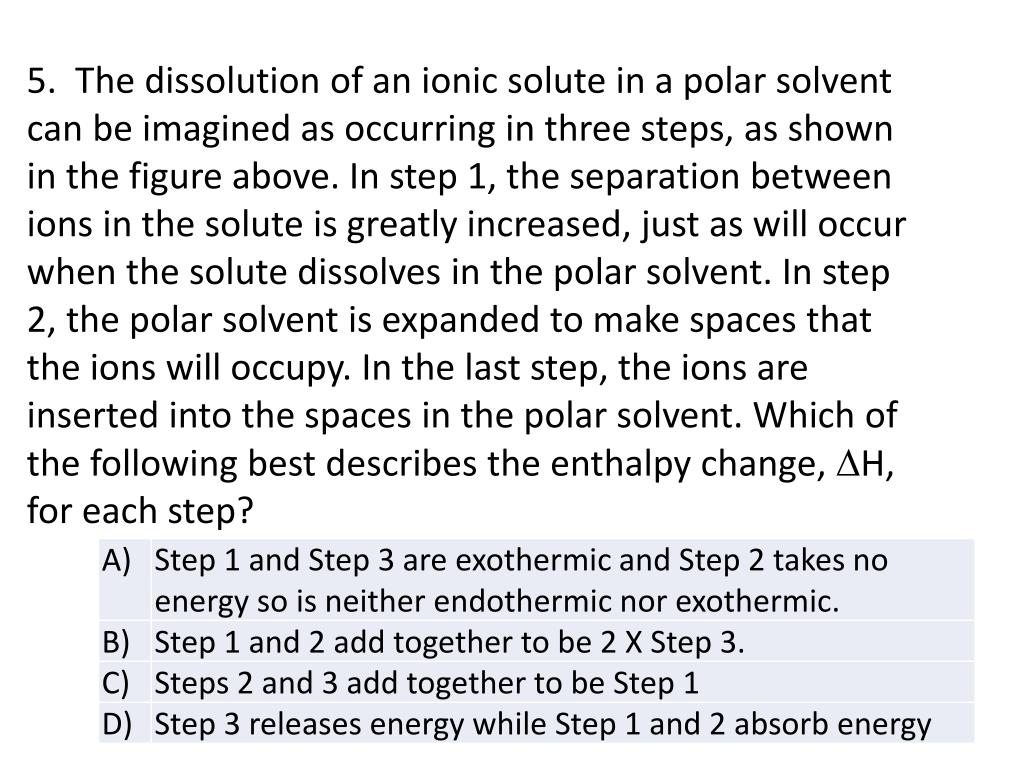

  29. 5. The dissolution of an ionic solute in a polar solvent can be imagined as occurring in three steps, as shown in the figure above. In step 1, the separation between ions in the solute is greatly increased, just as will occur when the solute dissolves in the polar solvent. In step 2, the polar solvent is expanded to make spaces that the ions will occupy. In the last step, the ions are inserted into the spaces in the polar solvent. Which of the following best describes the enthalpy change, DH, for each step?

  30. Question 5 Answer D Clue: Read carefully.

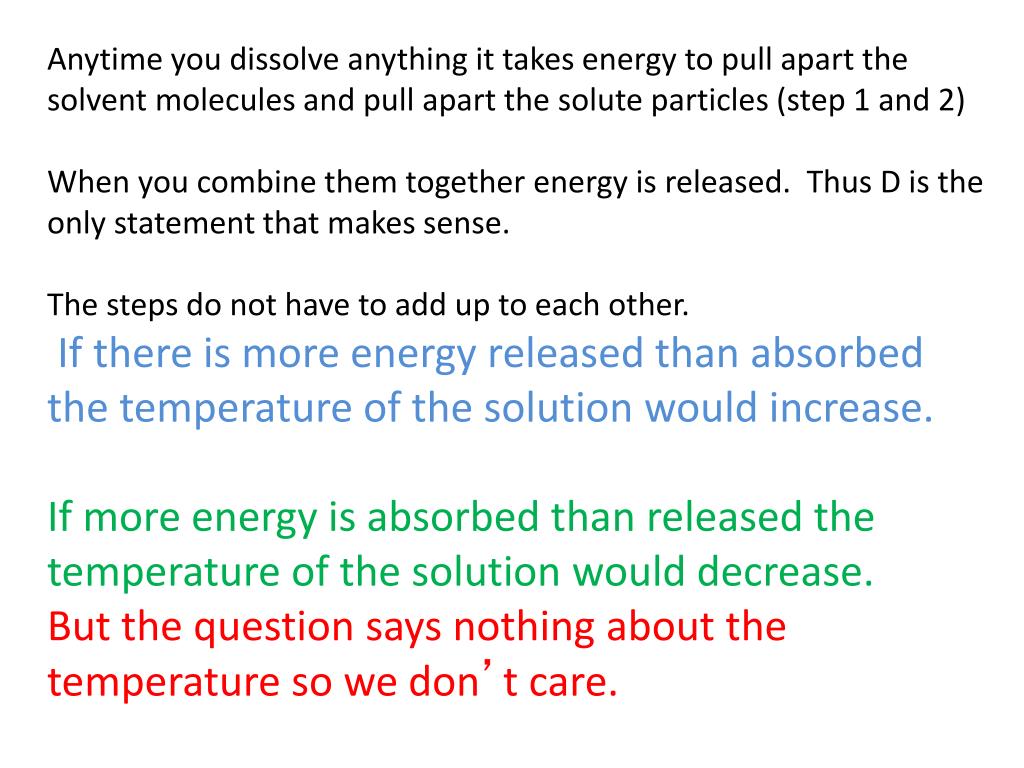

  31. Anytime you dissolve anything it takes energy to pull apart the solvent molecules and pull apart the solute particles (step 1 and 2) When you combine them together energy is released. Thus D is the only statement that makes sense. The steps do not have to add up to each other. If there is more energy released than absorbed the temperature of the solution would increase. If more energy is absorbed than released the temperature of the solution would decrease. But the question says nothing about the temperature so we don’t care.

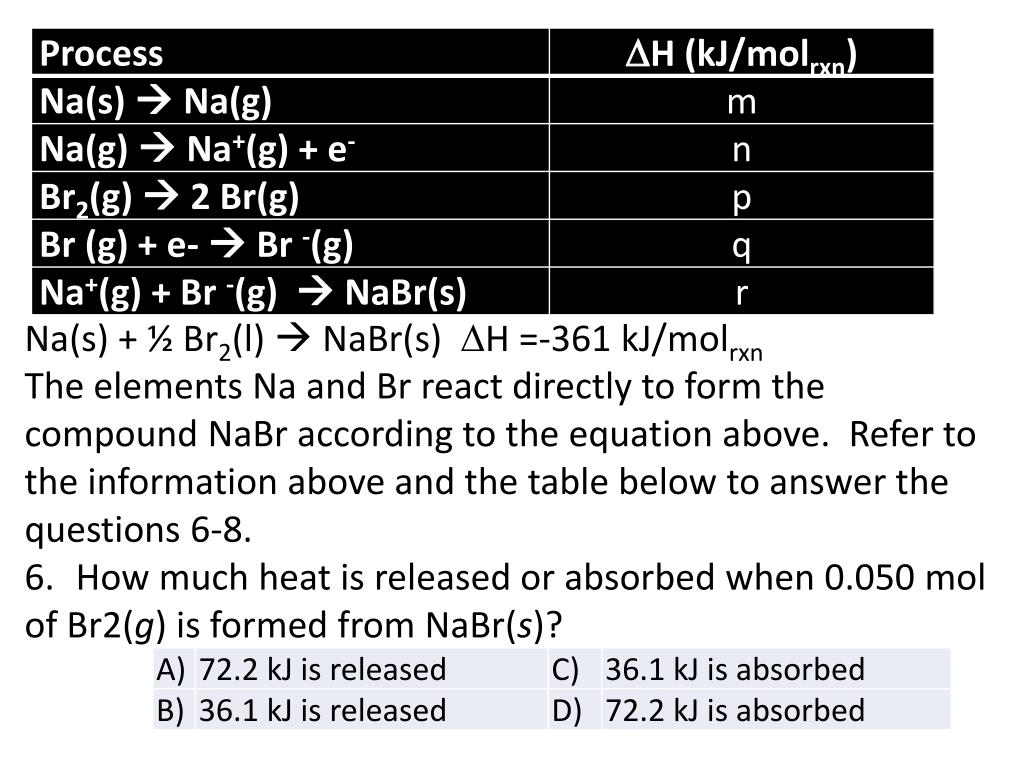

  32. Na(s) + ½ Br2(l)  NaBr(s) DH =-361 kJ/molrxn The elements Na and Br react directly to form the compound NaBr according to the equation above. Refer to the information above and the table below to answer the questions 6-8. 6. How much heat is released or absorbed when 0.050 mol of Br2(g) is formed from NaBr(s)?

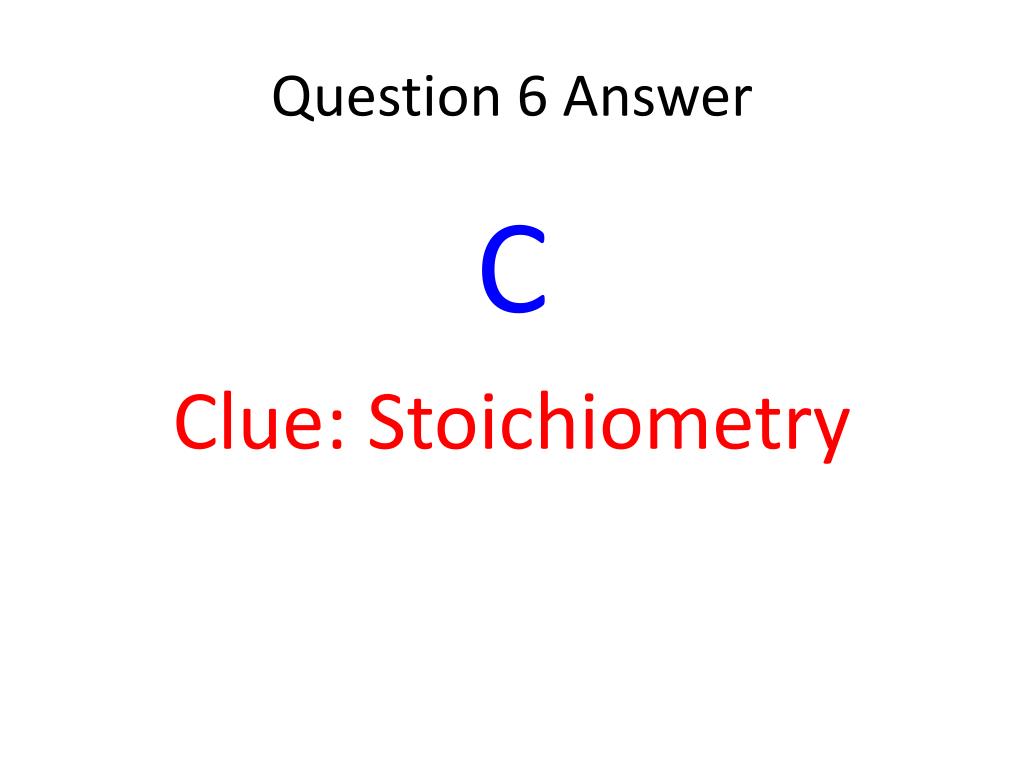

  33. Question 6 Answer C Clue: Stoichiometry

  34. 0.050 mol Br2 x 361 kJ =36.1 kJ 0.5 mole Br2 Realize the equation must be reversed to produce Br2 so the sign of DH must be flipped. Since the reaction has a positive DH, then heat is absorbed so 36.1 kJ is absorbed.

  35. 7. Which of the values of DH° for a process in the table is (are) less than zero (i.e., indicate(s) an exothermic process) ?

  36. Question 7 Answer A Clue: Which one of these is NOT like the others.

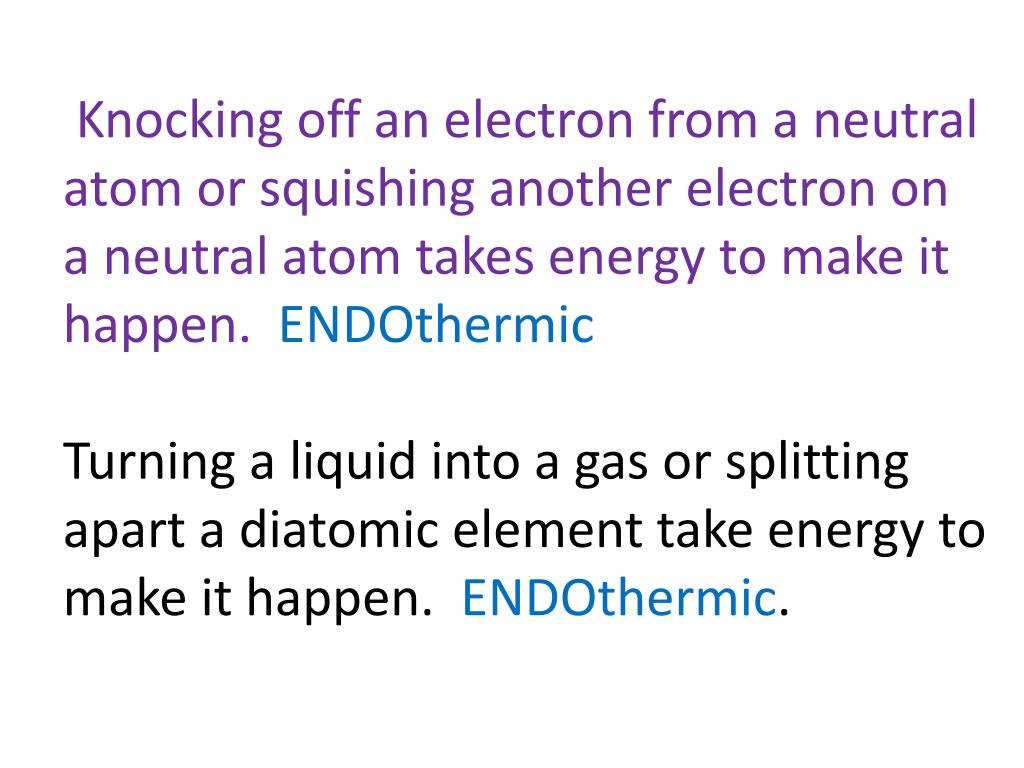

  37. Knocking off an electron from a neutral atom or squishing another electron on a neutral atom takes energy to make it happen. ENDOthermic Turning a liquid into a gas or splitting apart a diatomic element take energy to make it happen. ENDOthermic.

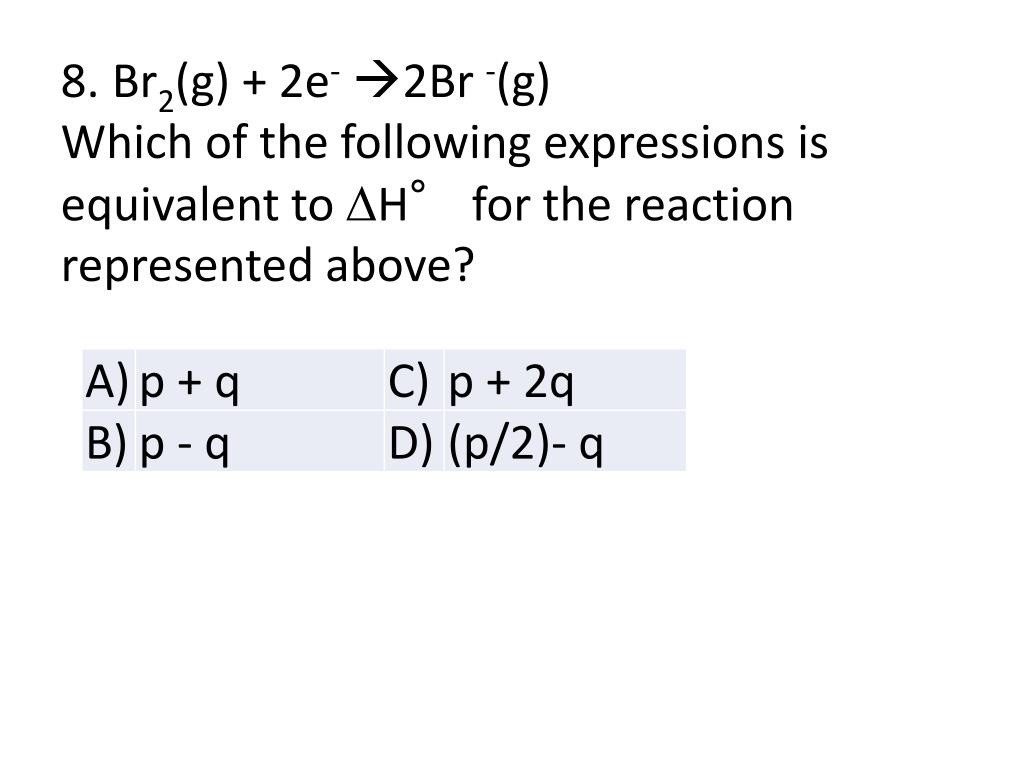

  38. 8. Br2(g) + 2e-2Br -(g) Which of the following expressions is equivalent to DH° for the reaction represented above?

  39. Question 8 Answer C Clue: Hess’s law

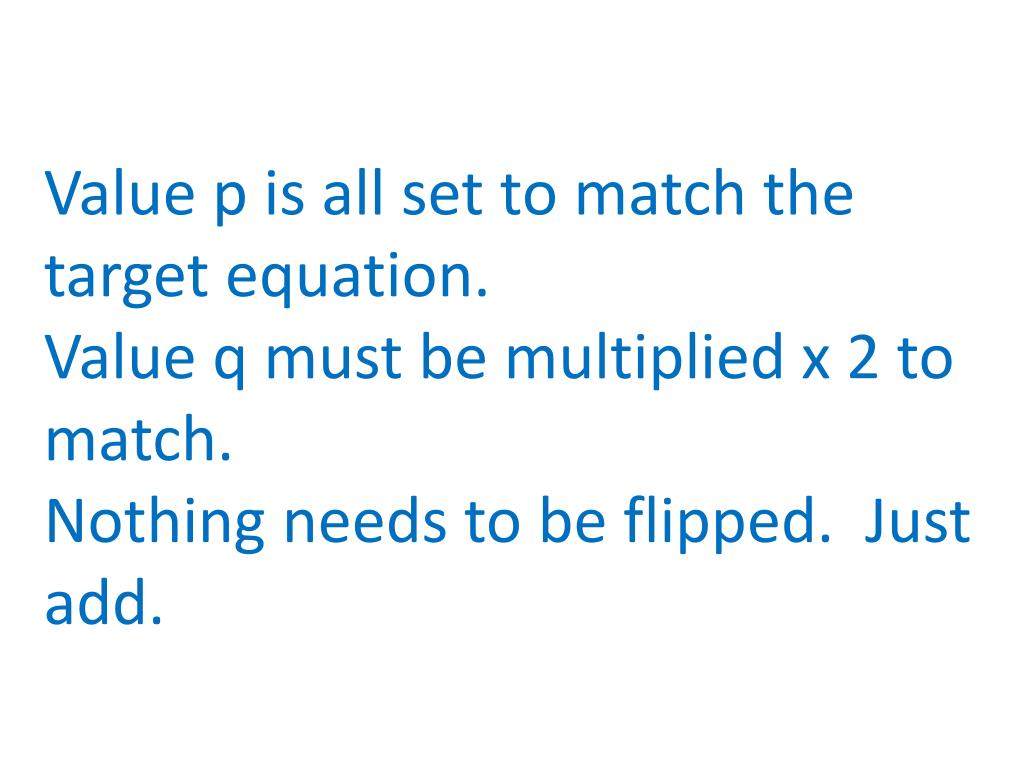

  40. Value p is all set to match the target equation. Value q must be multiplied x 2 to match. Nothing needs to be flipped. Just add.

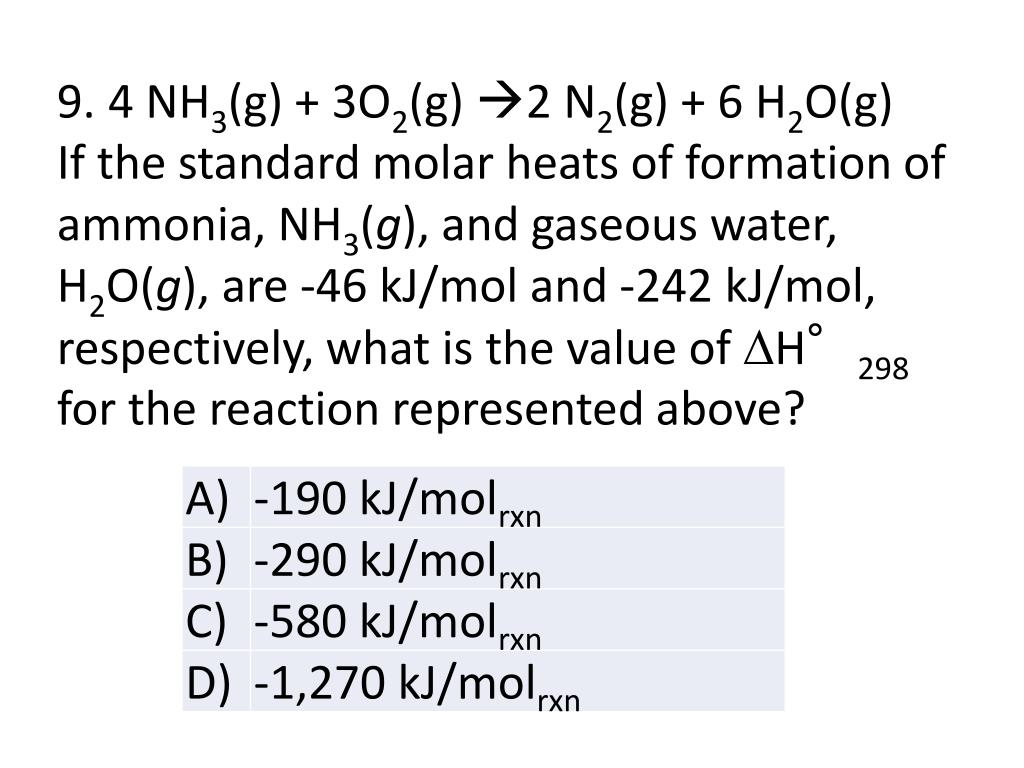

  41. 9. 4 NH3(g) + 3O2(g) 2 N2(g) + 6 H2O(g) If the standard molar heats of formation of ammonia, NH3(g), and gaseous water, H2O(g), are -46 kJ/mol and -242 kJ/mol, respectively, what is the value of DH°298 for the reaction represented above?

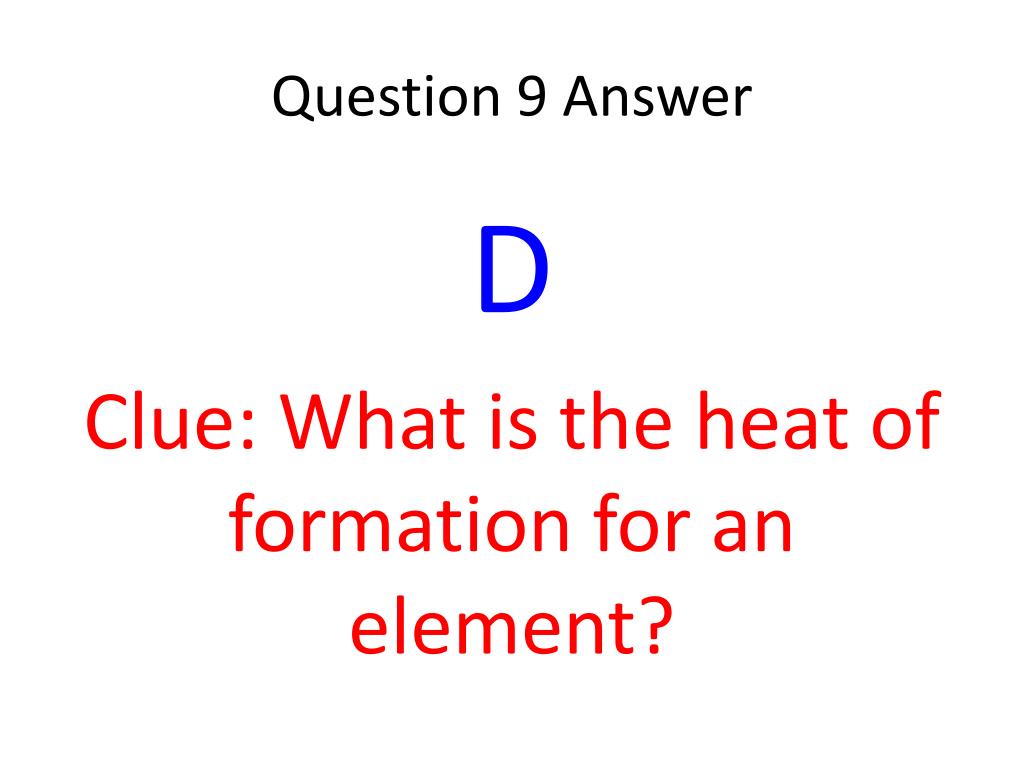

  42. Question 9 Answer D Clue: What is the heat of formation for an element?

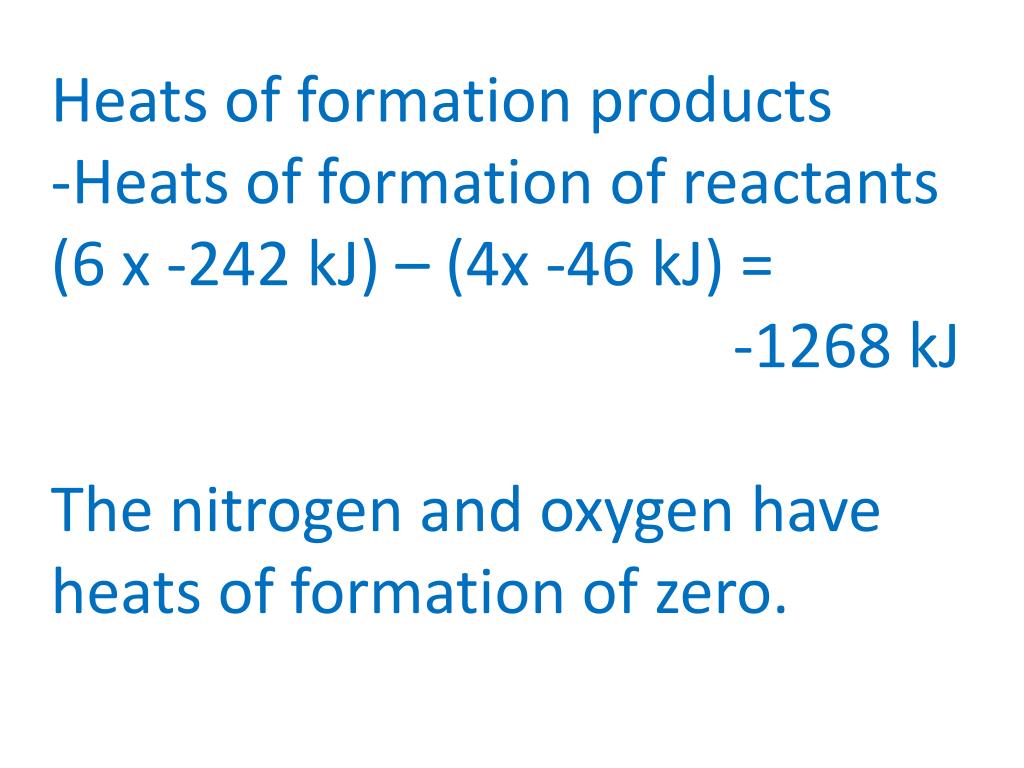

  43. Heats of formation products • Heats of formation of reactants • (6 x -242 kJ) – (4x -46 kJ) = • -1268 kJ • The nitrogen and oxygen have heats of formation of zero.

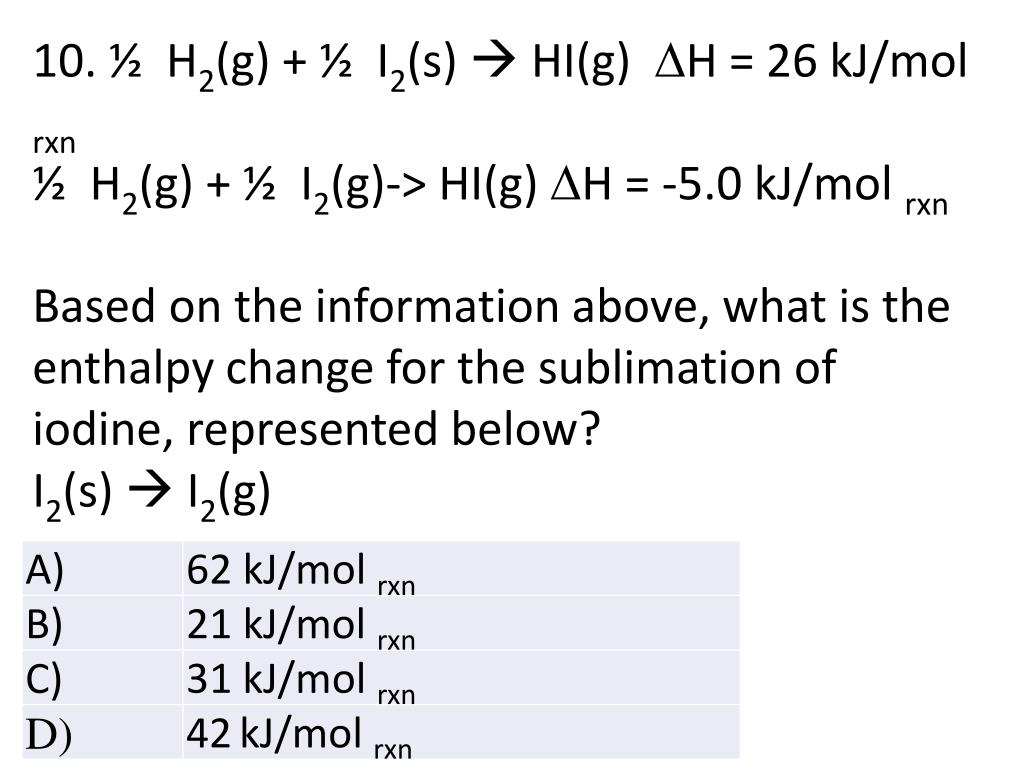

  44. 10. ½ H2(g) + ½ I2(s)  HI(g) DH = 26 kJ/mol rxn ½ H2(g) + ½ I2(g)-> HI(g) DH = -5.0 kJ/mol rxn Based on the information above, what is the enthalpy change for the sublimation of iodine,represented below? I2(s)  I2(g)

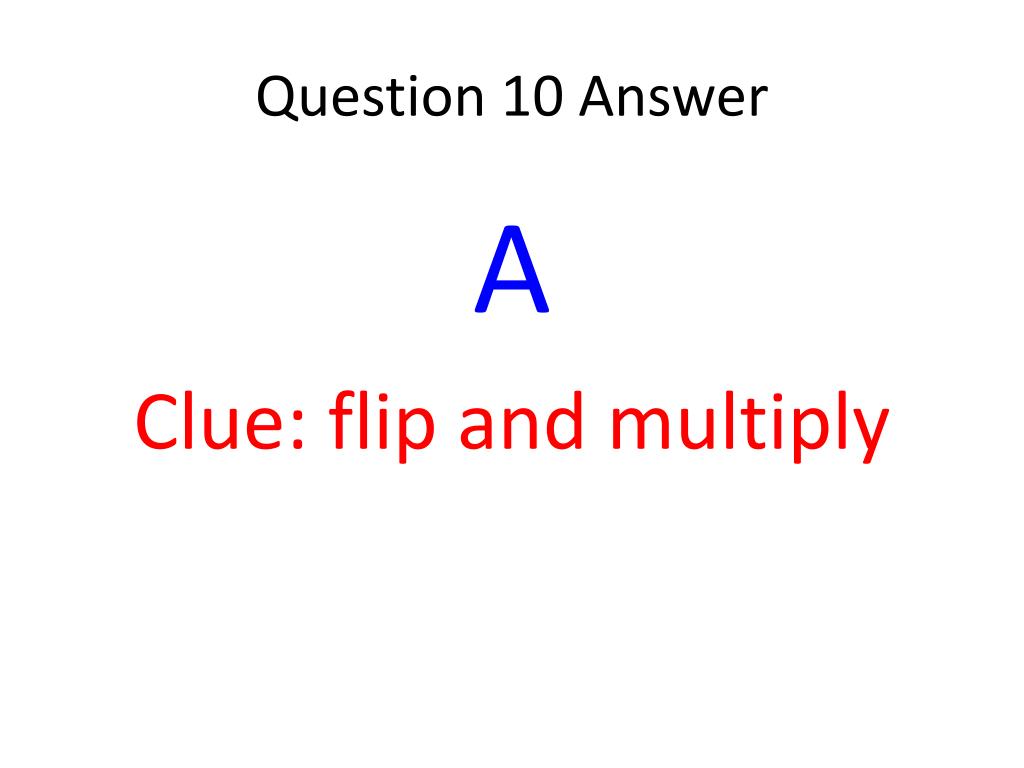

  45. Question 10 Answer A Clue: flip and multiply

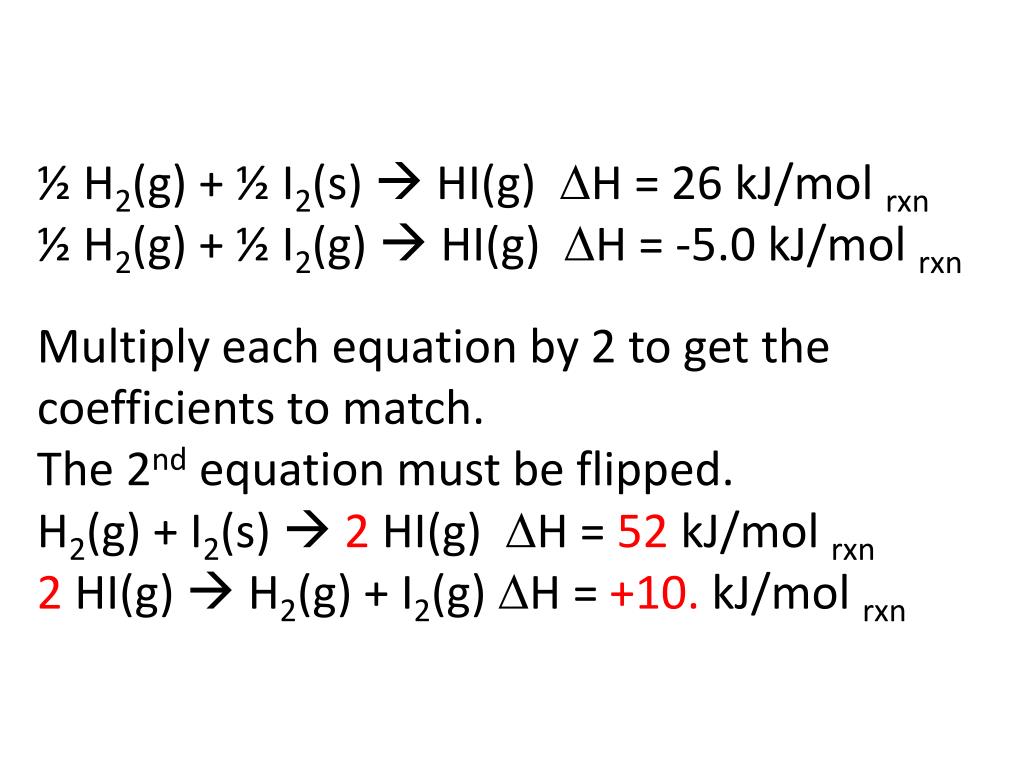

  46. ½ H2(g) + ½ I2(s)  HI(g) DH = 26 kJ/mol rxn ½ H2(g) + ½ I2(g)  HI(g) DH = -5.0 kJ/mol rxn Multiply each equation by 2 to get the coefficients to match. The 2nd equation must be flipped. H2(g) + I2(s)  2 HI(g) DH = 52 kJ/mol rxn 2HI(g)  H2(g) + I2(g) DH = +10. kJ/mol rxn
