  1. Java Remote Method Invocation RMI

  2. Idea • If objects communicate with each other on one JVM why not do the same on several JVM’s? • Build on top of the Socket layer • Break down objects into a string of bytes and send these over the wire • Use Client/Server architecture

  3. Client/Server Architecture • Client requests data from server • Server sends the data to the client (response) • Data is exchanged in standard format • RMI: Remote calls will go in both directions • Client Object: is the object one of whose methods issue a remote call • Remote Object is the object on the server whose method is called

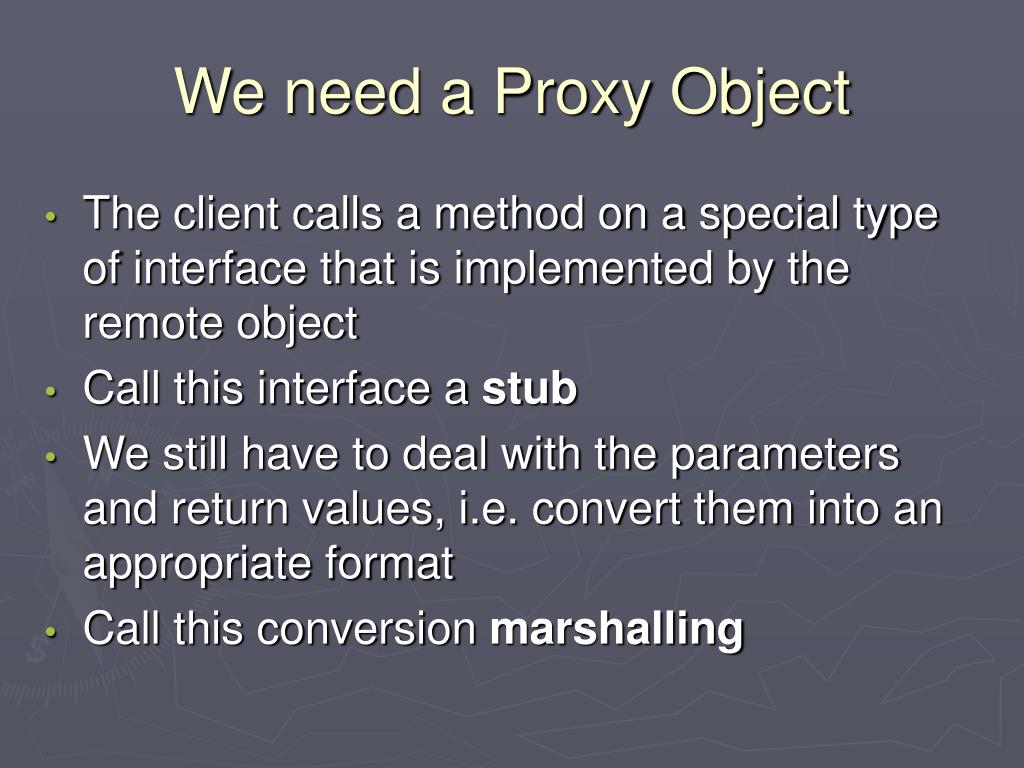

  4. We need a Proxy Object • The client calls a method on a special type of interface that is implemented by the remote object • Call this interface a stub • We still have to deal with the parameters and return values, i.e. convert them into an appropriate format • Call this conversion marshalling

  5. Marshalling • Objects need to be disassembled to this format • Formatted object is sent over the wire • Object needs to be reassembled on the other side • Hence use character format: if the parameter of return value is a primitive type just copy it (as a sequence of bytes) • If it is an object then disassemble to a string • Call this last process serialization

  6. What is a Stub? • It defines a remote interface • Contains methods that will be eventually called remotely • It extends java.rmi.Remote • All its methods must throw a java.rmi.RemoteException

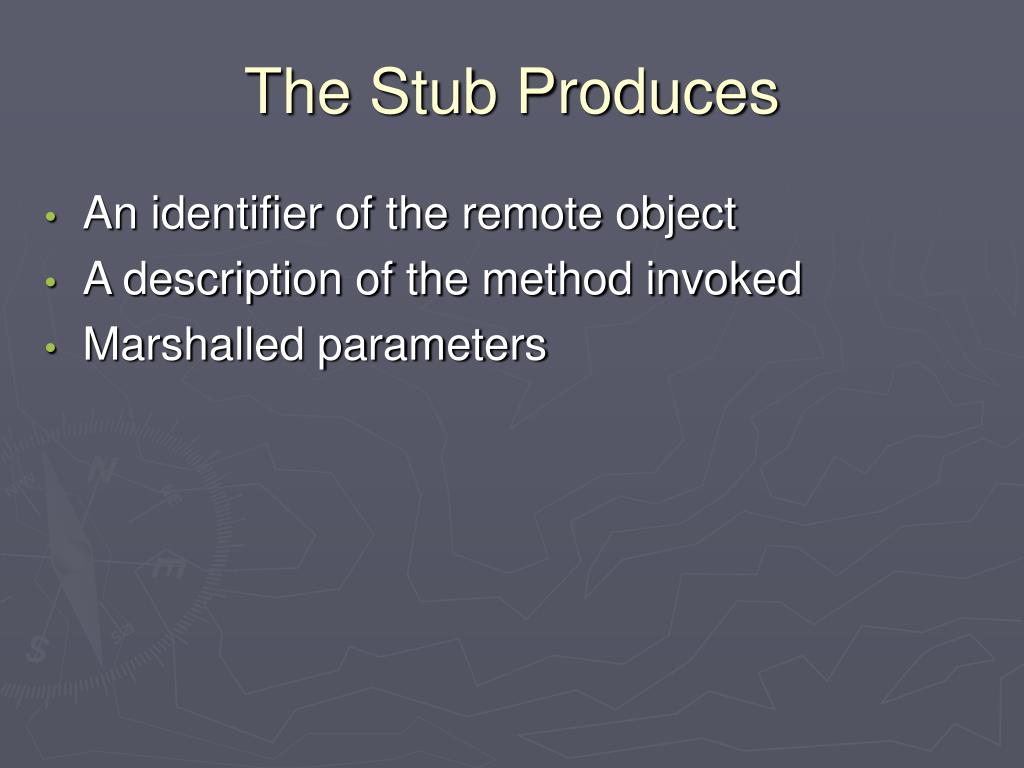

  7. The Stub Produces • An identifier of the remote object • A description of the method invoked • Marshalled parameters

  8. Server Side • There is another interface for the call (now local) that has to unmarshall the parameters and make the actual call with these • Called a skeleton (not needed by programmer) • Possible return value has to be marshalled and sent back to the client • Note the dynamic nature of marshalled objects must be accomodated • Skeleton resides on the server

  9. Stubs must be downloaded! • From server to client, since it is the remote object’s methods that must be called • If the client is to know about the stub, then the latter must be registered somewhere • The client must look the stub up • The server enters the stub into the registry with Naming.rebind() • The client looks it up with Naming.lookup()

  10. Naming Lookup • Stubs are normally downloaded when the client calls a remote method • What do you do when there is no remote interface to facilitate downloading? • Use the bootstrap registry service the first time round • This associates a name (string) to an object on the server.

  11. Naming Lookup (ctd) • The server Naming.rebind() accepts a (unique) name--a normal string, say xxx • The client accesses it by means of a so-called RMI URL, e.g. rmi://localhost:90/xxx • This is the argument to Naming.lookup() to obtain the remote reference.

  12. Defining the Remote Interface • It extends java.rmi.Remote • Must be public • Contains declarations of methods to be called remotely • Is the way to pass remote objects • All methods must declare java.rmi.RemoteException in their throws clause

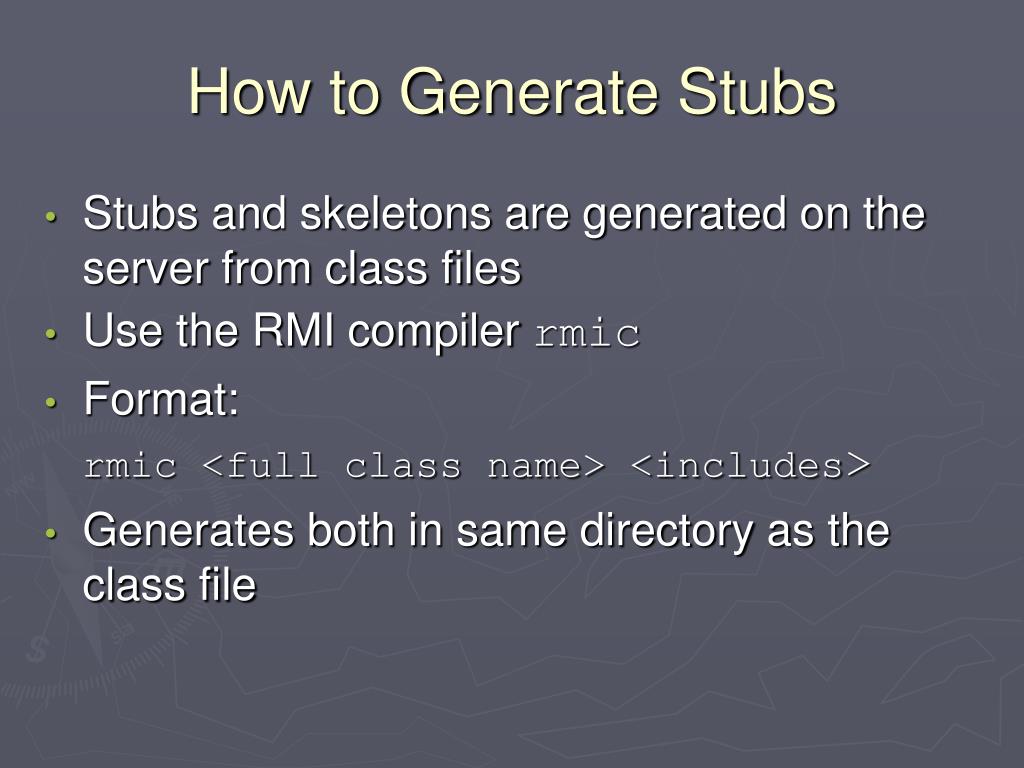

  13. How to Generate Stubs • Stubs and skeletons are generated on the server from class files • Use the RMI compiler rmic • Format: rmic <full class name> <includes> • Generates both in same directory as the class file

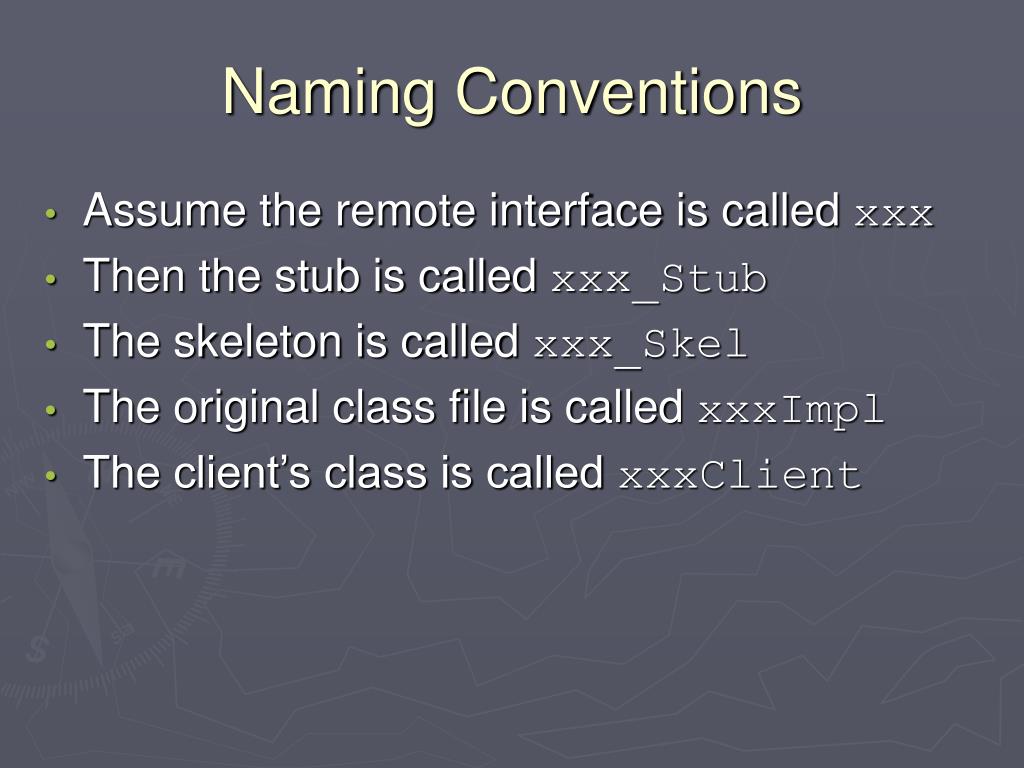

  14. Naming Conventions • Assume the remote interface is called xxx • Then the stub is called xxx_Stub • The skeleton is called xxx_Skel • The original class file is called xxxImpl • The client’s class is called xxxClient

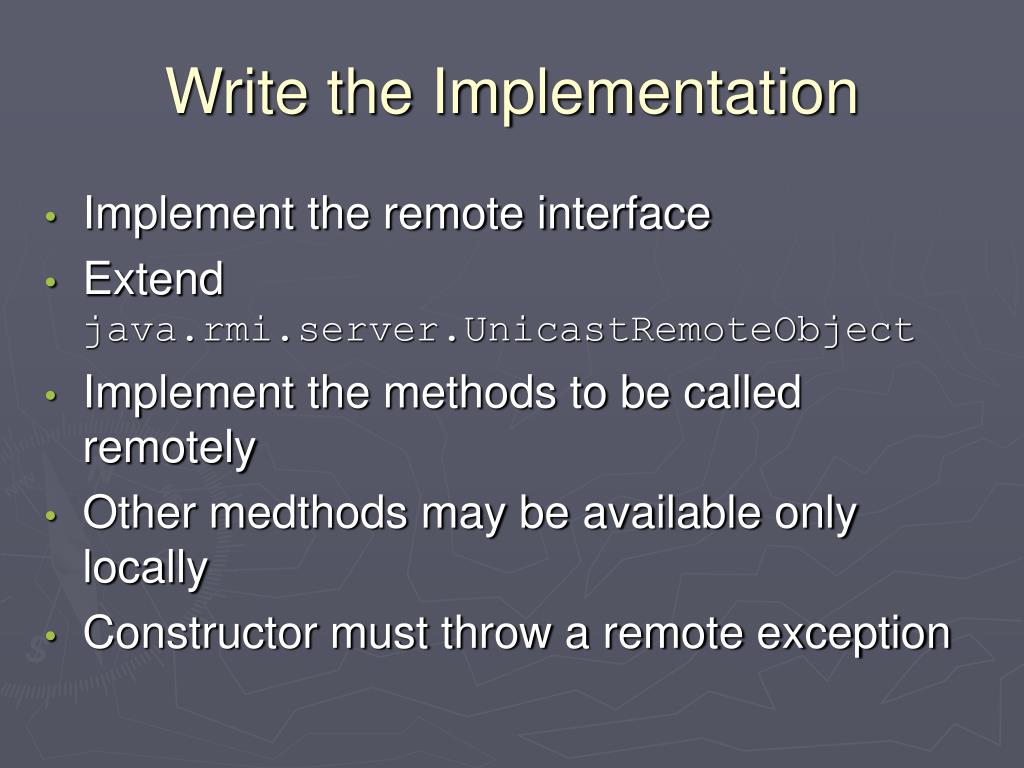

  15. Write the Implementation • Implement the remote interface • Extend java.rmi.server.UnicastRemoteObject • Implement the methods to be called remotely • Other medthods may be available only locally • Constructor must throw a remote exception

  16. UnicastRemoteObject • Objects of this type are accessible by the TCP/IP protocol • It automatically connects to the RMI runtime system • Can perform equality checks with other remote objects • You can also construct objects of this type with a specific port and,optionally, a SocketFactory on both server and client.

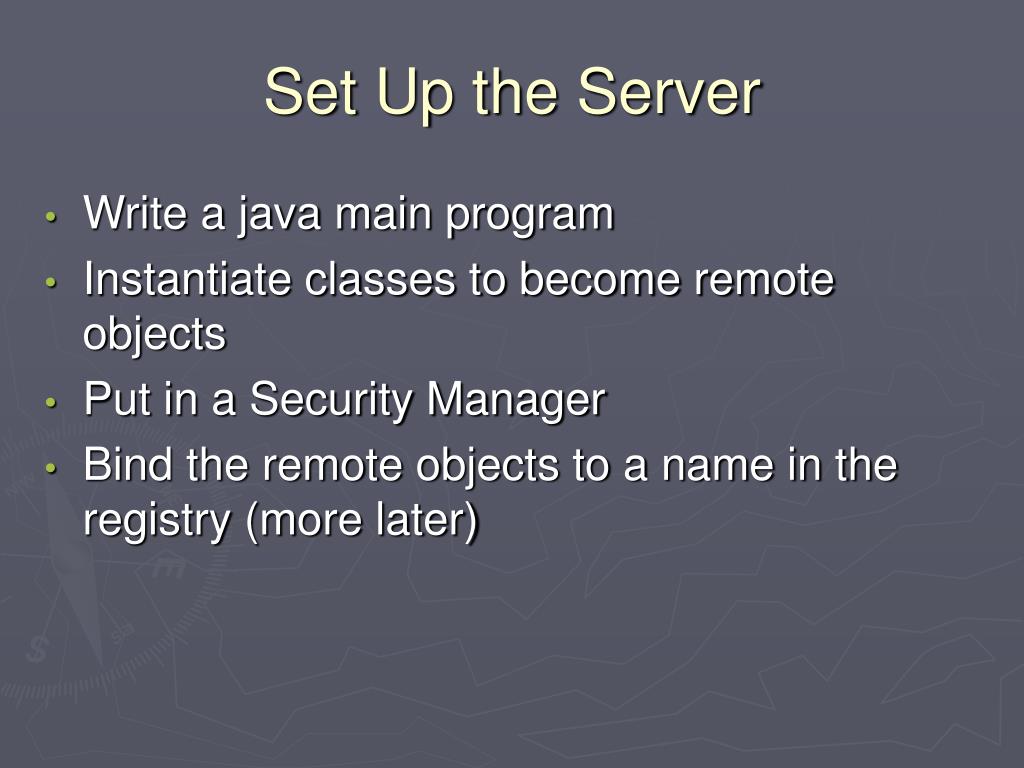

  17. Set Up the Server • Write a java main program • Instantiate classes to become remote objects • Put in a Security Manager • Bind the remote objects to a name in the registry (more later)

  18. Set Up a Client • Obtain references to remote objects from Naming.lookup() • Call methods on those remote objects • Should set up a Security Manager

  19. How to Proceed • Write the remote interface. This is shared between client and server • Write the remote object implementation • Write the client application that invokes methods of 2. • Compile all programs: javac xxx*.java -d classes 5. Write server program that creates the remote objects

  20. Running Your Program 1. Start the RMI registry: start rmiregistry 2. Locate classes to make stubs: run rmic 3. Start the server: java -Djava.security.policy = server.policy xxxServer 4. Run the client: java -Djava.security.policy = client.policy xxxClient
