  1. STEPMILL 7000 PT ASSEMBLY INSTRUCTIONS PART NUMBER 27698

  2. ASSEMBLY INSTRUCTIONS • TOOLS REQUIRED: • KNIFE • 2-9/16” WRENCHES • 5/32” ALLEN WRENCH • 1. USE KNIFE TO CUT AND REMOVE PLASTIC STRAPS. • TOP COVER • PLASTIC STRAPS • 2. REMOVE TOP COVER FROM CARTON, THEN REMOVE CARTON. DISCARD COVER AND CARTON.

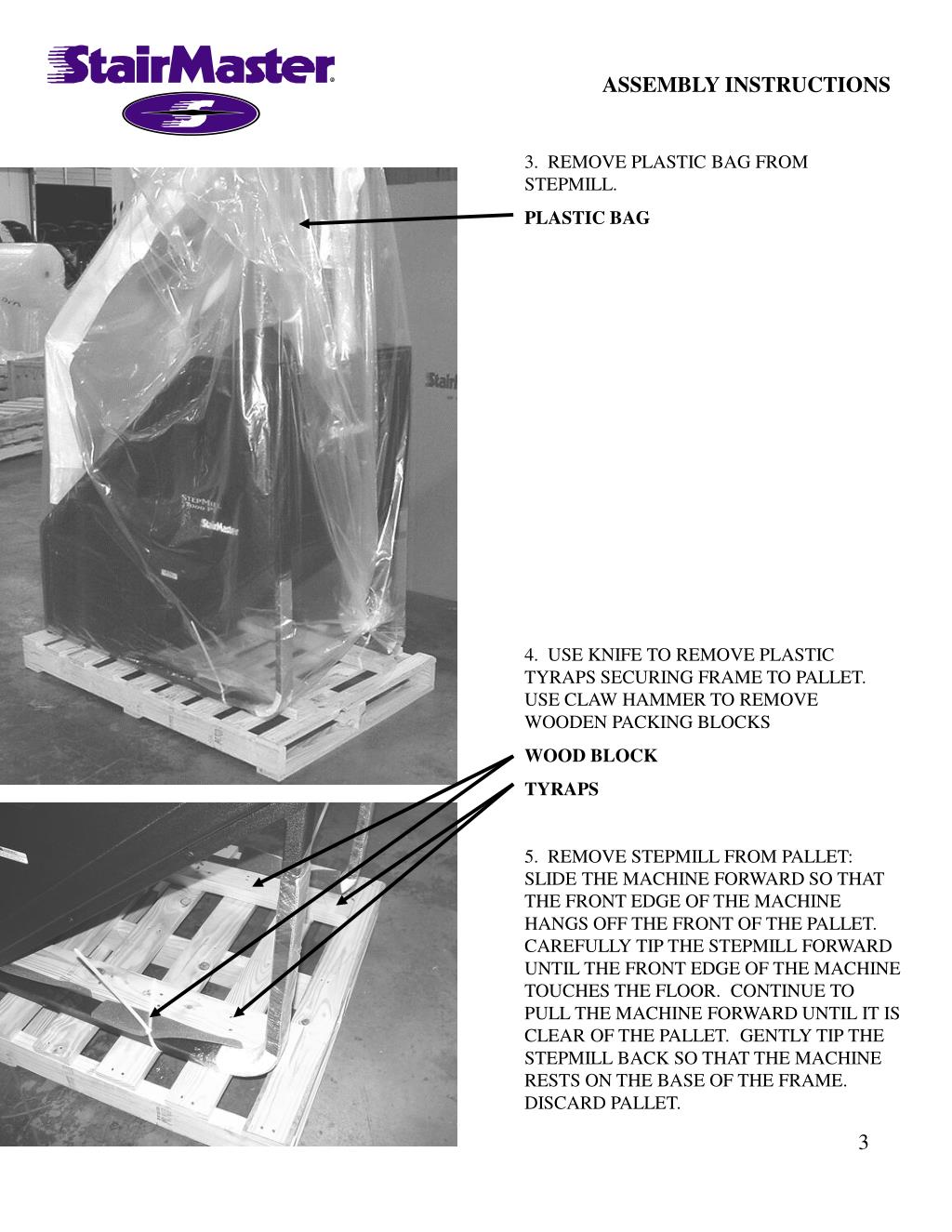

  3. ASSEMBLY INSTRUCTIONS 3. REMOVE PLASTIC BAG FROM STEPMILL. PLASTIC BAG 4. USE KNIFE TO REMOVE PLASTIC TYRAPS SECURING FRAME TO PALLET. USE CLAW HAMMER TO REMOVE WOODEN PACKING BLOCKS WOOD BLOCK TYRAPS 5. REMOVE STEPMILL FROM PALLET: SLIDE THE MACHINE FORWARD SO THAT THE FRONT EDGE OF THE MACHINE HANGS OFF THE FRONT OF THE PALLET. CAREFULLY TIP THE STEPMILL FORWARD UNTIL THE FRONT EDGE OF THE MACHINE TOUCHES THE FLOOR. CONTINUE TO PULL THE MACHINE FORWARD UNTIL IT IS CLEAR OF THE PALLET. GENTLY TIP THE STEPMILL BACK SO THAT THE MACHINE RESTS ON THE BASE OF THE FRAME. DISCARD PALLET.

  4. ASSEMBLY INSTRUCTIONS 6. REMOVE BUBBLE PACK AND CARTON FROM STEPMILL. ALSO REMOVE PACKING MATERIALS FROM HANDRAILS. PACKING MATERIAL CARTON BUBBLE PACK 7. REMOVE CONSOLE FROM BUBBLE WRAP. DISCARD BUBBLE WRAP. CONSOLE

  5. ASSEMBLY INSTRUCTIONS 8. USE A KNIFE TO OPEN CARTON. CARTON 9. THE CARTON CONTAINS OWNER’S MANUAL, WHEELS, HARDWARE PLASTIC BAG, MAGAZINE RACK, CONSOLE BRACKET, AND POWER SUPPLY CARTON.

  6. ASSEMBLY INSTRUCTIONS 10. THE HARDWARE PLASTIC BAG CONTAINS DRINK HOLDER BRACKET, SCREW FOR MOUNTING DRINK HOLDER BRACKET, WHEEL AXLES, CLIPS, CONSOLE KNOBS, LOCK WASHERS, AND PLASTIC COVERS. DRINK HOLDER BRACKET SCREW DRINK HOLDER BRACKET PLASTIC COVER CLIPS WHEEL AXLE CONSOLE KNOB LOCK WASHER 11. TWO WHEELS ARE USED TO MOVE THE STEP MILL TO IT’S FINAL LOCATION. WHEEL CONSOLE BRACKET

  7. ASSEMBLY INSTRUCTIONS 12. USE KNIFE TO REMOVE STRETCH WRAP FROM POWER SUPPLY BOX AND OWNER’S MANUAL. SAVE OWNER’S MANUAL FOR LATER USE. OPEN POWER SUPPLY CARTON. OWNER’S MANUAL POWER SUPPLY CARTON 13. THE POWER SUPPLY CARTON CONTAIN FOUR LEVELING PADS, BAG OF SPARE PUSH RIVETS, RIVET REMOVAL TOOL, AND POWER SUPPLY. POWER SUPPLY LEVEL PAD BAG OF SPARE PUSH RIVETS RIVET REMOVAL TOOL

  8. ASSEMBLY INSTRUCTIONS 14. USE TWO 9/16” WRENCHES AND REMOVE TWO BOLTS , FOUR FINISH WASHERS, AND TWO NUTS FROM HANDRAILS. BOLT FINISH WASHER NUT 15. GET CONSOLE BRACKET FROM CARTON AND POSITION OVER HANDRAILS. INSTALL BOLTS, FINISH WASHERS, AND NUTS TO SECURE CONSOLE BRACKET TO HANDRAILS. USE 9/16” WRENCHES TO TIGHTEN BOLTS. HANDRAIL CONSOLE BRACKET BOLT FINISH WASHER

  9. ASSEMBLY INSTRUCTIONS 16. GET FOUR PLASTIC COVERS AND SNAP ONTO THE FINISH WASHERS TO COVER THE TWO BOLT HEADS AND NUTS. PLASTIC COVER 17. USE A 5/32” ALLEN WRENCH TO ATTACH THE DRINK HOLDER BRACKET TO THE CONSOLE USING THE DRINK HOLDER BRACKET SCREW. DRINK HOLDER BRACKET DRINK HOLDER BRACKET SCREW CONSOLE

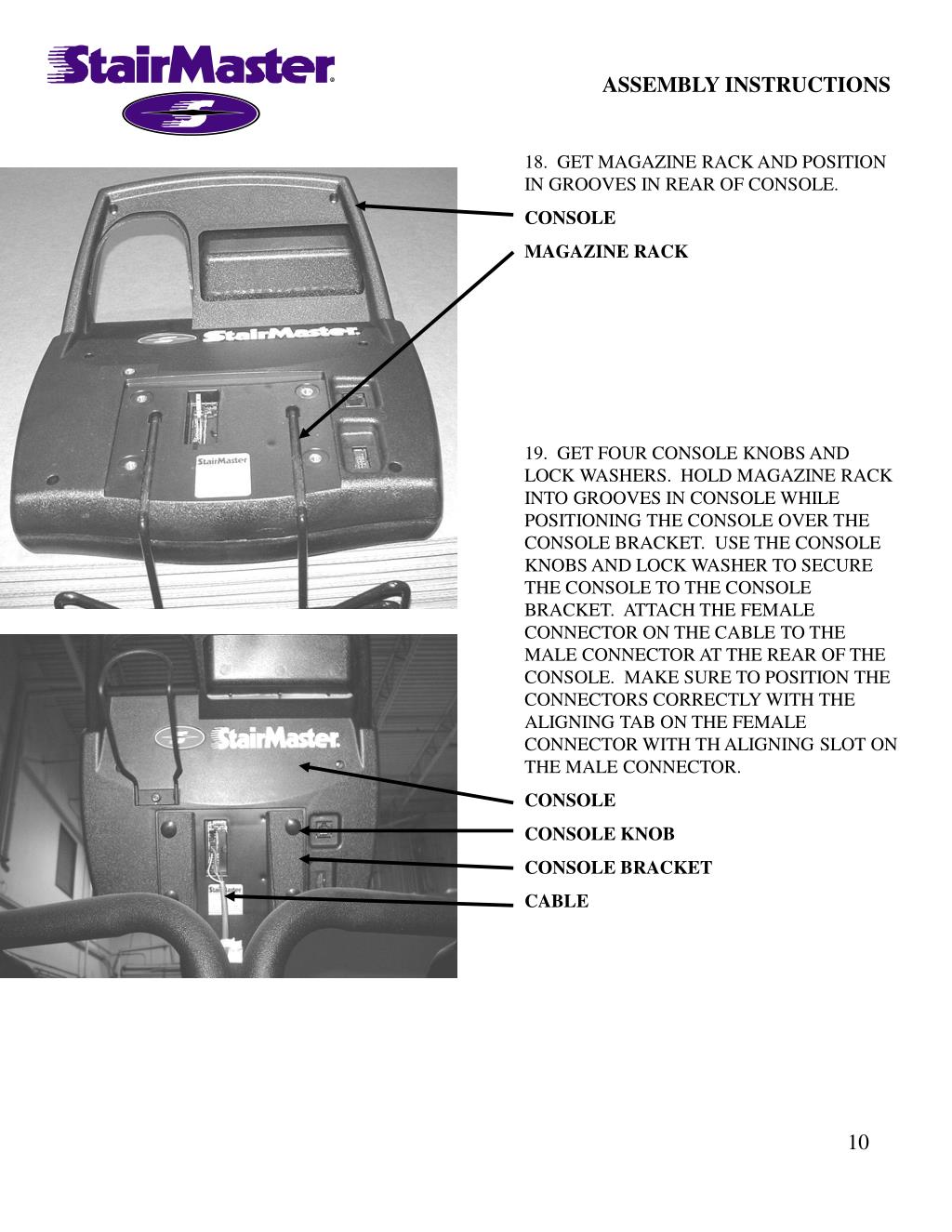

  10. ASSEMBLY INSTRUCTIONS 18. GET MAGAZINE RACK AND POSITION IN GROOVES IN REAR OF CONSOLE. CONSOLE MAGAZINE RACK 19. GET FOUR CONSOLE KNOBS AND LOCK WASHERS. HOLD MAGAZINE RACK INTO GROOVES IN CONSOLE WHILE POSITIONING THE CONSOLE OVER THE CONSOLE BRACKET. USE THE CONSOLE KNOBS AND LOCK WASHER TO SECURE THE CONSOLE TO THE CONSOLE BRACKET. ATTACH THE FEMALE CONNECTOR ON THE CABLE TO THE MALE CONNECTOR AT THE REAR OF THE CONSOLE. MAKE SURE TO POSITION THE CONNECTORS CORRECTLY WITH THE ALIGNING TAB ON THE FEMALE CONNECTOR WITH TH ALIGNING SLOT ON THE MALE CONNECTOR. CONSOLE CONSOLE KNOB CONSOLE BRACKET CABLE

  11. ASSEMBLY INSTRUCTIONS 20. GET TWO WHEELS, TWO AXLES, AND TWO CLIPS. SLIDE AXLE INTO HOLE IN BOTTOM OF FRAME. TILT STEPMILL TO ONE SIDE, SLIDE WHEEL ONTO AXLE. WHEEL AXLE FRAME 21. INSTALL CLIP INTO HOLE IN AXLE TO RETAIN WHEEL ON AXLE. WHEEL CLIP 22. SLIDE AXLE INTO HOLE ON OTHER SIDE OF STEPMILL BOTTOM FRAME, TILT STEPMILL TO ONE SIDE, SLIDE WHEEL ONTO AXLE. INSTALL CLIP INTO HOLE IN AXLE TO RETAIN WHEEL ON AXLE. WHEEL CLIP

  12. ASSEMBLY INSTRUCTIONS 23. REMOVE ALL PACKING MATERIALS FROM STEPMILL. ROLL STEPMILL TO FINAL LOCATION. 24. INSTALL FOUR LEVELING PADS INTO THREADED HOLES IN THE BOTTOM SURFACE OF THE STEPMILL. TILT STEPMILL AND REMOVE THE WHEELS, AXLES, AND CLIPS. RETAIN THESE ITEMS FOR FUTURE USE IF THE STEPMILL WILL BE MOVED TO A NEW LOCATION. PLUG IN POWER SUPPLY TO RIGHT SIDE OF STEPMILL AND POWER SOURCE. POWER SUPPLY LEVEL PADS 25. SEE OWNER’S MANUAL FOR SET UP AND OPERATING INSTRUCTIONS.
