Cachebox 310

Cachebox 310 is basically designed for Huge network core i.e. for large network areas. It’s a perfect caching solution used for hundred of ISPs users worldwide.

conduittechnologies
Download Presentation

Cachebox 310

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

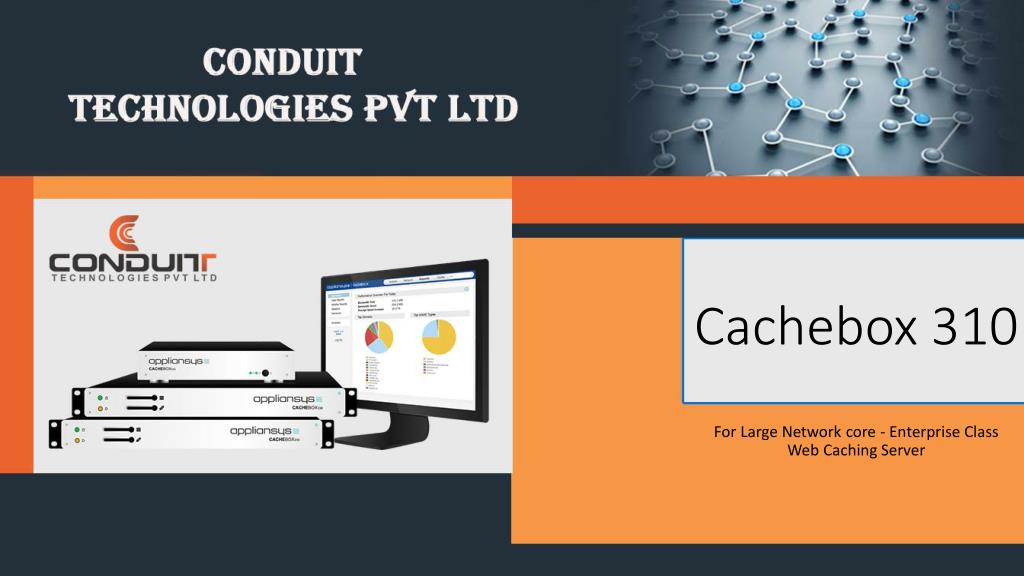

  1. Cachebox 310 For Large Network core - Enterprise Class Web Caching Server

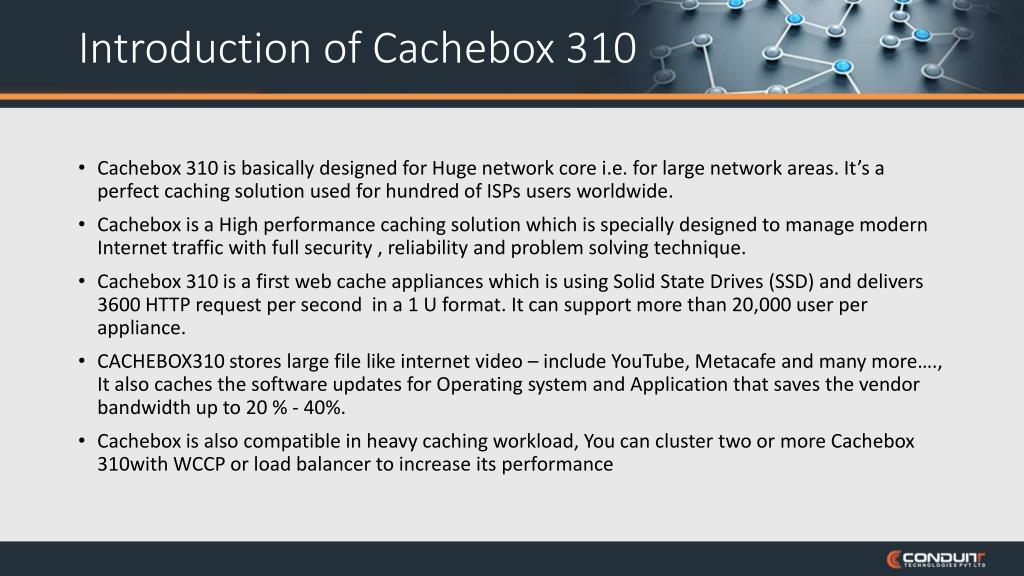

  2. Introduction of Cachebox 310 Cachebox 310 is basically designed for Huge network core i.e. for large network areas. It’s a perfect caching solution used for hundred of ISPs users worldwide. Cachebox is a High performance caching solution which is specially designed to manage modern Internet traffic with full security , reliability and problem solving technique. Cachebox 310 is a first web cache appliances which is using Solid State Drives (SSD) and delivers 3600 HTTP request per second in a 1 U format. It can support more than 20,000 user per appliance. CACHEBOX310 stores large file like internet video – include YouTube, Metacafe and many more…., It also caches the software updates for Operating system and Application that saves the vendor bandwidth up to 20 % - 40%. Cachebox is also compatible in heavy caching workload, You can cluster two or more Cachebox 310with WCCP or load balancer to increase its performance

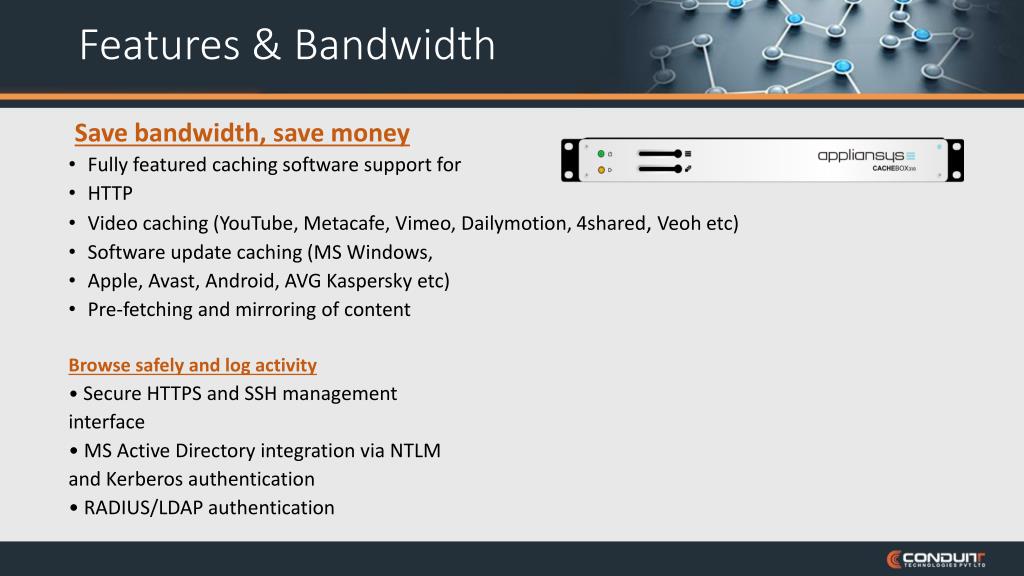

  3. Features & Bandwidth Save bandwidth, save money Fully featured caching software support for HTTP Video caching (YouTube, Metacafe, Vimeo, Dailymotion, 4shared, Veohetc) Software update caching (MS Windows, Apple, Avast, Android, AVG Kaspersky etc) Pre-fetching and mirroring of content Browse safely and log activity • Secure HTTPS and SSH management interface • MS Active Directory integration via NTLM and Kerberos authentication • RADIUS/LDAP authentication

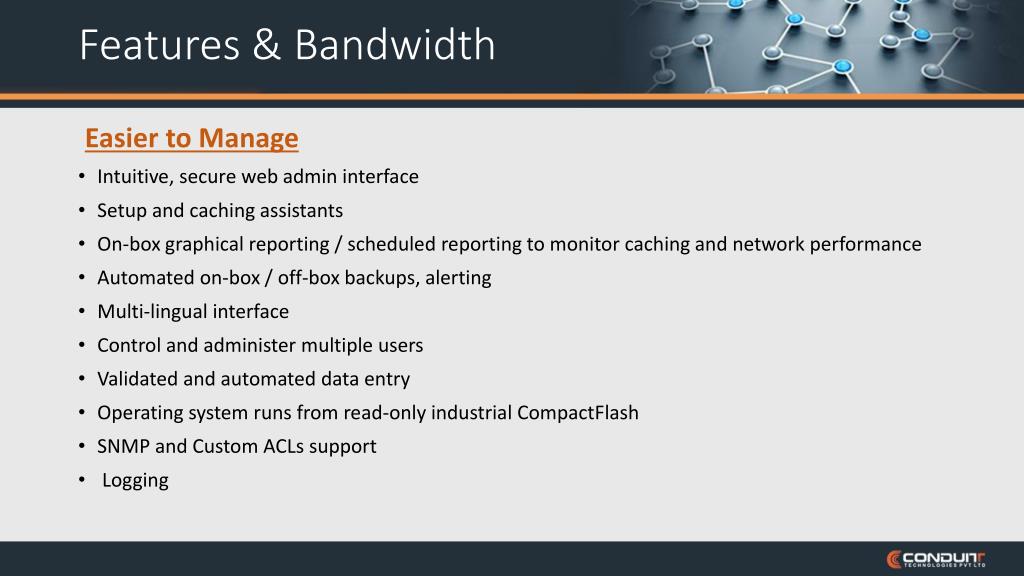

  4. Features & Bandwidth Easier to Manage Intuitive, secure web admin interface Setup and caching assistants On-box graphical reporting / scheduled reporting to monitor caching and network performance Automated on-box / off-box backups, alerting Multi-lingual interface Control and administer multiple users Validated and automated data entry Operating system runs from read-only industrial CompactFlash SNMP and Custom ACLssupport Logging

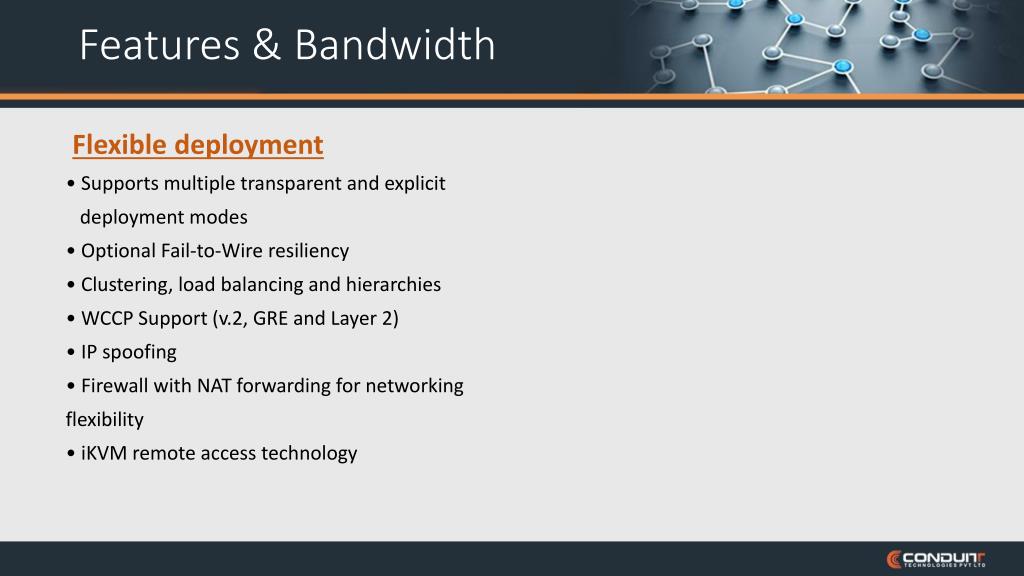

  5. Features & Bandwidth Flexible deployment • Supports multiple transparent and explicit deployment modes • Optional Fail-to-Wire resiliency • Clustering, load balancing and hierarchies • WCCP Support (v.2, GRE and Layer 2) • IP spoofing • Firewall with NAT forwarding for networking flexibility • iKVM remote access technology

  6. Specifications

  7. Why Cachebox 310 Cachebox 310 is used for Large network core based organization. Cachebox 310 is compatible for saving bandwidth in large network of 20,000 people or more than that. Cachebox serves web pages to user from local web cache, so that less data fetches from the Internet . It has an ability to add more users without increasing capacity Cache saving helps you to grow your revenue too. 1500 customers each spending an average $25 per month and you expect your hit rate to be 35%, your current monthly income is $37,500 and caching could help you make an additional $13,125. 1500 x $25 = $37,500 current income $37,500 x (35/100) = $13,125 additional monthly income That’s over $150,000 per year, dozens of times higher than the cost of an average CACHEBOX. For ISPs, in addition to bandwidth savings, you can typically provide a speed increase for customers of around 20-50%. An increase of this magnitude leads to increased customer satisfaction, reduced churn-rate, lower marketing costs and an opportunity to increase Average Revenue Per User (ARPU).

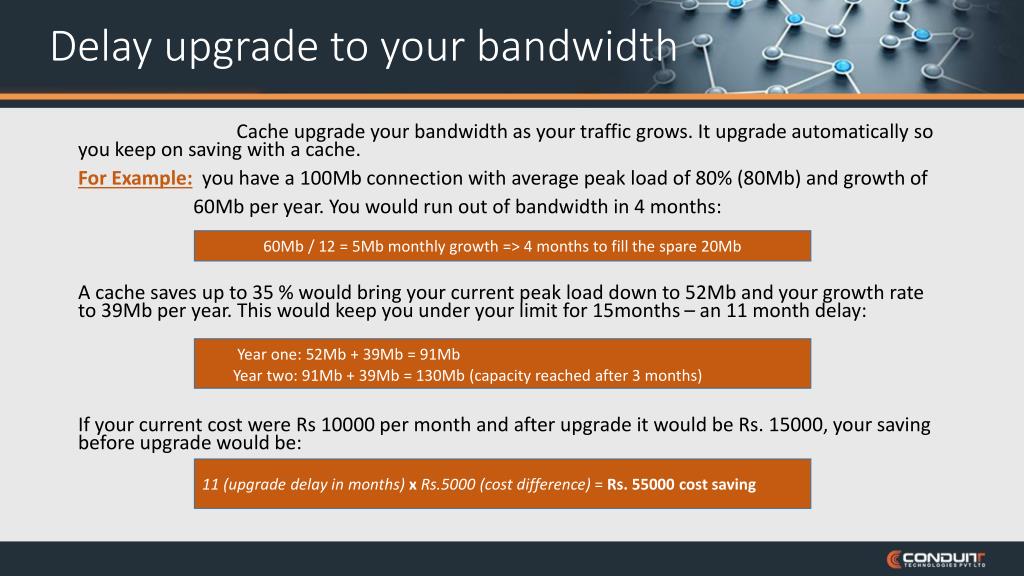

  8. Delay upgrade to your bandwidth 60Mb / 12 = 5Mb monthly growth => 4 months to fill the spare 20Mb Year one: 52Mb + 39Mb = 91Mb Year two: 91Mb + 39Mb = 130Mb (capacity reached after 3 months) 11 (upgrade delay in months) xRs.5000 (cost difference) =Rs. 55000 cost saving Cache upgrade your bandwidth as your traffic grows. It upgrade automatically so you keep on saving with a cache. For Example:you have a 100Mb connection with average peak load of 80% (80Mb) and growth of 60Mb per year. You would run out of bandwidth in 4 months: A cache saves up to 35 % would bring your current peak load down to 52Mb and your growth rate to 39Mb per year. This would keep you under your limit for 15months – an 11 month delay: If your current cost were Rs 10000 per month and after upgrade it would be Rs. 15000, your saving before upgrade would be:

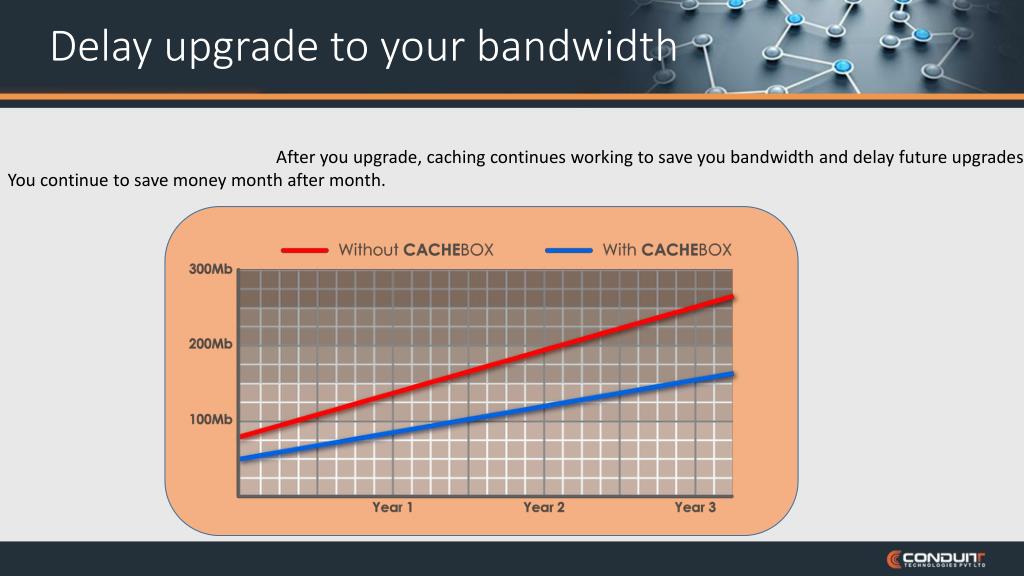

  9. Delay upgrade to your bandwidth After you upgrade, caching continues working to save you bandwidth and delay future upgrades. You continue to save money month after month.

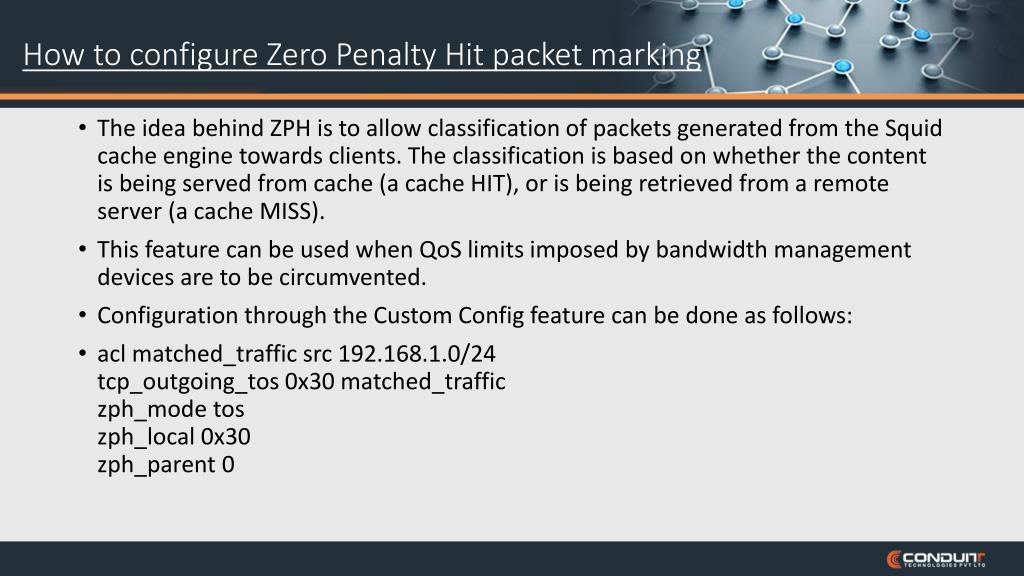

  10. How to configure Zero Penalty Hit packet marking The idea behind ZPH is to allow classification of packets generated from the Squid cache engine towards clients. The classification is based on whether the content is being served from cache (a cache HIT), or is being retrieved from a remote server (a cache MISS). This feature can be used when QoS limits imposed by bandwidth management devices are to be circumvented. Configuration through the Custom Config feature can be done as follows: aclmatched_trafficsrc 192.168.1.0/24tcp_outgoing_tos 0x30 matched_trafficzph_modetoszph_local 0x30zph_parent0

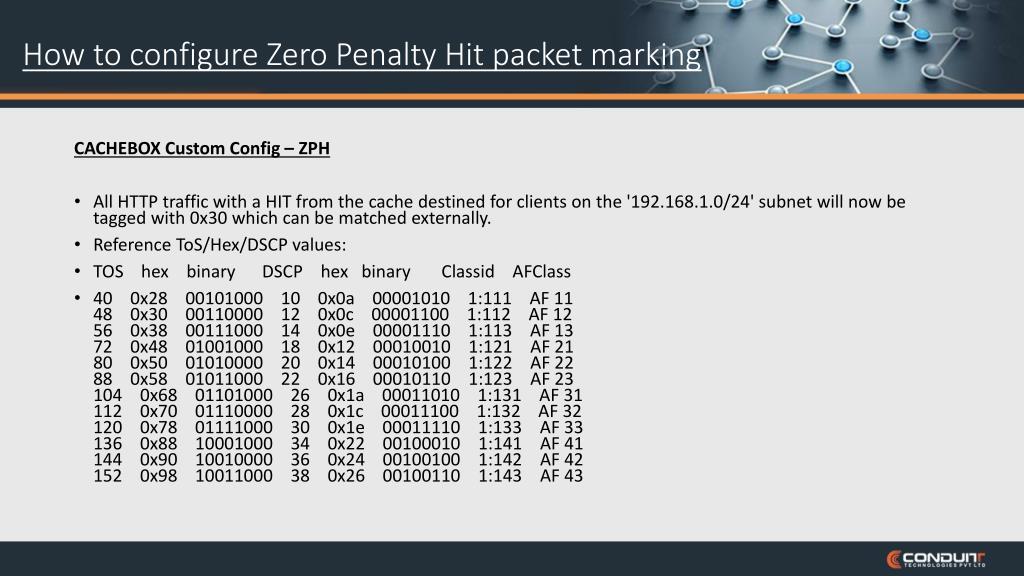

  11. How to configure Zero Penalty Hit packet marking CACHEBOX Custom Config – ZPH All HTTP traffic with a HIT from the cache destined for clients on the '192.168.1.0/24' subnet will now be tagged with 0x30 which can be matched externally. Reference ToS/Hex/DSCP values: TOS    hex    binary      DSCP    hex   binary       ClassidAFClass 40    0x28    00101000    10    0x0a    00001010    1:111    AF 1148    0x30    00110000    12    0x0c    00001100    1:112    AF 1256    0x38    00111000    14    0x0e    00001110    1:113    AF 1372    0x48    01001000    18    0x12    00010010    1:121    AF 2180    0x50    01010000    20    0x14    00010100    1:122    AF 2288    0x58    01011000    22    0x16    00010110    1:123    AF 23104    0x68    01101000    26    0x1a    00011010    1:131    AF 31112    0x70    01110000    28    0x1c    00011100    1:132    AF 32120    0x78    01111000    30    0x1e    00011110    1:133    AF 33136    0x88    10001000    34    0x22    00100010    1:141    AF 41144    0x90    10010000    36    0x24    00100100    1:142    AF 42152    0x98    10011000    38    0x26    00100110    1:143    AF 43

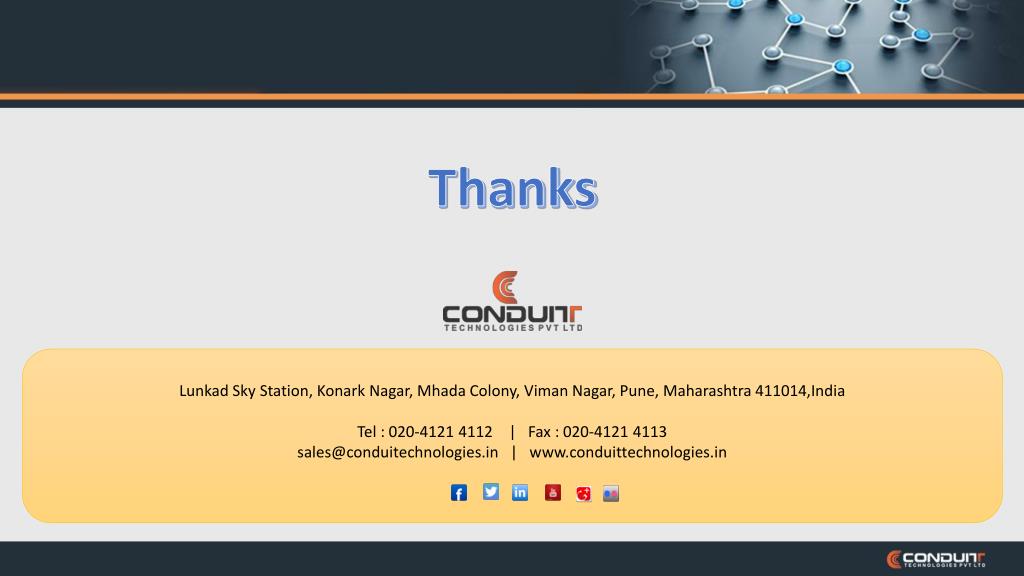

  12. Thanks Lunkad Sky Station, Konark Nagar, Mhada Colony, Viman Nagar, Pune, Maharashtra 411014,India Tel : 020-4121 4112 | Fax : 020-4121 4113 sales@conduitechnologies.in | www.conduittechnologies.in
