  1. Application Techniques Chris Boerboom Extension Weed Scientist University of Wisconsin

  2. Application Goal • 1. Place fungicide as deep into the canopy as possible • 2. Protectants require maximum coverage of soybean leaf surface • Canopy penetration • Small droplets - • better coverage, but cannot be forced into the canopy • Larger droplets - • less coverage, but penetrate canopy better

  3. Application Goal • Complete spray coverage is important • Different than postemergence herbicide applications • Changes to nozzles, volume, and pressure

  4. Nozzle types for fungicides • PressureRating • XR TeeJet (flat fan) > 30 psi Excellent • XR TeeJet (flat fan) < 30 psi Good • TwinJet Excellent • Turbo TeeJet > 30 psi Very good • Turbo TeeJet < 30 psi Good • Standard flat fan Good • Air induction Good • Hollow disc-cone (banding nozzle) Good

  5. Nozzle types Excellent spray distribution over a wide range of pressures: 15-60 PSI Reduces drift at lower pressures, better coverage at higher pressures • XR TeeJet flat fan TwinJet • Turbo TeeJet Penetrates crop residue or dense foliage Smaller droplets for thorough spray converge Spray pressure: 30-60 PSI 110o flat spray pattern Larger droplets for less drift Spray pressure: 15-90 PSI

  6. Nozzle types • Air induction Hollow disc-cone Excellent wear life - ideal for abrasive spray materials. Produce smaller droplets for thorough coverage. Spray pressure: 40-300 PSI Larger droplets for less drift - large, air-filled drops through the use of a venturi air-aspirator Spray pressure: 40-100 PSI

  7. Droplet size • Droplet category Symbol VMD (µm) • Very fine VF < 150 • Fine F 150-250 • Medium M 250-350 • Coarse C 350-450 • Very coarse VC 450-550 • Extremely coarse XC > 550 • 220 µm VMD droplet size recommended for fungicides • Droplets < 200 µm are “driftable”

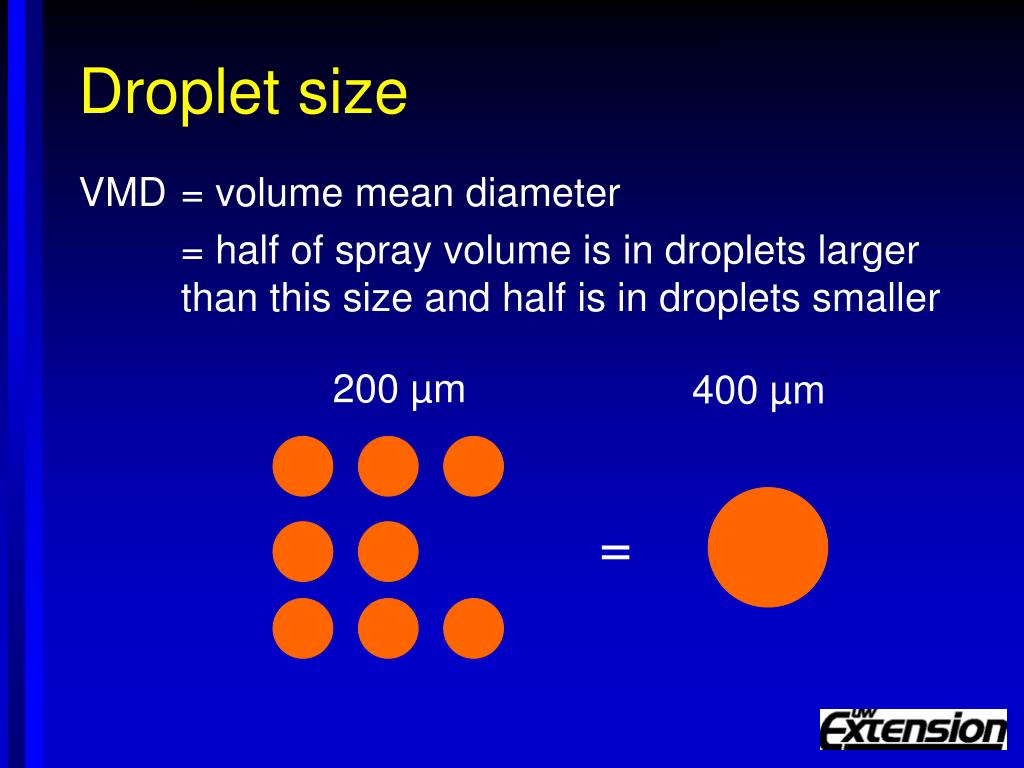

  8. 200 µm 400 µm = Droplet size • VMD = volume mean diameter • = half of spray volume is in droplets larger than this size and half is in droplets smaller

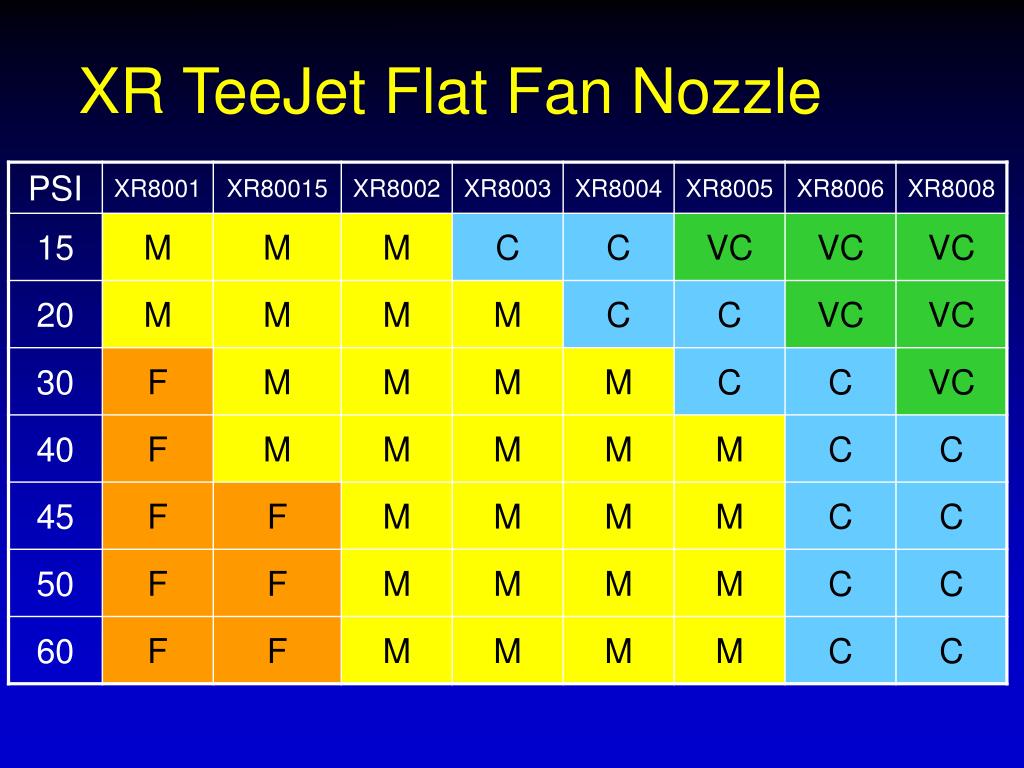

  9. XR TeeJet Flat Fan Nozzle

  10. Boom height • Balance between canopy penetration and uniformity • Lower boom height to: • reduce loss of fine droplets • increase droplet penetration into canopy • (wide angle nozzles (e.g. 110o) allow lower boom height) • Need to maintain a minimum boom height for proper overlap between adjacent nozzles 20” 50% overlap 10”

  11. Fungicide Application Info • Section 3 labels Spray volume (gpa) • Bravo 20-150 (complete coverage) • Echo 720 20-150 (complete coverage) • Quadris sufficient volume for coverage • Headline sufficient volume for coverage • Section 18 labels • Tilt 15 (35-40 psi at nozzles) • PropiMax 15 (35-40 psi at nozzles) • Bumper 15 • Folicur 10 (complete coverage) • Laredo 15-20 recommended

  12. Section 18s • Section 18 label must be in possession of the applicator during the application • List of section 18 labels approved in Wisconsin http://www.datcp.state.wi.us/arm/agriculture/pest-fert/pesticides • /special.html • Site also contains some of the actual labels • Some section 18 labels available at • http://www.cdms.net/

  13. Fungicide and herbicide tank mixtures • Separate applications are generally best. • Why? • Timing: • Weeds: V2-3 soybean stage • Rust: R1 stage stage? • Drift: • Herbicides: medium or coarse droplets • Fungicides: very fine or fine droplets • Label recommendations for tank mixtures: • Not addressed on many labels (safest to avoid) • or generic statements not recommending tank mixtures • Few labels approve tank mixtures (e.g. Headline)

  14. Drift • Don’t think “drift doesn’t matter with fungicides” • In Wisconsin, pesticide drift is: • readily visible or could or actually causes harm to persons, property or the environment • (Quadris drift to apples is phytotoxic) • Drift could • cause illegal residues on adjacent crops • reduce fungicide performance • increase public concerns of pesticide applications

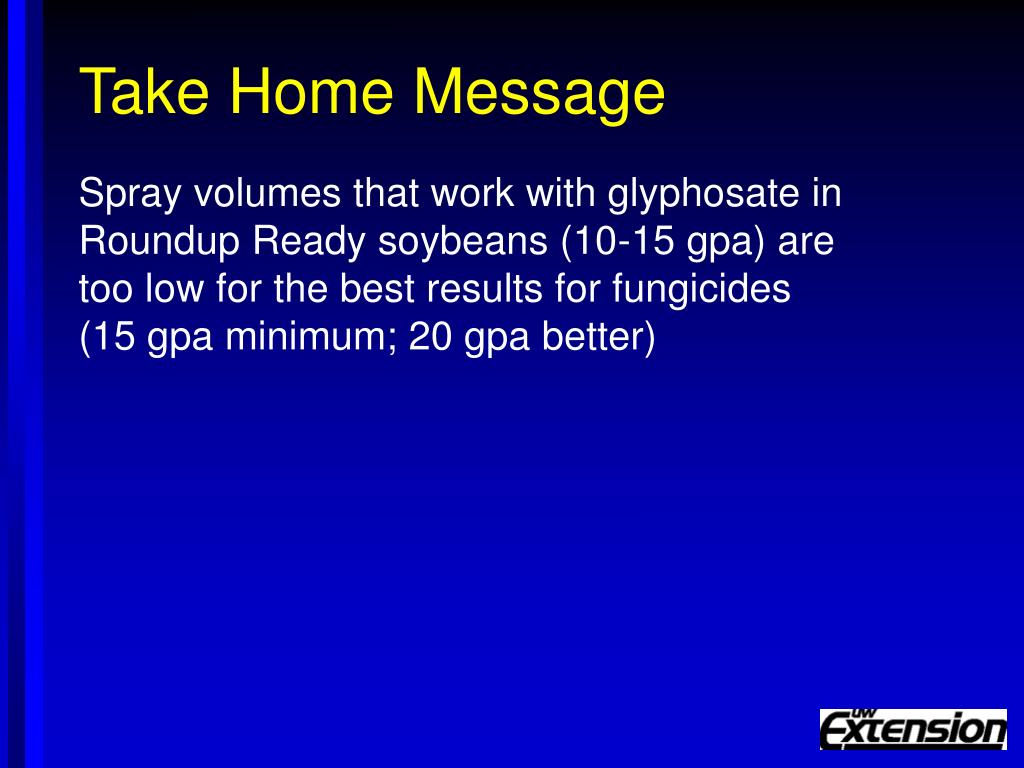

  15. Take Home Message • Spray volumes that work with glyphosate in Roundup Ready soybeans (10-15 gpa) are too low for the best results for fungicides (15 gpa minimum; 20 gpa better)
