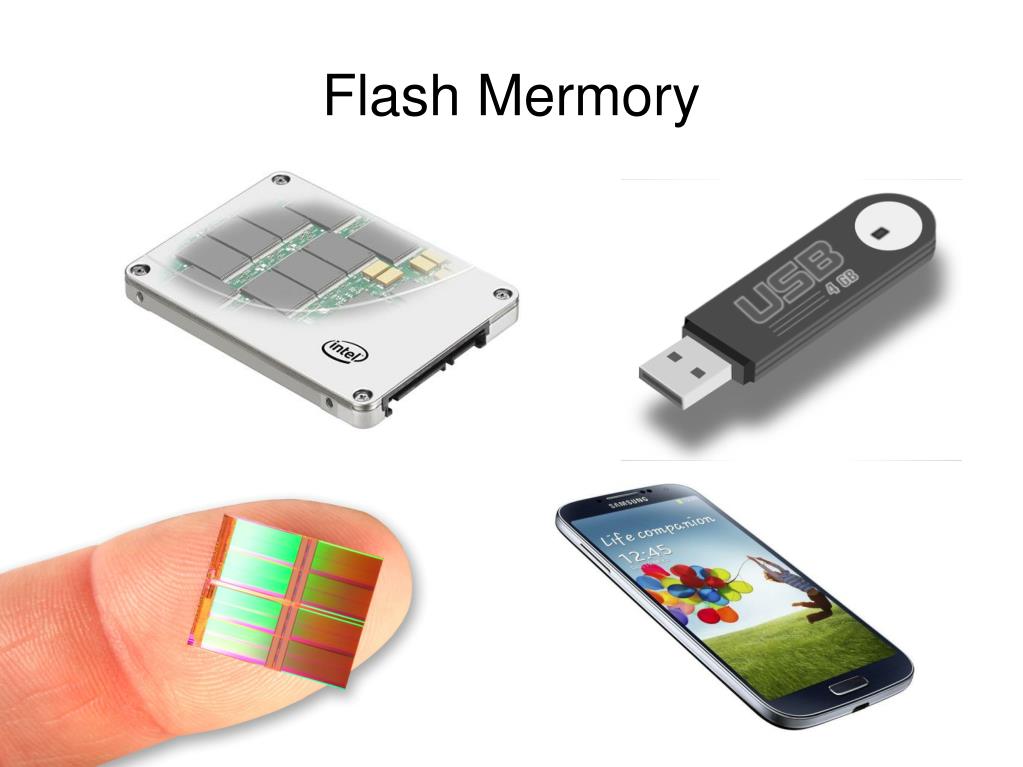

  1. Flash Mermory

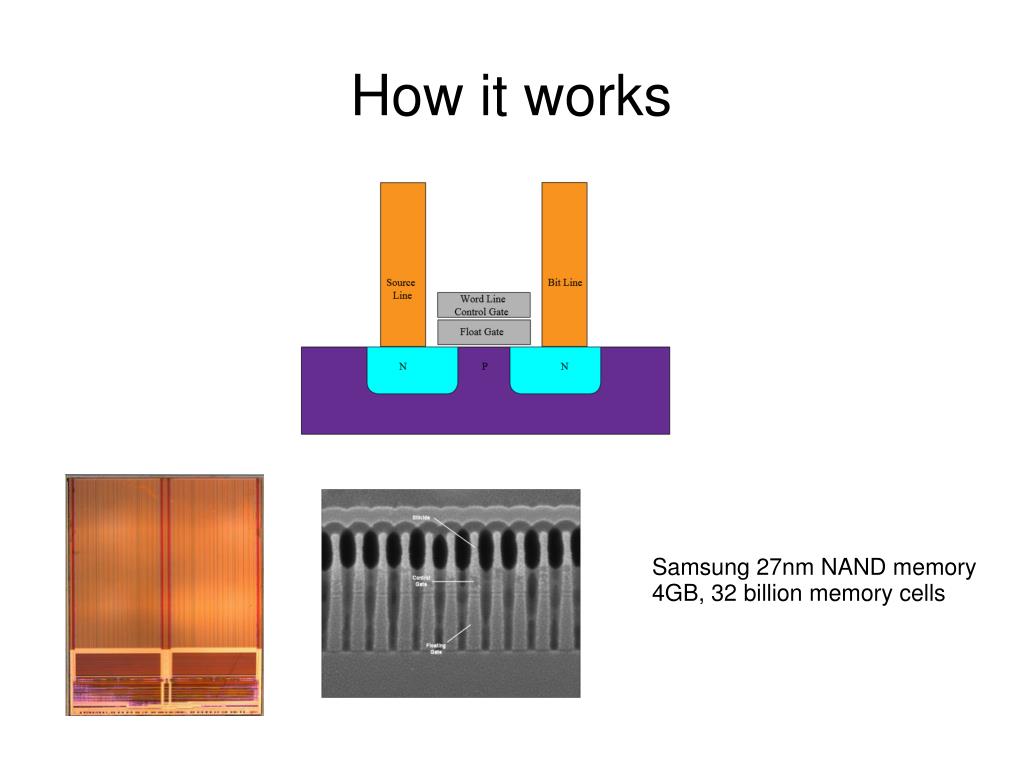

  2. How it works Samsung 27nm NAND memory 4GB, 32 billion memory cells

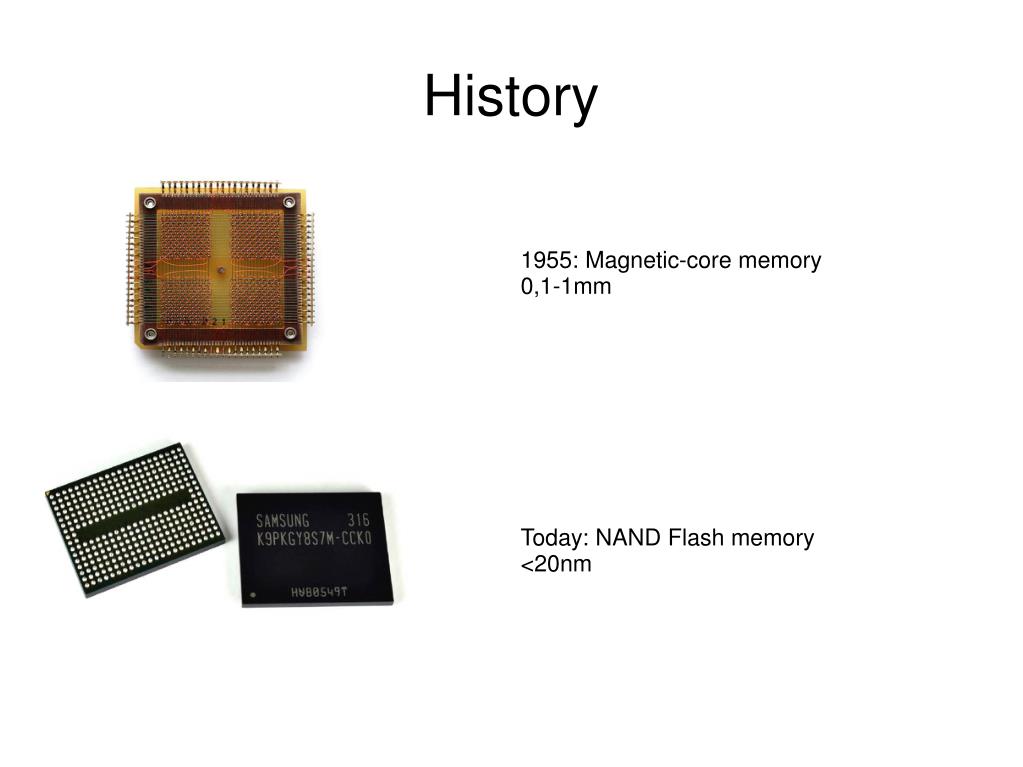

  3. History 1955: Magnetic-core memory 0,1-1mm Today: NAND Flash memory <20nm

  4. Manufacturing Photolithography 34nm ~400 memory chips per wafer

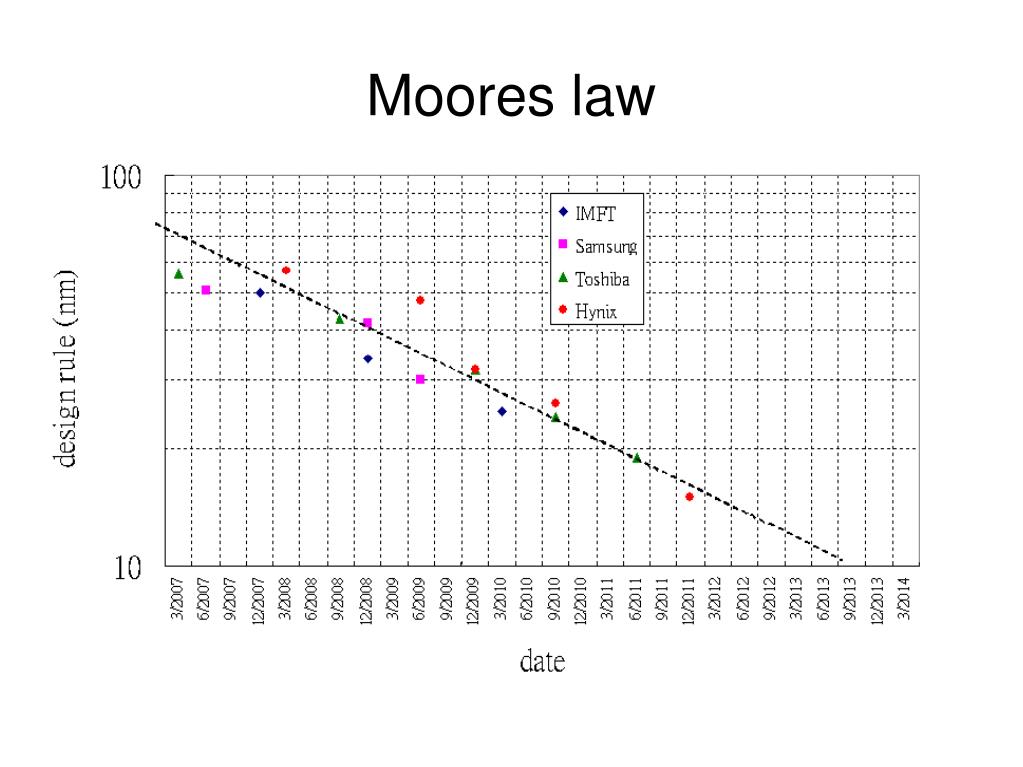

  5. Moores law

  6. Properties Advantages • Cheap • Small • Capacity (?) • Volatility (?) Drawbacks • Slow

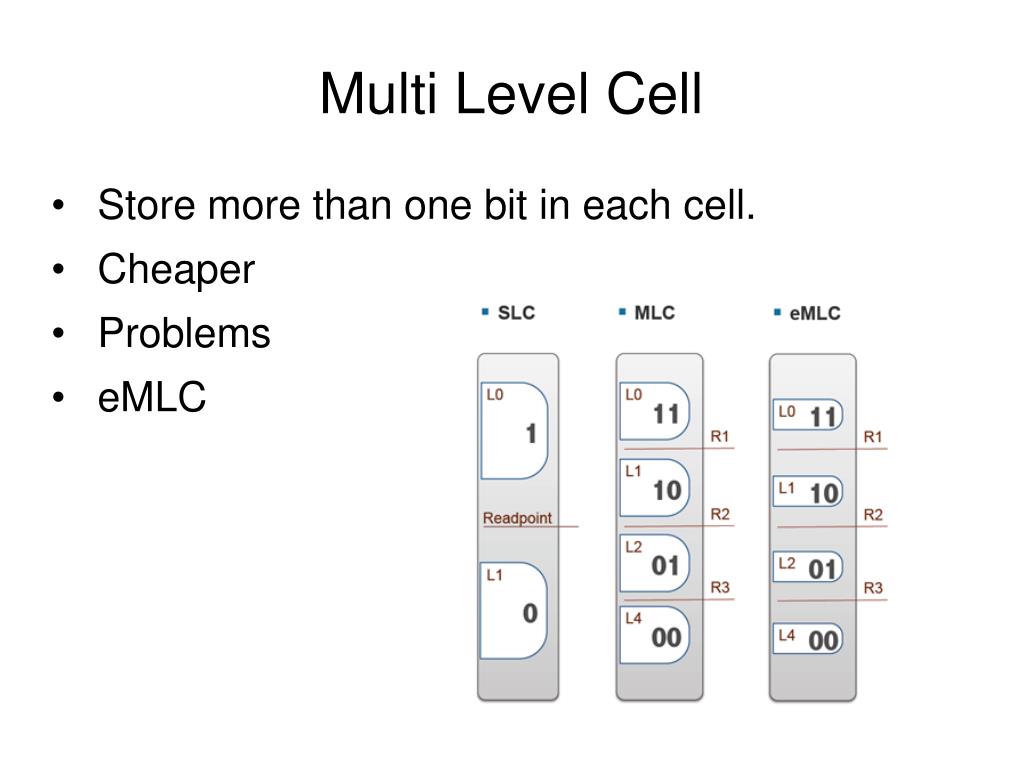

  7. Multi Level Cell • Store more than one bit in each cell. • Cheaper • Problems • eMLC

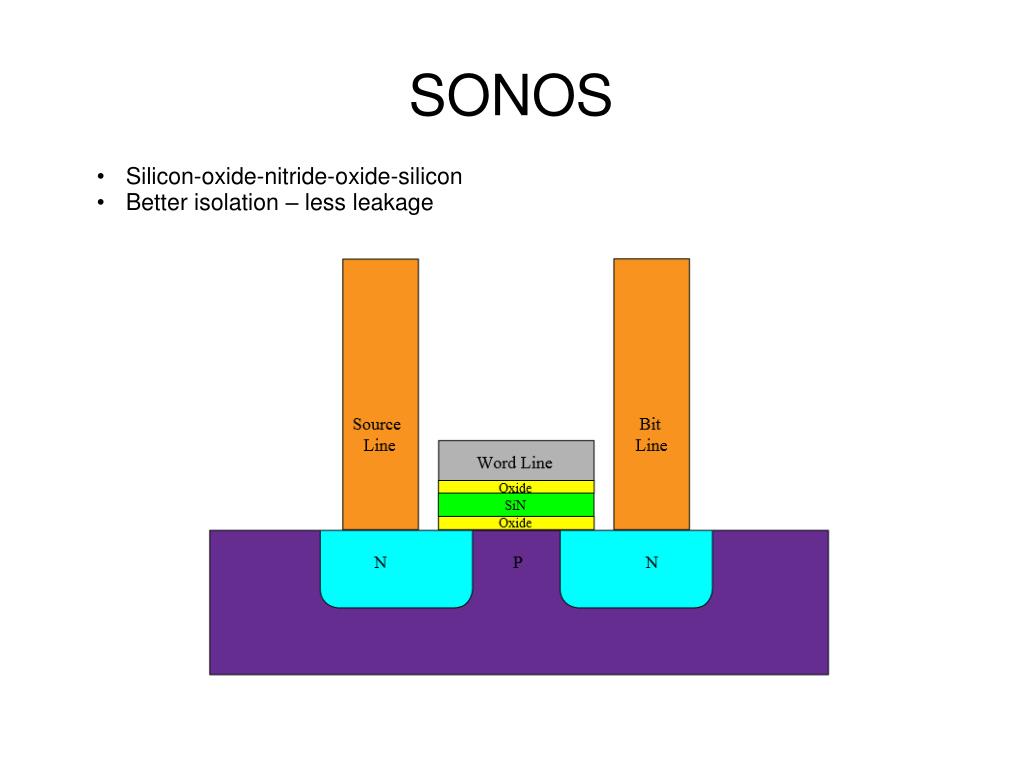

  8. SONOS • Silicon-oxide-nitride-oxide-silicon • Better isolation – less leakage

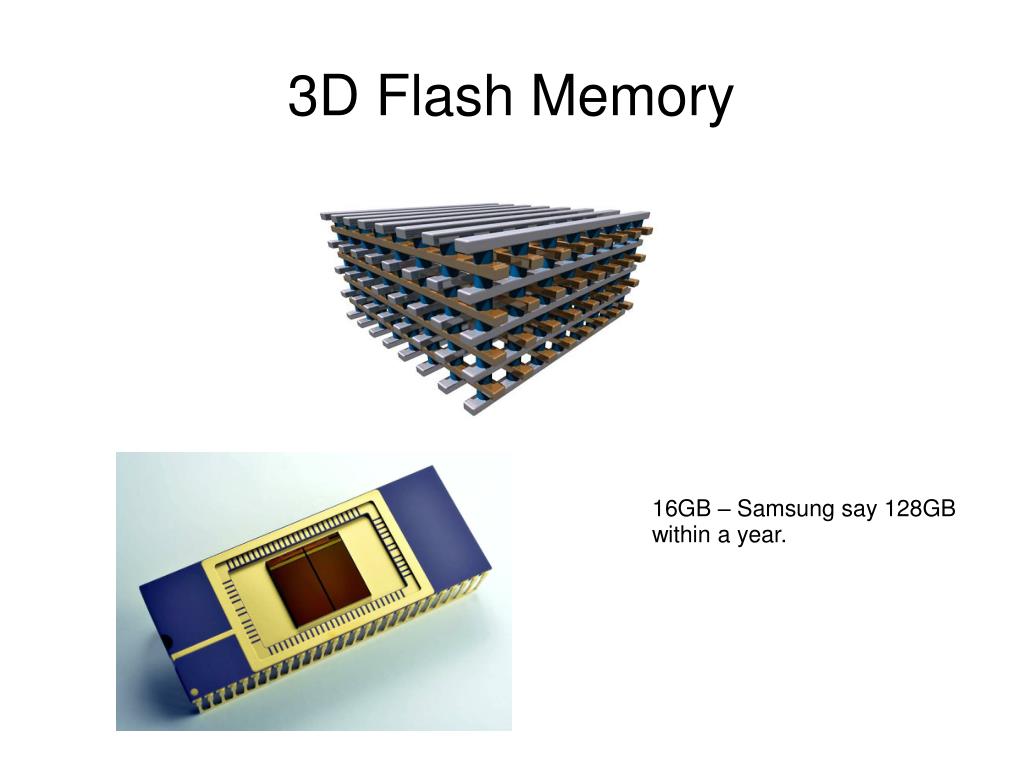

  9. 3D Flash Memory 16GB – Samsung say 128GB within a year.

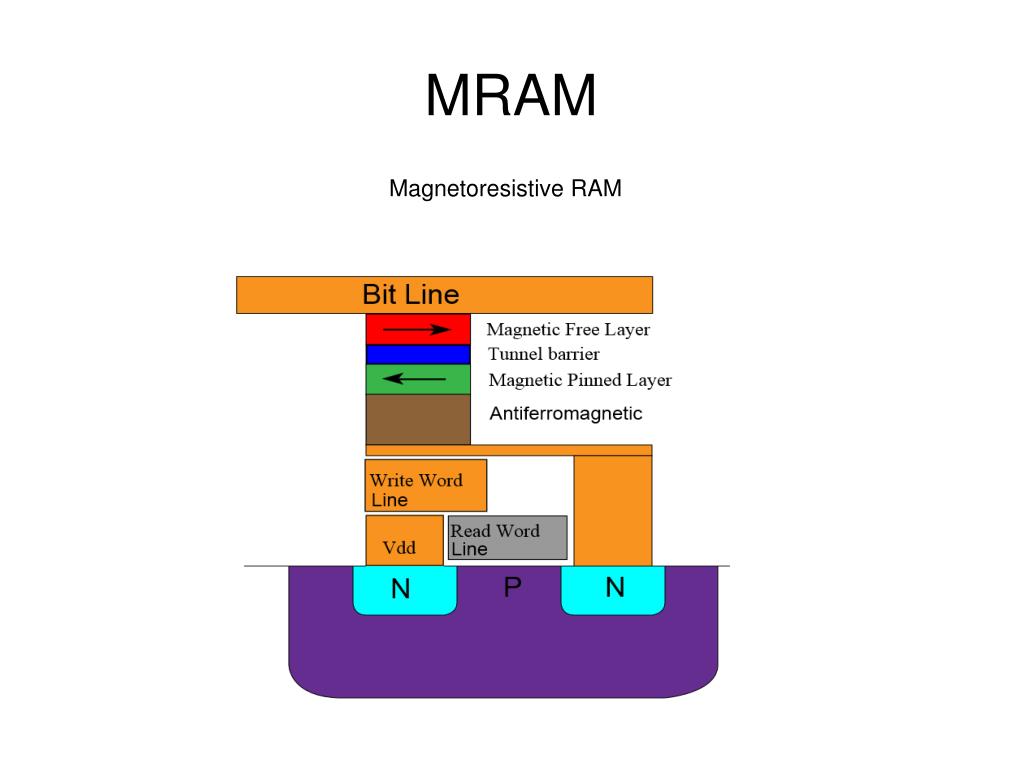

  10. MRAM Magnetoresistive RAM

  11. Resources • http://www.samsung.com/global/business/semiconductor/html/product/flash-solution/vnand/overview.html • http://www.samsung.com/global/business/semiconductor/news-events/press-releases/detail?newsId=12281 • http://www.computerweekly.com/podcast/Enterprise-MLC-eMLC-and-solid-state-storage-for-the-enterprise • http://semiconductorexpert.blogspot.se/2013/05/samsung-nand-1xnm-manufacturing-tlc.html • http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=00622505 • http://en.wikipedia.org/wiki/Flash_memory • http://en.wikipedia.org/wiki/SONOS • http://en.wikipedia.org/wiki/Magnetoresistive_random-access_memory • http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=1283546
