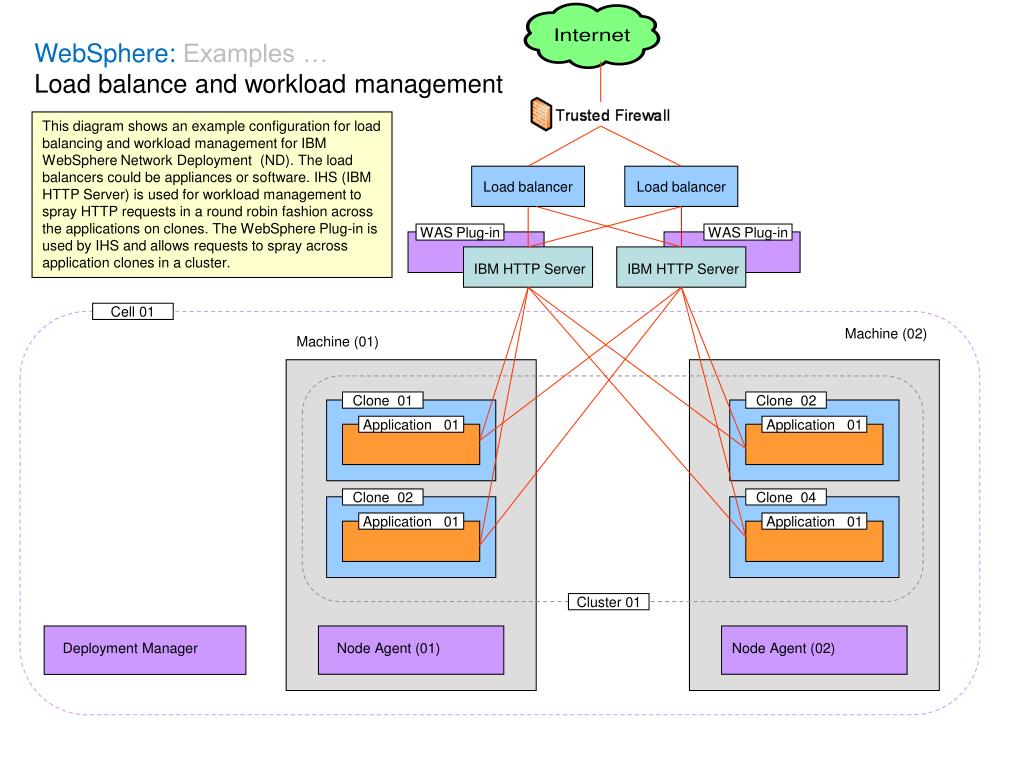

  1. WebSphere: Examples … Load balance and workload management This diagram shows an example configuration for load balancing and workload management for IBM WebSphere Network Deployment (ND). The load balancers could be appliances or software. IHS (IBM HTTP Server) is used for workload management to spray HTTP requests in a round robin fashion across the applications on clones. The WebSphere Plug-in is used by IHS and allows requests to spray across application clones in a cluster. Load balancer Load balancer WAS Plug-in WAS Plug-in IBM HTTP Server IBM HTTP Server Cell 01 Machine (02) Machine (01) Clone 01 Clone 02 Application 01 Application 01 Clone 02 Clone 04 Application 01 Application 01 Cluster 01 Deployment Manager Node Agent (01) Node Agent (02)
