Volumes of Rectangular Prisms

Volumes of Rectangular Prisms. Vocabulary. The volume of a three - dimensional figure is the number of cubic units needed to fill the space inside the figure. A cubic unit is a cube that measures 1 unit long, 1 unit wide , and 1 unit high. Counting Cubes.

coy
Download Presentation

Volumes of Rectangular Prisms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Volumes of RectangularPrisms

  2. Vocabulary • The volume of a three-dimensional figure is the number of cubicunitsneeded to fill the spaceinside the figure. • A cubic unitis a cube thatmeasures 1 unit long, 1 unit wide, and 1 unit high.

  3. Counting Cubes • If the figure is split into cubes already, thenjust count the cubes in one layer and multiplythat by the number of layers. The top layer is 4 x 5, or 20 cubic units. There are 20 cubic units per layer, times 3 layers, for a volume of 60 cubic units.

  4. Using Formulas • To find the volume of a prism or a cylinder, multiply the area of the base by the height. • Volume = Area of Base x height • V = Bh • (The capital B does not stand for base, it stands for area of the base.)

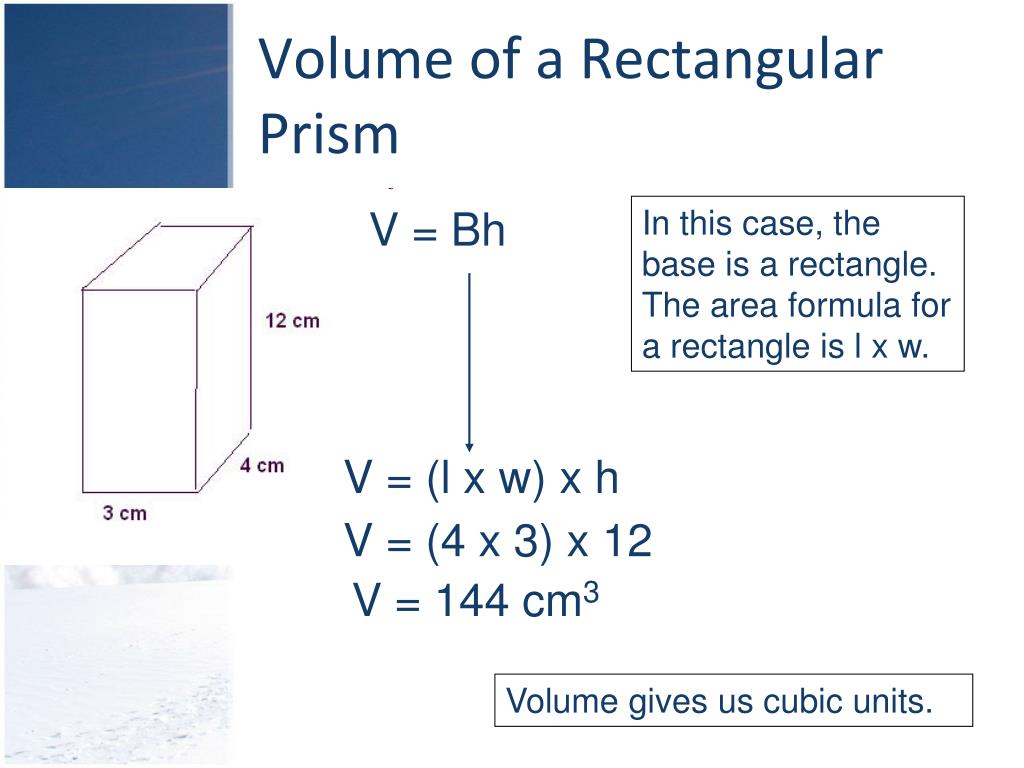

  5. Volume of a Rectangular Prism V = Bh In this case, the base is a rectangle. The area formula for a rectangle is l x w. V = (l x w) x h V = (4 x 3) x 12 V = 144 cm3 Volume gives us cubic units.

  6. Homework • Textbook Page 102 # 2ab, 4 • Page 85 # 1ab, 4, 6 • Page 115 # 7, 8b
