  1. VE Input Devices(I) Doug Bowman Virginia Tech Edited by Chang Song

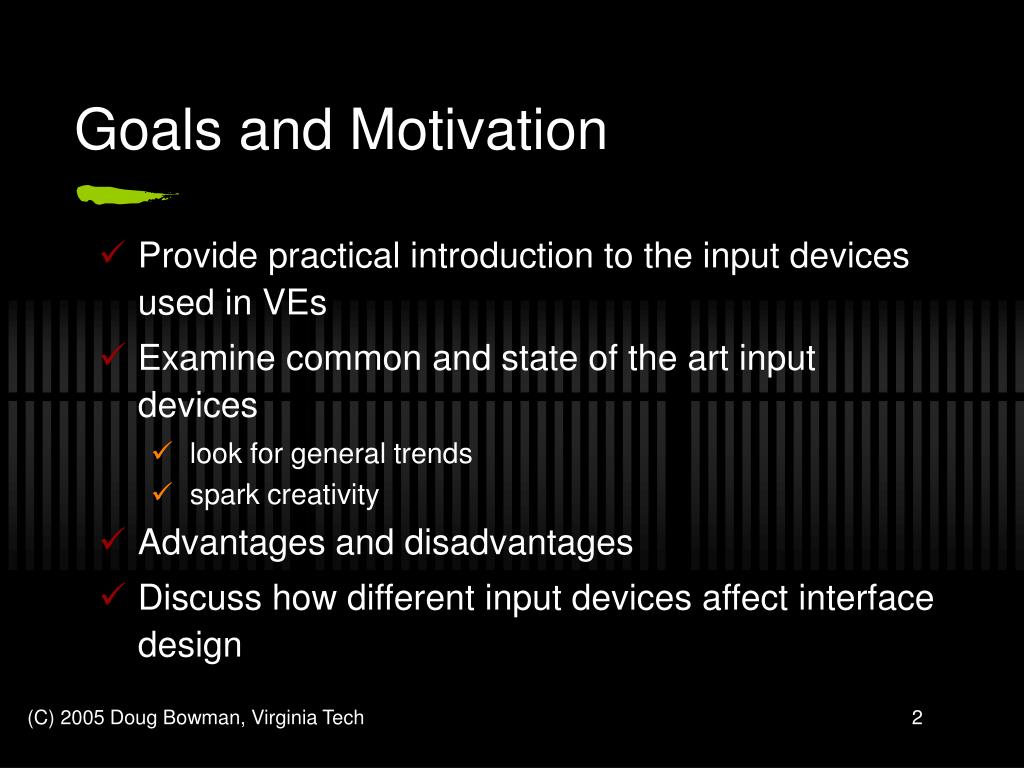

  2. Goals and Motivation • Provide practical introduction to the input devices used in VEs • Examine common and state of the art input devices • look for general trends • spark creativity • Advantages and disadvantages • Discuss how different input devices affect interface design

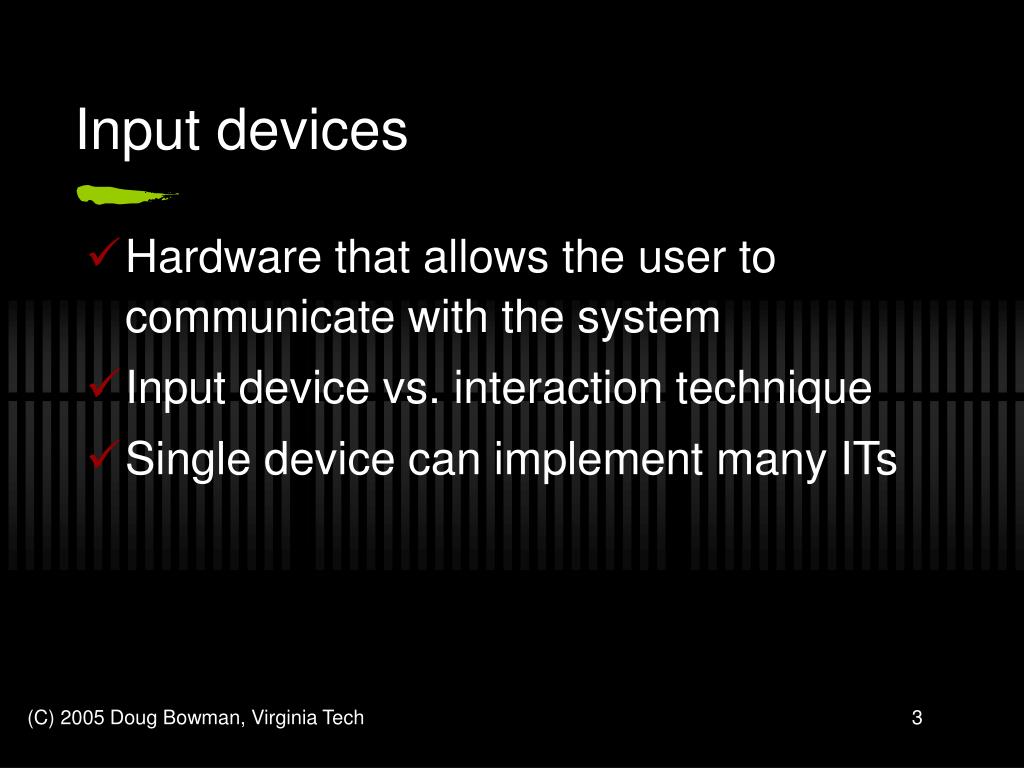

  3. Input devices • Hardware that allows the user to communicate with the system • Input device vs. interaction technique • Single device can implement many ITs

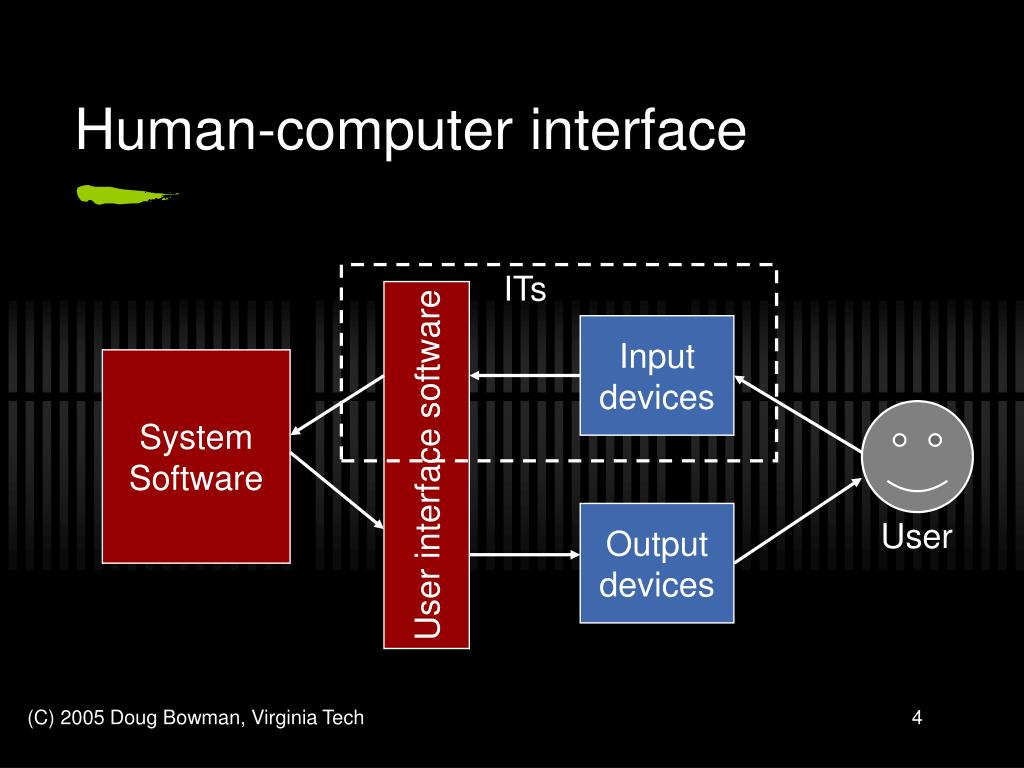

  4. ITs Human-computer interface User interface software Input devices System Software Output devices User

  5. Human-VE interface Env. model Display(s) Simulation loop: -render -check for events -respond to events -iterate simulation -get new tracker data Tracking system Input device(s)

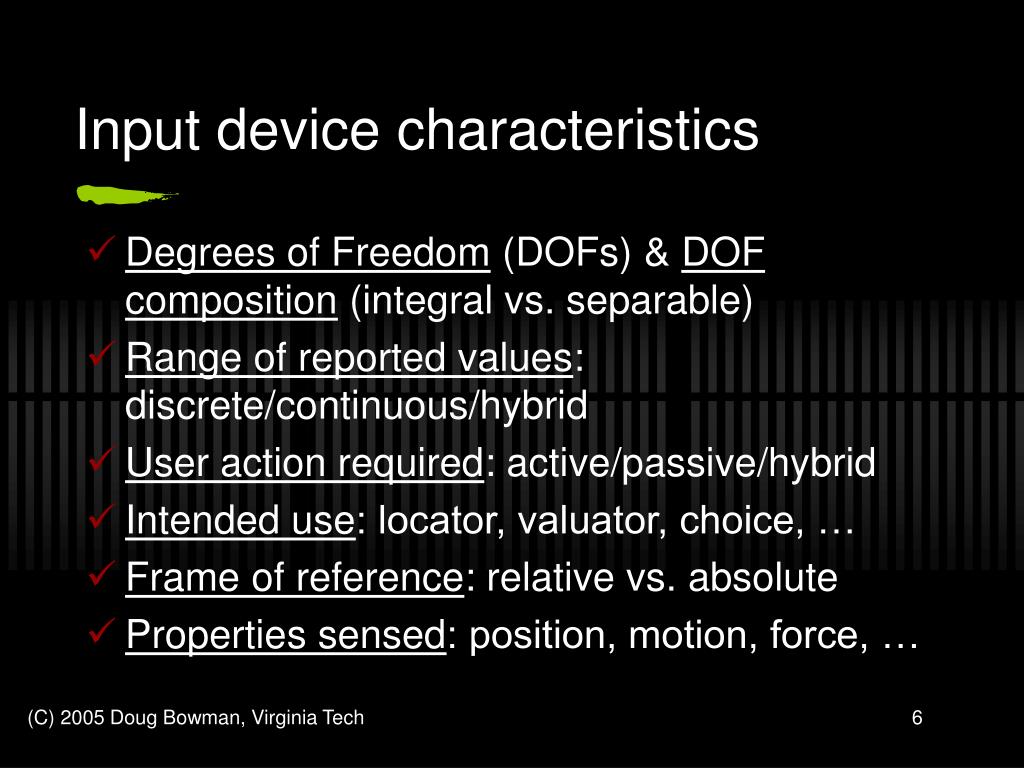

  6. Input device characteristics • Degrees of Freedom (DOFs) & DOF composition (integral vs. separable) • Range of reported values: discrete/continuous/hybrid • User action required: active/passive/hybrid • Intended use: locator, valuator, choice, … • Frame of reference: relative vs. absolute • Properties sensed: position, motion, force, …

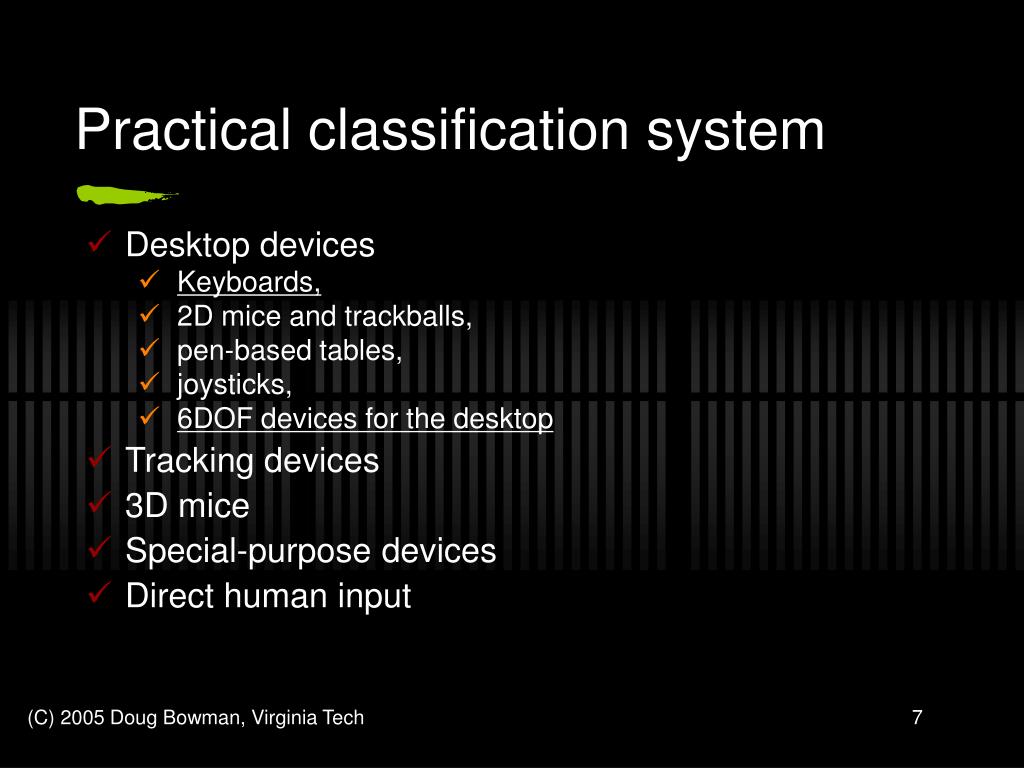

  7. Practical classification system • Desktop devices • Keyboards, • 2D mice and trackballs, • pen-based tables, • joysticks, • 6DOF devices for the desktop • Tracking devices • 3D mice • Special-purpose devices • Direct human input

  8. Desktop devices: keyboards • Chord keyboards1 • Arm-mounted keyboards2 • “Soft” keyboards (logical devices)

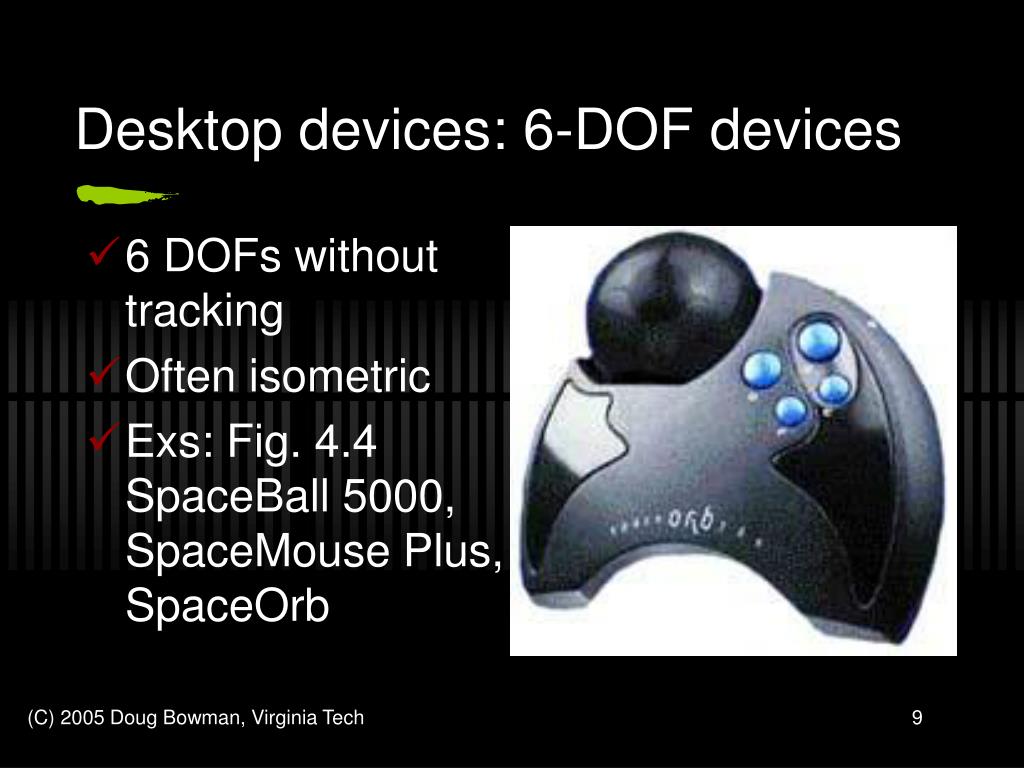

  9. Desktop devices: 6-DOF devices • 6 DOFs without tracking • Often isometric • Exs: Fig. 4.4 SpaceBall 5000, SpaceMouse Plus, SpaceOrb

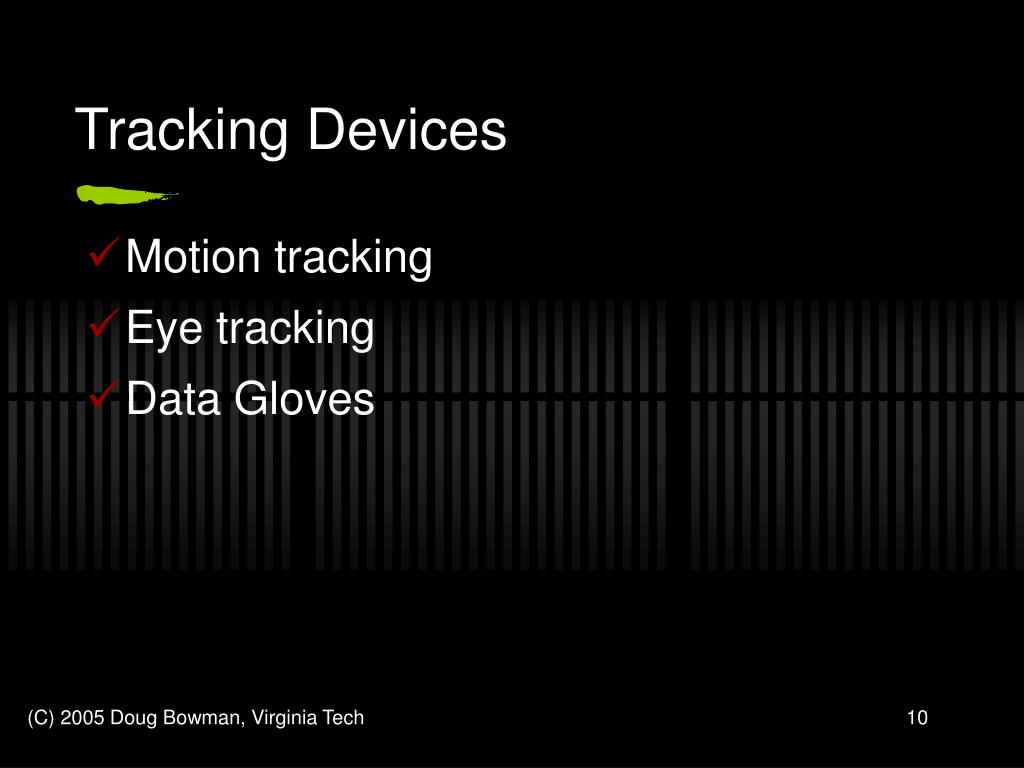

  10. Tracking Devices • Motion tracking • Eye tracking • Data Gloves

  11. Motion Tracking • Critical characteristics • Range, latency, jitter (noise or instability), and accuracy • Different motion trackers • Magnetic • Mechanical • Acoustic • Inertial • Optical • Hybrid

  12. Electromagnetic trackers • Exs: Polhemus Fastrak, Ascension Flock of Birds • Most common • Used with conventional monitors (for fishtank VR) Small workbench displays • Transmitter • Receiver(s) • Noisy • Affected by metal objects -> distort the magnetic field

  13. Inertial trackers • Inertial measurement devices : angular gyroscopes & linear accelerometer • Exs: Intersense IS-300, Intertrax2 • Less noise, lag • Only 3 DOFs (orientation)

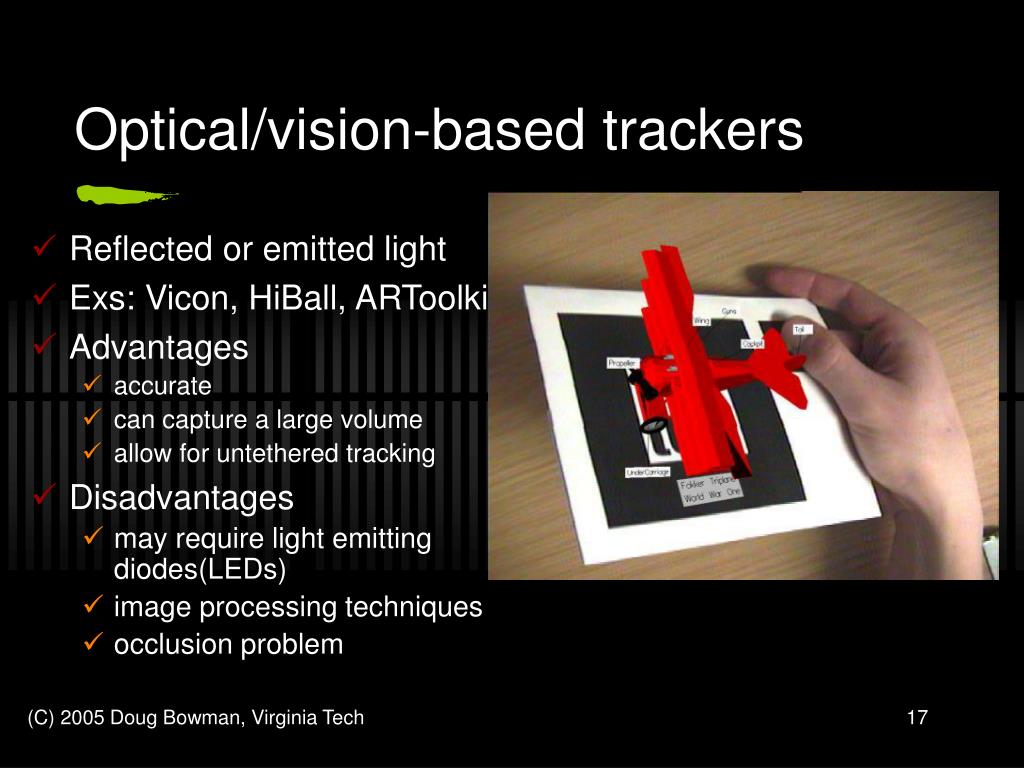

  14. Reflected or emitted light Exs: Vicon, HiBall, ARToolkit Advantages accurate can capture a large volume allow for untethered tracking Disadvantages may require light emitting diodes(LEDs) image processing techniques occlusion problem Optical/vision-based trackers

  15. Outside-in or inside-out system Sensors/landmarks – tracked objects/environment Setting up vision-based tracking system can be difficult Optical/vision-based trackers

  16. Hybrid tracking • Ex: IS-600 / 900 • inertial (orient.) • acoustic (pos.) • additional complexity, cost

  17. Tracking devices: eye tracking

  18. Tracking devices: eye tracking • User controlling a mouse pointer strictly with his eyes. • Gazed direction based • Head-tracker as an approximation to where the user is looking. Problem can occur. • Improve these gaze-directed techniques

  19. Tracking devices: bend-sensing gloves • CyberGlove7, 5DT • Reports hand posture • Gesture: • single posture • series of postures • posture(s) + location or motion

  20. Tracking devices: pinch gloves • Conductive cloth at fingertips • Any gesture of 2 to 10 fingers, plus combinations of gestures • > 115,000 gestures

  21. Case study: Pinch Gloves • Pinch gloves are designed to be a combination device (add a position tracker) • Very little has been done with Pinch Gloves in VEs - usually 1 or 2 gestures for: • Object selection • Tool selection • Travel

  22. Characteristics of Pinch Gloves • Relatively low cost • Very light • User’s hand becomes the device • User’s hand posture can change • Allow two-handed interaction • Huge number of possible gestures

  23. Characteristics of Pinch Gloves II • Much more reliable than data gloves • Support eyes-off input • Can diminish “Heisenberg effect” • Support context-sensitive gesture interpretation

  24. Pinch Gloves in SmartScene13 • Lots of two-handed gestures • Scale world • Rotate world • Travel by “grabbing the air” • Menu selection

  25. Pinch Gloves for menus • TULIP system14 • ND hand selects menu, D hand selects item within menu • Limited to comfortable gestures • Visual feedback on virtual hands

  26. Pinch Gloves for text input • Pinch Keyboard14 • Emulate QWERTY • Pinch finger to thumb to type letter under that finger • Move/rotate hands to change active letters • Visual feedback

  27. Combining Bend-Sensing Data and Pinch Input • Both the Pinch Gloves and bend-sensing gloves have limitations • The Flex and Pinch input system is an example of an input device that combines the functionality of the Pinch Gloves system with the bend-sensing technology of a data glove • Figure 4.15
