  1. Software Testing Written by Zvika Gutterman Adam Carmi

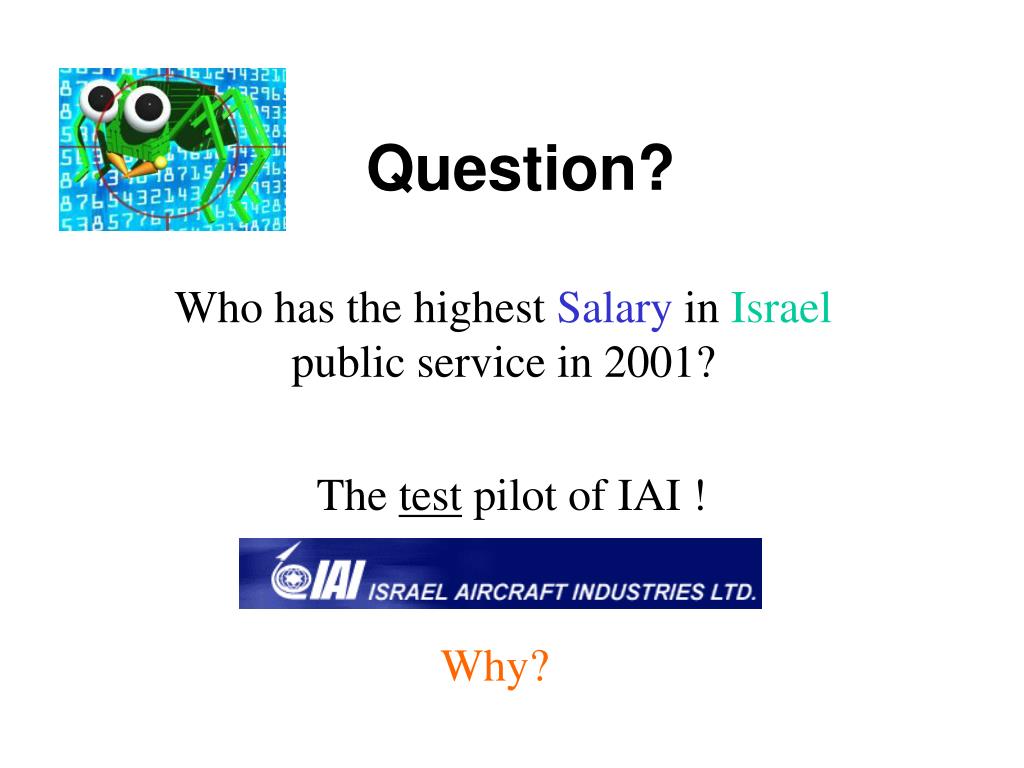

  2. Question? Who has the highest Salary in Israel public service in 2001? The test pilot of IAI ! Why?

  3. Agenda • Goal • Introduction • Vocabulary • White Box • Black Box • Static vs. Dynamic • Example - TVRS

  4. Goal • The process of executing a program (or part of it) with the intention of finding errors. [Myers] • Any activity aimed at evaluating attribute of a program and determining that it meets its requires results. [Hetzel] • Myers: “The art of software testing” [1979] • Hetzel: “The Complete Guide to software testing” [1988]

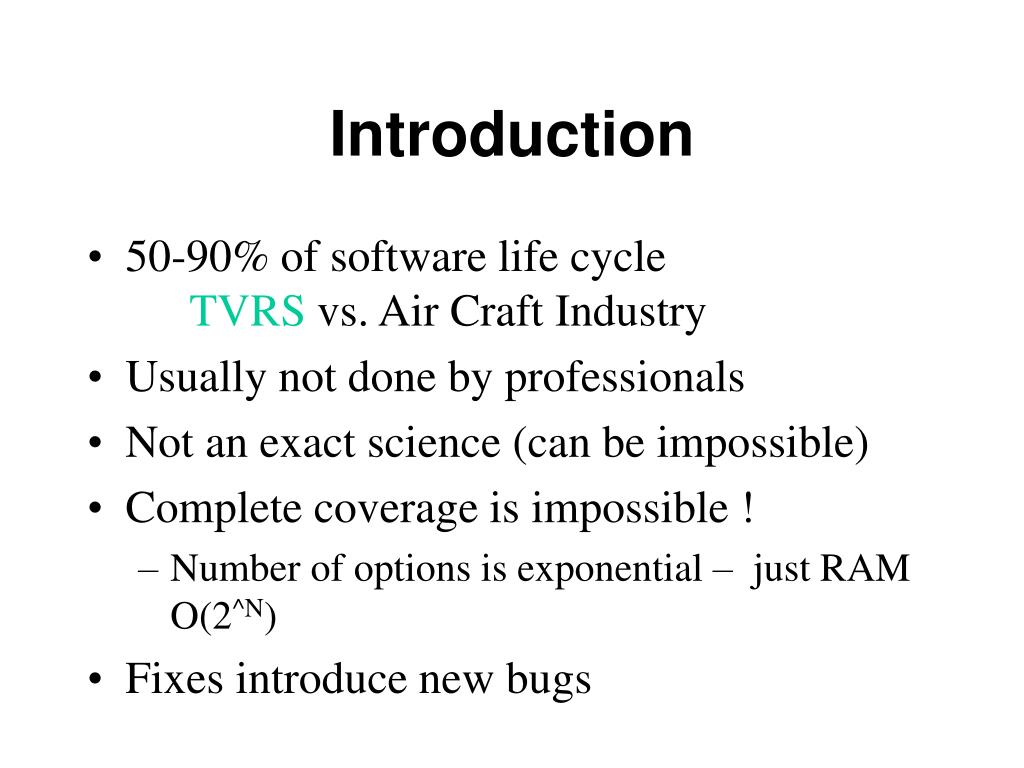

  5. Introduction • 50-90% of software life cycleTVRS vs. Air Craft Industry • Usually not done by professionals • Not an exact science (can be impossible) • Complete coverage is impossible ! • Number of options is exponential – just RAM O(2^N) • Fixes introduce new bugs

  6. Introduction (cont.) • OS & Hardware dependent • Programming Language Dependent! • C++ vs. Java ! • Never Ends (client as a tester..) • There is always another Bug • Marketing vs. Testing • 1980’s – PC • 1990’s – Internet hype

  7. Introduction (cont.) • Requires writing additional code (which can include bugs) • Automatic tools for testing exists • Mainly for knows fields • Web servers (see ….) • Parasoft • Mercury Interactive

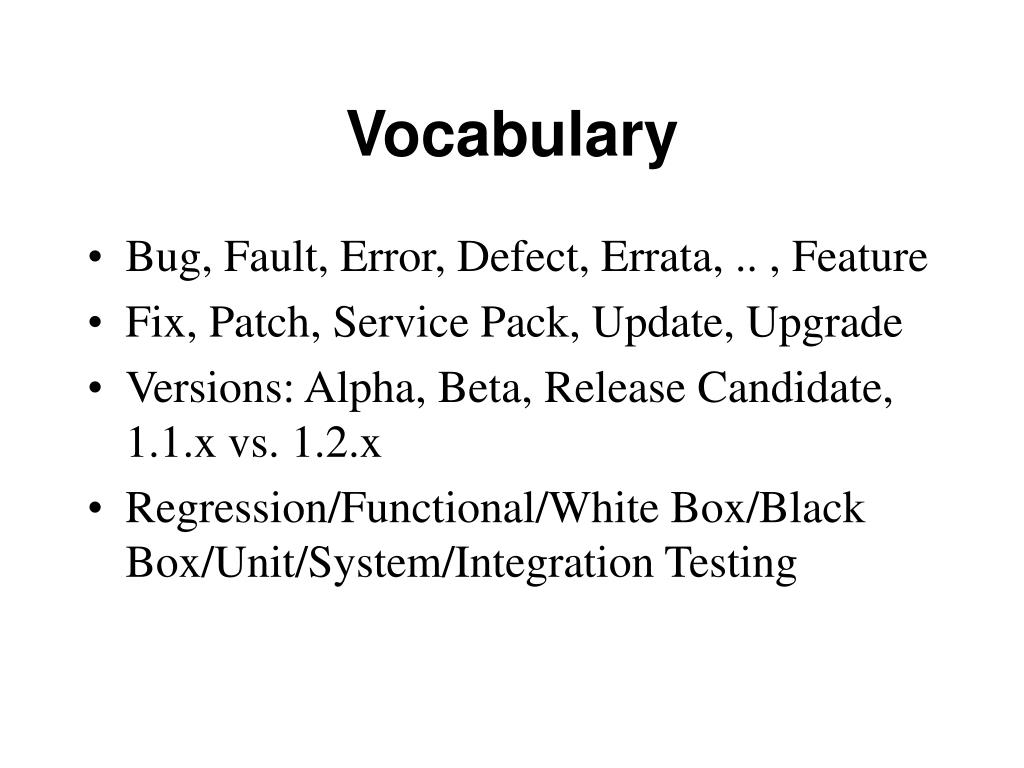

  8. Vocabulary • Bug, Fault, Error, Defect, Errata, .. , Feature • Fix, Patch, Service Pack, Update, Upgrade • Versions: Alpha, Beta, Release Candidate, 1.1.x vs. 1.2.x • Regression/Functional/White Box/Black Box/Unit/System/Integration Testing

  9. White Box – Unit Testing • Testing the Implementation Logic • Usually done by the programmer • (good/bad?) • Tests the source code • Example: • Implementing a Sorting Method • Merge Sort vs. Bubble sort

  10. Black Box – Functional Testing • Use Cases and Requirements based • Interface Testing • Input-Output Testing • Use Valid and Invalid inputs • Use “real” samples

  11. Black Box – Sorting Method • Unaware of the used algorithm • Sorting: • Use complete enumeration for small examples • 10 elements (10!) • Should we test again for 11 elements? • Check for equal values (2,2,2,5,3,4,7) • Which input ranges are valid? (use extremes) • Random Testing (why?)

  12. Testing affects results • Test Programs • Another Software is using the same resources • It is not the same code • Debug vs. Release • For example: counters initialized to zero (gdb) • assert(x=3);

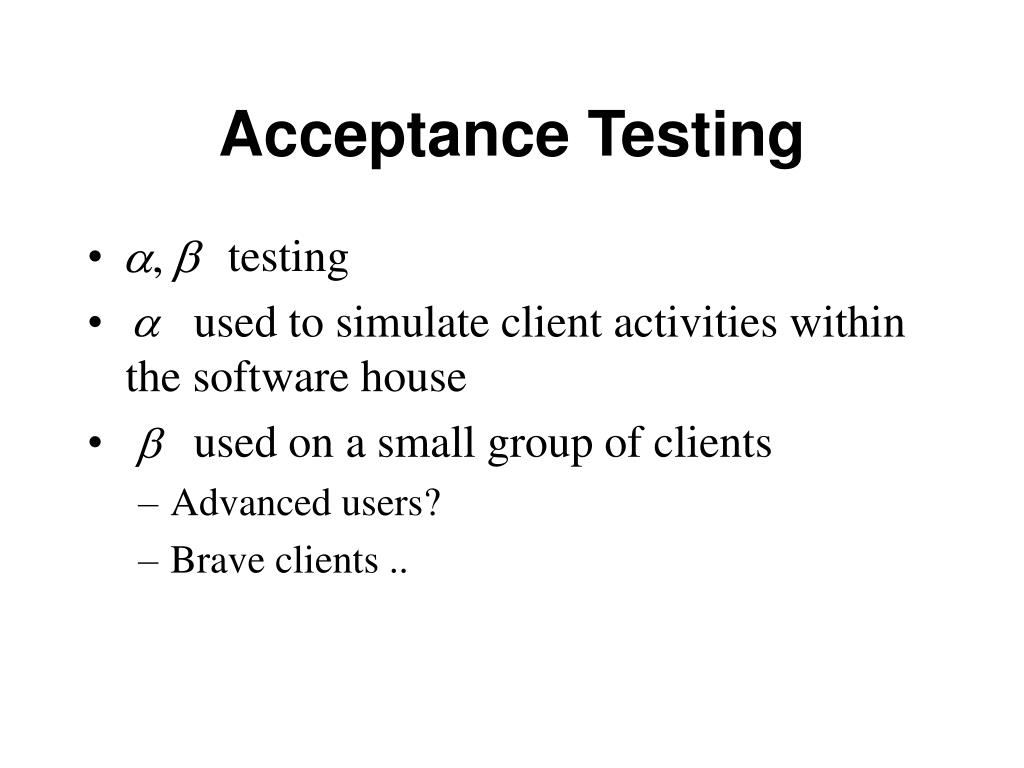

  13. Acceptance Testing • testing • used to simulate client activities within the software house • used on a small group of clients • Advanced users? • Brave clients ..

  14. Static Testing • Static • Compiler • C++: -Wall, -pedantic, -ansi • Static Checker • – e.g. – Lint (http://lclint.cs.virginia.edu/) • Human code review • Formal verification

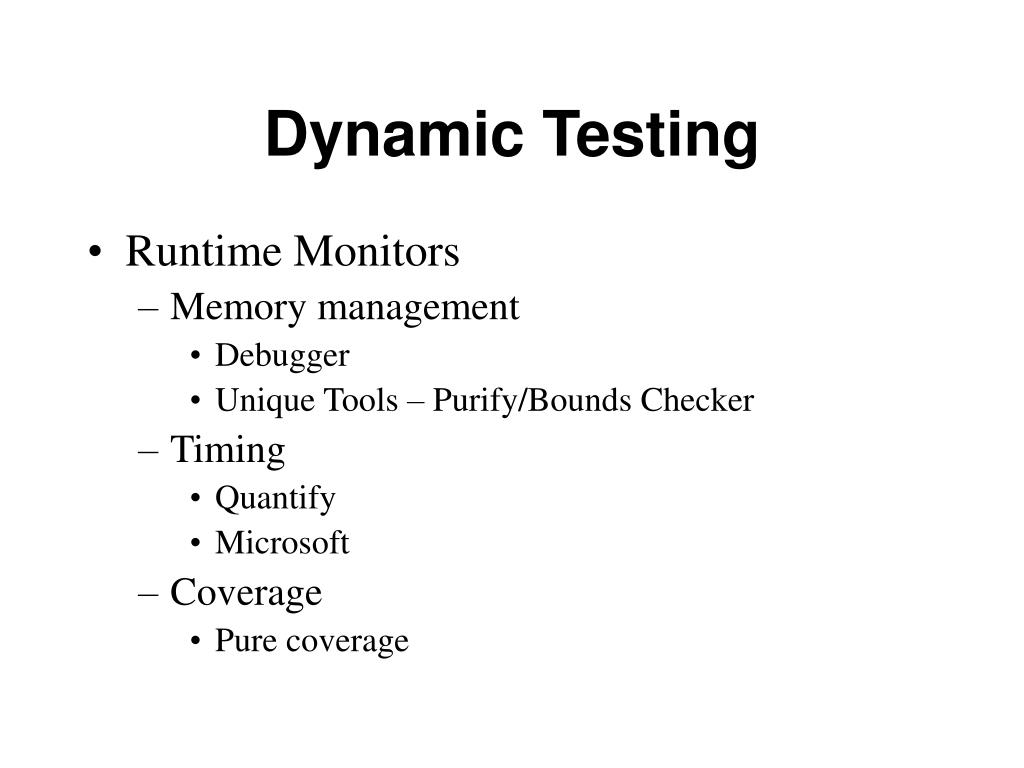

  15. Dynamic Testing • Runtime Monitors • Memory management • Debugger • Unique Tools – Purify/Bounds Checker • Timing • Quantify • Microsoft • Coverage • Pure coverage

  16. Testing Metrics • Number of bugs • Day/developer/team/product • Define severity levels • No Go! • .. • Feature • Regression Tools (re-approving the product) • Acceptance Testing • Poor man solution: • Time / Budget

  17. Black Box - Algorithm • For each Use Case • Identify different cases (named equivalent classes) • Identify endpoints • Create tests • Prefer automatic tests • Iterate on all possible Environments • Prioritize tests • Among Use Cases • Among different tests

  18. Example – TRVS – Black Box • Use case: 3 – find Policeman • Equivalent classes • Policeman with searched ID exists/not • Policeman with searched Name exists/not • Few policemen with searched Name exists • Policeman with searched ID just deleted • .. • Endpoints • Does system allow to enter ID’s with varying number of digits? • ..

  19. Example – TRVS – Black Box

  20. Example – TRVS – Black Box
