  1. STL Partea 2

  2. Cuprins • STL C++ • containere standard • algoritmi • clasificare • exemple: • liste • tablouri asociative • agenda telefonica • functori (obiecte functii) STL – Partea 2

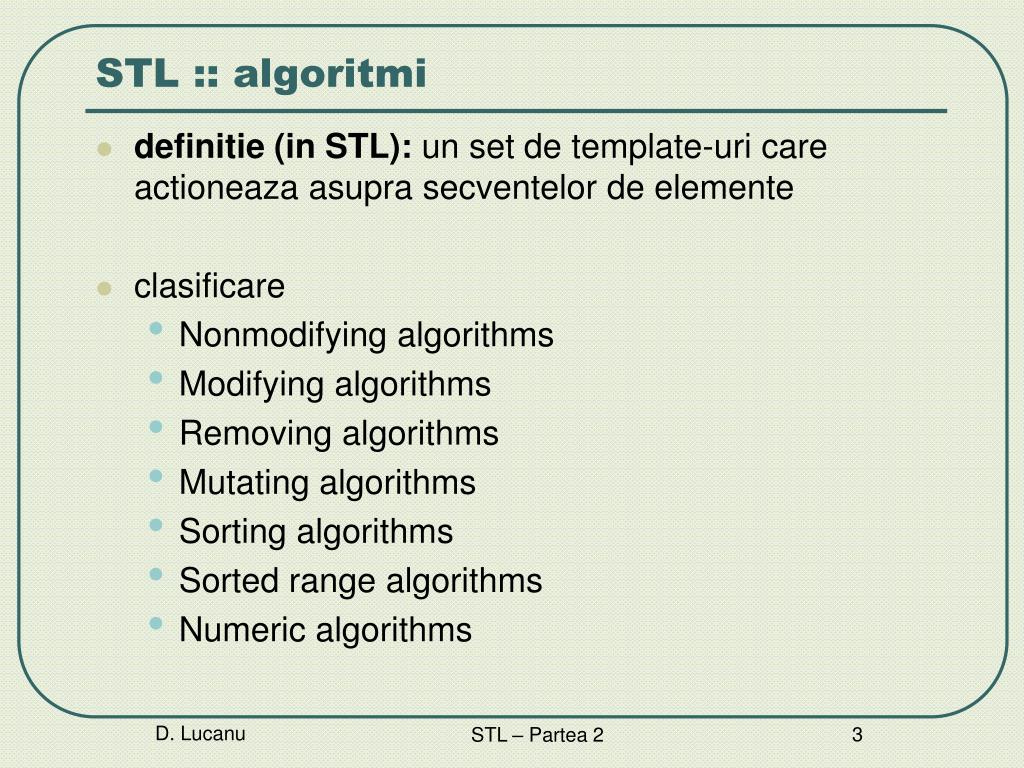

  3. STL :: algoritmi • definitie (in STL): un set de template-uri care actioneaza asupra secventelor de elemente • clasificare • Nonmodifying algorithms • Modifying algorithms • Removing algorithms • Mutating algorithms • Sorting algorithms • Sorted range algorithms • Numeric algorithms STL – Partea 2

  4. STL: algoritmi care nu modifica • for_each() Performs an operation for each element • count() Returns the number of elements • count_if() Returns the number of elements that match a criterion • min_element() Returns the element with the smallest value • max_element() Returns the element with the largest value • find() Searches for the first element with the passed value • find_if() Searches for the first element that matches a criterion STL – Partea 2

  5. STL: algoritmi care nu modifica • search_n() Searches for the first n consecutive elements with certain properties • search() Searches for the first occurrence of a subrange • find_end() Searches for the last occurrence of a subrange • find_first_of() Searches the first of several possible elements • adjacent_find() Searches for two adjacent elements that are equal(by some criterion) • equal() Returns whether two ranges are equal • mismatch() Returns the first elements of two sequences that differ • lexicographical_compare() Returns whether a range is lexicographically less than another range STL – Partea 2

  6. STL: algoritmi care modifica • for_each() Performs an operation for each element • copy() Copies a range starting with the first element • copy _backward() Copies a range starting with the last element • transform() Modifies (and copies) elements; combines elements of two ranges • merge() Merges two ranges • swap_ranges() Swaps elements of two ranges • fill() Replaces each element with a given value • fill_n() Replaces n elements with a given value STL – Partea 2

  7. STL: algoritmi care elimina • remove() Removes elements with a given value • remove_if() Removes elements that match a given criterion • remove_copy() Copies elements that do not match a given value • remove_copy_if() Copies elements that do not match a given criterion • unique() Removes adjacent duplicates (elements that are equal to their predecessor) • unique_copy() Copies elements while removing adjacent duplicates STL – Partea 2

  8. STL: algoritmi care schimba ordinea • reverse() Reverses the order of the elements • reverse_copy() Copies the elements while reversing their order • rotate() Rotates the order of the elements • rotate_copy() Copies the elements while rotating their order • next_permutation() Permutates the order of the elements • prev_permutation() Permutates the order of the elements STL – Partea 2

  9. STL: algoritmi care schimba ordinea • random_shuffle() Brings the elements into a random order • partition() Changes the order of the elements so that elements that match a criterion are at the front • stable_partition() Same as partition() but preserves the relative order of matching and nonmatching elements STL – Partea 2

  10. STL: algoritmi care modifica • generate() Replaces each element with the result of an operation • generate_n() Replaces n elements with the result of an operation • replace() Replaces elements that have a special value with another value • replace_if() Replaces elements that match a criterion with another value • replace_copy() Replaces elements that have a special value while copying the whole range • replace_copy_if() Replaces elements that match a criterion while copying the whole range STL – Partea 2

  11. STL: algoritmi de sortare • sort() Sorts all elements • stable_sort() Sorts while preserving order of equal elements • partial_sort() Sorts until the first n elements are correct • partial_sort_copy() Copies elements in sorted order • nth_element() Sorts according to the nth position • partition() Changes the order of the elements so that elements that match a criterion are at the front STL – Partea 2

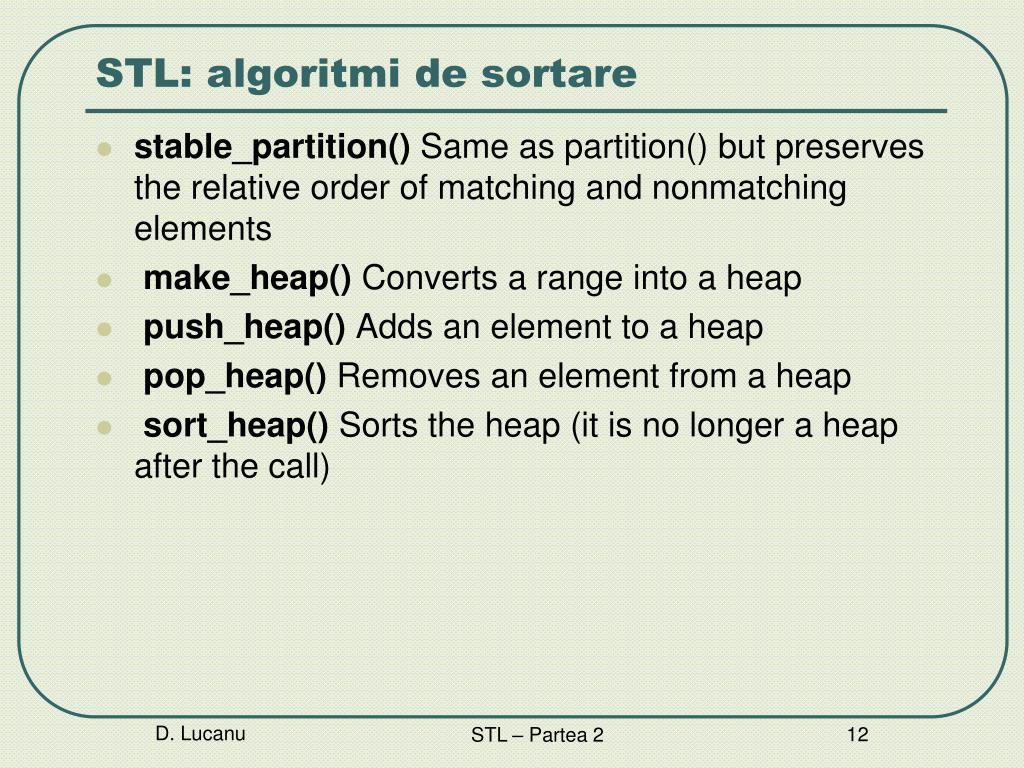

  12. STL: algoritmi de sortare • stable_partition() Same as partition() but preserves the relative order of matching and nonmatching elements • make_heap() Converts a range into a heap • push_heap() Adds an element to a heap • pop_heap() Removes an element from a heap • sort_heap() Sorts the heap (it is no longer a heap after the call) STL – Partea 2

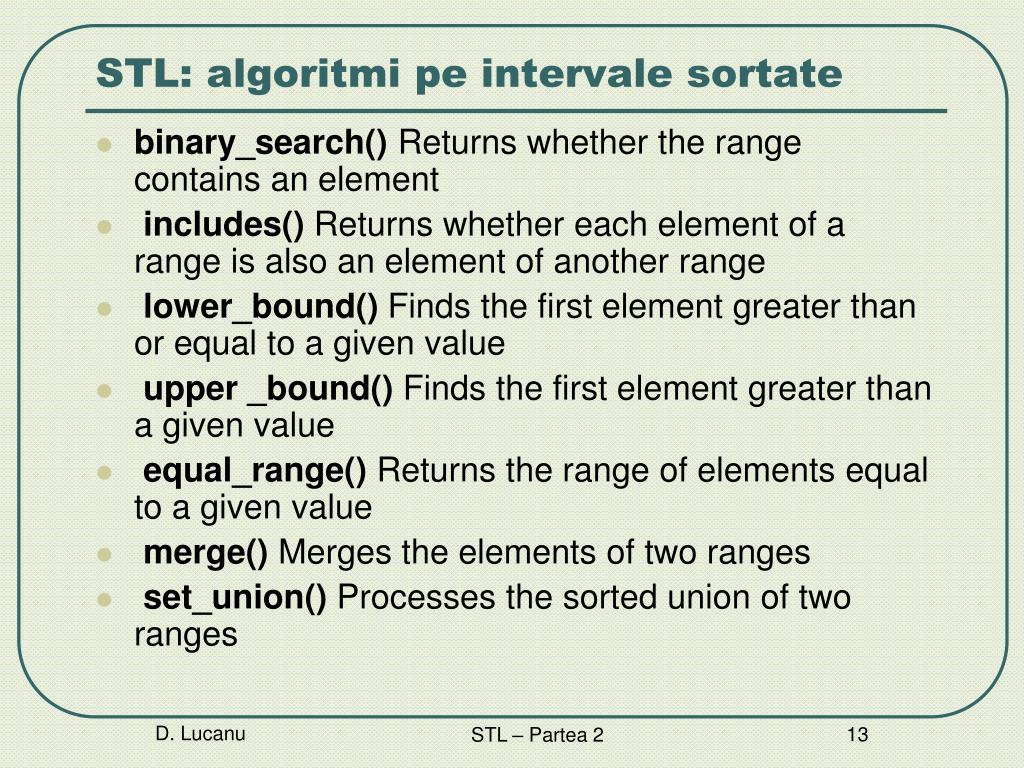

  13. STL: algoritmi pe intervale sortate • binary_search() Returns whether the range contains an element • includes() Returns whether each element of a range is also an element of another range • lower_bound() Finds the first element greater than or equal to a given value • upper _bound() Finds the first element greater than a given value • equal_range() Returns the range of elements equal to a given value • merge() Merges the elements of two ranges • set_union() Processes the sorted union of two ranges STL – Partea 2

  14. STL: algoritmi de sortare pe intervale • set_intersection() Processes the sorted intersection of two ranges • set_difference() Processes a sorted range that contains all elements of a range that are not part of another • set_symmetric_difference() Processes a sorted range that contains all elements that are in exactly one of two ranges • inplace_merge() Merges two consecutive sorted ranges STL – Partea 2

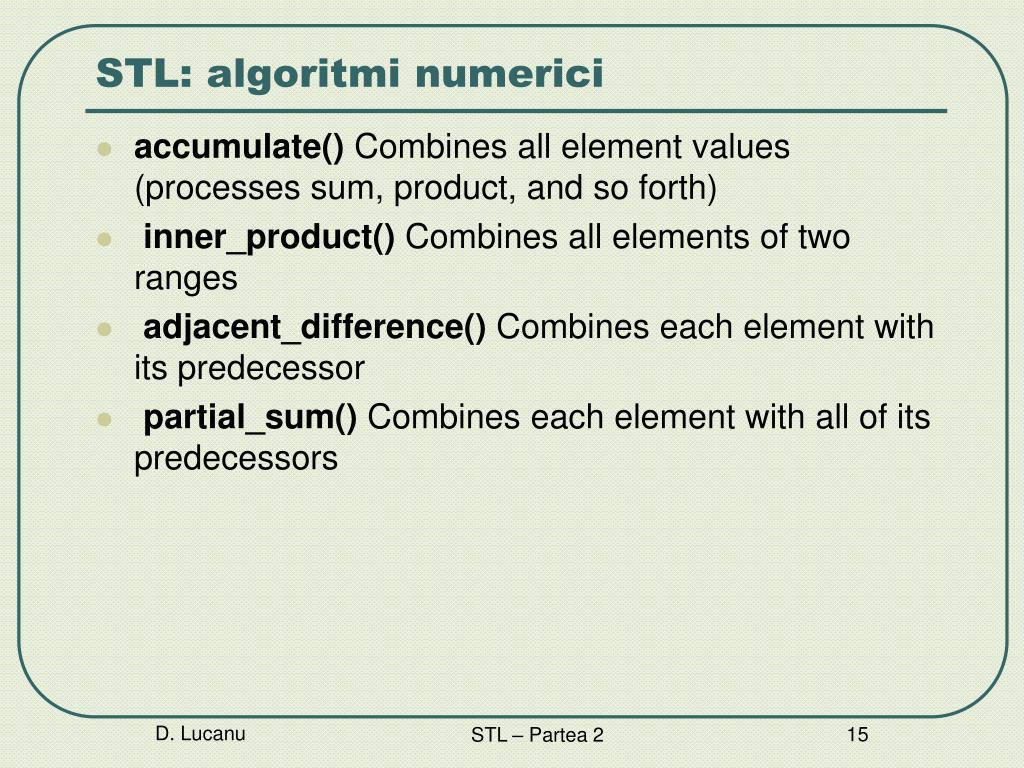

  15. STL: algoritmi numerici • accumulate() Combines all element values (processes sum, product, and so forth) • inner_product() Combines all elements of two ranges • adjacent_difference() Combines each element with its predecessor • partial_sum() Combines each element with all of its predecessors STL – Partea 2

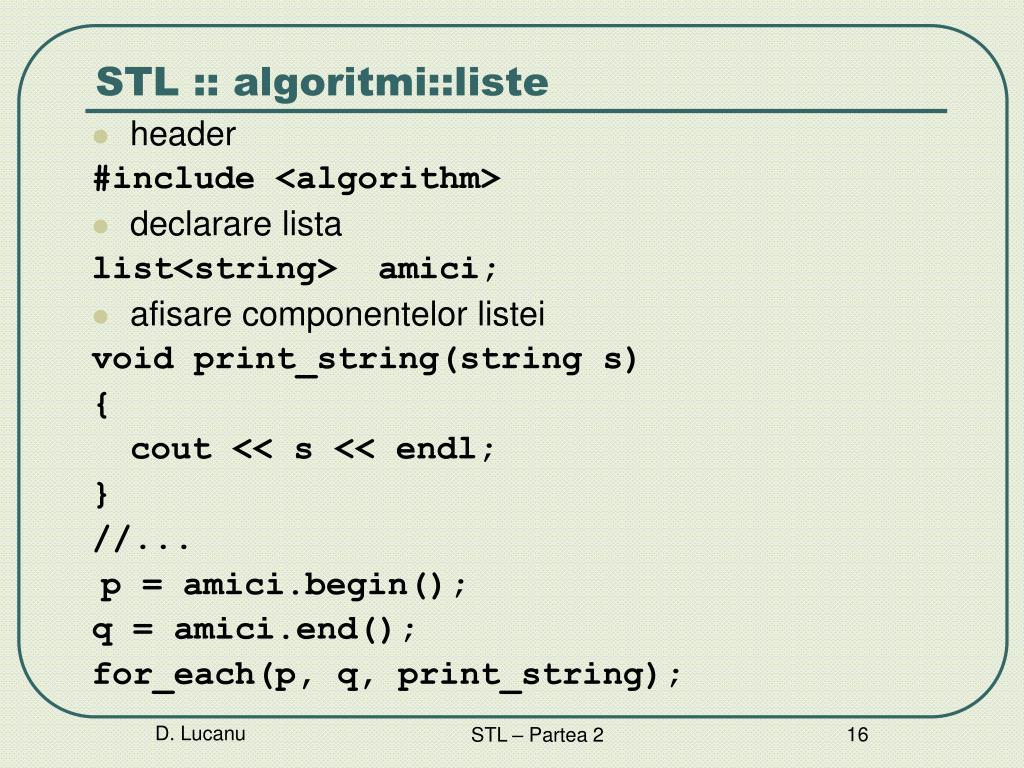

  16. STL :: algoritmi::liste • header #include <algorithm> • declarare lista list<string> amici; • afisare componentelor listei void print_string(string s) { cout << s << endl; } //... p = amici.begin(); q = amici.end(); for_each(p, q, print_string); STL – Partea 2

  17. STL :: algoritmi::liste • numara Popestii int n = count(p, q, "Popescu"); • cauta dupa criteriu • defineste criteriu (rau = nu incepe cu litera) int bad(const string& s) { return !isalpha(s[0]); } • insereaza un element rau amici.insert(q, "12cai"); • gaseste primul element rau (care nu incepe cu litera) p = find_if(amici.begin(), amici.end(), bad); STL – Partea 2

  18. STL :: inseratori • fie functia: void f(list<int>& li) { fill_n(li.begin(), 100, 77); } • f() atribuie 77 elementelor li[0], ..., li[99] • dar daca sunt mai putin de 100 de elemente? STL – Partea 2

  19. STL :: inseratori • in <iterator> exista trei clase parametrizate create pentru a rezolva astfel de probleme template <class Cont> back_insert_iterator<Cont> back_inserter(Cont& c); template <class Cont> front_insert_iterator<Cont> front_inserter(Cont& c); template <class Cont> insert_iterator<Cont> inserter(Cont& c, Out p); STL – Partea 2

  20. STL :: inseratori • adaugarea de elemente la sfarsit: void g(list<int>& li) { fill_n(back_inserter(li), 100, 77); } // se vor adauga 100 copii ale lui 77 la sf. • inserare mai simpla insert_inserator<list<int>> ii(li, p); ... *ii = 55; // este echivalent cu li.insert(p, 55) STL – Partea 2

  21. STL :: algoritmi::liste (cont) • // creeaza o copie numai cu unicate list<string> copie; unique_copy(amici.begin(), amici.end(), \ back_inserter(copie)); amici = copie; • inserarea unei liste in alta lista list<string> temp; temp.push_back("Albu"); //... q = find(amici.begin(), amici.end(), "Popescu"); copy(temp.begin(), temp.end(), \ inserter(amici, q)); STL – Partea 2

  22. STL :: algoritmi::map • clasa Persoana class Persoana { //. . . friend bool operator<(const Persoana& lhs, \ const Persoana& rhs); //... }; • clasa Info (despre persoana) class Info { // . . . private: string adr; string nr; }; STL – Partea 2

  23. STL :: algoritmi::map • declarare agenda telefonica multimap<Persoana, Info> agTel; • afisare agenda • afisare intrare void print_intrare(pair<Persoana, Info> p) { cout << p.first.getNume() // ...; } • apelare alg. for_each() p = agTel.begin(); q = agTel.end(); for_each(p, q, print_intrare); STL – Partea 2

  24. STL :: algoritmi::map • numara Popestii • declarare criteriu bool eqPopescu(pair<Persoana, Info> p) { return p.first.getNume() == "Popescu"; } • apelare algoritm count_if() p = agTel.begin(); q = agTel.end(); cout << count_if(p, q, eqPopescu); STL – Partea 2

  25. STL::ex:: agenda telefonica • cheia va fi un nume typedef std::string Nume; • clasa AgTel deriveaza din multimap<> class AgTel : public std::multimap<Nume, Info> { public: AgTel (); AgTel(char* numeFisier); void adIntrare(); void afiseazaTot(); void incarca(char* numeFisier); void salveaza(char* numeFisier); //. . . }; STL – Partea 2

  26. STL::ex:: agenda telefonica • memorarea agendei in fisier • fiecare intrare este memorata pe 3 linii: <nume> <adresa> <numar tel> • fisierul va avea 3*nr_intrari linii STL – Partea 2

  27. STL::ex:: agenda telefonica void AgTel::incarca(char* numeFisier) { //... bool ok = std::getline(inp, nume); while(ok) { ok = std::getline(inp, adr); //... if (ok) this->insert(end(), std::make_pair(nume, Info(adr, nr))); ok = std::getline(inp, nume); } inp.close(); } STL – Partea 2

  28. STL::ex:: agenda telefonica void AgTel::adIntrare() { //... std::cout << "Nume: "; std::cin >> s; Nume nume(s); //... this->insert(end(), \ std::make_pair(nume, info)); } STL – Partea 2

  29. STL::ex:: agenda telefonica void AgTel::salveaza(char *numeFisier) { std::ofstream out(numeFisier); AgTel::iterator i; for (i=this->begin(); i!=this->end(); ++i) { out << i-> first << std::endl; out << i->second.getAdr() << std::endl; out << i->second.getNr() << std::endl; } out.close(); } STL – Partea 2

  30. STL::ex:: agenda telefonica:: demo int main() { int optiune; AgTel agTel; do { std::cout << "1. Initializeaza ...”; //. . . std::cout << "0. Terminare.\n"; std::cin >> optiune; STL – Partea 2

  31. STL::ex:: agenda telefonica:: demo switch (optiune) { case 1: agTel.clear(); break; case 4: agTel.salveaza("test.at"); break; //. . . } } while (optiune != 0); return 0; } STL – Partea 2

  32. Obiecte de tip functie • A function object (or functor), is an object that has operator () defined so that in the following example FunctionObjectType fo; ... fo(...); • the expression fo() is a call of operator () for the function object fo instead of a call of the function fo() STL – Partea 2

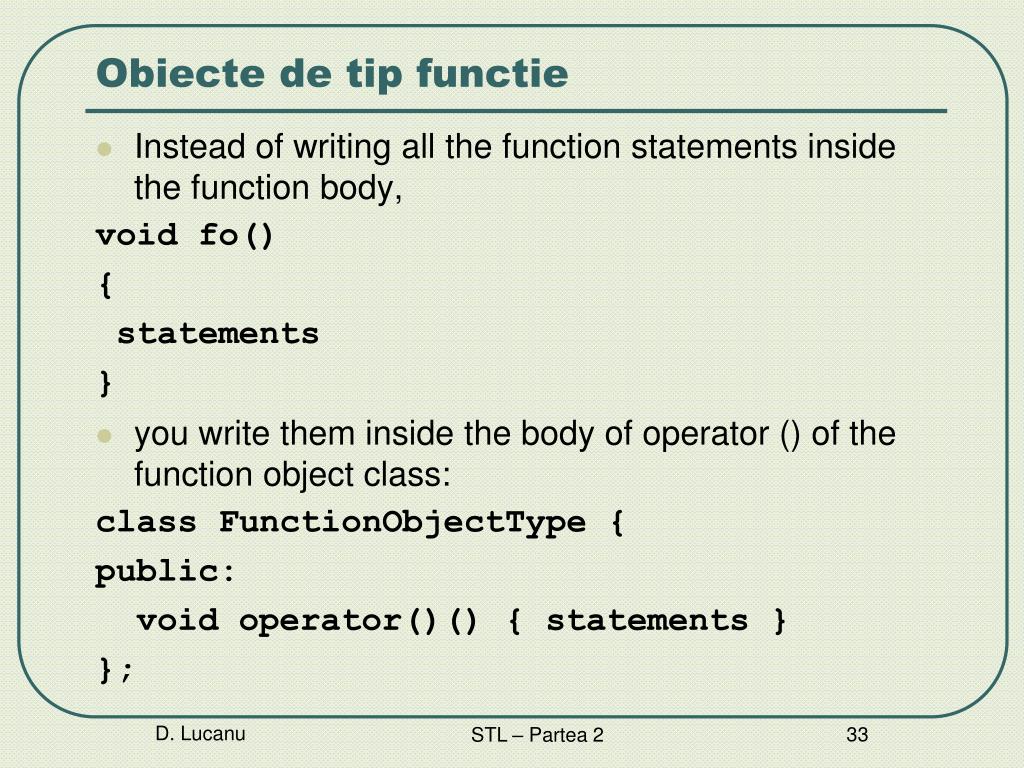

  33. Obiecte de tip functie • Instead of writing all the function statements inside the function body, void fo() { statements } • you write them inside the body of operator () of the function object class: class FunctionObjectType { public: void operator()() { statements } }; STL – Partea 2

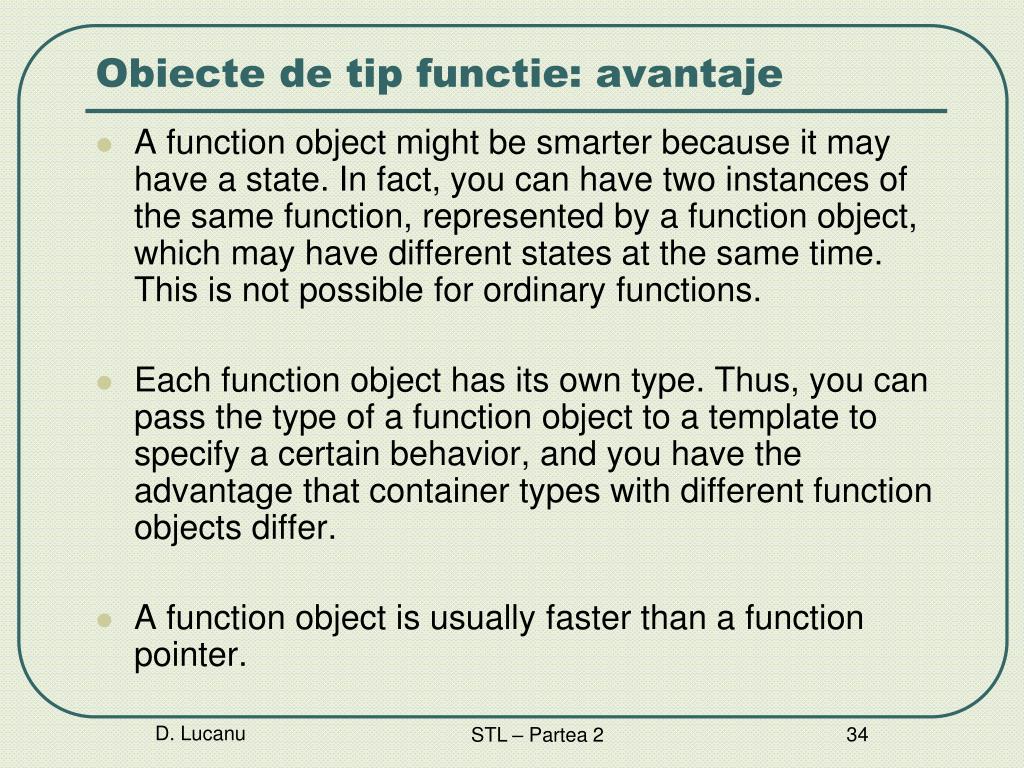

  34. Obiecte de tip functie: avantaje • A function object might be smarter because it may have a state. In fact, you can have two instances of the same function, represented by a function object, which may have different states at the same time. This is not possible for ordinary functions. • Each function object has its own type. Thus, you can pass the type of a function object to a template to specify a certain behavior, and you have the advantage that container types with different function objects differ. • A function object is usually faster than a function pointer. STL – Partea 2

  35. Obiecte de tip functie: sortare class Person { public: string firstname() const; string lastname() const; //... }; class PersonSortCriterion { public: bool operator() (const Person& p1, const Person& p2) const { return p1.lastname() < p2.1astname() || ((p2.1astname() == p1.lastname()) && p1.firstname() < p2.firstname()); } }; STL – Partea 2

  36. Obiecte de tip functie: sortare int main() { //declare set type with special sorting criterion typedef set<Person,PersonSortCriterion> PersonSet; //create such a collection PersonSet coll; ... //do something with the elements PersonSet::iterator pos; for (pos = coll.begin(); pos != coll.end(); ++pos) { ... } ... } STL – Partea 2

  37. Obiecte de tip functie cu stare interna • In this example, a function object is used that generates a sequence of integral values. Each time operator () is called, it returns its actual value and increments it. You can pass the start value as a constructor argument. class IntSequence { private: int value; public: //constructor IntSequence (int initialValue) : value(initialValue) { } //''function call'' int operator() () { return value++; } }; STL – Partea 2

  38. Obiecte de tip functie cu stare interna • utilizarea a unei functii cu generate_n() list<int> coll; //insert values from 1 to 9 generate_n (back_inserter(coll), //start 9, //number of elements IntSequence (1)); //generates //values • coll’s contents: 1; 2; 3; 4; 5; 6; 7; 8; 9; STL – Partea 2

  39. Obiecte de tip functie cu stare interna • utilizarea a unei functii cu generate_n() generate (++coll.begin(), //start --coll.end(), //end IntSequence (42)); //generates // values • coll’s contents: 1; 42; 43; 44; 45; 46; 47; 48; 9; • demo STL – Partea 2

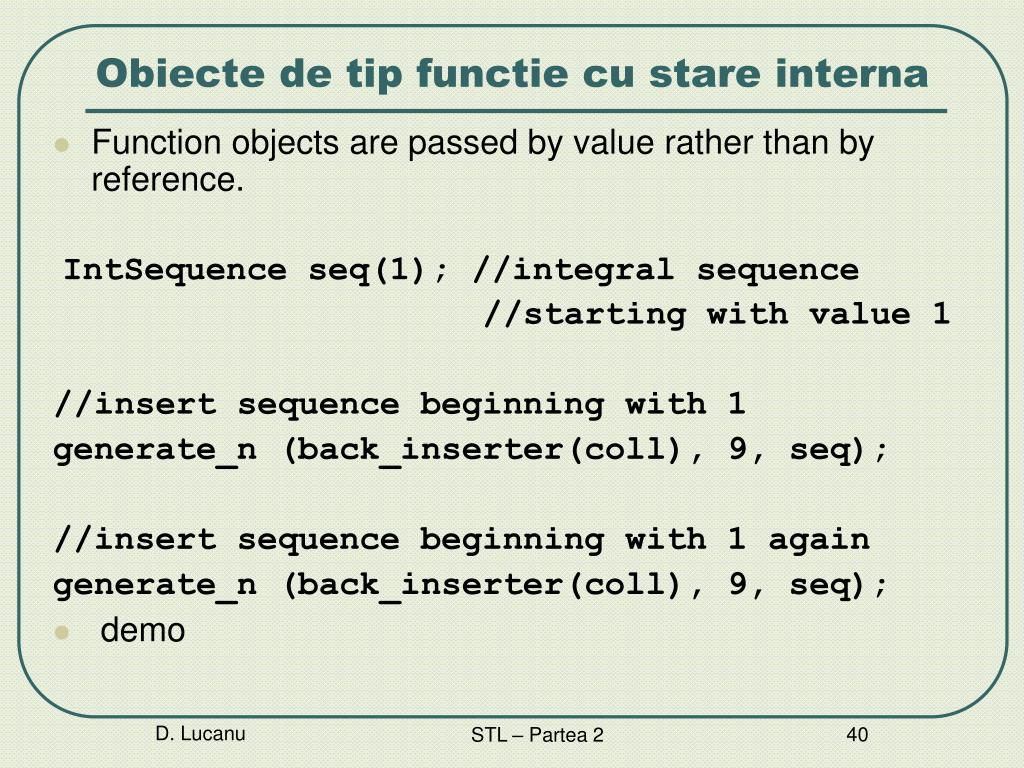

  40. Obiecte de tip functie cu stare interna • Function objects are passed by value rather than by reference. IntSequence seq(1); //integral sequence //starting with value 1 //insert sequence beginning with 1 generate_n (back_inserter(coll), 9, seq); //insert sequence beginning with 1 again generate_n (back_inserter(coll), 9, seq); • demo STL – Partea 2

  41. Obiecte de tip functie cu stare interna • However, access to the final state might be necessary, so the question is how to get a "result" from an algorithm. There are two ways to get a "result" or "feedback" from using function objects with algorithms: • You can pass the function objects by reference. • You can use the return value of the for_each() algorithm. • create a function object: IntSequence seq(1); STL – Partea 2

  42. Obiecte de tip functie cu stare interna • to pass seq by reference in generate_n() , the template arguments are qualified explicitly: generate_n<back_insert_iterator<list<int> >, int, IntSequence&> (back_inserter(coll), //start 4, //number of elements seq); //generates values • demo STL – Partea 2

  43. Obiecte de tip functie predefinite STL – Partea 2

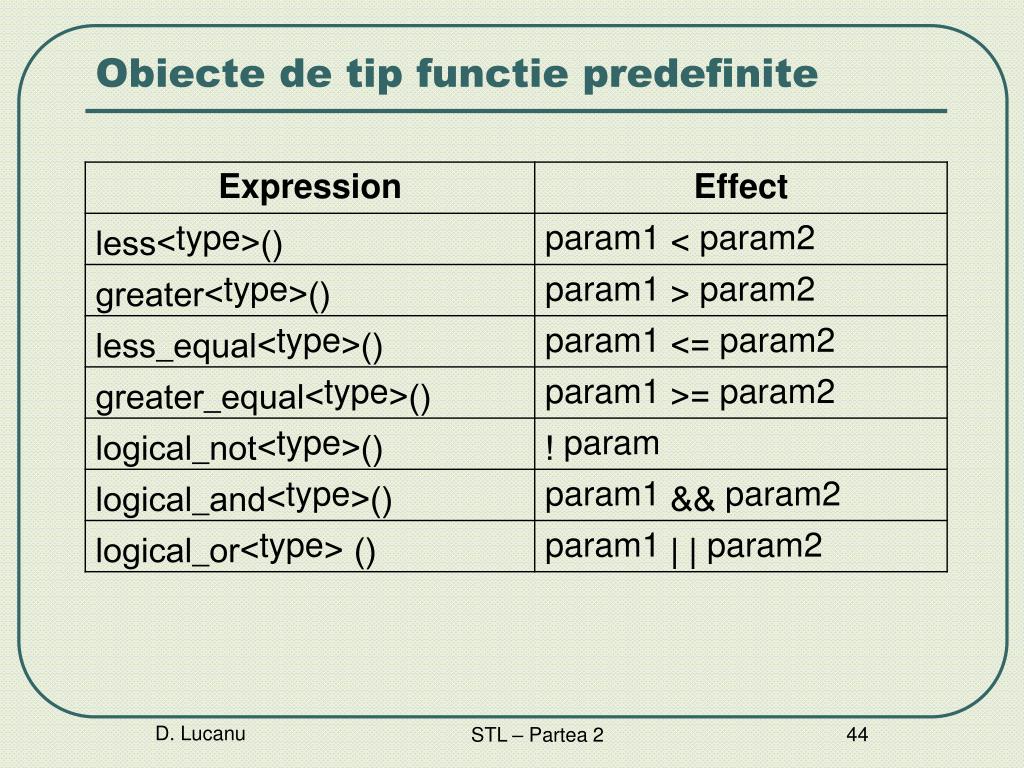

  44. Obiecte de tip functie predefinite STL – Partea 2
