  1. 16th ACM CCS English Shellcode Joshua Mason, Sam Small Johns Hopkins University Fabian Monrose University of North Carolina Greg MacManus iSIGHT Partners

  2. Outline • Introduction • On the arms race • Related work • Our approach • Automatic generation • Implementation • Evaluation Advaced Defense Lab

  3. Introduction • Code-injection attack • Source code for script-language • Byte-code • Machine code • The common component • The injected code or … • shellcode Advaced Defense Lab

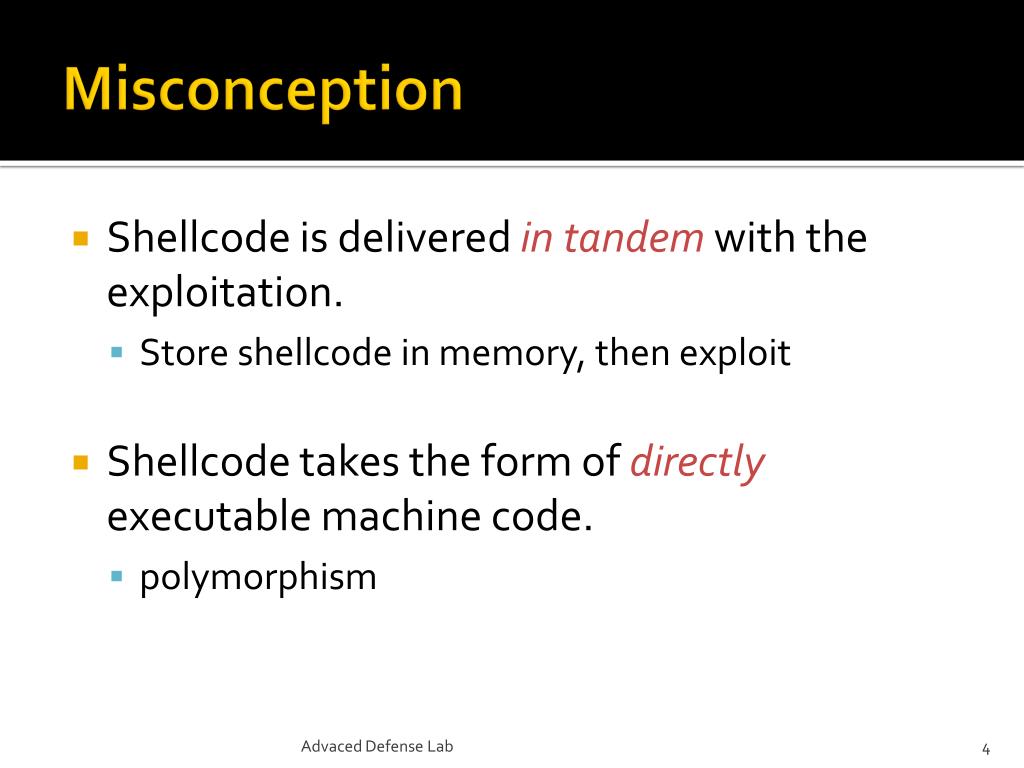

  4. Misconception • Shellcode is delivered in tandemwith the exploitation. • Store shellcode in memory, then exploit • Shellcode takes the form of directly executable machine code. • polymorphism Advaced Defense Lab

  5. Misconception…? • Even polymorphic shellcode is constrained by an essential component: the decoder. • Shellcode is fundamentally different in structure than non-executable payload data. • This paper!!! Decoder Encoded data Advaced Defense Lab

  6. About This Paper • Automatically producing English Shellcode • Although it is not indistinguishable form authentic English prose. • Do you want to analyze? Advaced Defense Lab

  7. On The Arms Race • Shellcode developers are often faced with constraints that limit the range of byte-values aceepted. • e.g. printable, alphanumeric, MIME • Encoding • Self-modification Advaced Defense Lab

  8. On The Arms Race • Much literature describing code injection attacks assumes a standard attack template. • A NOP sled, shellcode, and one or more pointer • While emulation and static analysis have bean successful in identifying some failings of advanced shellcode. • But…overhead Advaced Defense Lab

  9. On The Arms Race • It has been suggested that malicious polymorphic behavior cannot be modeled effectively. • On the infeasibility of Modeling Polymorphic Shellcode. • By Y. Song et al. Advaced Defense Lab

  10. Related Work • Limit the spoils of exploitation and to prevent developers from writing vulnerable code • Preventing the execution of injected code • Content-based input-validation • Polymorphic • To identify self-decrypting shellcode • But … non-self-contained polymorphic shellcode Advaced Defense Lab

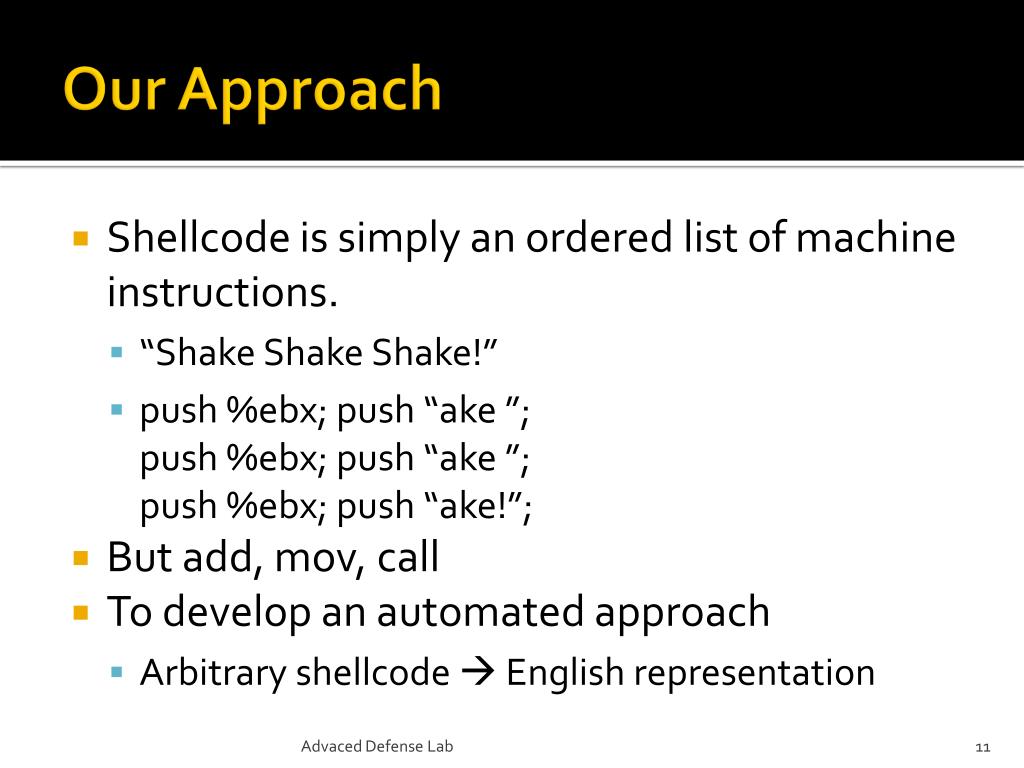

  11. Our Approach • Shellcode is simply an ordered list of machine instructions. • “Shake ShakeShake!” • push %ebx; push “ake ”;push %ebx; push “ake ”;push %ebx; push “ake!”; • But add, mov, call • To develop an automated approach • Arbitrary shellcode English representation Advaced Defense Lab

  12. High-level Overview • English shellcode is completely self-contained. Advaced Defense Lab

  13. The Decoder • The decoder must be English-cpmpatible • Cannot use many instruction • E.g. loop instructions • Our decoder has the form: • Initialization • Decoder • Encoded payload Advaced Defense Lab

  14. The Decoder principle • Only English-compatible instructions • English-compatible instructions that can produce useful instructions • Favor instructions that have less-constrained ASCII equivalents • push %eax (“P”) > push %ecx (“Q”) Advaced Defense Lab

  15. Decoder - initialization • Overwriting registers and patching some instructions • Using inc instruction and manipulatiing the alignment of the stack Advaced Defense Lab

  16. Advaced Defense Lab

  17. Decoder - Unpacking • “and r/m8, r8”(0x20, ASCII space character) • add • lods (load string from esi) Advaced Defense Lab

  18. Decoder - Decoding • Two pointer: %esi, %edi ”,” and “ ” ”u” and “decode” ”G” Advaced Defense Lab

  19. Advaced Defense Lab

  20. Decoder – Initialing Registers • Using popa instruction (ASCII character “a”) Advaced Defense Lab

  21. Automatic Generation • Taken as-is, the custom decoder will have common English characters, but will not appearance of English text. • Add some instructions between decoder instructions • Augmenting a statistical language generation algorithm. Advaced Defense Lab

  22. Automatic Generation • n-gram model length is 5 • the ith instruction in decoder have a level i • A sentence have score i when it complete level i Advaced Defense Lab

  23. Advaced Defense Lab

  24. Using beam search algorithm • Keep the best m(=20,000) candidates during the process • For encoded payload, observe how many target byte are encoded Advaced Defense Lab

  25. Implementation • The training data • Over 15,000 Wikipedia articles • 27,000 books from the Project Gutenberg • Language engine was constructed in the Java language using the LingPipe API • Scoring engine  using ptrace API • Executor • Watcher • Taking 12 hours Advaced Defense Lab

  26. Advaced Defense Lab

  27. An Optimized Design • Emulation • Expand 1 instruction into tens of instructions • Monitored direct execution • Maintain 2 machine state • Use 3 separate stacks • Pause 2 conditions • Encounter a jump • Change memory • Roughly in less than 1 hour Advaced Defense Lab

  28. Evaluation • Exit(0) • 2054 bytes Advaced Defense Lab

  29. Compare with Spectrum Analysis • Windows Bind DLL Inject Advaced Defense Lab
