  1. APOLLOSPACECRAFT Daniel McCaffery Jeff Robinson Kyle Smith Jason Tang Brad Thompson

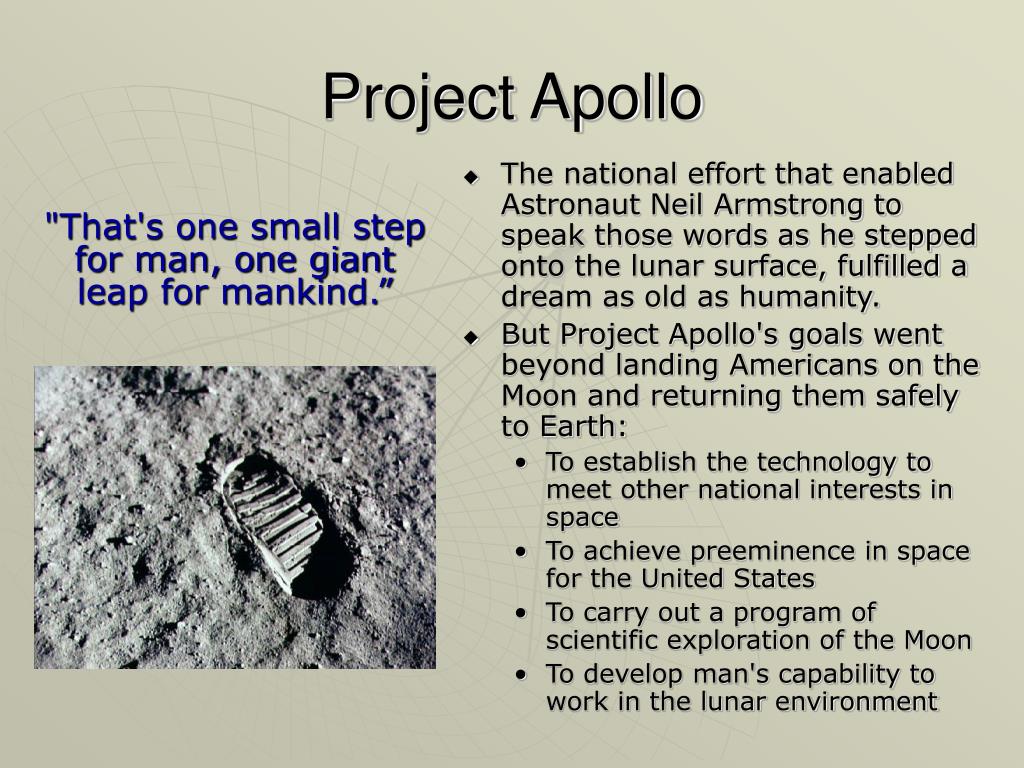

  2. Project Apollo • The national effort that enabled Astronaut Neil Armstrong to speak those words as he stepped onto the lunar surface, fulfilled a dream as old as humanity. • But Project Apollo's goals went beyond landing Americans on the Moon and returning them safely to Earth: • To establish the technology to meet other national interests in space • To achieve preeminence in space for the United States • To carry out a program of scientific exploration of the Moon • To develop man's capability to work in the lunar environment "That's one small step for man, one giant leap for mankind.”

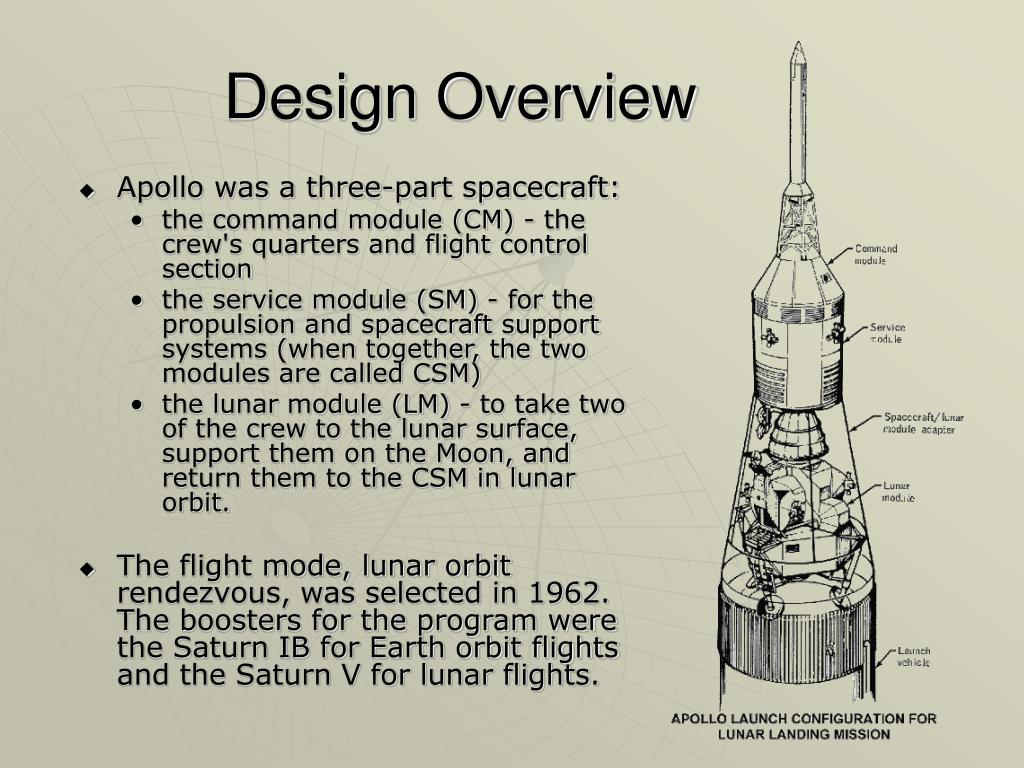

  3. Design Overview • Apollo was a three-part spacecraft: • the command module (CM) - the crew's quarters and flight control section • the service module (SM) - for the propulsion and spacecraft support systems (when together, the two modules are called CSM) • the lunar module (LM) - to take two of the crew to the lunar surface, support them on the Moon, and return them to the CSM in lunar orbit. • The flight mode, lunar orbit rendezvous, was selected in 1962. The boosters for the program were the Saturn IB for Earth orbit flights and the Saturn V for lunar flights.

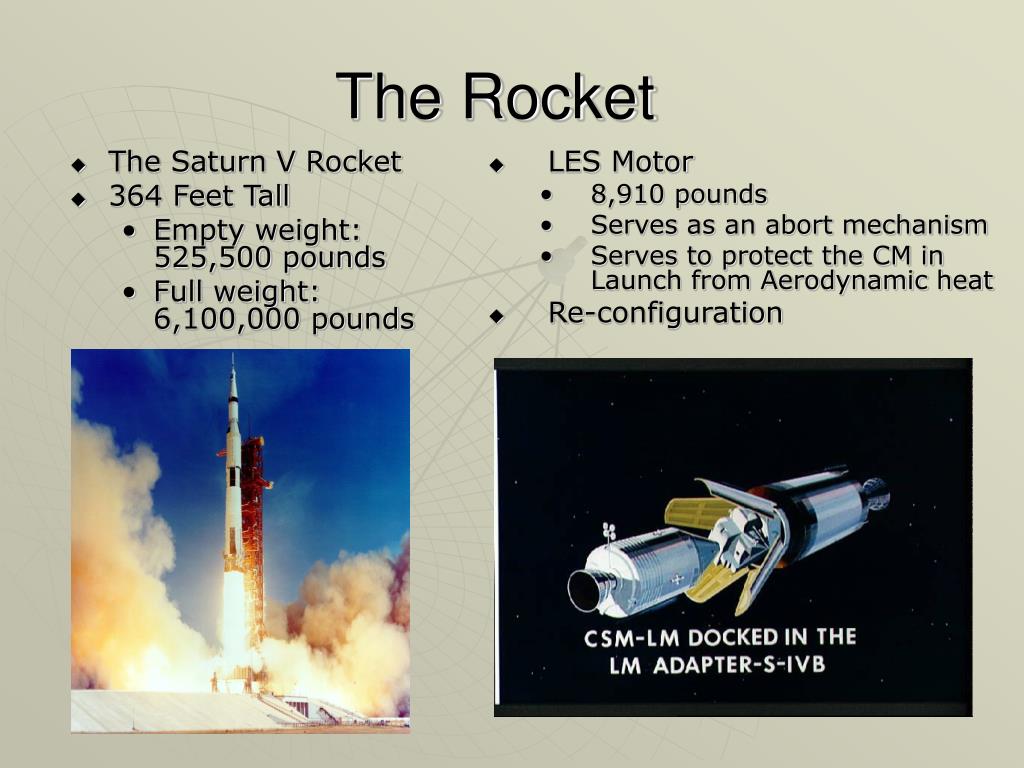

  4. The Saturn V Rocket 364 Feet Tall Empty weight: 525,500 pounds Full weight: 6,100,000 pounds LES Motor 8,910 pounds Serves as an abort mechanism Serves to protect the CM in Launch from Aerodynamic heat Re-configuration The Rocket

  5. The Launch • Three Stages • Stage 1 • Five engines • 7.5 million pounds of thrust • Stage 2 • Burns 450 tons of fuel in less than 7 minutes • 200,000 pounds of thrust • Stage 3 – S-IVB • One engine • Burns 230,000 pounds in just over 7 minutes.

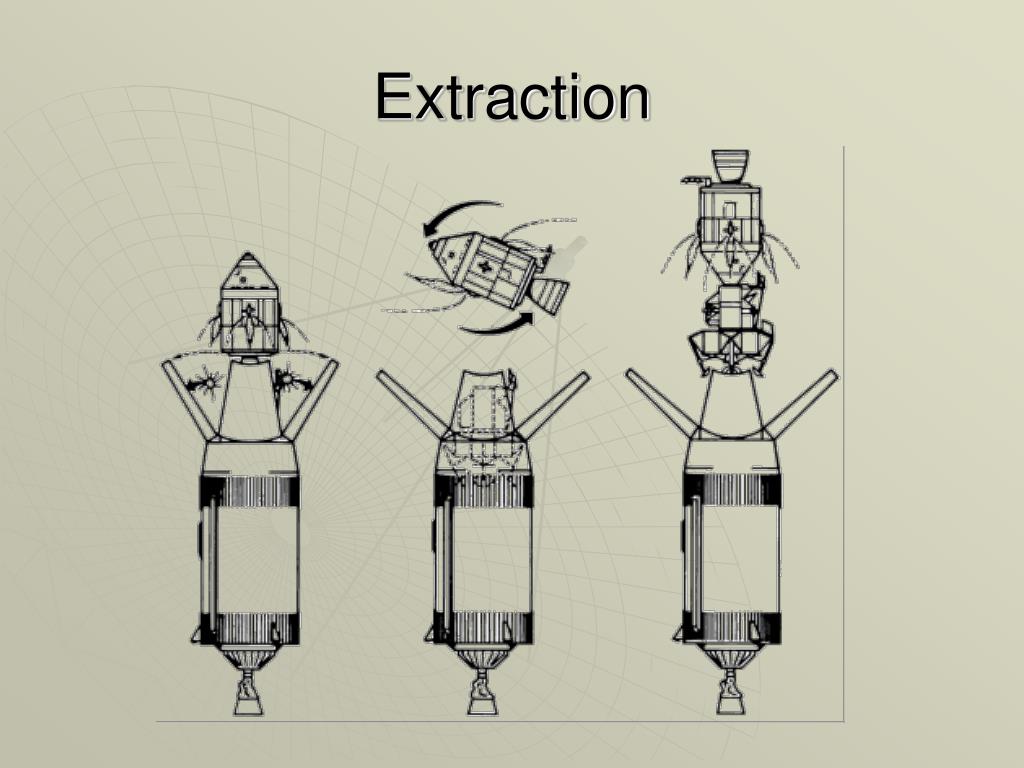

  6. Extraction

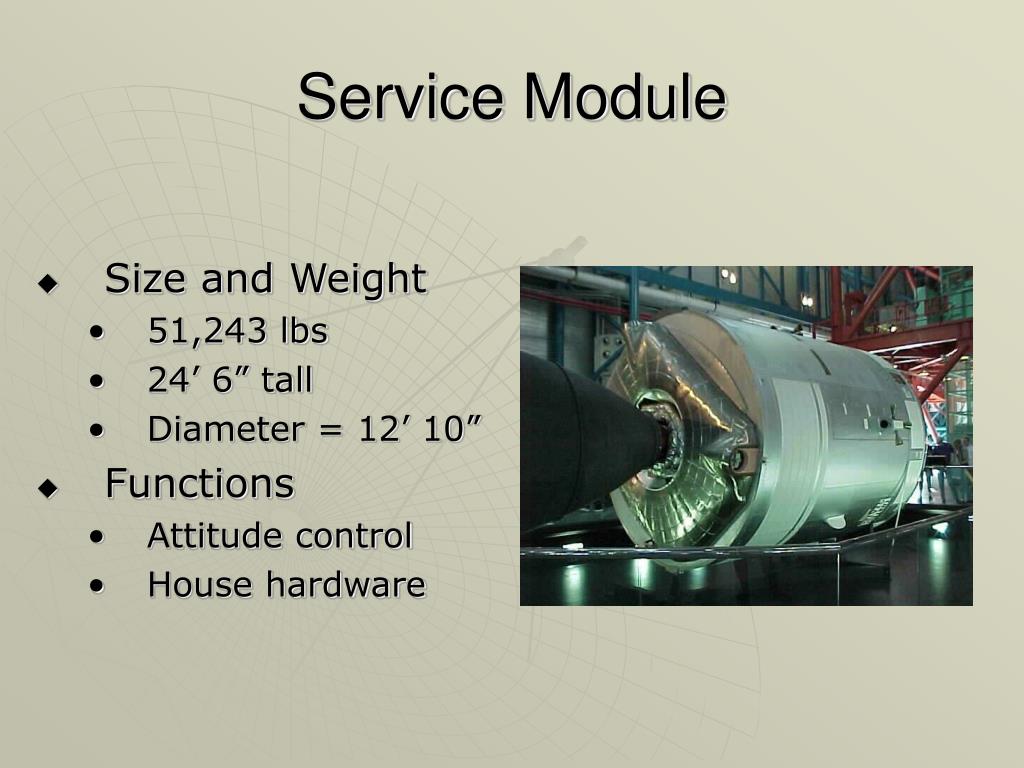

  7. Service Module • Size and Weight • 51,243 lbs • 24’ 6” tall • Diameter = 12’ 10” • Functions • Attitude control • House hardware

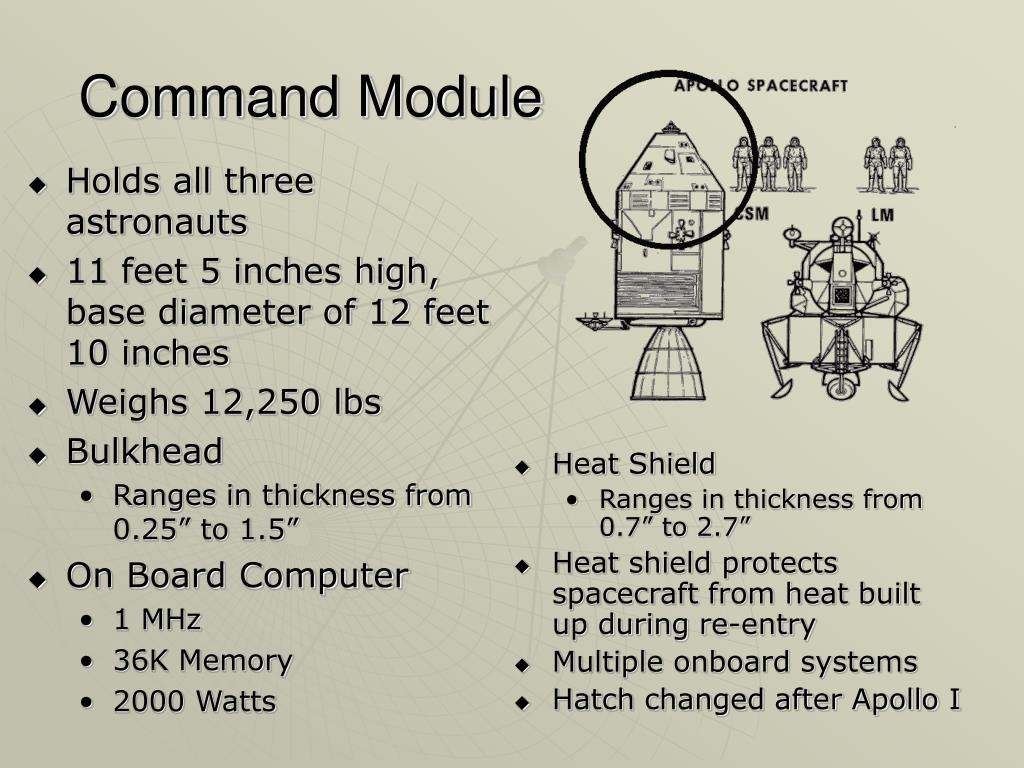

  8. Command Module • Holds all three astronauts • 11 feet 5 inches high, base diameter of 12 feet 10 inches • Weighs 12,250 lbs • Bulkhead • Ranges in thickness from 0.25” to 1.5” • On Board Computer • 1 MHz • 36K Memory • 2000 Watts • Heat Shield • Ranges in thickness from 0.7” to 2.7” • Heat shield protects spacecraft from heat built up during re-entry • Multiple onboard systems • Hatch changed after Apollo I

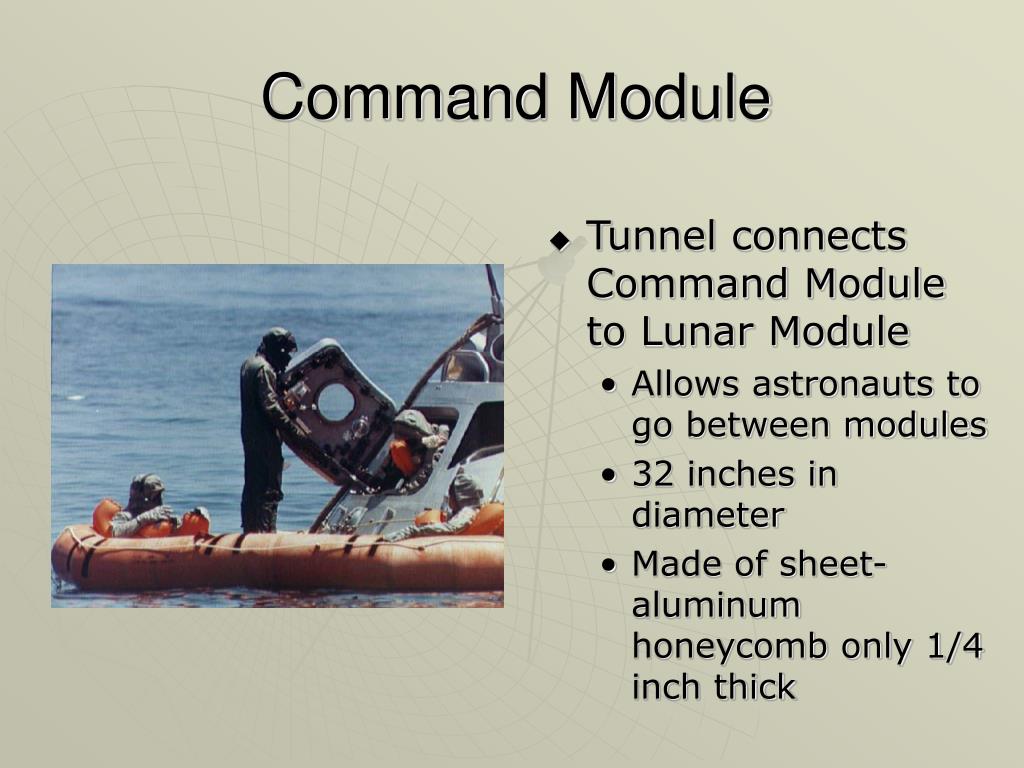

  9. Command Module • Tunnel connects Command Module to Lunar Module • Allows astronauts to go between modules • 32 inches in diameter • Made of sheet-aluminum honeycomb only 1/4 inch thick

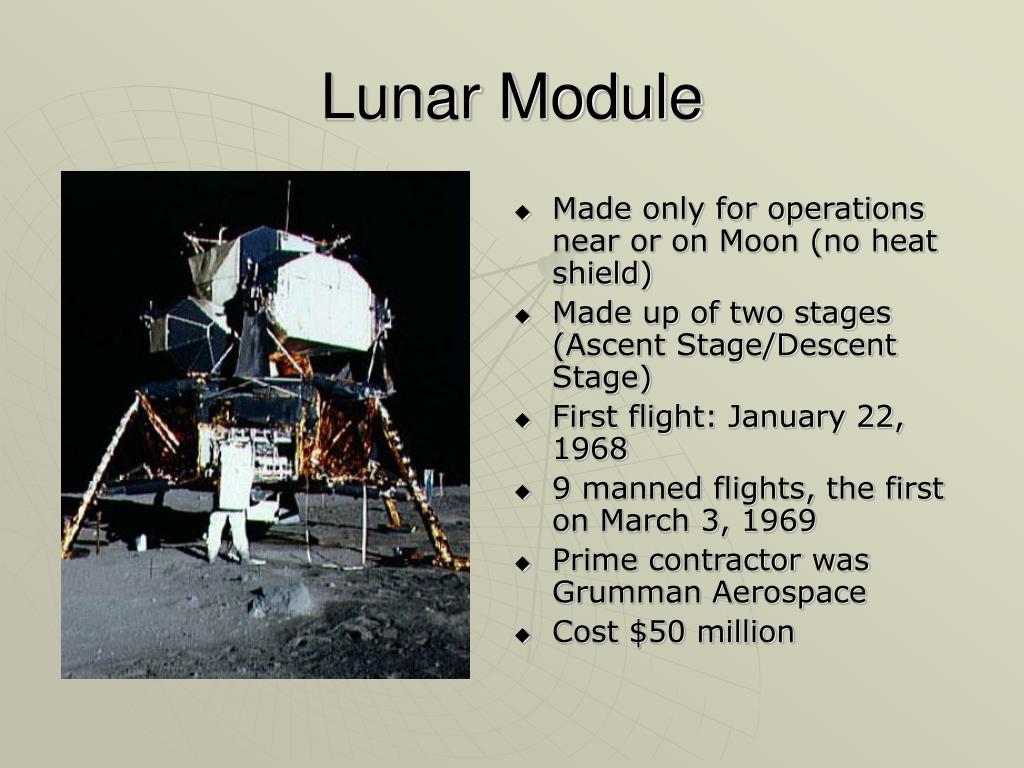

  10. Lunar Module • Made only for operations near or on Moon (no heat shield) • Made up of two stages (Ascent Stage/Descent Stage) • First flight: January 22, 1968 • 9 manned flights, the first on March 3, 1969 • Prime contractor was Grumman Aerospace • Cost $50 million

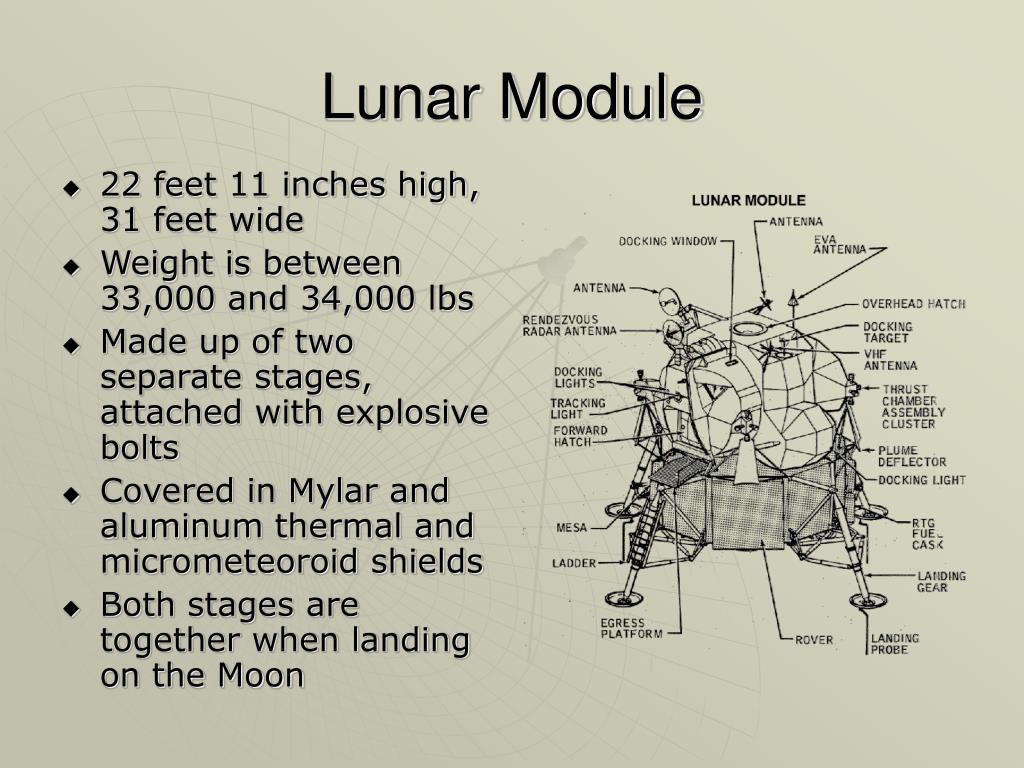

  11. Lunar Module • 22 feet 11 inches high, 31 feet wide • Weight is between 33,000 and 34,000 lbs • Made up of two separate stages, attached with explosive bolts • Covered in Mylar and aluminum thermal and micrometeoroid shields • Both stages are together when landing on the Moon

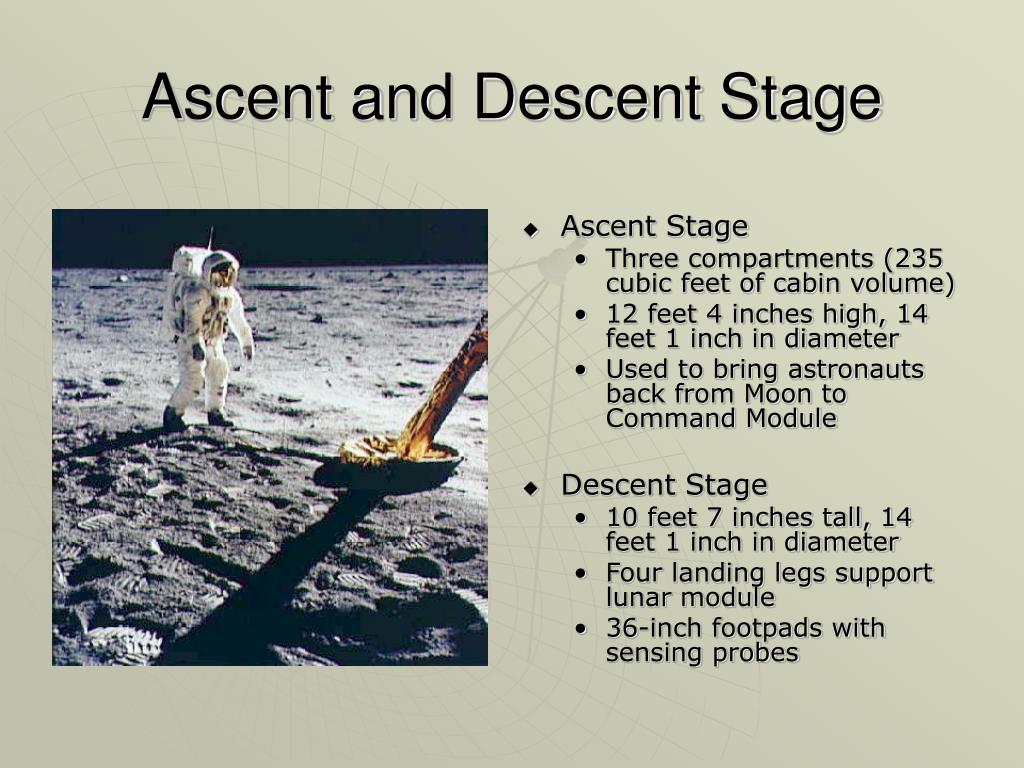

  12. Ascent and Descent Stage • Ascent Stage • Three compartments (235 cubic feet of cabin volume) • 12 feet 4 inches high, 14 feet 1 inch in diameter • Used to bring astronauts back from Moon to Command Module • Descent Stage • 10 feet 7 inches tall, 14 feet 1 inch in diameter • Four landing legs support lunar module • 36-inch footpads with sensing probes

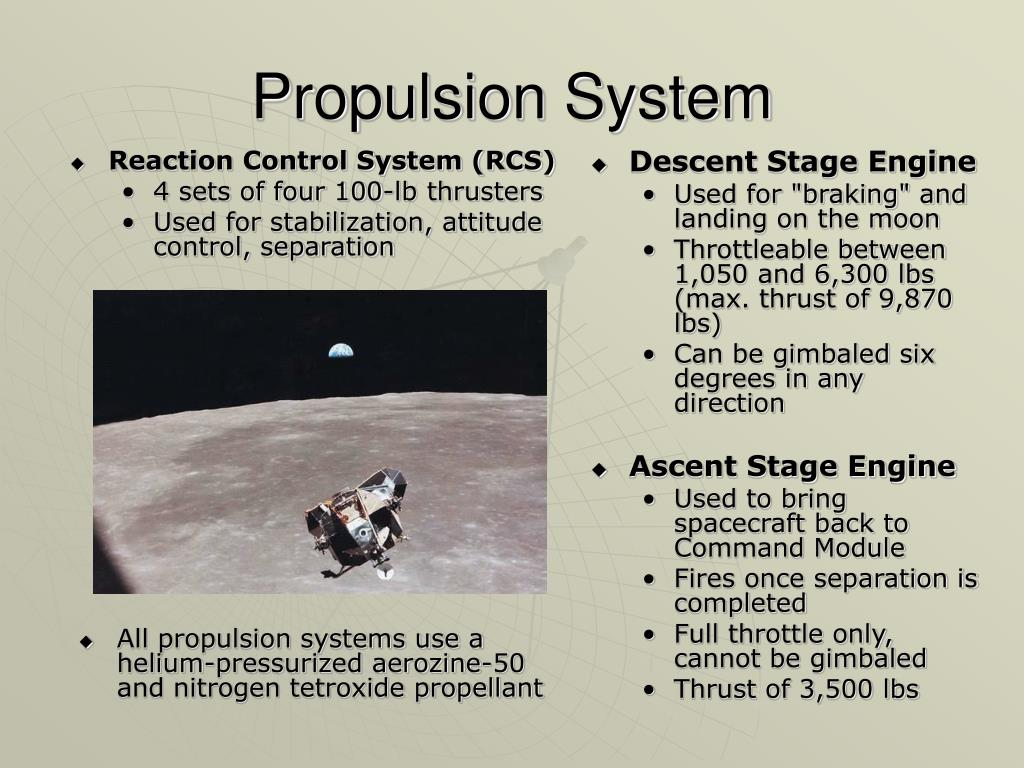

  13. Propulsion System • Reaction Control System (RCS) • 4 sets of four 100-lb thrusters • Used for stabilization, attitude control, separation • Descent Stage Engine • Used for "braking" and landing on the moon • Throttleable between 1,050 and 6,300 lbs (max. thrust of 9,870 lbs) • Can be gimbaled six degrees in any direction • Ascent Stage Engine • Used to bring spacecraft back to Command Module • Fires once separation is completed • Full throttle only, cannot be gimbaled • Thrust of 3,500 lbs • All propulsion systems use a helium-pressurized aerozine-50 and nitrogen tetroxide propellant

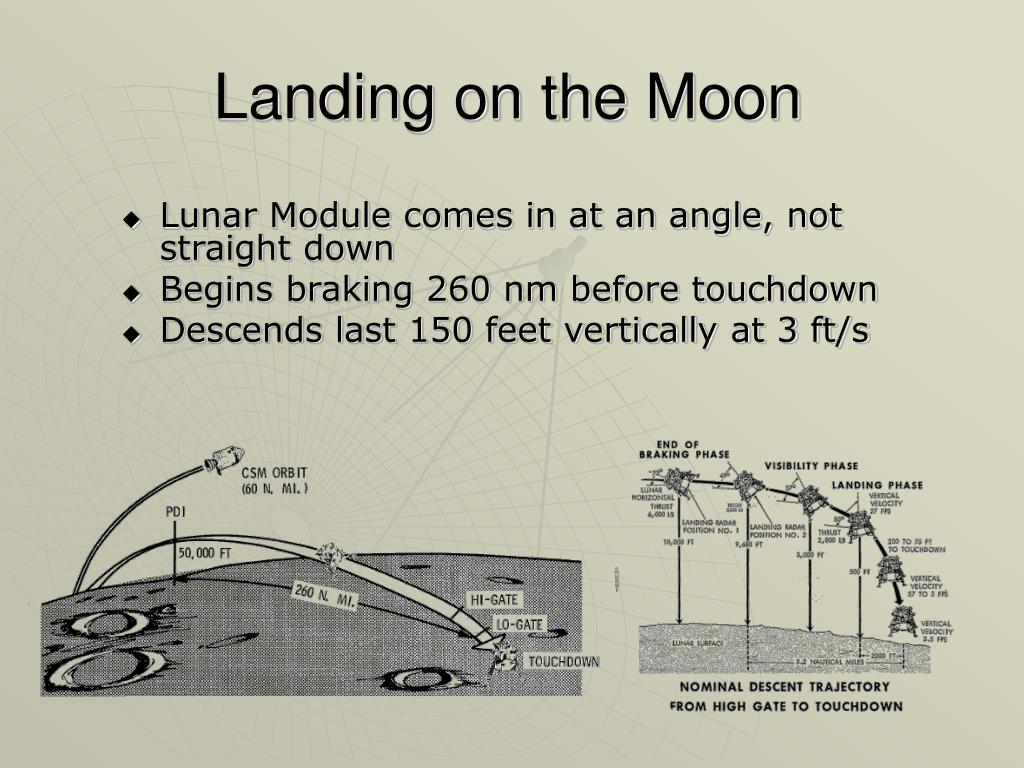

  14. Landing on the Moon • Lunar Module comes in at an angle, not straight down • Begins braking 260 nm before touchdown • Descends last 150 feet vertically at 3 ft/s

  15. Exploring the Surface of the Moon • Scientific Instrument Package • Remote Sensing • CMP uses it to survey the moon’s surface while in orbit • Lunar Rover • Carried in compartment added to bottom of descent stage • Allowed astronauts to traverse ~20 miles during stay on moon and explore more of surface. • Ascension • Engine uses hydrazine and dimethylhydrazine as fuel • Nitrogen tetroxide as an oxidizer • 3500 pounds of thrust

  16. Return • Engine lifts the upper part module and carries it back to lunar orbit • Lunar module rendezvous and docks with the command module • After astronauts and specimens are transferred to the CM, the CSM undocks from the LEM and left in lunar orbit • CSM once again fires main engine to break out of lunar orbit and put into return trajectory to Earth • CM separates from SM and re-enters atmosphere

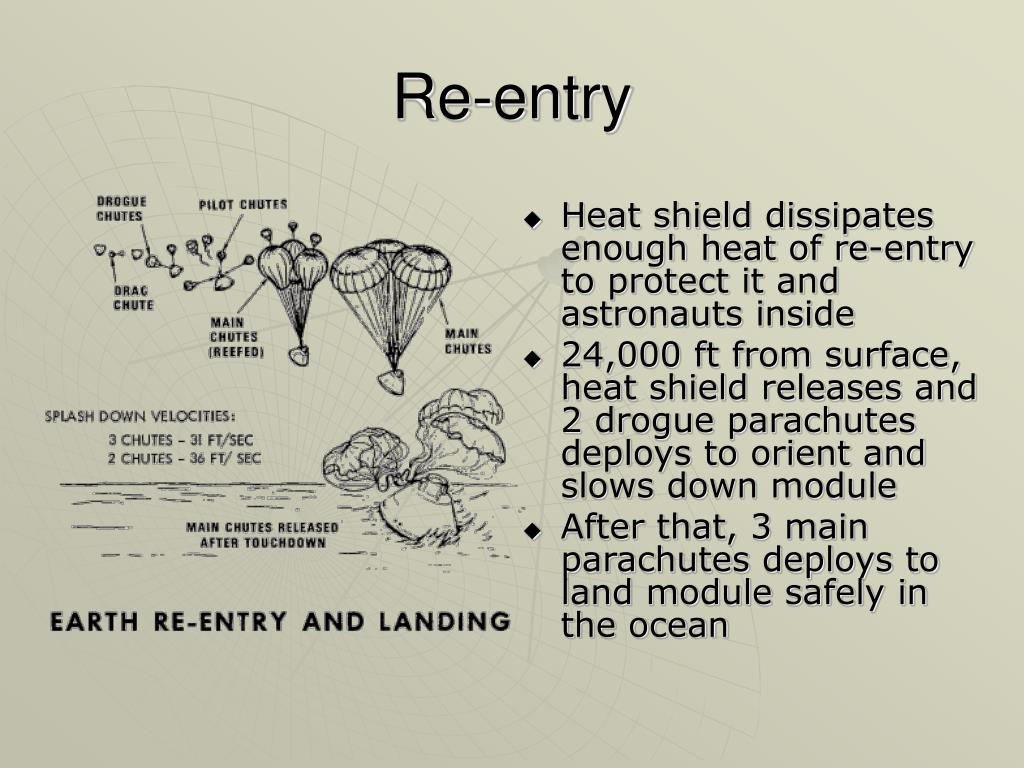

  17. Re-entry • Heat shield dissipates enough heat of re-entry to protect it and astronauts inside • 24,000 ft from surface, heat shield releases and 2 drogue parachutes deploys to orient and slows down module • After that, 3 main parachutes deploys to land module safely in the ocean

  18. Achievements • Apollo 1: Fire on launch pad killed all three astronauts • Apollo 2-6: Unmanned • Apollo 7: Demonstrated the viability of the CSM to make it to the moon, and the ability to rendezvous with the lunar lander • Apollo 8: Photographed landing sights, Demonstrated translunar injection, and communication and navigation during lunar orbit • Apollo 9: First Apollo manned docking, Demonstrated intervehicular crew transfer • Apollo 10: Simulation of lunar landing while in lunar orbit. Lunar Module taken to within 50,000 feet of lunar surface • Apollo 11: Landed on the moon and brought crew back successfully • Apollo 12: Deployed Apollo Lunar Surface Experiment Package, precision landing made using automatic guidance • Apollo 13: No lunar landing due to rupture of service module oxygen tank. Gained experience in crew rescue • Apollo 14: Lunar surface and lunar orbit science experiments • Apollo 15: First use of the lunar rover • Apollo 16: First study of highlands area • Apollo 17: Last moon landing, geological surveying • Apollo-Soyuz: First docking of spacecraft built by different nations

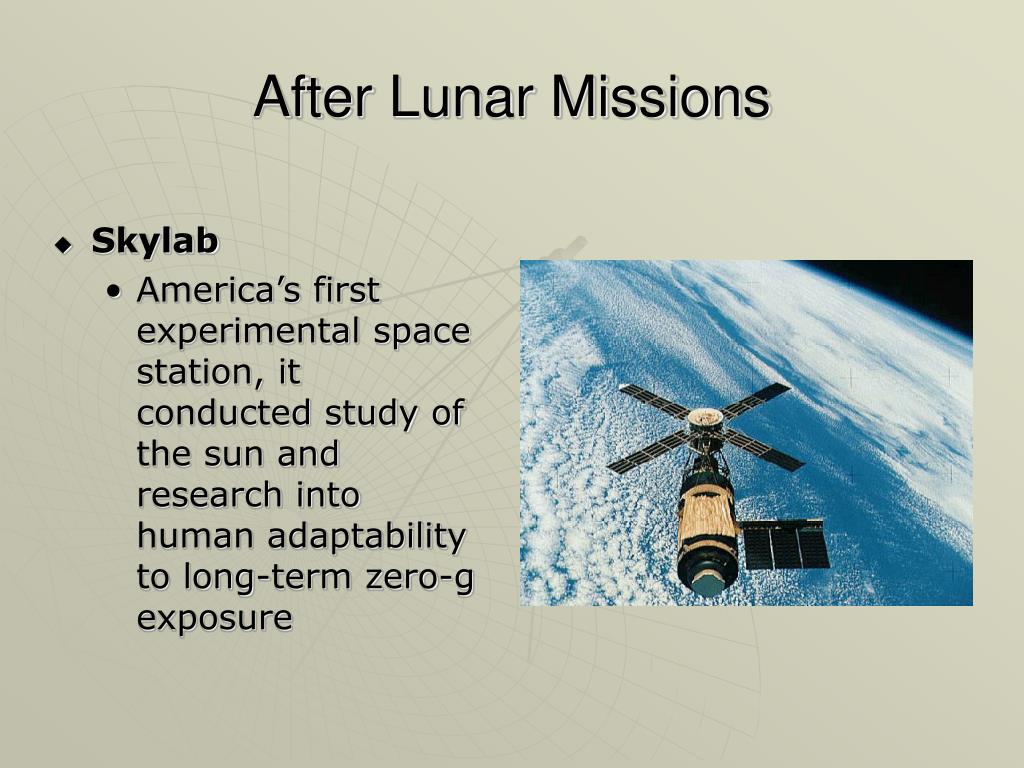

  19. After Lunar Missions • Skylab • America’s first experimental space station, it conducted study of the sun and research into human adaptability to long-term zero-g exposure
