  1. Loss Distinguishing and Performance Improvement of WLAN IE Department, CUHK Qixiang Pang(龐其祥) April 15, 2004

  2. Outline • Existing Backoff and AutoRate algorithms and Problems • Loss Detection – Basic access mode • New Backoff and AutoRate algorithms • Performance comparison • Reliability improvement of the loss detection method • Loss Detection – RTS/CTS access mode • Possible future work

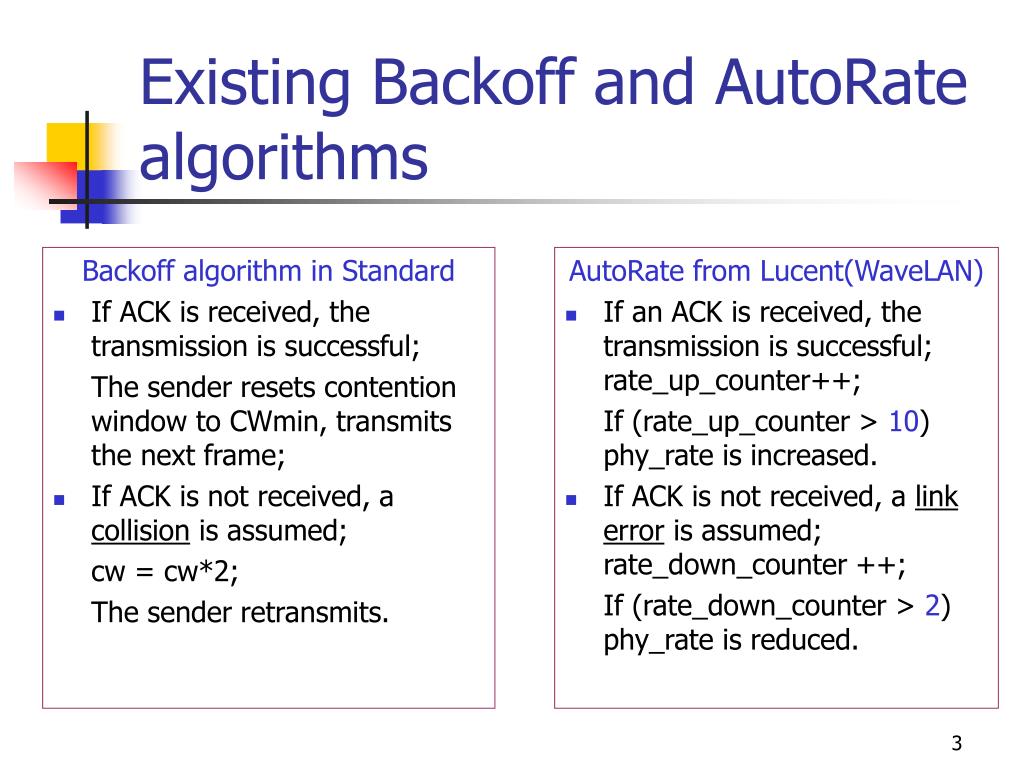

  3. Existing Backoff and AutoRate algorithms Backoff algorithm in Standard • If ACK is received, the transmission is successful; The sender resets contention window to CWmin, transmits the next frame; • If ACK is not received, a collision is assumed; cw = cw*2; The sender retransmits. AutoRate from Lucent(WaveLAN) • If an ACK is received, the transmission is successful; rate_up_counter++; If (rate_up_counter > 10) phy_rate is increased. • If ACK is not received, a link error is assumed; rate_down_counter ++; If (rate_down_counter > 2) phy_rate is reduced.

  4. Problems • Doubled Backoff – assumes all losses are due to collision. • Auto-Rate – assumes all losses are due to link error. • Both types of losses could happen in reality. • Conflict!

  5. Loss detection – basic access mode RECEIVER • If receiver receives correct MAC header, • If MAC body is correct, an ACK is sent back; • If MAC body is wrong, a NAK is sent back; • If wrong MAC header is received, the receiver sends nothing. SENDER • If an ACK is received, the transmission is successful; • If a NAK is received, a linkerror is assumed; • Nothing is received, a collision is assumed. • Remarks: • Separate Header and Body • Header has much lower error probability than Body • ACK, NAK have much lower error probability.

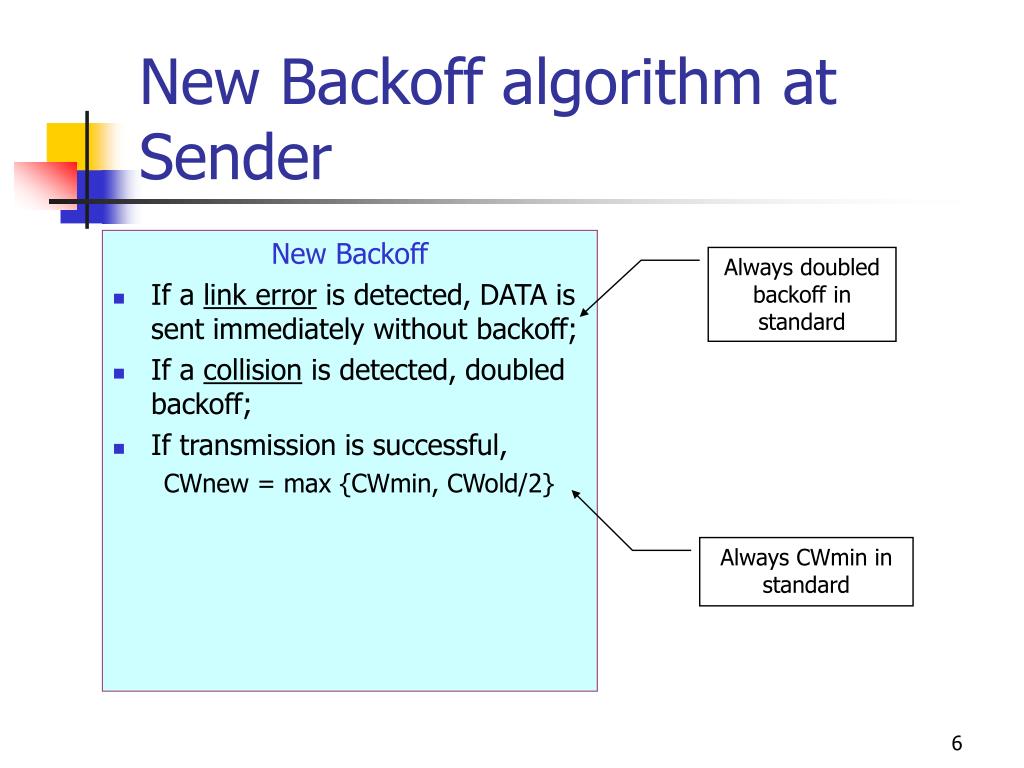

  6. New Backoff algorithm at Sender New Backoff • If a link error is detected, DATA is sent immediately without backoff; • If a collision is detected, doubled backoff; • If transmission is successful, CWnew = max {CWmin, CWold/2} Always doubled backoff in standard Always CWmin in standard

  7. New AutoRate algorithm at Sender New AutoRate • If a link error is detected, rate_down_counter ++; If (rate_down_counter > 2), phy_rate is reduced; • If a transmission is successful, rate_up_counter++; If (rate_up_counter > 10), phy_rate is increased.

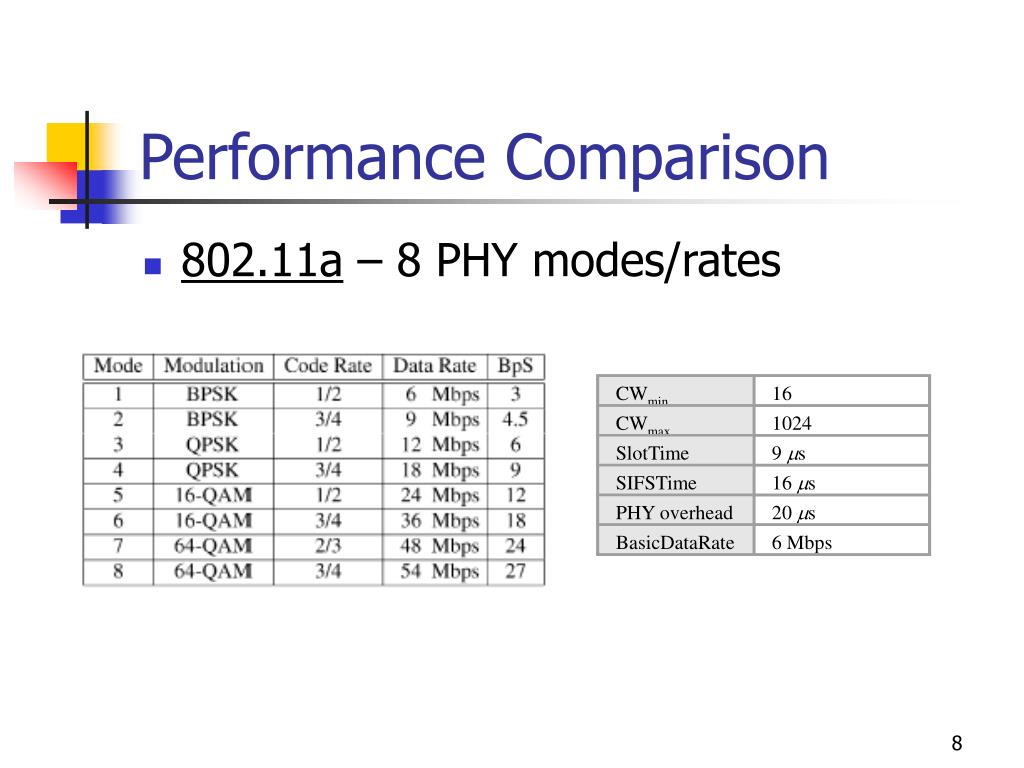

  8. CWmin 16 CWmax 1024 SlotTime 9 s SIFSTime 16 s PHY overhead 20 s BasicDataRate 6 Mbps Performance Comparison • 802.11a – 8 PHY modes/rates

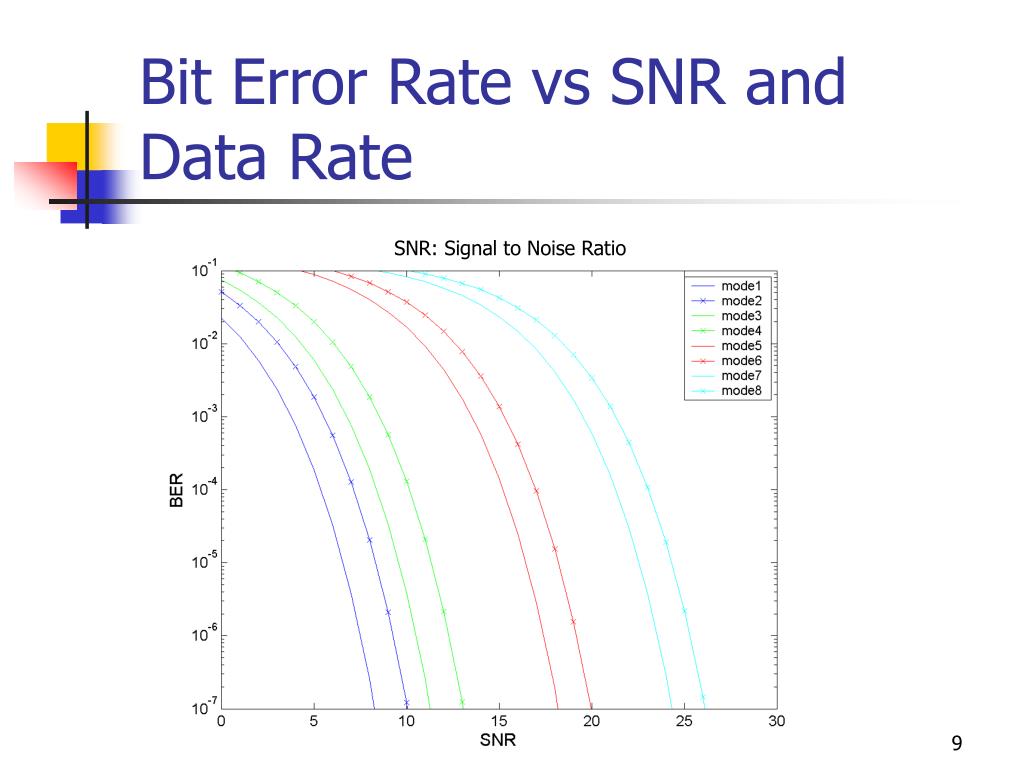

  9. Bit Error Rate vs SNR and Data Rate SNR: Signal to Noise Ratio

  10. Throughput vs SNR and Data Rate # of contending stations = 1

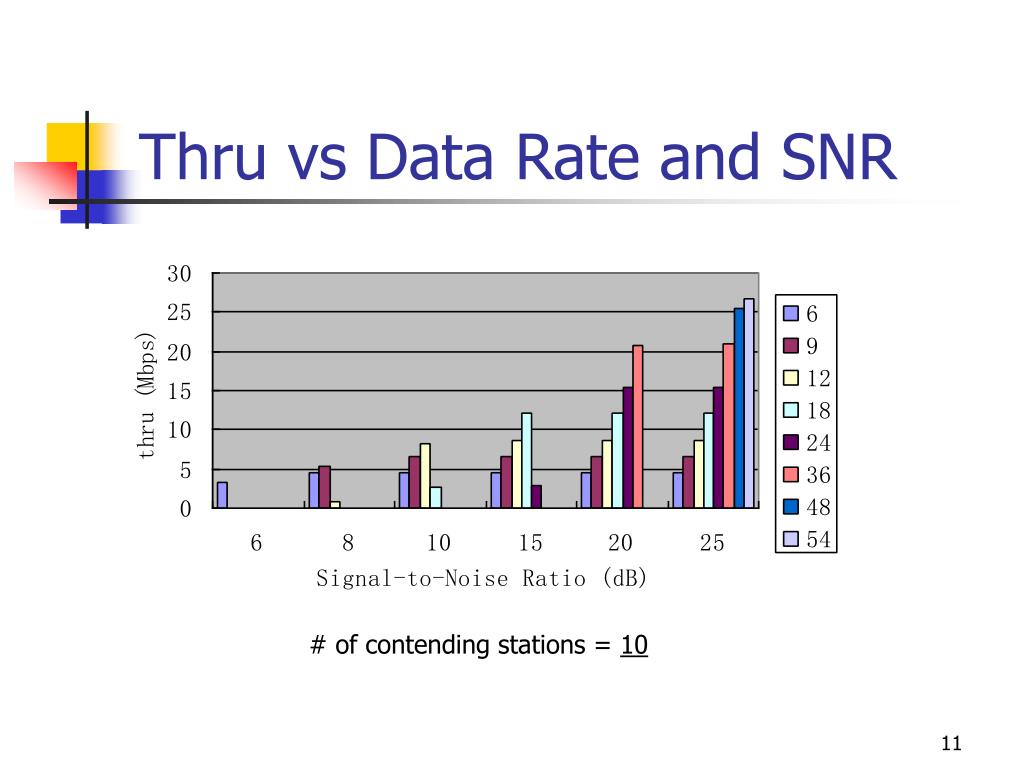

  11. Thru vs Data Rate and SNR # of contending stations = 10

  12. Comparison – new vs standard backoff (fixed BER - simulation) BER= 1e-5 BER= 5e-5 BER= 1e-4 phy_rate=54Mbps

  13. Comparison – new vs standard backoff (fixed BER - analytical) • 1 station; phy_rate=54Mbps

  14. Comparison - variable link condition Gilbert Elliot Channel model–A two-state discrete time Markov chain to model the wireless channel variation SNR=(15,30) SNR=(0,15) • Exponential distributed “good” and “bad” time; • Uniformly distributed SNR values during “good” or “bad” states

  15. Comparison – new vs standard backoff (variable BER) # of station = 1 # of station = 5 # of station = 10 # of station = 50

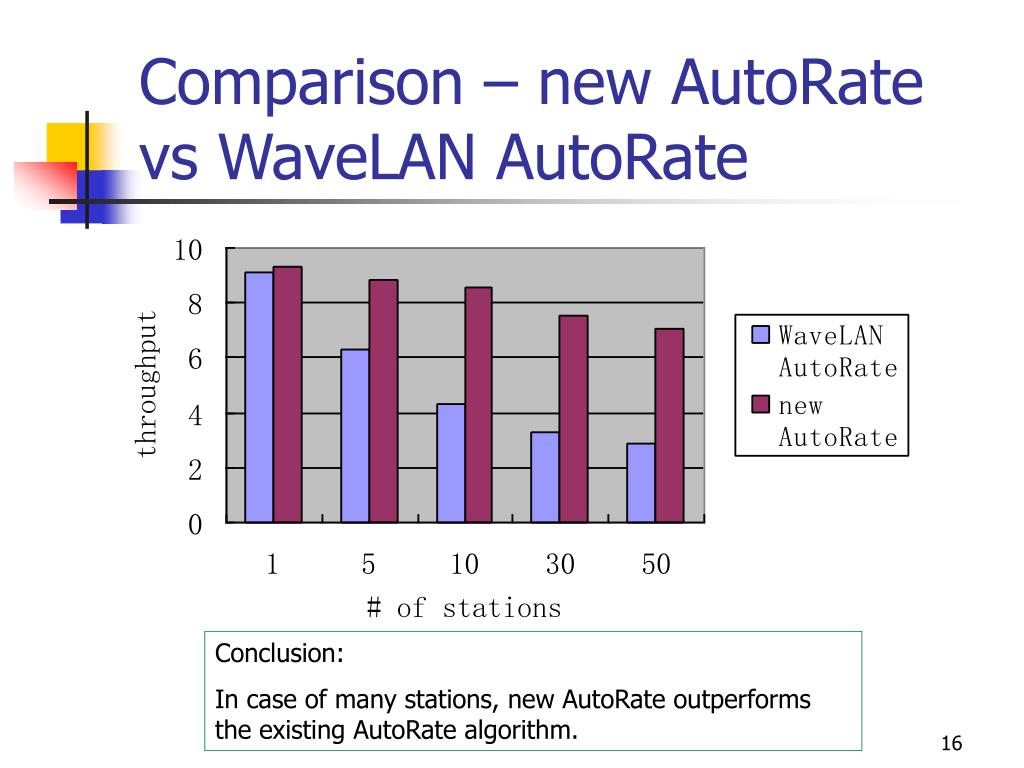

  16. Comparison – new AutoRate vs WaveLAN AutoRate Conclusion: In case of many stations, new AutoRate outperforms the existing AutoRate algorithm.

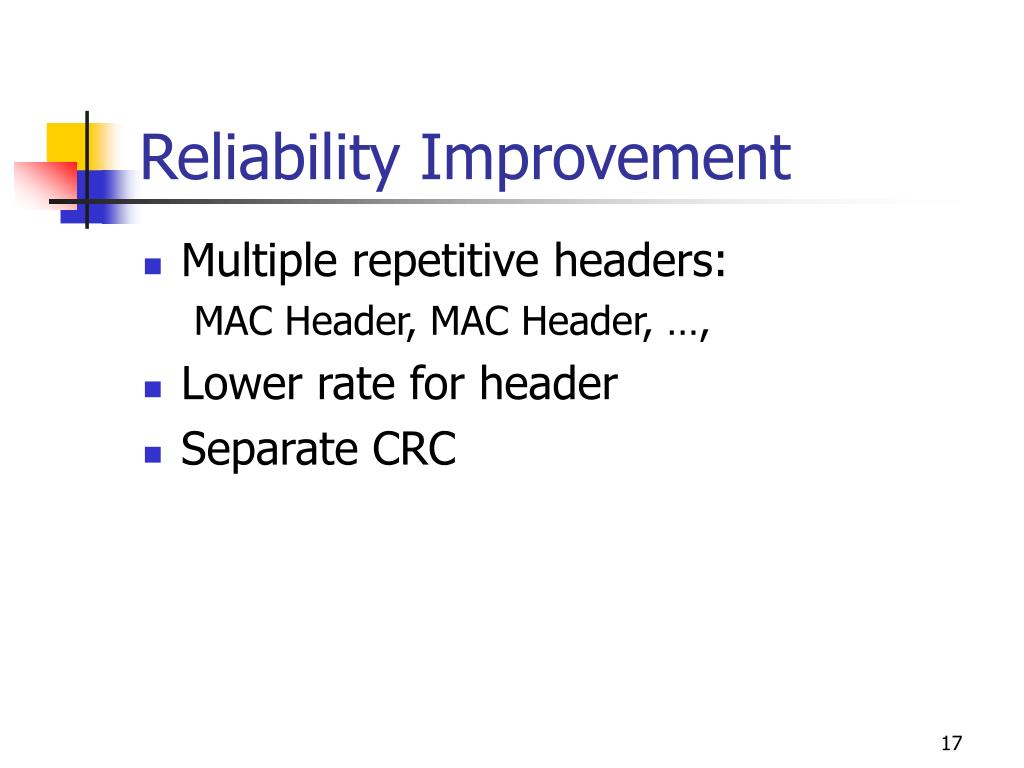

  17. Reliability Improvement • Multiple repetitive headers: MAC Header, MAC Header, …, • Lower rate for header • Separate CRC

  18. RTS/CTS access mode (hidden terminal) • 4-way handshaking • Useful to overcome “hidden terminal” problem

  19. Loss Detection – RTS/CTS access mode RECEIVER • If RTS is received, CTS is sent; • If DATA is received, ACK is sent. SENDER • If both CTS and then ACK are received, the transmission is successful; • If CTS is received but ACK is missed, a link error is assumed; • If CTS is missed, a collision is assumed. • Remarks: • RTS/CTS is sent at lower data rate. • RTS/CTS is much shorter

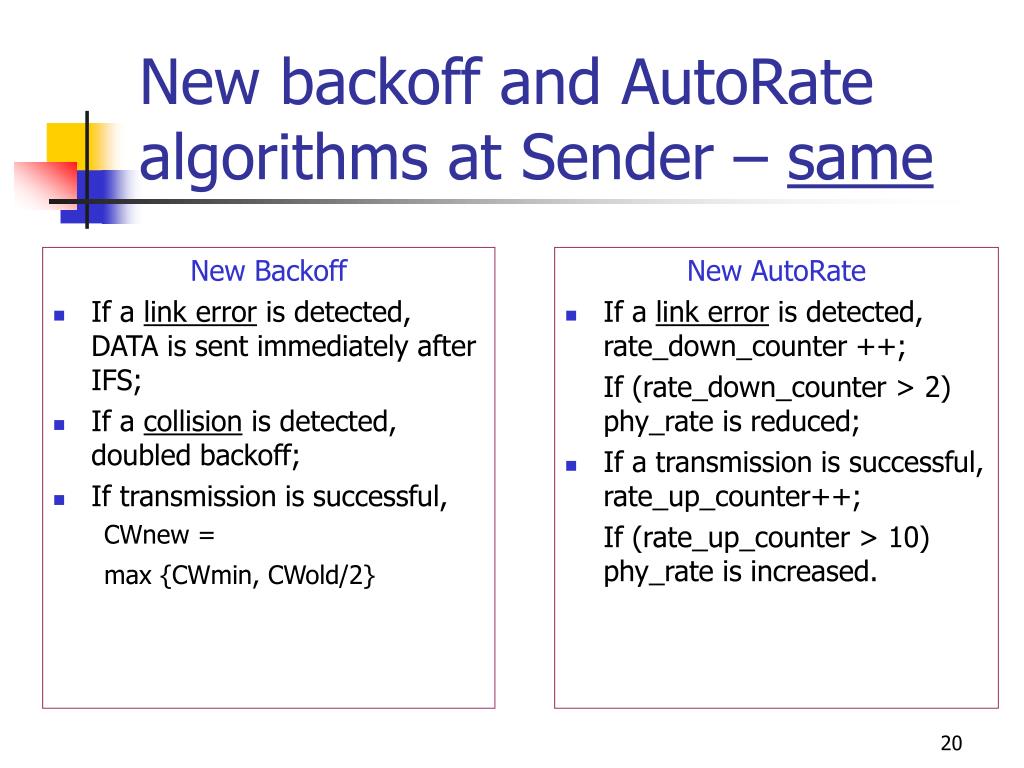

  20. New backoff and AutoRate algorithms at Sender – same New Backoff • If a link error is detected, DATA is sent immediately after IFS; • If a collision is detected, doubled backoff; • If transmission is successful, CWnew = max {CWmin, CWold/2} New AutoRate • If a link error is detected, rate_down_counter ++; If (rate_down_counter > 2) phy_rate is reduced; • If a transmission is successful, rate_up_counter++; If (rate_up_counter > 10) phy_rate is increased.

  21. Possible future work • More simulation scenarios • More applications over WLAN, e.g. TCP • Mixed heterogeneous channel conditions • Theoretical analysis • Measurement based (collision rate, error rate => proper scheme)
