  1. Major Histocompatibility ComplexChapter 7

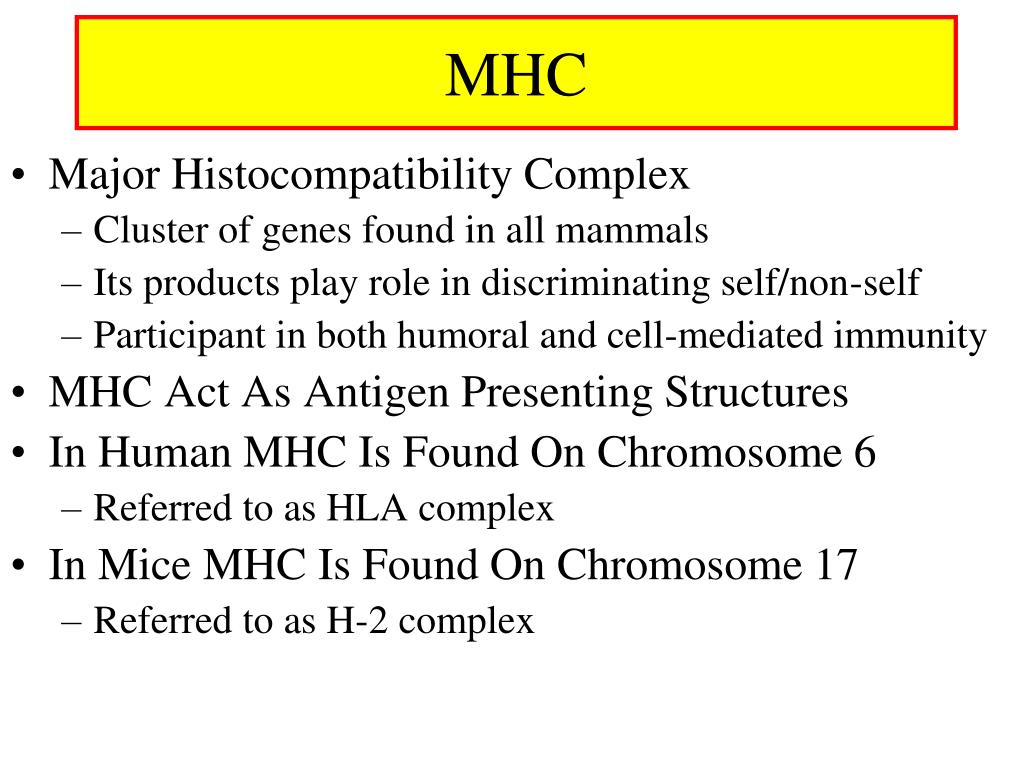

  2. MHC • Major Histocompatibility Complex • Cluster of genes found in all mammals • Its products play role in discriminating self/non-self • Participant in both humoral and cell-mediated immunity • MHC Act As Antigen Presenting Structures • In Human MHC Is Found On Chromosome 6 • Referred to as HLA complex • In Mice MHC Is Found On Chromosome 17 • Referred to as H-2 complex

  3. MHC • Genes Of MHC Organized In 3 Classes • Class I MHC genes • Glycoproteins expressed on all nucleated cells • Major function to present processed Ags to TC • Class II MHC genes • Glycoproteins expressed on M, B-cells, DCs • Major function to present processed Ags to TH • Class III MHC genes • Products that include secreted proteins that have immune functions. Ex. Complement system, inflammatory molecules

  4. Class I, II and III MHC • Class I MHC Genes Found In Regions A, B and C In Humans (K and D In Mice) • Class II MHC Genes Found In Regions DR, DP and DQ (IA and IE In Mice) • Class I and Class II MHC Share Structural Features • Both involved in APC • Class III MHC Have No Structural Similarity To Class I and II • Ex. TNF, heat shock proteins, complement components

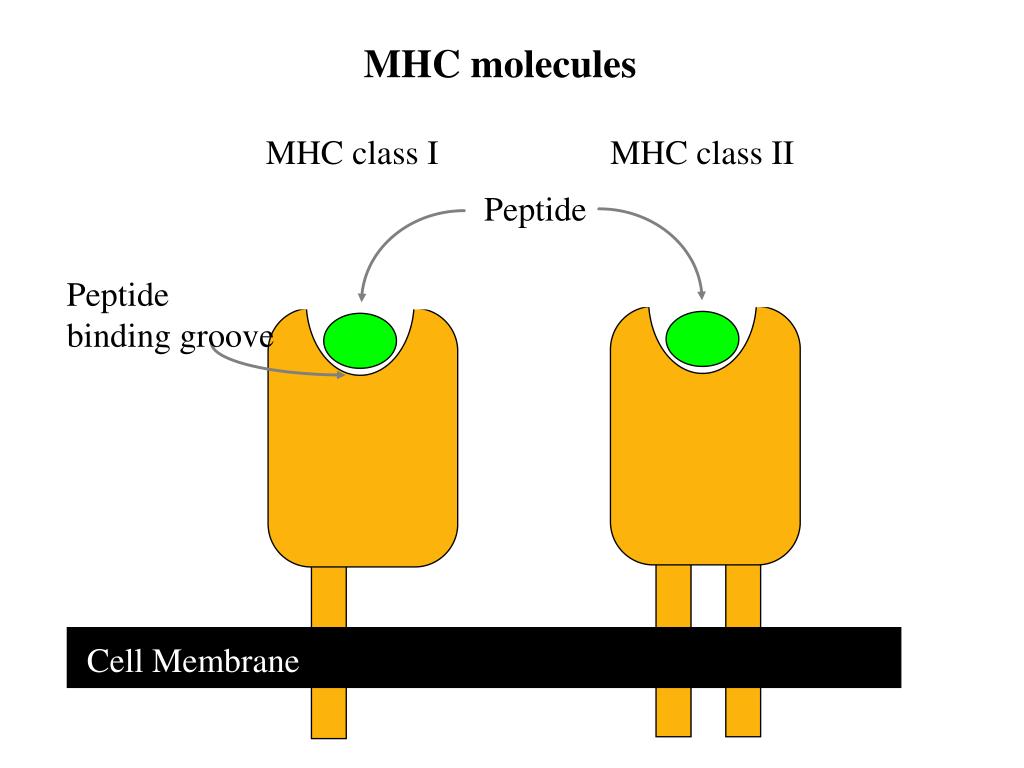

  5. MHC class I MHC class II Peptide Peptide binding groove Cell Membrane MHC molecules

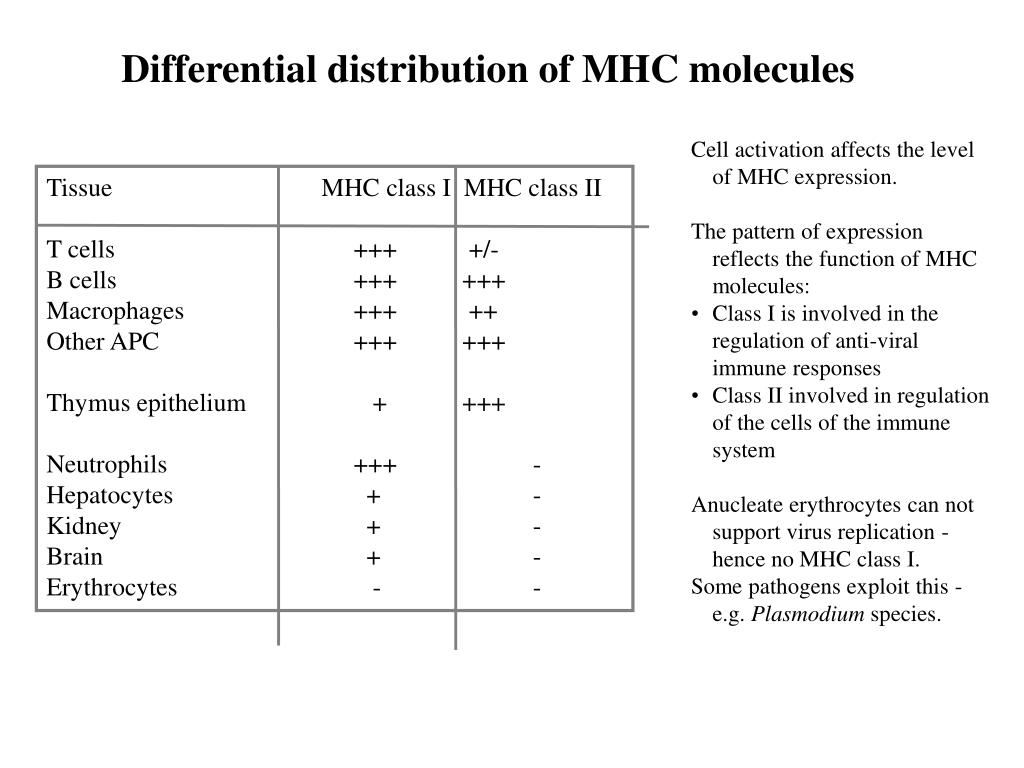

  6. Tissue MHC class I MHC class II T cells +++ +/- B cells +++ +++ Macrophages +++ ++ Other APC +++ +++ Thymus epithelium + +++ Neutrophils +++ - Hepatocytes + - Kidney + - Brain + - Erythrocytes - - Differential distribution of MHC molecules • Cell activation affects the level of MHC expression. • The pattern of expression reflects the function of MHC molecules: • Class I is involved in the regulation of anti-viral immune responses • Class II involved in regulation of the cells of the immune system • Anucleate erythrocytes can not support virus replication - hence no MHC class I. • Some pathogens exploit this - e.g. Plasmodium species.

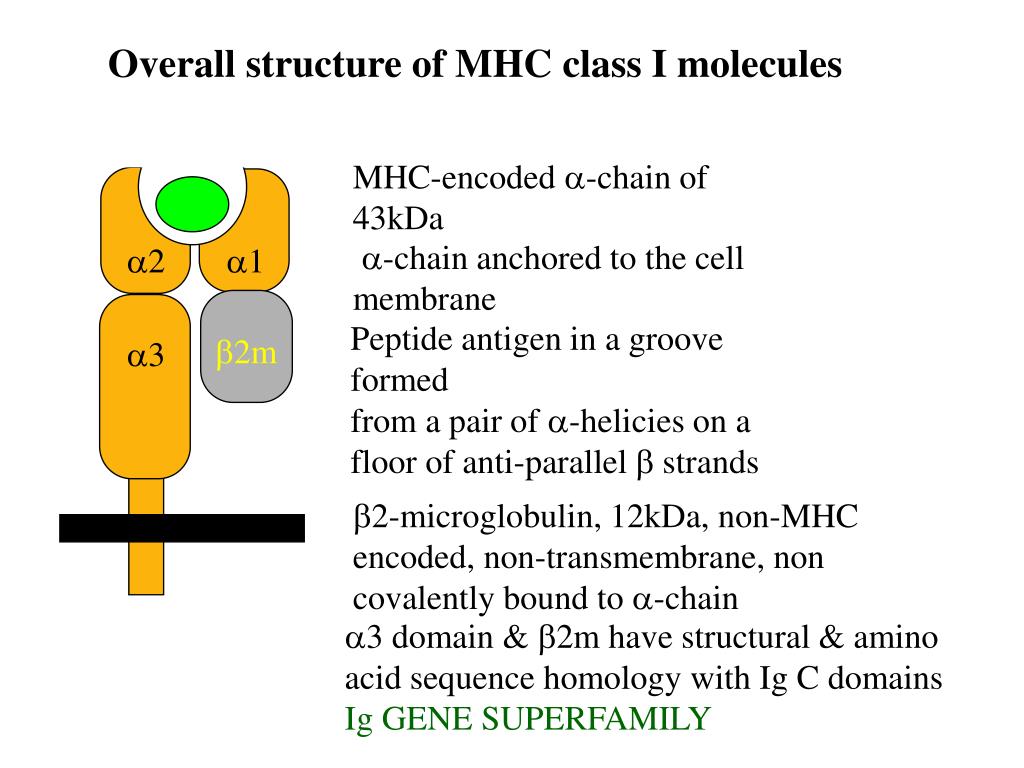

  7. MHC-encoded -chain of 43kDa -chain anchored to the cell membrane 2 1 2m Peptide antigen in a groove formed from a pair of a-helicies on a floor of anti-parallel b strands 3 2-microglobulin, 12kDa, non-MHC encoded, non-transmembrane, non covalently bound to -chain Overall structure of MHC class I molecules 3 domain & 2m have structural & amino acid sequence homology with Ig C domains Ig GENE SUPERFAMILY

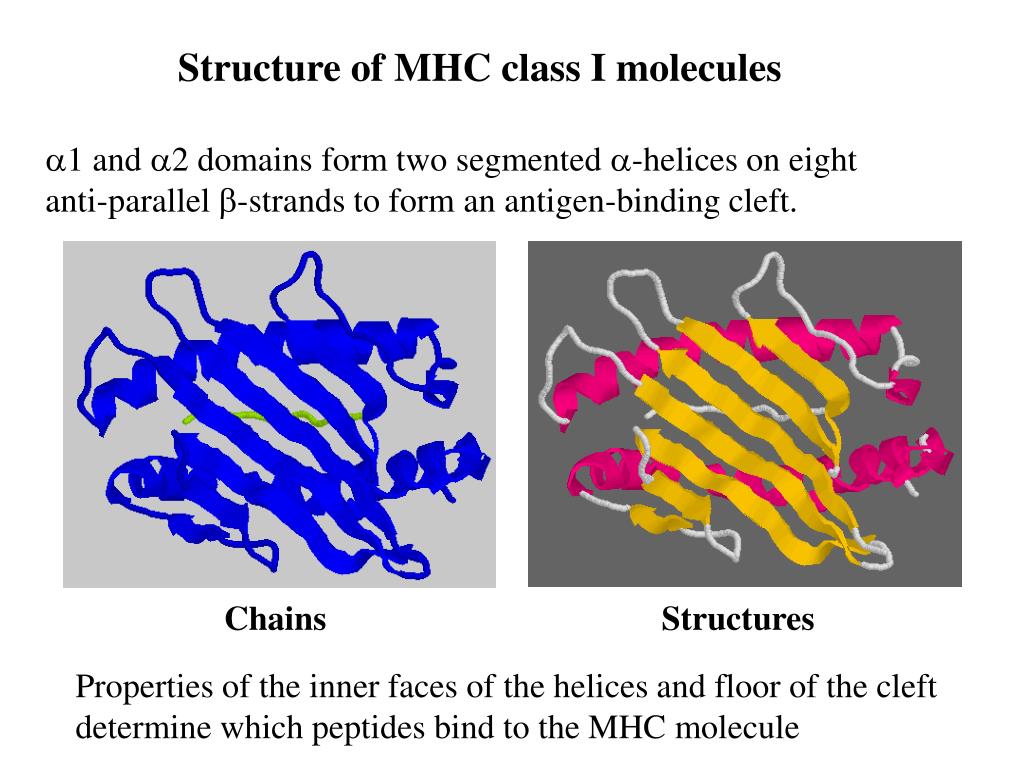

  8. Chains Structures Structure of MHC class I molecules 1 and 2 domains form two segmented -helices on eight anti-parallel -strands to form an antigen-binding cleft. Properties of the inner faces of the helices and floor of the cleft determine which peptides bind to the MHC molecule

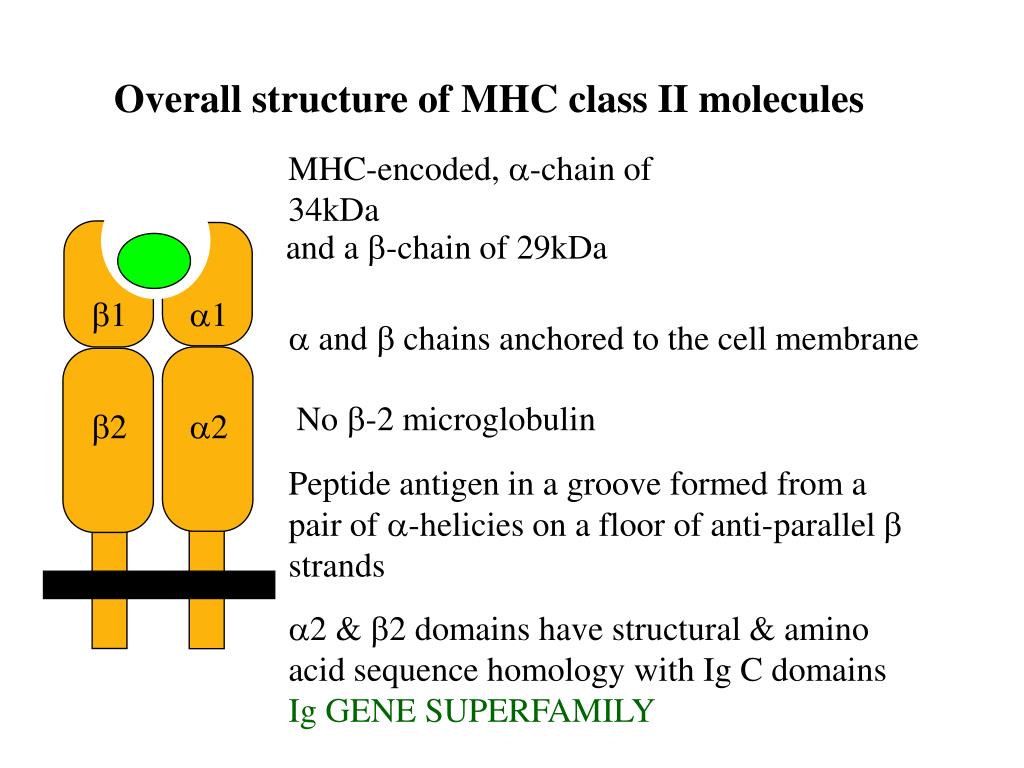

  9. MHC-encoded, -chain of 34kDa and a -chain of 29kDa 1 1 a and b chains anchored to the cell membrane 2 2 Peptide antigen in a groove formed from a pair of a-helicies on a floor of anti-parallel b strands Overall structure of MHC class II molecules No b-2 microglobulin 2 & 2 domains have structural & amino acid sequence homology with Ig C domainsIg GENE SUPERFAMILY

  10. Peptide a-chain b-chain Cleft is made of both a and b chains MHC class II molecule structure

  11. MHC class I MHC class II Cleft geometry Peptide is held in the cleft by non-covalent forces

  12. a-chain a-chain Peptide b-chain Peptide b2-M Cleft geometry MHC class I accommodate peptides of 8-10 amino acids MHC class II accommodate peptides of >13 amino acids

  13. MHC-binding peptides Each human usually expresses: 3 types of MHC class I (A, B, C) and 3 types of MHC class II (DR, DP,DQ) The number of different T cell antigen receptors is estimated to be 1,000,000,000,000,000 Each of which may potentially recognise a different peptide antigen How can 6 invariant molecules have the capacity to bind to 1,000,000,000,000,000 different peptides?

  14. A flexible binding site? A binding site that is flexible enough to bind any peptide? NObecause: at the cell surface, such a binding site would be unable to • allow a high enough binding affinity to form a trimolecular complex with the T cell antigen receptor • prevent exchange of the peptide with others in the extracellular milieu

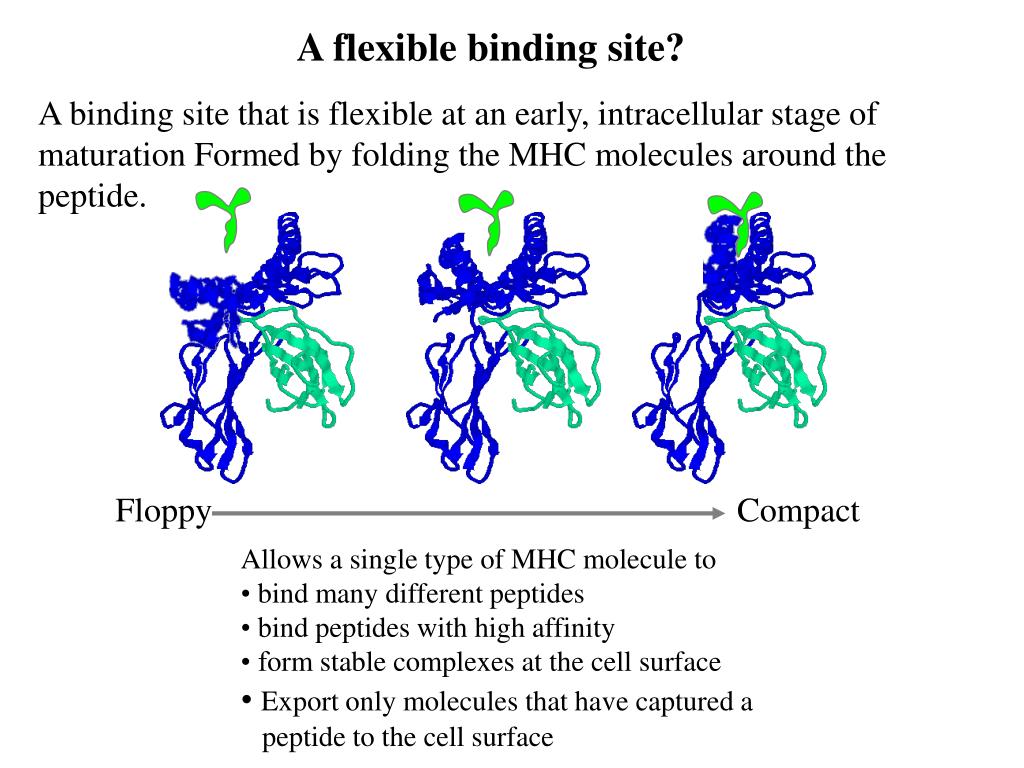

  15. Venus fly trap Floppy Compact A flexible binding site? A binding site that is flexible at an early, intracellular stage of maturation Formed by folding the MHC molecules around the peptide. Allows a single type of MHC molecule to • bind many different peptides • bind peptides with high affinity • form stable complexes at the cell surface • Export only molecules that have captured a peptide to the cell surface

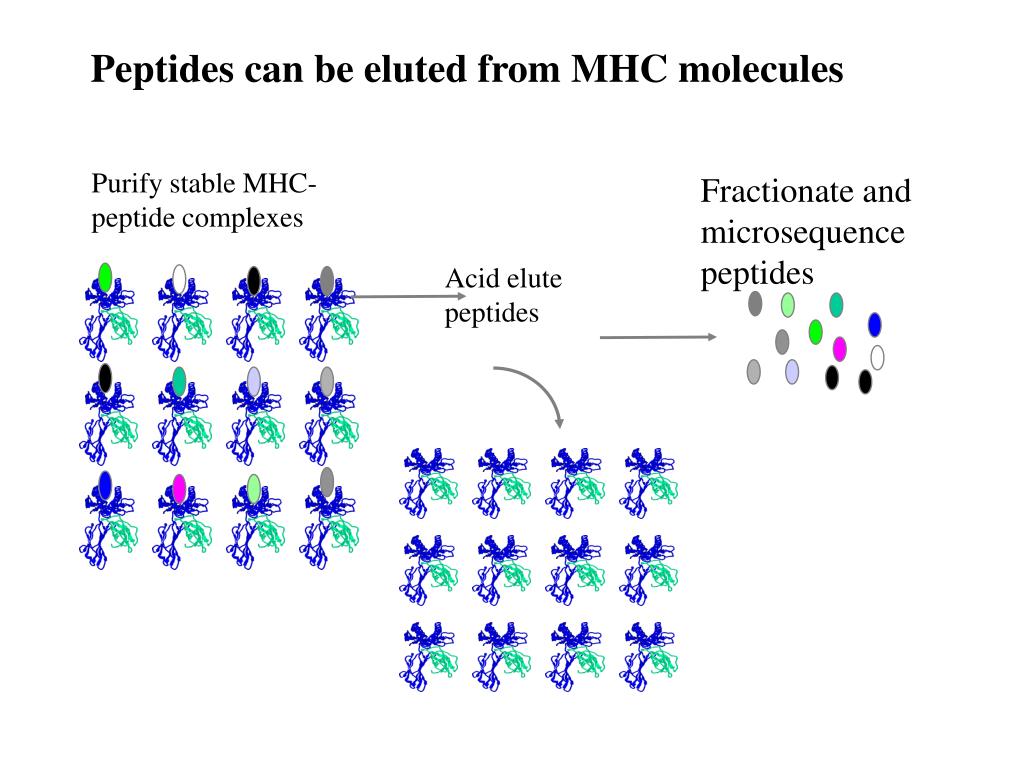

  16. Purify stable MHC-peptide complexes Fractionate and microsequence peptides Acid elute peptides Peptides can be eluted from MHC molecules

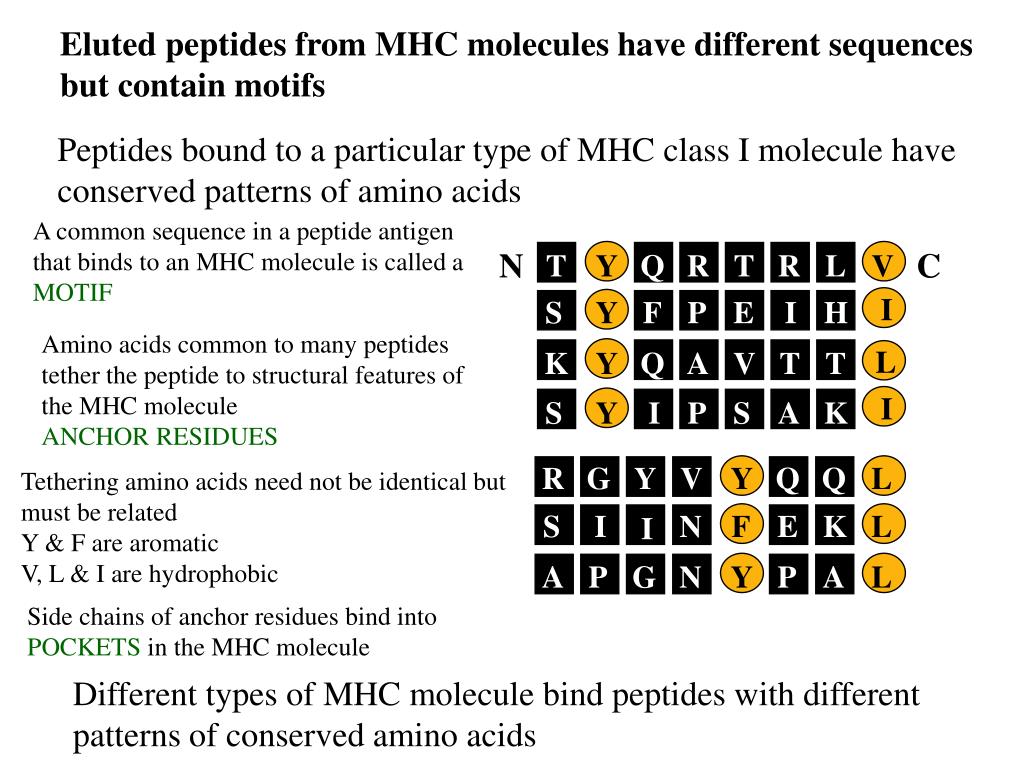

  17. N C T Y Q R T R L V I S Y F P E I H L K Y Q A V T T I S Y I P S A K R G Y V Y Q Q L S I N F E K L I A P G N Y P A L Eluted peptides from MHC molecules have different sequences but contain motifs Peptides bound to a particular type of MHC class I molecule have conserved patterns of amino acids A common sequence in a peptide antigen that binds to an MHC molecule is called a MOTIF Amino acids common to many peptides tether the peptide to structural features of the MHC molecule ANCHOR RESIDUES Tethering amino acids need not be identical but must be related Y & F are aromatic V, L & I are hydrophobic Side chains of anchor residues bind into POCKETS in the MHC molecule Different types of MHC molecule bind peptides with different patterns of conserved amino acids

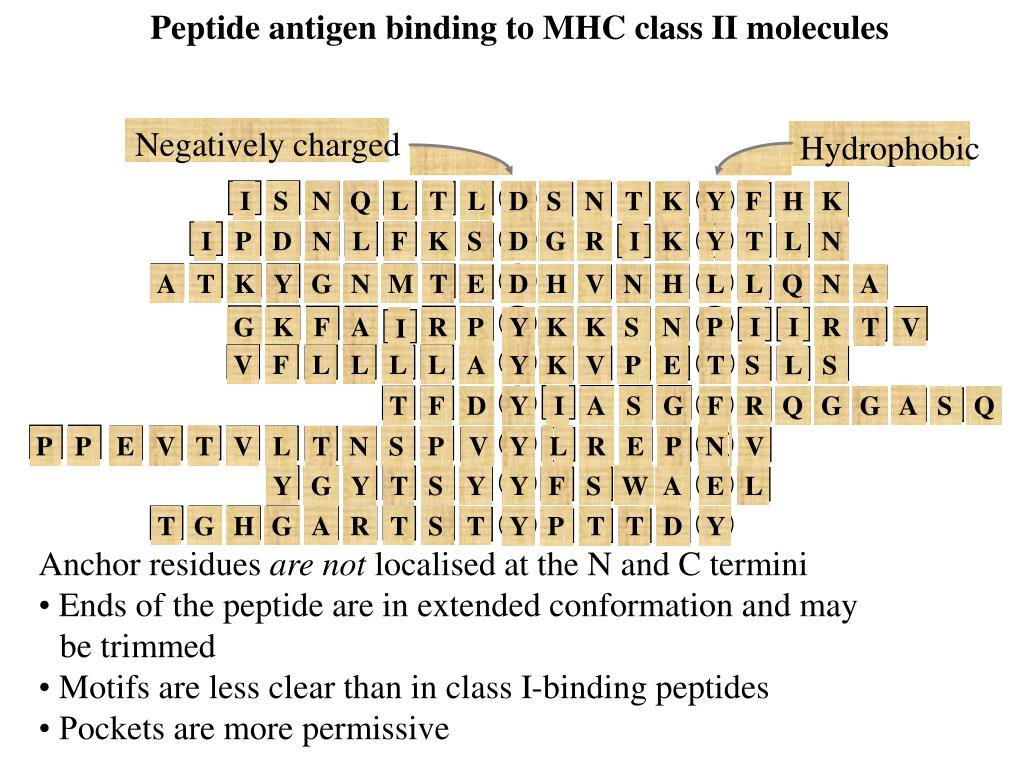

  18. Negatively charged Hydrophobic I S N Q L T L D S N T K Y F H K I P D N L F K S D G R K Y T L N I A T K Y G N M T E D H V N H L L Q N A G K F A R P Y K K S N P I I R T V I V F L L L L A Y K V P E T S L S T F D Y I A S G F R Q G G A S Q P P E V T V L T N S P V Y L R E P N V Y G Y T S Y Y F S W A E L T G H G A R T S T Y P T T D Y Peptide antigen binding to MHC class II molecules Anchor residues are not localised at the N and C termini • Ends of the peptide are in extended conformation and may be trimmed • Motifs are less clear than in class I-binding peptides • Pockets are more permissive

  19. MHC Genes Are Polymorphic • MHC Products Are Highly Polymorphic • Vary considerably from person to person • However, Crossover Rate Is Low • 0.5% crossover rate • Inherited as 2 sets (one from father, one from mother) • Haplotype refers to set from mother or father • MHC Alleles Are Co-dominantly Expressed • Both mother and father alleles are expressed • Inbred Mice Haplotypes Are Designated With Italic Superscript • Ex. H-2b • Designation refers to entire set of H-2 alleles

  20. How can 6 invariant molecules have the capacity to bind to 1,000,000,000,000,000 different peptides with high affinity? • Adopt a flexible “floppy” conformation until a peptide binds • Fold around the peptide to increase stability of the complex • Tether the peptide using a small number of anchor residues • Allow different sequences between anchors and different lengths of peptide

  21. MHC molecules are targets for immune evasion by pathogens • Without T cells there is no effective immune response • Ag–specific T cells are activated by peptide/MHC complexes • There is therefore strong selective pressure for pathogens to mutate genes encoding antigens so that they can evade the formation of peptide/MHC complexes • The MHC has two strategies to prevent evasion by pathogens More than one type of MHC molecule in each individual Extensive differences in MHC molecules between individuals

  22. MHC XX Pathogen that evades MHC X Survival of individual threatened Example: If MHC X was the only type of MHC molecule Population threatened with extinction

  23. XX XXR XYR YXR YYR YY XRXR MHC XX Pathogen that evades MHC X and Y YRYR XRYR XY MHC YY …but binds to the variant MHC XR and MHC YR MHC XY MHC YYR MHC XXR Variant MHC molecules protect the population From 2 MHC types and 2 variants……. 10 different genotypes Variants – alleles - of each type of MHC gene encode proteins that increase the resistance of the population from rapidly mutating or newly encountered pathogens without increasing the number of types of MHC molecule

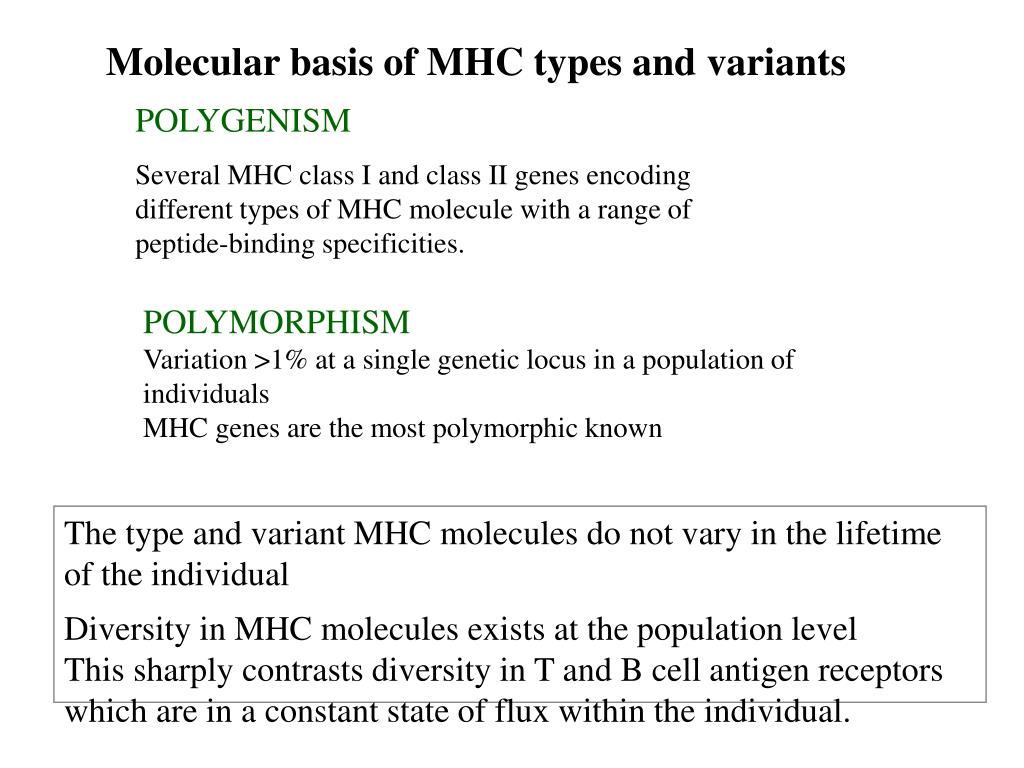

  24. Molecular basis of MHC types and variants POLYGENISM Several MHC class I and class II genes encoding different types of MHC molecule with a range of peptide-binding specificities. POLYMORPHISM Variation >1% at a single genetic locus in a population of individuals MHC genes are the most polymorphic known The type and variant MHC molecules do not vary in the lifetime of the individual Diversity in MHC molecules exists at the population level This sharply contrasts diversity in T and B cell antigen receptors which are in a constant state of flux within the individual.

  25. DP DM LMP/TAP DQ DR B C A 1 3 4 5        MHC Class II MHC Class I Class III 3 extra DR genes in some individuals can allow 3 extra HLA-DR molecules Simplified map of the HLA region Polygeny CLASS I: 3 types HLA-A, HLA-B, HLA-C (sometimes called class Ia genes) CLASS II: 3 types HLA-DP HLA-DQ HLA-DR. Maximum of 9 types of antigen presenting molecule allow interaction with a wide range of peptides.

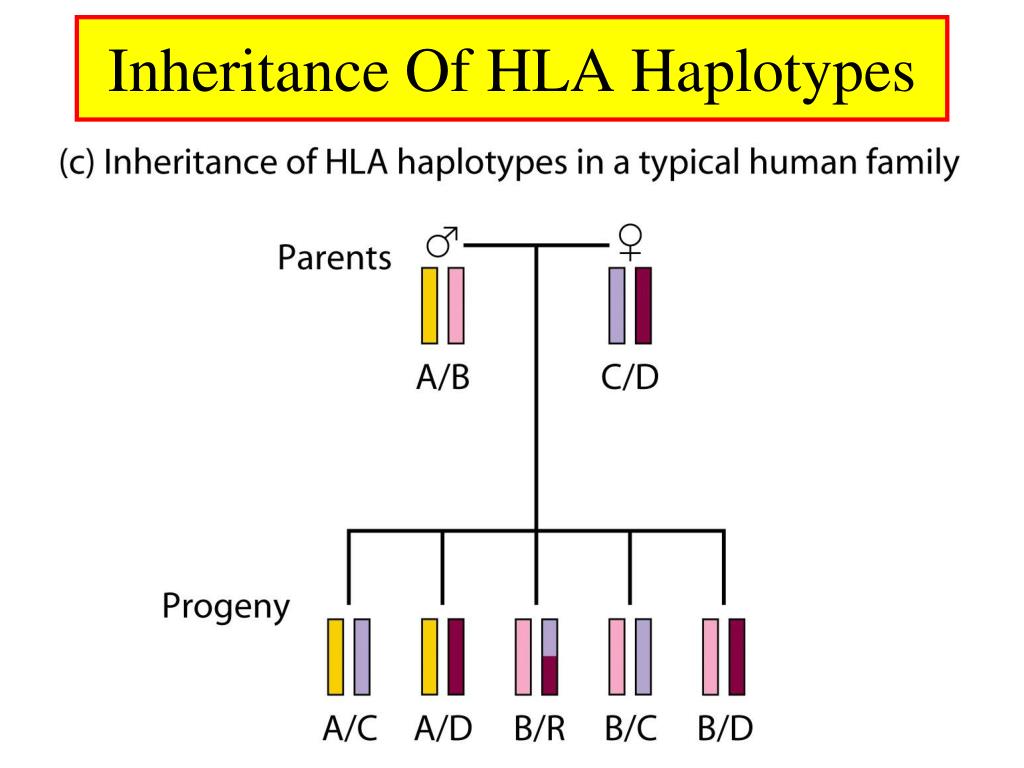

  26. Inheritance Of HLA Haplotypes

  27. 699 Class I No of polymorphisms 396 198 15 8 2 A B C E F G Data from www.anthonynolan.org.uk/HIG/index.html September 2005 Polymorphism in MHC Class I genes Variation >1% at a single genetic locus in a population of individuals In the human population, over 1300 MHC class I alleles have been identified - some are null alleles, synonyms or differ in regions outside the coding region 1318 alleles (998 in October 2003) (657 in July 2000)

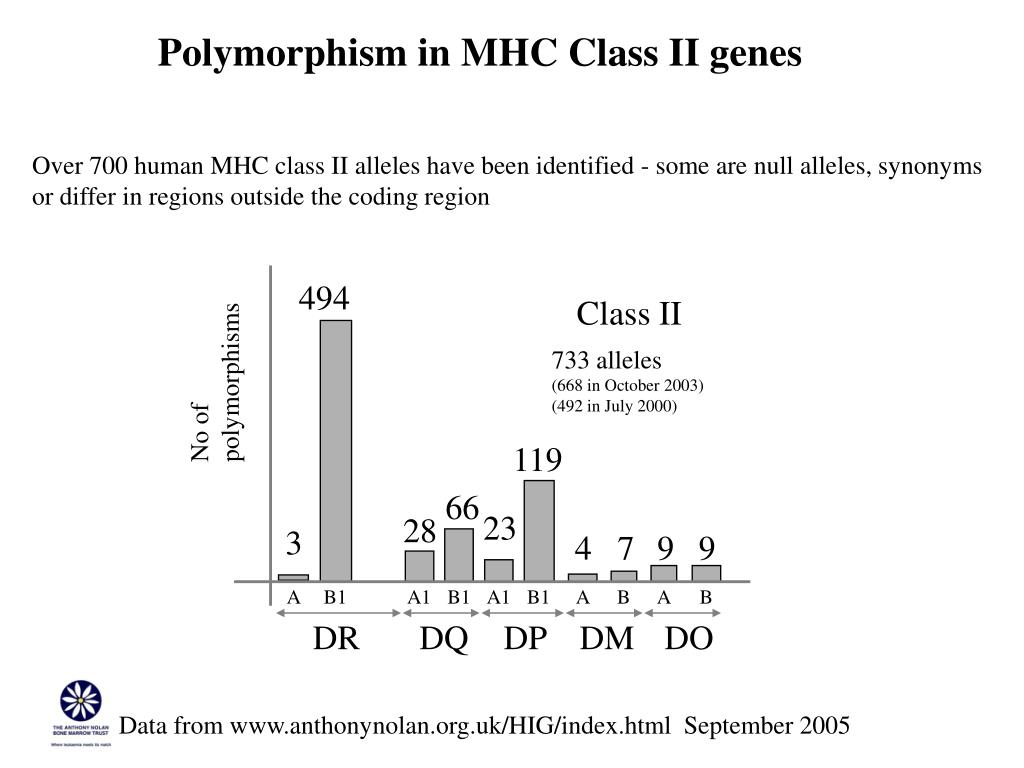

  28. 494 Class II No of polymorphisms 119 66 23 28 3 4 7 9 9 A B1 A1 B1 A1 B1 A B A B DR DQ DP DM DO Data from www.anthonynolan.org.uk/HIG/index.html September 2005 Polymorphism in MHC Class II genes Over 700 human MHC class II alleles have been identified - some are null alleles, synonyms or differ in regions outside the coding region 733 alleles (668 in October 2003) (492 in July 2000)

  29. Class I And II Diversity And Polymorphism • MHC Is One Of The Most Polymorphic Complexes Known • Alleles Can Differ Up To 20 a/a • Class I Alleles In Humans: 240 A, 470 B, 110 C • Class II Alleles In Humans: HLA-DR 350 , 2 ! • HLA-DR •  genes vary from 2-9 in different individuals!!!, • 1  gene ( can combine with all  products increasing number of APC molecules) • DP (2 , 2 ) and DQ (2 , 3 )

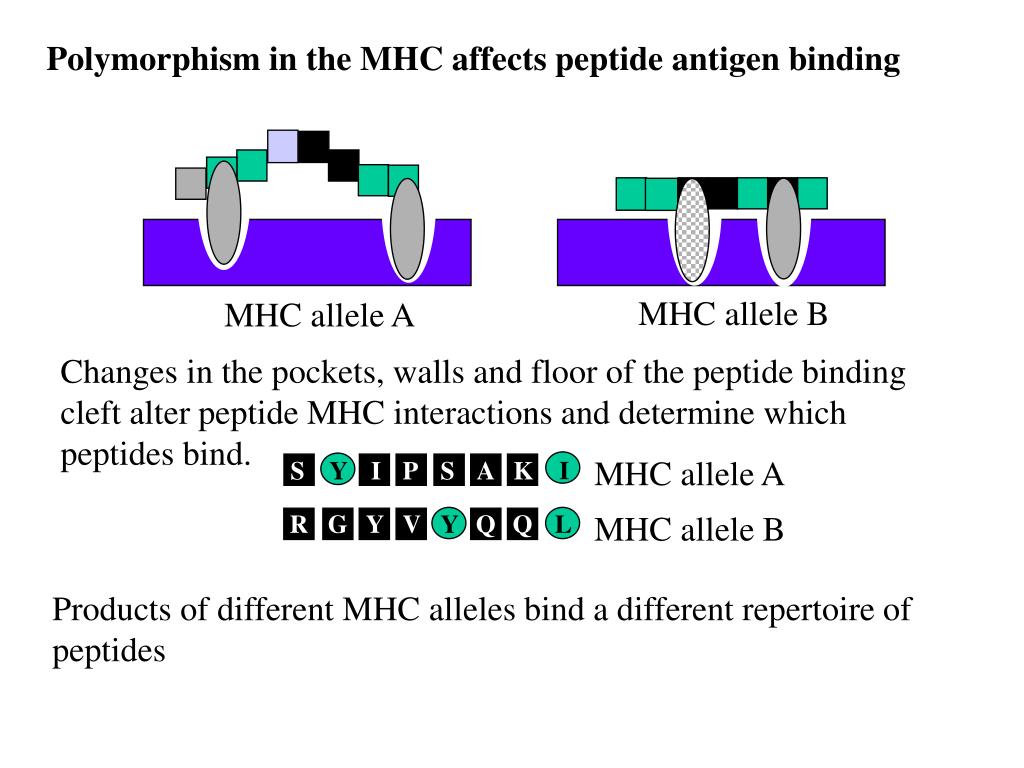

  30. MHC allele B MHC allele A MHC allele A I S Y I P S A K MHC allele B R G Y V Y Q Q L Polymorphism in the MHC affects peptide antigen binding Changes in the pockets, walls and floor of the peptide binding cleft alter peptide MHC interactions and determine which peptides bind. Products of different MHC alleles bind a different repertoire of peptides

  31. Replacement substitutions occur at a higher frequency than silent substitution Suggests that selective pressures may operate on MHC polymorphism Evolution of pathogens to evade MHC-mediated antigen presentation 60% of individuals in south east China & Papua New Guinea express HLA-A11 HLA-A11 binds an important peptide of Epstein Barr Virus Many EBV isolates from these areas have mutated this peptide so that it can not bind to HLA-A11 MHC molecules Evolution of the MHC to eliminate pathogens In west Africa where malaria is endemic HLA-B53 is commonly associated with recovery from a potentially lethal form of malaria

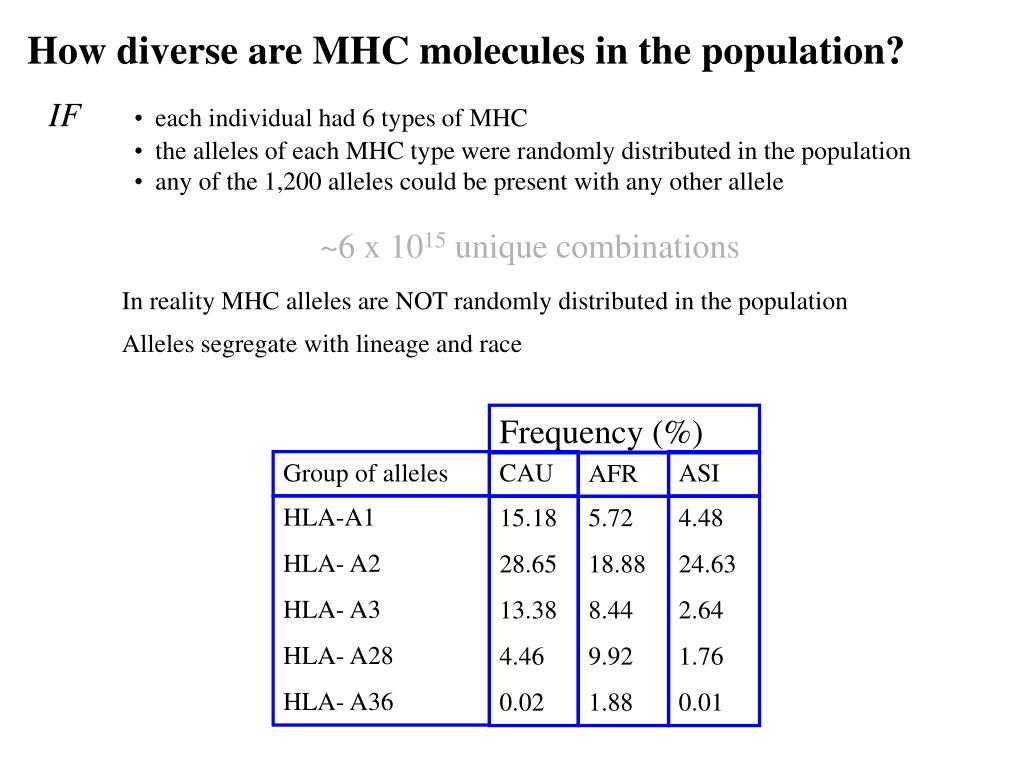

  32. Frequency (%) Group of alleles CAU ASI AFR HLA-A1 HLA- A2 HLA- A3 HLA- A28 HLA- A36 How diverse are MHC molecules in the population? IF• each individual had 6 types of MHC • the alleles of each MHC type were randomly distributed in the population • any of the 1,200 alleles could be present with any other allele ~6 x 1015 unique combinations In reality MHC alleles are NOT randomly distributed in the population Alleles segregate with lineage and race 15.18 28.65 13.38 4.46 0.02 5.72 18.88 8.44 9.92 1.88 4.48 24.63 2.64 1.76 0.01

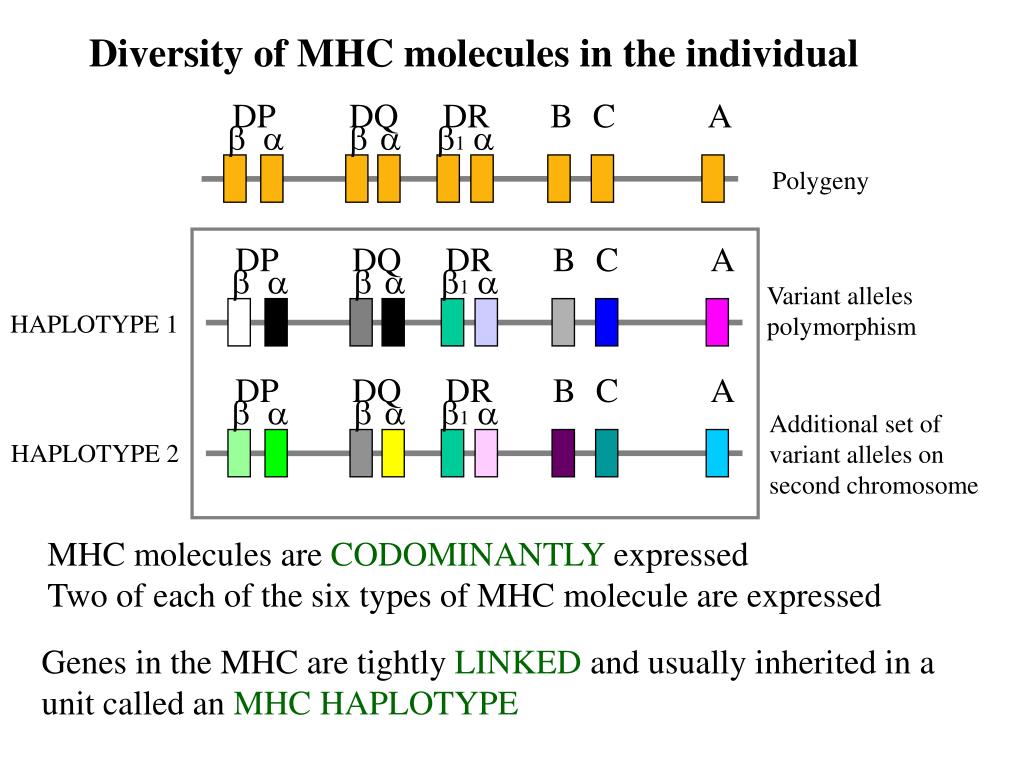

  33. DP DQ DR B C A     1  Polygeny DP DQ DR B C A     1  Variant alleles polymorphism DP DQ DR B C A     1  Additional set of variant alleles on second chromosome Diversity of MHC molecules in the individual HAPLOTYPE 1 HAPLOTYPE 2 MHC molecules areCODOMINANTLYexpressed Two of each of the six types of MHC molecule are expressed Genes in the MHC are tightly LINKED and usually inherited in a unit called an MHC HAPLOTYPE

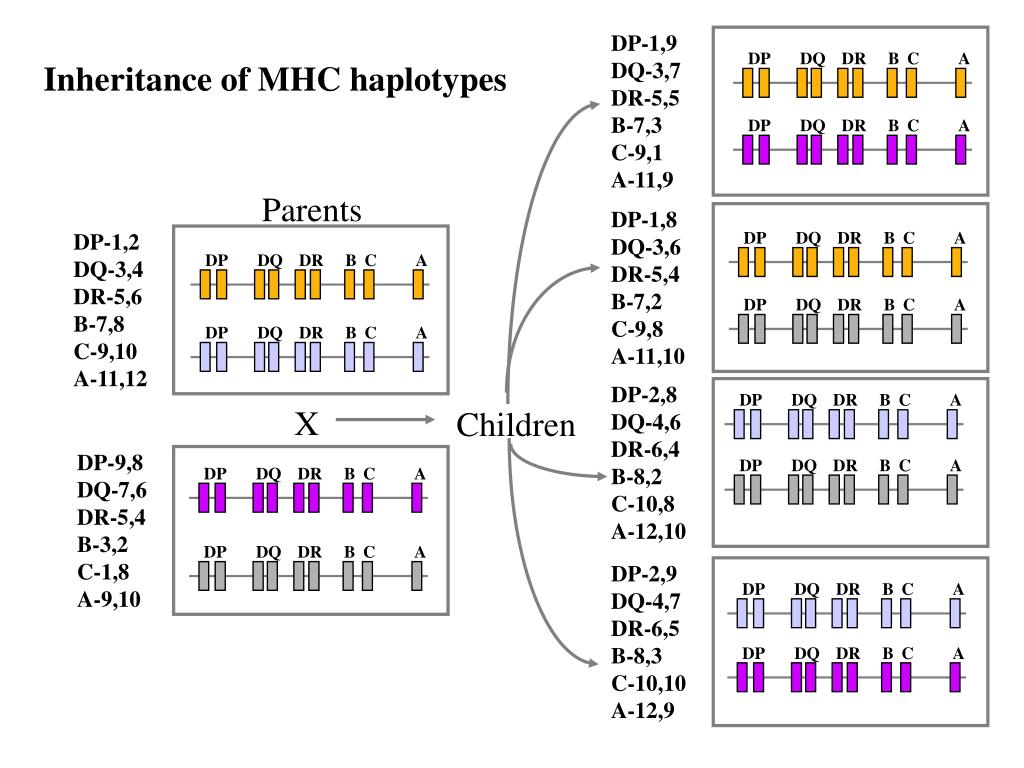

  34. DP-1,9 DQ-3,7 DR-5,5 B-7,3 C-9,1 A-11,9 DP DP DP DQ DQ DQ DR DR DR B B B C C C A A A Parents DP-1,8 DQ-3,6 DR-5,4 B-7,2 C-9,8 A-11,10 DP-1,2 DQ-3,4 DR-5,6 B-7,8 C-9,10 A-11,12 DP DP DP DQ DQ DQ DR DR DR B B B C C C A A A DP-2,8 DQ-4,6 DR-6,4 B-8,2 C-10,8 A-12,10 X Children DP DP DP DQ DQ DQ DR DR DR B B B C C C A A A DP-9,8 DQ-7,6 DR-5,4 B-3,2 C-1,8 A-9,10 DP DP DP DQ DQ DQ DR DR DR B B B C C C A A A DP-2,9 DQ-4,7 DR-6,5 B-8,3 C-10,10 A-12,9 Inheritance of MHC haplotypes

  35. A B C A B C A B C Multiple distinct but closely related MHC genes During meiosis chromosomes misalign Chromosomes separate after meiosis DNA is exchanged between haplotypes GENE CONVERSION A B C A B C A B C Errors in the inheritance of haplotypes generate polymorphism in the MHC by gene conversion and recombination RECOMBINATION between haplotypes In both mechanisms the type of MHC molecule remains the same, but a new allelic variant may be generated

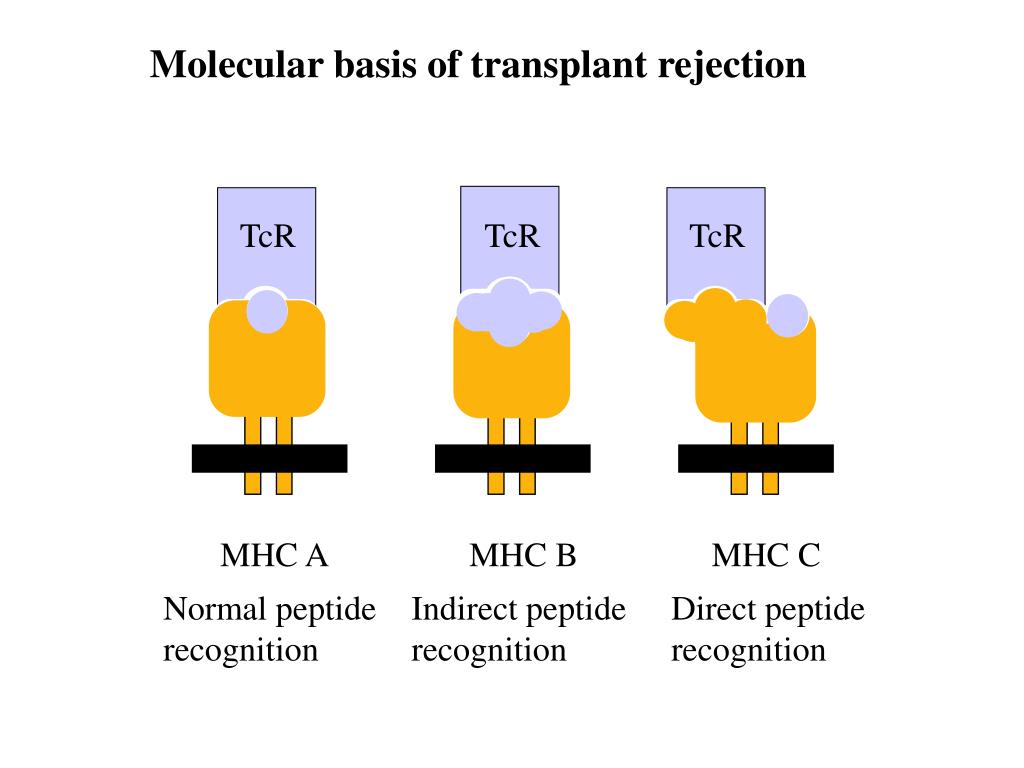

  36. TcR TcR TcR MHC A MHC B MHC C Molecular basis of transplant rejection Normal peptide recognition Indirect peptide recognition Direct peptide recognition

  37. MHC Expression • Expression Is Regulated By Many Cytokines • IFN, IFN, IFN and TNF Increase MHC expression • Transcription Factors That Increase MHC gene Expression • CIITA (Transactivator), RFX (Transactivator) • Some Viruses Decrease MHC Expression • CMV, HBV, Ad12 • Reduction Of MHC May Allow For Immune System Evasion

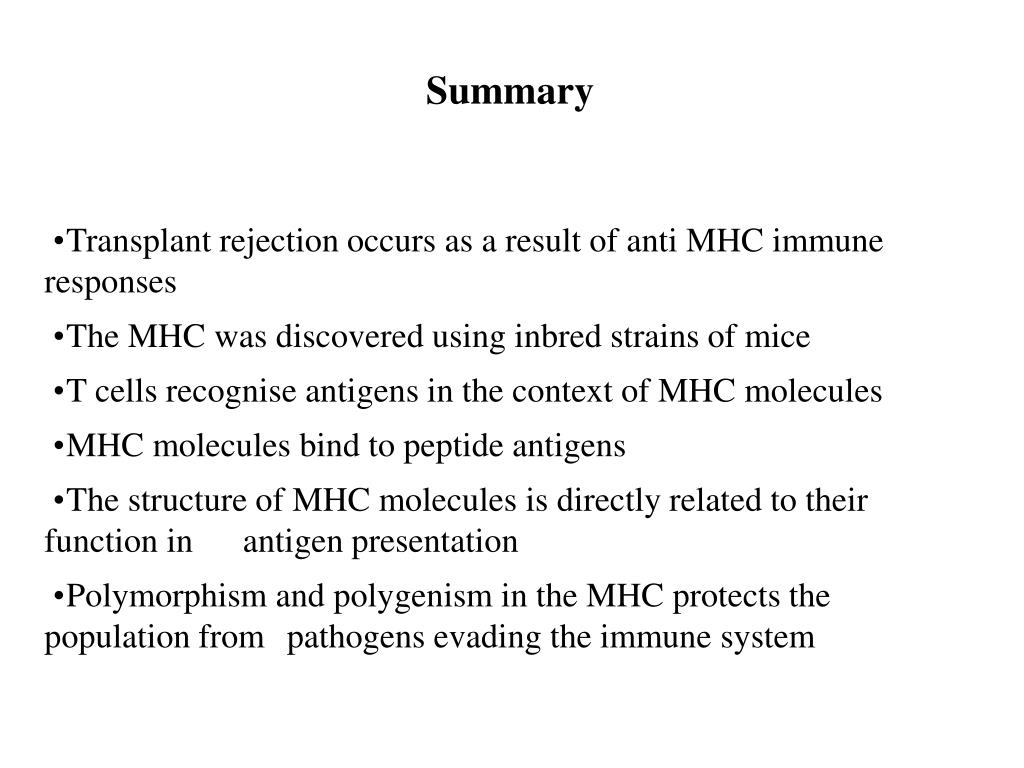

  38. Summary • Transplant rejection occurs as a result of anti MHC immune responses • The MHC was discovered using inbred strains of mice • T cells recognise antigens in the context of MHC molecules • MHC molecules bind to peptide antigens • The structure of MHC molecules is directly related to their function in antigen presentation • Polymorphism and polygenism in the MHC protects the population from pathogens evading the immune system
