  1. PhysicsEnergy

  2. Law of Conservation of Energy • energy cannot be created or destroyed only transferred from one form to another Electric  Light Chemical  Mechanical

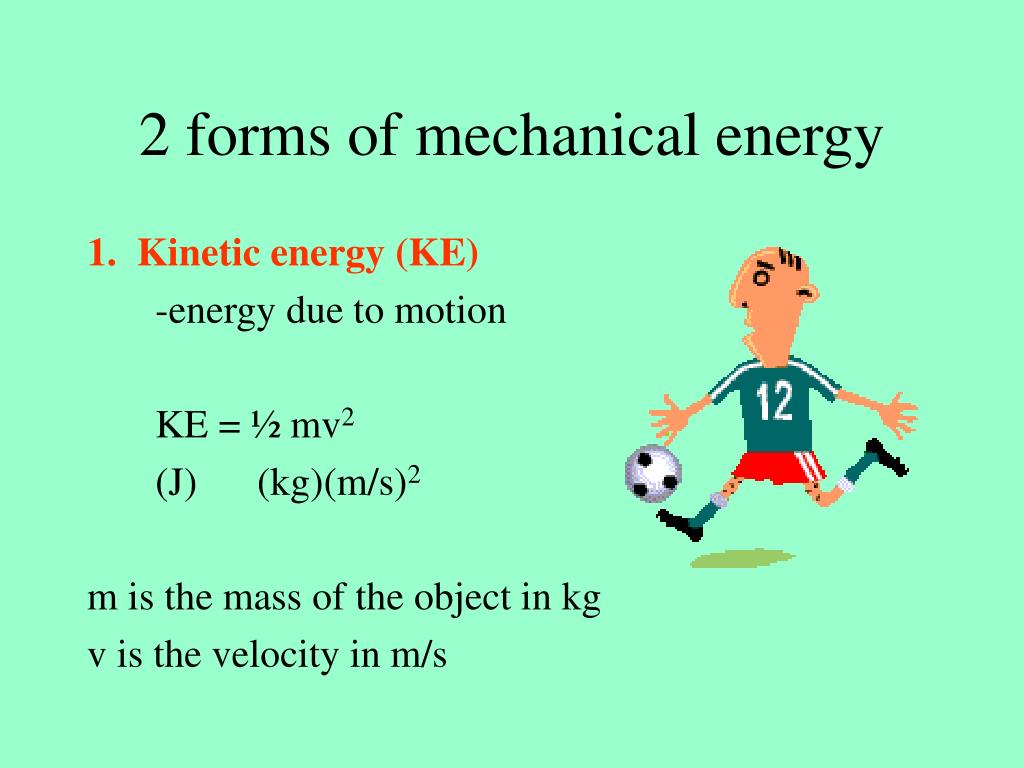

  3. 2 forms of mechanical energy 1. Kinetic energy (KE) -energy due to motion KE = ½ mv2 (J) (kg)(m/s)2 m is the mass of the object in kg v is the velocity in m/s

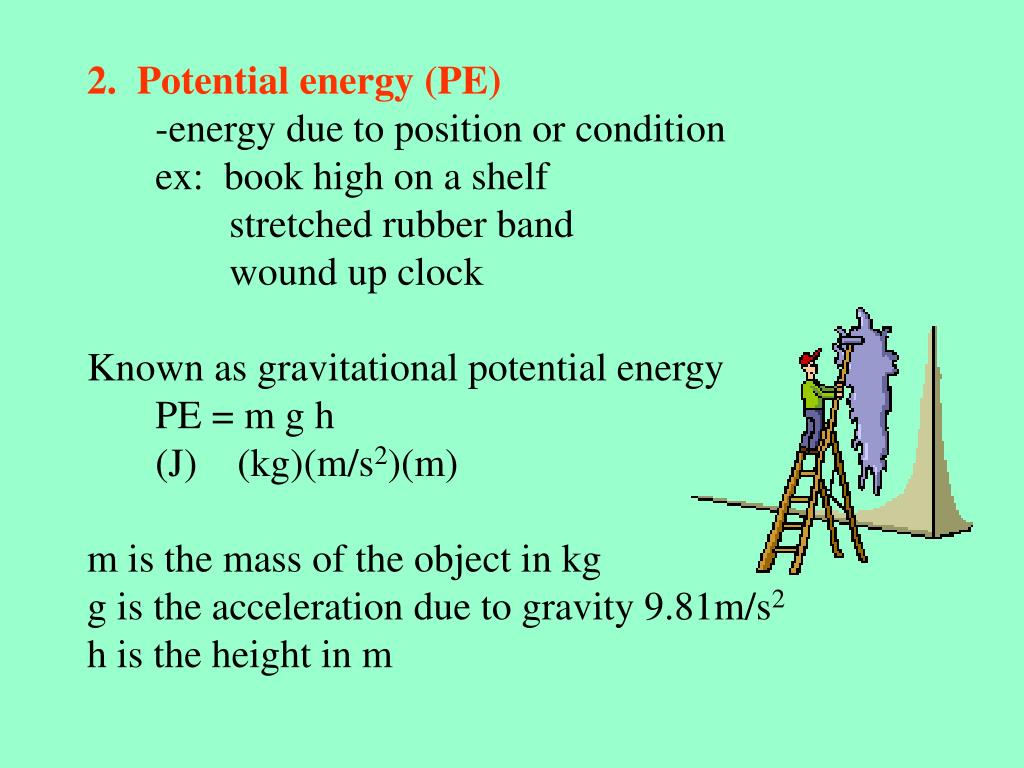

  4. 2. Potential energy (PE) -energy due to position or condition ex: book high on a shelf stretched rubber band wound up clock Known as gravitational potential energy PE = m g h (J) (kg)(m/s2)(m) m is the mass of the object in kg g is the acceleration due to gravity 9.81m/s2 h is the height in m

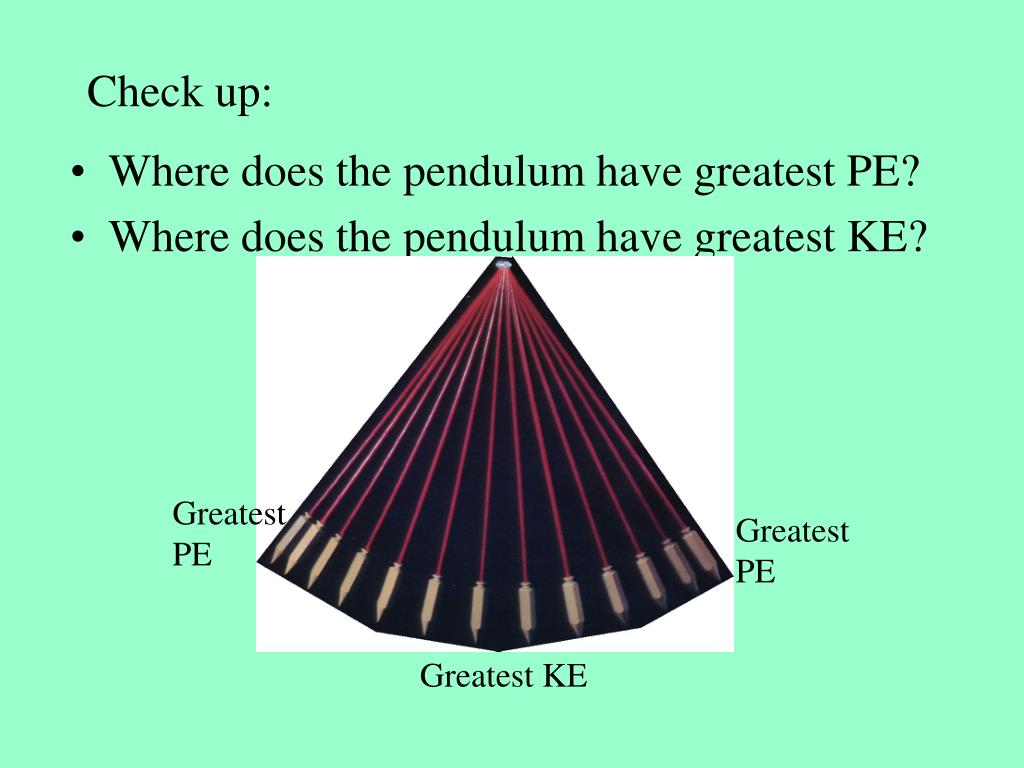

  5. Check up: • Where does the pendulum have greatest PE? • Where does the pendulum have greatest KE? Greatest PE Greatest PE Greatest KE
