  1. Campus Firewalling Dearbhla O’Reilly Network Manager Dublin Institute of Technology

  2. Overview • Context of Firewall for DIT • Firewall Experiences • Mobile Network with Firewall • Where we are now ?

  3. Background to DIT Firewall • Presentation in 2000 to IT Group on Firewall role in- Security - Bandwidth - Content (web)

  4. Issues • Security - Educational institutions are prime targets - CPU power, bandwidth, disk space. Attacks - web page, spam, port scans, logon attempts • Bandwidth - Competition for traffic prioritisation and network utilisation • Content - Viewing inappropriate web content, serving content from DIT

  5. Firewall Solutions • Security - Assist in protecting users, information, operation and reputation • Bandwidth - Allow core services run efficiently • Content– Designated Web Servers

  6. http://sysinfo.dit.ie/

  7. D.I.T. HEAnet Perimeter Firewall

  8. Implementation • Deny all and allow approved services • Standard set of services - desktop • Procedure - Internet Service Server Registration Formbased on now Archived JISC Project – Use of Firewalls in Academic Environment.

  9. Firewall Use & Maintenance • Form - List of Ports to/from and Why ? • Server Administrator – Security, Patching, Responsibility. • Head of School/Section – Approves and complies with DIT & HEAnet Policies

  10. Registration Conditions • Any service may be blocked without notice if network & systems staff suspect a security breach • All services are provided for the server specified and should not operate as a proxy • All approvals are subject to review by ISSC • Firewall rule-sets for servers/services will be audited on a regular basis

  11. Experiences • Paper Forms - by User • Firewall Rules are – by Service • ~200 Firewall Rules • Requirement for Rule Management Software • Firewall Rule Maintenance

  12. Maintenance Experience • Logs - mainly used for real-time support • Firewall Maintenance - Backup/Recovery, Log Rotation, Patches, Upgrades etc.

  13. Mobile Network Requirements • Wired & Wireless Connectivity for Student Laptops • Separate Projects starting to address Identity for Staff & Students • Service needed to be provided

  14. D.I.T. HEAnet Mobile Perimeter Firewall

  15. Mobile Network & Firewall • Traffic from mobile network in all sites passes through Bluesocket authentication gateway • Traffic from DIT mobile network into DIT fixed network is filtered through the same ruleset as applies to all external traffic • Traffic from DIT mobile network for external destinations is filtered through the same ruleset as standard outgoing DIT traffic

  16. Mobile Network Access with Timed Firewall Rule

  17. MRTG - Mobile Network Access

  18. Limitations/New Requirements • Gigabit Ethernet • IPv6 Support • Performance • Reporting/Logging

  19. Procurement Process • Request for Quotes • Based on Requirements • Award Criteria – Quality and Functional Characteristics, Technology, Cost, Supplier – Support, Maintenance, Experience.

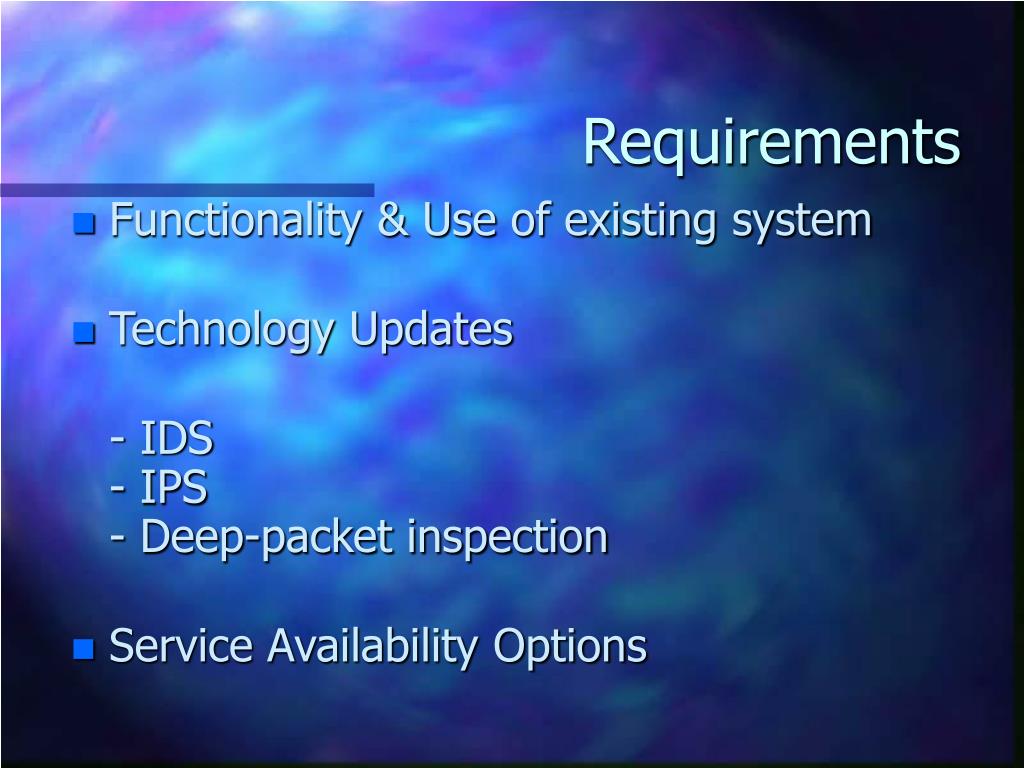

  20. Requirements • Functionality & Use of existing system • Technology Updates - IDS - IPS - Deep-packet inspection • Service Availability Options

  21. Thank You& Questions?
