  1. Chapter 23Materials management

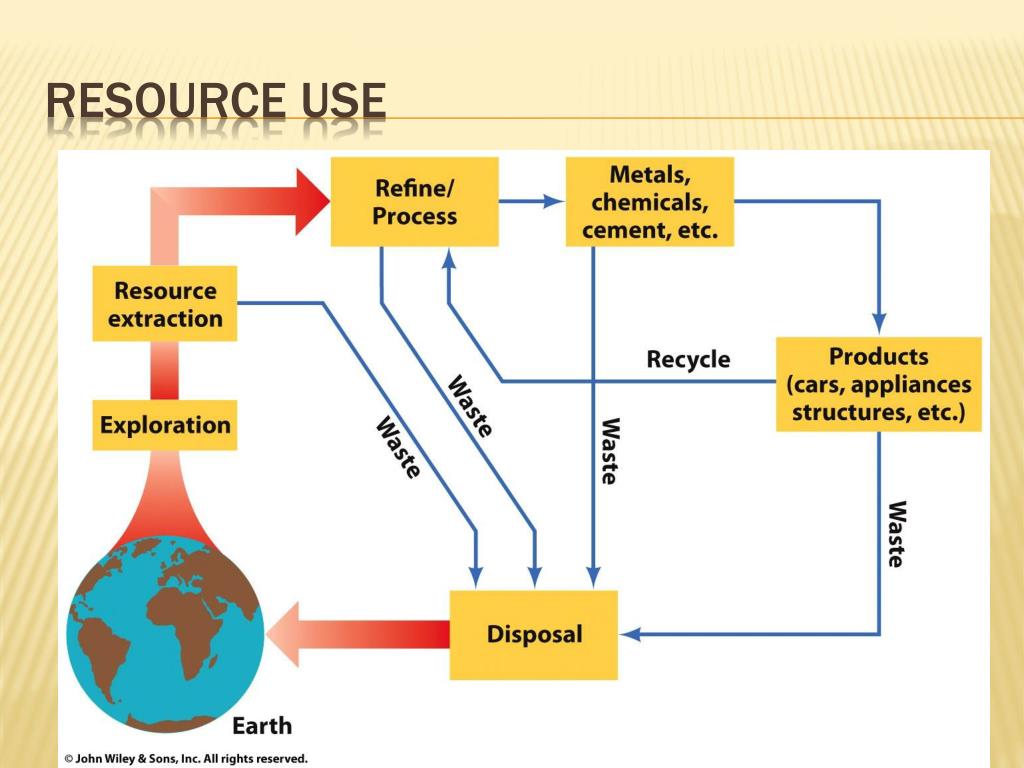

  2. Resource use

  3. How much is left?

  4. Mining • Is used to extract valuable minerals from the earth • Is dependent on crustal abundance • Elements and minerals are not equally represented or distributed in the earth’s crust • Countries and companies have mineral reserves • Known quantity that can be realistically recovered by mining Relative crustal abundance of most common minerals

  5. Mined Materials • Sand and gravel • Metals • Phosphates • Salts • Sodium • Sulfur • Gemstones • Fuel sources • Coal • Uranium

  6. Ore • Concentrated accumulations of minerals formed from geologic processes • Can also contain waste material • Must usually be processed to produce a pure form of the mineral • Can occur in veins • Localized high concentrations of a mineral • Can occur in disseminated deposits • Large, widely spread lower concentrations of a mineral

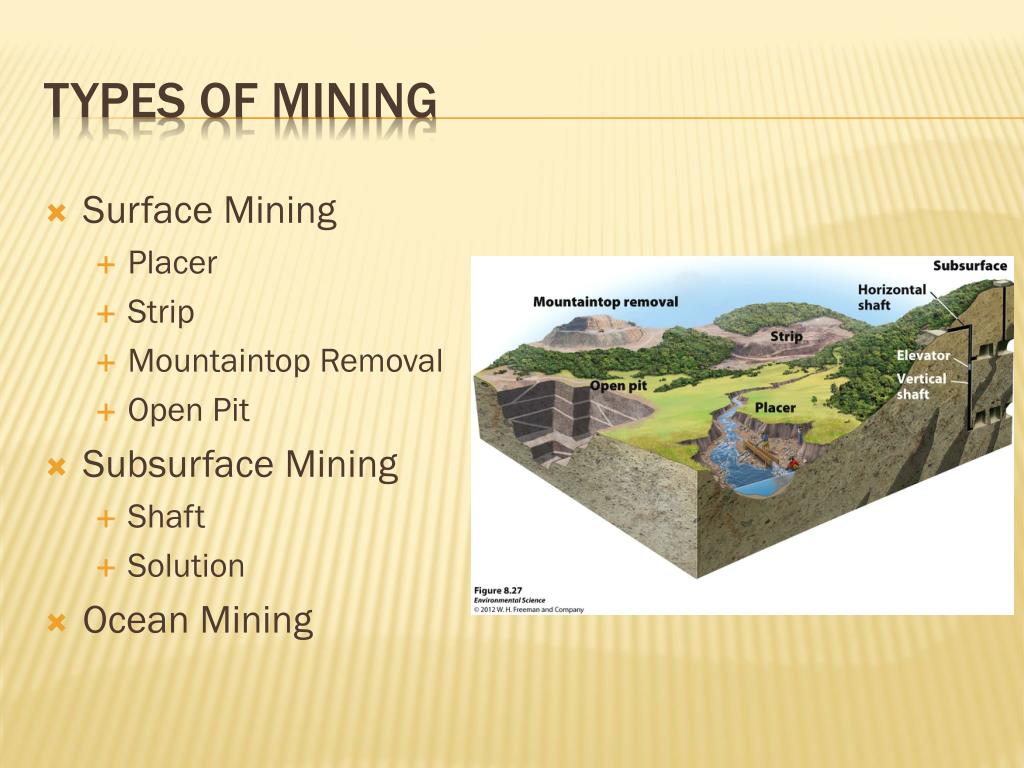

  7. Types of Mining • Surface Mining • Placer • Strip • Mountaintop Removal • Open Pit • Subsurface Mining • Shaft • Solution • Ocean Mining

  8. Placer Mining • Used when a resource accumulates in riverbed deposits • Running water is used to sift lighter materials from the heavier resource materials • Also called panning • Disturbs large amounts of sediment

  9. Strip Mining • Used when a resource exists in layers near the Earth’s surface • Rock and soil above the resource (overburden) is removed from a strip of land • Mined material is removed and overburden is replaced

  10. Mountaintop Mining • Used when a resource occurs in seams near mountain ridges • Entire mountaintops are bulldozed and blasted away to reveal the seam • Overburden is replaced on the remaining mountain, and may fall or be dumped into adjacent valleys

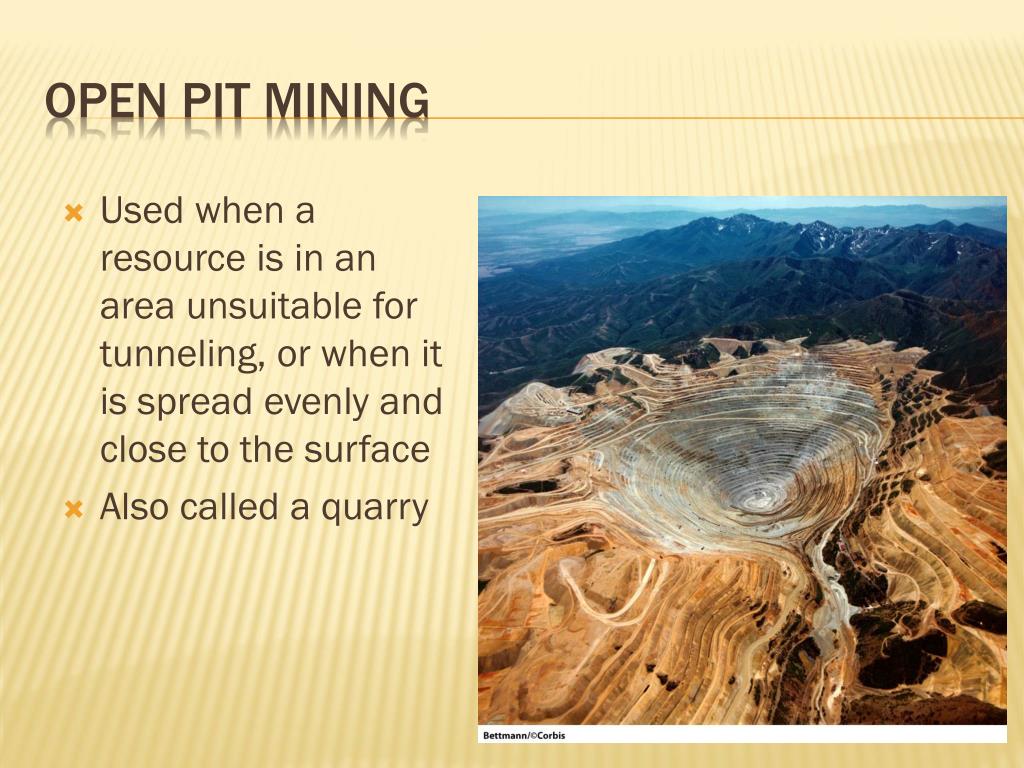

  11. Open Pit Mining • Used when a resource is in an area unsuitable for tunneling, or when it is spread evenly and close to the surface • Also called a quarry

  12. Subsurface Mining • Used when a resource occurs deep underground • Vertical shafts are dug into the ground • Horizontal tunnels are dug to follow the seam or deposit being mined • Material is removed and sent to the surface for processing

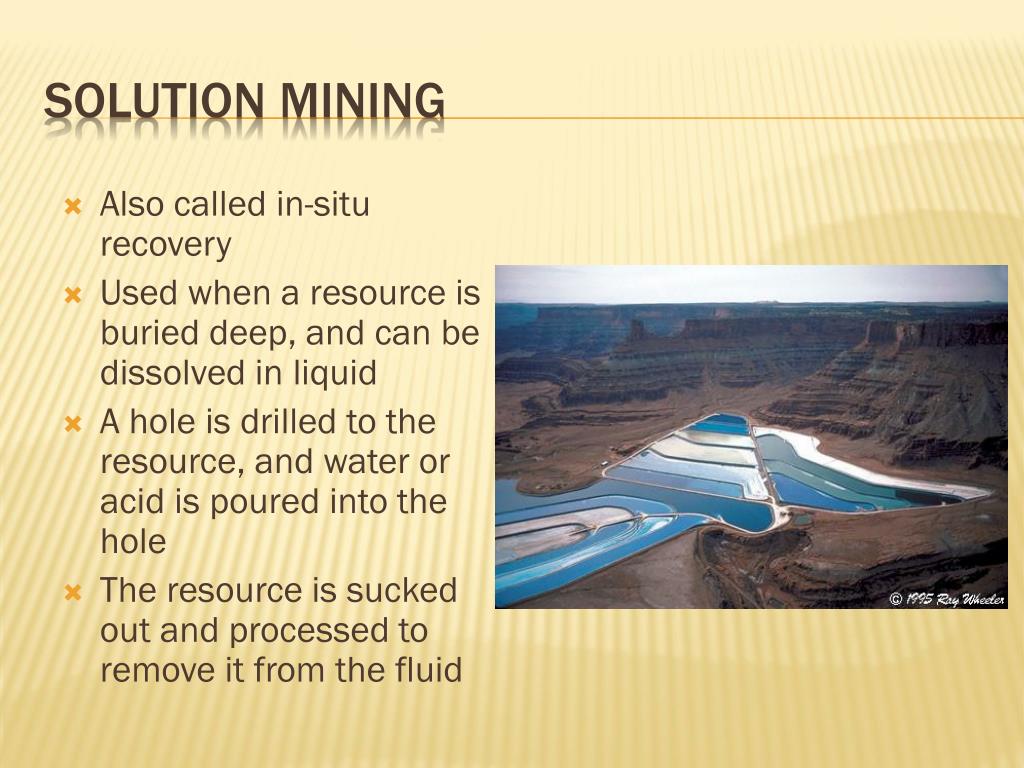

  13. Solution Mining • Also called in-situ recovery • Used when a resource is buried deep, and can be dissolved in liquid • A hole is drilled to the resource, and water or acid is poured into the hole • The resource is sucked out and processed to remove it from the fluid

  14. Ocean Mining • Used when resource deposits exist on or under the sea floor, or in seawater • Resources are “vacuumed” off the sea floor • Research is underway to extract or evaporate resources from seawater

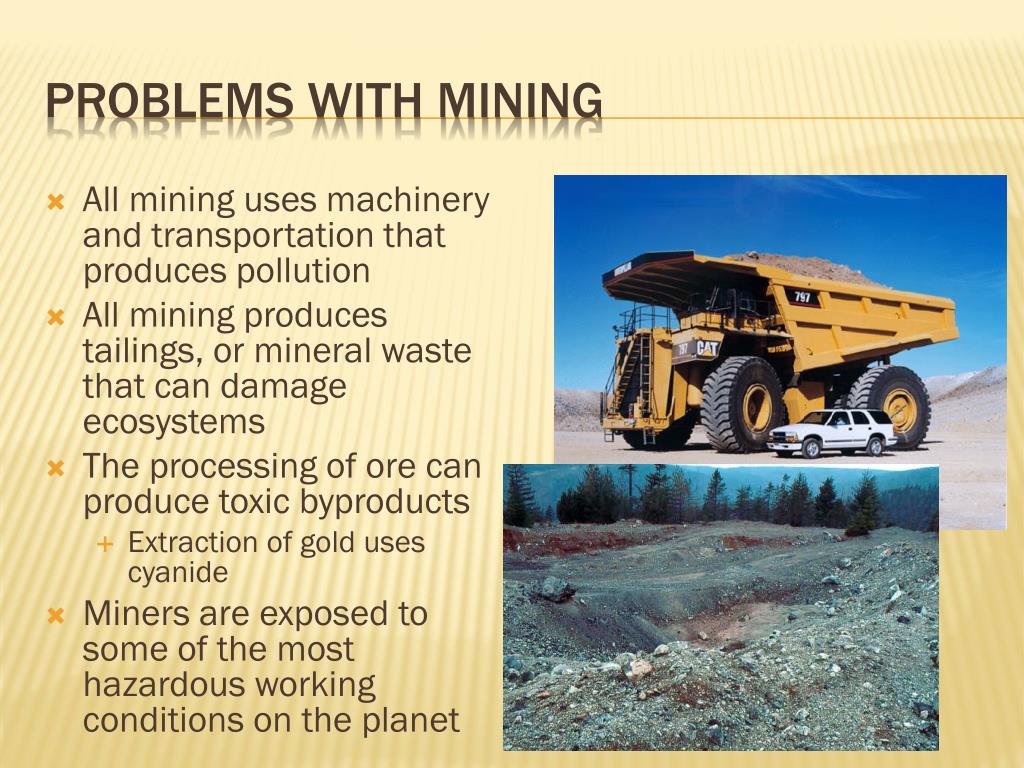

  15. Problems with Mining • All mining uses machinery and transportation that produces pollution • All mining produces tailings, or mineral waste that can damage ecosystems • The processing of ore can produce toxic byproducts • Extraction of gold uses cyanide • Miners are exposed to some of the most hazardous working conditions on the planet

  16. Acid Drainage • Most harmful form of environmental damage from mining • Occurs when newly exposed rock that contain sulfur reacts with water and oxygen to form sulfuric acid

  17. Acid Drainage • Sulfuric acid leaches metals from nearby rock and soil • Forms toxic acidic liquid called leachate • Cleanup involves neutralizing the acid and removing the metals

  18. Brownfields • Abandoned sites polluted with hazardous waste • Includes abandoned mines • Dangerous and difficult to clean up for reuse • Fall under EPA Superfund sites

  19. Mine Restoration or Reclamation • Goal is to restore a mined site to as close to its original condition as possible • Involves: • Filling in shafts and holes • Removing mining structures and equipment • Replacing overburden • Replanting • Ecosystems never fully recover from mining disruption

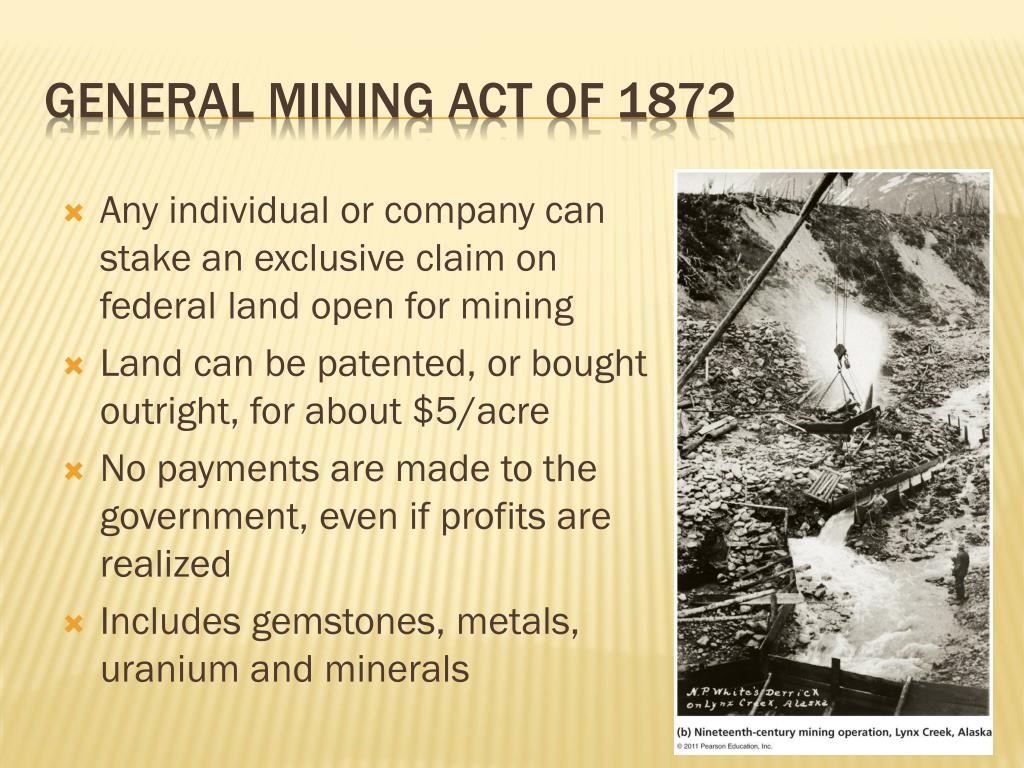

  20. General Mining Act of 1872 • Any individual or company can stake an exclusive claim on federal land open for mining • Land can be patented, or bought outright, for about $5/acre • No payments are made to the government, even if profits are realized • Includes gemstones, metals, uranium and minerals

  21. Mineral Leasing Act of 1920 • Public lands must be leased for mining, and royalties on profits are to be paid • Amounts depend on the resource being mined • Covers fossil fuels, sodium, sulfur, and phosphates

  22. Surface Mining Control and Reclamation Act of 1977 • Regulates the surface effects of coal mining • Mandates reclamation of mined areas

  23. Minerals are Nonrenewable • Minerals regenerate slowly • Many mineral deposits are being mined very quickly • As they become scarce, they will become more expensive • Environmentally friendly alternatives are being sought, including recycling

  24. Sustainable Mineral Use • Recycling is the best way to sustainably use many minerals • Uses less energy in production of goods • Reduces the amount of mining • Recycling e-waste is especially important • Reducing the use of products that contain minerals also helps

  25. Waste • Anything not useful or consumable • Is the product of a system • Inputs are raw materials and/or energy • Outputs are useful products, recyclable products, and waste

  26. A Culture of Waste • In the 1950s it became culturally acceptable to throw things away • Labor-saving, disposable consumer goods were developed • Planned obsolescence became a part of life • Products designed to be replaced

  27. Municipal Solid Waste • Is waste from non-industrial, non-agricultural, non-mining sources • Includes residences and businesses • 60% is from residences • Average is 2.8 (4.5 lbs) kg/person/day

  28. E-Waste • Is only 2% of the waste stream, but is increasing • Has an environmental impact greater than its small percentage implies • Contain metals and acids that are harmful • Poor disposal can release these pollutants to the environment • Recycling of this material must be done carefully

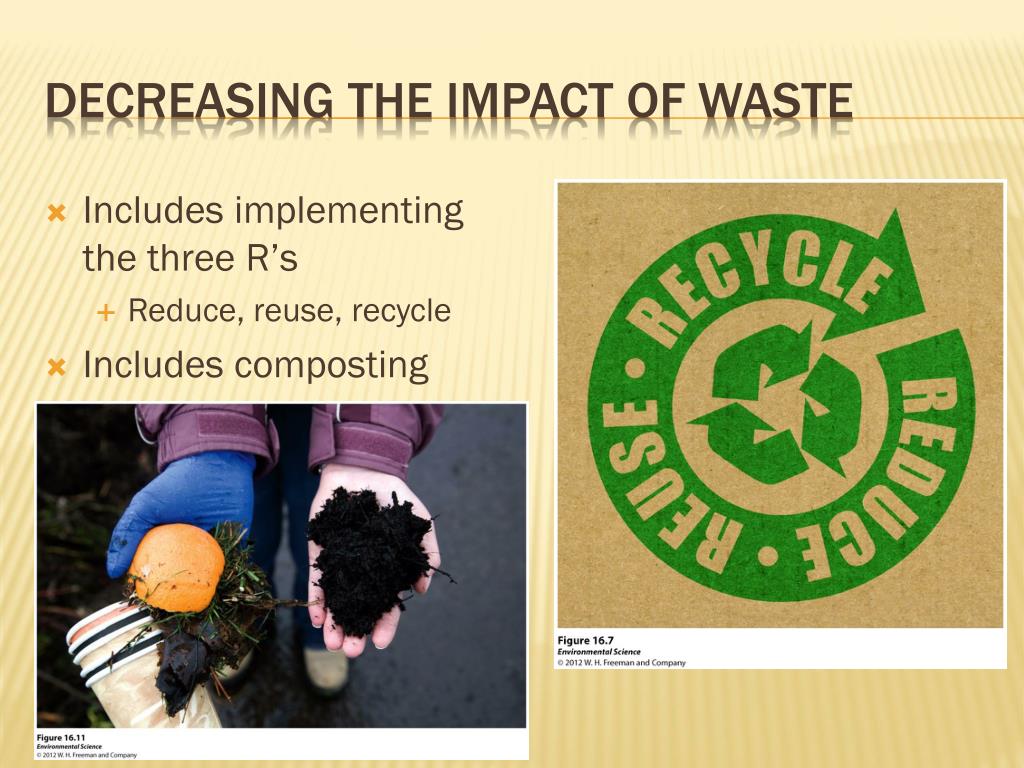

  29. Decreasing the Impact of Waste • Includes implementing the three R’s • Reduce, reuse, recycle • Includes composting

  30. Landfills • Are the most common waste disposal method • Basically just a hole in the ground filled with trash • Are a better option than open dumps • There is some control over what goes in a landfill • Can generate leachate • Water runs through the landfill and picks up chemicals from waste

  31. Sanitary Landfills • Are designed to minimize impact on surrounding areas • Are lined in plastic, often with a layer of clay beneath • Have pipes that are used to collect and remove leachate • Also have methane collection pipes • Methane can be burned to generate electricity or to power vehicles

  32. Sanitary Landfills • Are filled with materials that are: • Unlikely to create methane or toxic leachate • Difficult to recycle • Are closed once they are full • Capped with plastic • Covered in a layer of concrete or soil • Can be reclaimed for construction or parks
