  1. LPG NOZZLE DESIGNED BY DR. BOB BERNARD TESTED AND SLIGHTLY MODIFIED BY CENTRAL WHIDBEY ISLAND FIRE & RESCUE

  2. LPG NOZZLE PARTS ¾“ X ½” BUSHING 1 ½ “ X ½ “ FITTING COUPLING 2 – ½ “ CAPS 1 ½ “ PLUG ½” X 1 ½” CONNECTOR NOT SHOWN – 9” X 9” X 3/16” METAL PLATE

  3. ½” PLUG DRILL 9/64 “ HOLES AT 30 DEGREE ANGLE TO VERTICAL IN THE PLUG AT EACH SIDE OF SQUARE TOP

  4. WELD AT THIS POINT

  5. WELD TOP CAP TO METAL PLATE AFTER WELDING CAP TO PLUG AT THIS POINT, WELD THE TOP CAP TO THE METAL PLATE

  6. CAPS WELDED TO TOP PLATE AND TO PLUG

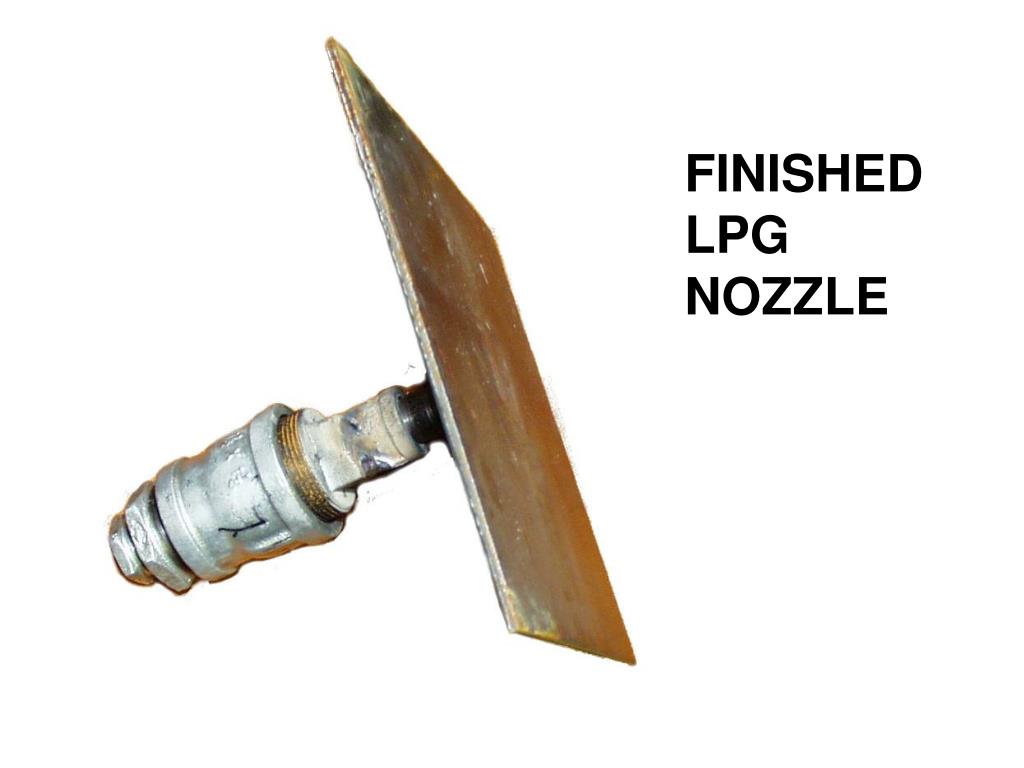

  7. FINISHED LPG NOZZLE

  8. NOZZLE INSERTED THROUGH FLOOR OF CAR INTO PASSENGER COMPARTMENT
