  1. Internet Protocol version 6 (IPv6) m5151108 Hayato Namae Colloquium

  2. Outline • Background • IPv6 -Description -Main Issue • World IPv6 Day • Conclusion Colloquium

  3. Background • Internet Protocol version 4 (IPv4) is used in the Internet as a Internet Protocol now -IPv4 address assigned newly is going to disappear If the IPv4 address completely disappear • Can no longer connect device (computer, cell-phone, etc.) to the Internet • Cannot establish a new website As a result, development of the Internet stops • Internet Protocol version 6 (IPv6) is going to be introduced to solve this problem Colloquium

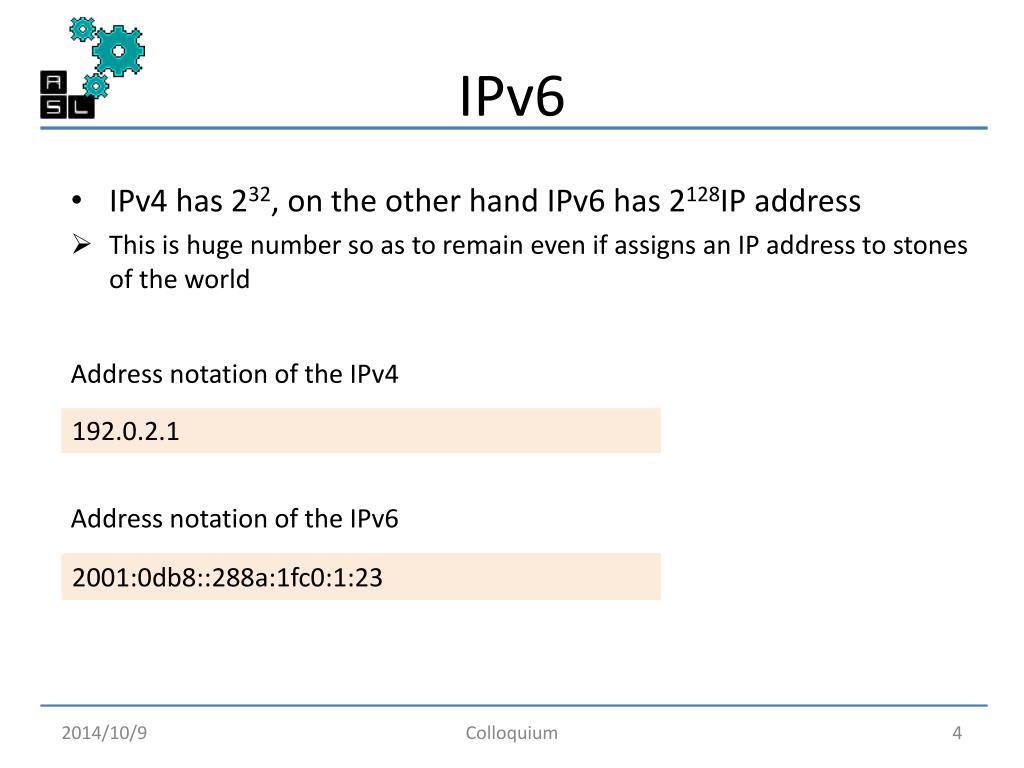

  4. IPv6 • IPv4 has 232, on the other hand IPv6 has 2128IP address • This is huge number so as to remain even if assigns an IP address to stones of the world Address notation of the IPv4 192.0.2.1 Address notation of the IPv6 2001:0db8:0000:0000:288a:1fc0:0001:0023 2001:0db8::288a:1fc0:1:23 2001:0db8:0:0:288a:1fc0:1:23 2001:0db8:0000:0000:288a:1fc0:1:23 Colloquium

  5. Main Issue • IPv6 is not compatible with IPv4 • must support both protocols during the parallel operative period Dual Stack Dual Stack means that support IPv4 and IPv6 functions. IPv6 server Dual Stack client Dual Stack router IPv4 server Colloquium

  6. Main Issue Tunneling A technique that encapsulate a packet and send it in a network is tunneling IPv4 IPv6 IPv6 IPv4 IPv6 Colloquium

  7. World IPv6 Day • World IPv6 Day was an event sponsored and organized by the Internet Society • started at 00:00 UTC on June 8, 2011 and ended 23:59 the same day • The main motivation for the event was to evaluate the real world effects of the IPv6 • Many company participated -Google -Yahoo! -Facebook -Akamai -Limelight Networks …… Colloquium

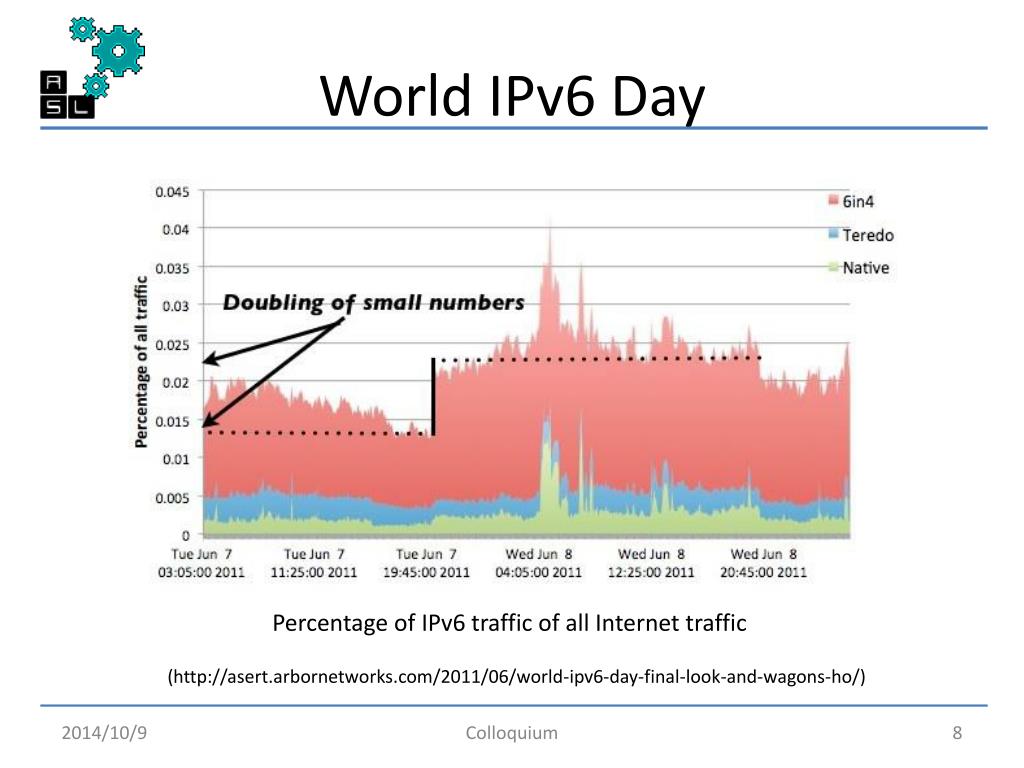

  8. World IPv6 Day Percentage of IPv6 traffic of all Internet traffic (http://asert.arbornetworks.com/2011/06/world-ipv6-day-final-look-and-wagons-ho/) Colloquium

  9. Conclusion • The IPv6 is a method to solve the issue of IP address drying up • Currently, manage two protocols of IPv4 and IPv6 parallel • The percentage of the IPv6 is still low and will take more time to completely shift Colloquium
