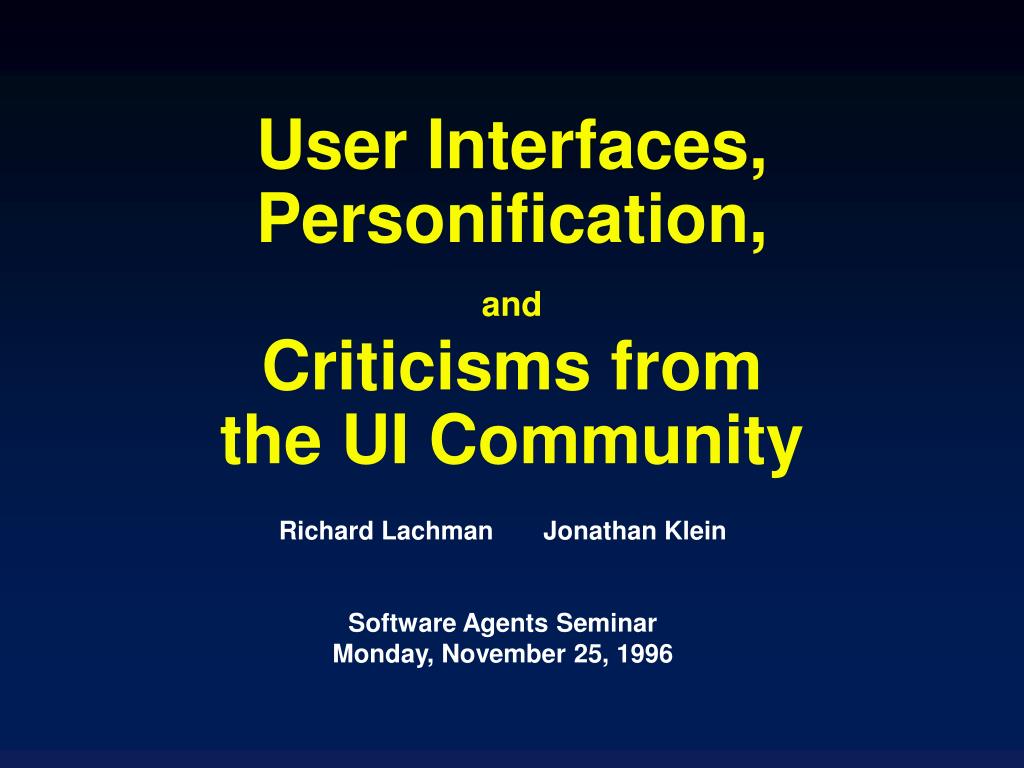

  1. User Interfaces, Personification, andCriticisms from the UI Community • Richard Lachman Jonathan Klein • Software Agents Seminar • Monday, November 25, 1996

  2. The Agenda • I. User Interface Design for Software Agents • II. The Personification Issue • III. Complaints from the User-Interface Community

  3. Part I: User Interface Design for Software Agents Part II: Personification in the interface Part III: Complaints from the User Interface Community

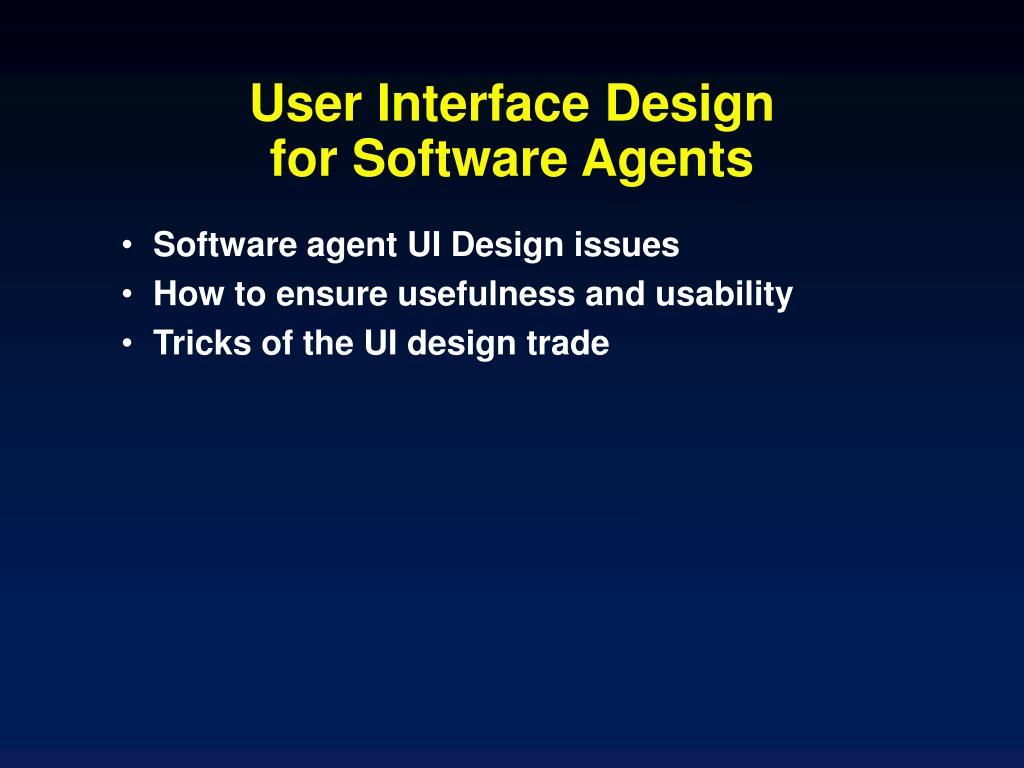

  4. User Interface Design for Software Agents • Software agent UI Design issues • How to ensure usefulness and usability • Tricks of the UI design trade

  5. UI Design Issues Relevant to Agents • Understanding - does user understand agent? can user trust the agent? • Control - how does user control agent? • Distraction - how to minimize distraction? • Ease of use - how expert does user have to be? • Personification - how to represent agent to user?

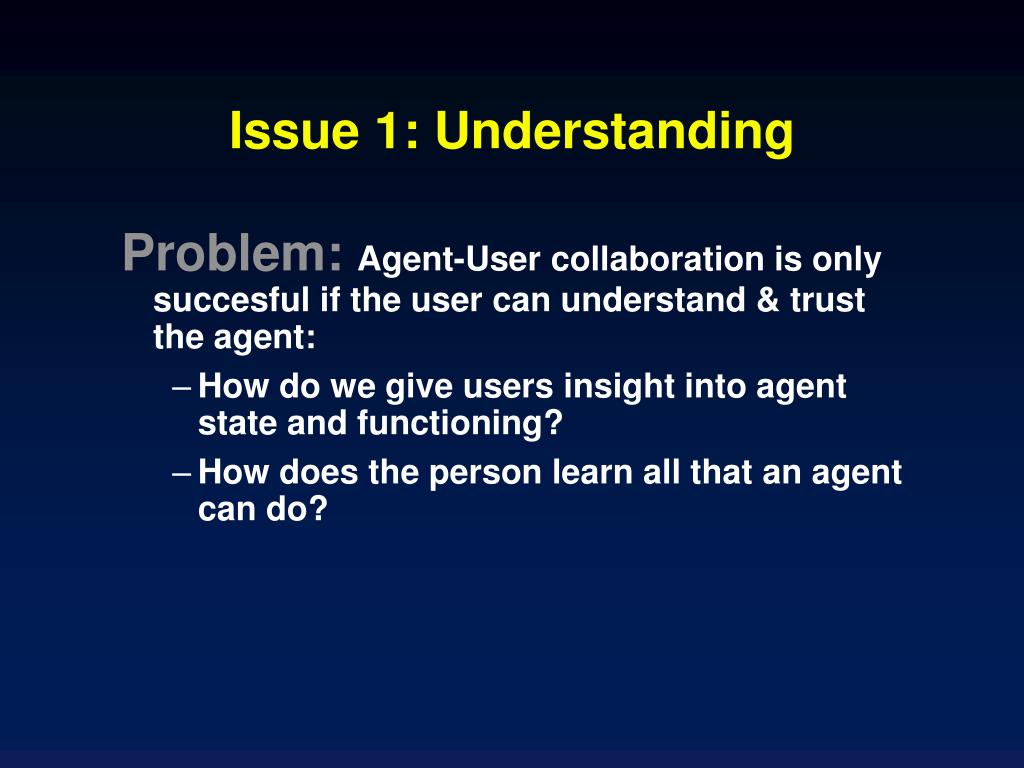

  6. Issue 1: Understanding Problem: Agent-User collaboration is only succesful if the user can understand & trust the agent: • How do we give users insight into agent state and functioning? • How does the person learn all that an agent can do?

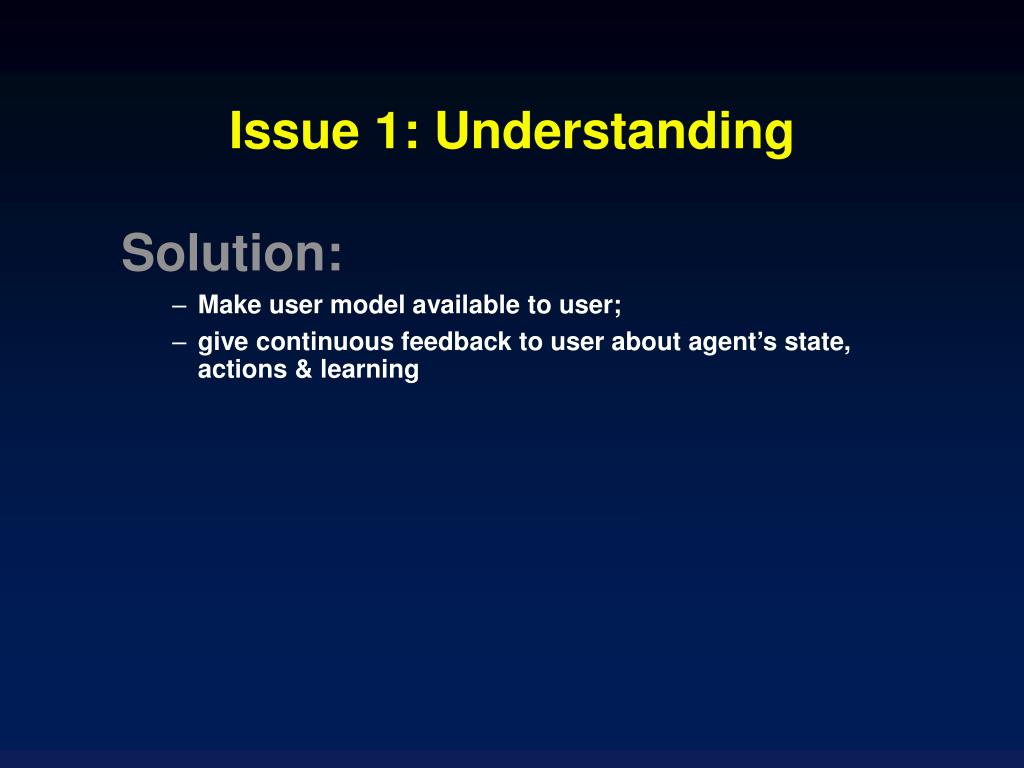

  7. Issue 1: Understanding Solution: • Make user model available to user; • give continuous feedback to user about agent’s state, actions & learning

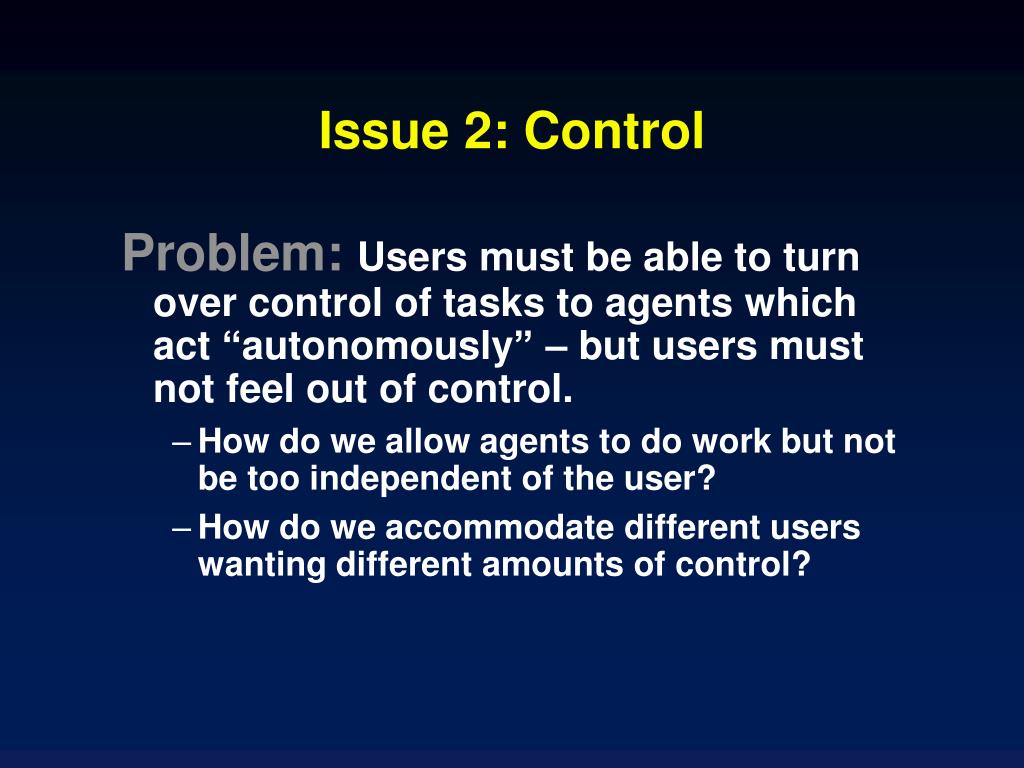

  8. Issue 2: Control Problem: Users must be able to turn over control of tasks to agents which act “autonomously” – but users must not feel out of control. • How do we allow agents to do work but not be too independent of the user? • How do we accommodate different users wanting different amounts of control?

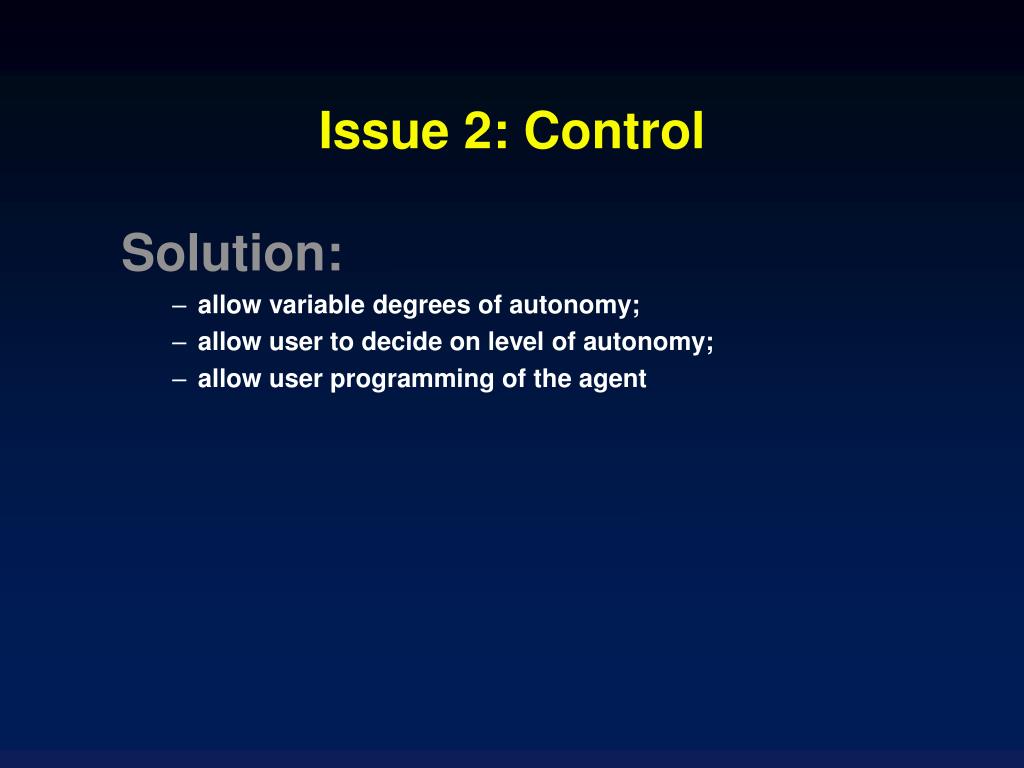

  9. Issue 2: Control Solution: • allow variable degrees of autonomy; • allow user to decide on level of autonomy; • allow user programming of the agent

  10. Issue 3: Distraction Problem: Autonomous agents should keep user informed and interrupt if necessary. • How can users control the level of interaction they want from agents? • When is an issue/event important enough that the agent is allowed to interrupt? • How can agent actions be made known to users without unnecessary interruption?

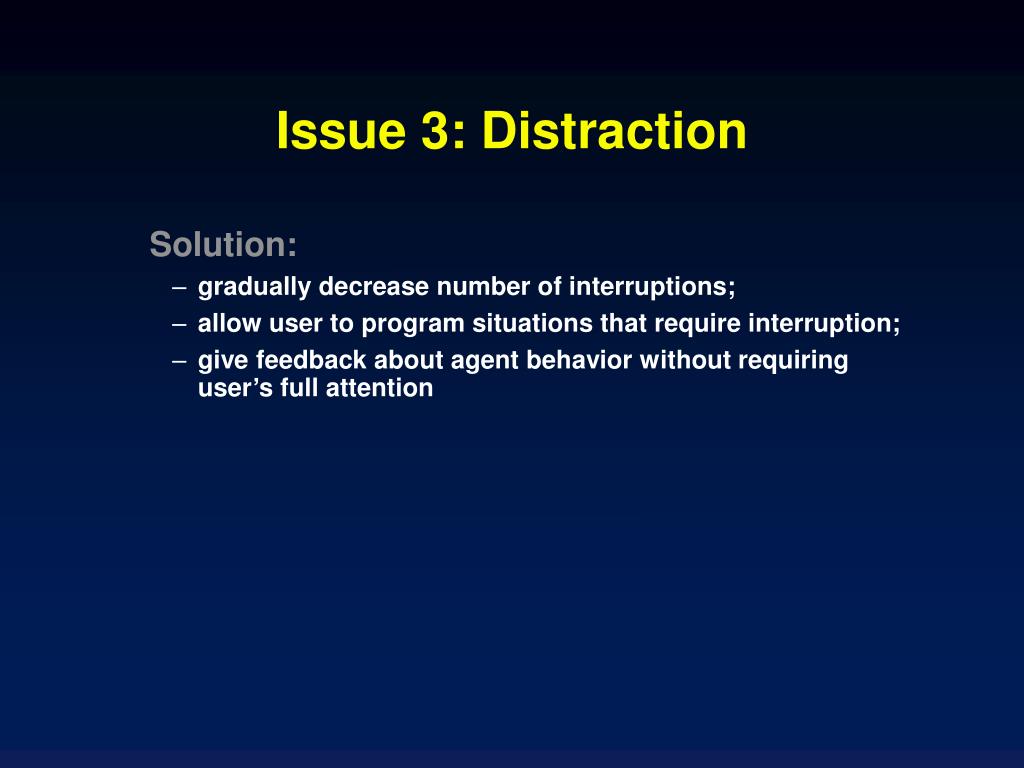

  11. Issue 3: Distraction Solution: • gradually decrease number of interruptions; • allow user to program situations that require interruption; • give feedback about agent behavior without requiring user’s full attention

  12. Issue 4: Ease of Use Problem: Agents should be employed for tasks users cannot or do not want to concern themselves with. If using the agent is too complex, users will not use them. • How do we enable users to instruct agents without requiring programming? • How do we enable agents to fit unobtrusively into users' task environments?

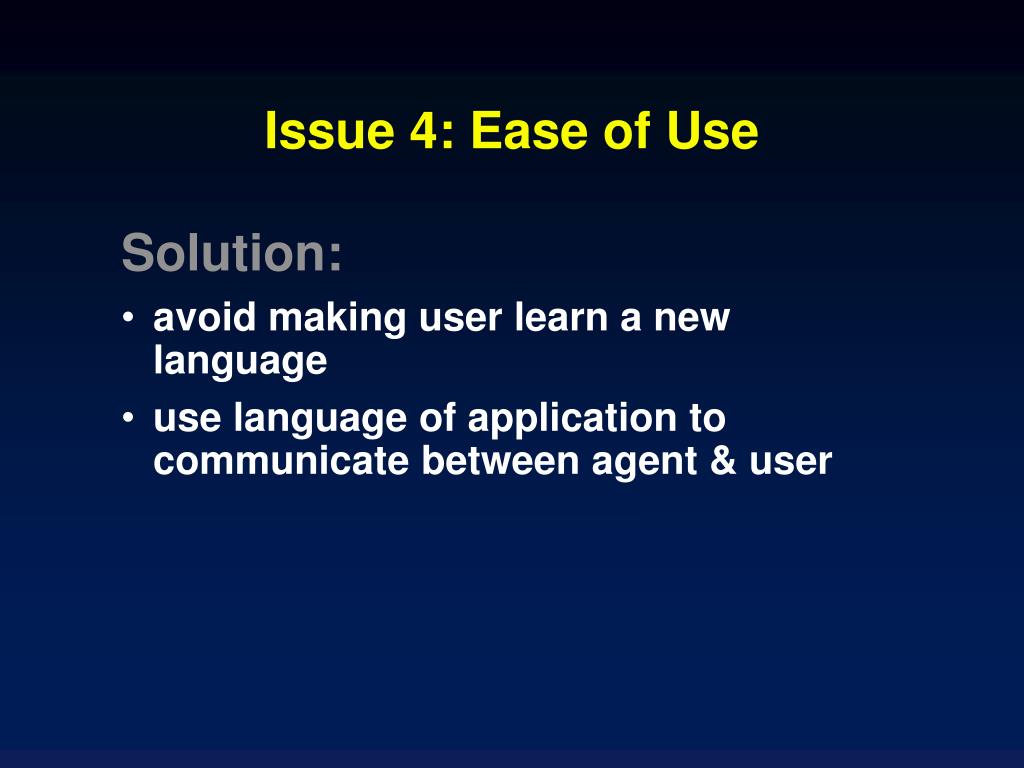

  13. Issue 4: Ease of Use Solution: • avoid making user learn a new language • use language of application to communicate between agent & user

  14. Issue 5: Personification Problem: Personification is a natural process. Agents are often personified to remind the user that a process is at work taking action on their behalf. • How can we personify without misleading people into thinking the computer is intelligent? • How can we take advantage of personification tendencies?

  15. Issue 5: Personification Solution: ??? • jury is still out on this one... • pros: Laurel, Nass, ... • cons: Schneiderman, Lanier, Norman, ... • experiments: Koda, King, Walker, ...

  16. Personified Agents Research • issues: • animation • facial expressions • gestures • natural language/speech I/O • ... • see LCC Conferences

  17. Other Agent UI Design Issues • Hiding complexity while revealing underlying operations • Promoting accurate expectations • Minimizing false hopes • Built-in safeguards against “runaway computation” • Addressing privacy concerns

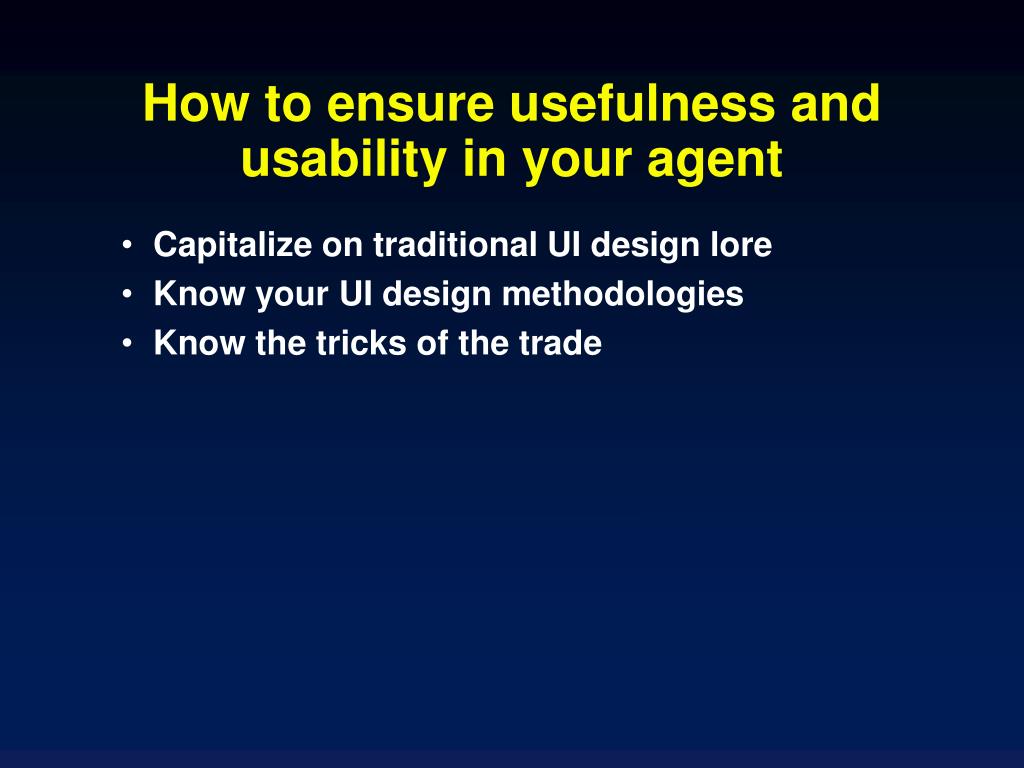

  18. How to ensure usefulness and usability in your agent • Capitalize on traditional UI design lore • Know your UI design methodologies • Know the tricks of the trade

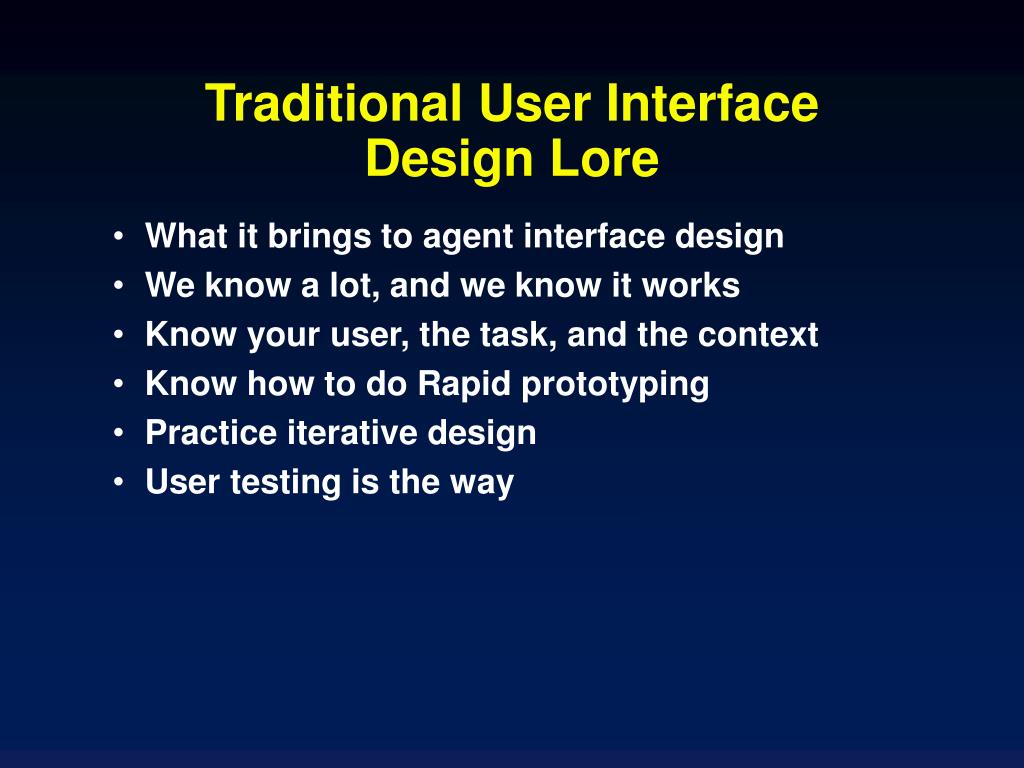

  19. Traditional User Interface Design Lore • What it brings to agent interface design • We know a lot, and we know it works • Know your user, the task, and the context • Know how to do Rapid prototyping • Practice iterative design • User testing is the way

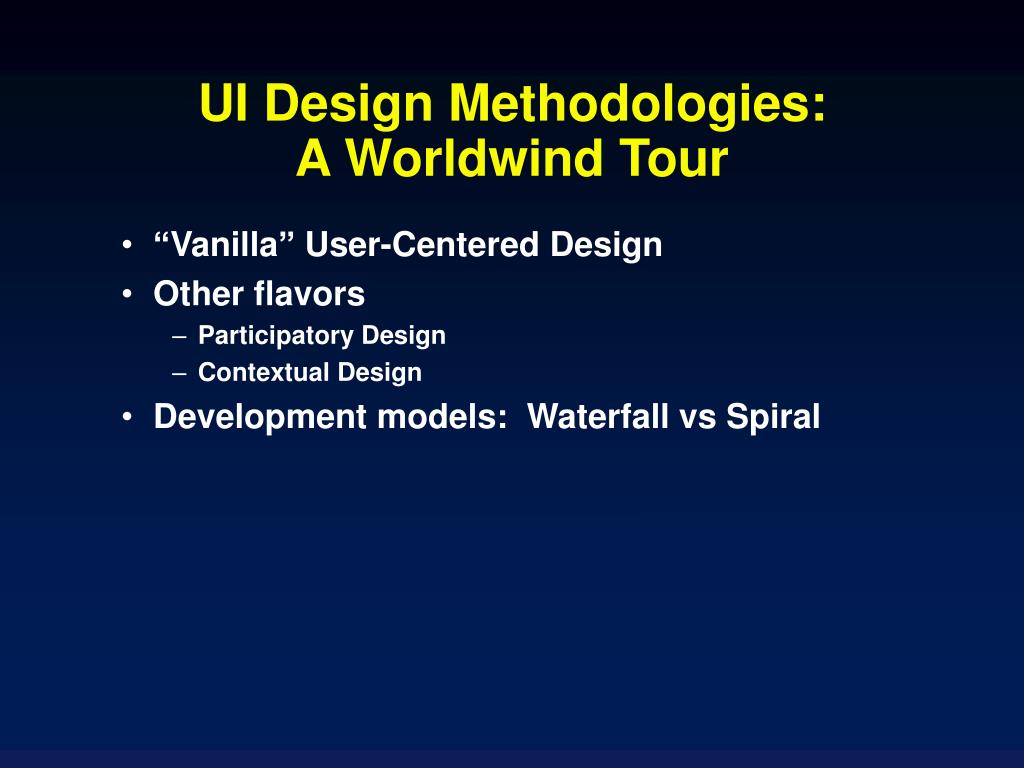

  20. UI Design Methodologies: A Worldwind Tour • “Vanilla” User-Centered Design • Other flavors • Participatory Design • Contextual Design • Development models: Waterfall vs Spiral

  21. Development models, take 1: The Waterfall Model

  22. Development models, take 2: The Spiral Model

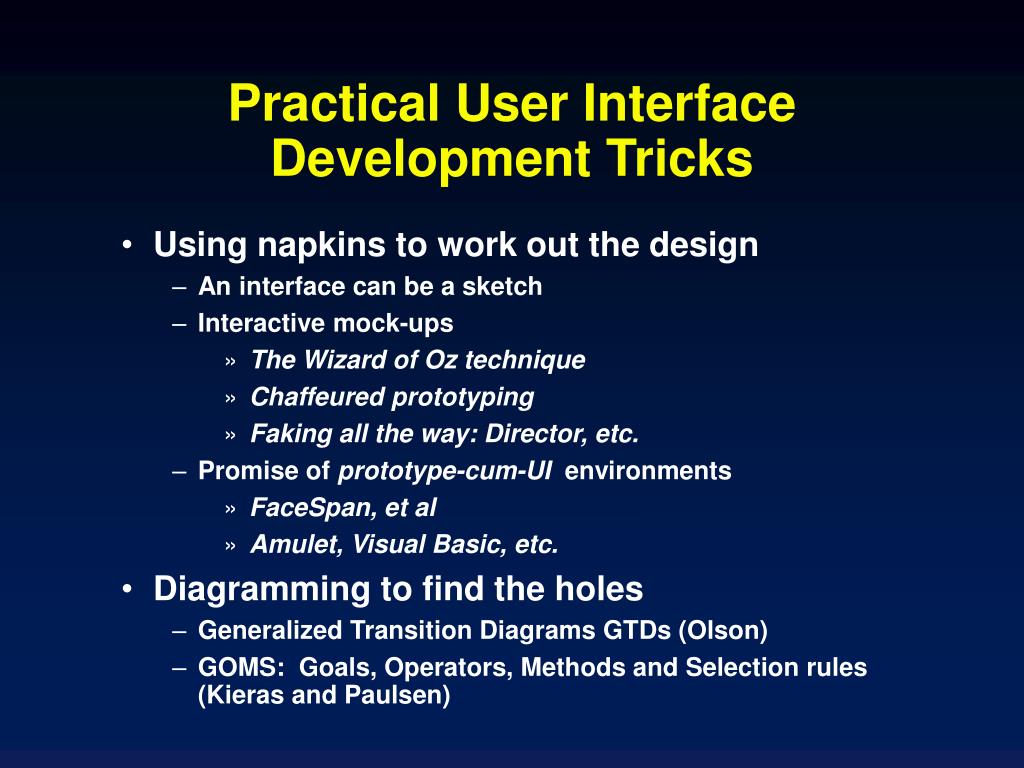

  23. Practical User Interface Development Tricks • Using napkins to work out the design • An interface can be a sketch • Interactive mock-ups • The Wizard of Oz technique • Chaffeured prototyping • Faking all the way: Director, etc. • Promise of prototype-cum-UI environments • FaceSpan, et al • Amulet, Visual Basic, etc. • Diagramming to find the holes • Generalized Transition Diagrams GTDs (Olson) • GOMS: Goals, Operators, Methods and Selection rules (Kieras and Paulsen)

  24. Part I: User Interface Design for Software Agents Part II: Personification in the interface Part III: Complaints from the User Interface Community

  25. The Personification Issue • A Provisional Definition • What animism implies to users • What humans bring to the table • Forms it takes • Costs and benefits

  26. A Provisional Definition: Animism • Humans, animals, cartoons • Faces, voices, text • “Personification” doesn’t apply to dogs

  27. “Animacy, then, is more properly understood as • a framework or way of thinking...Animate thinking • stems from a basic need to explain happenings and • tell simple stories about them, and a need to fit • things into roles in the stories as actors and objects • of action” • - E. F. Keller • “Reflections on Gender and Science”

  28. What an Animistic UI implies • Autonomy • Actions are initiated without external physical cause • Purposefulness • Actions are undertaken to achieve a goal • Reactivity • Responsive and adaptive to changes in the environment adapted from Traver96

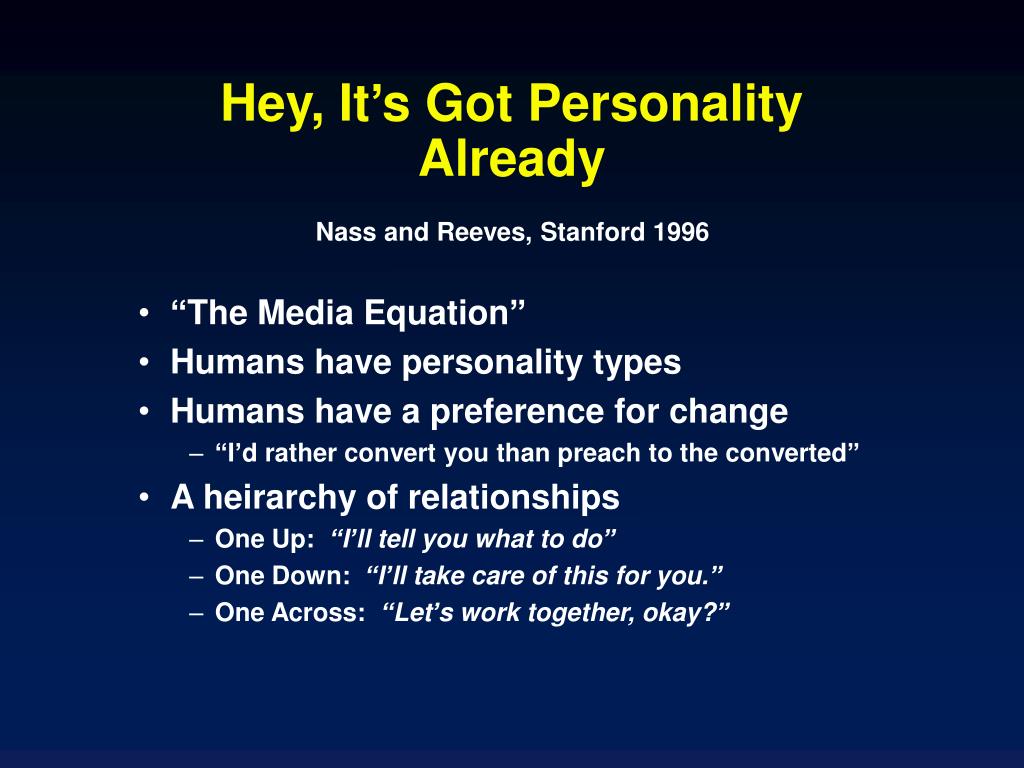

  29. Hey, It’s Got Personality Already Nass and Reeves, Stanford 1996 • “The Media Equation” • Humans have personality types • Humans have a preference for change • “I’d rather convert you than preach to the converted” • A heirarchy of relationships • One Up: “I’ll tell you what to do” • One Down: “I’ll take care of this for you.” • One Across: “Let’s work together, okay?”

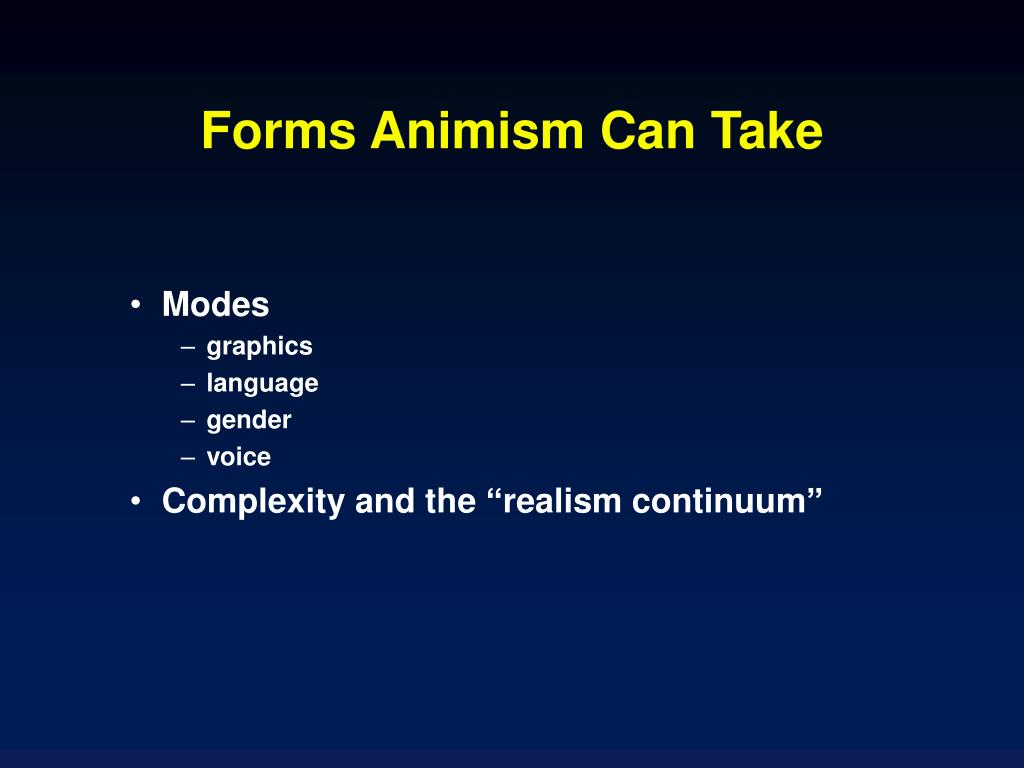

  30. Forms Animism Can Take • Modes • graphics • language • gender • voice • Complexity and the “realism continuum”

  31. Benefits of Animism • Consistent personality across software • It adapts to me • A perception of simplicity • Comfortable relationship

  32. Costs of Animism • Overattribution of agent’s abilities • User can misunderstand agent’s user model • Threatens user’s comfort, sense of control • Inefficiency of Interaction • Distraction • Devaluation of Human Interaction

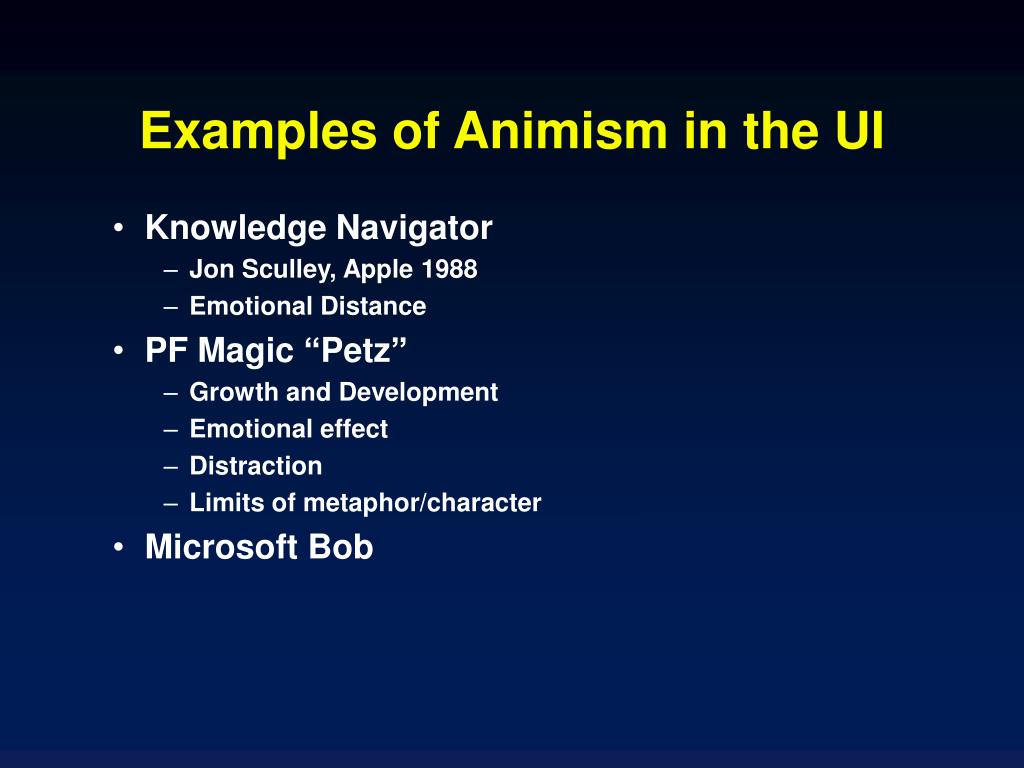

  33. Examples of Animism in the UI • Knowledge Navigator • Jon Sculley, Apple 1988 • Emotional Distance • PF Magic “Petz” • Growth and Development • Emotional effect • Distraction • Limits of metaphor/character • Microsoft Bob

  34. Microsoft Bob - Main Screen

  35. Microsoft Bob - Characters

  36. Part I: User Interface Design for Software Agents Part II: Personification in the interface Part III: Complaints from the User Interface Community

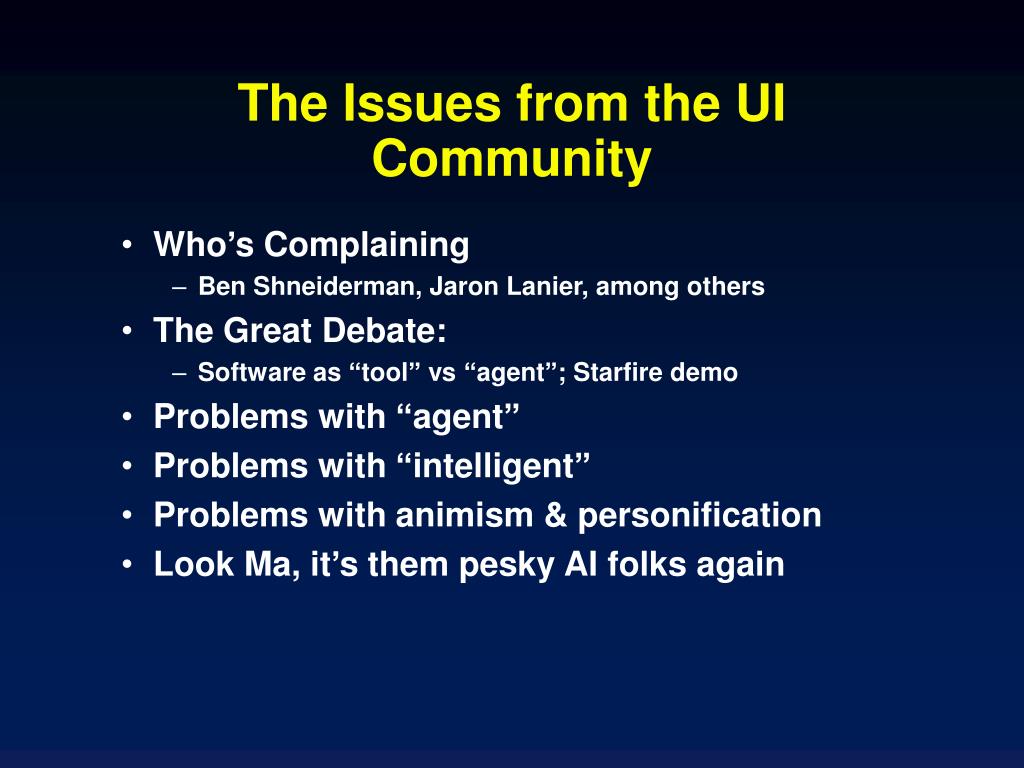

  37. The Issues from the UI Community • Who’s Complaining • Ben Shneiderman, Jaron Lanier, among others • The Great Debate: • Software as “tool” vs “agent”; Starfire demo • Problems with “agent” • Problems with “intelligent” • Problems with animism & personification • Look Ma, it’s them pesky AI folks again

  38. Another Look at Agents • The *STARFIRE* demo Sun Microsystem Bruce Tognazzini

  39. Another Look at Agents • Starfire • The interface is the thing • Agents as tools embedded in the environment • The only faces on the screen are people • Control is never a point of contention

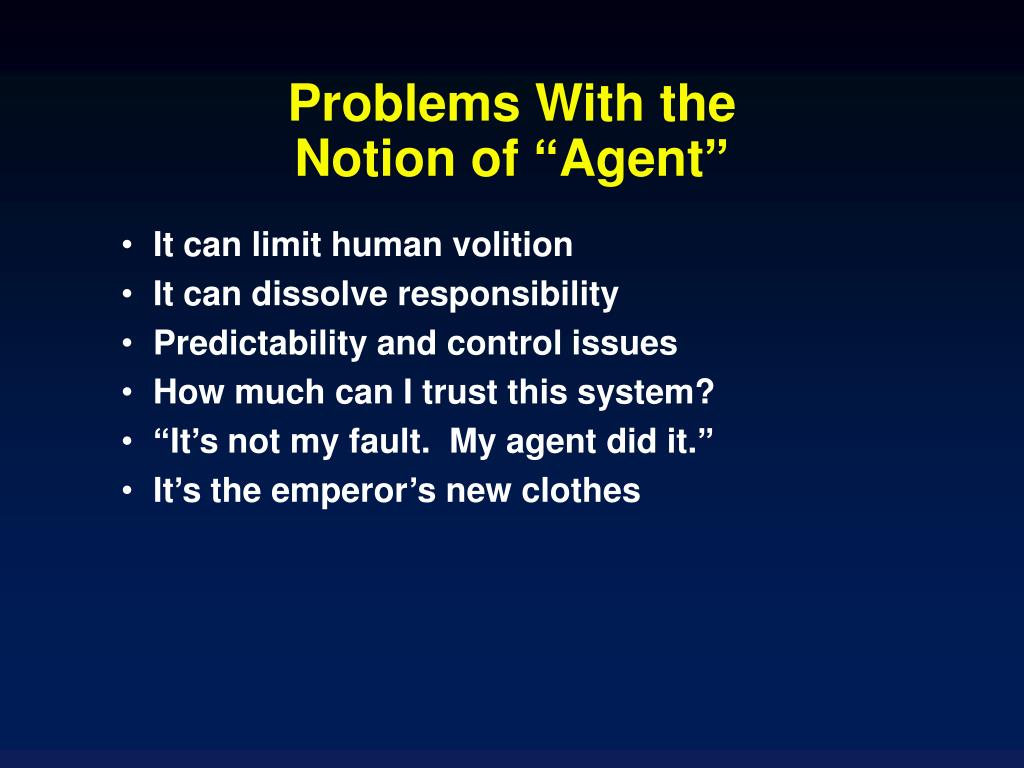

  40. Problems With the Notion of “Agent” • It can limit human volition • It can dissolve responsibility • Predictability and control issues • How much can I trust this system? • “It’s not my fault. My agent did it.” • It’s the emperor’s new clothes

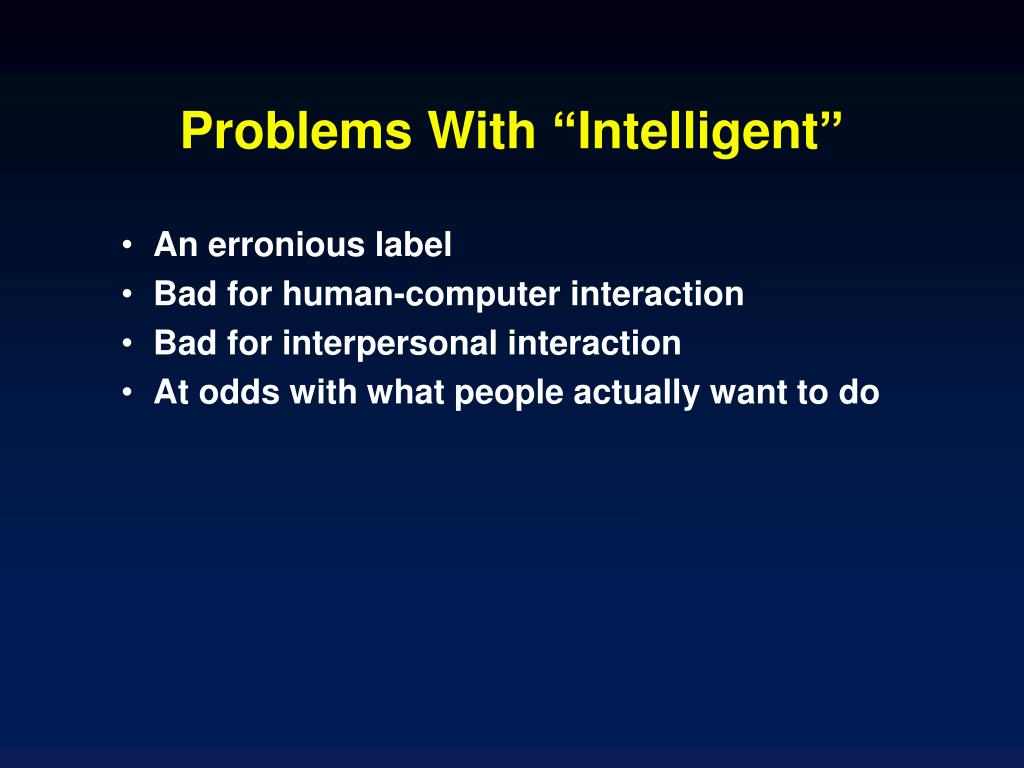

  41. Problems With “Intelligent” • An erronious label • Bad for human-computer interaction • Bad for interpersonal interaction • At odds with what people actually want to do

  42. More Complaints • Problems with animism & personification • Animism as early phase of all technologies • “Never believe that software models can represent people.” • The same AI folks • with the same old, failed AI promises • User interface design from the hip: Ignoring sound UI design practices like user testing

  43. What We Saw • User Interface Design for Software Agents • The Personification Issue • Complaints from the User-Interface Community

  44. Conclusions • “We simply don’t know enough about how people react to agents.” • Thomas Erickson, Designing Agents as if People Mattered, in press • Good UI design principles apply to agents too • Many complaints are just about bad UI design • Can be remedied by following user-centered design practices • Trust is built through time and reputation

  45. Conclusions, continued • Animistic interfaces: handle with care • The jury’s still out • Some basis exists; not clear we should encourage it • UCD is not incompatible with the Media Lab Way • Innovation and deadlines don’t mitigate user-centered philosophy • User testing doesn’t mean focus groups • Many principles are quick and easy to apply
