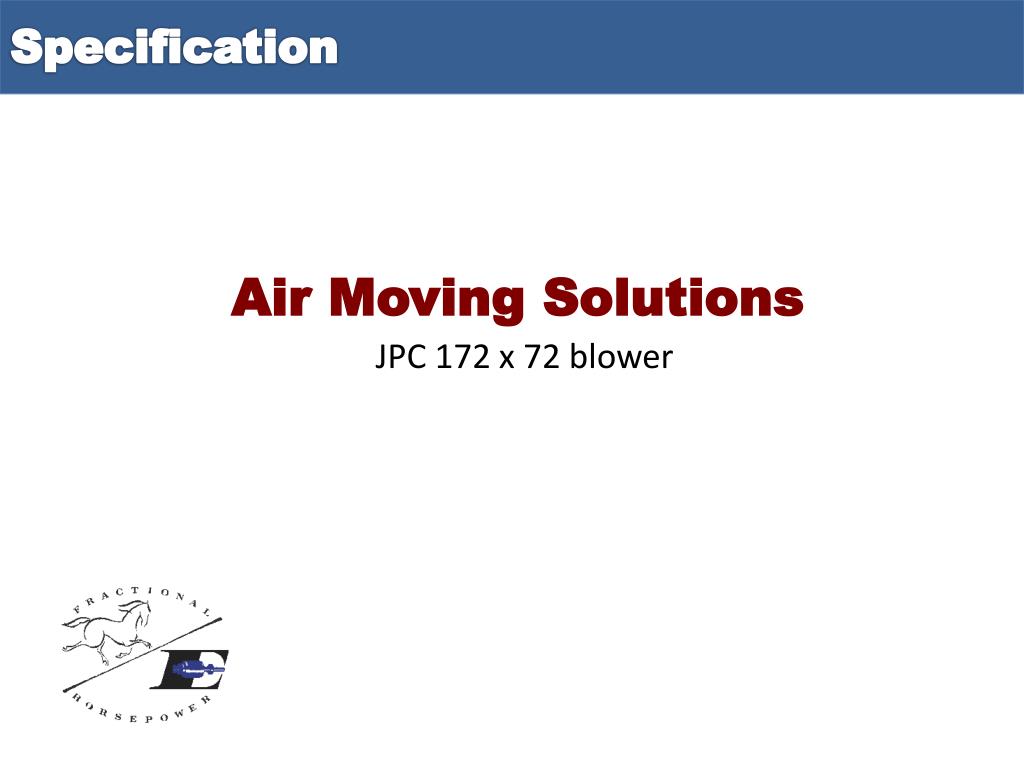

  1. Specification Air Moving Solutions JPC 172 x 72 blower

  2. Specification • Blower specification: • Input Power – 48VDC +/- 5 VDC, 7.65 Amps • Operating Point – >70 CFM @ 10” H2O (Std Air) – This is more than twice the output of the AmetekMinijammer (at 10” they are at 32 CFM and at free air they are at 45 CFM) • Speed – 12800 RPM • Acoustic - < TBD dBA • Speed control via 0-5 V signal • Tach out via open collector transistor – 4 pulses per revolution ElincoProprietary

  3. Size of Prototype Control Box will not be attached as shown. Motor control will not be integrated on prototype but will be on production model. Motor shown is wrong size. Prototype motor will be 3.4” dia and 2.5” long Inlet tube may also be omitted if desired. ElincoProprietary

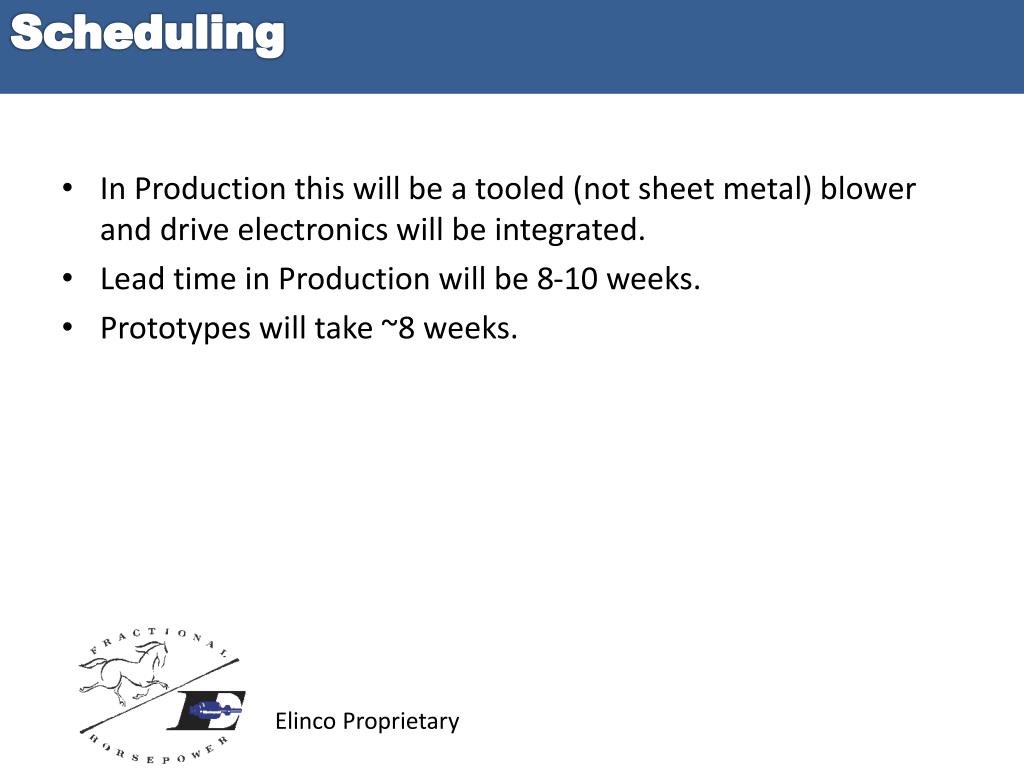

  4. Scheduling • In Production this will be a tooled (not sheet metal) blower and drive electronics will be integrated. • Lead time in Production will be 8-10 weeks. • Prototypes will take ~8 weeks. ElincoProprietary
