  1. Waste Water Treatment Plant (WWTP) Commissioned: Jan 2008 Capacity: 300k gallons/day @ 2500mg/L discharge Krofta Waters Technology Ltd.

  2. Buffer Blower • Motor Specs: • 15 HP • 1770 RPM • 480VAC

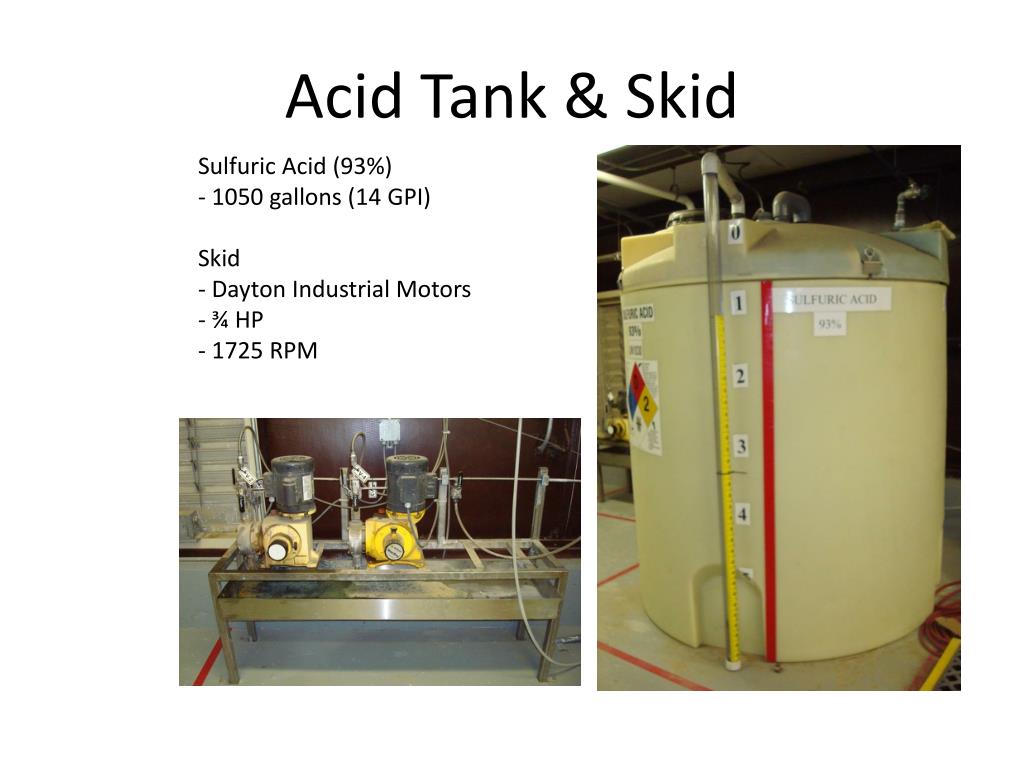

  3. Acid Tank & Skid • Sulfuric Acid (93%) • - 1050 gallons (14 GPI) • Skid • - Dayton Industrial Motors • - ¾ HP • - 1725 RPM

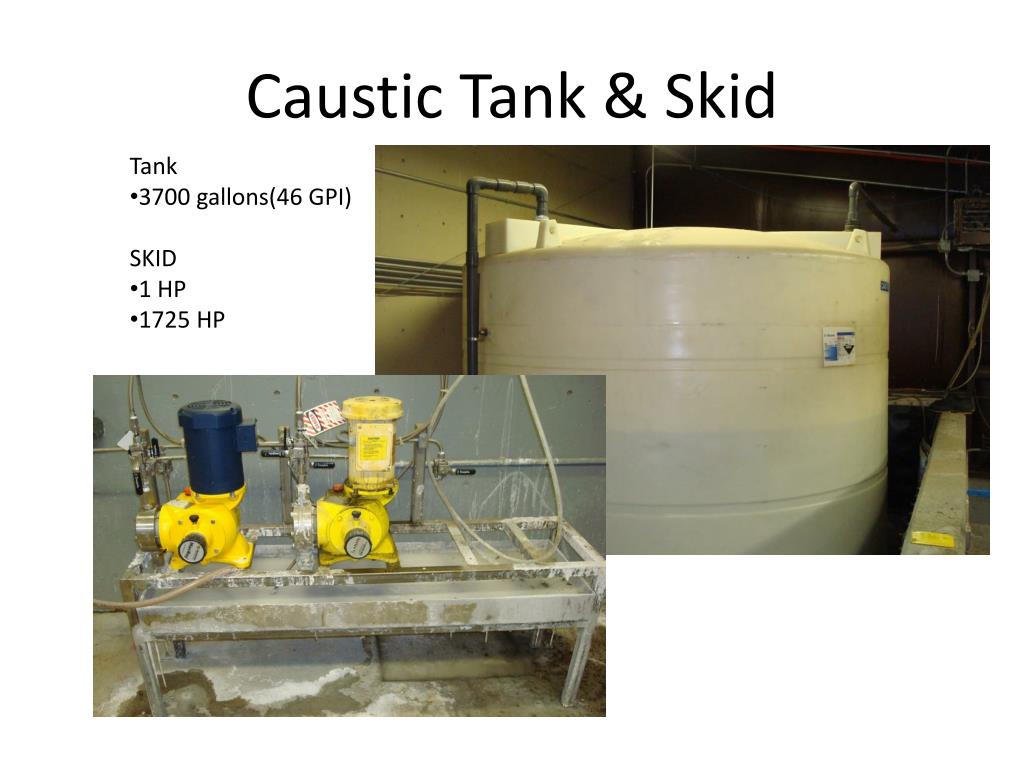

  4. Caustic Tank & Skid • Tank • 3700 gallons(46 GPI) • SKID • 1 HP • 1725 HP

  5. DAF • Feed Pumps (2) • - Summit Pump • 150 PSI max • 10 Hp Dwell Piping PLC - Allan Bradley

  6. DAF Tank 15’ diameter flotation area (approx. 170 sq ft)

  7. Coagulant Tank 5400 gallons (56 GPI)

  8. Compressors • 40 to 90 psig • Rated to 10 • Max press 125 psig • 4300 RPM • 480 VAC

  9. Sludge Tank Blower • - Baldor Super E • - 20 HP • 3520 RPM • 480 VAC

  10. Divert Tank Capacity: 79,000 gallons Dimensions: 10’’ = 6,000 gallons Diameter = 35’ Material: Plain Carbon Steel

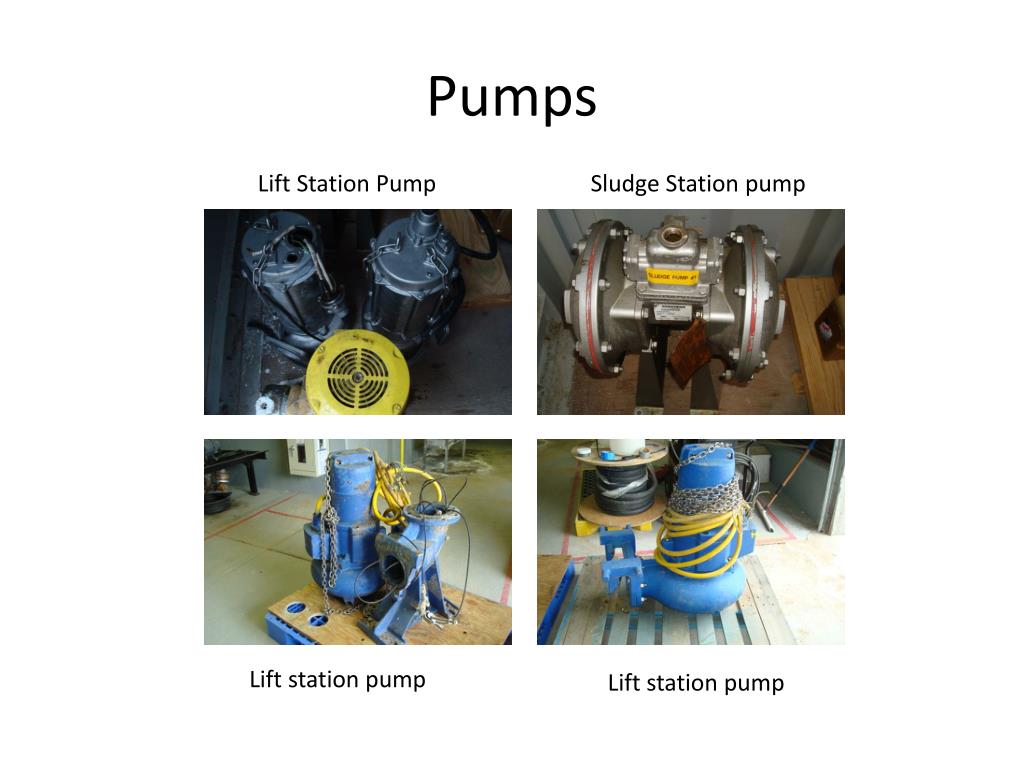

  11. Pumps Lift Station Pump Sludge Station pump Lift station pump Lift station pump
