  1. The HR Diagram

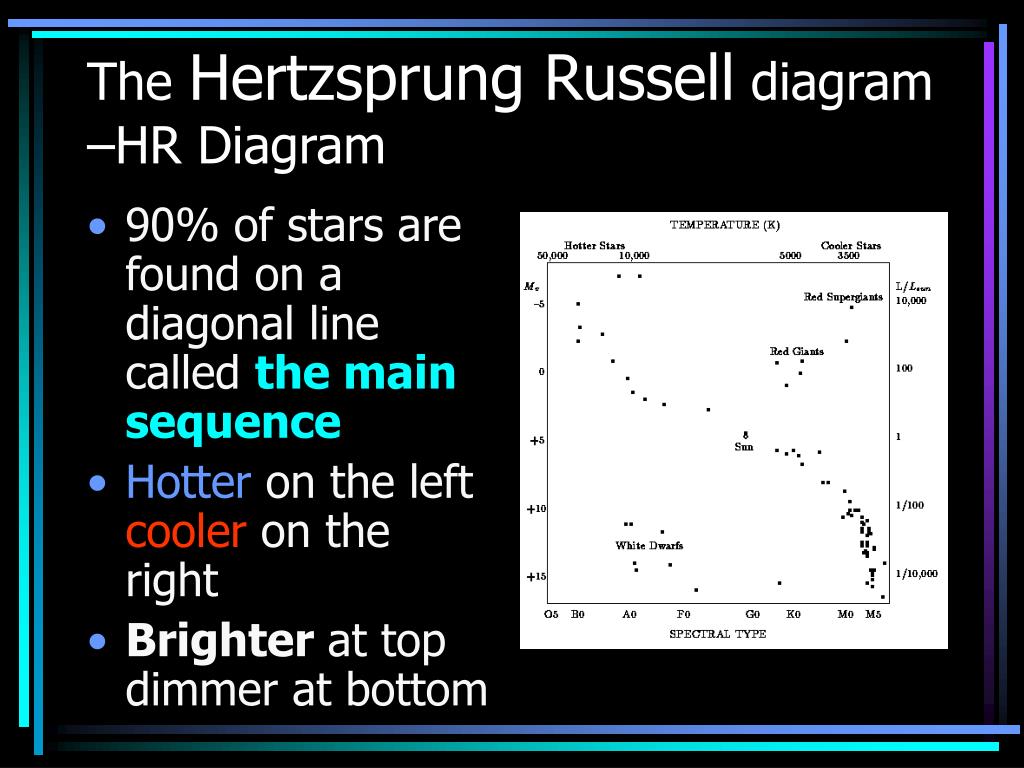

  2. The Hertzsprung Russell diagram –HR Diagram • 90% of stars are found on a diagonal line called the main sequence • Hotter on the left cooler on the right • Brighter at top dimmer at bottom

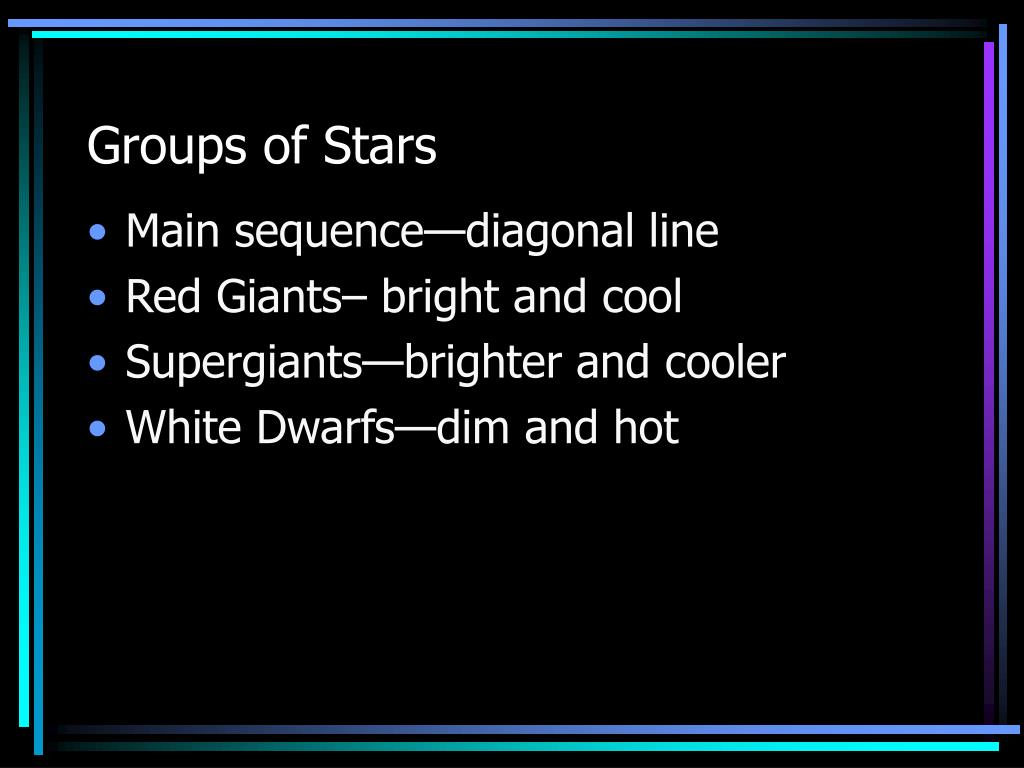

  3. Groups of Stars • Main sequence—diagonal line • Red Giants– bright and cool • Supergiants—brighter and cooler • White Dwarfs—dim and hot

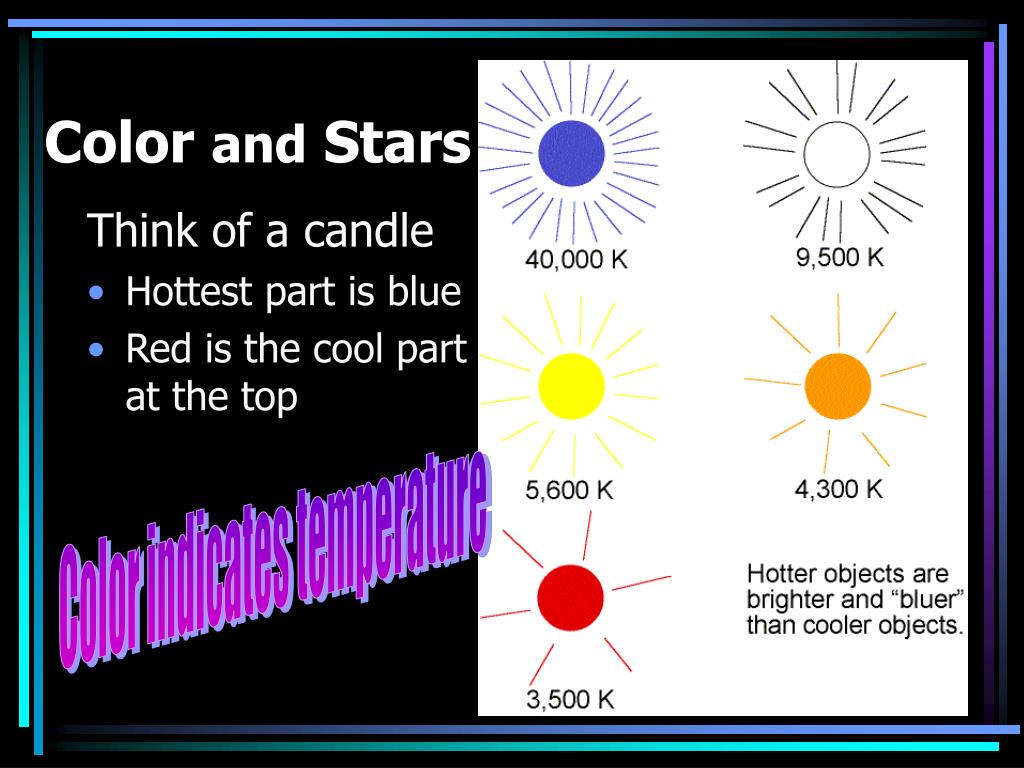

  4. Color and Stars Think of a candle • Hottest part is blue • Red is the cool part at the top Color indicates temperature

  5. Annie J Cannon (1863-1941) Spectral Class • OBAFGKM • Oh Be A Fine Girl Kiss Me • Indicates a stars composition

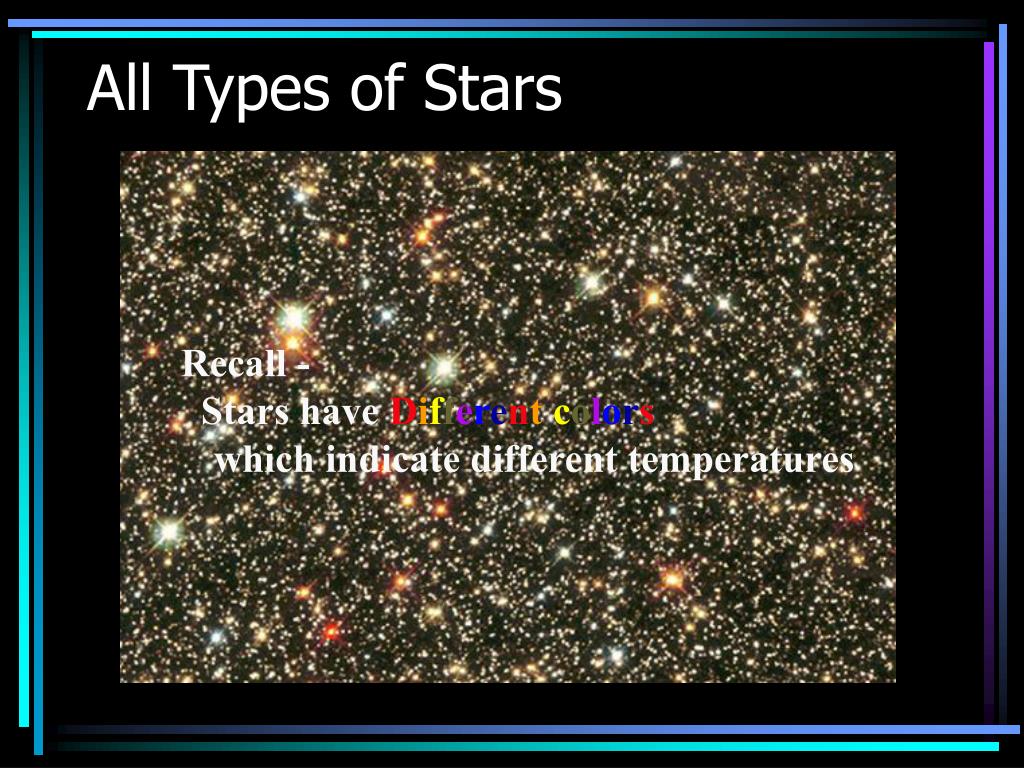

  6. All Types of Stars • Recall - • Stars have Differentcolors • which indicate different temperatures

  7. All Types of Stars Out Beyond Andromeda, Fiery Gases Kindle Many Red New Stars Oh! Be a Fine Girl - Kiss Me Right Now Sweetheart ! Oh! Be a Fine Girl - Kiss Me !

  8. Star classification • If we look at a star with a spectroscope we see dark lines called absorption spectra • These lines indicate the stars chemical composition

  9. Absolute vs. Apparent Magnitude Absolute —how bright a star actually is Apparent—how bright it appears from Earth

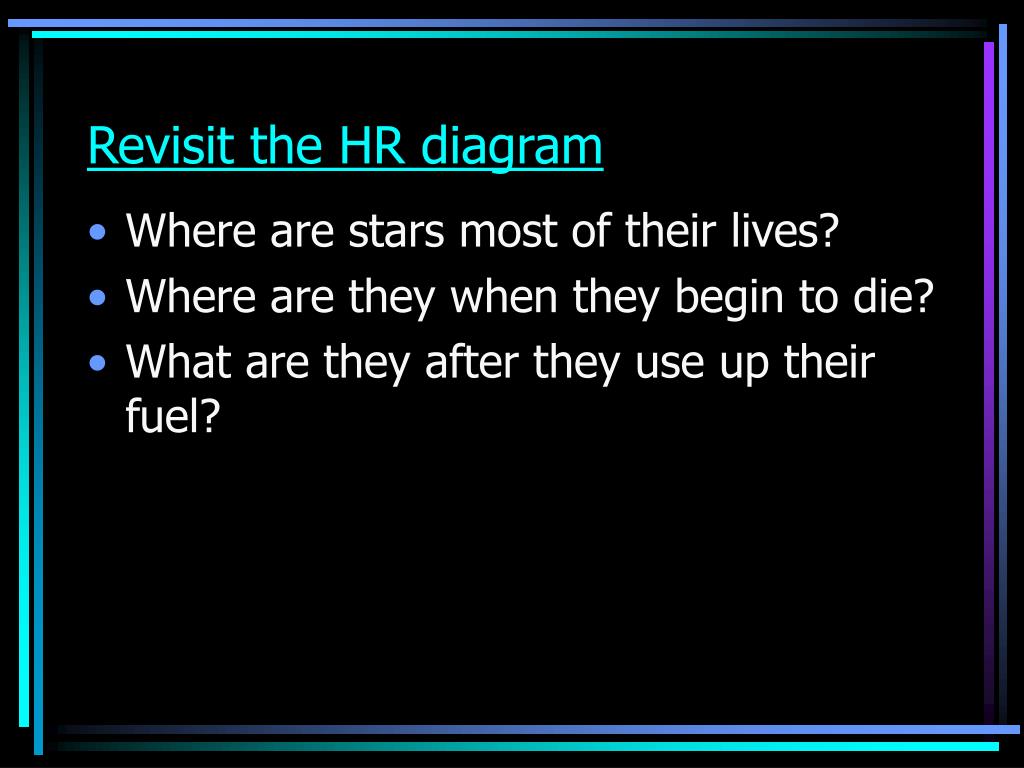

  10. Revisit the HR diagram • Where are stars most of their lives? • Where are they when they begin to die? • What are they after they use up their fuel?

  11. H-R diagram
