  1. DSP2006 Term-ProjectDTMF Detection CHEN SEI-LIM P95921011

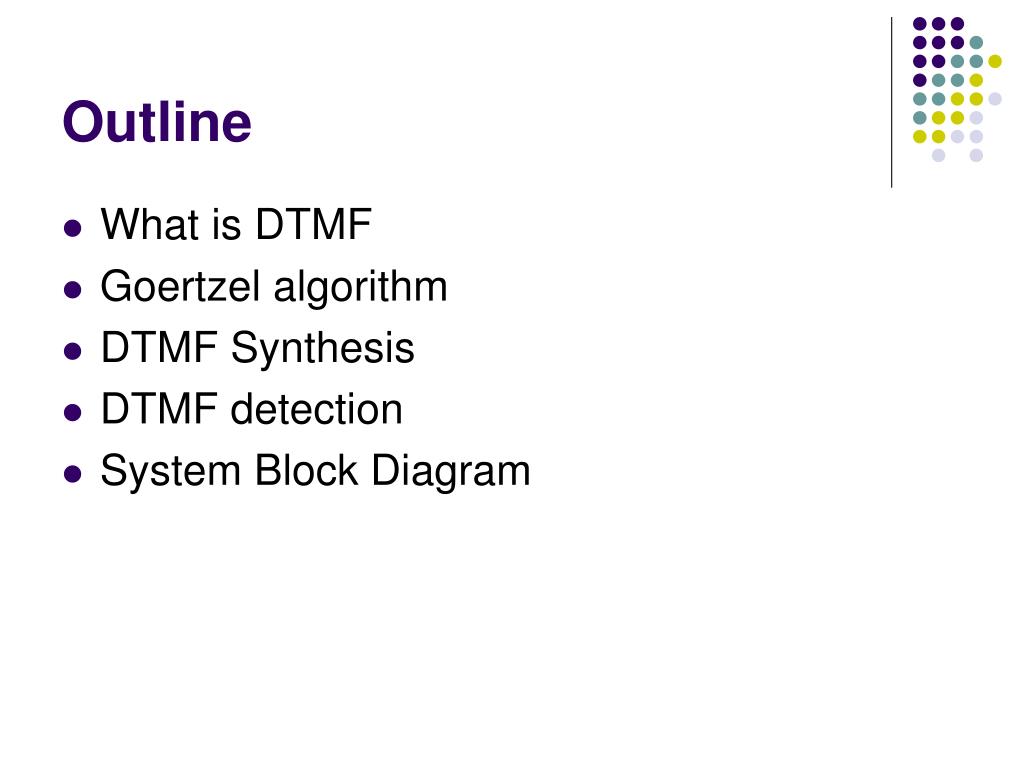

  2. Outline • What is DTMF • Goertzel algorithm • DTMF Synthesis • DTMF detection • System Block Diagram

  3. Hz 1209 1336 1477 1633 697 1 2 3 A 770 4 5 6 B 852 7 8 9 C 941 * 0 # D What is DTMF • Dual Tone Multi-Frequency • Mix 2 single tone together for telephone dial-up

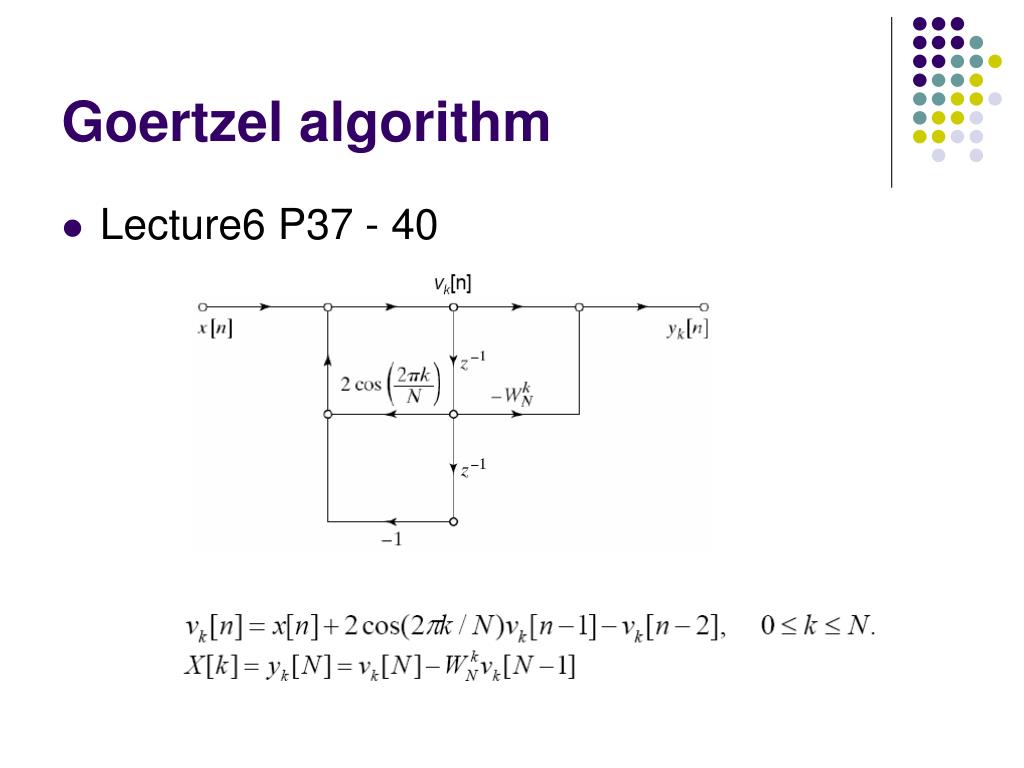

  4. Goertzel algorithm • Lecture6 P37 - 40

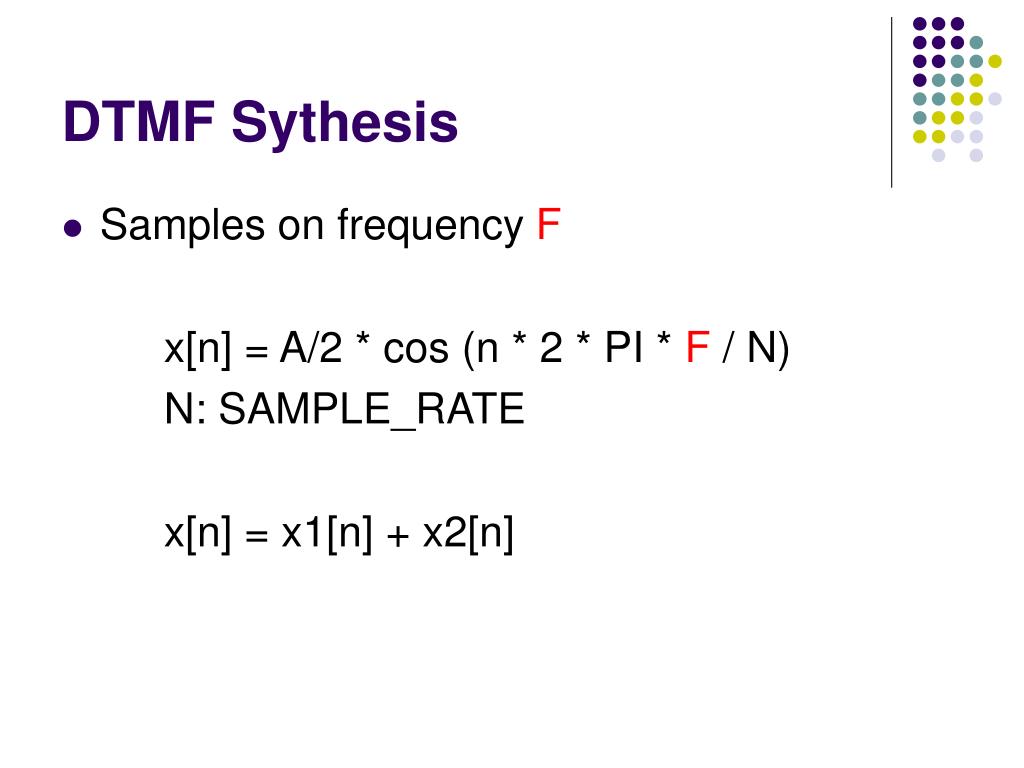

  5. DTMF Sythesis • Samples on frequency F x[n] = A/2 * cos (n * 2 * PI * F / N) N: SAMPLE_RATE x[n] = x1[n] + x2[n]

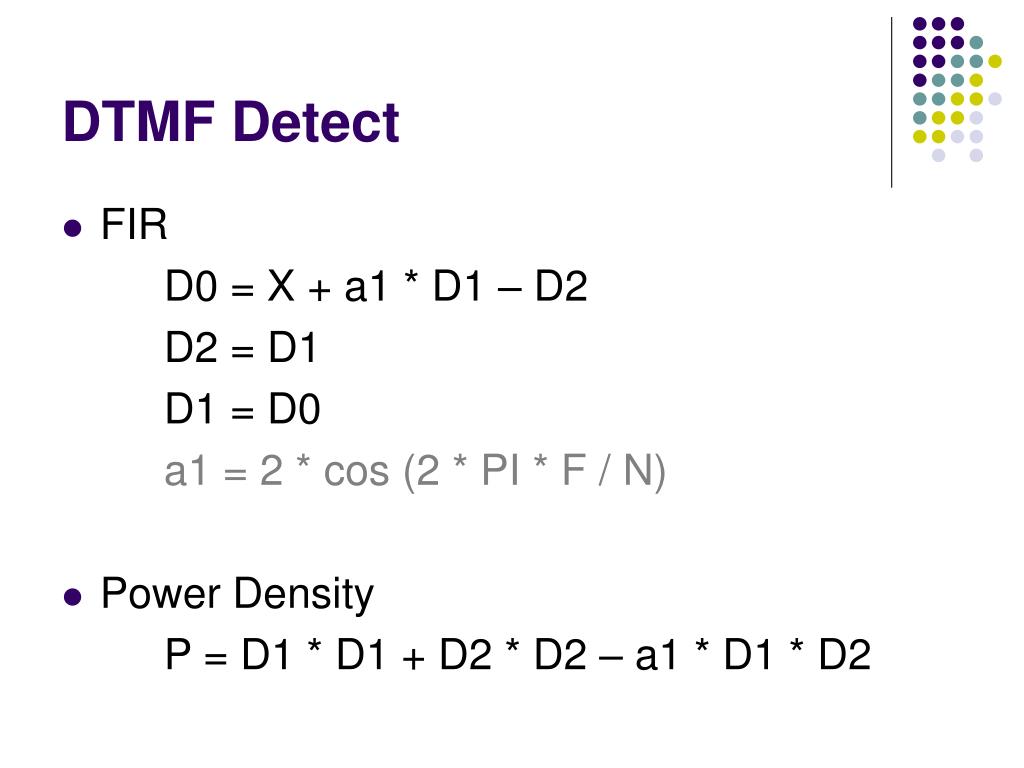

  6. DTMF Detect • FIR D0 = X + a1 * D1 – D2 D2 = D1 D1 = D0 a1 = 2 * cos (2 * PI * F / N) • Power Density P = D1 * D1 + D2 * D2 – a1 * D1 * D2

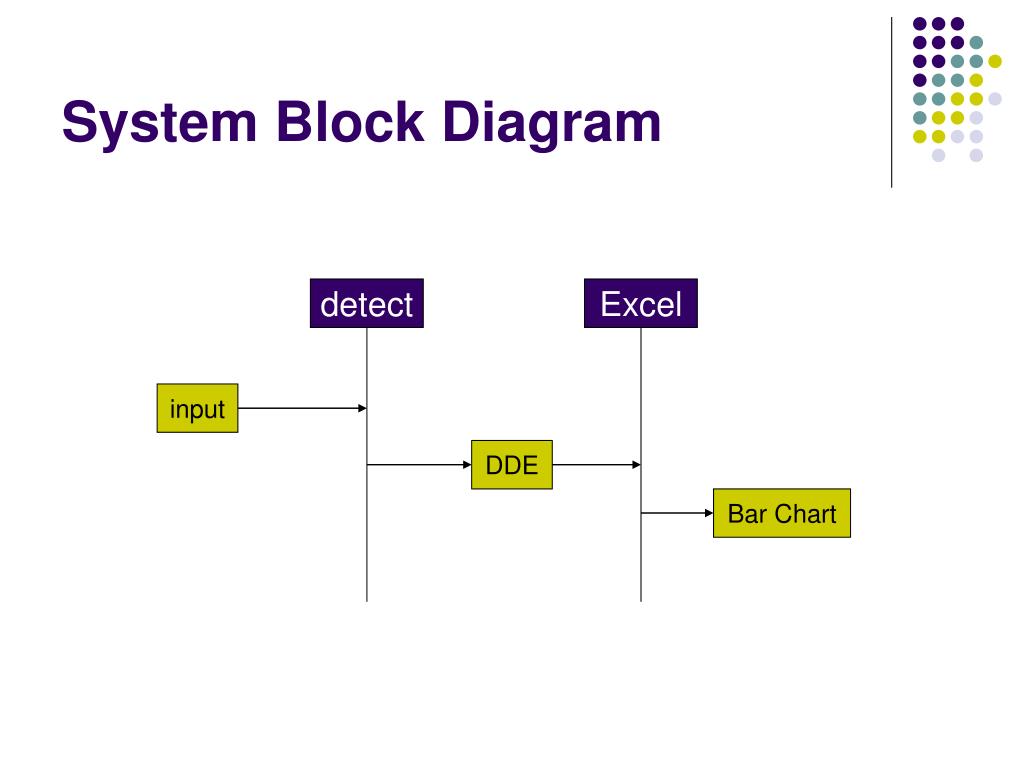

  7. System Block Diagram detect Excel input DDE Bar Chart
