  1. Probabilistic Information Retrieval Approach for Ranking of Database Query Results Presenter: KetakiGadre Authors: SURAJITCHAUDHURI, GAUTAM DAS, VAGELIS HRISTIDIS, GERHARD WEIKUM

  2. Introduction (1/4) • Database Query Retrieval Model • Boolean Model • Many-Answers Problem: Too many tuples when query is not too selective

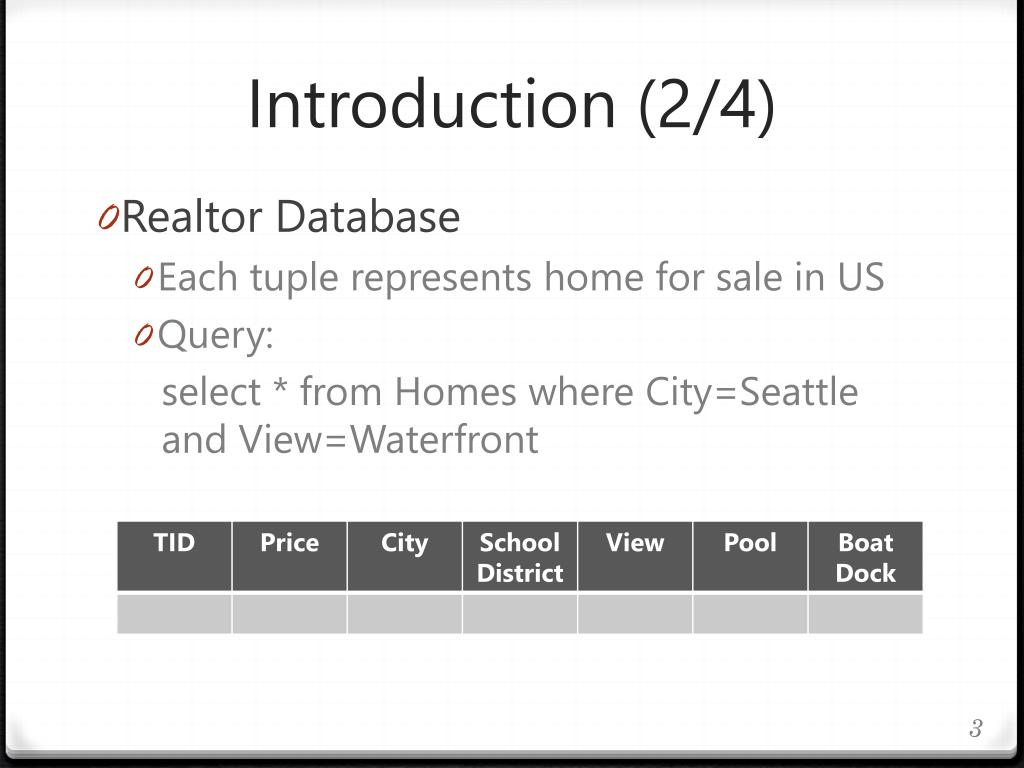

  3. Introduction (2/4) • Realtor Database • Each tuple represents home for sale in US • Query: select * from Homes where City=Seattle and View=Waterfront

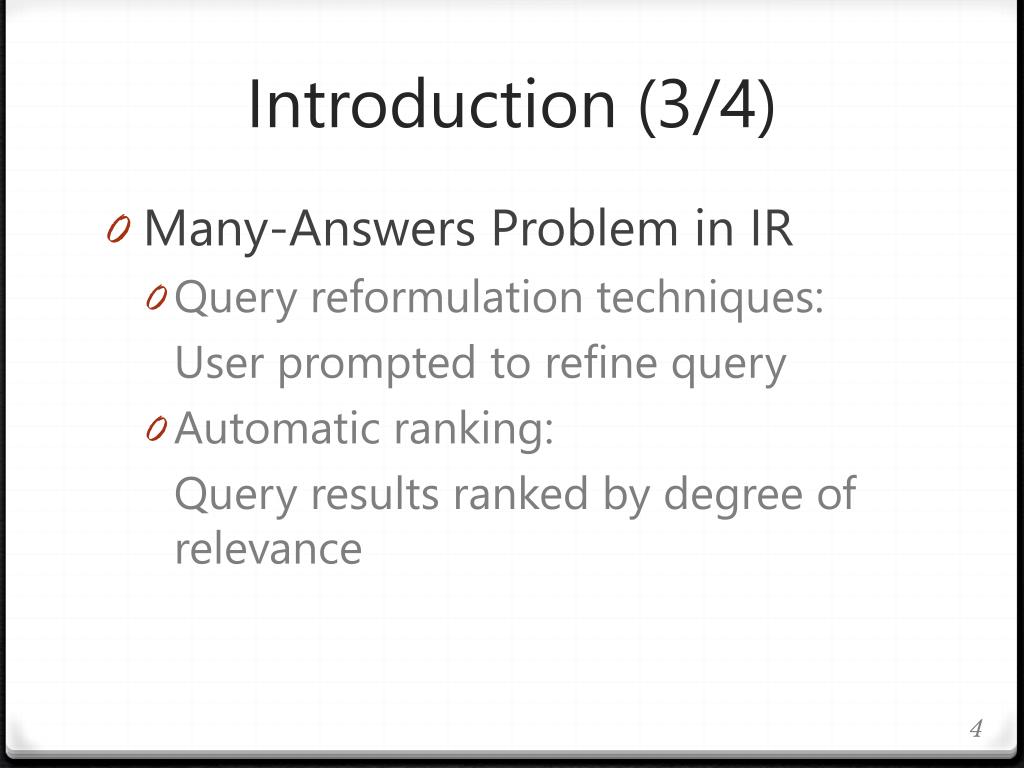

  4. Introduction (3/4) • Many-Answers Problem in IR • Query reformulation techniques: User prompted to refine query • Automatic ranking: Query results ranked by degree of relevance

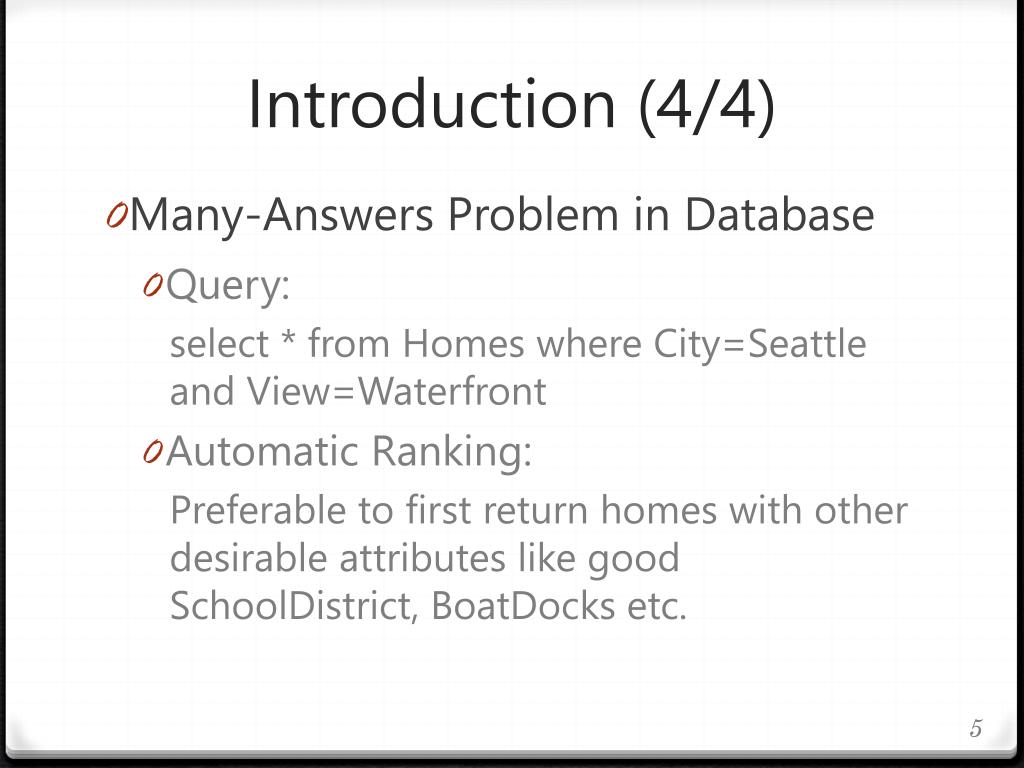

  5. Introduction (4/4) • Many-Answers Problem in Database • Query: select * from Homes where City=Seattle and View=Waterfront • Automatic Ranking: Preferable to first return homes with other desirable attributes like good SchoolDistrict, BoatDocks etc.

  6. Approach (1/3) • Look beyond attributes specified in query • Ranking function of tuple based on: • Global Score: Captures global importance of unspecified attribute values • Conditional Score: Strengths of dependencies between specified and unspecified attribute values

  7. Approach(2/3) • Query: select * from Homes where City=Seattle and View=Waterfront • SchoolDistrict=Excellent • Globally desirable High rank • BoatDock=Yes • People desiring waterfront likely to desire boat dock  High rank

  8. Approach (3/3) • Challenge: Translate these intuitions into principled ranking function • Proposed Solution: Probabilistic IR • Why PIR? • Can extend to model data dependencies and correlations

  9. Outline • Adaption of PIR to Structured Data • Special Cases • Generalizations • Implementation • Experiments

  10. Probabilistic IR - Overview Query Representation User Information Need How to match? Document Collection Document Representation

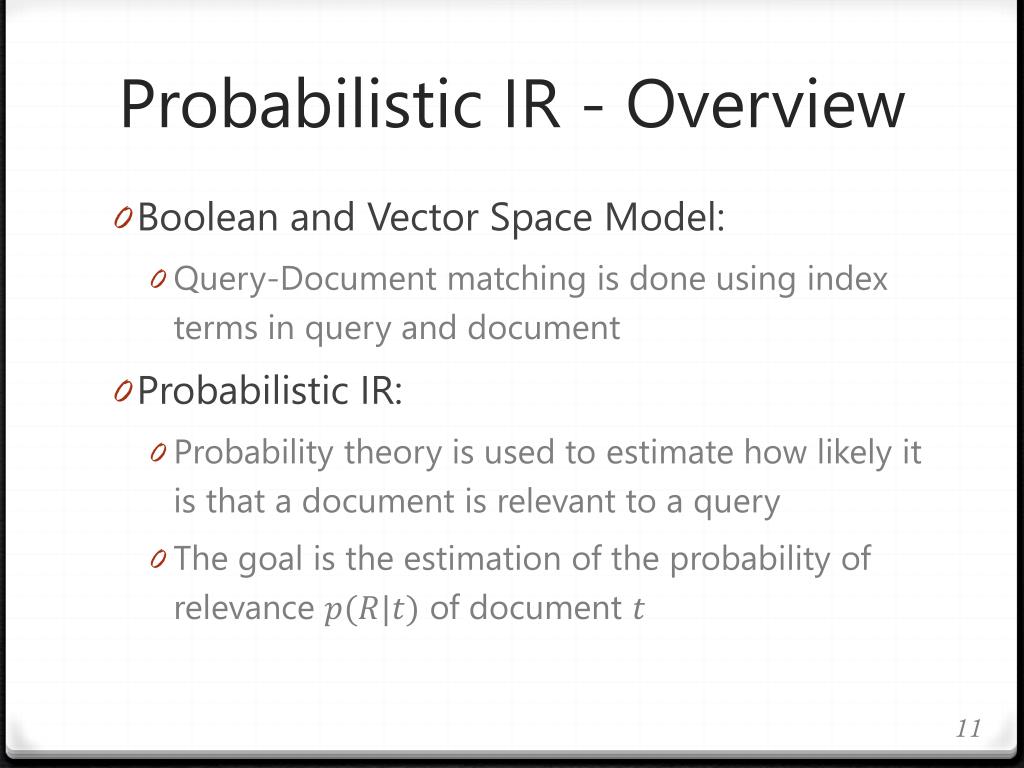

  11. Probabilistic IR - Overview • Boolean and Vector Space Model: • Query-Document matching is done using index terms in query and document • Probabilistic IR: • Probability theory is used toestimate how likely it is that a document is relevant to a query • The goal is the estimation of the probability of relevance of document

  12. Some Probability Formulae • Bayes’ Rule: • Product Rule:

  13. Probabilistic IR - Notations : Document collection : Fixed query : Set of relevant documents : Set of irrelevant documents : The probability of the relevance of : The probability of the non-relevance of

  14. Probabilistic IR – Ranking Function • Rank documents by their odds of relevance  • Gives same ranking & we can ignore the common denominator • and are the same for every document and thus are constants =

  15. How to adapt Probabilistic IR model for structured databases?

  16. Notations : Database table tuples attributes Query : select * from where and … and Specified attributes, Unspecified attributes, Answer set,

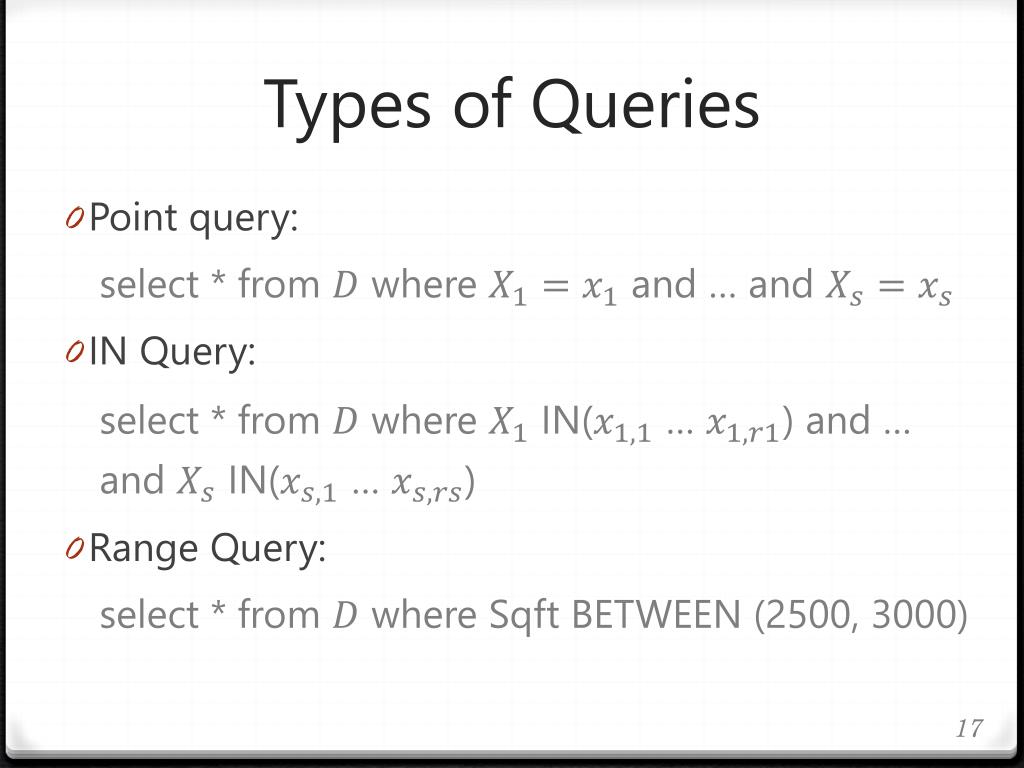

  17. Types of Queries • Point query: select * from where and … and • IN Query: select * from where IN(… )and … and IN( … ) • Range Query: select * from where Sqft BETWEEN (2500, 3000)

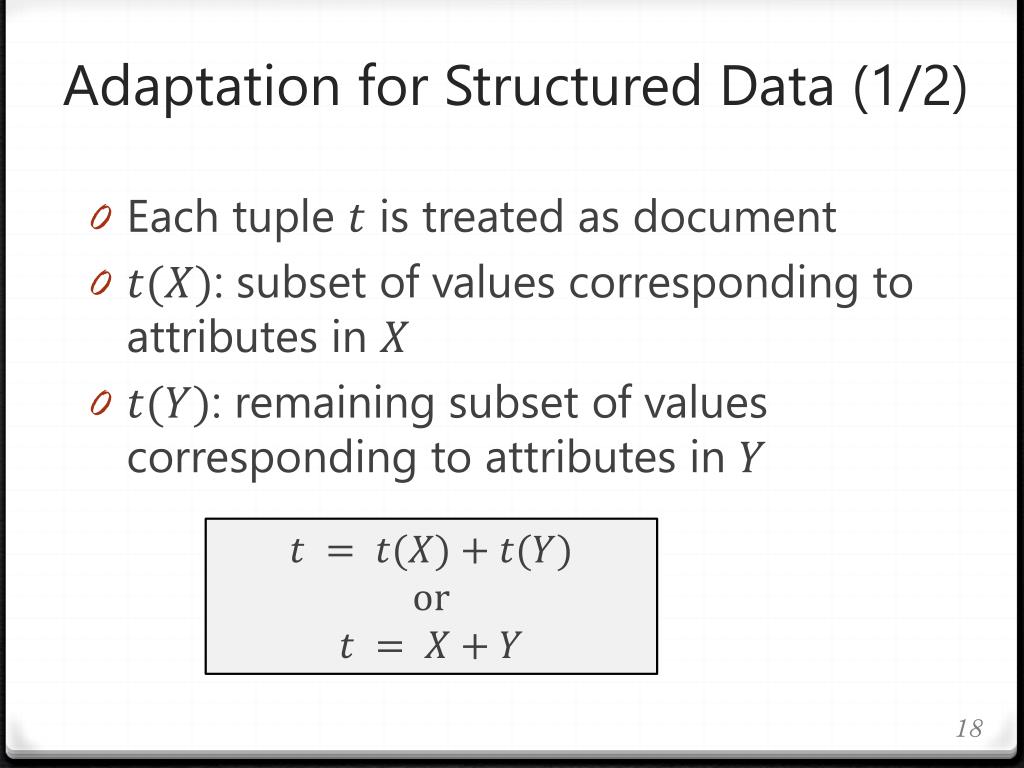

  18. Adaptation for Structured Data (1/2) • Each tuple is treated as document • : subset of values corresponding to attributes in • : remaining subset of values corresponding to attributes in or

  19. Adaptation for Structured Data (2/2) = . • Approximate as D • All relevant tuples have same values specified in query .

  20. Limited Independence Assumption • Given a query and a tuple  • The (and ) values within themselves are assumed to be independent • But dependencies between the and values are allowed = .

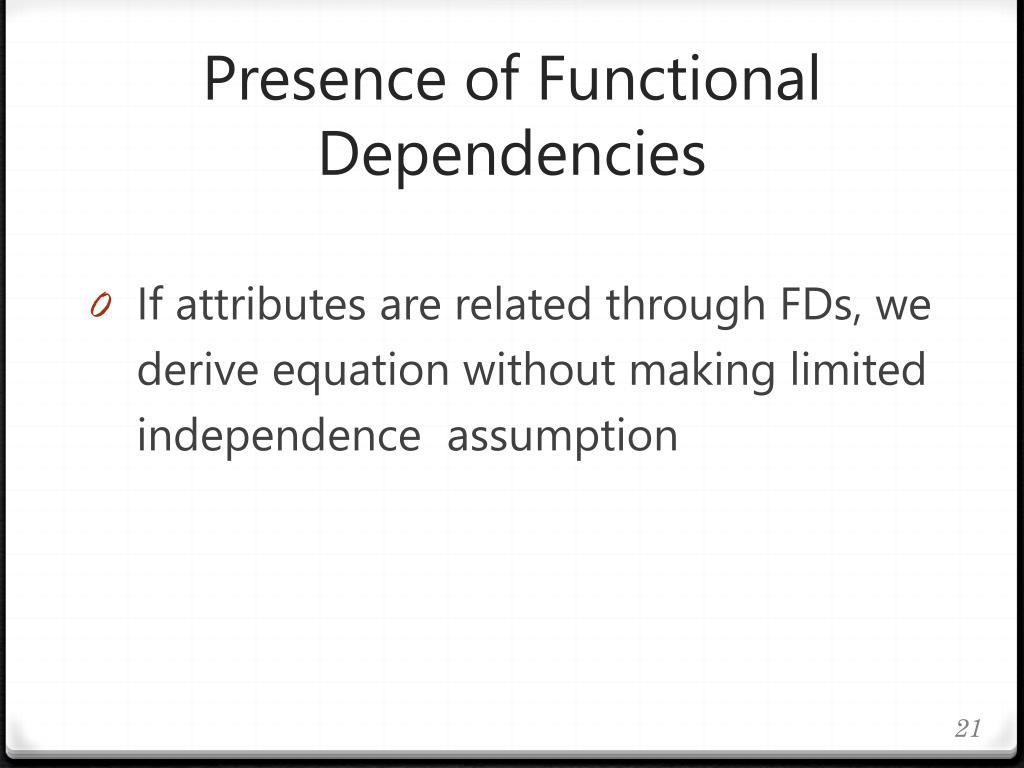

  21. Presence of Functional Dependencies • If attributes are related through FDs, we derive equation without making limited independence assumption

  22. Functional Dependencies • Constraints derived from the meaning and interrelationships of the data attributes • If the value of determines a unique value for • i.e. whenever two tuples have the same value for , they must have the same value for • e.g.

  23. Presence of FDs (1/4) • FDs apply only to data, not to workload • E.g. • Applicable in data • Query Q in workload that specifies a requested Zipcode may not have specified City

  24. Presence of FDs (2/4) • FD between attributes in , where,

  25. Presence of FDs (3/4) • Similarly, FDs between attributes in X where,

  26. Presence of FDs (4/4)

  27. R is unknown • How to estimate 𝑝(𝑦|𝑅)?

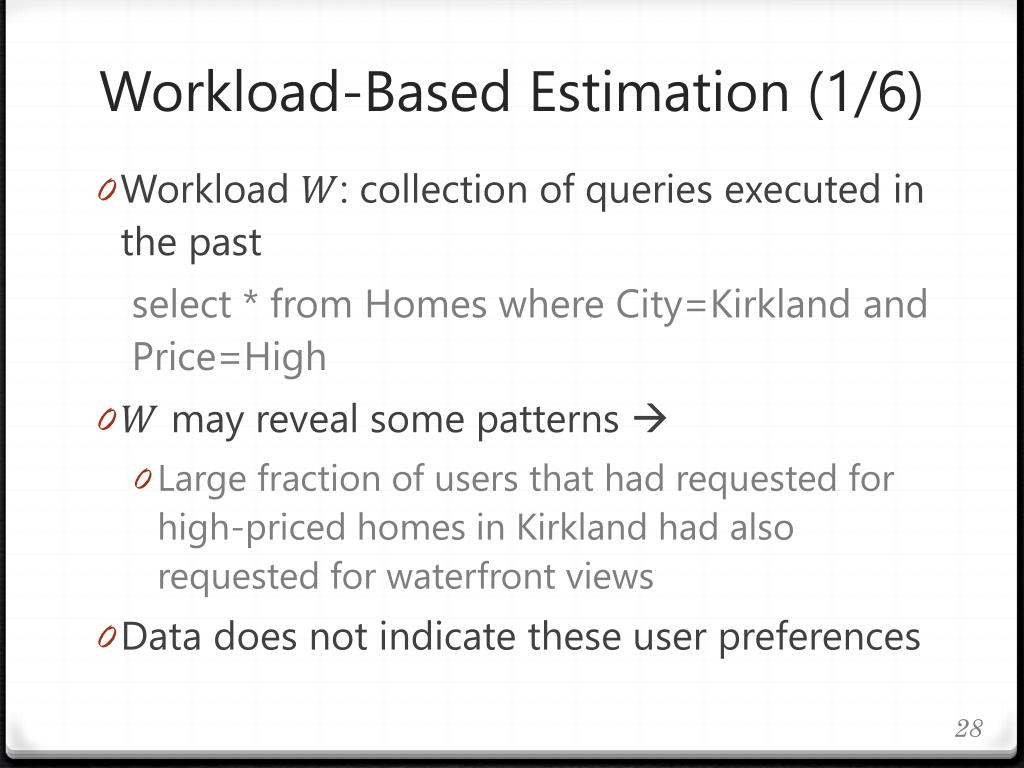

  28. Workload-Based Estimation (1/6) • Workload : collection of queries executed in the past select * from Homes where City=Kirkland and Price=High • may reveal some patterns  • Large fraction of users that had requested for high-priced homes in Kirkland had also requested for waterfront views • Data does not indicate these user preferences

  29. Workload-Based Estimation (2/6) Approximate as all query tuples in that also request for

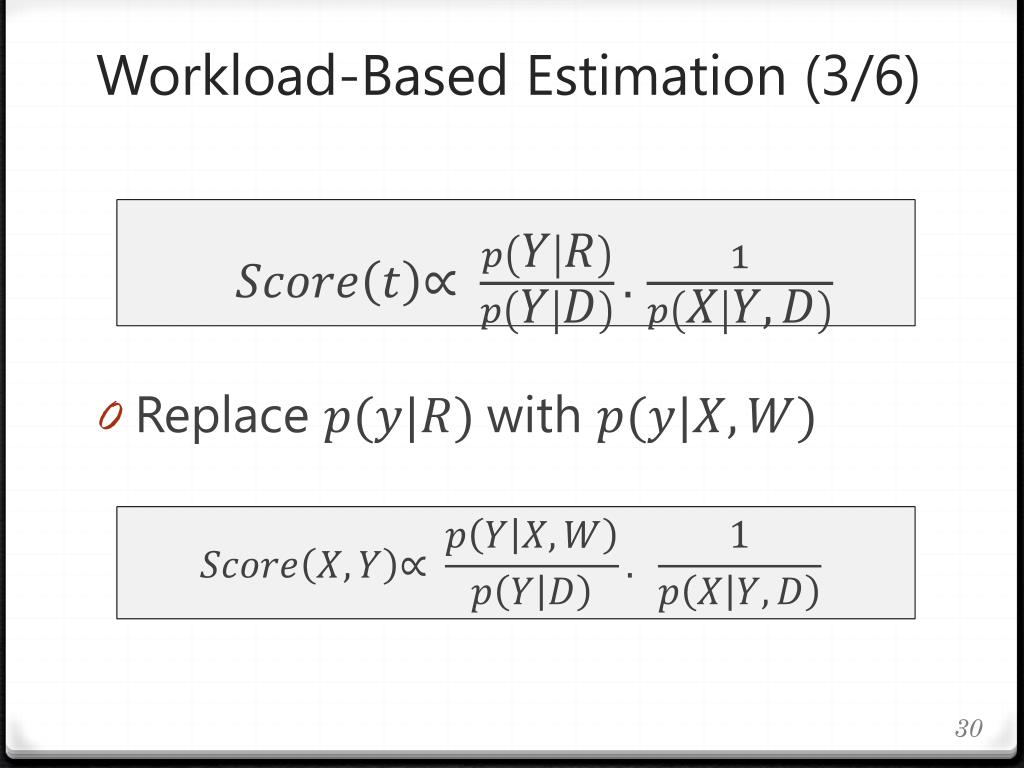

  30. Workload-Based Estimation (3/6) • Replace with

  31. Workload-Based Estimation (4/6) • Applying Bayes’ rule for ,

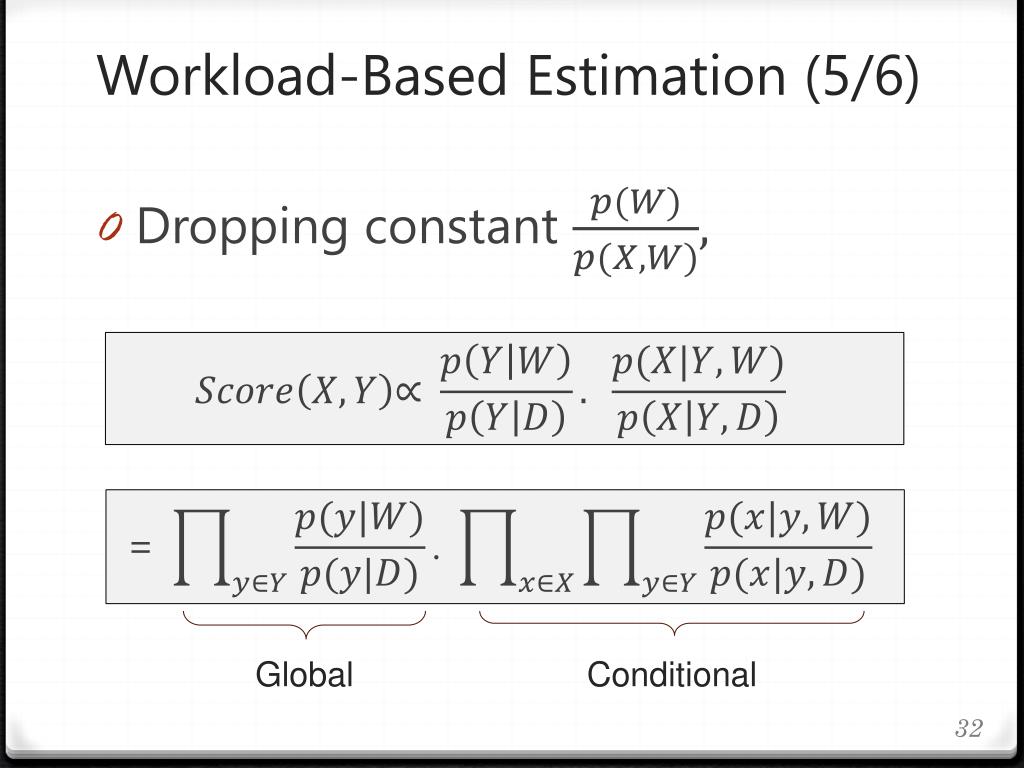

  32. Workload-Based Estimation (5/6) • Dropping constant , Global Conditional

  33. Workload-Based Estimation (6/6) • Considering functional dependencies, Global Conditional

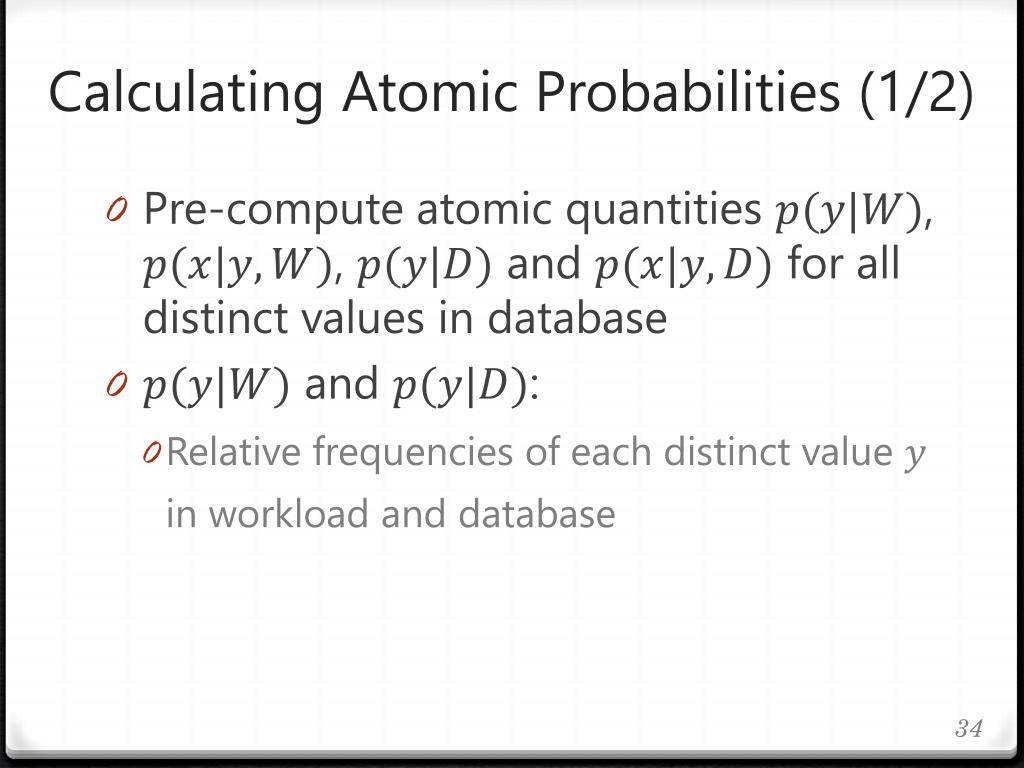

  34. Calculating Atomic Probabilities (1/2) • Pre-compute atomic quantities , , and for all distinct values in database • and : • Relative frequencies of each distinct value in workload and database

  35. Calculating Atomic Probabilities (2/2) • and : • Compute confidences of pairwise association rules in the workload and database • “Association rule has confidence if of transactions in database that contain also contain ”

  36. Special Cases • Ranking function in absence of workload • Ranking function assuming no dependencies between attributes

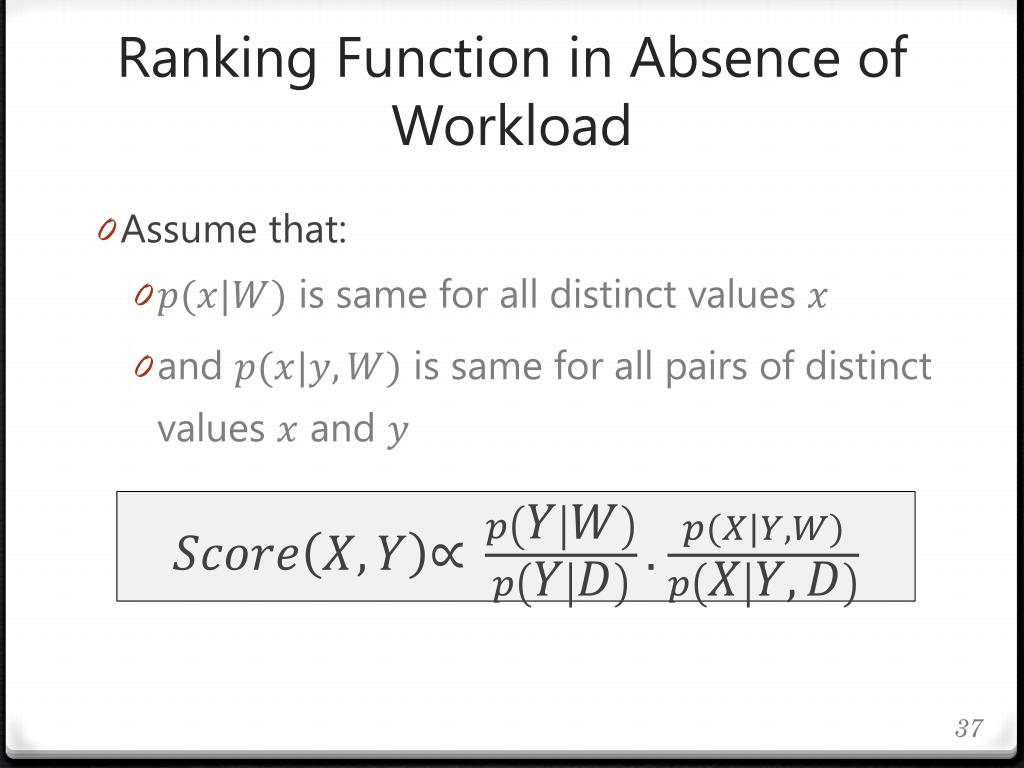

  37. Ranking Function in Absence of Workload • Assume that: • is same for all distinct values • and is same for all pairs of distinct values and

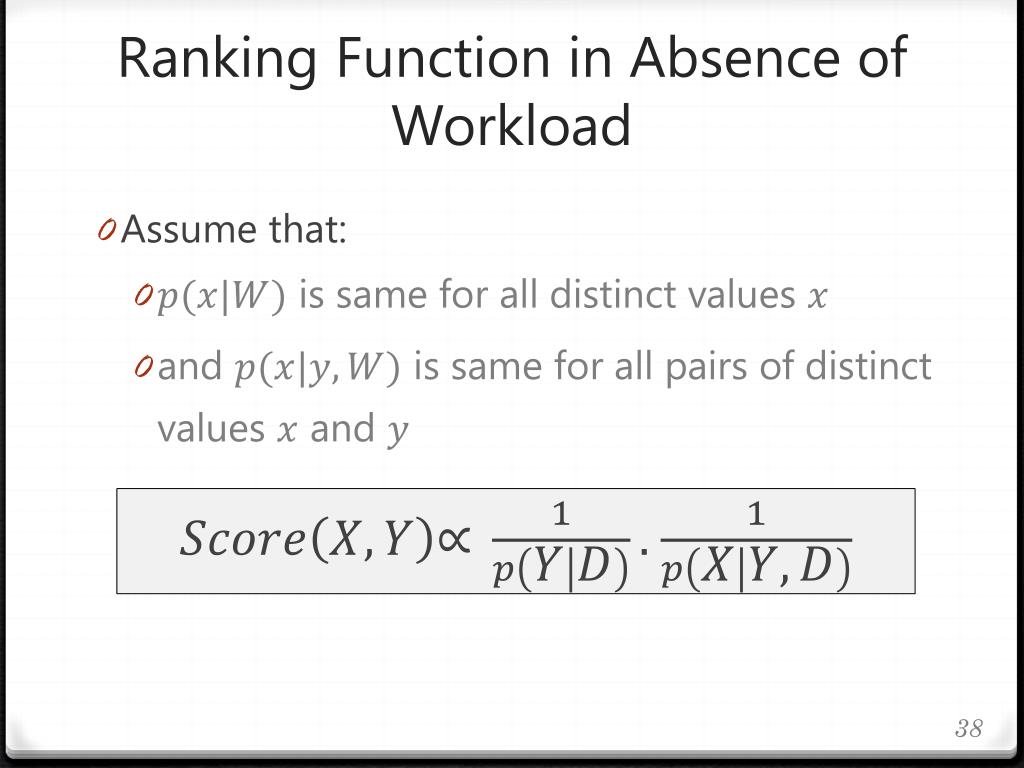

  38. Ranking Function in Absence of Workload • Assume that: • is same for all distinct values • and is same for all pairs of distinct values and

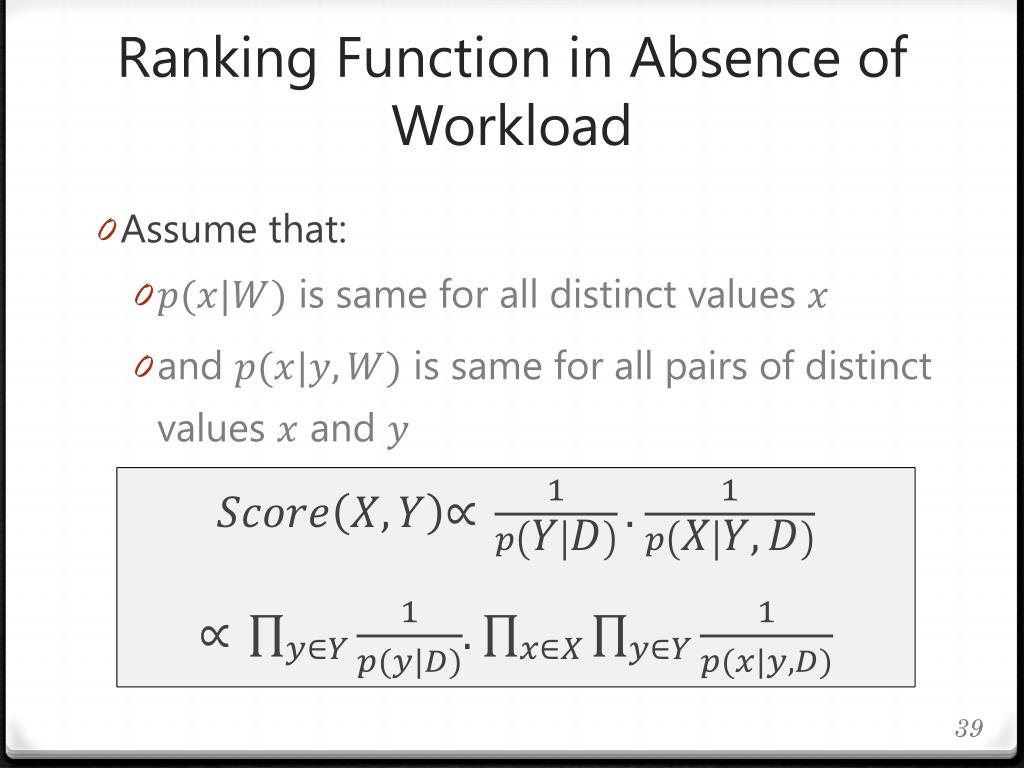

  39. Ranking Function in Absence of Workload • Assume that: • is same for all distinct values • and is same for all pairs of distinct values and .

  40. Ranking Function Assuming No Dependencies Between Attributes • Make independence assumption between all attributes

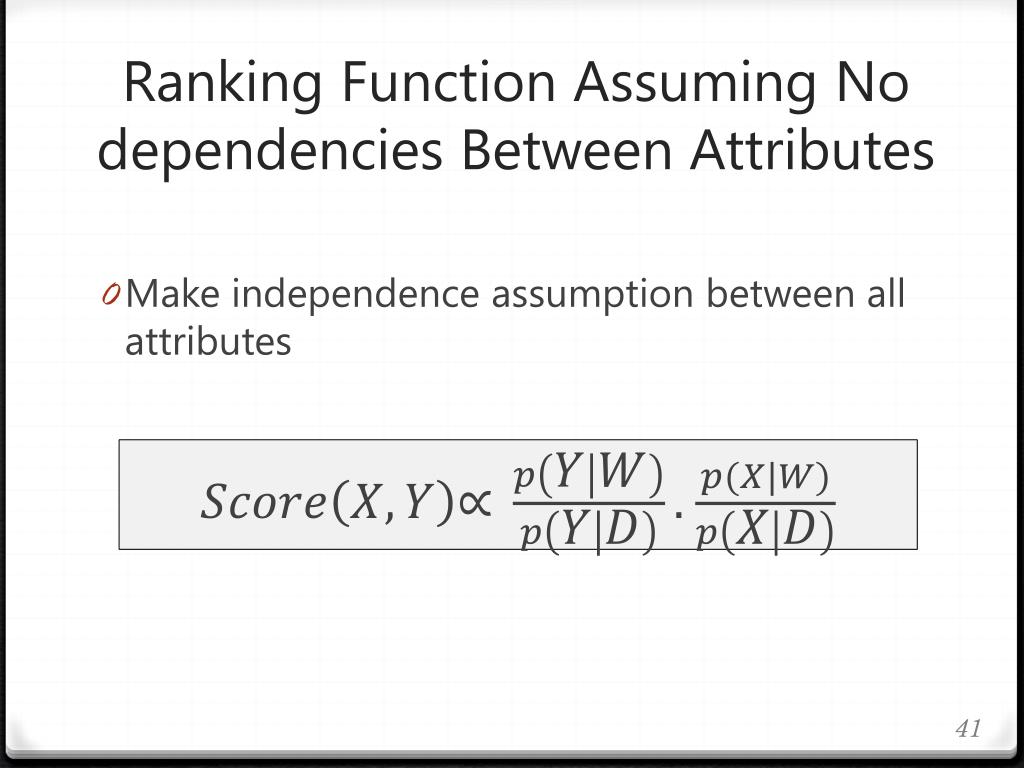

  41. Ranking Function Assuming No dependencies Between Attributes • Make independence assumption between all attributes

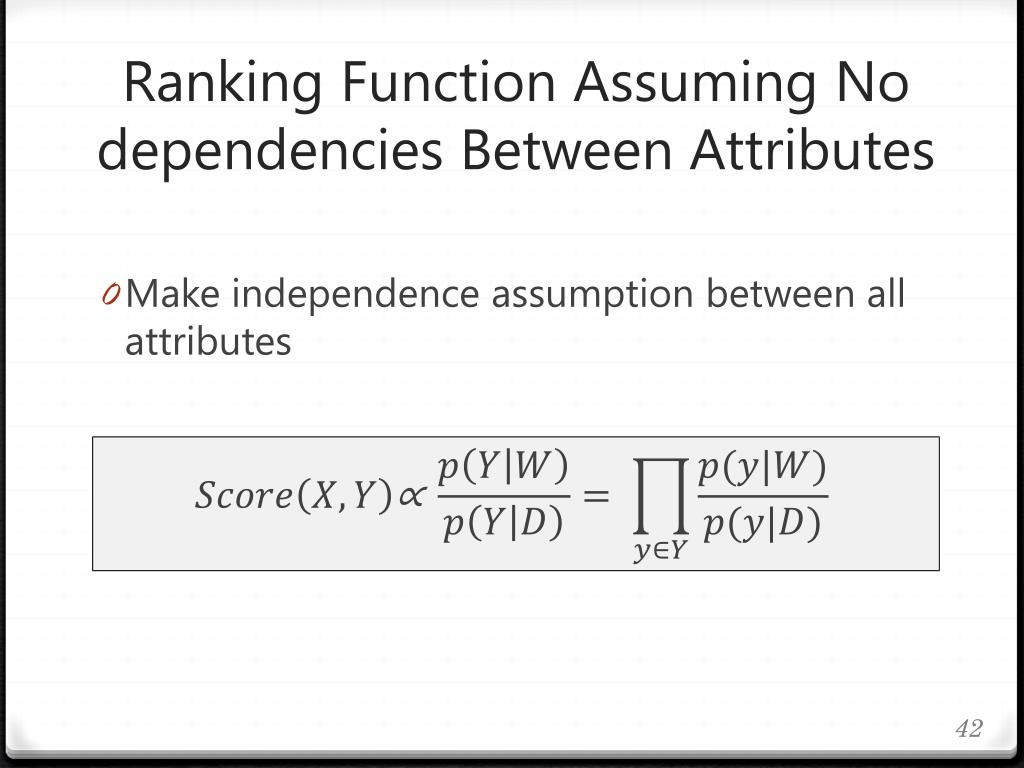

  42. Ranking Function Assuming No dependencies Between Attributes • Make independence assumption between all attributes

  43. Generalizations • IN Queries • IN conditions in the Query • IN conditions in the Workload • Numeric Attributes • Estimating and • Multi-table Database

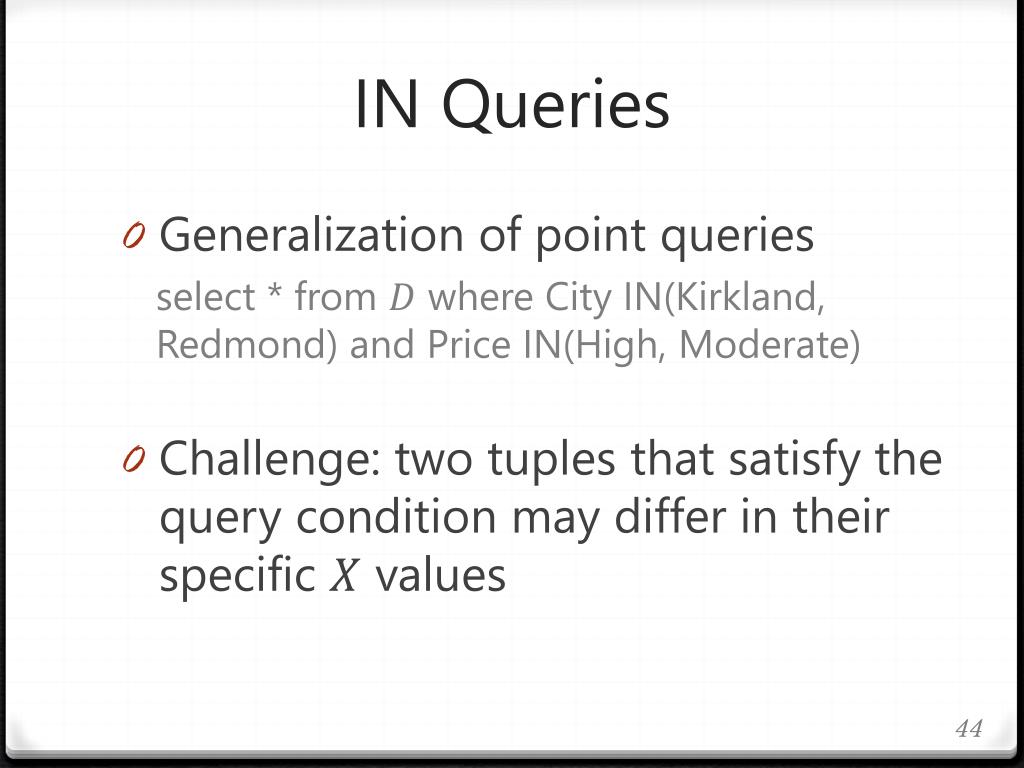

  44. IN Queries • Generalization of point queries select * from where City IN(Kirkland, Redmond)and Price IN(High, Moderate) • Challenge: two tuples that satisfy the query condition may differ in their specific values

  45. IN Conditions in the Query (1/4) • Recall equation, = .

  46. IN Conditions in the Query (2/4) • Score function with IN conditions in the queries

  47. IN Conditions in the Query (3/4) • Score function for point queries

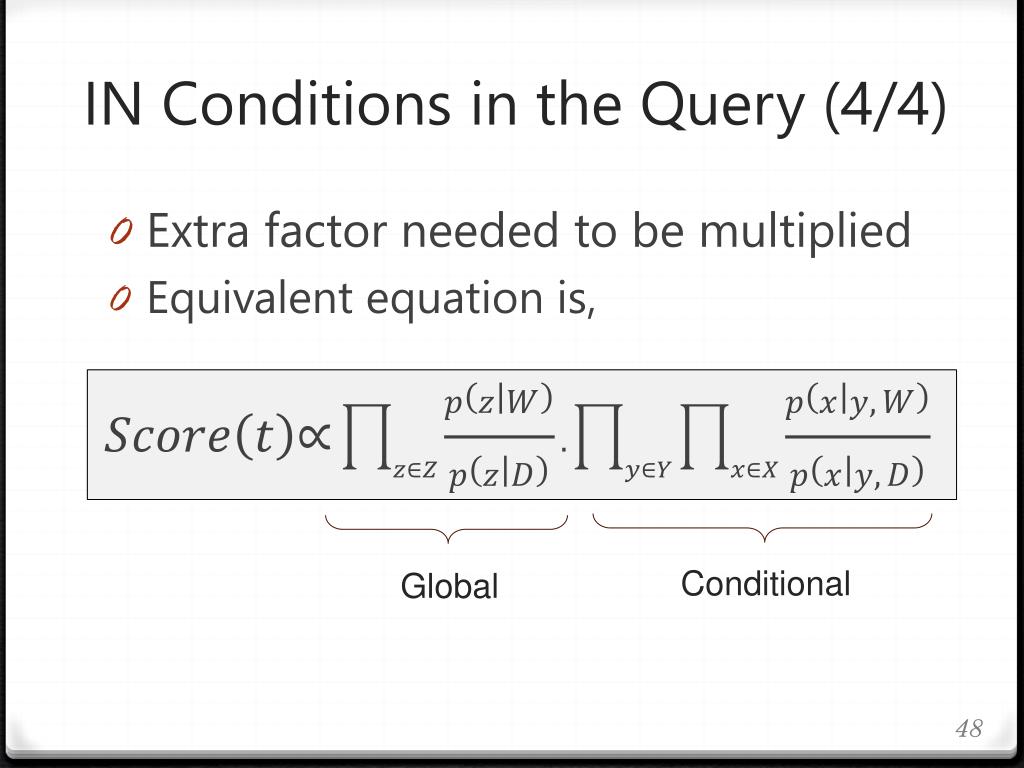

  48. IN Conditions in the Query (4/4) • Extra factor needed to be multiplied • Equivalent equation is, Conditional Global

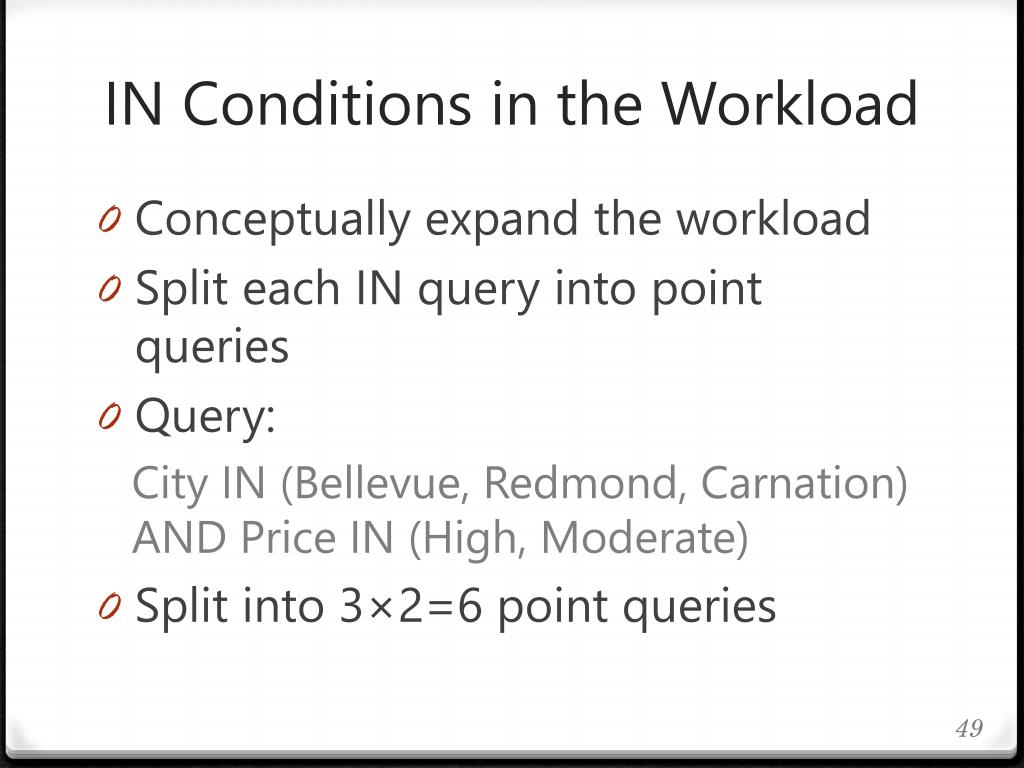

  49. IN Conditions in the Workload • Conceptually expand the workload • Split each IN query into point queries • Query: City IN (Bellevue, Redmond, Carnation) AND Price IN (High, Moderate) • Split into 3×2=6 point queries

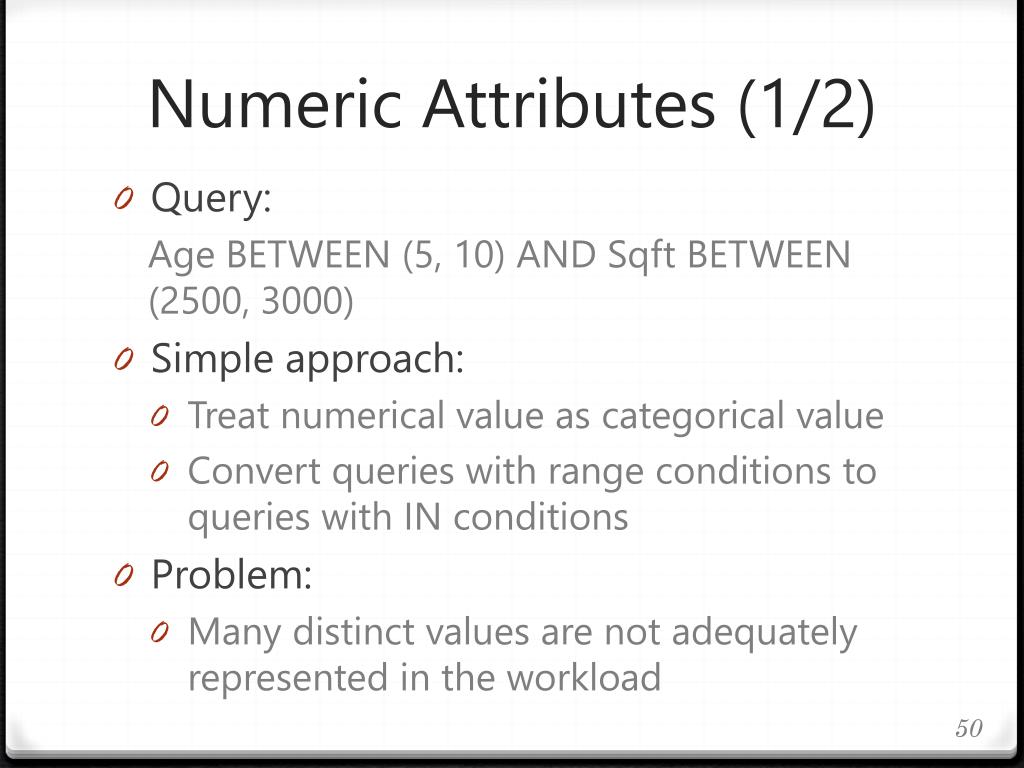

  50. Numeric Attributes (1/2) • Query: Age BETWEEN (5, 10) AND Sqft BETWEEN (2500, 3000) • Simple approach: • Treat numerical value as categorical value • Convert queries with range conditions to queries with IN conditions • Problem: • Many distinct values are not adequately represented in the workload
