  1. Radio, TV, HDTV CSCI 107 19-?? March, 2003

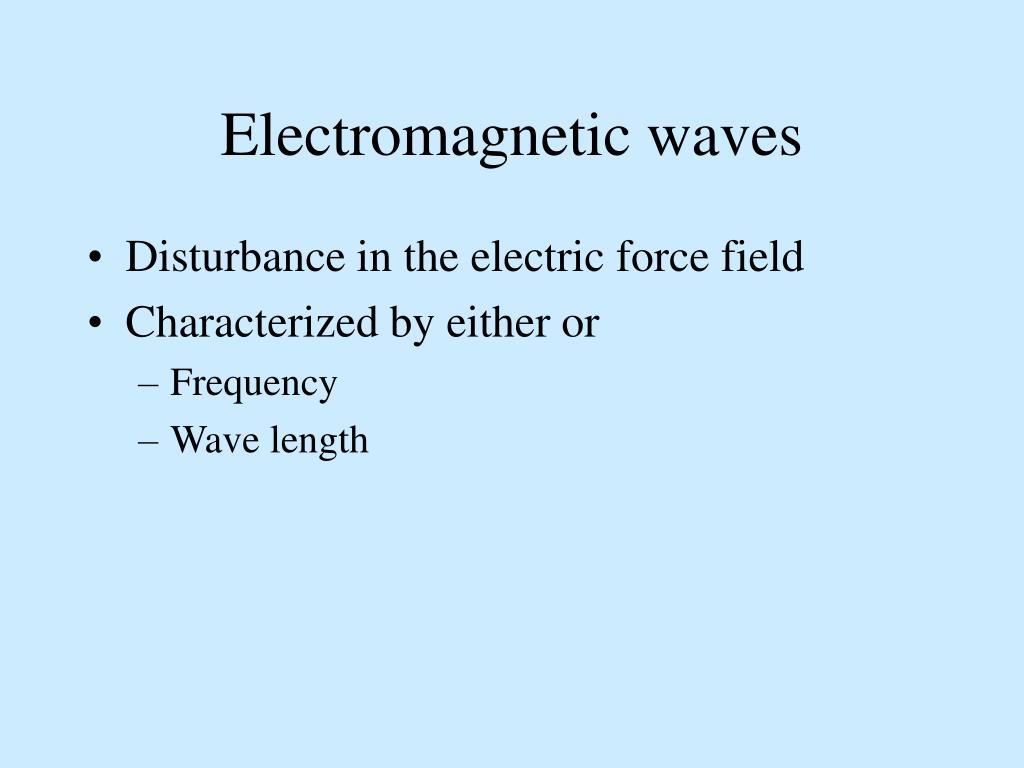

  2. Electromagnetic waves • Disturbance in the electric force field • Characterized by either or • Frequency • Wave length

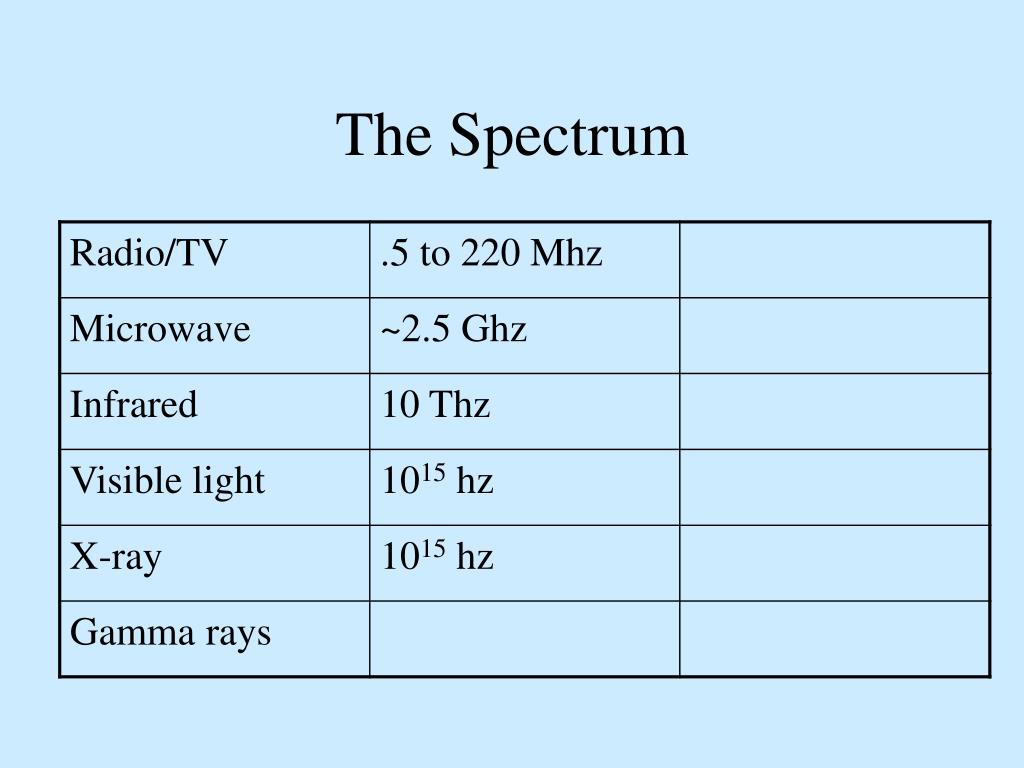

  3. The Spectrum

  4. Allocationsphysical and political • US frequency allocation • TV frequencies • Visible light • The whole thing

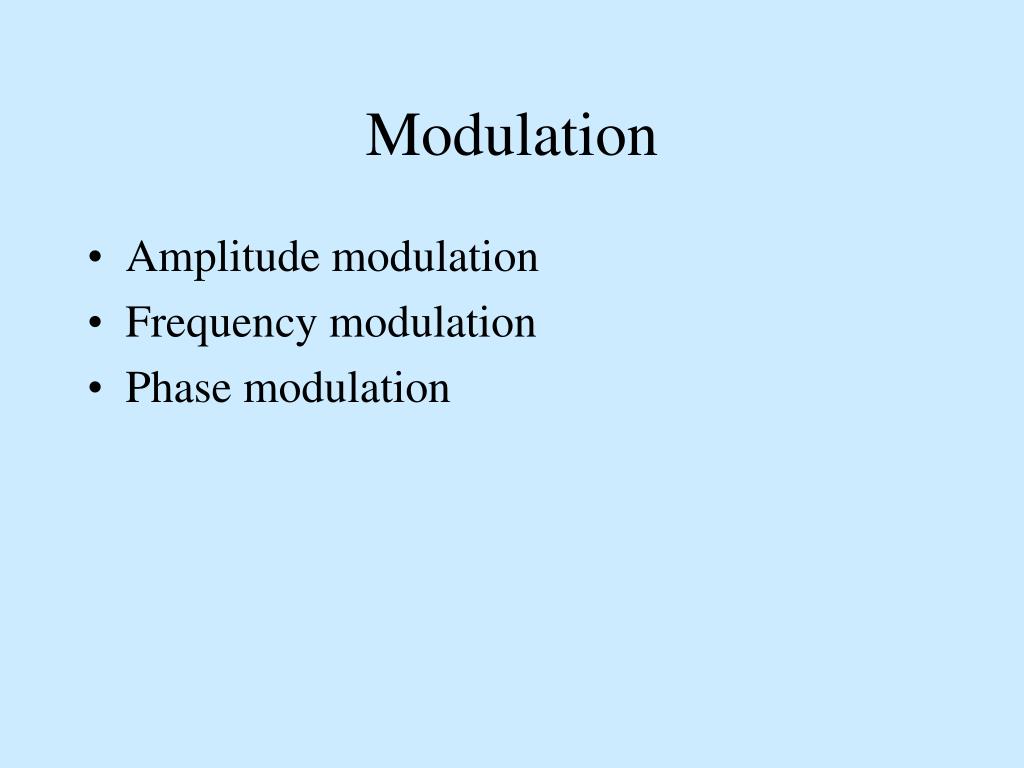

  5. Modulation • Amplitude modulation • Frequency modulation • Phase modulation

  6. TV in the US • NTSC • National Television Standards Committee • “Never Twice the Same Color” • 1930’s standard for black and white TV • 1950’s standard for color TV

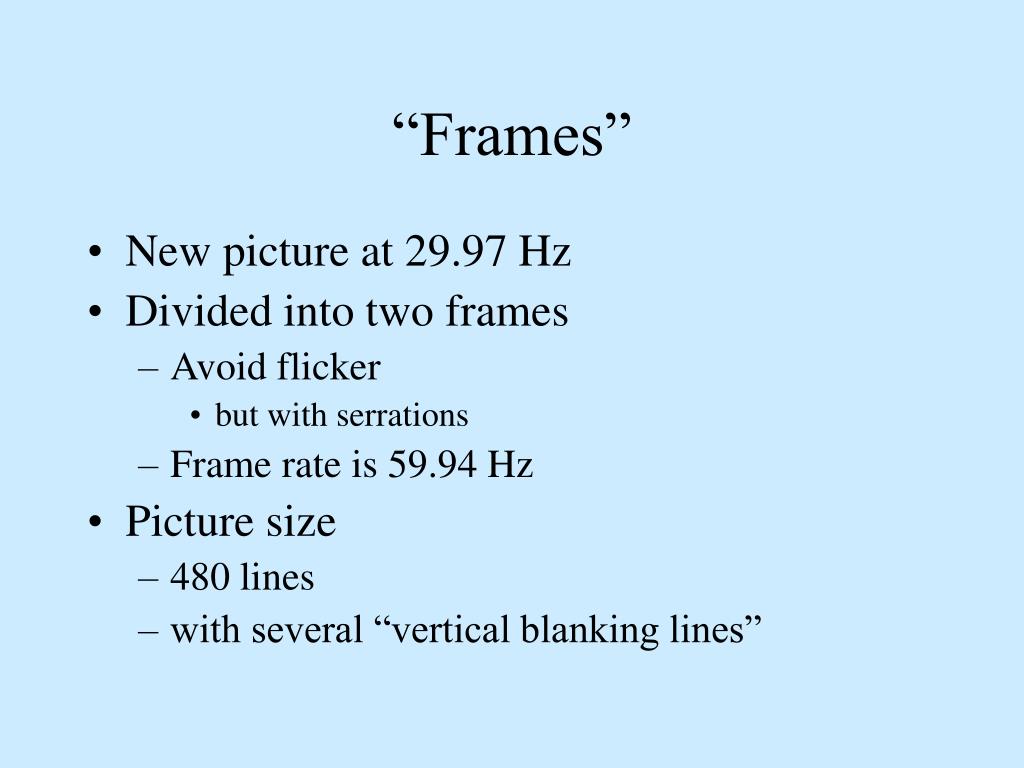

  7. “Frames” • New picture at 29.97 Hz • Divided into two frames • Avoid flicker • but with serrations • Frame rate is 59.94 Hz • Picture size • 480 lines • with several “vertical blanking lines”

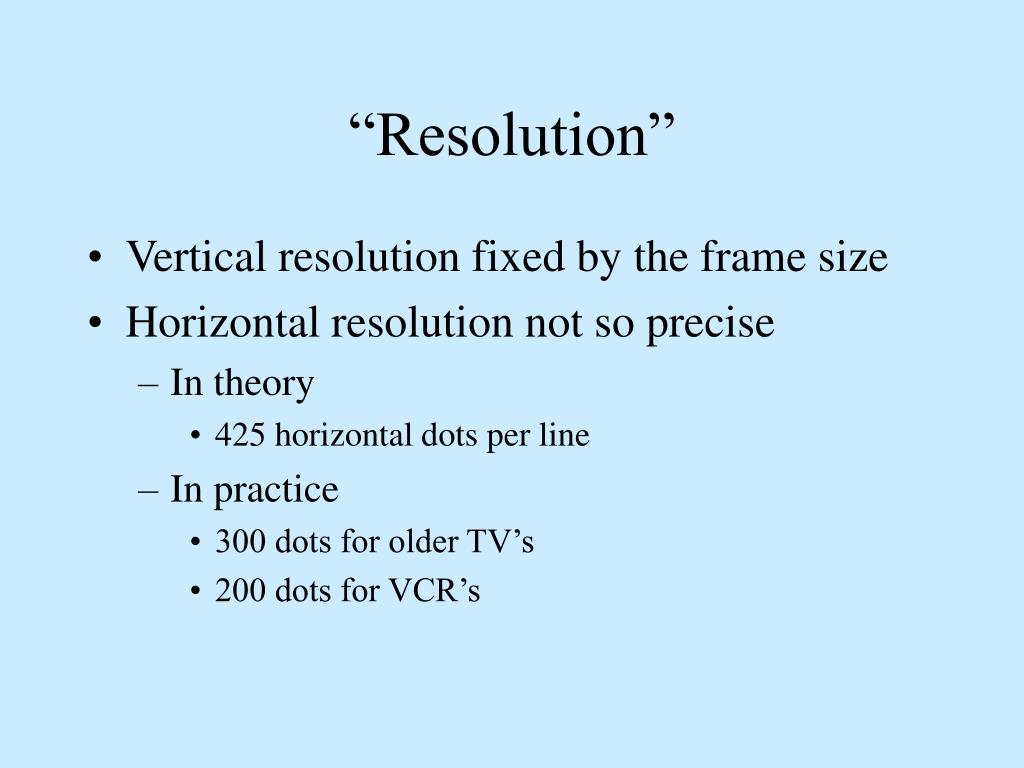

  8. “Resolution” • Vertical resolution fixed by the frame size • Horizontal resolution not so precise • In theory • 425 horizontal dots per line • In practice • 300 dots for older TV’s • 200 dots for VCR’s

  9. Horizontal line • Painted at the rate of • 15,734 Hz • 63.6 μSec From Kelin Kuhn’s NTSC course slides

  10. Color TV “One of the great electrical engineering triumphs was the development of color television in such a way that it remained compatible with black and white television.” Kelin Kuhn NBC Peacock

  11. Adding color to the transmission • Three signals • Y: the old monochrome signal • 0.299 R + 0.587 G + .114 B • I: orange-cyan signal • 0.596 R - 0.275 G - .321 B • 3.579545 Mhz in-phase • Q: purple-green signal • 0.212 R - 0.523 G + .311 B • 3.579545 Mhz 90° out-of phase

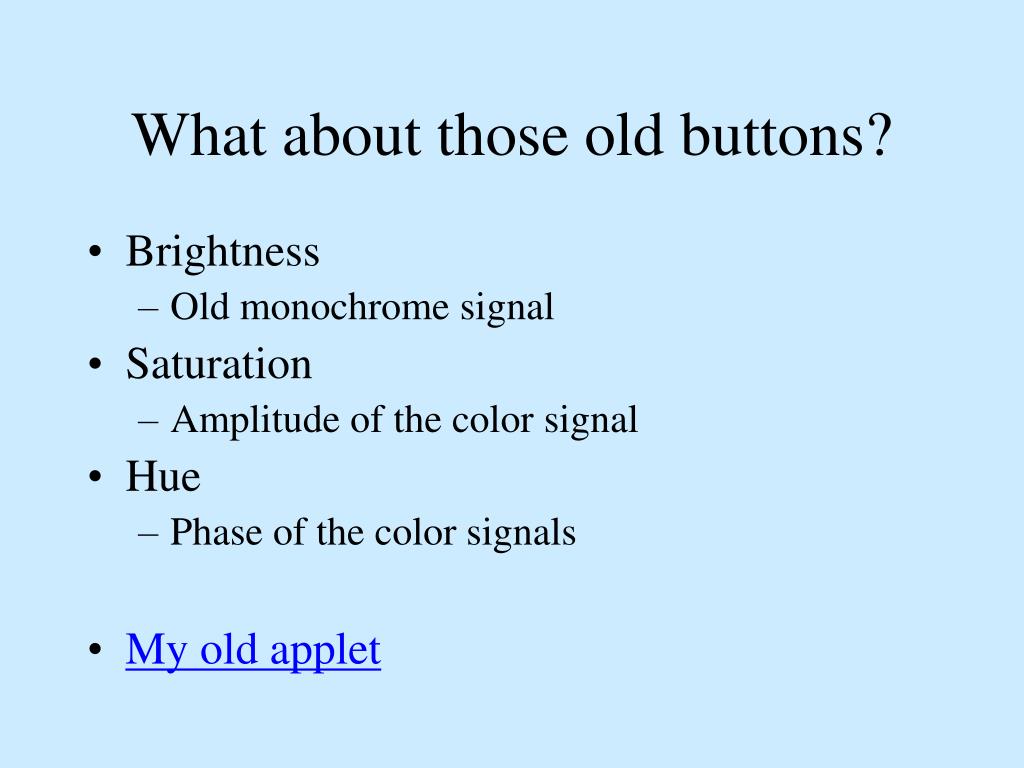

  12. What about those old buttons? • Brightness • Old monochrome signal • Saturation • Amplitude of the color signal • Hue • Phase of the color signals • My old applet

  13. Line 21 • Don’t waste the VBI! • Use line 21 for • Closed captioning • V-chip • XDS • Time • Station call letters • Network

  14. Grand Alliance • Prestigious list of members • AT&T;, General Instrument, MIT, Philips, Sarnoff, Thomson, and Zenith • Started in the late 80’s • Well behind the Japanese effort • But digital won out over analog • Grand Alliance HDTV Systems Specs

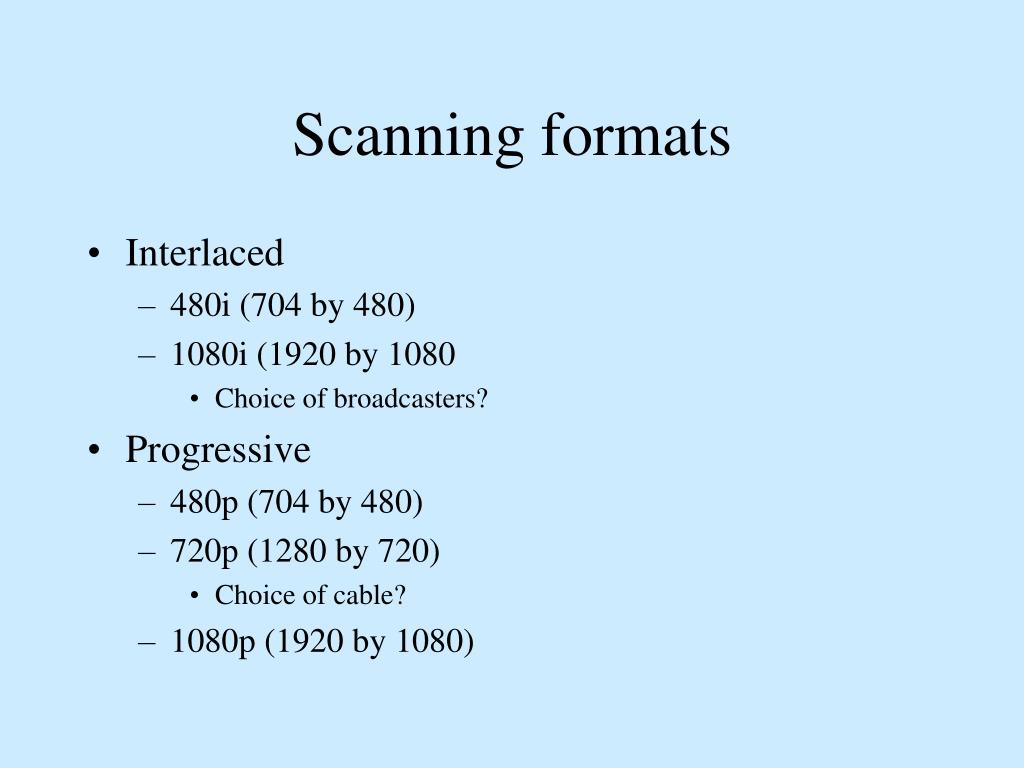

  15. Scanning formats • Interlaced • 480i (704 by 480) • 1080i (1920 by 1080 • Choice of broadcasters? • Progressive • 480p (704 by 480) • 720p (1280 by 720) • Choice of cable? • 1080p (1920 by 1080)

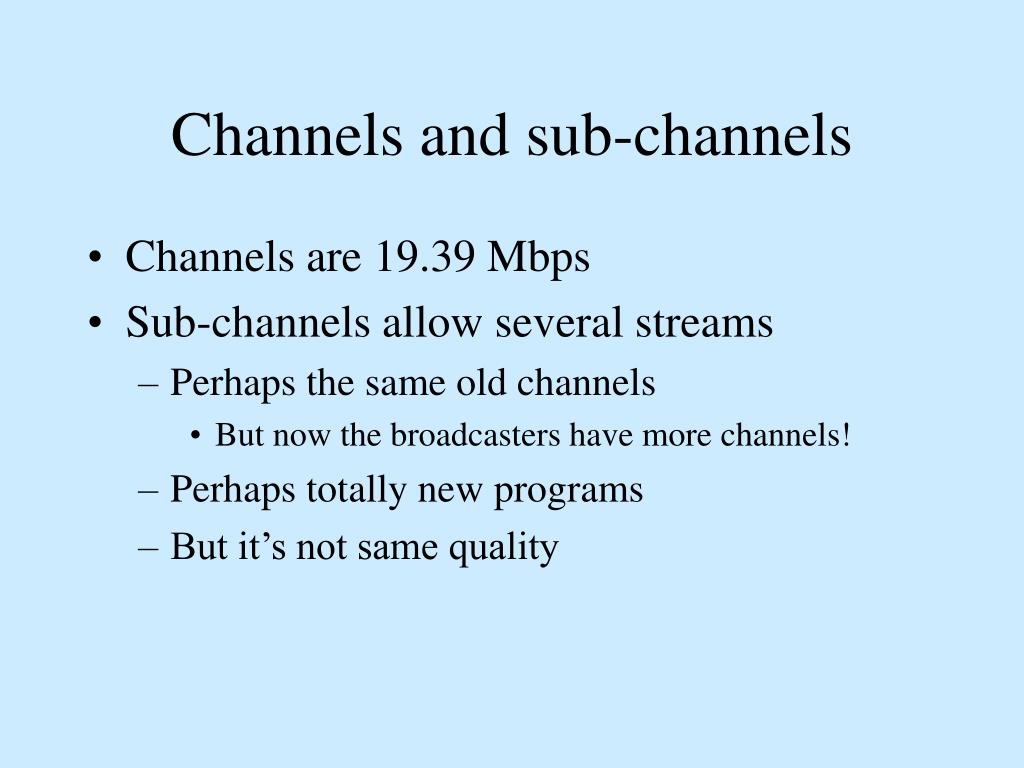

  16. Channels and sub-channels • Channels are 19.39 Mbps • Sub-channels allow several streams • Perhaps the same old channels • But now the broadcasters have more channels! • Perhaps totally new programs • But it’s not same quality

  17. Video Compression • MPEG-2 • The faster the image changes, • The fuzzier the picture can be • Types of frames • I – Intra • Fairly complete image • P – predicted • Differences from previous image • B – backward prediction • Differences between past and future images

  18. Macrocells • 16x16 arrays of luminance • Not as much chrominance • This can be varied to be “good enough” • Uses a Discrete Cosine Transform • Just like JPEG • Transmitted with Run-length coding • Reduces bits needed for repeated colors • Simon Frasier CMPT 386 Multimedia Systems

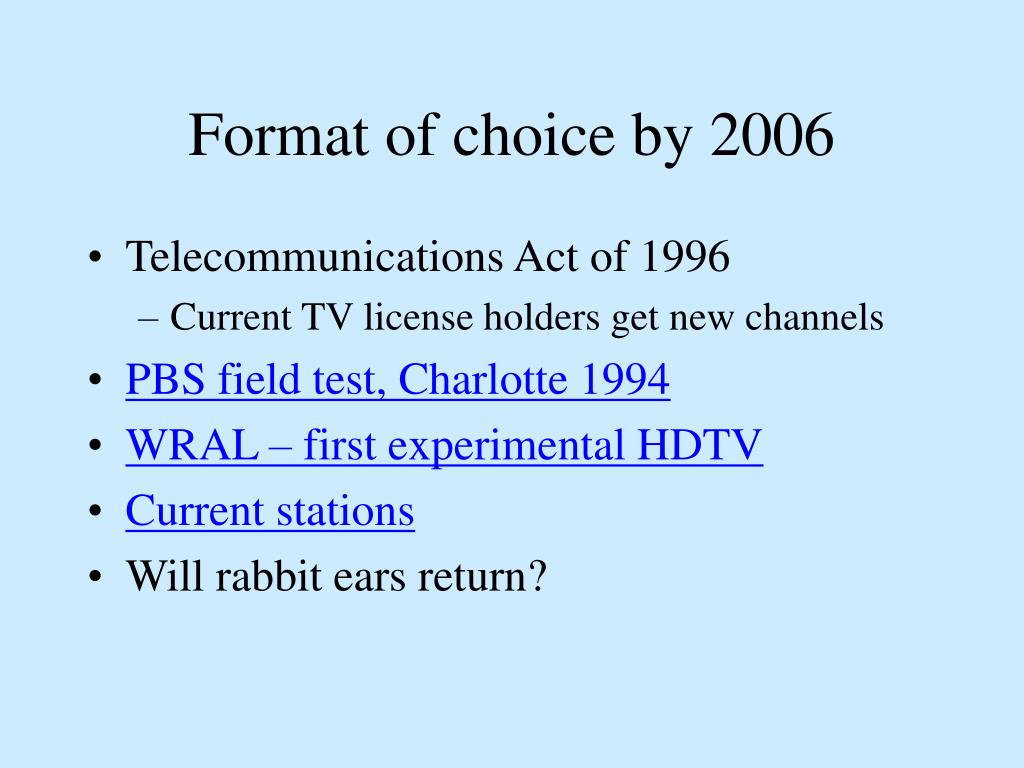

  19. Format of choice by 2006 • Telecommunications Act of 1996 • Current TV license holders get new channels • PBS field test, Charlotte 1994 • WRAL – first experimental HDTV • Current stations • Will rabbit ears return?
