  1. CS32310 MATRICES

  2. Vector vs Matrix transformation formulae • Geometric reasoning allowed us to derive vector expressions for the various transformation formulae • For efficiency reasons, the transformation formulae are usually executed in matrix form

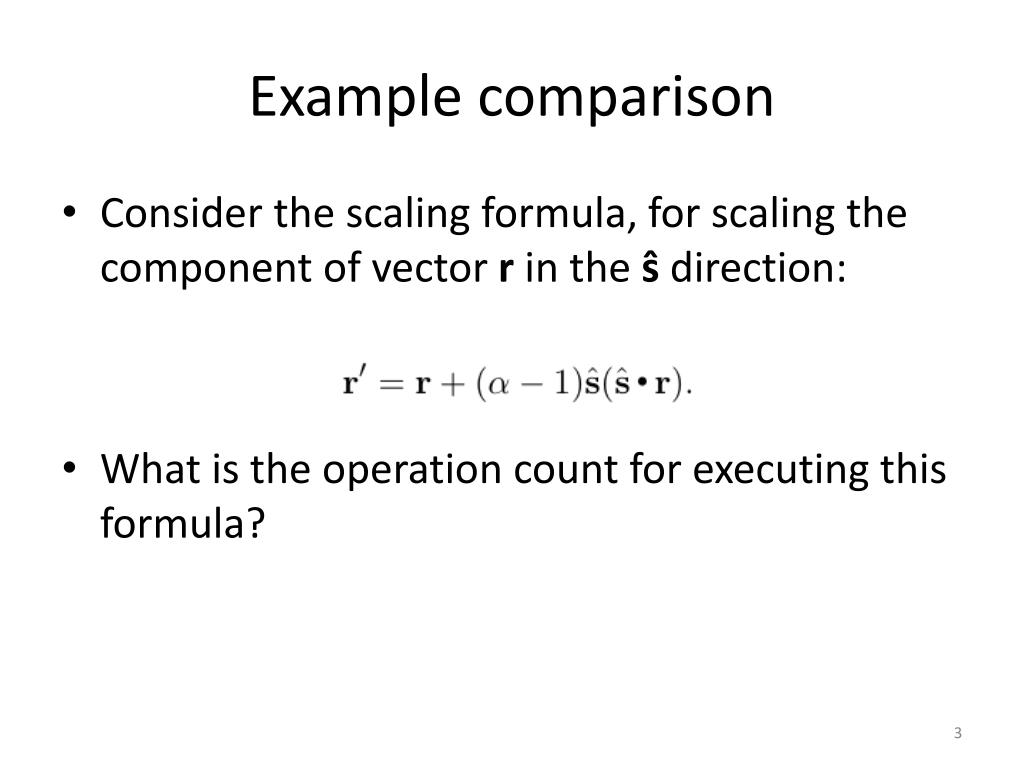

  3. Example comparison • Consider the scaling formula, for scaling the component of vector r in the ŝdirection: • What is the operation count for executing this formula?

  4. The operation count (mults,adds) = (7,6) is for the transformation of one vector. • 3 sequential scalings (in directions ŝ1, ŝ2, ŝ3 for factors α1, α2, α3) for 1000 points Cost: 3000(7,6) = 39000 operations. • Slightly reduced cost by evaluating (α-1)ŝ once for each scaling operations (cost: 3(3,1)), and reusing these results of every point. Resulting cost: 3(3,1) + 3000(6,5) = 33012 operations

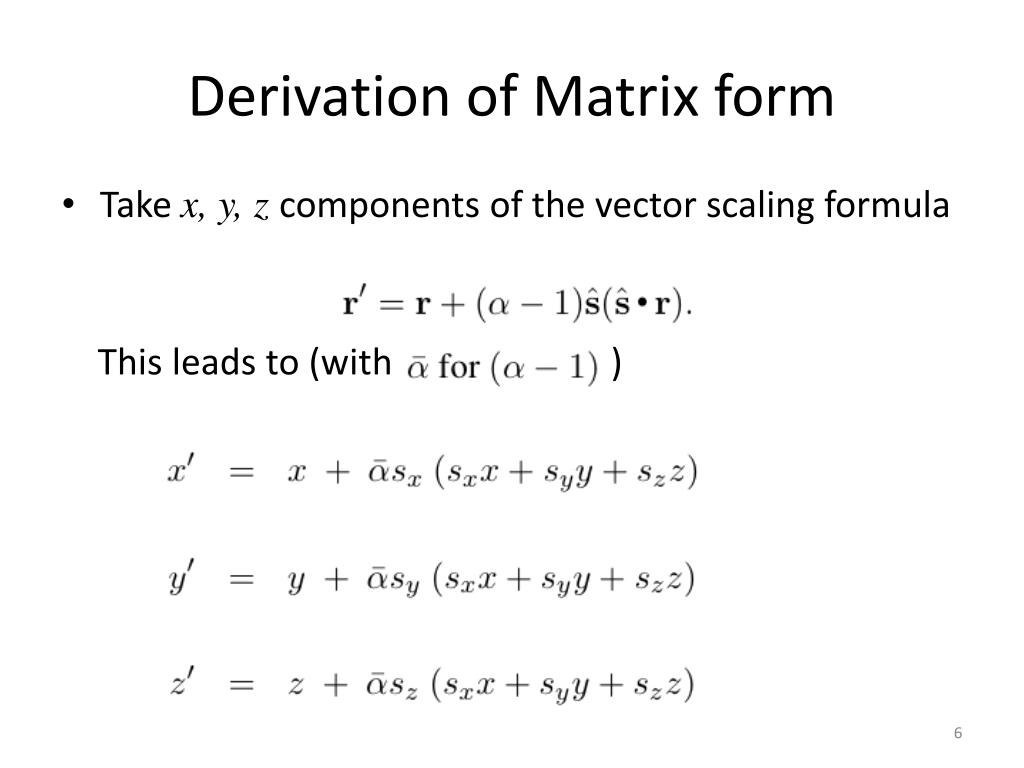

  5. Derivation of Matrix form • Take x, y, zcomponents of the vector scaling formula This leads to (with )

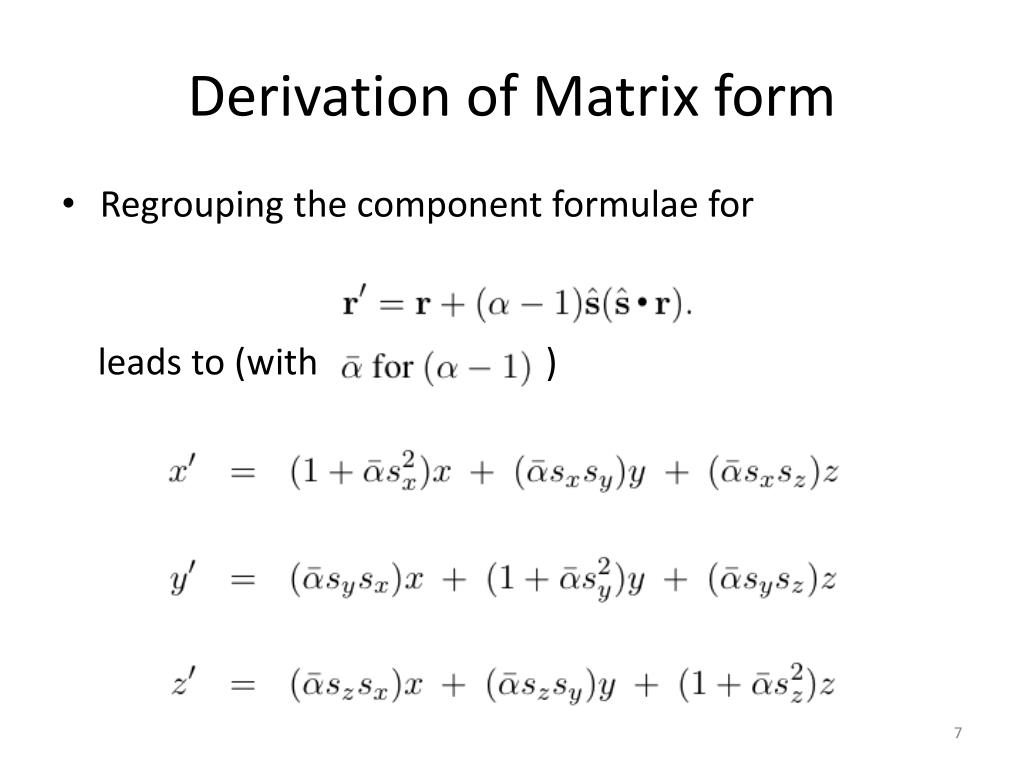

  6. Derivation of Matrix form • Regrouping the component formulae for leads to (with )

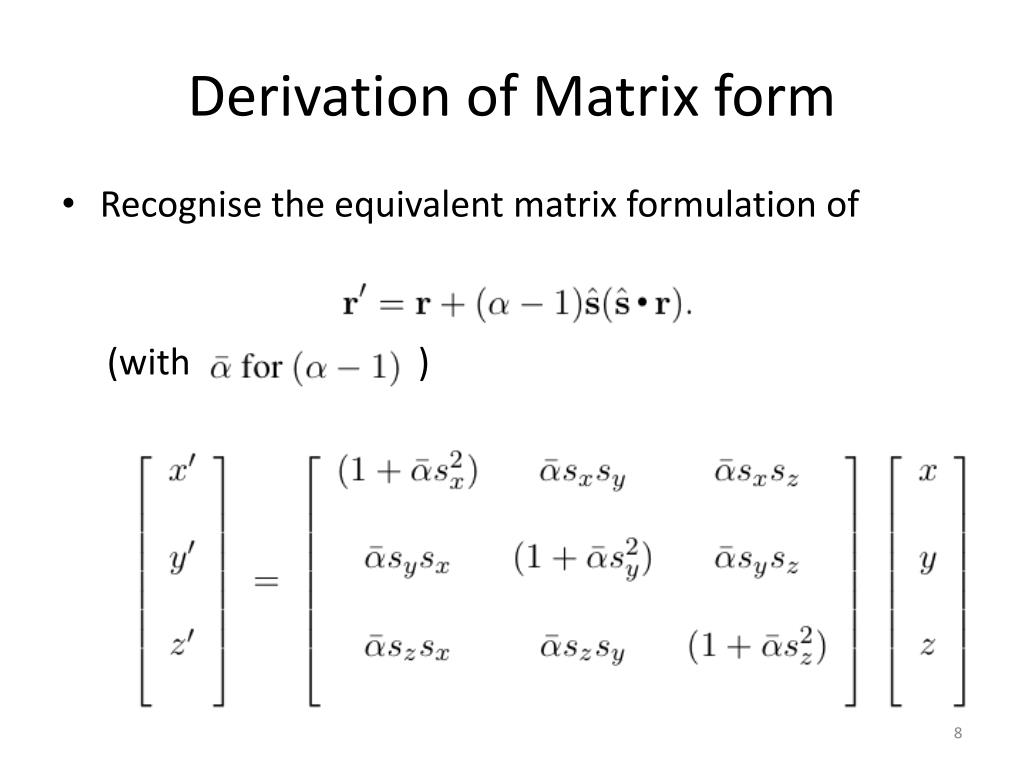

  7. Derivation of Matrix form • Recognise the equivalent matrix formulation of (with )

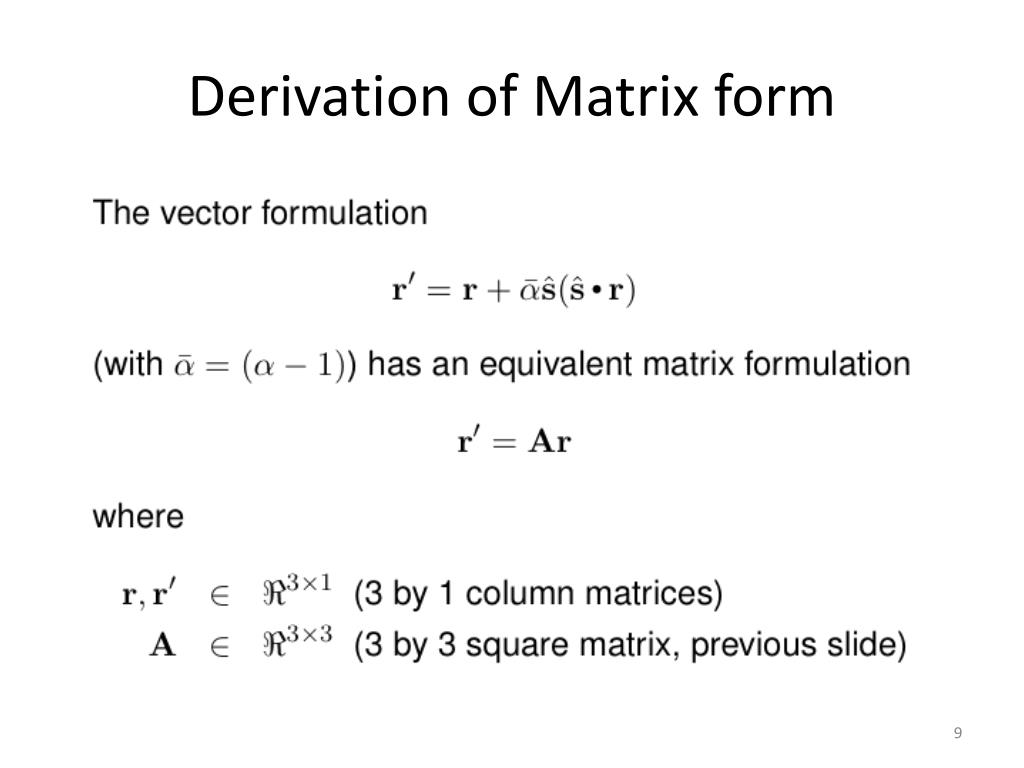

  8. Derivation of Matrix form

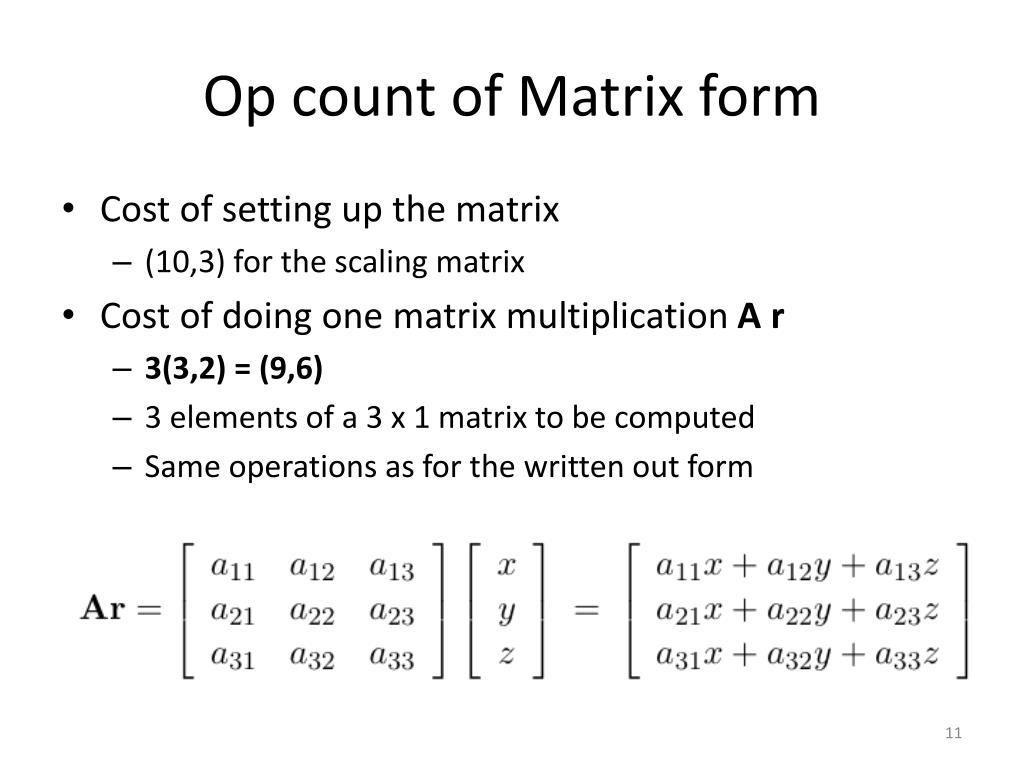

  9. Op count of Matrix form • Cost of setting up the matrix • (10,3) for the scaling matrix • Cost of doing one matrix multiplication A r • 3(3,2) = (9,6) • 3 elements of a 3 x 1 matrix to be computed • Same operations as for the written out form

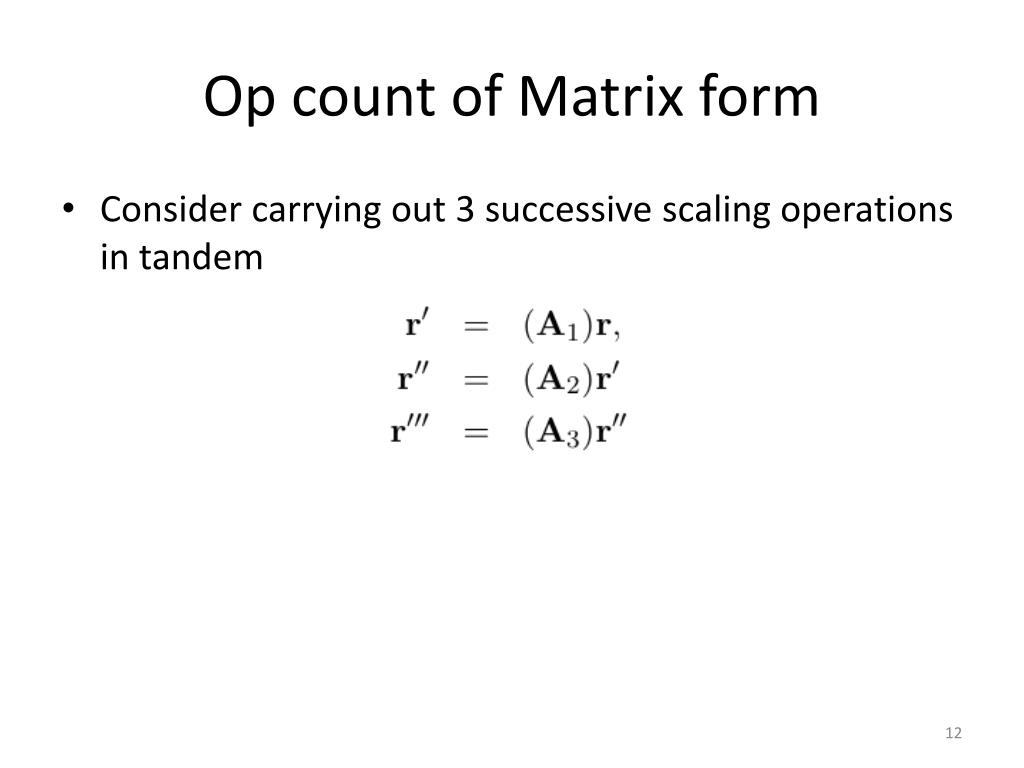

  10. Op count of Matrix form • Consider carrying out 3 successive scaling operations in tandem

  11. Op count of Matrix form No gain over vector approach – not this way!

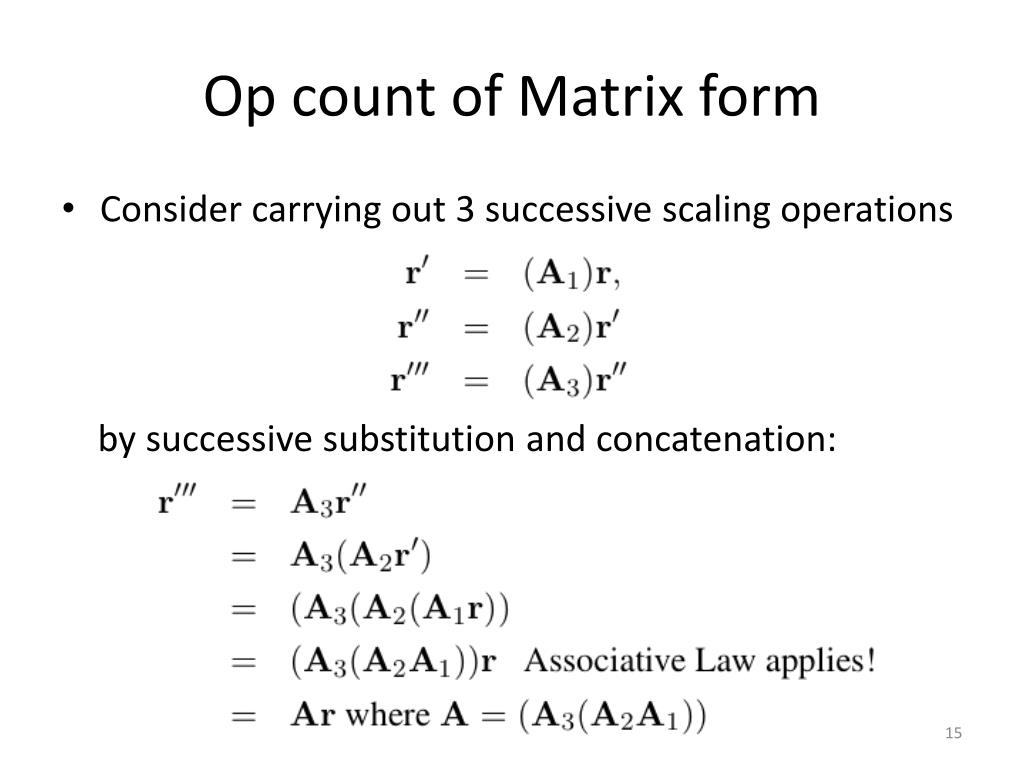

  12. Op count of Matrix form • Consider carrying out 3 successive scaling operations by successive substitution and concatenation:

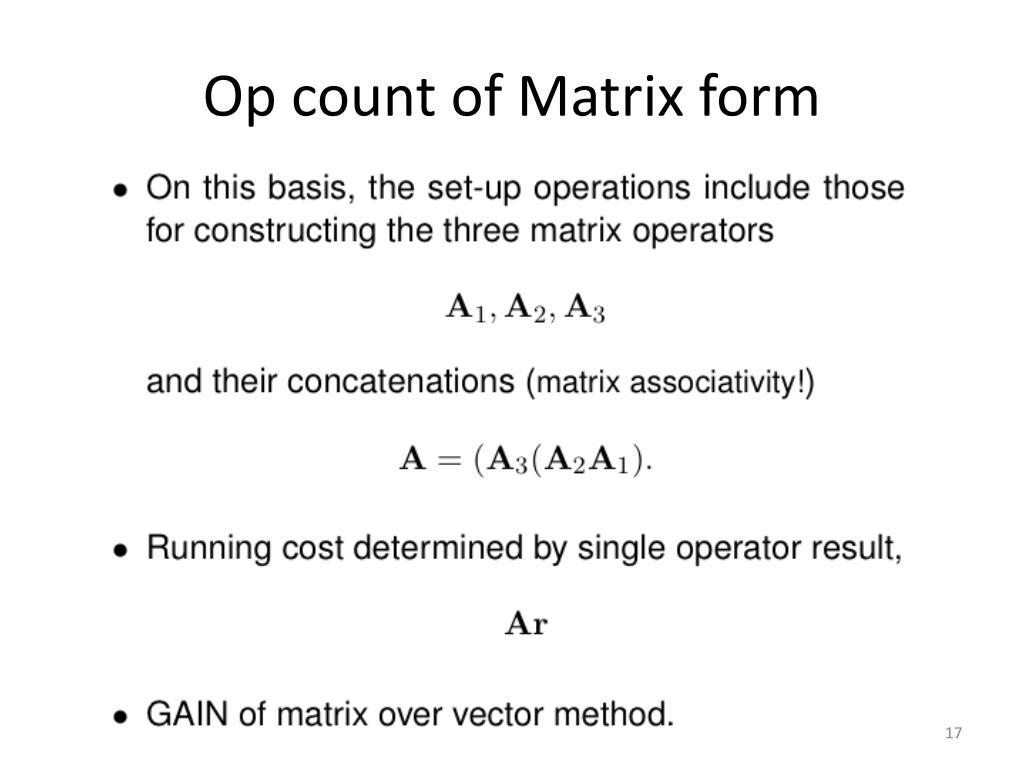

  13. Op count of Matrix form

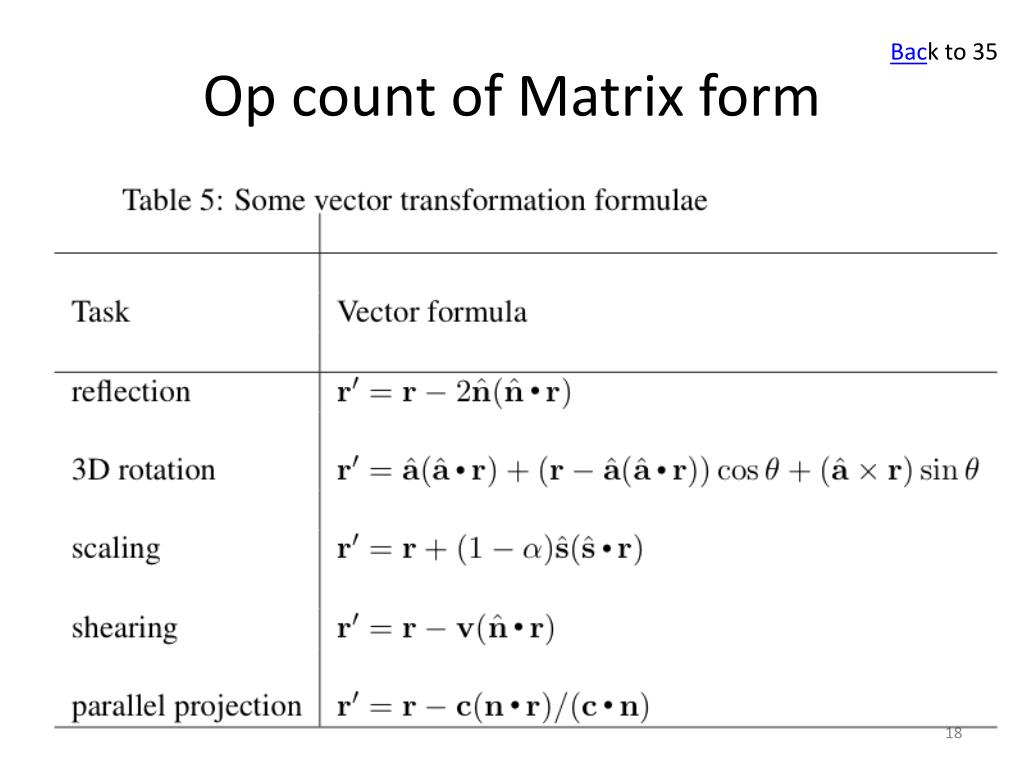

  14. Op count of Matrix form Back to 35

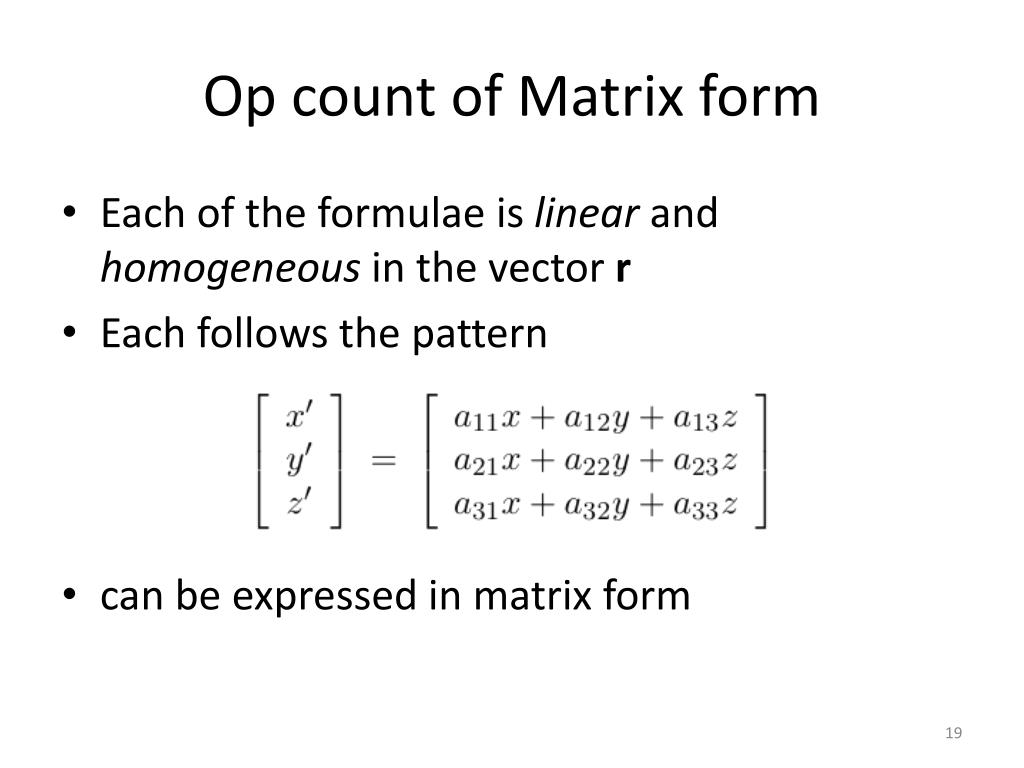

  15. Op count of Matrix form • Each of the formulae is linear and homogeneous in the vector r • Each follows the pattern • can be expressed in matrix form

  16. Op count of Matrix form • or • Details of the operation (in A) are separated from the details of the point being transformed (operand r) • Abstraction! • Concatenation possible

  17. Matrix Product • Motivation for product formula • Let Then

  18. Matrix Product Thus where

  19. Matrix Product Thus we can write C = BA where Inner product of row i and column j. Op count: (3,2) in this case.

  20. Matrix Product In general, if C = BA B and A must satisfy a compatibility constraint: No of columns in first factor (row length) = No of rows in second factor (col length)

  21. Matrix Algebra • Vectors and Matrices are branches of Linear Algebra

  22. Matrix Transposition See http://en.wikipedia.org/wiki/Transpose

  23. Matrix Transposition Examples

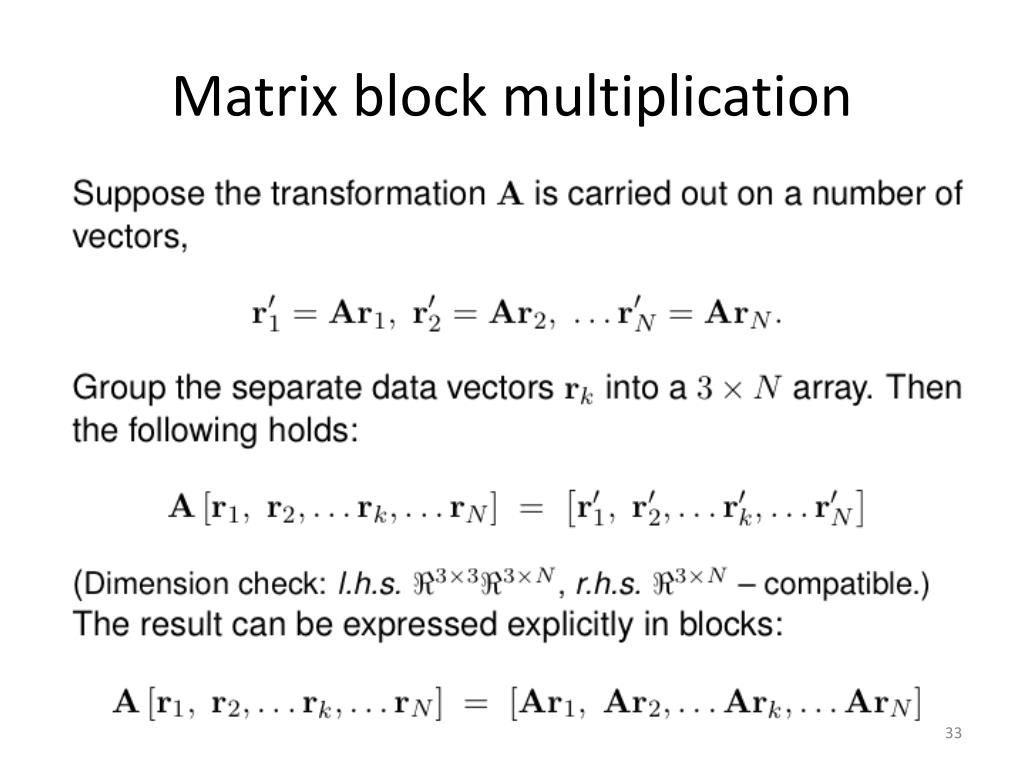

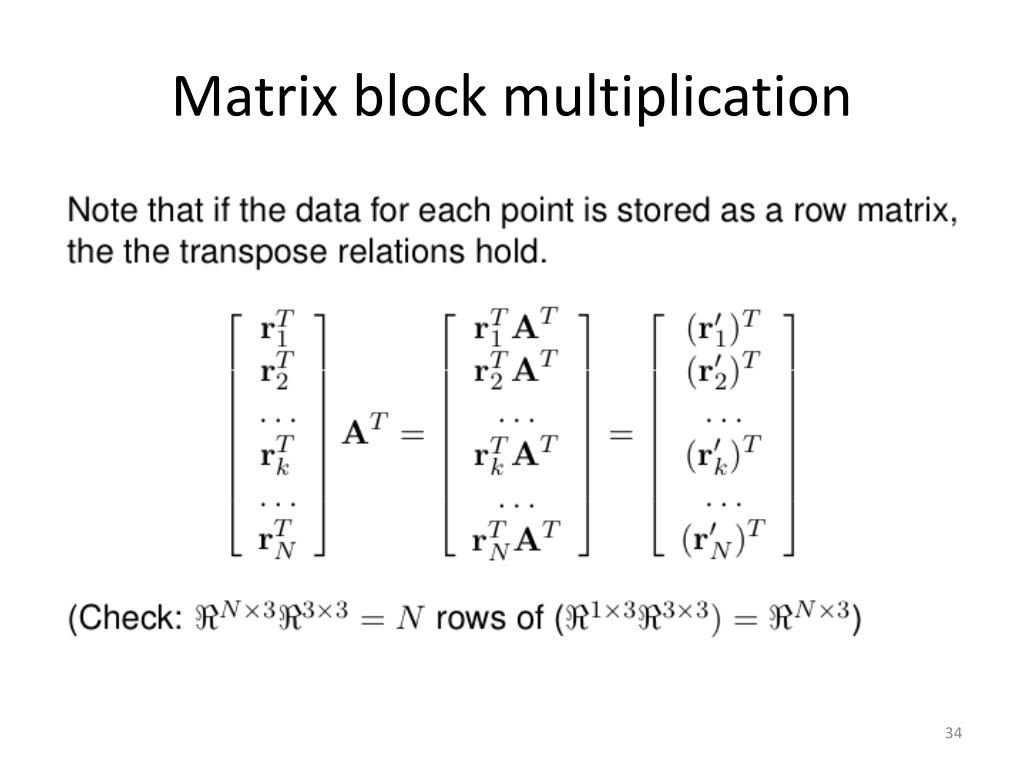

  24. Matrix block multiplication

  25. Matrix block multiplication

  26. Linear Mapping property Table 5

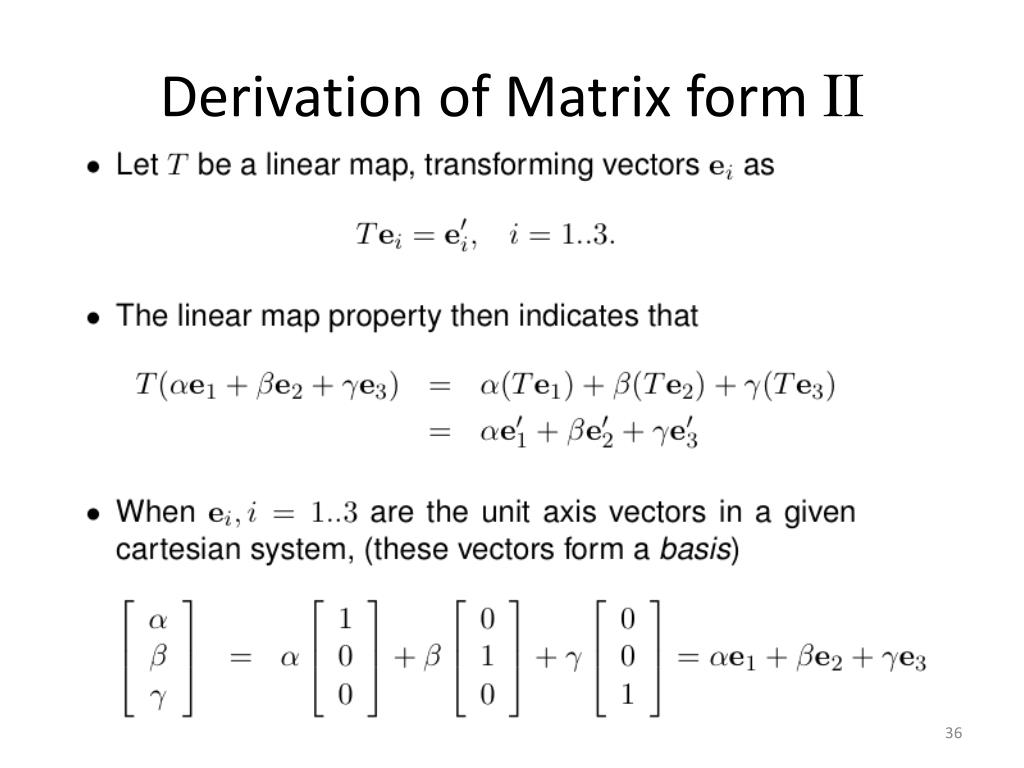

  27. Derivation of Matrix form II

  28. Summary
