  1. Launch Vehicle Considerations for Moon, Mars Missions and ISS Transport An International Perspective John Conklin - Stanford University - E235a -1- 3/9/04

  2. Goals • Update data presented in Stanford International Mars Mission Report • Characterize importance of the InternationalSpace Station • Assess impact ofNASA’s new space policy • Assess impact of today’s global environment John Conklin - Stanford University - E235a -2- 3/9/04

  3. Design Basis Moon and Mars Missions(Payload Size and Weight) • Moon Mission • Apollo Program • Soviet Moon Program • Stanford International Mars Mission • Mars Mission • Stanford International Mars Mission • Proposed Russian Mars Missions John Conklin - Stanford University - E235a -3- 3/9/04

  4. Design Basis Moon Mission Payload • Soviet Moon Program • N1-L3 Space Complex (Sergei Korolev) • 220,500 lb (100,000 kg) to LEO [1] • L3 Lunar Vehicle • 21,700 lb (9,850 kg) • 10.06 m height • 2.93 m diameter • Ur-500K (Proton)(V. Chelomei) • 11,900 lb (5,390 kg) translunar • Apollo Program (USA) • Total Spacecraft Weight • 95,000 lb (43,100 kg) [2] • Saturn V Launch Vehicle • 270,000 lb (122,500 kg) to LEO [2] • 100,000 lb (45,360 kg) translunar [2] [1] SP KoroleV RKK Energiya [2] NASA Special Publication-4009 John Conklin - Stanford University - E235a -4- 3/9/04

  5. Design Basis Mars Mission Payload • Stanford International Mars Mission • 100 ton to LEO HLLV • 2 launch pads required • Total of 9 modules placed in Earth staging orbit by HLLV (For single manned mission) • Crew Transfer Vehicle(2 modules, 41 tons each) • Cargo mission(6 Modules) • 1 Fuel Module • RKK Energiya Proposal (Russia) [3] • Solar Electric Vehicle • Up to 600,000 kg single vehicle assembled in LEO • 6 – 7 Launches to LEO required • 2 year mission duration [3] SP Korolev RKK Energiya John Conklin - Stanford University - E235a -5- 3/9/04

  6. So what Kind of Launch Vehicle do we Need? • Mission Architecture? • Typical Lunar Missions • 10 – 45 metric tons translunar(40 ~120 metric tons to LEO) • Typical Mars Mission Concepts • 100 metric tons to LEO with staging • Can we use a smaller launch vehicle? (SsTO) John Conklin - Stanford University - E235a -6- 3/9/04

  7. International Launch Vehicles Considered • Arienne 5 (France, ESA) • Atlas V (USA, Lockheed)* • Energiya/Zenit (Russia) • Delta IV (USA, Boeing)* • H2 (Japan) • ChangZheng (Long March) (China)* • Soyuz (Russia) • Shuttle Derivative (USA)* • Stanford SsTO (International)* • Proton (Russia) *New or additional launch vehicles not included in Stanford International Mars Mission John Conklin - Stanford University - E235a -7- 3/9/04

  8. Launch Vehicle Payload Capacities [4] Stanford International Mars Mission Final Report, April 1993, E235, Stanford University School of Engineering [5] International Launch Services (ILS) [6] Delta IV Payload Planners Guide, MDC00H0043, Update April 2002 [7] Proton Launch System Mission Planner’s Guide, LKEB-9812-1990, Issue 1, Rev. 5, December 2001 [8] Jenkins, Dennis R,, Space Shuttle: The History of Developing the National Space Transportation System, Motorbooks International, ISBN 0-9633974-4-3, 1996. [9] The Satellite Encyclopedia/NASDA [10] Encyclopedia Astronautica John Conklin - Stanford University - E235a -8- 3/9/04

  9. Launch Vehicle Cost Comparison *Price in 2003 U.S.D. computed from 1992 U.S.D. published in Reference 11. A 1992 to 2003 inflation rate of 28% is used [11]. [4] Stanford International Mars Mission Final Report, April 1993, E235, Stanford University School of Engineering [11] Inflationdata.com John Conklin - Stanford University - E235a -9- 3/9/04

  10. The Energiya • Successor to N1 moon rocket • 2 Stage Launch Vehicle(Stanford IMM requires additional third stage) • Cryogenic core + 4 LO2/kerosene strap on boosters (Zenit) • Length – 193 ft (59 m)N1-L3 stood 345 ft (105 m) • Payload • 100 Tons to LEO • 18 Tons to GEO • 32 Tons translunar • 28 Tons Venus/Mars • Track Record • May 15,1987, mock-up of Polyus spacecraft • Nov. 15, 1988, Buran Orbiter John Conklin - Stanford University - E235a -10- 3/9/04

  11. Viability of EnergiyaDoes the Energiya still “exist”? • Only two Launches • Last launch was 16 years ago • May 2002, Baikonur Cosmodrome Roof Collapse left only full-scale test model of Buran Shuttle and Energiya carrier rocket buried • Energiya cited as launch vehicle for RKK Energiya’s newly disclosed Mars mission concept Photo of Buran and Energiya just prior to collapse – Space.com John Conklin - Stanford University - E235a -11- 3/9/04

  12. Russian Mars Mission Concept (SPK RKK Energiya) • Unveiled on Energiya’s website shortly after NASA’s new space policy was announced • Elements delivered to LEO, then assembled into a single vehicle • Solar electric propulsion • 3 months to leave earth orbit • 8 month transit to mars • 1 month to enter Mars orbit • 1 month on Mars surface • 6 person crew • Reusable vehicle • 6 – 7 Energiya Launches required John Conklin - Stanford University - E235a -12- 3/9/04

  13. Shuttle Derivative(The Shuttle-C) • Shuttle-C concept devised in the mid 1980s • NASA Marshall design for replacement of shuttle orbiter with recoverable main engine pod • Uses Space Shuttle Solid Rocket Boosters and External Fuel Tank • Payload • 77 metric tons to LEO • 8.7 m diam / 56 m length(comparable to Energiya) • Cost per Launch? • Less than the STS(big deal) • $120 - $550 mil USD? [12] Shuttle-CCredit: Boeing [12] sci.space.policy newsgroup John Conklin - Stanford University - E235a -13- 3/9/04

  14. The Soyuz Launch Vehicle • Based on R-7 Semyorka ICBM in the 1950s • Designed by S.P. Korolev • Current configuration introduced in 1966 • 3 – 4 Stages • Kerosene fueled • Manned/Unmanned • LEO – Mars escape trajectory • Soyuz is the Most prolific launch vehicle ever • Over ????? launches since the 1957 launch of sputnik • Safety Rating • Over 70 manned launches with %??? safety rating since 1961 launch of Yuri Gagarin • Equipped with launch escape tower • Generally preferred by U.S. astronauts over Space Shuttle • Assembly line production • Currently in uninterrupted production of 10-15 launch vehicles per year • In early 1980s reached peak production rate of 60 vehicles per year John Conklin - Stanford University - E235a -14- 3/9/04

  15. The Soyuz Launch Vehicle • Based on R-7 Semyorka ICBM in the 1950s • Designed by S.P. Korolev • Current configuration introduced in 1966 • 3 – 4 Stages • Kerosene fueled • Manned/Unmanned • LEO – Mars escape trajectory • Soyuz is the Most prolific launch vehicle ever • Over 1,680 launches since the 1957 launch of sputnik • Safety Rating • Over 70 manned launches with %??? safety rating since 1961 launch of Yuri Gagarin • Equipped with launch escape tower • Generally preferred by U.S. astronauts over Space Shuttle • Assembly line production • Currently in uninterrupted production of 10-15 launch vehicles per year • In early 1980s reached peak production rate of 60 vehicles per year John Conklin - Stanford University - E235a -14- 3/9/04

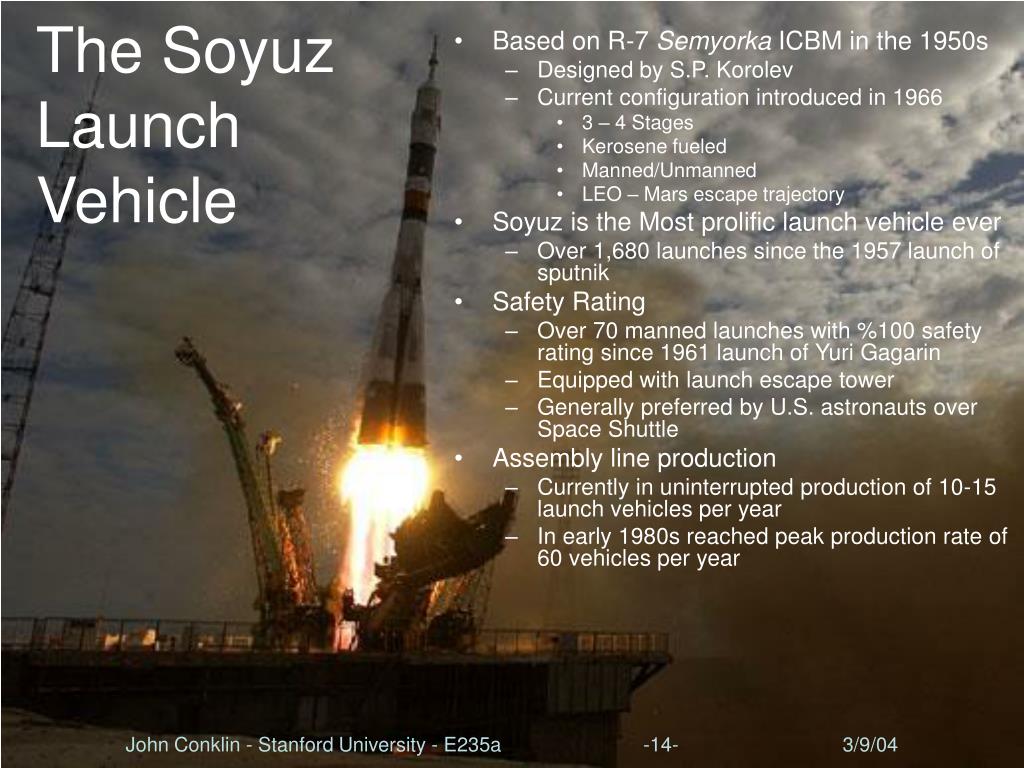

  16. The Soyuz Launch Vehicle • Based on R-7 Semyorka ICBM in the 1950s • Designed by S.P. Korolev • Current configuration introduced in 1966 • 3 – 4 Stages • Kerosene fueled • Manned/Unmanned • LEO – Mars escape trajectory • Soyuz is the Most prolific launch vehicle ever • Over 1,680 launches since the 1957 launch of sputnik • Safety Rating • Over 70 manned launches with %100 safety rating since 1961 launch of Yuri Gagarin • Equipped with launch escape tower • Generally preferred by U.S. astronauts over Space Shuttle • Assembly line production • Currently in uninterrupted production of 10-15 launch vehicles per year • In early 1980s reached peak production rate of 60 vehicles per year John Conklin - Stanford University - E235a -14- 3/9/04

  17. The ChangZheng 2F(Long March) • First ChangZheng rocket launched in 1960 with Russian aid [13] • Man rated version of China’s Long March family of launch vehicles • October 15, 2003 the Long March 2F Launched Shenxhou-5 spacecraft carrying the first Chinese “Taikonaut” into Low Earth orbit • 5 Successful launches to date • Equipped with launch escape tower • Shenxhou autonomous orbital module allows for the possibility of future space station construction and ISS docking [13] • Major Contribution: Lessons learned [13] Escutia, Paul, “China’s Space Program: Growing International Connections”, Fall 2003 EDGE John Conklin - Stanford University - E235a -15- 3/9/04

  18. International Spaceports • Can launch larger payloads into equatorial orbits from locations closer to the Earth’s equator. • Other sites more ideal for polar orbits • e.g., EADS-Rosaviakosmos agreement to launch Soyuz at Kourou John Conklin - Stanford University - E235a -16- 3/9/04

  19. ISS / Moon and Mars Manned Vehicle Construction and Architecture • Vehicle staging and construction in LEO • Using the ISS as a spacecraft factory • RKK Energiya Mars mission test plan includes test vehicles constructed at ISS • Advantage: Separation of Cargo and Crew John Conklin - Stanford University - E235a -17- 3/9/04

  20. Separation of Cargo and Crew • Concept • Use “energetic” HLLVs to loft heavy cargo/vehicles • Use lighter and more reliable launch vehicles for crew transfer • Opposite of Apollo/STS/Buran/SsTO concepts • Consistently used by Russia to construct and man space stations • Reduces cost and Increases Safety • Limits Payload returned to Earth • NASA Leaning toward this approach in the future(phase out STS in favor of CEV)? = 2 + 2 John Conklin - Stanford University - E235a -18- 3/9/04

  21. Brief History of Russian Space Station Construction/Missions *Failed to open hatch between Salyut and Soyuz**First manned space station mission. Soyuz capsule depressurized during reentry***Failed to dock with space station (Soyuz 23 – control system failure, landing in Tengiz Lake)****Sept 1983, Soyuz T exploded on Launch pad, but Escape system saved the crew John Conklin - Stanford University - E235a -19- 3/9/04

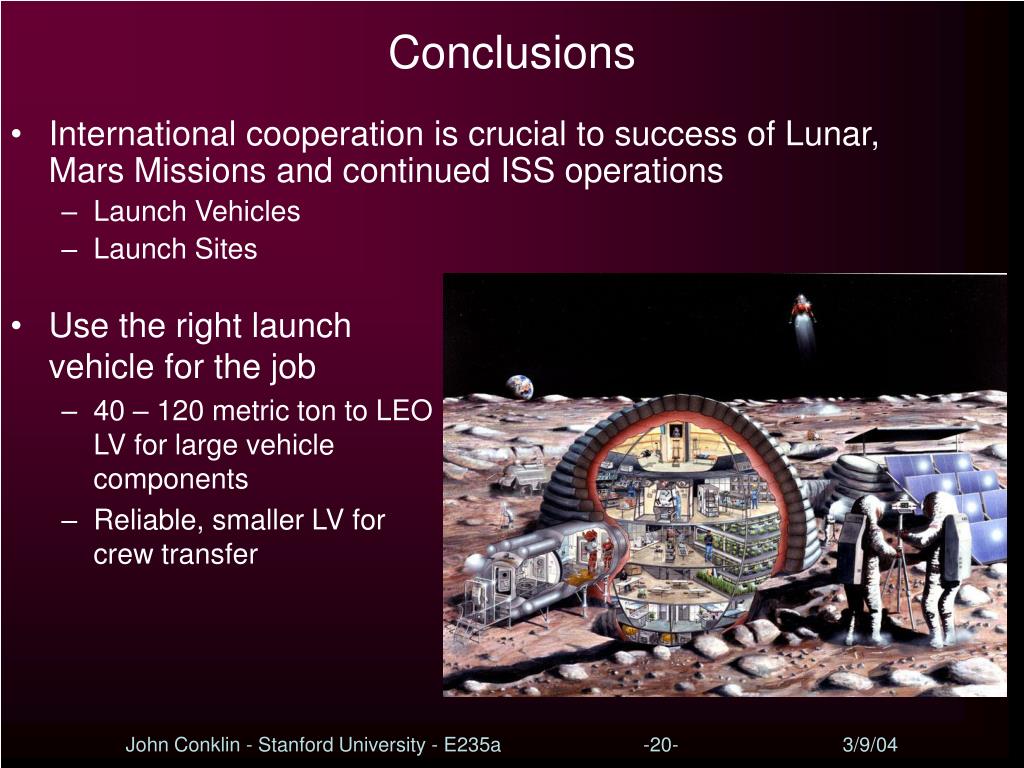

  22. Conclusions • International cooperation is crucial to success of Lunar, Mars Missions and continued ISS operations • Launch Vehicles • Launch Sites • Use the right launch vehicle for the job • 40 – 120 metric ton to LEO LV for large vehicle components • Reliable, smaller LV for crew transfer John Conklin - Stanford University - E235a -20- 3/9/04
