Model Based Verification: MP3 Player Model

David Harty MSE 595 2004. Model Based Verification: MP3 Player Model. Introduction. The Project Xilinx MP3 Reference Design The Goal Model subfunctionality of MP3 player components The Tools Statemate – state machine creation and modeling SMV - SMV testing. Statement of Scope.

dionne
Download Presentation

Model Based Verification: MP3 Player Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. David Harty MSE 595 2004 Model Based Verification:MP3 Player Model

  2. Introduction • The Project • Xilinx MP3 Reference Design • The Goal • Model subfunctionality of MP3 player components • The Tools • Statemate – state machine creation and modeling • SMV - SMV testing

  3. Statement of Scope

  4. Statement of Scope

  5. Original StatechartsFlash Controller

  6. Statemate ModelActivity Chart

  7. Statemate ModelMain Controller State Machine

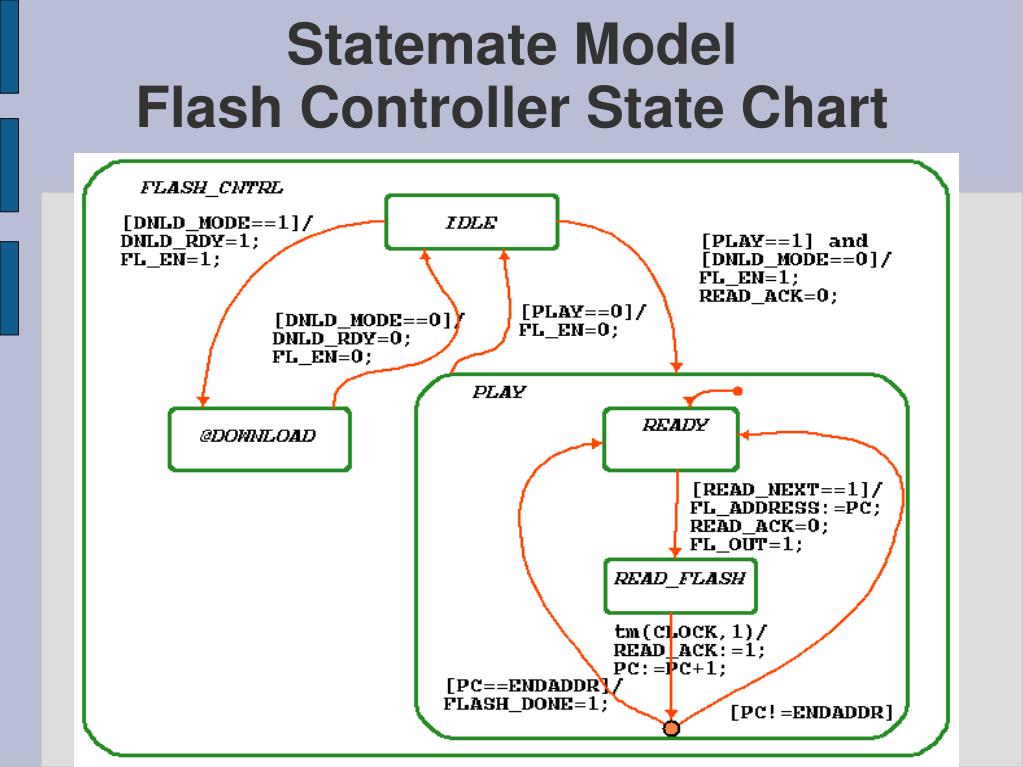

  8. Statemate ModelFlash Controller State Chart

  9. Parallel Port Controller

  10. SMV • Challenges • Learning SMV • Understanding CTL (limited) • Converting Hierarchical State Charts to SMV • Not orthogonal like lectures • Solutions • Hack and test, hack and test. • Basic spec statements • SPEC EF(state=idle) • Hierarchical modules, with variable “drilling” • module main; state := port_cntrl.cntrl_state; • module port_cntrl; cntrl_state:=port_dnld.dnld_state;

  11. SMVMODULE port_dnld MODULE port_dnld (nstrobe, next_data) VAR -- outputs nack : {0, 1}; trs_rdy : {0, 1}; -- states dnld_state : {mp3_rdy, data_rdy, data_ack}; ASSIGN -- assign states init(dnld_state) := mp3_rdy; next(dnld_state) := case dnld_state = mp3_rdy & (nstrobe = 1): mp3_rdy; dnld_state = mp3_rdy & (nstrobe = 0): data_rdy; dnld_state = data_rdy & (next_data = 0): data_rdy; dnld_state = data_rdy & (next_data = 1): data_ack; dnld_state = data_ack & (nstrobe = 0): data_ack; dnld_state = data_ack & (nstrobe = 1): data_ack; 1 : dnld_state; esac;

  12. SMVMODULE port_cntrl MODULE port_cntrl (downld, dnld_rdy, nstrobe, next_data) VAR -- states cntrl_state : {idle, port_rdy, mp3_rdy, data_rdy, data_ack, test}; -- modules port_dnld : port_dnld (nstrobe, next_data); ASSIGN -- set the state init(cntrl_state ) := idle; next(cntrl_state ) := case cntrl_state = idle & downld : port_rdy; cntrl_state = port_rdy & !downld : idle; cntrl_state = port_rdy & dnld_rdy & downld : port_dnld.dnld_state; cntrl_state = port_dnld.dnld_state & !dnld_rdy & downld : port_rdy; cntrl_state = port_dnld.dnld_state & !downld : idle; 1 : cntrl_state ; esac;

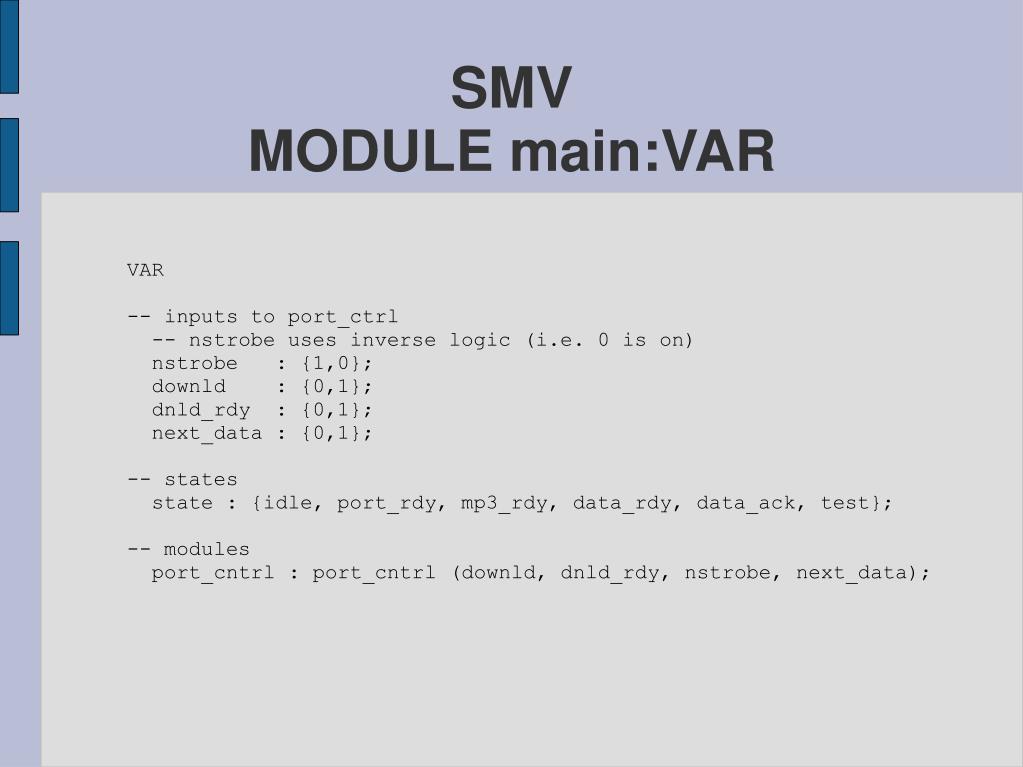

  13. SMVMODULE main:VAR VAR -- inputs to port_ctrl -- nstrobe uses inverse logic (i.e. 0 is on) nstrobe : {1,0}; downld : {0,1}; dnld_rdy : {0,1}; next_data : {0,1}; -- states state : {idle, port_rdy, mp3_rdy, data_rdy, data_ack, test}; -- modules port_cntrl : port_cntrl (downld, dnld_rdy, nstrobe, next_data);

  14. SMVmain:ASSIGN, SPEC ASSIGN -- get the output values next(dnld_mode) := port_cntrl.dnld_mode; next(dld_rdy) := port_cntrl.dld_rdy; next(nack) := port_cntrl.nack; -- get the port_cntrl state values state := port_cntrl.cntrl_state; -- assign input variables to cause a SPEC false results -- downld := 0; -- states will not leave idle -- dnld_rdy := 0; -- states will not leave port_rdy -- nstrobe := 1; -- states will not leave mp3_rdy -- next_data := 0; -- states will not leave data_rdy, data_ack is never hit

  15. SMVmain: SPEC -- test all states SPEC EF(state=idle) SPEC EF(state=port_rdy) SPEC EF(state=mp3_rdy) SPEC EF(state= data_rdy) SPEC EF(state= data_ack) -- test some outputs SPEC EF(dnld_mode = 0) SPEC EF(dnld_mode = 1) SPEC EF(dld_rdy = 0) SPEC EF(dld_rdy = 1) SPEC EF(nack = 0) SPEC EF(nack = 1)

  16. Questions?

  17. Summary (1) • Statemate • Issues • How to use orthogonality? Always applicable? • How to more data on graphical editor. • Leasons learned • Define data early • Define top level structures first • Save often

  18. Summary (2) • SMV • Issues • SMV doesn't run sample code included with distribution. • Correct use of hierarchies? • Learn CTL • Need for a verification of verifier. • Lessons learned • SMV syntax isn't checked if it doesn't run • i.e. If it is never reached or a SPEC doesn't check it. • Designed for breadth first verification, not depth.
