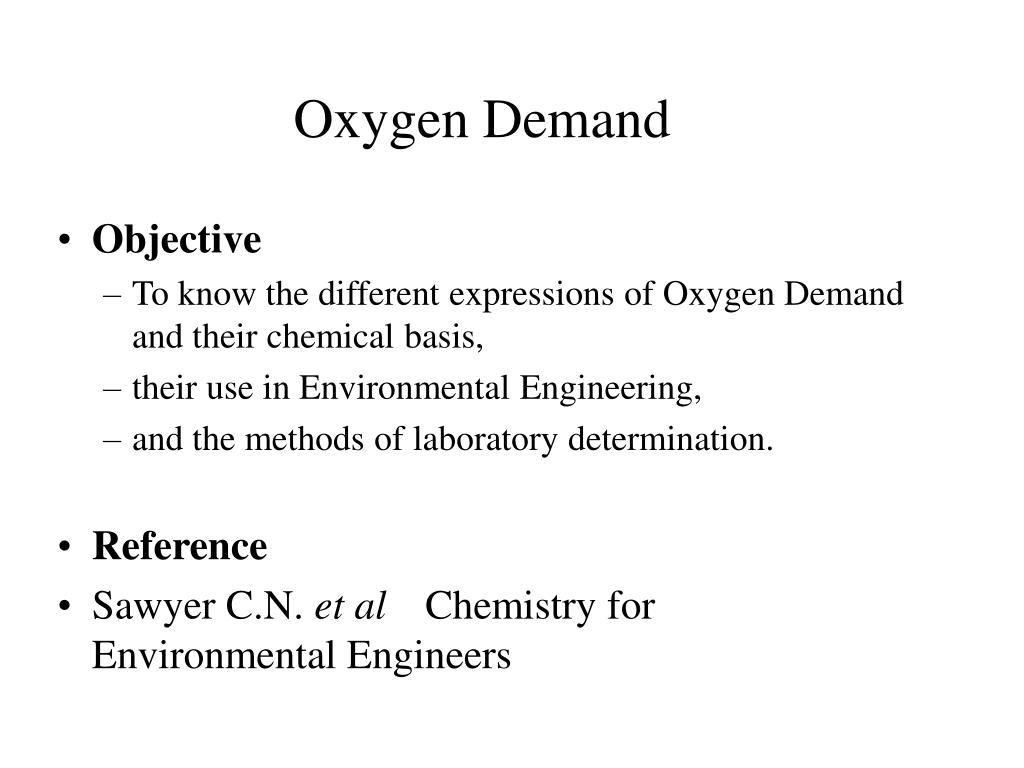

  1. Oxygen Demand • Objective • To know the different expressions of Oxygen Demand and their chemical basis, • their use in Environmental Engineering, • and the methods of laboratory determination. • Reference • Sawyer C.N. et al Chemistry for Environmental Engineers

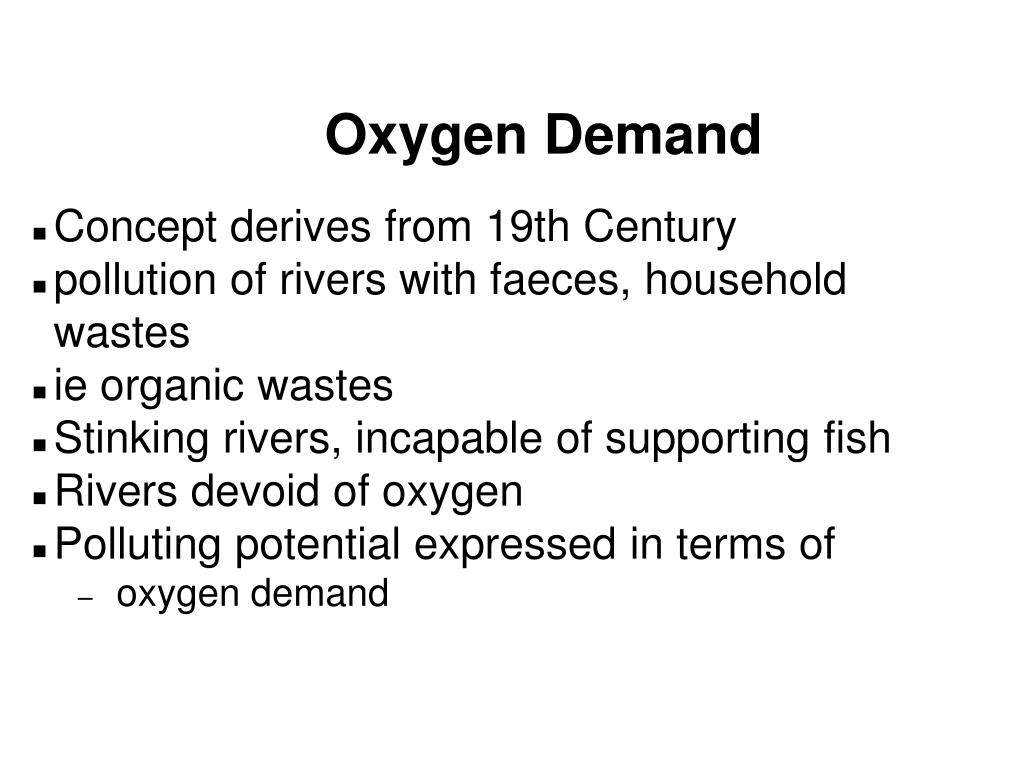

  2. Concept derives from 19th Century • pollution of rivers with faeces, household wastes • ie organic wastes • Stinking rivers, incapable of supporting fish • Rivers devoid of oxygen • Polluting potential expressed in terms of • oxygen demand Oxygen Demand

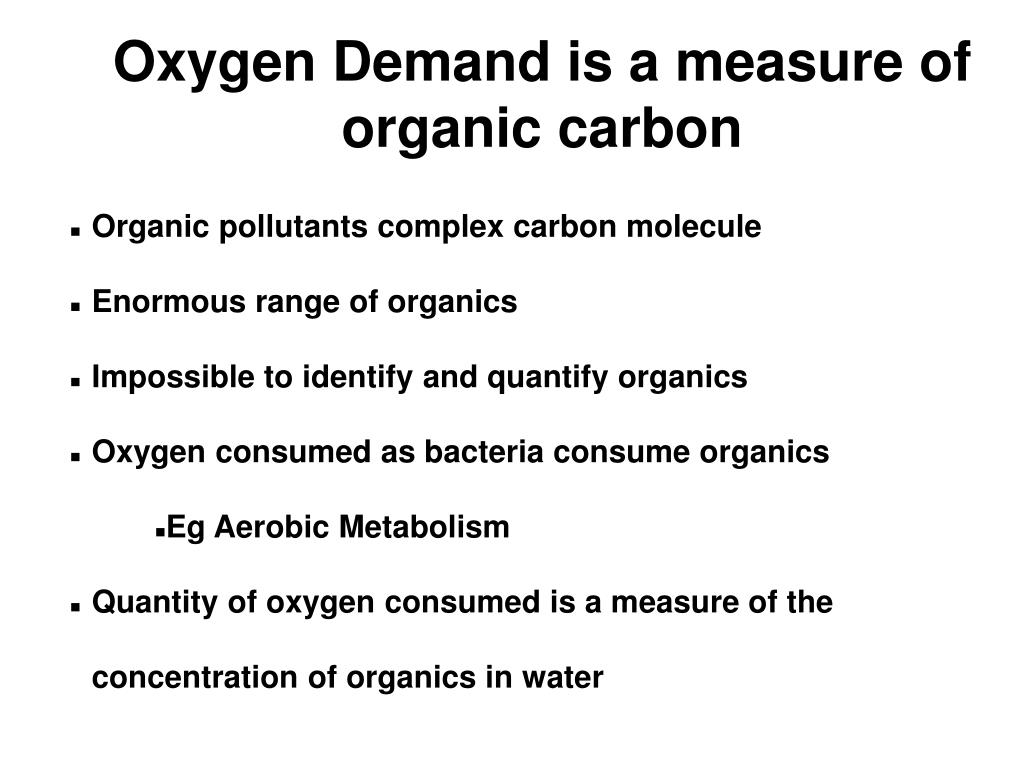

  3. Organic pollutants complex carbon molecule • Enormous range of organics • Impossible to identify and quantify organics • Oxygen consumed as bacteria consume organics • Eg Aerobic Metabolism • Quantity of oxygen consumed is a measure of the concentration of organics in water Oxygen Demand is a measure of organic carbon

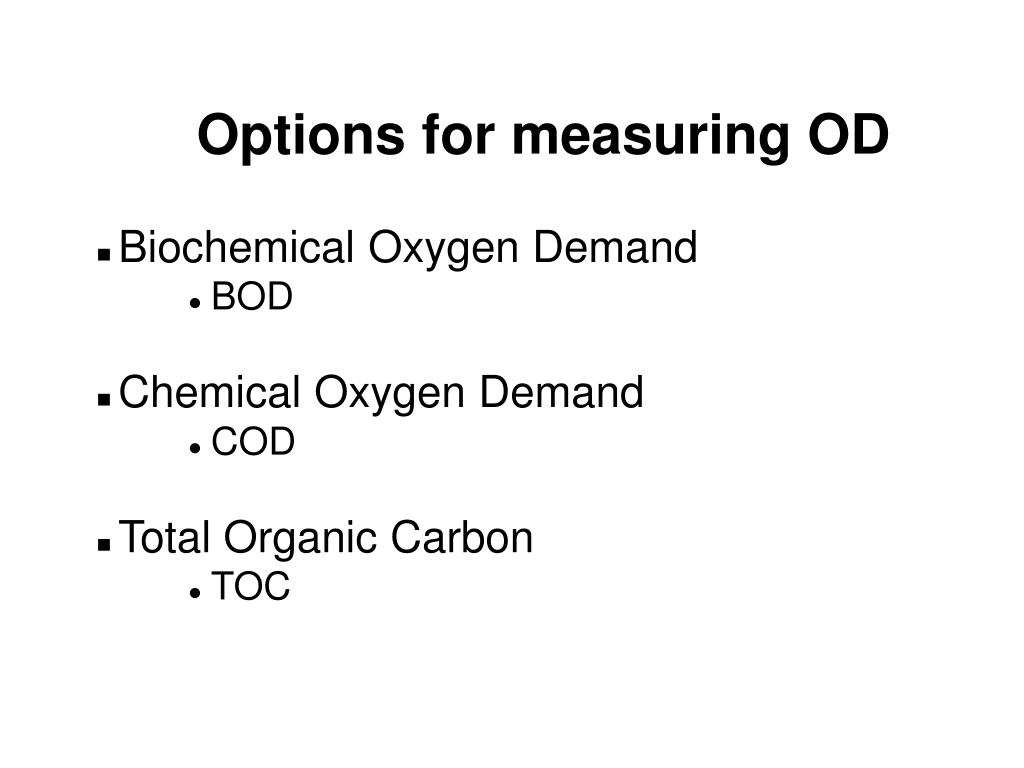

  4. Options for measuring OD • Biochemical Oxygen Demand • BOD • Chemical Oxygen Demand • COD • Total Organic Carbon • TOC

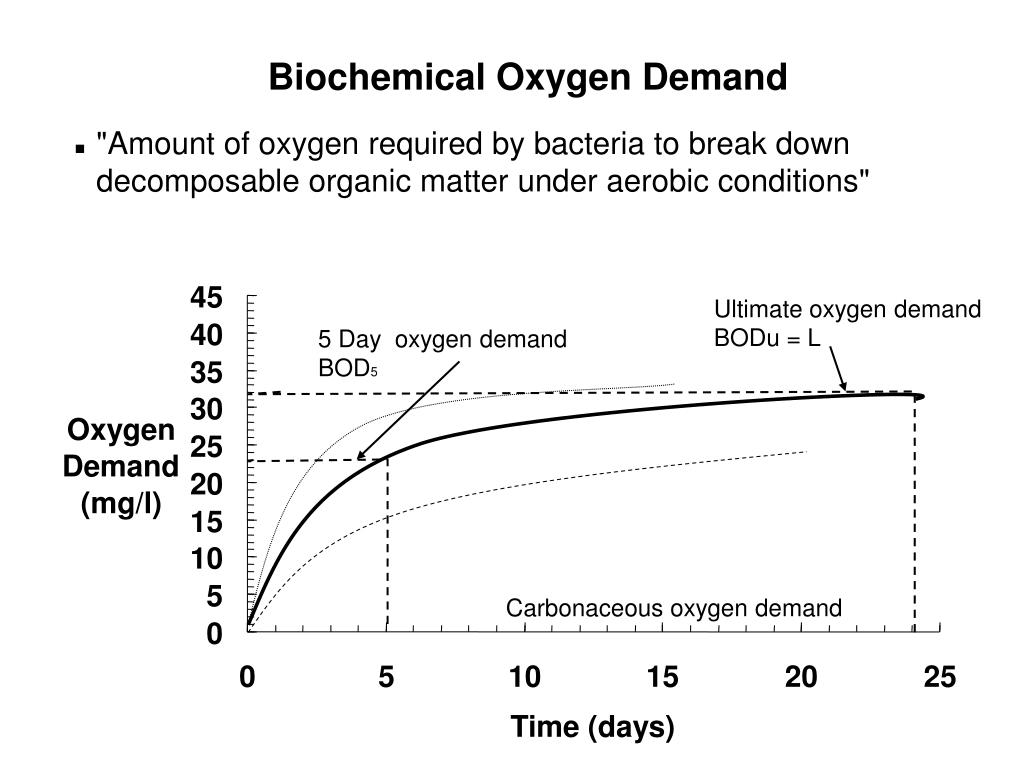

  5. Biochemical Oxygen Demand • "Amount of oxygen required by bacteria to break down decomposable organic matter under aerobic conditions" 45 Ultimate oxygen demand BODu = L 40 5 Day oxygen demand BOD5 35 30 Oxygen 25 Demand 20 (mg/l) 15 10 5 Carbonaceous oxygen demand 0 0 5 10 15 20 25 Time (days)

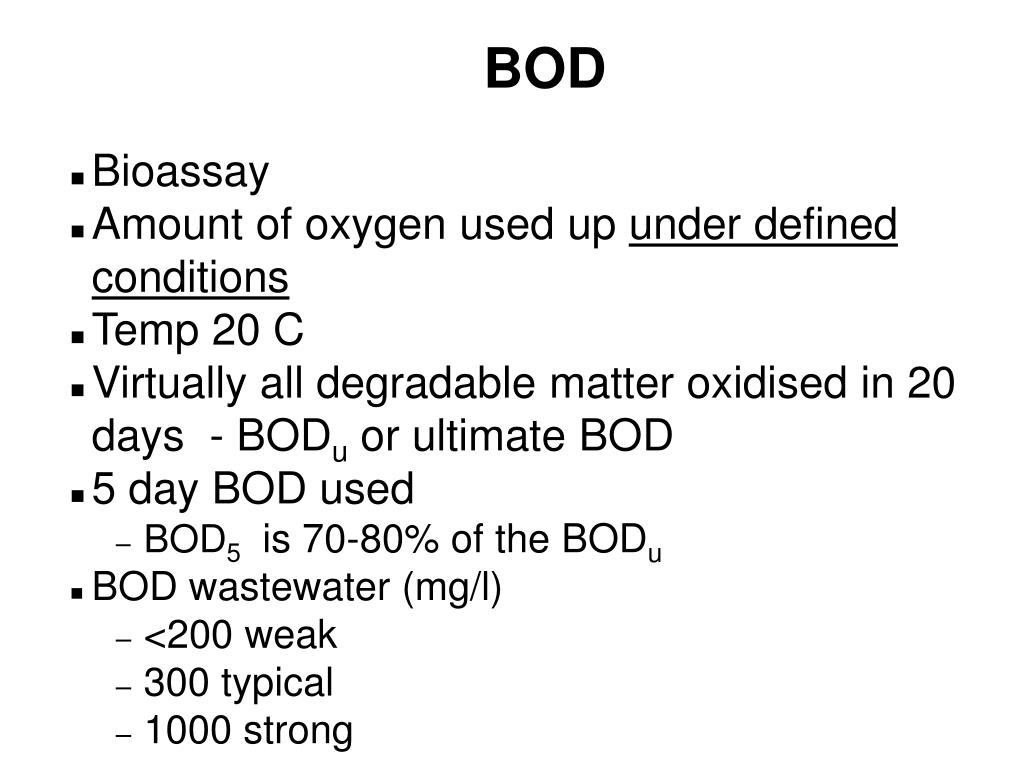

  6. Bioassay • Amount of oxygen used up under defined conditions • Temp 20 C • Virtually all degradable matter oxidised in 20 days - BODu or ultimate BOD • 5 day BOD used • BOD5 is 70-80% of the BODu • BOD wastewater (mg/l) • <200 weak • 300 typical • 1000 strong BOD

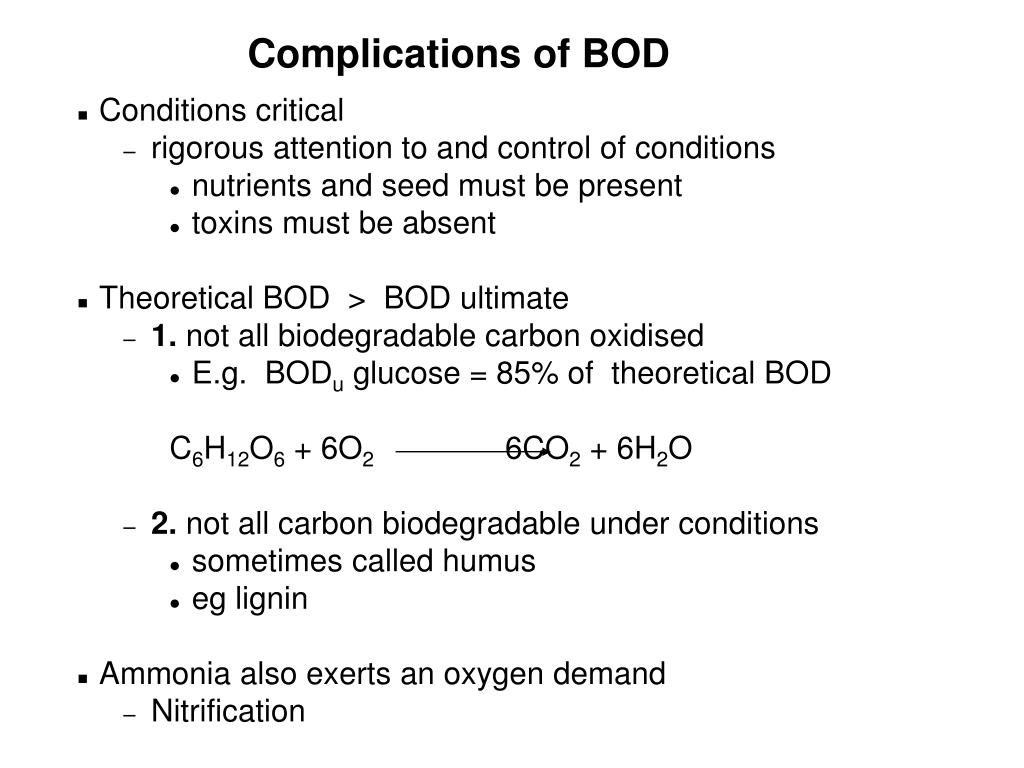

  7. Conditions critical • rigorous attention to and control of conditions • nutrients and seed must be present • toxins must be absent • Theoretical BOD > BOD ultimate • 1. not all biodegradable carbon oxidised • E.g. BODu glucose = 85% of theoretical BOD C6H12O6 + 6O2 6CO2 + 6H2O • 2. not all carbon biodegradable under conditions • sometimes called humus • eg lignin • Ammonia also exerts an oxygen demand • Nitrification Complications of BOD

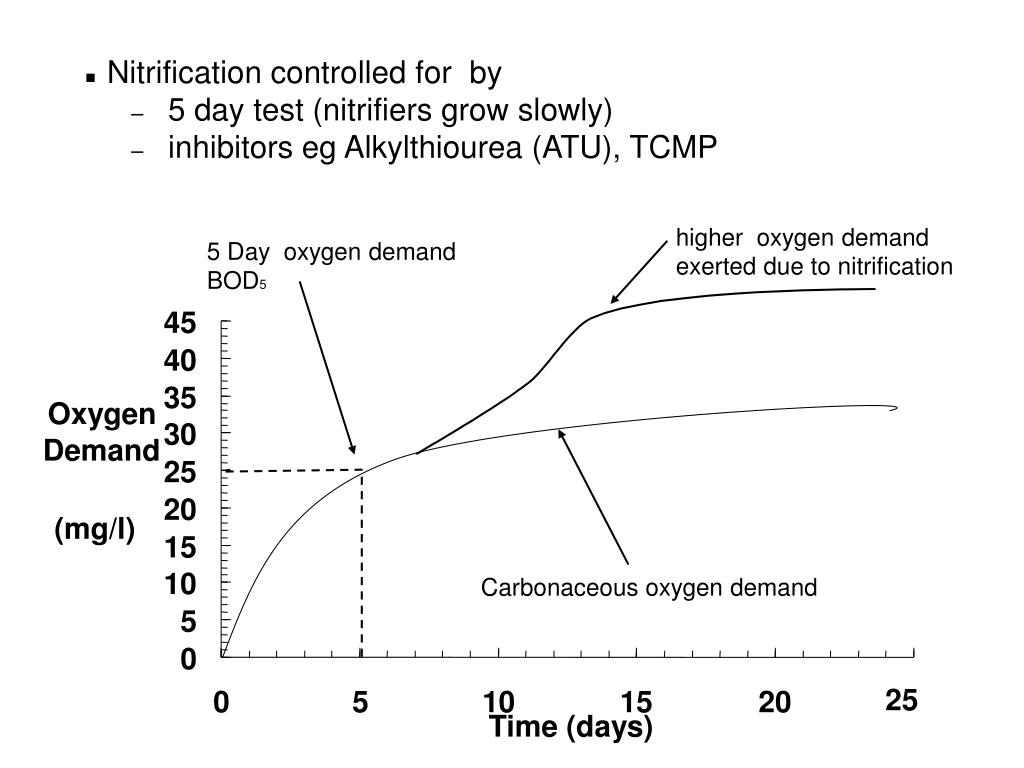

  8. Nitrification controlled for by • 5 day test (nitrifiers grow slowly) • inhibitors eg Alkylthiourea (ATU), TCMP higher oxygen demand exerted due to nitrification 5 Day oxygen demand BOD5 45 40 35 Oxygen 30 Demand 25 20 (mg/l) 15 10 Carbonaceous oxygen demand 5 0 25 0 5 10 15 20 Time (days)

  9. Winklers Method (titration) • Mn2+ oxidised to MnO2 Mn2+ + 2OH- + 1/2 O2 MnO2 + H2O • At low pH MnO2 oxidises Iodide MnO2 + 2I- + 4H+Mn2+ + I2 + 2H2O • Care required with sampling and interference • DO probe • Quick simple, reliable • Must calibrate carefully (temp sensitive) • Probe is an electrode system covered by a PTFE coat Measuring dissolved oxygen

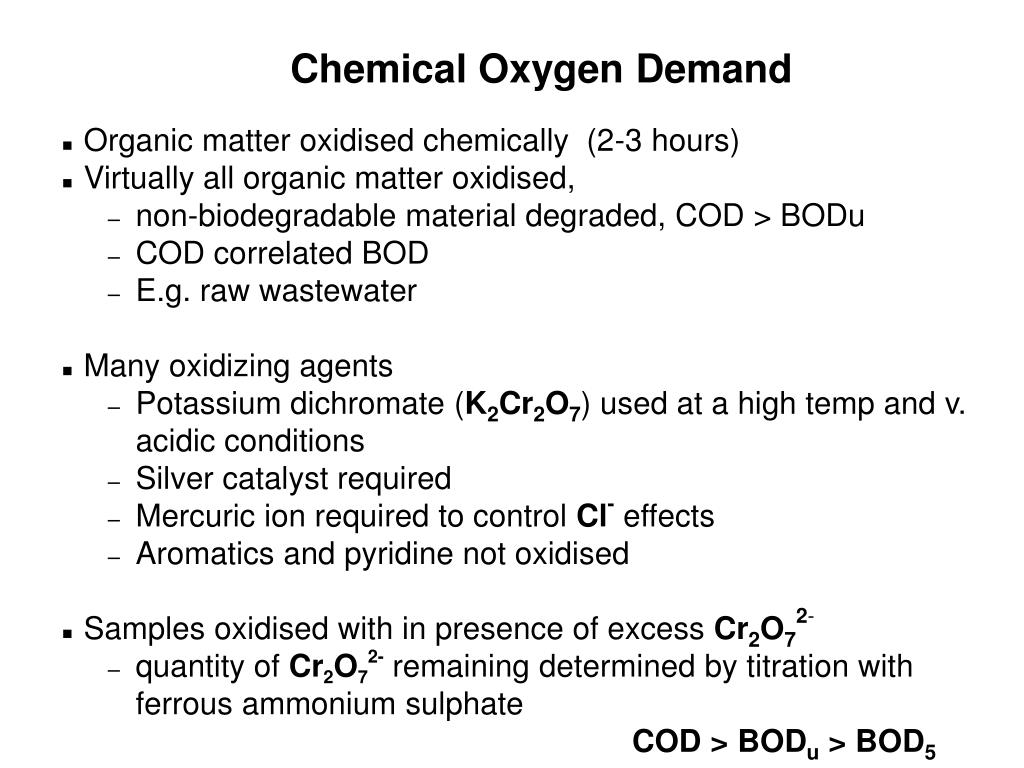

  10. Chemical Oxygen Demand • Organic matter oxidised chemically (2-3 hours) • Virtually all organic matter oxidised, • non-biodegradable material degraded, COD > BODu • COD correlated BOD • E.g. raw wastewater • Many oxidizing agents • Potassium dichromate (K2Cr2O7) used at a high temp and v. acidic conditions • Silver catalyst required • Mercuric ion required to control Cl- effects • Aromatics and pyridine not oxidised • Samples oxidised with in presence of excess Cr2O72- • quantity of Cr2O72- remaining determined by titration with ferrous ammonium sulphate COD > BODu > BOD5

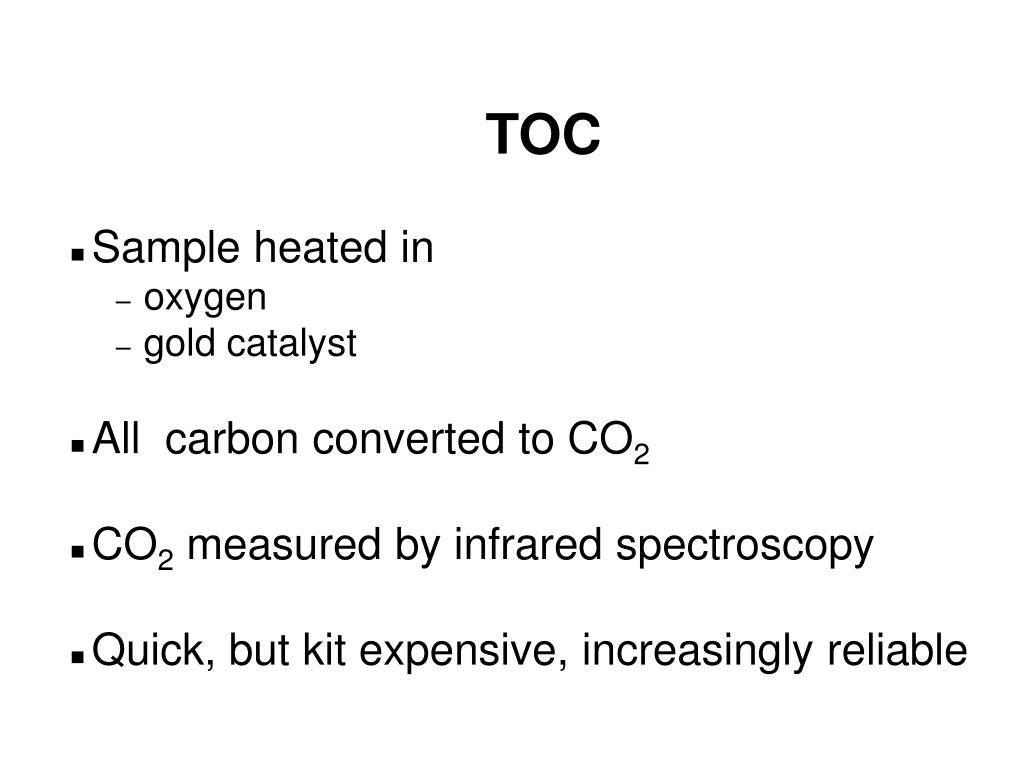

  11. TOC • Sample heated in • oxygen • gold catalyst • All carbon converted to CO2 • CO2 measured by infrared spectroscopy • Quick, but kit expensive, increasingly reliable

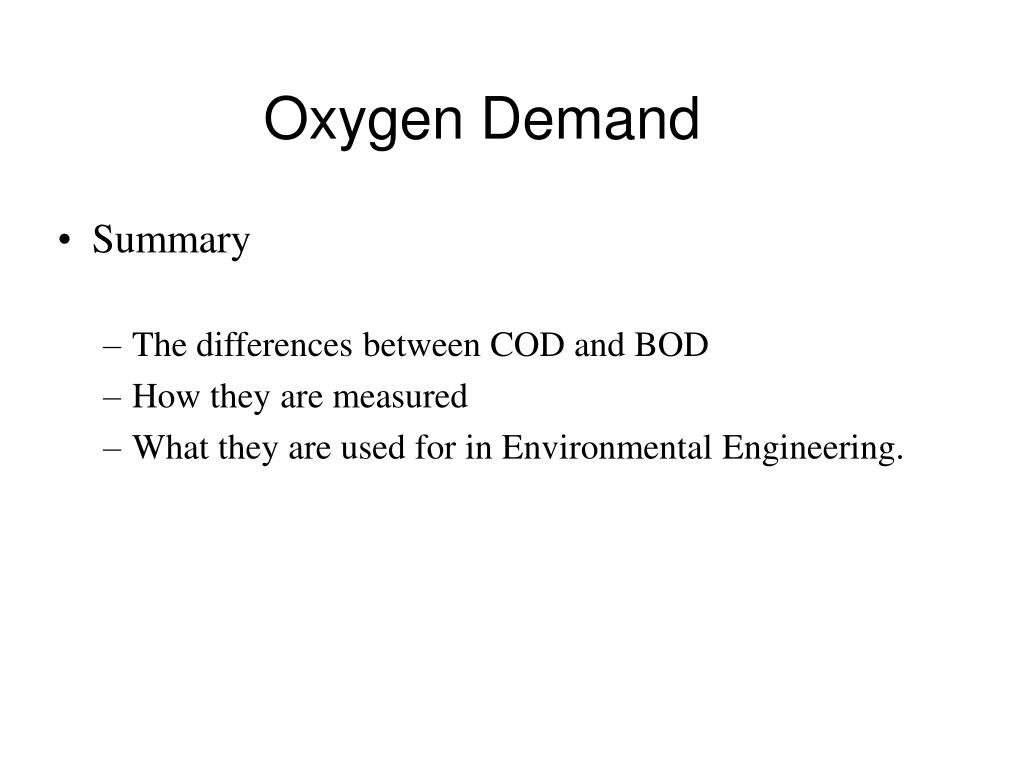

  12. Oxygen Demand • Summary • The differences between COD and BOD • How they are measured • What they are used for in Environmental Engineering.
