  1. Information Fusion 패턴인식 시스템응용 IDRES: A rule-based system for driving situation recognition with uncertainty managementJ.M. Nigro and M. Rombaut 20070927 Jun Ki Min

  2. OVERVIEW • Experimental Vehicle (EV) • Manoeuvre Recognition in Driving Situation Context • IDRES System • Confidence Evaluation • Belief Model • Results • Summary

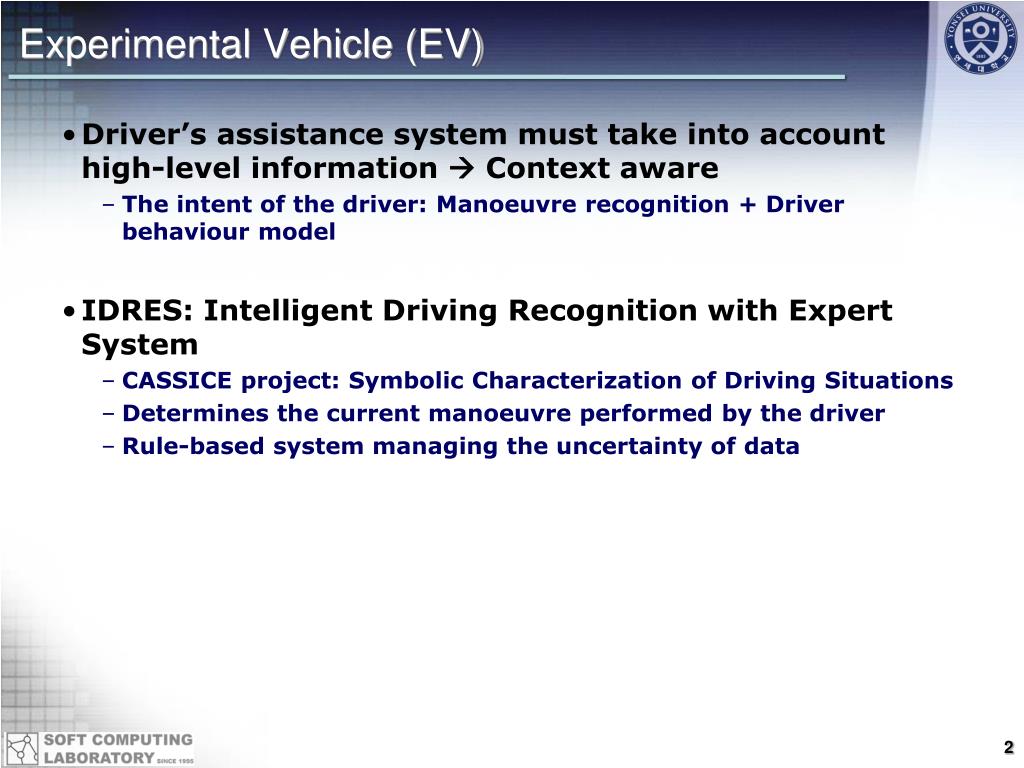

  3. Experimental Vehicle (EV) • Driver’s assistance system must take into account high-level information  Context aware • The intent of the driver: Manoeuvre recognition + Driver behaviour model • IDRES: Intelligent Driving Recognition with Expert System • CASSICE project: Symbolic Characterization of Driving Situations • Determines the current manoeuvre performed by the driver • Rule-based system managing the uncertainty of data

  4. Manoeuvre Recognition in Driving Situation Context • The context of the driving situation • The state of the vehicle (speed, acceleration) • The position of the vehicle (on the road, in the lane) • The type of static environment (highway, number of lanes) • The state of the dynamic environment (the other vehicles) • Manoeuvre Mj is an ordered sequence of states si • Mj=(s1, s2, …, sN) • State: Combination of conditions • Conditions: Evaluated from the sensors of the EV • Overtaking manoeuvre

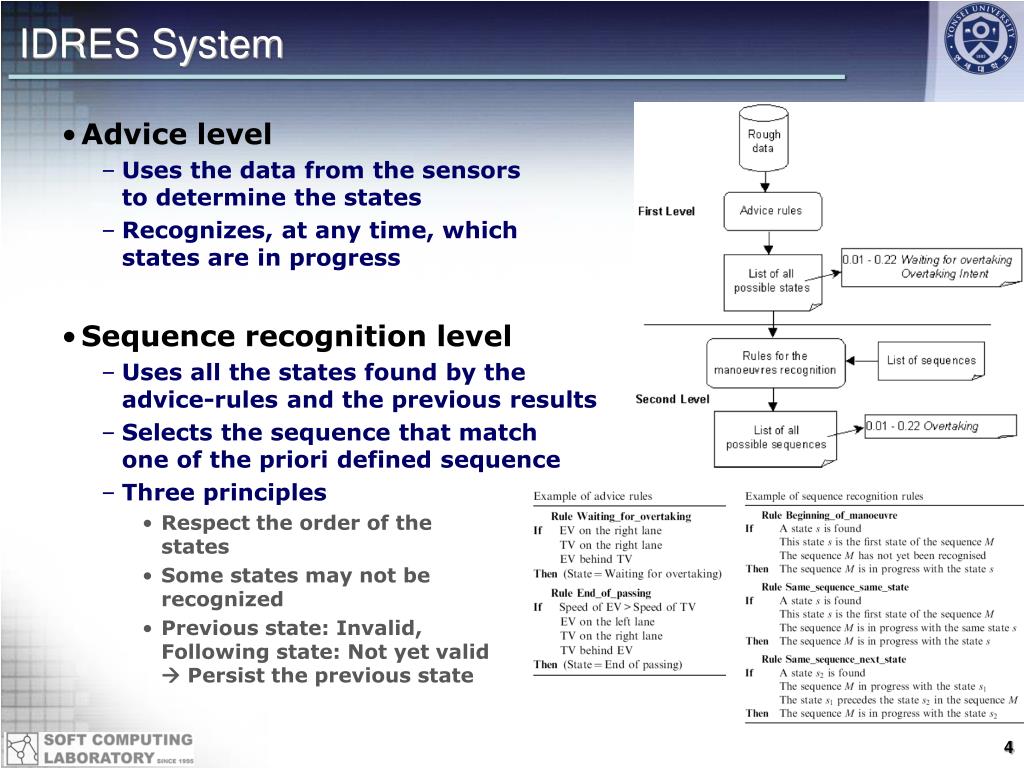

  5. IDRES System • Advice level • Uses the data from the sensorsto determine the states • Recognizes, at any time, whichstates are in progress • Sequence recognition level • Uses all the states found by theadvice-rules and the previous results • Selects the sequence that matchone of the priori defined sequence • Three principles • Respect the order of thestates • Some states may not berecognized • Previous state: Invalid,Following state: Not yet valid Persist the previous state

  6. IDRES System Manoeuvre Recognition with IDRES

  7. IDRES System Confidence Evaluation • Numerical values of the inputs  logical (symbolic) values • Model the confidence of the logical data by a belief function • A and B

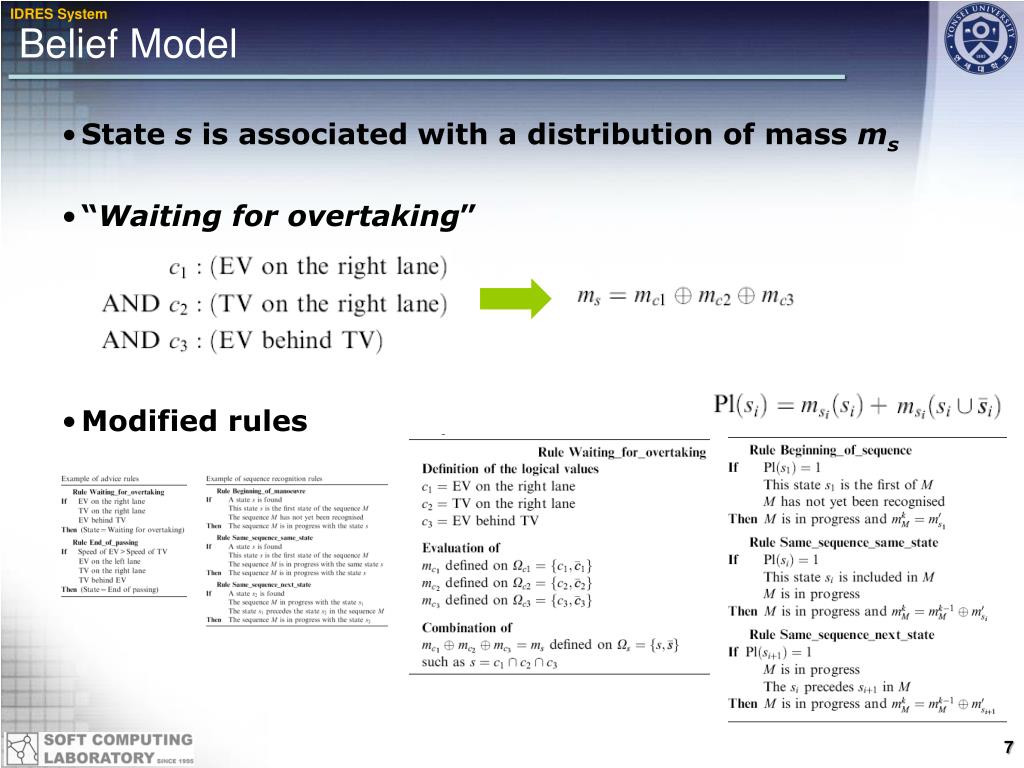

  8. IDRES System Belief Model • State s is associated with a distribution of mass ms • “Waiting for overtaking” • Modified rules

  9. Results: End of Passing • The rule End of Passing (s7) • c1 (Speed of EV > Speed of TV) • c2 (EV on the left lane and TV on the right lane) • c3 (TV behind EV) • At time p2, IDRES is not certain thatEV manoeuvre is End of passing • EV and TV are on the same lane certain: mc2(c2) = 1 • EV is faster than TV certain: mc1(c1) = 1 • TV is behind EV ? not certain: mc3(c3) = 0.5 and mc3(c3Uc3)= 0.5

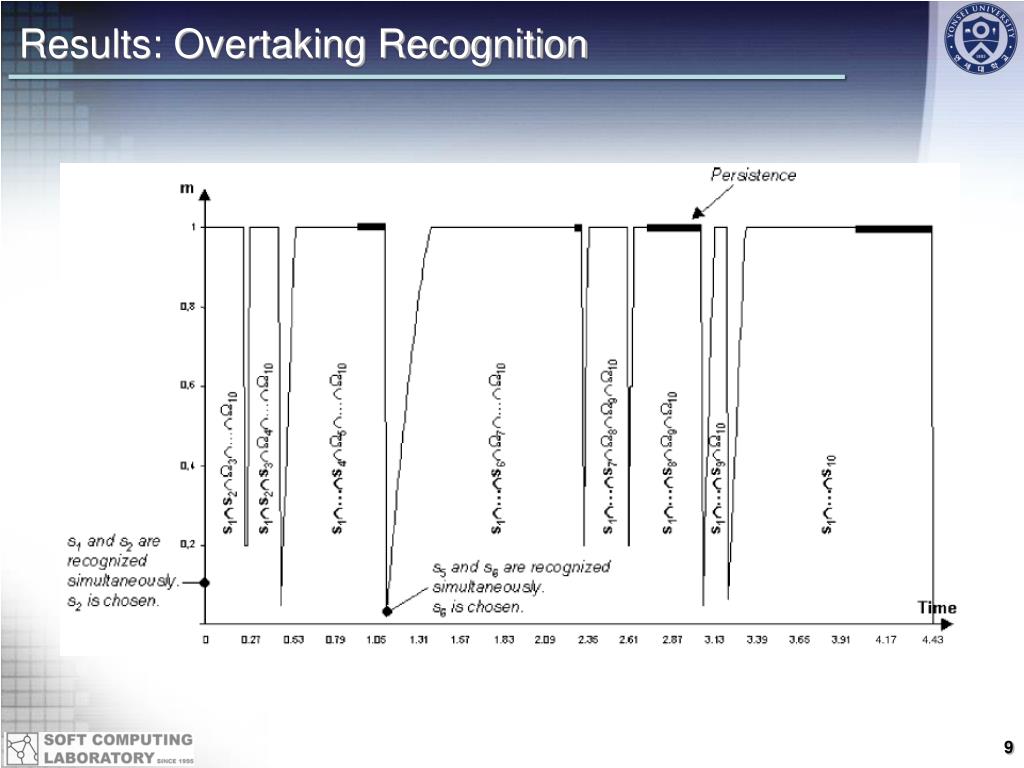

  10. Results: Overtaking Recognition

  11. Summary • Recognition of a sequence of states from numerical rough data taken from a real dynamic system • Driving manoeuvre • IDRES system • Two levels • Uncertainty management
