1 / 20

Multiple-operator Transit Traveler Information

Multiple-operator Transit Traveler Information. New York State Department of Transportation From TRIPS123 to 511 NY. TRIPS123 Transit Trip Itinerary Planner NY/NJ/CT Metro Area 50-plus Operators Launched April 2005. Transition to Statewide 511 NY.

dobry
Download Presentation

Multiple-operator Transit Traveler Information

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

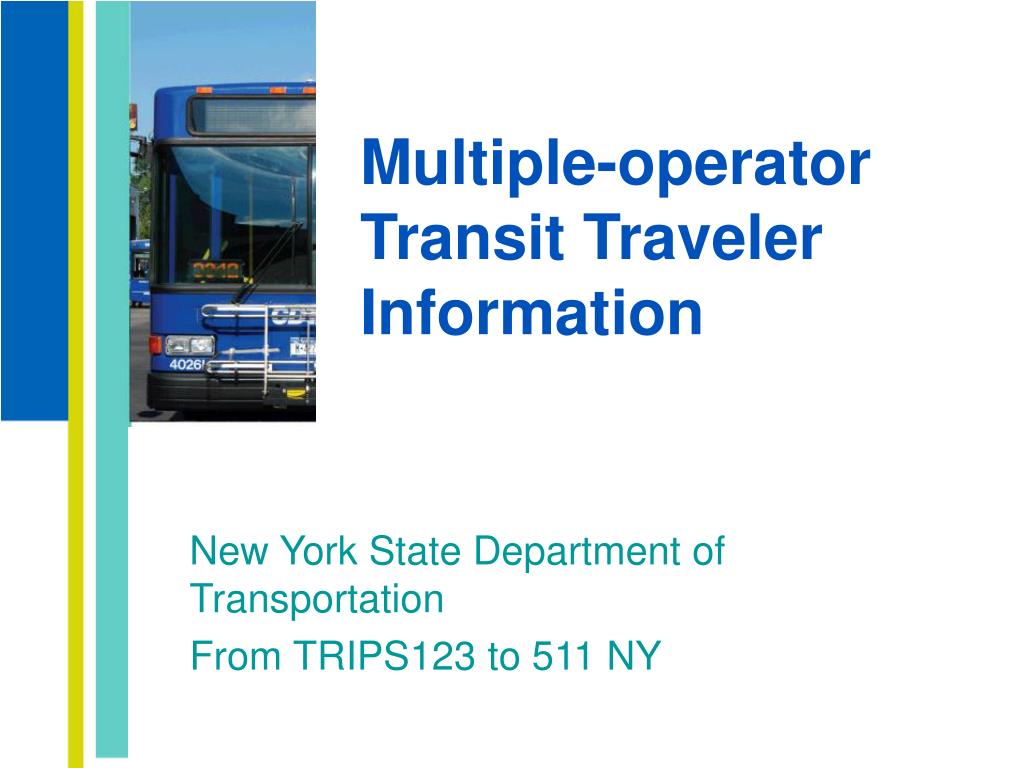

  1. Multiple-operator Transit Traveler Information New York State Department of Transportation From TRIPS123 to 511 NY

  2. TRIPS123 Transit Trip Itinerary PlannerNY/NJ/CT Metro Area 50-plus Operators Launched April 2005

  3. Transition to Statewide 511 NY

  4. Walking Directions at Origin, Destination and Transfer Locations

  5. Multiagency Transit Trip Planner Results

  6. Biggest Challenge of Multiagency Transit Trip Planner • Maintaining consistent supply of current, accurate schedule data from multiple independent agencies. • Avoid introducing another single-purpose application that requires transit agencies to maintain another redundant set of schedule data.

  7. MPO Schedule Data Predicament Telephone Agent Systems (IVR) AVL System FTA Demand Modeling This stop will be served at the following times. National Transit Database Is the bus on time? Regional ITS Timetable Ride-Guide Publishing Carrier A What serves my stop? Status/Exception 17a Reporting Corridor-Level Analysis - ITS Is my stop next? StateDOT Let me know when your service changes. On-Board Annunciator When will the next 3 buses arrive? Carriers B, C, D How much should this transfer cost? How much service is available where? Which trip did this passenger take? Fare Collection Automated Passenger Counter Bus Arrival Display

  8. Schedule Data Predicament – Within The Agency Driver Picks and Bids Budget Estimate Driver Instructions Paddle Sign/Shelter Inventory Database Vehicle Block Assignments Scheduling Department Construction Impacts GIS Hard Copy Timetables Stop Level Ride Guides Agency Web site ITS Applications

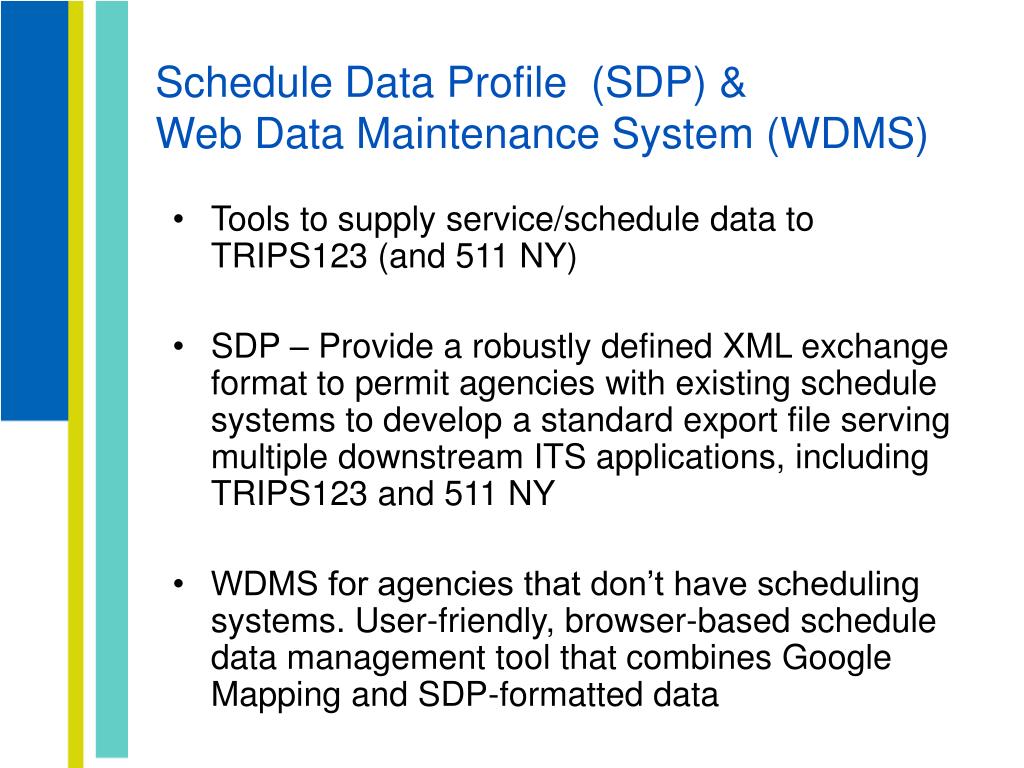

  9. Schedule Data Profile (SDP) & Web Data Maintenance System (WDMS) • Tools to supply service/schedule data to TRIPS123 (and 511 NY) • SDP – Provide a robustly defined XML exchange format to permit agencies with existing schedule systems to develop a standard export file serving multiple downstream ITS applications, including TRIPS123 and 511 NY • WDMS for agencies that don’t have scheduling systems. User-friendly, browser-based schedule data management tool that combines Google Mapping and SDP-formatted data

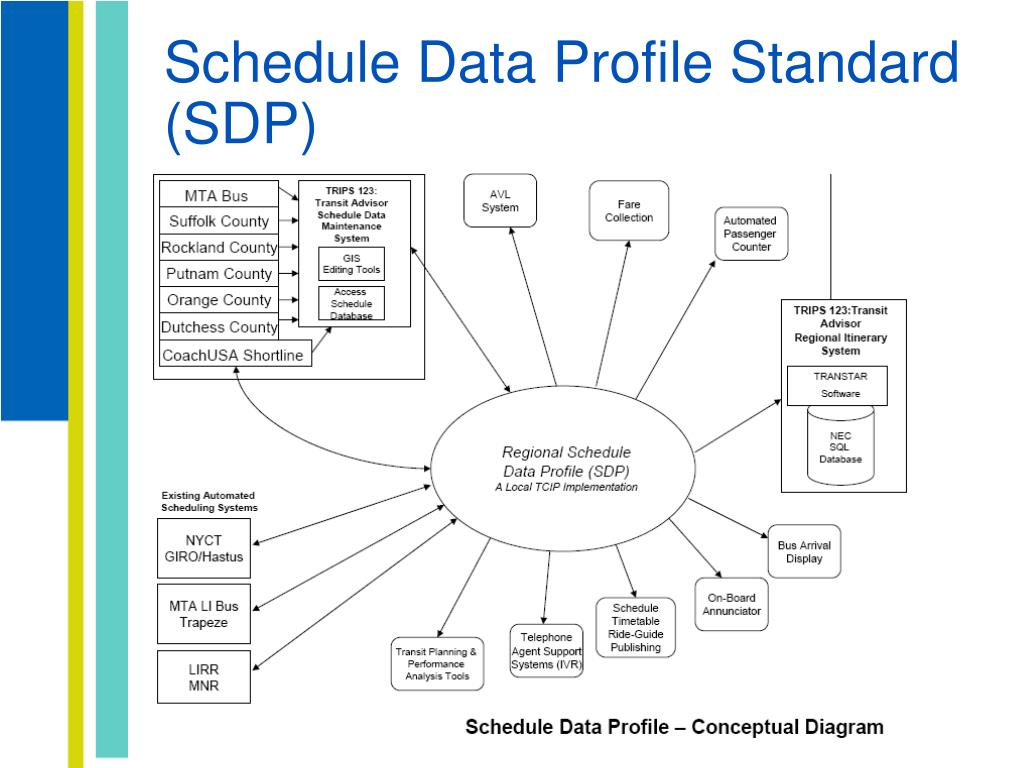

  10. Schedule Data Profile Standard (SDP)

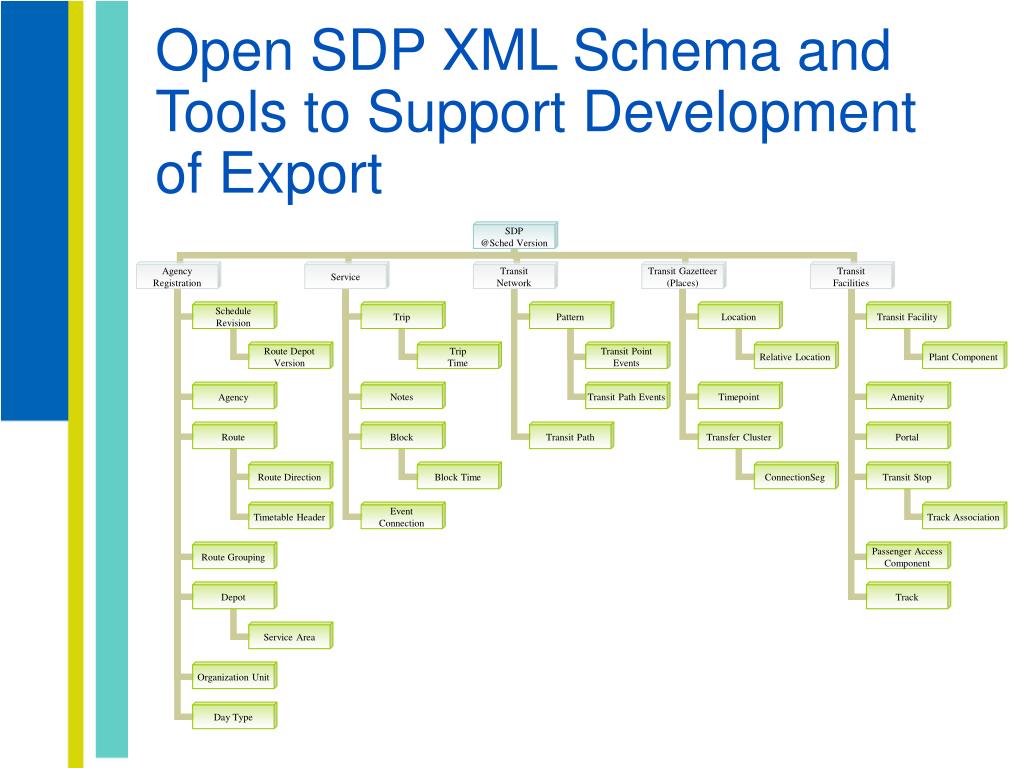

  11. Open SDP XML Schema and Tools to Support Development of Export

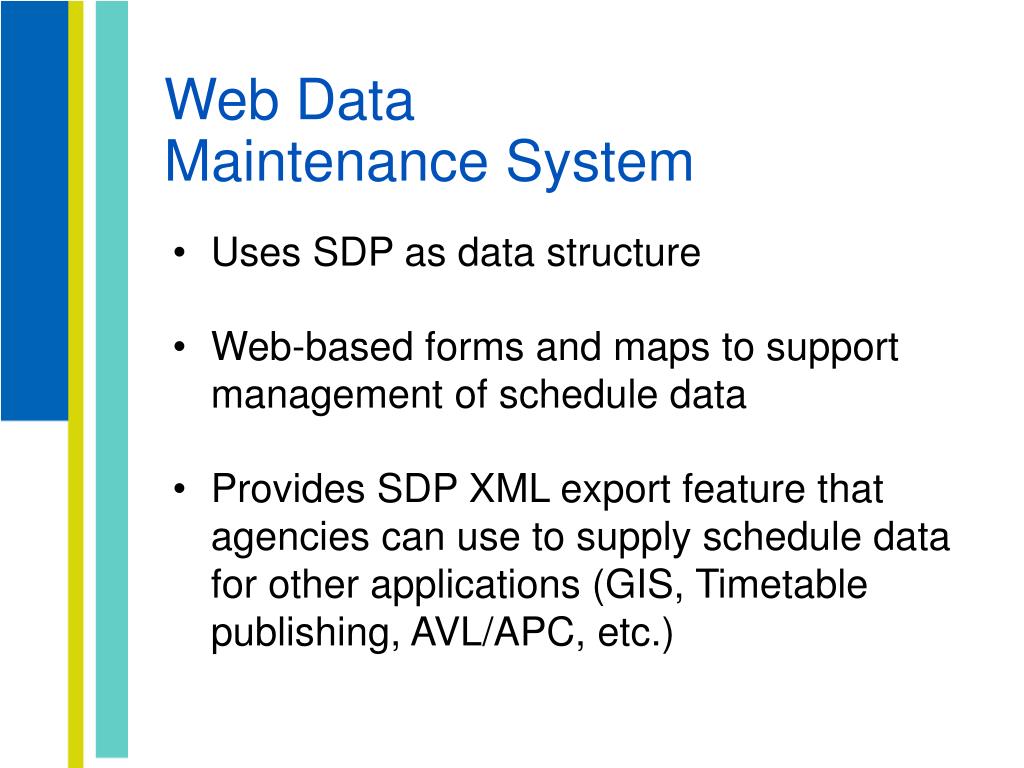

  12. Web Data Maintenance System • Uses SDP as data structure • Web-based forms and maps to support management of schedule data • Provides SDP XML export feature that agencies can use to supply schedule data for other applications (GIS, Timetable publishing, AVL/APC, etc.)

  13. Web Data Maintenance System (WDMS) Map Editing Interface

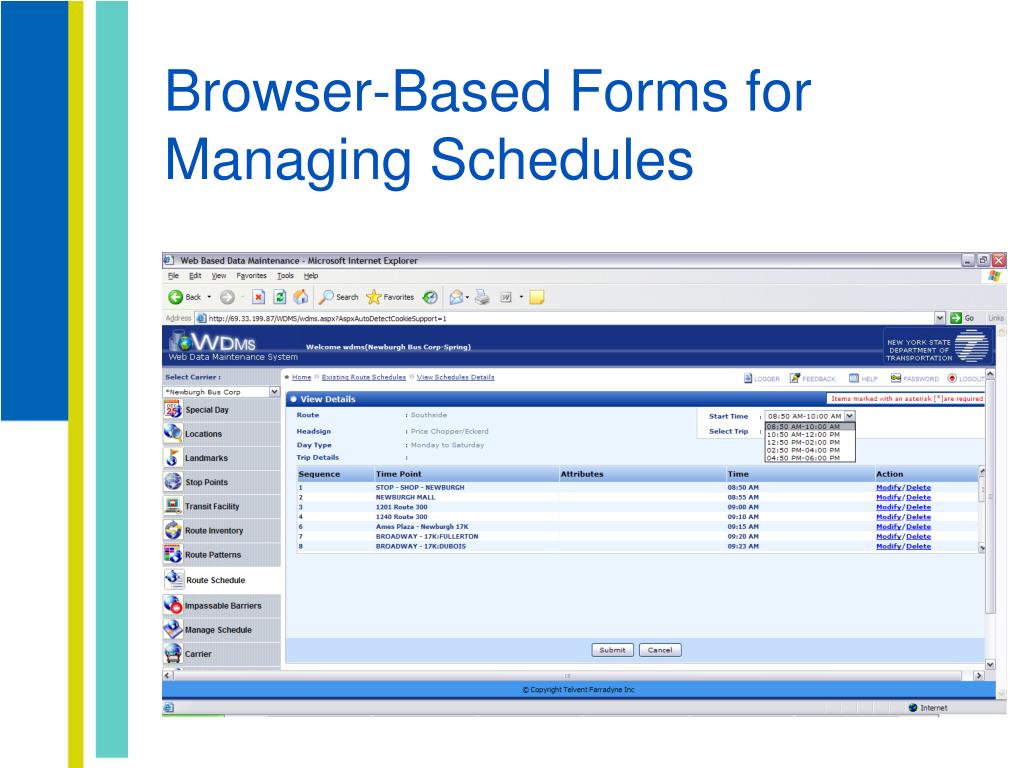

  14. Browser-Based Forms for Managing Schedules

  15. Bus Stop Inventory

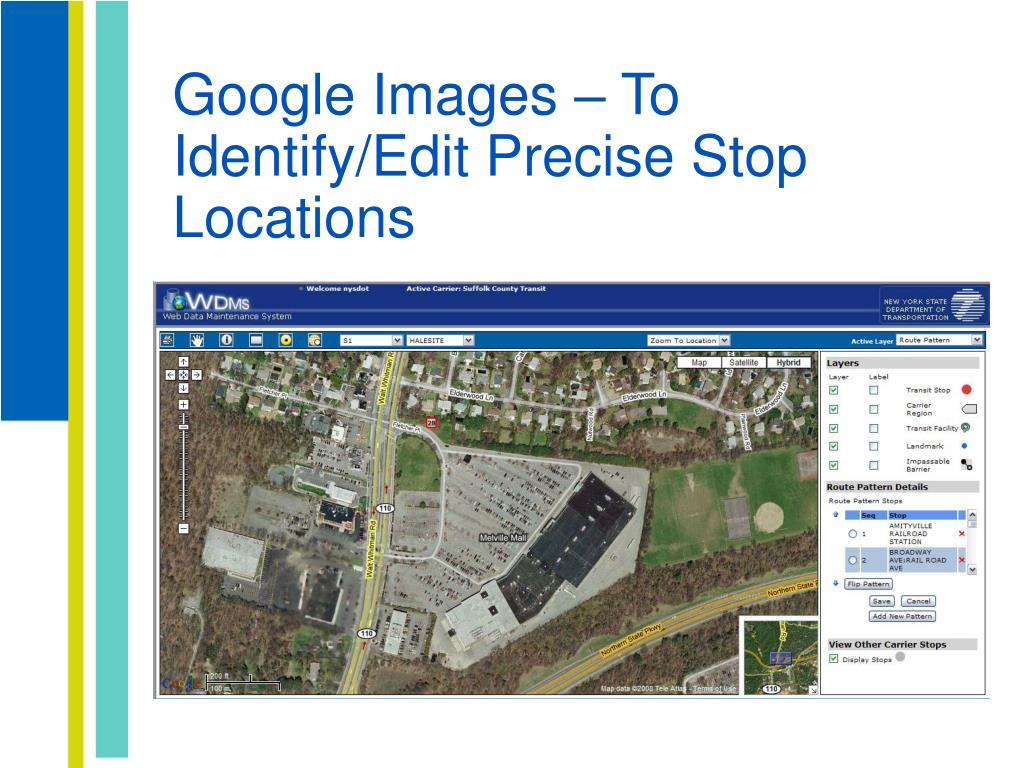

  16. Google Images – To Identify/Edit Precise Stop Locations

  17. TRIPS123 Foundation for Statewide Trip Planner in 511 NY

  18. 511 NY – Future Transit Content • Focus on multiagency data – Itinerary Planner is easy. Consistent, current and accurate data is hard. • New streams of information AVL, APC, AFC. • What should we do to support exchange of operational information among operators and to the public? • How can we efficiently make consistent and useful information available to a broader array of public information outlets?

  19. Next Generation Transit Service Information Portal Trip Planner SDP Plus Next Generation Transit Service Information Portal Conceptual Diagram Web Data Maintenance System 511(s) Ad-Hoc /Emergency Scheduling Tools Multioperator Exchange (Operations/Coordination) Real-Time Information Location/ETA Information TRANSCOM RA Integrated Vendor Apps (AVL/APC/AFC) Multiagency Fare Information Third-Party Information Outlets Connecting Modes Detail Planning MPO Performance Reporting Agency GIS Facility Navigation Detail (ADA, Park & Ride, etc.) Open Source Apps Timetable Publisher OTHER

  20. Transit Service Information PortalWhere do we start? • Define Multiagency Consensus Requirements • Operational • Planning • Customer Information • Procure, Develop and Enhance
