  1. Asynchronous Datapath Design • Adders • Comparators • Multipliers • Registers • Completion Detection • Bus • Pipeline • ….. • Read Reading 3: Delay-Insensitive Adders

  2. Asynchronous Adder Design • Motivation • Background: Sync and Async adders • Delay-insensitive carry-lookahead adders • Complexity Analysis • Conclusions

  3. Motivation • Integer addition is one of the most important • operations in digital computer systems • Statistics shows that in a prototypical RISC • machine (DLX) 72% of the instructions perform • additions(or subtractions) in the datapath. • In ARM processors it even reaches 80%. • The performance of processors is significantly • influenced by the speed of their adders.

  4. Background • Adders: synchronous or asynchronous • synchronous adders: worst case performance • asynchronous adders: average case performance • For example: • Ripple-Carry Adders(synchronous): O(n) • Carry-Completion Sensing Adders(asynchronous): • O(log n)

  5. Background: Binary Addition • Worst case • 00000001 • + 11111111 • ---------------------- • S 00000000 • C 11111111 • ---------------------- • 100000000 • Adders can perform average case behavior • Best case • 00000000 • + 00000000 • ---------------------- • S 00000000 • C 00000000 • ---------------------- • 000000000

  6. Background • Ripple-Carry Adders: • One-stage full adder: • Logic complexity: O(n) • Time complexity: O(n)

  7. Background • Carry-Sensing Completion Detection Adders: • (asynchronous version of RCA)

  8. Background • One-stage CSCD Adder: • Carry-Sensing Completion Detection Adders: • Logic complexity: O(n) • Time complexity: O(log n)

  9. Background • Delay-Insensitive Ripple-Carry Adders: • (DI version of RCA):

  10. Background • One-stage DIRCA: • DIRCA Adders: • Logic complexity: O(n) • Time complexity: O(log n) • One of the most robust adders

  11. Background • Completion detection for asynchronous adders:

  12. Background • DI adder VS Bundling Constraint adder:

  13. Carry-Lookahead Adders • RCA requires n stage-propagation delays. • For high speed processors, this scheme is • undesirable. • One way to improve adder performance is to • use parallel processing in computing the carries. • That is why Carry-Lookahead Adders (CLA) are • introduced. • CLAs: • Logic complexity: O(n) • Time complexity: O(log n)

  14. Carry-Lookahead Adders

  15. Carry-Lookahead Adders • A module: • B module:

  16. DI Carry-Lookahead Adders • Delay-Insensitive Carry-Lookahead Adders (DICLA) • may be implemented by using delay-insensitive code. • 1. dual-rail signaling: inputs, sums, and carry bits • 2. one-hot code: internal signals a. No data b. valid 0 c. valid 1 d. illegal A1=0 A0=0 A1=0 A0=1 A1=1 A0=0 A1=1 A0=1 a. No data: 000 b. 001 c. 010 d. 100

  17. QDI Carry-Lookahead Adders • DI C module: • 1. internal signals: • one-hot code, • k, g, p • 2. input and • sum bits: • dual-rail signals CLA A module

  18. QDI Carry-Lookahead Adders • DI D module: • 1. Internal signals: • one-hot code, • K, G, P • 2. Carry bits: • dual-rail signals CLA B module

  19. DI Carry-Lookahead Adders

  20. DI Carry-Lookahead Adders k3,g3 If A3=B3 then C3 is carry kill or generate

  21. DI Carry-Lookahead Adders k3,g3 K3,2, G3,2 G3,2, K3,2 can be used to speed up the carry computation too.

  22. Speeding Up DICLA • Idea: Send the carry-generate’s and carry-kill’s to any possible stages which needs these • information to compute carries immediately. • D module with speed-up circuitry

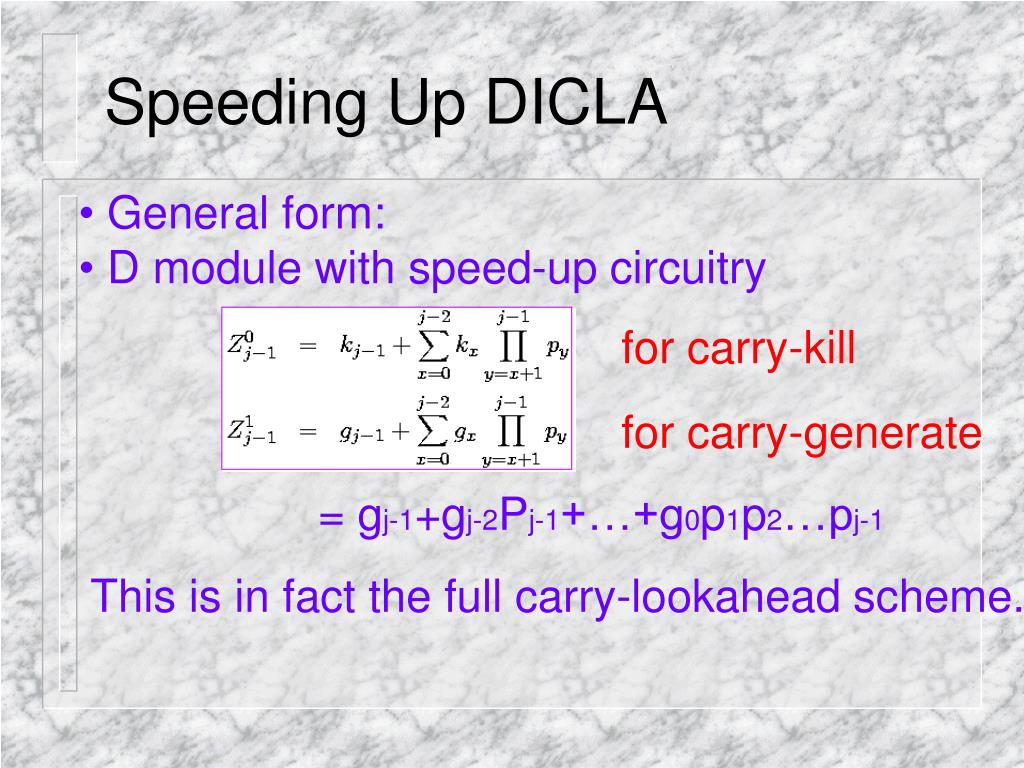

  23. Speeding Up DICLA • General form: • D module with speed-up circuitry • for carry-kill • for carry-generate • = gj-1+gj-2Pj-1+…+g0p1p2…pj-1 • This is in fact the full carry-lookahead scheme.

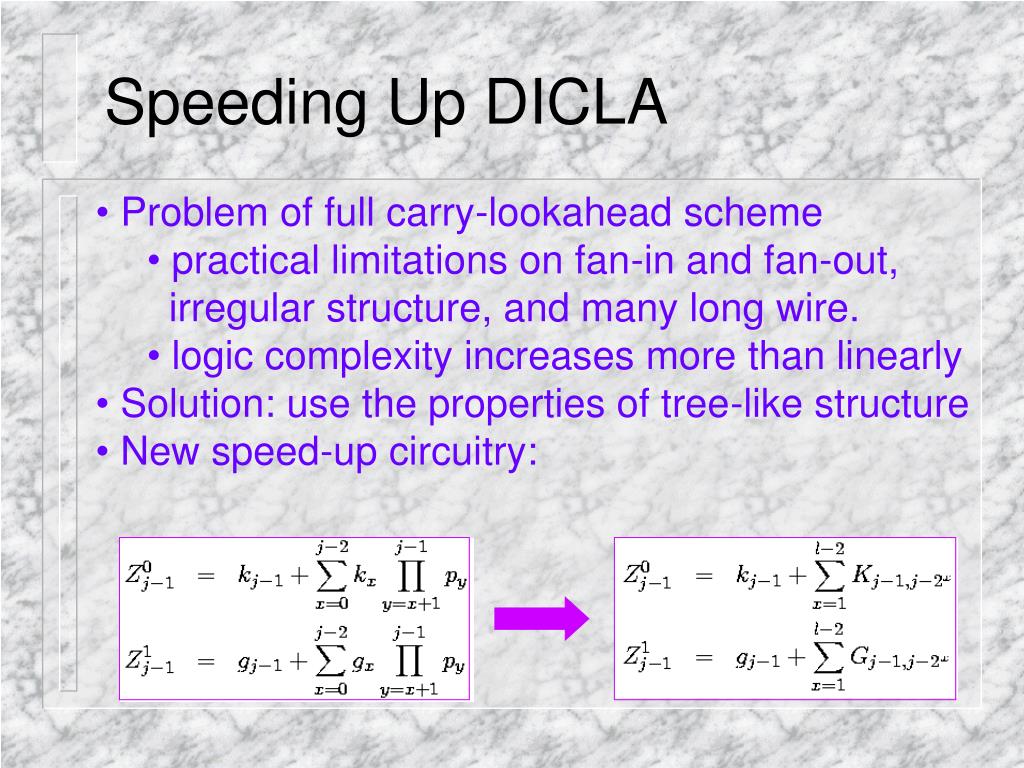

  24. Speeding Up DICLA • Problem of full carry-lookahead scheme • practical limitations on fan-in and fan-out, • irregular structure, and many long wire. • logic complexity increases more than linearly • Solution: use the properties of tree-like structure • New speed-up circuitry:

  25. SP focuses on the root • node of a subtree. • All leftmost root node of • its right subtree

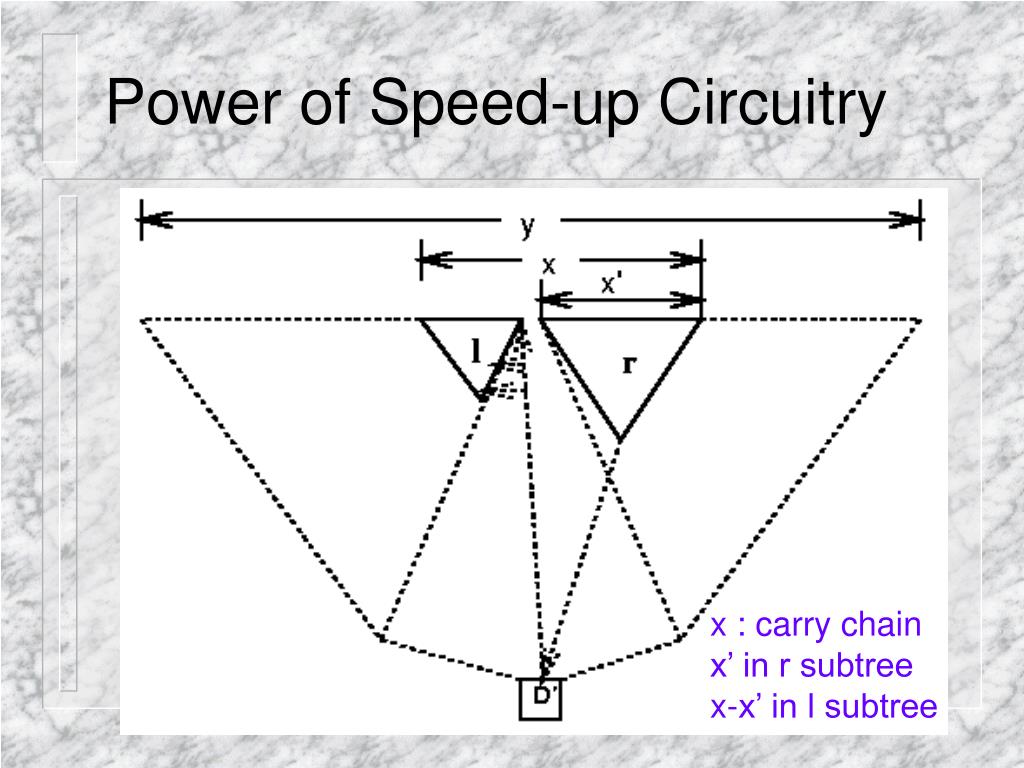

  26. Power of Speed-up Circuitry x : carry chain x’ in r subtree x-x’ in l subtree

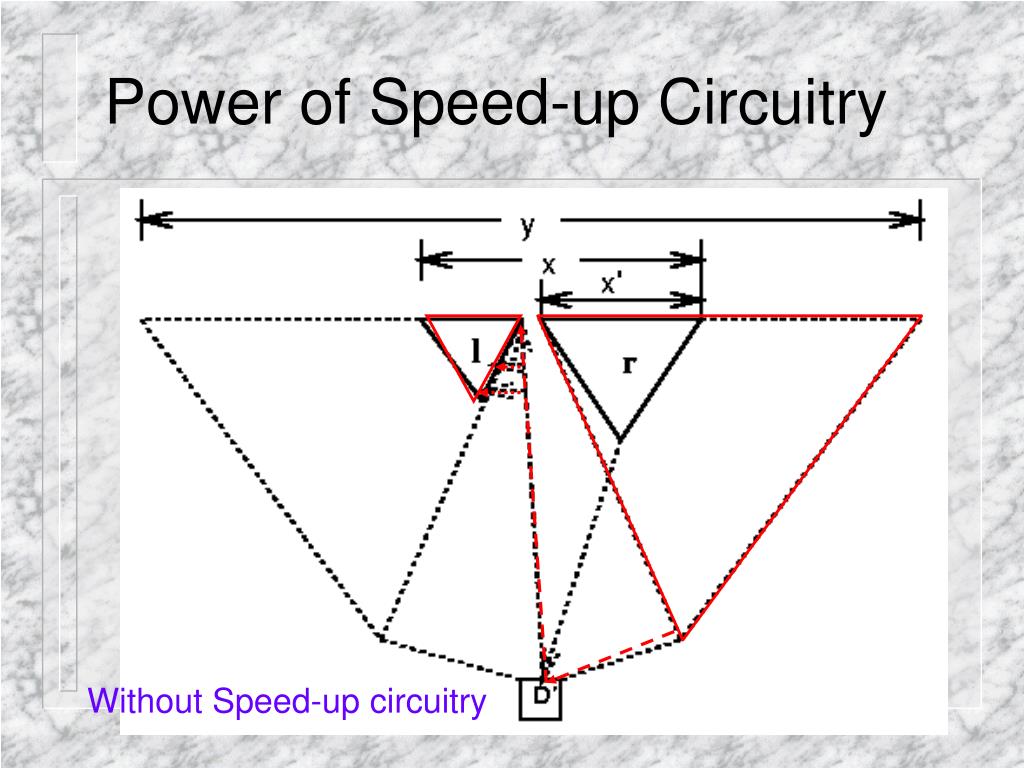

  27. Power of Speed-up Circuitry Without Speed-up circuitry

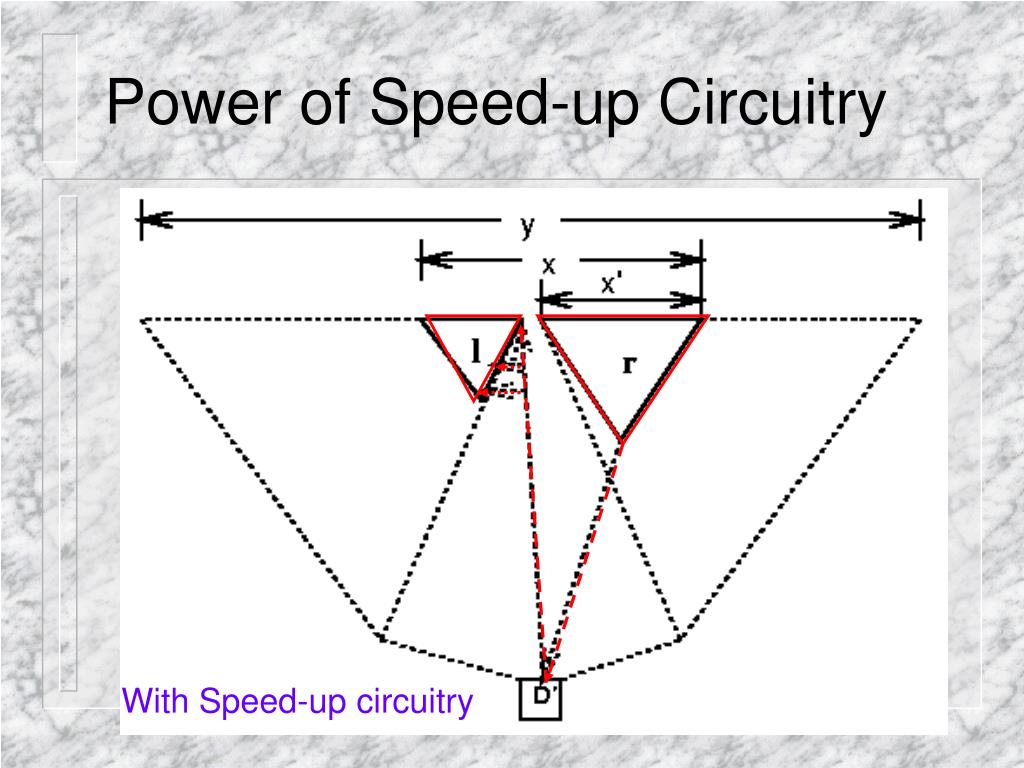

  28. Power of Speed-up Circuitry With Speed-up circuitry

  29. Optimization: • Simplified D module • Simplified D’ module • Better logic complexity • Delay-Insensitive again

  30. Complexity Analysis • DICLASP • Logic Complexity: (n) • Time Complexity: (log log n) • Best area-time efficiency: (n log log n)

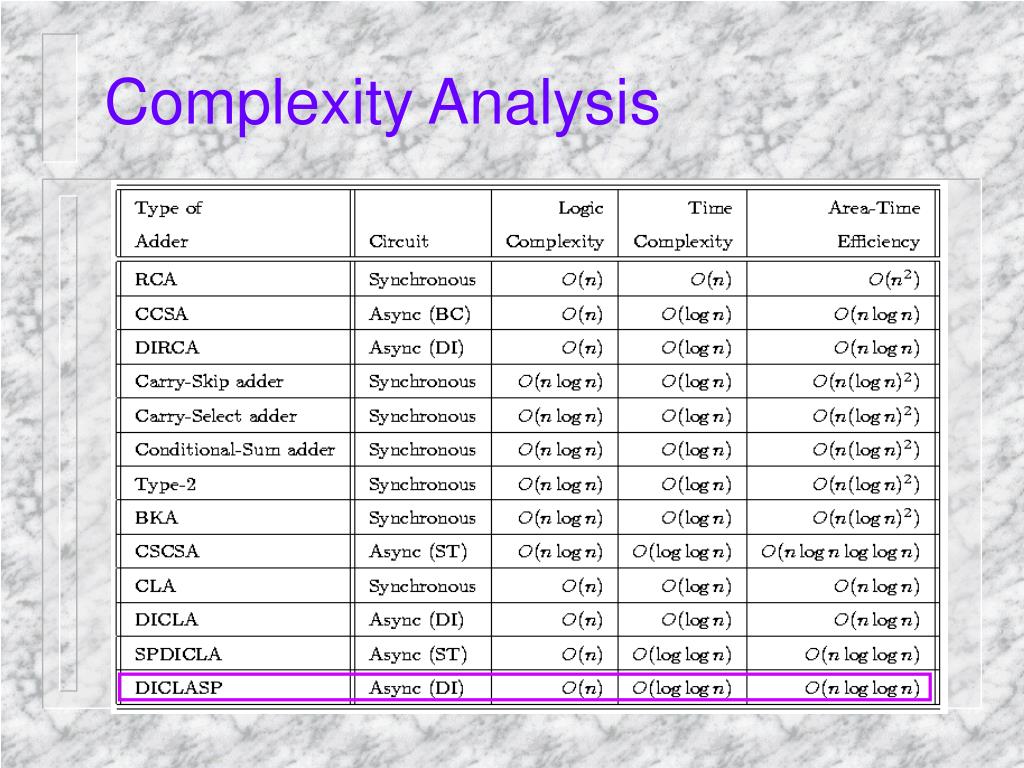

  31. Complexity Analysis

  32. CMOS: C module

  33. CMOS: SD module

  34. CMOS: SD’ module

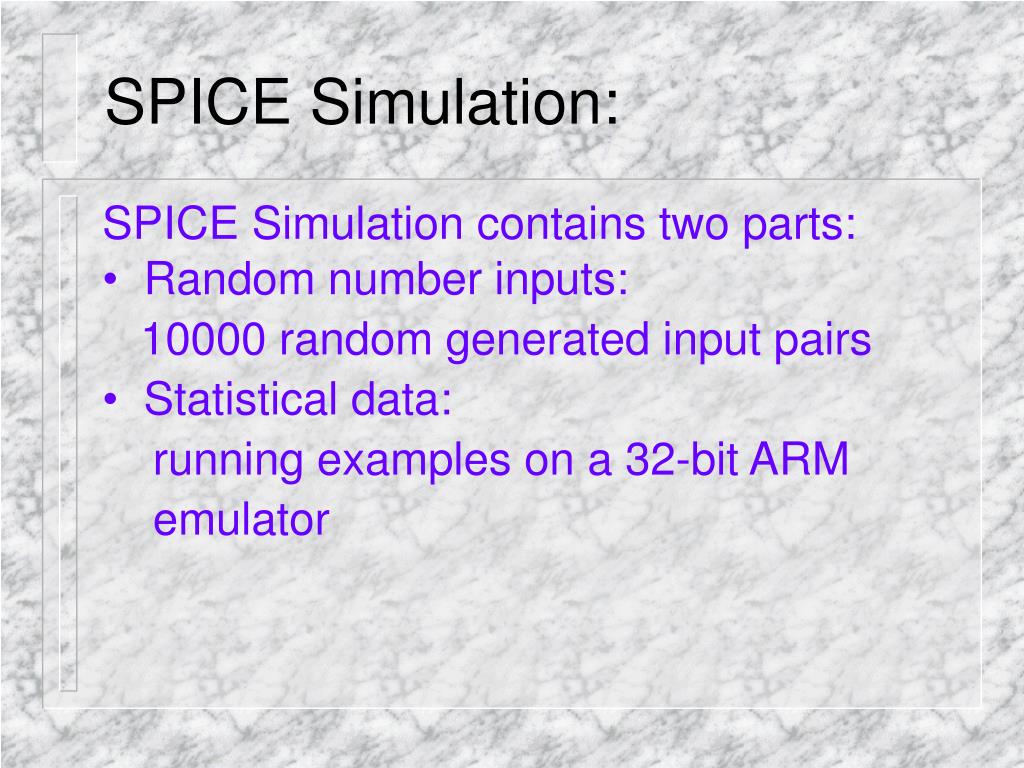

  35. SPICE Simulation: • SPICE Simulation contains two parts: • Random number inputs: • 10000 random generated input pairs • Statistical data: • running examples on a 32-bit ARM • emulator

  36. SPICE Simulation: • Random number input distribution

  37. SPICE Simulation: • SPICE simulation results: random number inputs • Speedup: DIRCA vs RCA: 6.39 • DICLASP vs CLA: 2.64

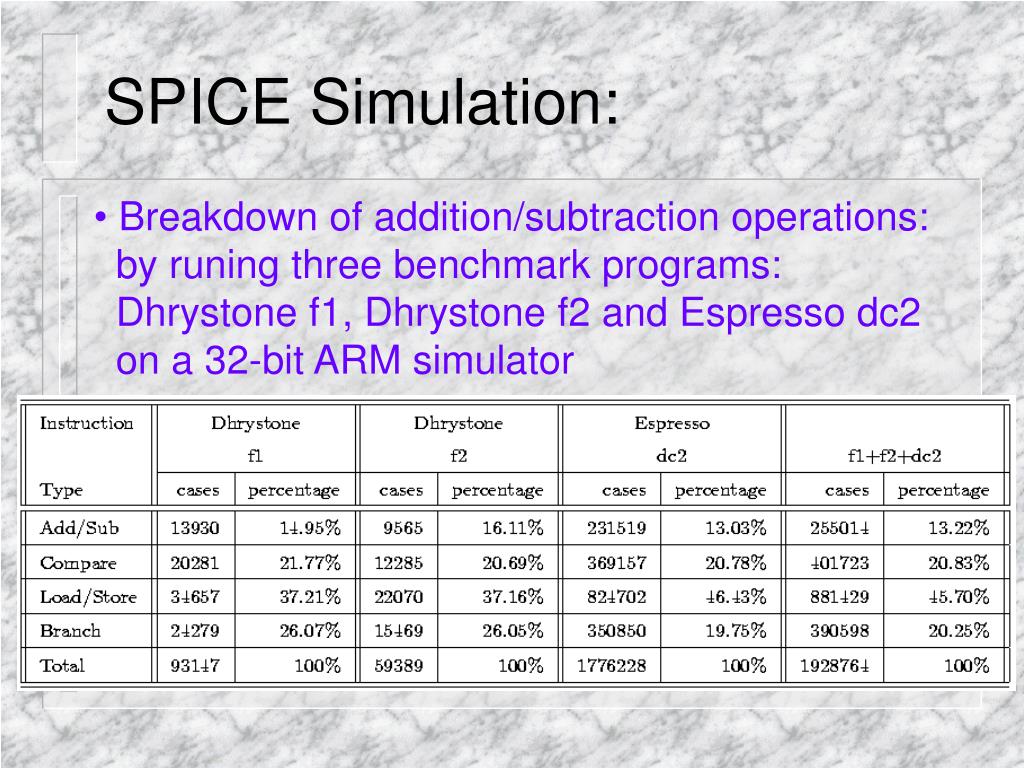

  38. SPICE Simulation: • Breakdown of addition/subtraction operations: • by runing three benchmark programs: • Dhrystone f1, Dhrystone f2 and Espresso dc2 • on a 32-bit ARM simulator

  39. SPICE Simulation:dynamic traces

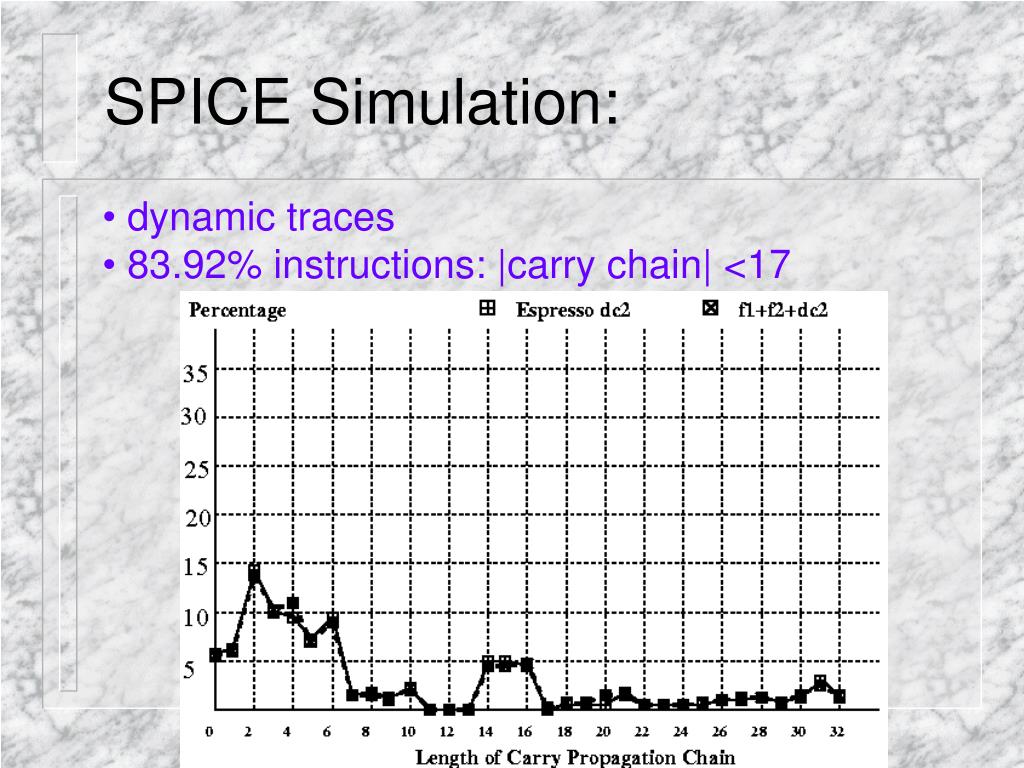

  40. SPICE Simulation: • dynamic traces • 83.92% instructions: |carry chain| <17

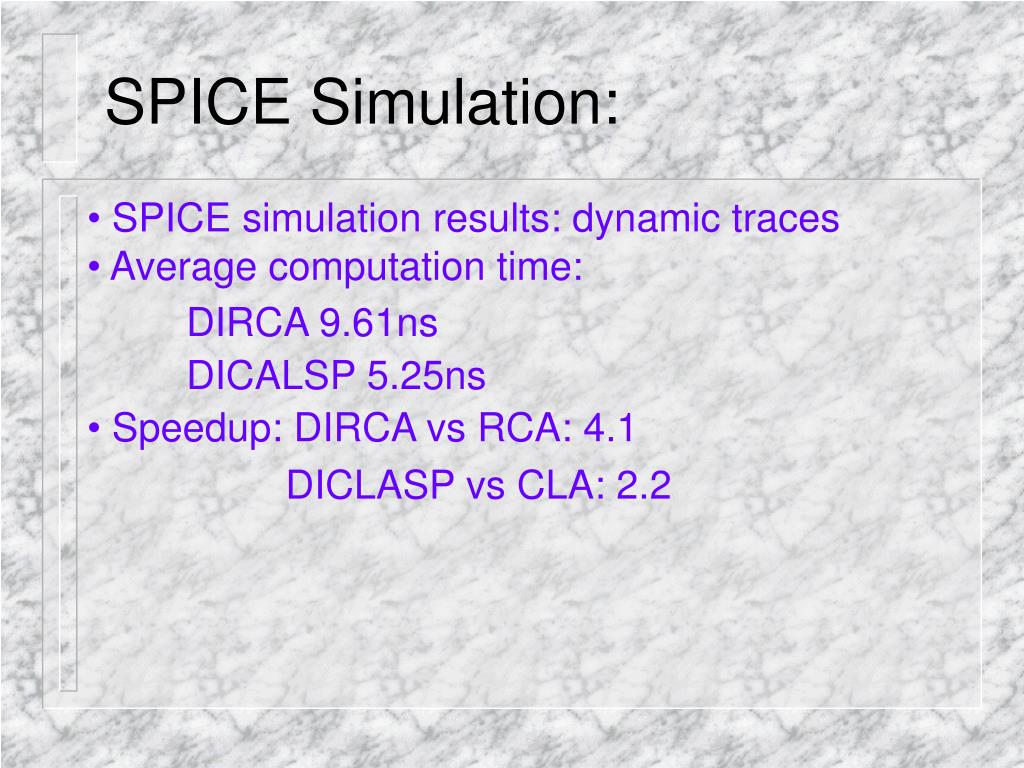

  41. SPICE Simulation: • SPICE simulation results: dynamic traces • Average computation time: • DIRCA 9.61ns • DICALSP 5.25ns • Speedup: DIRCA vs RCA: 4.1 • DICLASP vs CLA: 2.2

  42. Conclusion • DICLASP • Best area-time efficiency: (n log log n) • Correctness: No adder is more robust than DICLASP • Cost(Logic Complexity):No parallel adder is cheaper than DICLASP ((n)). • Speed(Time Complexity):No adder is better than DICLASP ((log log n)). • Suitable for VLSI implementation.
