  1. Governance committee for the ADEME’s database Technical Committee Database management and quality - 6th of June 2011 Service Eco-Conception & Consommation Durable (SECCD) ADEME Avec RDC Environment

  2. Goal of the meeting • General goal : write a specification document to any provider of LCA datasets in order to supply the database • Goal of the meeting : Define / validate the proposals of guidelines for the ADEME’s database management and quality • These requirements will have to be fulfilled by any provider of LCA data • These requirements will be in annex to all technical specification document in every future calls to tender. 2

  3. General approach • Analysis of the ADEME’s database needs : • Recognition at national and international level • Tool to help environmental labeling • Compliance to the guidelines of the BPX 30-323 referential and the general principles of LCA • How do the existing databases answer to these needs ? (ILCD, EcoInvent, GaBi, DEAM, CODDE-BV-TEX) • Analysis of the data quality guidelines that the databases have developed • Proposal of quality and management guidelines for the ADEME’s database

  4. Agenda • Background and goal • The ADEME’s database • Content of the ADEME’s database • Goal for management and quality guidelines • Database building guidelines • Format • Homogeneity • Quality • Database utilization guidelines • Update • Integration of data • Need for « default datasets » • Confidentiality

  5. Background and goal • Support environmental labeling for consumers goods • Help to make a LCA assessment (based on several impact categories and on a life cycle approach) by providing : • A methodology • Common methodology : BPX 30-323 • Sector-specific methodology : one per product category referential • Some generic LCA data The ADEME’s database will be the recognized generic LCA database in France and at international level : • Quality of the database • Co-construction : governance

  6. Links between the ADEME’s work and the ADEME-AFNOR platform’s work ADEME-AFNOR methodological referentials ADEME –AFNOR platform Calculation tools Common ref. BPX 30-323 + Sector-specific ref. Sectorial technical committees ADEME’s database Governance Committee (advisory) avis

  7. Database governance • Sector-specific working groups of ADEME-AFNOR platform • Definition of needs from : a preliminary study and some specification in the specific product category referentials • Technical Committees • Needs refinement • Confrontation to available data • Till the specification document redaction that will explain the data that are needed (precise type of process) and the management and quality requirements • Governance Committee • Administration • NGO • Enterprises

  8. Content of the ADEME’s database • Some processes • One reference flow (unit of the process) • An elementary flows list • An impact categories list • Some metadata • Some characterization factors

  9. Content of the ADEME’s database Processes LCI (inventories) Flows*, flow property*,Unitgroups Unit Reference flow, Unitgroups Metadata Sources, contacts, external documents X Characterization factors* LCIA Method *Common data to any data provider (to come from JRC) Result by impact category

  10. Data sources : 3 channels of supply • Existing or adapted data from databases • Coming from existing databases developers : PE, Ecoinvent, PWC, BV, federations (ex WorldSteel, PlasticsEurope) • Modality : framework agreement and subsequent contracts (call to tender to select candidates and then estimation of costs per sectorial technical committee) • Co-produced data • To fill the pointed out lacks for some specific sectors • The studies will be launched by ADEME (e.g. AgriBalyse for agricultural productions) • Industrial date (from third part) • Help to integrate some data that are still not available in the existing databases • Incentive to develop LCA

  11. Planning

  12. Questions that have structured the work • Content of the database (substance) : Which data ? • Content of the database (form) : • Which format ? • Which building rules ? • IT development • Which integration rules ? • Which management rule over the time ?

  13. Content of the « ADEME’s database management and quality guidelines » document • Structure of the database : which criteria? • Format • Homogeneity • Quality of data • Methodological conformity • Inventorities clarity • Recognition • Transparency • Utilization practice • Update • Integration of data • Need for « default » datasets • Confidentiality

  14. Agenda • Background and goal • The ADEME’s database • Content of the ADEME’s database • Goal for management and quality guidelines • Database building guidelines • Format • Homogeneity • Quality • Database utilization guidelines • Update • Integration of data • Need for « default datasets » • Confidentiality

  15. Format – Definition of needs • Format must help to : • Structure information • Exchange data (import/ export) • Be internationally recognized • Provide impact categories results • Provide transparency on methodology and more especially on BPX • 30-323 referential

  16. Format – How do the databases answer to the needs ? • 2 major formats : • XML – ILCD : complete architecture that will be the future European exchange format • Problem : the today format does not provide a mandatory flows list and does not contain many mandatory fields for metadata • GaBi, CODDE-BV-TEX et DEAM are also developing processes in the ILCD format. • XML – Ecospold (EcoInvent) : format with a different structure from ILCD • Problem : the format is not the European exchange format. However some conversion systems to ILCD format exist.

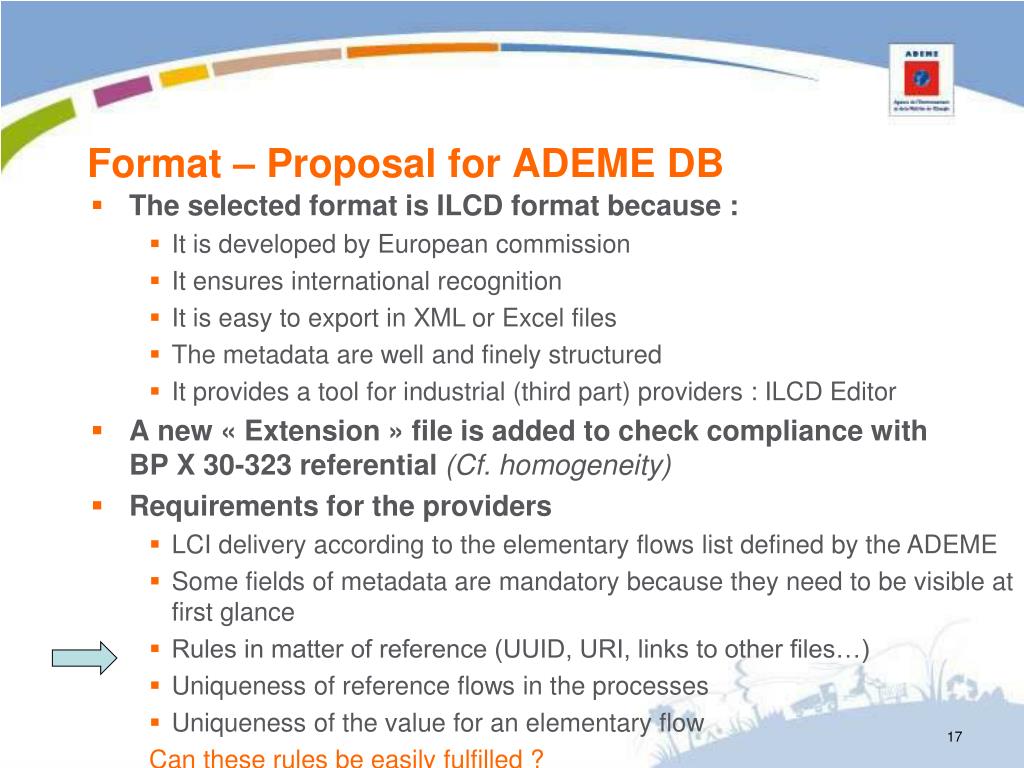

  17. Format – Proposal for ADEME DB • The selected format is ILCD format because : • It is developed by European commission • It ensures international recognition • It is easy to export in XML or Excel files • The metadata are well and finely structured • It provides a tool for industrial (third part) providers : ILCD Editor • A new « Extension » file is added to check compliance with BP X 30-323 referential (Cf. homogeneity) • Requirements for the providers • LCI delivery according to the elementary flows list defined by the ADEME • Some fields of metadata are mandatory because they need to be visible at first glance • Rules in matter of reference (UUID, URI, links to other files…) • Uniqueness of reference flows in the processes • Uniqueness of the value for an elementary flow • Can these rules be easily fulfilled ?

  18. Agenda • Background and goal • The ADEME’s database • Content of the ADEM’s database • Goal for management and quality guidelines • Database building guidelines • Format • Homogeneity • Quality • Database utilization guidelines • Update • Integration of data • Need for « default datasets » • Confidentiality

  19. Homogeneity – definition of needs Sector-specific data Transverse data (upstream data) • How are the data linked together ? • The data sources can be different and therefore the choices of building the data either. • The level of aggregation can be different. The data must respect the same quality rules and methodology. Shoes Energy Transport ? Textile End of life EEE

  20. Homogeneity – How do the databases answer to the needs ? • Processes data can be divided into elementary processes (e.g. : EcoInvent) e.g.: electrical mix, infrastructures …. -> All the data are linked together and the modification of one elementary process generates a modification chain all over the database Elem. process 1 « Aggregated » process (to integrate into ADEME DB) … Elem. process. i • The data convergence is provided.

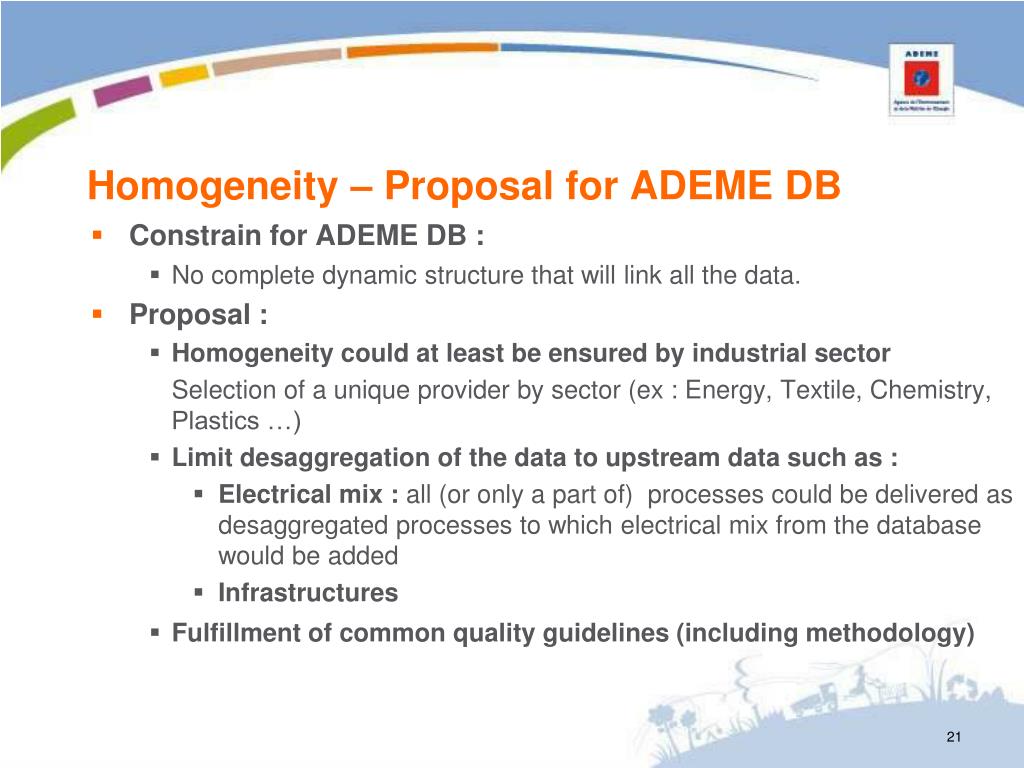

  21. Homogeneity – Proposal for ADEME DB • Constrain for ADEME DB : • No complete dynamic structure that will link all the data. • Proposal : • Homogeneity could at least be ensured by industrial sector Selection of a unique provider by sector (ex : Energy, Textile, Chemistry, Plastics …) • Limit desaggregation of the data to upstream data such as : • Electrical mix : all (or only a part of) processes could be delivered as desaggregated processes to which electrical mix from the database would be added • Infrastructures • Fulfillment of common quality guidelines (including methodology)

  22. Homogeneity – Questions • Sectorial homogeneity Can only one provider per industrial sector ensure homogeneity? • Limited desaggregation Must these desaggregation rules be fulfilled for all the processes or only for a part ? Is it possible to make such a desaggregation ? Must ADEME ask to provider for all processes (1 per country) or only one, that any user of the database could adapt with the correct electrical mix ? • Common quality requirements (cf. quality)

  23. Agenda • Background and goal • The ADEME’s database • Content of the ADEM’s database • Goal for management and quality guidelines • Database building guidelines • Format • Homogeneity • Quality • Database utilization guidelines • Update • Integration of data • Need for « default datasets » • Confidentiality

  24. Quality criteria proposed by ADEME • Inherent quality • Methodology conformity • Inventories clarity • Recognition • Transparency

  25. Data quality – definition of needs • Temporal representativeness : typical data for the considered period • Geographical representativeness : representation of the considered zone • Technological representativeness : typical data for the considered technology (market representativeness) • Completeness of environmental impacts covered by the inventory • Precision / reproductibility variability and error on data • Uncertainty • Consistency (norme ISO 14044)

  26. Data quality – How do the databases answer to the needs ? The common criteria : geographical, technological and temporal representativeness.

  27. Data quality – How do the databases answer to the needs ? • 2 major evaluation systems : • On documentation (qualitative) • On ratings

  28. Data quality – How do the databases answer to the needs ? According to the organisations, either the database provider checks by himself or asks for an external peer review (no mandatory accreditation for reviews)

  29. Data quality – Proposal forADEME DB • Minimum criteria to take into account : • Temporal, geographical, technological representativeness Must there be other requirements (uncertainty/precision, completeness) ? How can these criteria be proposed and checked? • Quality evaluation • Short term : qualitative approach What is the proof mode? In long term, must we develop also the quantitative approach ? Who will establish the threshold values : the data provider ? By what kind of review process ?

  30. Quality of data – Proposal for ADEME DB • Proof mode for quality, for eachchannel of data supply : • Data comingfromdatabases: the providers’ reviewisenough Can wevalidthat the ADEME’sdatabasecanbesatisfiedwith the providers’review? • Co-produced data : requirethat a peerreviewisavailable • Data comingfrom industries (third part) : need to get an externalpeerreview to be sure of quality Can werequire a peerreview to industries without the riskthatthiswilllimitthischannel for data supply ? Must werequire « accreditation » reviewersfrom ADEME?

  31. Quality criteria proposed by ADEME • Inherent quality • Methodology conformity • Inventories clarity • Recognition • Transparency

  32. Methodology conformity – Definition of needs • The data must fulfill: • The ISO 14040-44 norm • Choice for impact categories • Choice for methodologies (allocation rules, cut-off criteria…) • The Annex A of BPX 30-323 referential • The requirements of the ADEME AFNOR platformMethodology and Product CategoryWorking groups and of the TechnicalCommittees for the ADEME’sdatabase. Can theserequirementsbefulfilled ? Can the databaseaccept to integratesome data that do not fulfill all the criteria ? For whichcriteria ?

  33. Methodology conformity – Réf. BPX 30-323 • Le référentiel BP X 30-323 s données doivent respecter :

  34. Methodology conformity – Other requirements • Common methodologicalrules for anyproduct (included in the methodologicalreferential) • Impacts allocation rulesbetweenco-products (e.g. : allocation leather / meat / milk) • Sectorialrules (included in the productcategoryreferential) • If they have a big influence on the environmental balance (e.g : allocation betweenleather and split leather) • TechnicalCommitteesrecommendations for upstream data • Energy • End of life • Transport Must werequirethat the rulesdefined in a productcategoryreferentialshouldbevalidated by the ADEME AFNOR MethodologicalWorking Group in order to get more homogeneity?

  35. Methodology conformity – How do the databases answer to the needs ? • Follow the ISO 14040-44 norm The normprinciples are followed by anydatabase. • Fulfill the rules of BP X 30-323 referential Do theserequirementsneed to beadapted in so far as the data are not always able to pass the criteria ?

  36. Methodology conformity – Proposal for AEME DB • Follow the ISO 14040-44 norm • Choice of impact categories : from the product group and based on impact categoriesfrom JRC (LCIA) • Fulfill the rules of BP X 30-323 referential • Proposal to make visible all information linked to the BPX fulfillment : possibility to have a complete vision of the Extension file Can weaccept non-conform data ? • Follow the common and sector- specificmethodologicalchoices • In general, requirementswillbedefined in specificaions and call to tender

  37. Fictive example of BP X 30-323 fulfillment

  38. Quality criteria proposed by ADEME • Inherent quality • Methodology conformity • Inventories clarity • Recognition • Transparency

  39. Inventories clarity – Definition of needs • Criteria for inventories quality : • Completeness of flows : have all the major contributing flows been taken into account ? • Reliability of data (order of magnitude) • Background precision : explanation of process specificity in terms of representativeness, yields, sources

  40. Inventories clarity – How do the databases answer to the needs? • Completeness of flows: qualitative check (cf. quality) • Reliability of data in terms of order of magnitude : qualitative check (cf. quality) • Background details : metadata well structured with fine level of detail • Metadata fields structuration : ILCD, EcoInvent, GaBi • Provided documentation : all databases

  41. Inventories clarity – Proposal for ADEME DB • Access to the elementary flow list that can be classified

  42. Inventories clarity– Proposal for ADEME DB • Automatic checks in order to check orders of magnitude : if the checks are not fullfilles , then alerts are created • Check links between CO2 emissions and use of fossile fuels burning • Check links between combustion processes and NOX and SOX emissions • Check links between electricity processes and resource depletion • Check links between transport, oil consumption and CO2 emissions • Check links between water emissions and water consumption • Check values for« Exotic flows » (usually very weak)

  43. Inventories clarity – Proposal for ADEME DB • ILCD format used for metadata with some « at first glance » criteria (fields must be filled and visible) Unit Géo & techno representativeness Source Does the first vision of the Extension file fieldsseemeasy to reach?

  44. 2nd visibility access Unit Temporal representativeness Geographical representativeness Technological representativeness Are the mandatoryfields relevant ?( )

  45. Méthodo 2nd visibility access Sources & Representativeness Are the mandatoryfields relevant ( )? Completeness for flows

  46. Type of revision 2nd visibility access Les champs obligatoires ( ) sont-ils pertinents?

  47. Quality criteria proposed by ADEME • Inherent quality • Methodology conformity • Inventories clarity • Recognition • Transparency

  48. Recognition – Definition of needs • The ADEME’s database will be public • National recognition • ADEME would like to join the ILCD Network • International recognition • What steps to check recognition ? • Data supply • Data quality requirement • Calendar

  49. Recognition –How do the dabases answer to the needs ? • Quality and peer acceptance • Documentation • Provide a documentation • Structure data into the ILCD fields (ILCD, EcoInvent)

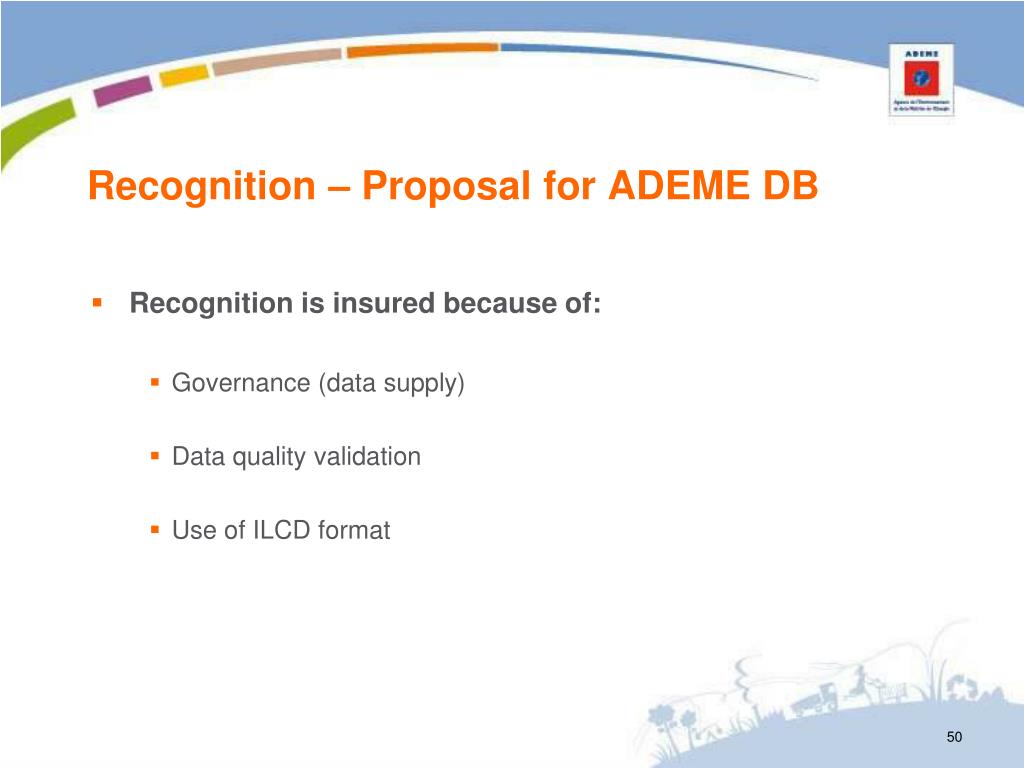

  50. Recognition – Proposal for ADEME DB • Recognition is insured because of: • Governance (data supply) • Data quality validation • Use of ILCD format
