  1. 【8 Channels】 17” LCD DVR Combo USER’S MANUAL This Manual is Revisable without notice

  2. • INDEX ■ INDEX ---------------------------------------------------------------1~3 ■Warning / Precaution / Caution ----------------------------------------4~10 • CHAPTER 1. Specification & System organization 1. Specification -----------------------------------------------------------11 2. Product Contents List --------------------------------------------------- 12 3. System Organization --------------------------------------------------13 • CHAPTER 2. Description 1. Front Panel ----------------------------------------------------------- 14 2. Rear Panel ------------------------------------------------------------ 15 3. Remote Controller ------------------------------------------------------- 16 • CHAPTER 3. Outlook 1. System Power ON ------------------------------------------------------- 17 2. SCR Mode------------------------------------------------------------ 18 3. PTZ/FOCUS Control-----------------------------------------------------18 4. System Power OFF ------------------------------------------------------18 • CHAPTER 4. SETUP ⊙ Go to System Setup Menu--------------------------------------------19 1. Display--------------------------------------------------------------20 1-1 OSD---------------------------------------------------------------20 1-2 Monitor------------------------------------------------------------- 21 1-3 Sequence ------------------------------------------------------ 21~22 1

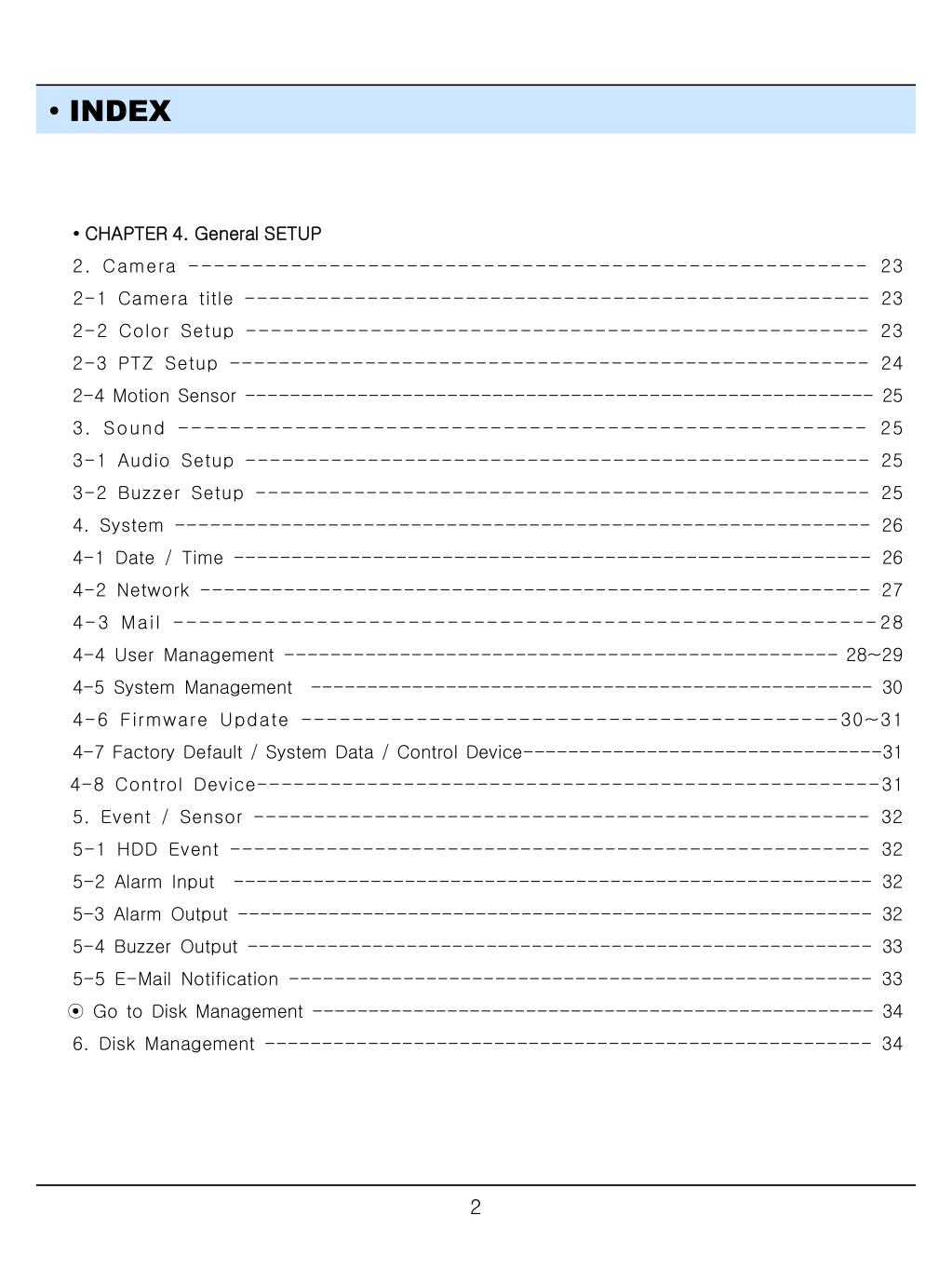

  3. • INDEX • CHAPTER 4. General SETUP 2. Camera ----------------------------------------------------- 23 2-1 Camera title --------------------------------------------------- 23 2-2 Color Setup -------------------------------------------------- 23 2-3 PTZ Setup ---------------------------------------------------- 24 2-4 Motion Sensor -------------------------------------------------------- 25 3. Sound ----------------------------------------------------- 25 3-1 Audio Setup --------------------------------------------------- 25 3-2 Buzzer Setup -------------------------------------------------- 25 4. System----------------------------------------------------------- 26 4-1 Date / Time ------------------------------------------------------- 26 4-2 Network -------------------------------------------------------- 27 4-3 Mail ------------------------------------------------------28 4-4 User Management ------------------------------------------------ 28~29 4-5 System Management -------------------------------------------------- 30 4-6 Firmware Update ------------------------------------------30~31 4-7 Factory Default / System Data / Control Device--------------------------------31 4-8 Control Device---------------------------------------------------31 5. Event / Sensor --------------------------------------------------- 32 5-1 HDD Event ----------------------------------------------------- 32 5-2 Alarm Input -------------------------------------------------------- 32 5-3 Alarm Output -------------------------------------------------------- 32 5-4 Buzzer Output ------------------------------------------------------- 33 5-5 E-Mail Notification --------------------------------------------------- 33 ⊙ Go to Disk Management-------------------------------------------------- 34 6. Disk Management ----------------------------------------------------- 34 2

  4. • INDEX • CHAPTER 5. Record ⊙ Go to Record Menu----------------------------------------------------- 35 1. Recording Operation ----------------------------------------------------- 35 2. Timer / Motion Setup ------------------------------------------------ 36 2-1 Parameter -------------------------------------------------------- 36 2-2 Schedule -------------------------------------------------------- 36 3. Alarm Setup -------------------------------------------------------- 37 3-1 Parameter----------------------------------------------------- 37 3-2 Schedule ------------------------------------------------------- 37 • CHAPTER 6. Backup ⊙ Go to Back Up ------------------------------------------------------ 38 1.USB Back up ------------------------------------------------------- 38 • CHAPTER 7. Search ⊙ Go to Search Mode ----------------------------------------------- 39 1. Search by Time --------------------------------------------------------- 39 2. Search by Event ------------------------------------------------------ 40 • CHAPTER 8. CLIENT ⊙ Remote Program Install --------------------------------------------------- 41 1. Function Introduction ----------------------------------------------------- 42 2. Local Setup ----------------------------------------------------------- 43 3. DVR Setup --------------------------------------------------------- 46 4. Monitoring -------------------------------------------------------- 53 5. Search ----------------------------------------------------------- 56 6. Web Client ------------------------------------------------------------ 61 3

  5. • Warning / Precaution / Caution This chapter describes the care which must be exercised in handling TFT LCD, Inverter and HDD changing or servicing. The TFT-LCD so sensitive that its material and structure may be easily damaged or lost due to carelessness on the part of users or operators. Please comply with the following precautions when unpacking, handling, assembling or storing it Temperature / Humidity It is recommended to use the product at room temperature and humidity in order to maintain its optimum performance. 1. Product lifetime can be shortened when it is used under conditions of high temperature and humidity. Environmental Consideration It is recommended to use the product in a clean place and to exercise caution to ensure that it is not affected by dust or liquids, etc. 1. If used in dusty place, dust may cause an electrical short inside the product resulting in malfunction. 2. If the product is contaminated by humid or liquid substance, polarizer may be discolored. If the liquid enters may enter the product to cause electrical failure or corrosion which, in turn, may lead to malfunction 4

  6. • Warning / Precaution / Caution Handling As LCD is a product made of glass, caution must be exercised in using it. It is recommended to handle it with care since shock, vibration, and careless handling may seriously affect the product. 3. The LCD product is composed of sensitive electronic parts and components. Therefore it must be grounded by ESD protection equipment (wrist band, etc.) before it is directly handled. 5. Do not bend or stretch the back light wire. 5

  7. • Warning / Precaution / Caution Usage As LCD product is a sensitive electronic equipment, it is urged to comply with the following precautions when using it. 1. Never disassemble LCD product under any circumstances. If unqualified operators or users assemble the product after disassembling it, it may not function or its operation may be seriously affected. 3. It is recommended that the product be stored in a cool and dry place in its original product box. 6

  8. • Warning / Precaution / Caution RISK OF ELECTRIC SHOCK DO NOT TOUCH INVERTER CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN BACK COVER EXCEPT FOR CHANGING HDD INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This clause describes the care which must be exercised in handling Inverter. The Inverter generate more or less high voltage. Please comply with the following precautions when Back cover opening, handling, assembling it or HDD changing. AS Inverter IC are exposed on the backWhile opening Back cover, Caution must be when changing HDD It is recommended to handle it with care since mechanical stress,shock, vibration, and careless handling may seriously affect it. Do not hold or press this part with your hands. 7

  9. • Warning / Precaution / Caution UDMA Cable Upper HDD Fixing Screw Power Cable This clause describes the care which must be exercised in handling HDD (HDD changing or servicing etc) The exposed HDD IC so sensitive that it’s contained materials may be easily damaged or lost due to carelessness on the part of users or operators. Please comply with the following precautions when unpacking, handling, assembling or changing it AS the kind of HDD IC is exposed on the backWhile opening Back cover, That must be Caution when changing HDD or handling other cables (UDMA, Power Cable etc) It is recommended to handle it with care since mechanical stress,shock, vibration, touch, scratch and careless handling may seriously affect HDD. So they are can cause failure of HDD Assembled HDD 8

  10. • Warning / Precaution / Caution This clause describes the care must be handle Power Adapter Please comply with the following precautions when handling or changing it 1. The LCD DVR Combo is designed to operate on a Power Adapter of 100 ~ 240V - 50/60㎐ AC Input and output rating is 12V/8.0A (100W) Ensure that your Power Adapter fits this requirement before attempting to use your LCD DVR system. Use only contained Power Adapter in Packing Box When replacement is required, be sure that replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire. 3. If LCD DVR Combo is not to be used for long time, disconnect the plug from the power outlet. 4. Do not touch the power plug with wet hand and conductor materials etc. Doing so can cause electrical shock or fire. 5. Do not touch the power plug during a thunder storm. Doing so can cause electrical shock or fire. 9

  11. • Warning / Precaution / Caution This clause describes General Caution or Warning Please comply with the following precautions when handling or changing it When replacement parts are required, be sure that the service technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. Unplug immediately if there is something wrong with your System Do not operate if smoke, strange noise or odor comes out of your System. It might cause fire or electric shock. In this case, unplug immediately and contact your dealer. Service Guide Except as specifically explained in the Owner's Guide, do not attempt to service this product yourself. Please contact your dealer when you want to fix, adjust or inspect LCD DVR Combo Do not modify this equipment. It can lead to fire or electric shock. Do not place the System on uneven surface. Place the LCD DVR system on a leveled and stable surface only. Please do not place equipment on unstable surfaces. Do not turn off the main power abruptly or unplug the System during operation. It is best to wait for turn off by specified Normal sequence in case of main power off. Tip • Firmware, Remote Agent Software and manual are changed or Version-up without notice 10

  12. Specification & Organization 1. Specification 11

  13. Specification & Organization 2. Accessories Enclosed Please find Accessories with Set at following Pictures Power Adapter Power Cable RJ45-BNC Converter X 4 RJ45-BNC_Audio Converter X 4 AAA Battery X 2 Remote Controller Remote Client Program Installation CD Terminal Block X 2 User’s Manual 12

  14. Alarm Sensor #1-8 Relay Out Alarm Input/Out NETWORK Specification & Organization 3. System Organization Remote Client PC Image Printer Camera #1-8 TCP/IP AVI Backup 8 Video In WEB Client Backup USB Monitor Out Remote Controller 13

  15. • Channel Selection Button is Prior to DISPLAY. • When Remote Controller Sensor Input is Blocked by Something, it Cause 1 Remote Controller do not Work Properly. • When Press any Button, it Operate with Beep Sound. Tip Description 1. Front Face ⑩ ④ ⑥ ⑧ • Red : System OFF • Green : Operating • Reddish Yellow : Screen OFF ③ ⑨ ⑭ ① ② ⑫ ⑤ ⑦ ⑪ ⑬ ① Power : System Power On/Off with LED Indicator. It has three Colors which are Red, Green and Reddish Yellow ② LED Indicator : Indicate System working Status ③ Channel Select Button : When Select Channel or Input Password ④ DISPLAY (SCR) : When Select Screen Division Mode or Rotation Mode ⑤ SETUP (Menu) : Go to System Setup Menu ⑥ SEARCH : Go to Search Mode for Searching Recorded Video ⑦ PTZ : Go to Camera PTZ / Focus Control ⑧ Remote Controller Sensor Input (Refer to using of remote controller) ⑨ Up/Down Direction Key : It has three functions ⑩ ENTER : Press Enter to Apply Changing Setup ⑪ RETURN : Cancel Setup or Return Previous Mode ⑫ Speaker : Output Sound of Video ⑬ Search Control : Search Recorded Video, Control menu, PTZ / Focus ⑭ USB Port : USB port for use the USB memory stick and USB HDD Backup. • RECORD : Record On/Off (Red : Operating) • NETWORK : Client Network Connect On/Off (Green : Operating) • ALARM : Alarm Sensor On/Off (Red : Operating) • Adjust volume of speaker • Moving Menu Bar Up/Down • Controlled PTZ / Focus of Camera 14

  16. PTZ ALARM IN D+ D1 1 2 GND 3 4 5 6 GND 7 8 NO COM NC 2 GND 3 4 5 6 GND 7 8 ALARM OUT RELAY ① : PTZ+ ② : PTZ - ③ : 12V POWER ④ : AUDIO IN ⑤ : GND ⑥ : GND • When System Installation, Please Install under System Power Off Status. • Please Use Specified Adaptor when Power Supply. Tip ⑦ : VIDEO IN ⑧ : AUDIO OUT Description 2. Bottom Face (8Channel) ⑥ CAM5~CAM8 CAM1~CAM4 ② ③ ④ ⑤ ⑦ ① ① Video & Audio In (CAM1 ~ CAM4) : Video & Audio RJ-45 Port for Connection of Camera. Video In (CAM5 ~ CAM8) : Only Video RJ-45 Port for Connection of Camera. (Other RJ-45 Cable is available Requesting Order Video&Audio&Power Combination etc) ② Monitor Out : Output LCD DVR Video when connected Monitor ③ USB Port : USB port for use the USB memory stick and USB HDDBackup. ④ Ethernet (TCP/IP) : Port for LAN cable. (Possible to Remote Surveillance.) ⑤ Alarm Out (2 ~ 8) & Relay : Connect Port forSensor or Relay ⑥ Alarm In (1 ~ 8) & PTZ : Connect Port for Sensor or PTZ ⑦ Power Jack : DC 12V /8A (100W) Adapter In ※ Configuration of RJ-45 Cable 1 8 15

  17. Description 3. Remote Controller POWER System ON/OFF MENU: Open menu Channel Select Button (16CH Available) ID Input ENTER: Apply Setup Change RETURN Cancel Setup or Return to Previous Search Controller : Control Playback Option (EX. Speed of Playback, Move on Menu, 1Control PTZ/Focus) Change Screen Mode Open Search Mode PTZ/IRIS Mode • Unused Button’s Description is Omitted. • Every Button is Operated Same as Front Face Button. • Remote Controller can Operate when Remote Controller Sensor Input Part Reacted. ※ Remark : If there are many DVRs at near place, they are able to operate simultaneously when press remote controller But One DVR make controllable by designated ID Number of ID INPUT KEY. that sequence is 【 ID Input key press  Input Number  Enter  Return】 ※ Menu setup : General Control Device System ID (1 ~ 255) ※ Caution : Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 16

  18. Outlook 1. System Power ON • Press Power Button to Start System. • After Checking Hard Disk, Need input Password to 1 Operation.( Initial password is 1234.) • Initial Screen View Mode is Nine Division Mode 1 and Timer Recording Mode. • Each Channel Indicate Camera Name & Recording Status. • Present Time & Date Indicate at Lower Sideof Monitor Center. Power On menu When connect by the Remote Agent or Web Client, Indicator appear left side of the lower end. This indicate the network condition . - Blue : Network is stable. - Yellow : Network is unstable. - Violet : Network is very unstable. ① Network Status ② ID Indicator ③ ID Status ④HDD Status • ID Indicator : While input ID, it is appeared. ID input has done, it is disappeared • ID Status : it’s color maintain white only one system, but the other ID Number “R” Character color changed from white to gray • HDD Status : HDD and Recording capacity 2. Display (Screen) Mode • User can Select various Watch Mode. • 8CH Watch Mode is Initial Mode when System Start. • Some of pictures are follows 17

  19. Outlock 3. PTZ/FOCUS Control • Control Camera PTZ (Pan /Tilt /Zoom). • Press PTZ Button to Open PTZ Menu. • Each icon mean the button of front keyboard. • Control each function by front keyboard. • Press PTZ button one more time, then another menu appear. • F, I Characters mean Focus and IRIS 4. System Power Off • Press longer than 2secondPower Button to System Off. • Input Password and Press Enter to Shutdown System. • System Log-On Possible ID Group : “ADMIN”, ”MANAGER”, “USER” Must be input Capital letter - ADMIN : All Functions are accessible (System On, Shutdown, Setup, Search)- MANAGER : System On and Search functions are accessible - USER : Only System On function is accessible. Tip 18

  20. General SETUP ⊙ Go to Setup ① Press Setup Front Button or Menu Button of Remocon. ② When appear pop-up menu, Input Password Using by Front Button or Remocon. ③ After Input Password Press Enter to See Menu. • Initial “ADMIN” Password is 1234 that shows as * • Changing Password (System -> User management ). : To erase initial password, Press fast backward (<<) button. • Only Watch Mode can go to Entering setup. (Search & PTZ/Focus Mode can’t move to Menu) Tip ⊙ Go to Setup Menu • Press Setup Front Button or Menu Button of Remocon.Choose the “System Menu” 19

  21. RETURN General SETUP 1. Display - Video Setup for Watch Mode • Every System Setup can Change or Maintain at Menu • Move to Menu Using by Up, Down, Left and RightButton. • To Open Detail Menu, press “Enter”. ENTER Return to Previous Menu or Return to Watch Mode. • 1-1. OSD (On Screen Display) • Status Bar : Record Condition Mark On/Off. • Camera Title : Setup Camera Name to Show Left-Upper Side. • Event Icon : Indicate the menu location by icon. • Border : Border Mark On/Off when 9CH Division Watch Mode. • Border Color : Select Border Color. (White, Blue, Red, Yellow, Green, Gray) • Menu Transparency : Choose the transparency(1~100). • Motion Sensor Display : Setup display motion sensor. - Active : Display motion sensor of motion detection area. - Inactive : Display motion sensor except motion detection area. - Off : No display of motion sensor. • Motion Sensor Color : Setup motion sensor color. • Motion Transparency : Choose the transparency(0~3). 20

  22. General SETUP 1-2. MONITOR • Sequence Dwell : Setup Rotation Cycle Time (1~60 Sec.) when Rotation Mode at Watch Mode. • De-interlace Mode : Remove Screen Spread on High Resolution, Low Frame ※Only Applying When D1 (704X480) • Alarm Pop-Up Mode : When alarm happen, Alarm happened channel Pop-up • Alarm Pop-Up Dwell : Alarm Pop-up Time (1~60Sec.) • Motion Pop-Up Mode : When Motion happen, Motion happened channel Pop-up • Motion Pop-Up Dwell : Motion Pop-up Time (1~60Sec.) 1-3. SEQUENCE • Activation : Setup Activation On/Off. Only one list can be activated. • List : Sequence Title. • Press enter at list, edit enable. • Choose Add to Add Sequence. • Total 16 mode of sequence can be made. • Input Sequence Title by virtual keyboard. •Choose Activation on/off. • Press save to move to setup. 21

  23. General SETUP ▪ Setup sequence • Press enter then Green border line disappear. Setup mode activated. • Select display mode among 16 mode. 1set can be made by 16 mode. • Setup next mode as before. • Total 16 mode can be selected. • Display mode selected, press channel selection button as you want. • Input all channel Number, move to next step. • When finish setup, press return. • Save & Exit / Exit / Cancel can be selected. 22

  24. 2-2. Color Setup Sub-Menu • Enter to control mode by press ENTER button. then appear Adjusting sub-menu lower side • Control CH, Bright, Contrast, Tint, Color. • All Setup Possible to Control 0~100. • Setup Channel by Channel. General SETUP 2. Camera - Setup Camera 2-1. Camera Title • Covert : Setup Covert On/Off * Covert means When Covert On Watch Mode, Video Display is Hidden, but Recording is On. • Title : Setup Camera Name by Virtual keyboard. • Input the title by “Enter” after choose by direction key. 23

  25. General SETUP 2-3. PTZ Setup • Address : Select PTZ Camera Address. • PTZ Protocol : Select Kind of PTZ Camera. • Enter button and setup the detailed PTZ. • Baud Rate : Setup PTZ Communication Speed. (2400, 4800, 9600,19200, 38400 BPS) ※PTZ Supplied Protocol : Samsung(MRX-1000), Samsung(SCC641),Honeywell(SD1) Honeywell((GMC),Lilin(Fastdome), Fastrax(Ⅱ), GC(655N), D-MAX, Sunin DSC-230, Scan Dome-Ⅱ, Vicon,Philips8560-700 Sensormatic,Panasonic(WV-CS850), Panasonic(WV-CSR604),VRX-2101 Kalatel(KTD-312), PELCO-D, PELCO-P,Dynacolor(D7722), ELMO(PTC-400C) ※ How to use the Virtual Keyboard • Input the title by “Enter” after choose by direction key. • Press the UP button for shift then choose the other characters. • Erase characters by BACKWARD button. • Press ENTER button for finish. Tip 24

  26. General SETUP 2-4. Motion Sensor • Press AREA SETUP button. •Move Cursor by Direction Key and Enter for select. • Select region and press Enter one more time. • For finish area setup, press Return. • Choose the Partial Region channel by channel. • Sensitivity: Control sensitivity.(1~10) Press return, then next menu show up. • Select All : Select Entire Region. • Deselect All : Cancel Region Setup. • Cancel : Cancel Change Setup & Exit. • Save & Exit : Save the Changes & Exit. 3. Sound 3-1. AudioSetup. 3-2. BuzzerSetup • Live Audio : Audio Output ON/OFF. Live Audio Output from Audio In Terminal. • Audio Monitoring Channel: Select Channel for Audio Output. • Network Audio TX: Choose the Audio transmission. • Network Audio RX: Choose the Audio receive. • Keypad : Keypad buzzer On/Off. • Remocon : Remocon buzzer On/Off. 25

  27. Tip ※ How to Time setup 1. Setup Time zone as your location. 2. Setup the Network Time server and press the “Sync” button. 3. If can not get correct time automatically, setup the date/time manually. 4. If don’t follow as upper, you may have the time error and the recording data search error. General SETUP 4. System 4-1. date/time ※ First of all, Time zone should be setup as your location. • Date TIME: Setup Present Date time. (If Time Setup to Past Date, Ask Delete Data for the Past Date. (NO->Date/Time No Change, YES->After Delete Past Data and Change Date/Time ) • Date Format : Select Date Output Type. (Ex:2007/04/20) • Time Format : Setup Time Type as 12 Hour (AM / PM) Base or 24 Hour Base. • Network Time Server setup : Setup Present Time by Time Server. (Default is time.nist.gov) • D.S.T: Daylight Saving Function On/Off. • Time Zone Setup : Choose the time by GMT standard. 26

  28. General SETUP 4-2. Network • IP Address : Input IP Address. • Gateway : Input Gateway IP for Internet Server. • Subnet Mask : Input Subnet Mask IP. • DNS Server : Input DNS Server IP. • DDNS Server : Input DDNS Server IP. • Net Client Port : Input net client port. • Web Server Port : Input web server port. • Max TX Speed : Setup Max TX Speed. ※ If Change Network Setup, New Change Apply after Rebooting. • DHCP (Dynamic Host Configuration Protocol) : Indicate IP Address for the DVR Automatically. 1. Enter to “System -> Network”on the Menu. 2. Setup DHCP On/Off. 3. DHCP Off : User Input IP Address manually. 4. DHCP On : Indicate IP Address for the DVR Automatically. After DHCP On, Reboot the System. 5. Can see the setup IP automatically at the system information. • DDNS (Dynamic DNS): You can connect the DVR by the fixed domain name(ex.00115f000001.dvrlink.net) at client or Web without entering the IP address. ※ If you use the DDNS, there is no necessity to enter again the IP Address every connection. 1. Enter to “System -> Network” on the menu. 2. Setup DHCP On or Enter the IP address. 3. Setup DDNS ON and reboot. 4. Enter to “System -> System Management” on the menu. 5. Confirm the MAC address. 6. The domain name is "MACaddress.dvrlink.net". EX) If Mac Address is 00-11-5f-00-b5-a7, the domain name is "00115f00b5a7.dvrlink.net" 7. If you connect by "00115f00b5a7.dvrlink.net" at client program or Web, you can connect the DVR. • Web Service - On : Connect from Web browser enable. - Off : Connect from Web browser disable. Tip ※ 1. If your network connect at the router, please must port forwarding. 2. Please must enter the exact IP address, DNS Server, Gateway, Subnet Mask. 3. Please must connect the DVR at External Network. If you don't follow 1,2,3 , you can't receive the DDNS service. 27

  29. General SETUP 4-3. Mail • Server: Setup the mail server by Virtual Keyboard. • Port: Input mail server port by Virtual Keyboard (SMTP Server Port : 25) • Security: Setup security On/Off. Mail server needed certification, setup security on. • User & Password: Input user ID and Password of Mail Server. 4-4. User Management User setup • It is consisted 3 User Group as “ADMIN”, ”MANAGER”, “USER”. • Total 7 user belong to 3 User Group can be made. • Enter ADD button to make a new user. 28

  30. General SETUP 4-4. User Management • Input User ID, Password. • Choose the Group. • Input the E-mail Address. •It can edit User ID information. • E-mail notification On/Off • Input the E-mail by Virtual Keyboard. 29

  31. General SETUP 4-5. System Management • F/W Version: Server Firmware Version. • H/W Version : Hardware version. • Video Signal Type: NTSC or PAL. • Disk Capacity: Used HDD capacity of total HDD. • IP Address: DVR’s IP Address. • MAC Address: Fixed MAC address of the DVR. 4-6. Firmware Update • F/W UPDATE : Press “Press” to Start Firmware Update by USB Port ① Select F/W Update of System Management ② Connect USB Port to USB Memory for loading Firmware and Select Firmware Version ※ Do not Power Off during Loading of Firmware ③ Press OK Button for Updating Firmware. 30

  32. General SETUP ⑤ After New Firmware loading, You must restart this system ④ Going on Loading Firmware 4-7. Factory Default / System Data • FACTORY DEFAULT : Press “Press” to Start Factory Default. Showing Warning Message and Press OK to Run Initialize. If do Factory Default, Every Setup is Initialized, but Saving Image is Not Erased. •System data : User can save/load settings. - Press ‘SAVE’ to save current setup without message. - Press ‘LOAD’ to load saved setup from USB device without message. - Saving data is overwritten by only one file name (idvr800t_user_cfg.dat) 4-8. Control Device • CONTROL DEVICE : Input SYSTEM ID, PROTOCOL, BAUDRATE - SYSTEM ID : Only Activated designated DVR by Input Number of System ID (1 ~ 255) 31

  33. General SETUP 5. Event/Sensor 5-1. HDD Event • Drive : HDD connected location. • Smart Alarm : Setup smart alarm On/Off. • Check interval : HDD checking interval. 5-2. Alarm Input • Operation : Setup Alarm Sensor Connection Status. (enable/disable) • Type : Setup Alarm Sensor N/Open, N/Close Type. • Normal Open : Open status in normal times, when alarm out happen changed to close status. • Normal Close : Close status in normal times, when alarm out happen changed to open status . 5-3. Alarm Output ※ Setup each channelwhen alarm, video-loss, motion are happened. • Channel : Select Channel. •Mode : Setup Reacted Relay as Latched/Transparent Mode. •Type : Setup Relay Type High or Low. •Operation : Setup Relay Connect with Alarm Sensor. •Duration : Setup Reacted Relay Time. (5sec~5min or Until key-in) •HDD Event : Alarm On/Off when HDD has the problem. 32

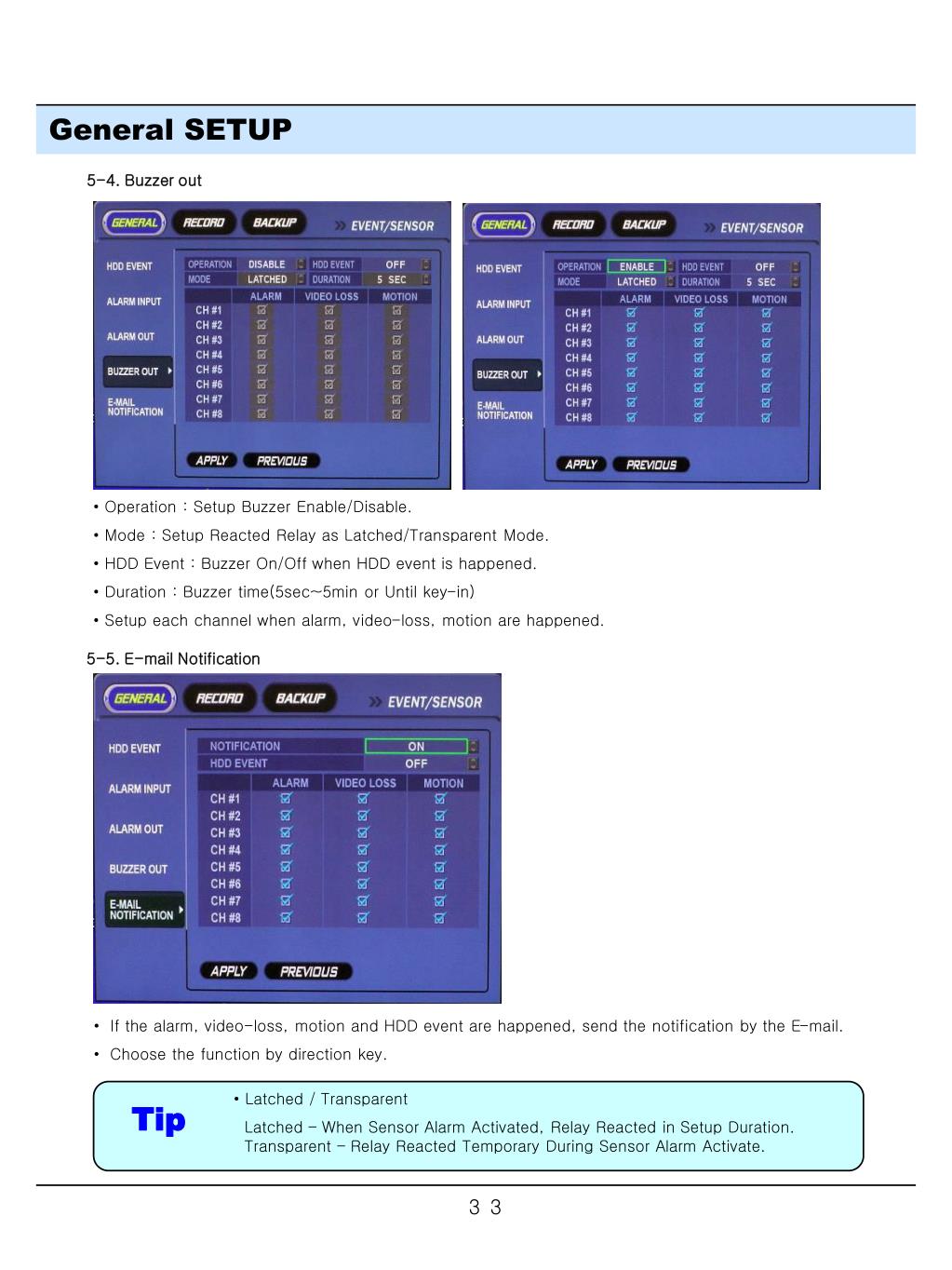

  34. General SETUP 5-4. Buzzer out • Operation : Setup Buzzer Enable/Disable. • Mode : Setup Reacted Relay as Latched/Transparent Mode. • HDD Event : Buzzer On/Off when HDD event is happened. • Duration : Buzzer time(5sec~5min or Until key-in) • Setup each channel when alarm, video-loss, motion are happened. 5-5. E-mail Notification • If the alarm, video-loss, motion and HDD event are happened, send the notification by the E-mail. • Choose the function by direction key. • Latched / Transparent Latched – When Sensor Alarm Activated, Relay Reacted in Setup Duration. Transparent – Relay Reacted Temporary During Sensor Alarm Activate. Tip 33

  35. General SETUP ⊙ Go to Disk Management Menu 6. Disk Management If OK Press • Disk Overwrite : Select Overwrite Permission when Hard Disk Full. O N : Overwrite Hard Disk from Oldest Data. OFF : When Hard Disk Full, Stop Recording and Buzzer Activated. • Format : Refreshment Hard Disk. Press start button, then message of ‘All Recorded Data erased shown. Case Select OK, all data erased. Case Select NO, cancel format. 34

  36. Record SETUP ⊙ Go to Record Menu • Choose “Record Menu” of Setup. 1. Recording Operation • Schedule Mode: Choose the DAILY or WEEKLY. • Pre-Event Recording Time : Setup Pre-Event recording Time.(1~5sec) (Pre-Event Recording : When alarm detected, Record image including setting time before alarm happened) • Post-Event Recording Time: Setup Post-Event recording Time.(1~180sec) (Post-Event Recording : When alarm detected, Record image including setting time after alarm happened) 1 35

  37. n Record SETUP 2. Timer/Motion Setup 2-1. Parameter • Select parameter mode. • Press “Enter” twice to setup, Move with right/left direction key. • Press “Enter” to select area, and Press “Enter” for setup. • Setup each channel. (Size, FPS, Quality, Audio) • Setup each day when weekly mode. 2-2. Schedule • Select schedule mode. • Press “Enter” twice to setup, Move with right/left direction key. • Press “Enter” to select area, and Press “Enter” for setup. • Select mode among None/Timer/Motion. Display : None-transparent, Timer-skyblue, Motion – Black dot. • Setup each day when weekly mode. 36

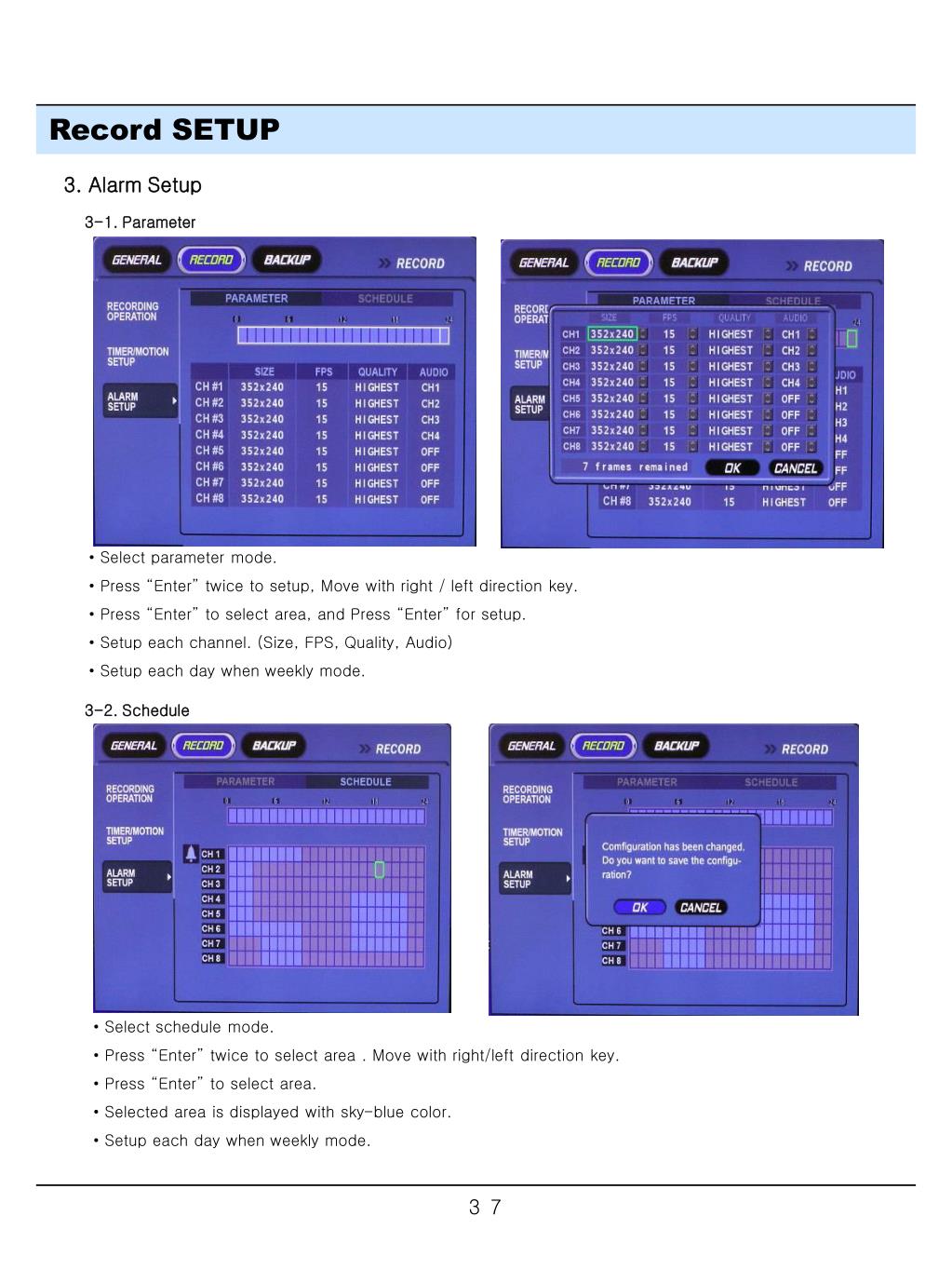

  38. Record SETUP 3. Alarm Setup 3-1. Parameter • Select parameter mode. • Press “Enter” twice to setup, Move with right / left direction key. • Press “Enter” to select area, and Press “Enter” for setup. • Setup each channel. (Size, FPS, Quality, Audio) • Setup each day when weekly mode. 3-2. Schedule • Select schedule mode. • Press “Enter” twice to select area . Move with right/left direction key. • Press “Enter” to select area. • Selected area is displayed with sky-blue color. • Setup each day when weekly mode. 37

  39. Back up ⊙ Go to Backup 1. USB Back Up ① Device : Indicate USB MEMORY Model Automatically. If you use the USB memory (or USB HDD) it can choose the USB by directional key. ② From : Select Start Backup Time. ③ To : Select End Backup Time. ④ Channel & Video/Audio Selection : Select Channel, Video, & Audio for Backup. ⑤ Title : Change the Title of Backup by virtual keyboard. ⑥ Event : Select Attach Event Text File in Backup. ⑦ Start : Start Backup. • Compatible USB memory stick Models are LG(Royal,mobile,mirror), IMATION(iflash), Memorive PRO+ and Compatible USB HDD is CUTIE(FHD-254). • Inside of Backup USB Including Necessary Codec for Playback (IMM4 Install File). Tip 38

  40. SEARCH ⊙ Go to Search Mode • Press Search Button and Log-In. (ADMIN or MANAGER) • Use Direction Key to Move Menu. • To Open Each Menu Press Enter. • Press Return button to Move to Previous Menu or Exit Search Mode and Return to Watch Mode. 1. Search by Time - Possible to Search Recorded Date/Time. ① Move Cursor to Selected Date in Calendar. (Date of record data is shown Gray color.) ② Press Enter to Open Selected Date. ③ Recorded Time Appear to Upper Side. ④ Press Enter at Selected Time. (One Scale is 15 Minutes) ⑤ Menu disappear and playback Recorded Video. • Showing Recorded Date & Time at under Side as Watch Mode. Showing Playing Condition at Right-Under Side. • Channel Selection Button in Watch Mode & DISPLAY Button are Apply the Same as Search Mode. (But Menu, Search, and PTZ Buttons are Exception) 39

  41. Up Down Play Fast Backward Fast Forward Backward Play Pause SEARCH • Control Playing Video Direction Key ※ Fast Backward and Fast Forward : 2X ~ 64X 2. Search by Event - Searching Video with Event Occurrence to Set up Period. Set up Period to Select Start Date & Finish Date for Searching Event. Alarm : Searching Alarm Event during the Selected Period. Motion : Searching Motion Detected Event during the Selected period. Timer : Searching Schedule Change or Recording Setup Change Event. System : Searching Power On/Off Event (etc.) Concerned System Event. Channel : Choose the channel for searching. Tip • Alarm, Motion, System can be Select plural by Check (V) (by Pressing ENTER button). • To Change Setup, Press Enter and Press Direction Key After Changing Setup, Press Enter to Exit. 40

  42. Client • System Requirement ① Main Board (CPU) : Pentium-500(Minimum), Pentium 4 recommend ② OS : Higher than Windows XP, Direct X 7.0A ③ Memory (RAM): More than 128 M ④ VGA : Graphic card that support the Direct-X ※IMM4 Codec (When Playback Backup File) • DVR Remote Agent Install ① ① Open CD-ROM Drive and Run ‘ragent_v2.4.9.2-8.0.0.0.exe’ then Appear Setup Menu. ② Close All Running Software and Press Next to Move Next Step. ③ Ask designate Folder to Install DvrRemoteAgent, Recommend Basic setup c:\program files:\RemoteAgent Click Next. ④ Showing Progress of Copy of Files. ⑤Finish DvrRemoteAgent Program Installation. 41

  43. Client 1. Function Introduction ③ ① ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ② ⑫ ⑬ ⑭ ① Main Screen Image : Showing Present Surveillance Camera Image. ② Camera Selection Button : Indicate Connected Camera No. & Select Image to Click Camera No. ③ Hidden/Exit : Hide DVR Client Window or Exit Program. ④ Time Output : Showing Present Time & Date. ⑤ SEARCH : Move to Search Mode to Play Video. Local/DVR SETUP : Move to Setup to Change Network Setup or Option. ⑥ DVR Selection : Select I/D to Connect Server. ⑦ Connect : Connect DVR. Disconnect : Disconnect from DVR. ⑧ Screen Division Selection : Change Screen Division Mode. ⑨ Save by AVI file : Transmission Live Image Save by AVI File. ⑩ Event viewer : Showing Present Event in Server & Find Image. ⑪ PTZ Control Button : Control Camera PTZ & Focus. ⑫Audio Button and Alarm : Control Two Way Audio & Mute and Alarm On/Off. ⑬ Quit : Exit DVR Client. ⑭ Connection Status: Showing the connected DVR. 42

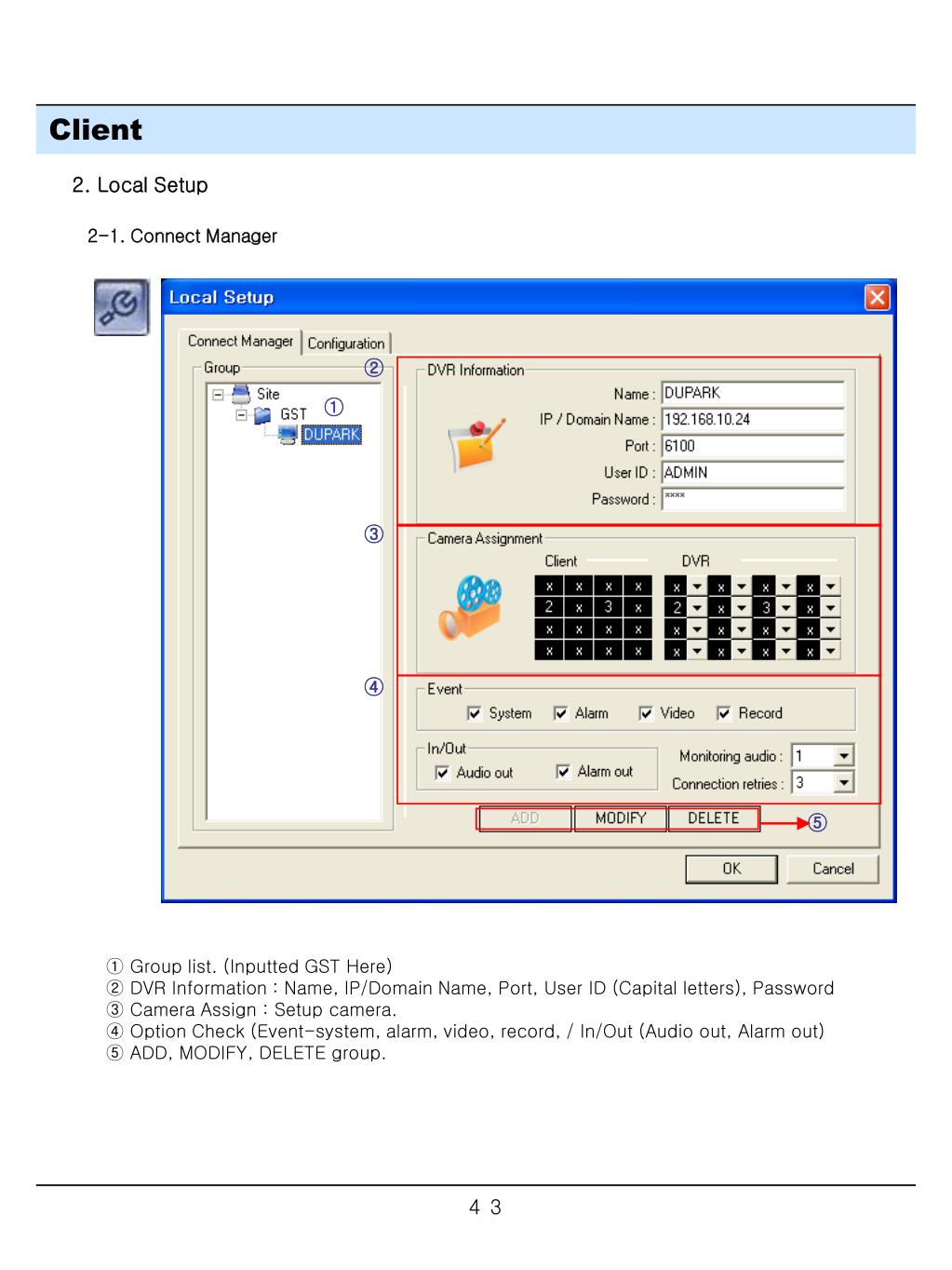

  44. ② ① ③ ④ ⑤ Client 2. Local Setup 2-1. Connect Manager ① Group list. (Inputted GST Here) ② DVR Information : Name, IP/Domain Name, Port, User ID (Capital letters), Password ③ Camera Assign : Setup camera. ④ Option Check (Event-system, alarm, video, record, / In/Out (Audio out, Alarm out) ⑤ ADD, MODIFY, DELETE group. 43

  45. ② Client 2-2. Add Group ① ① At site of left upper side, right click the “ADD Group”. ② Input the Group name. (Group Name is inputted GST here) 44

  46. Client ③ ③ Input DVR information (Name, IP, port, User ID, Password) ⑤ ④ ④ Set camera position, check option and press “ADD” ⑤ New DVR list is shown on the left upper side (EX : Group Name : GST, DVR Information Name : Insoo-Shin) 45

  47. Press button, Checking Authority Window Open, then input password Client 2-3. Configuration ① Video OSD : Select screen information. (Title, Name, Date, Time, Resolution) ② Video output : Select video output method. - Overlay Mixer : Output without passing through CPU. - Video Renderer : Output through CPU. ③ Video mode - Sequence interval : During the monitoring, select screen rotation time(2~300sec) - Alarm pop-up : Pop-up time of alarm happened channel on (2~60sec.) /off. ④ Saving Directory : Designate remote PC backup image saving folder. 3. DVR Setup 46

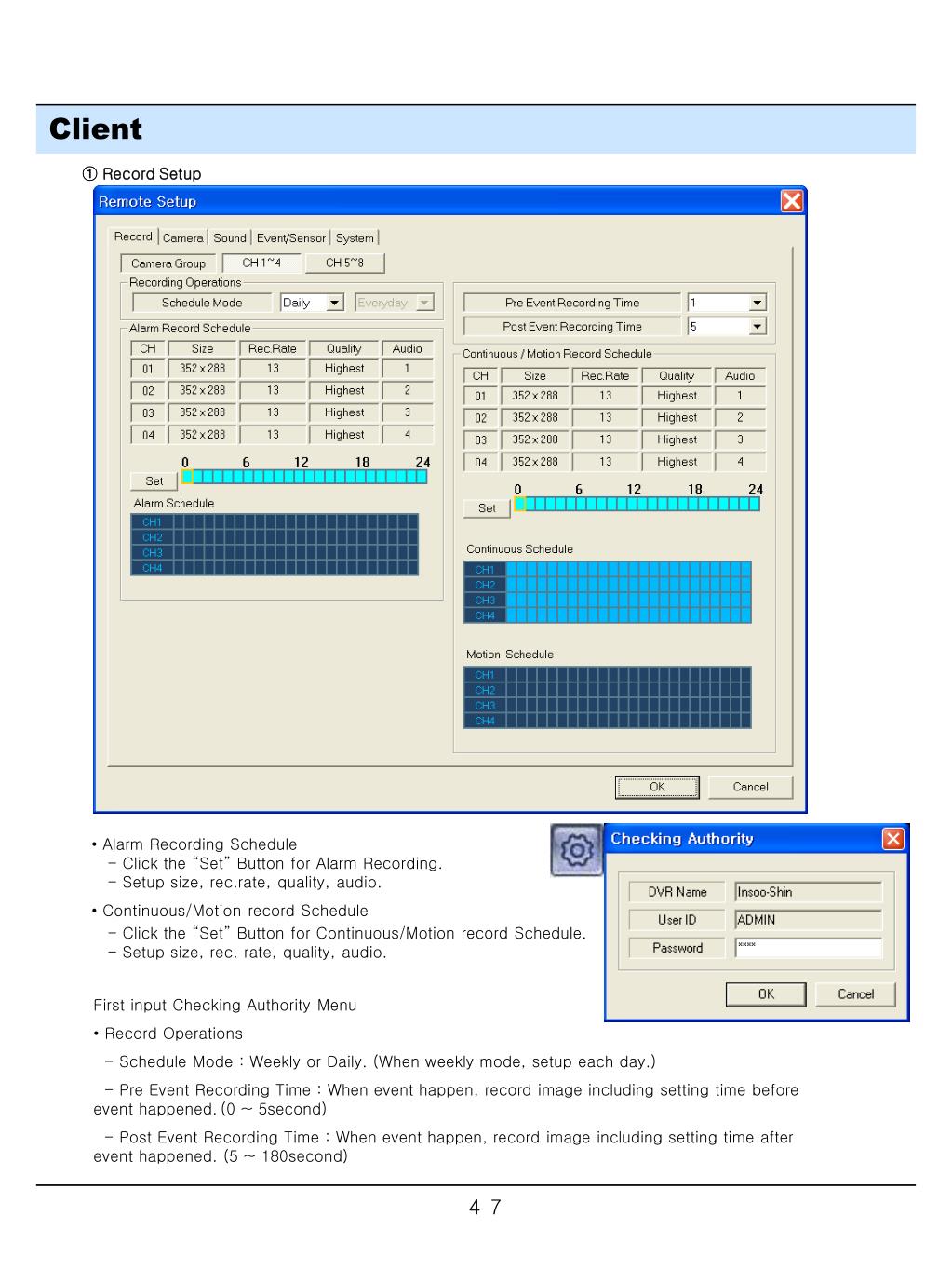

  48. Client ① Record Setup • Alarm Recording Schedule - Click the “Set” Button for Alarm Recording. - Setup size, rec.rate, quality, audio. • Continuous/Motion record Schedule - Click the “Set” Button for Continuous/Motion record Schedule. - Setup size, rec. rate, quality, audio. First input Checking Authority Menu • Record Operations - Schedule Mode : Weekly or Daily. (When weekly mode, setup each day.) - Pre Event Recording Time : When event happen, record image including setting time before event happened. (0 ~ 5second) - Post Event Recording Time : When event happen, record image including setting time after event happened. (5 ~ 180second) 47

  49. Client ② Camera Setup • Covert/Title Setup : Setup for Each Camera (Covert function On/Off, Camera Name). • Color Setup : Setup Color for Each Screen. • PTZ Setup : Setup for Each Camera PTZ Protocol, Baud rate. • Motion Area Setup : Setup for Each Camera, Sensitivity, Area 48

  50. Client ② Camera Setup - Click the “Properties” button. - Setup about PTZ camera. • Motion Area - Click the “Camera” Button. - Select area by mouse drag, and Choose menu (Select/Deselect/Cancel). 49
