  1. Scenario Generationbased onQuantization Moscow, September 2009 A. Pichler Department of Statistics and Decision Support Systems

  2. Outline of this Talk • Approximation of Probability measures • Quantization • Trees, Scenario Generation

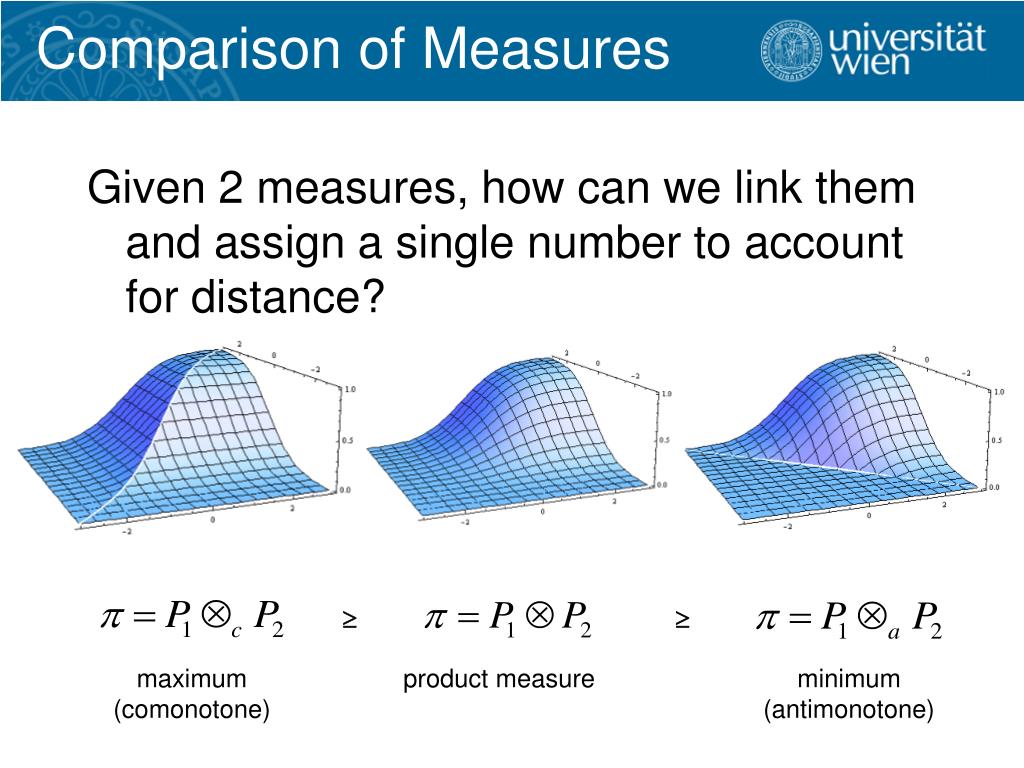

  3. Comparison of Measures Given 2 measures, how can we link them and assign a single number to account for distance?   maximum (comonotone) product measure minimum (antimonotone)

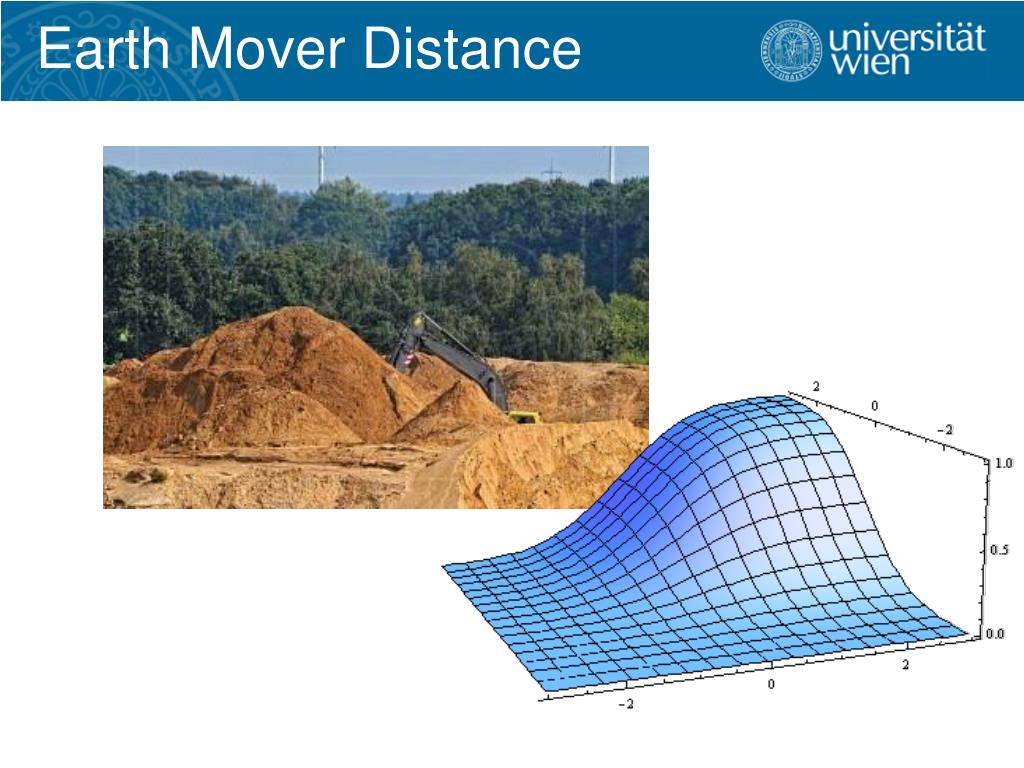

  4. Earth Mover Distance

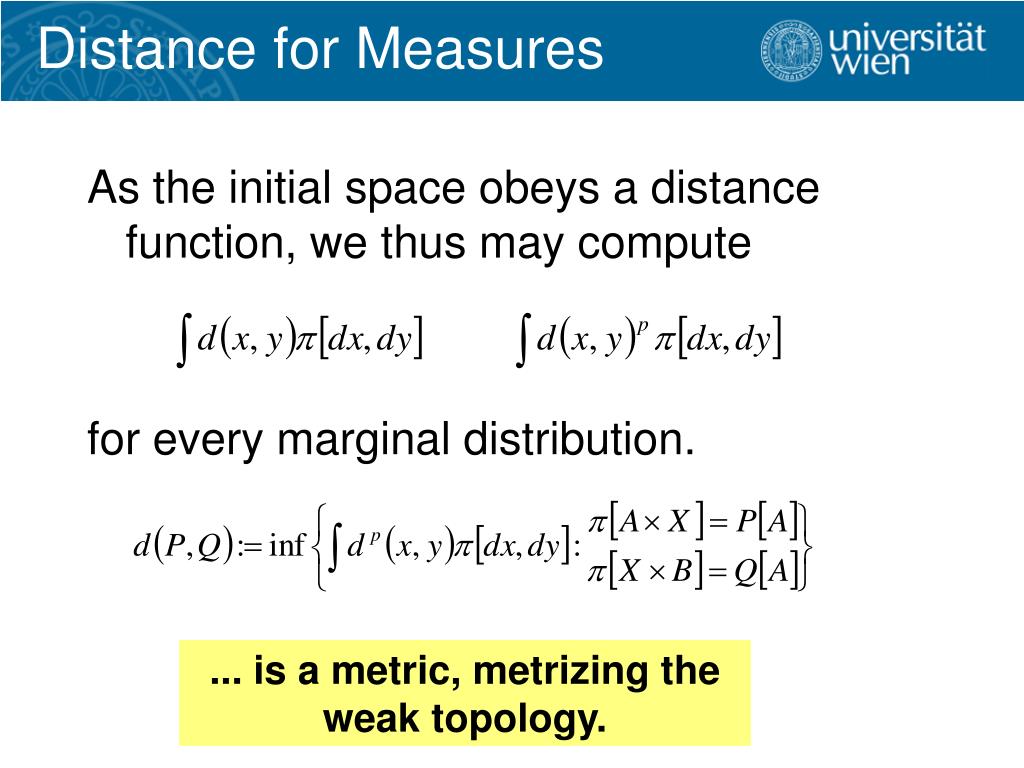

  5. Distance for Measures As the initial space obeys a distance function, we thus may compute for every marginal distribution. ... is a metric, metrizing the weak topology.

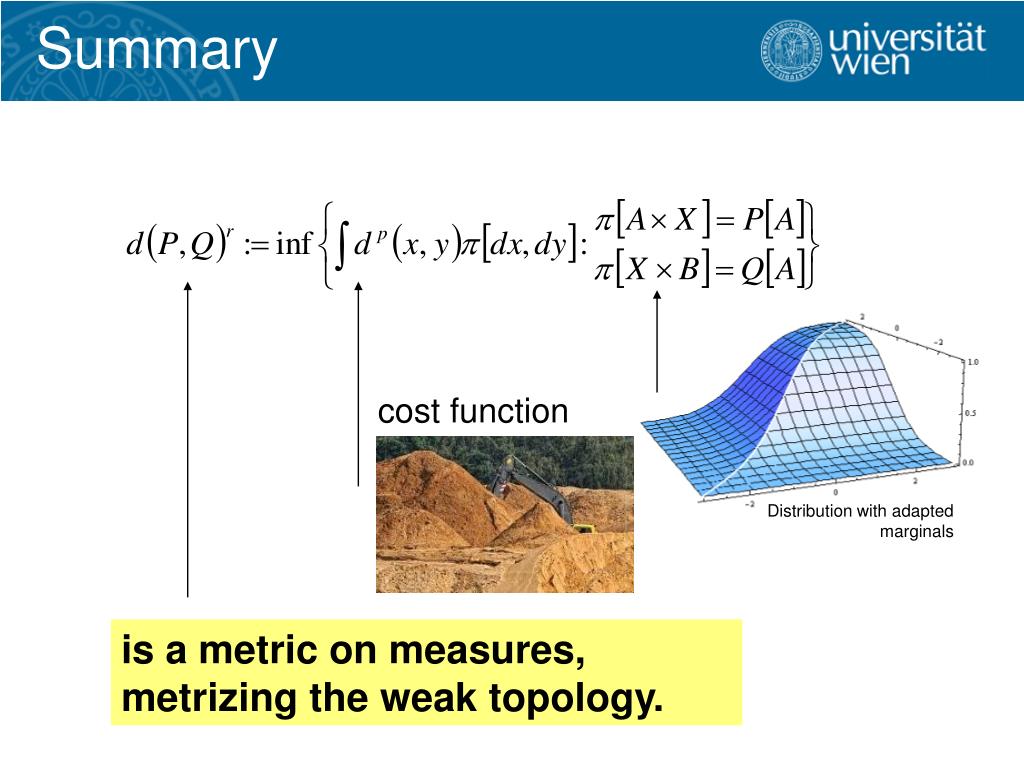

  6. Summary cost function Distribution with adapted marginals is a metric on measures, metrizing the weak topology.

  7. Approximation • Proxy for Expectation reads • and convergence is to be understood in the weak (*) sense,

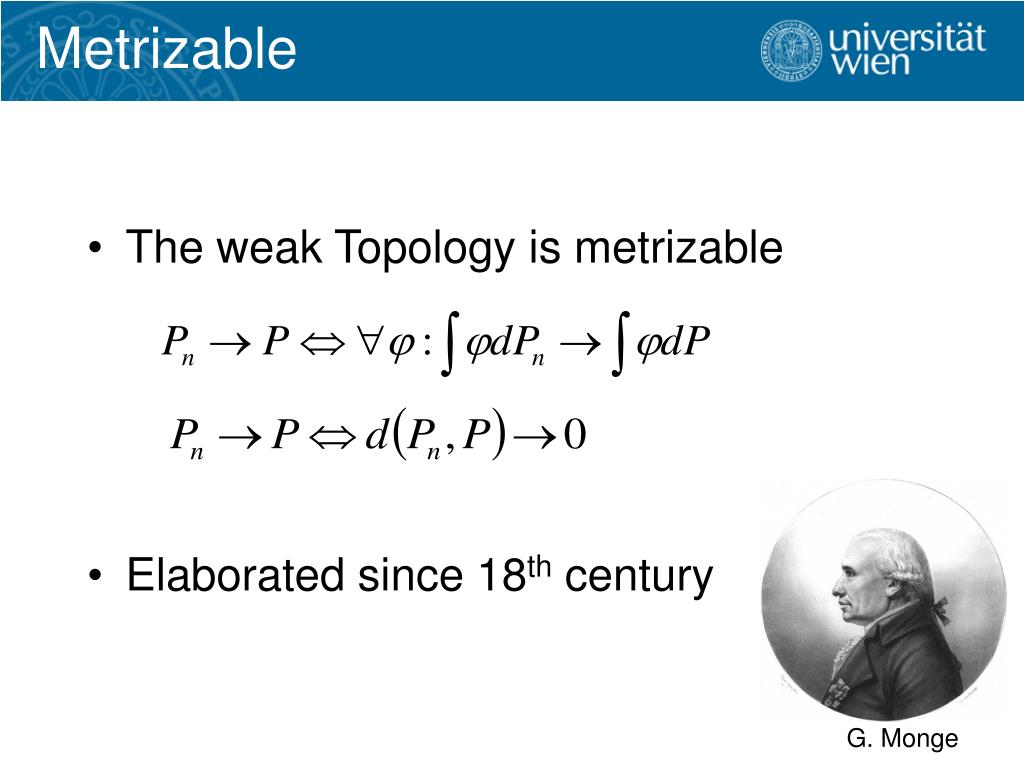

  8. Metrizable • The weak Topology is metrizable • Elaborated since 18th century G. Monge

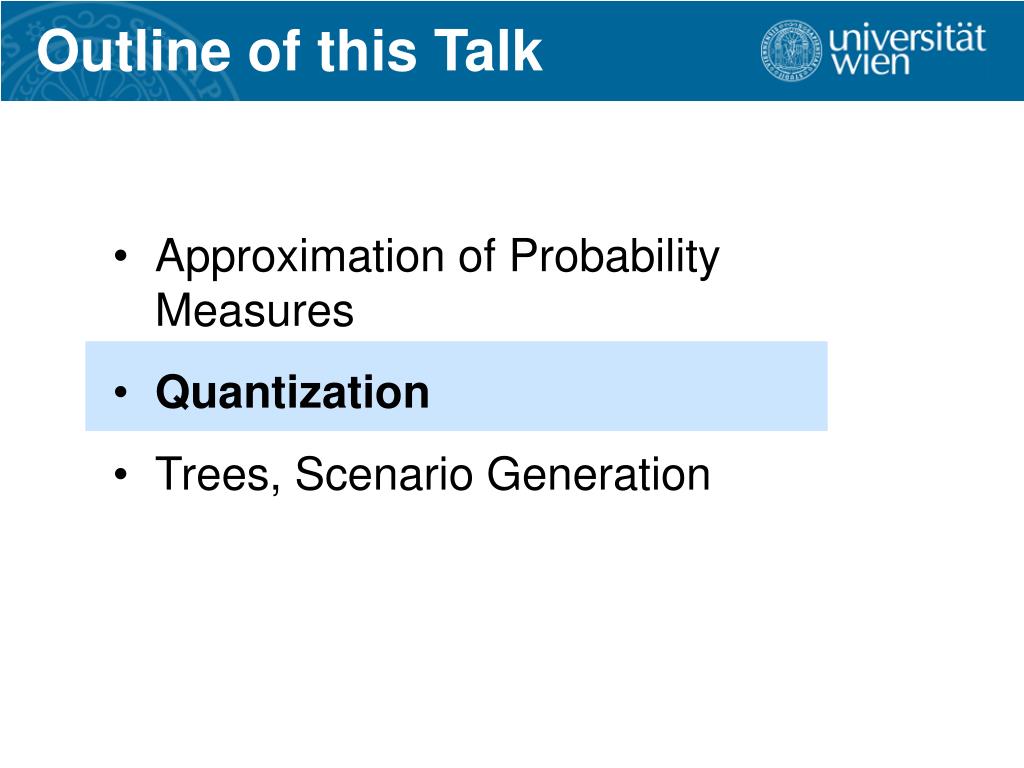

  9. Outline of this Talk • Approximation of Probability Measures • Quantization • Trees, Scenario Generation

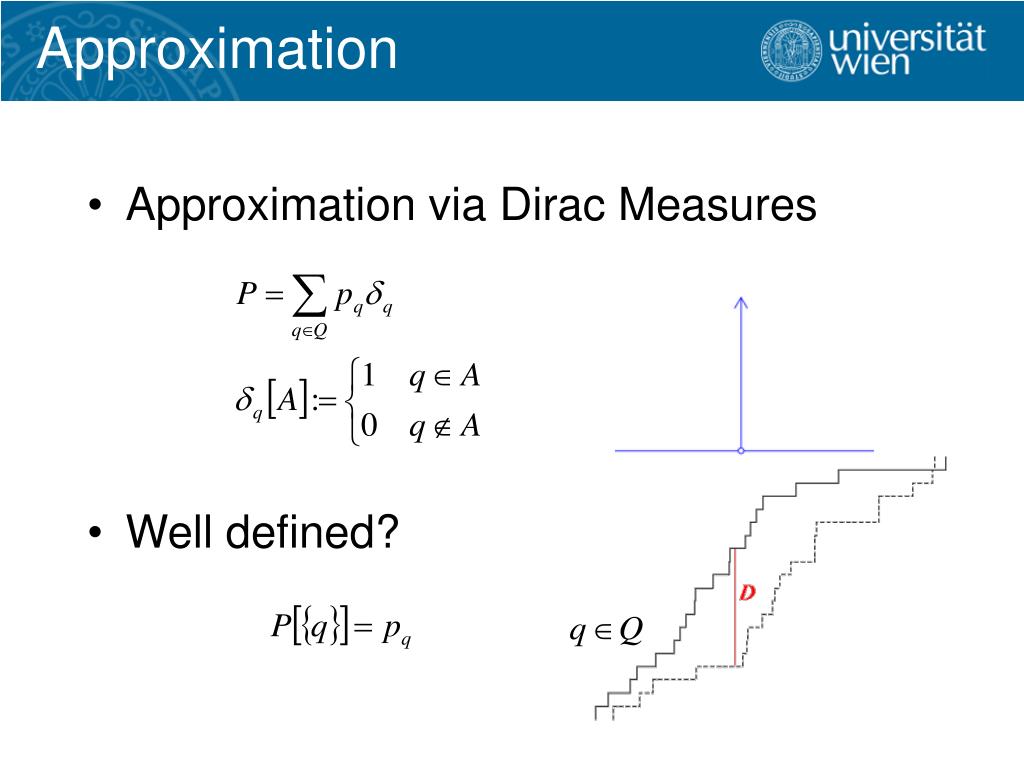

  10. Approximation • Approximation via Dirac Measures • Well defined?

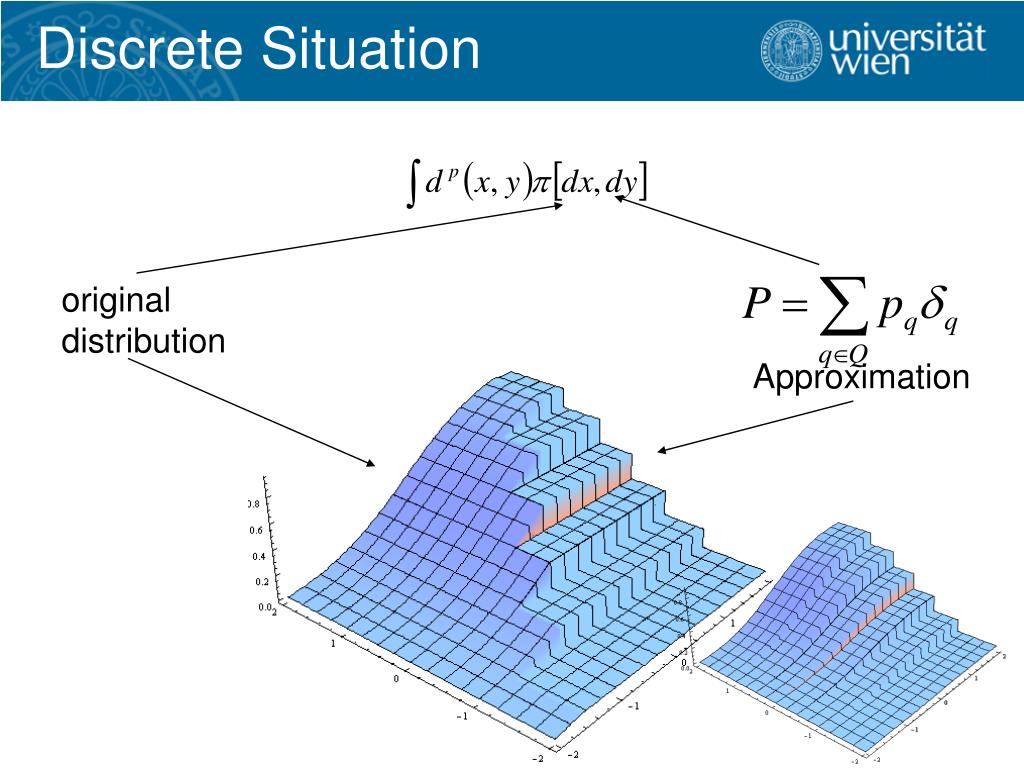

  11. Discrete Situation original distribution Approximation

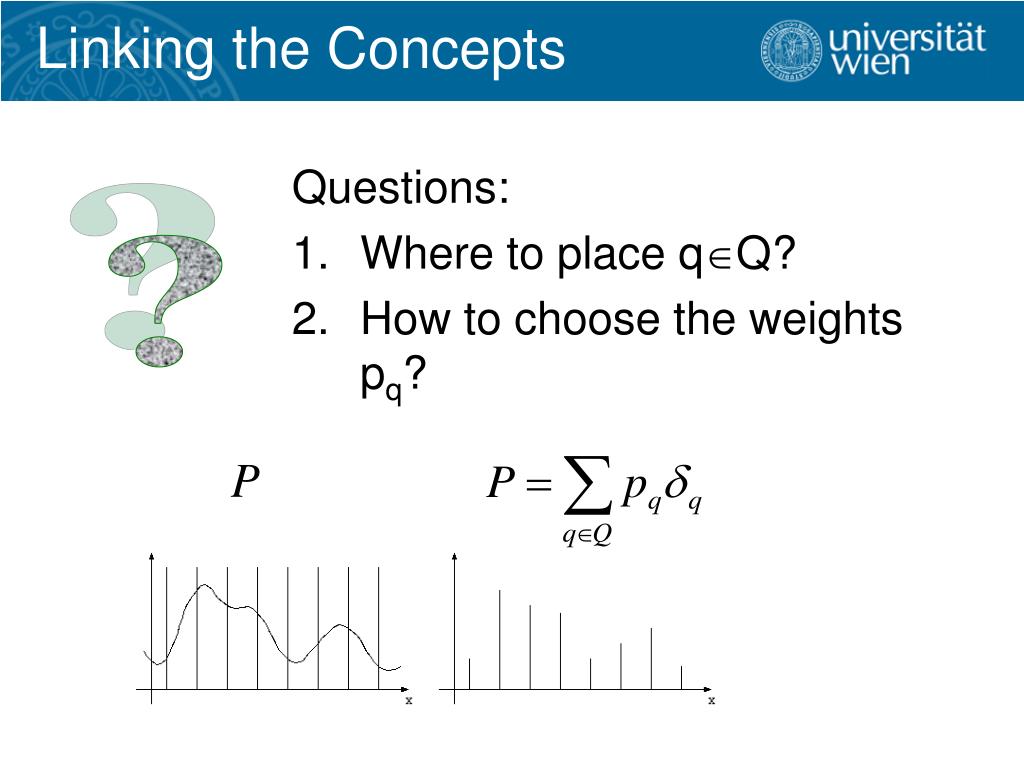

  12. Linking the Concepts Questions: • Where to place qQ? • How to choose the weights pq? ?

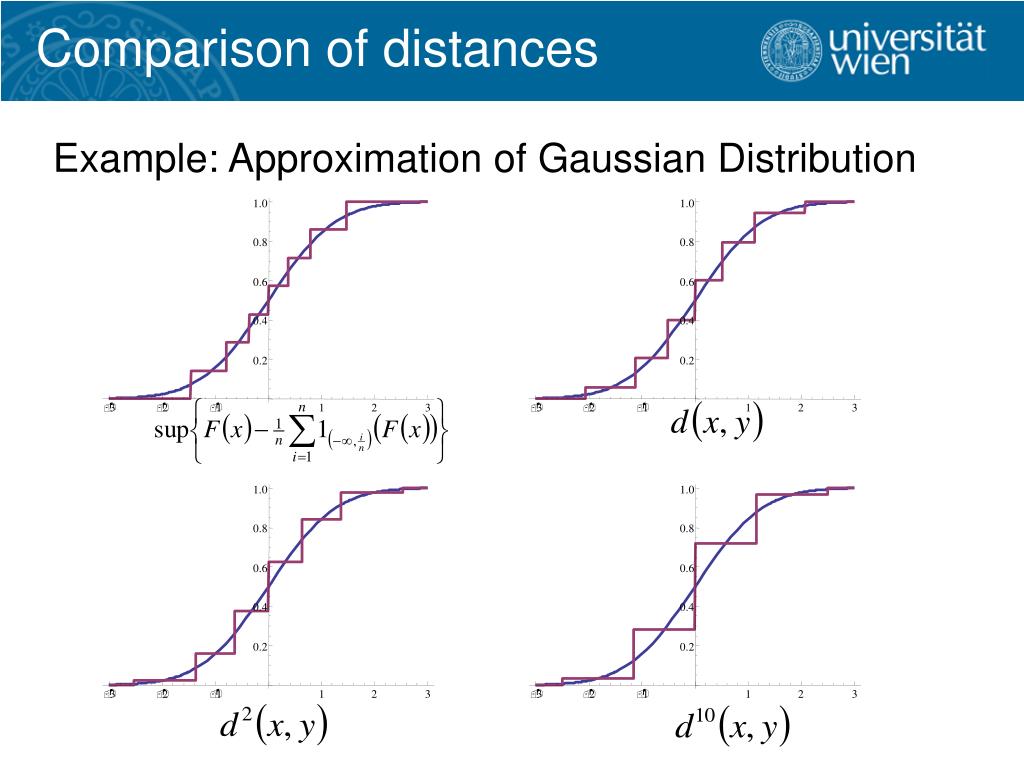

  13. Comparison of distances Example: Approximation of Gaussian Distribution 1.0 1.0 0.8 0.8 0.6 0.6 0.4 0.4 0.2 0.2 - 3 - 2 - 1 1 2 3 - 3 - 2 - 1 1 2 3 1.0 1.0 0.8 0.8 0.6 0.6 0.4 0.4 0.2 0.2 - 3 - 2 - 1 1 2 3 - 3 - 2 - 1 1 2 3

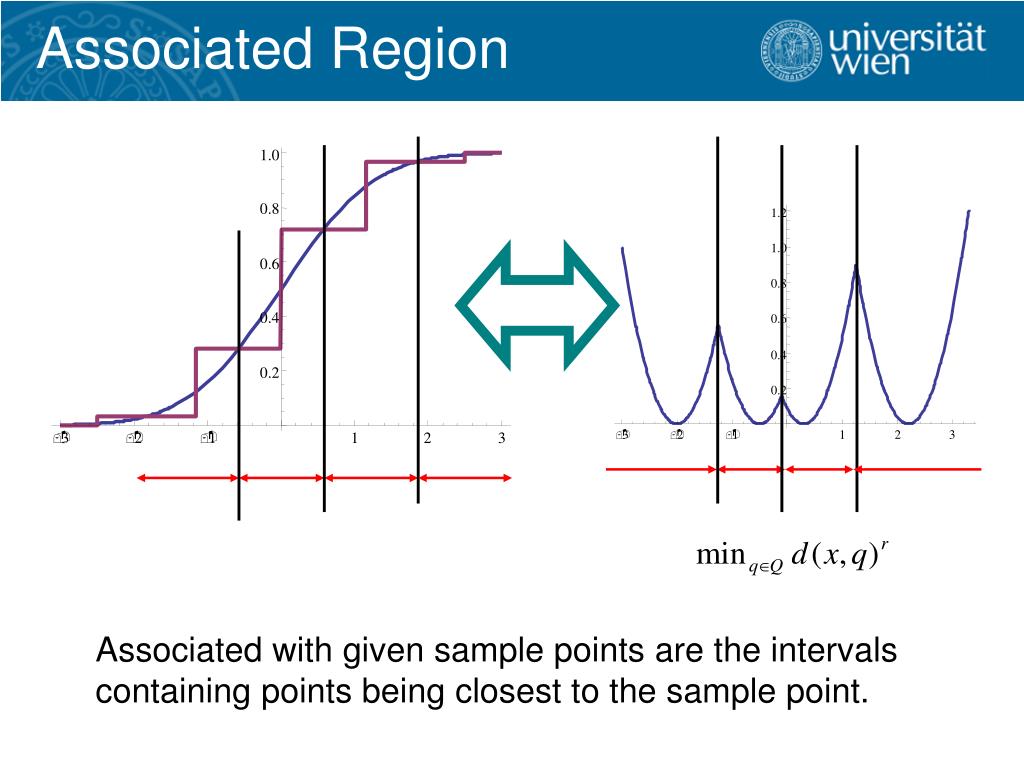

  14. Associated Region 1.0 0.8 1.2 1.0 0.6 0.8 0.4 0.6 0.4 0.2 0.2 - 3 - 2 - 1 1 2 3 - 3 - 2 - 1 1 2 3 Associated with given sample points are the intervals containing points being closest to the sample point.

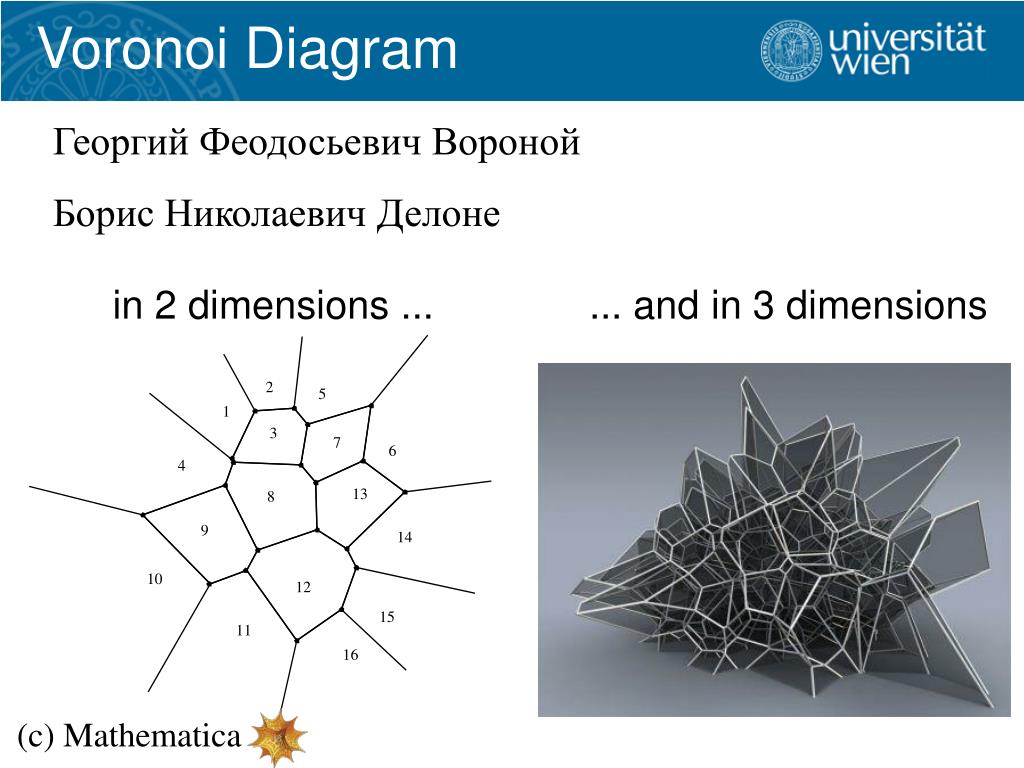

  15. Voronoi Diagram Георгий Феодосьевич Вороной Борис Николаевич Делоне in 2 dimensions ... ... and in 3 dimensions 2 5 1 3 7 6 4 13 8 9 14 10 12 15 11 16 (c) Mathematica

  16. Lemma 1 Let with 2 then Let Xq be Voronoi and , then 3

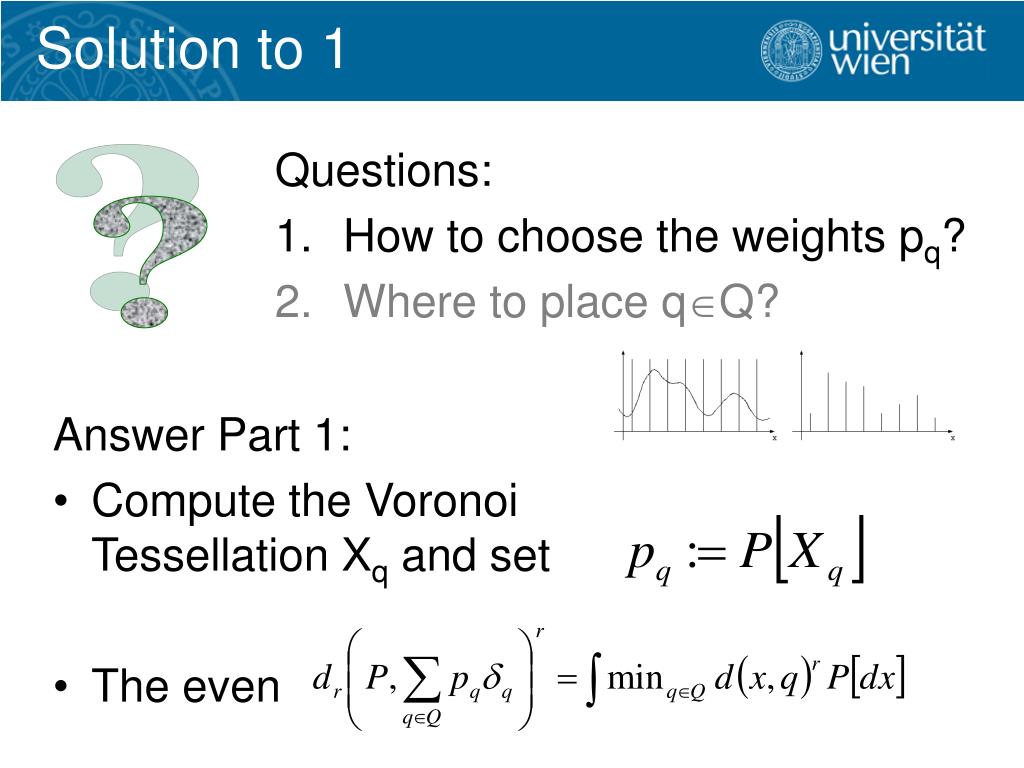

  17. Solution to 1 ? Questions: • How to choose the weights pq? • Where to place qQ? Answer Part 1: • Compute the Voronoi Tessellation Xq and set • The even

  18. Towards Question 2 The problem of finding the best supporting nodes (Q) now transforms into the problem of minimizing the functional

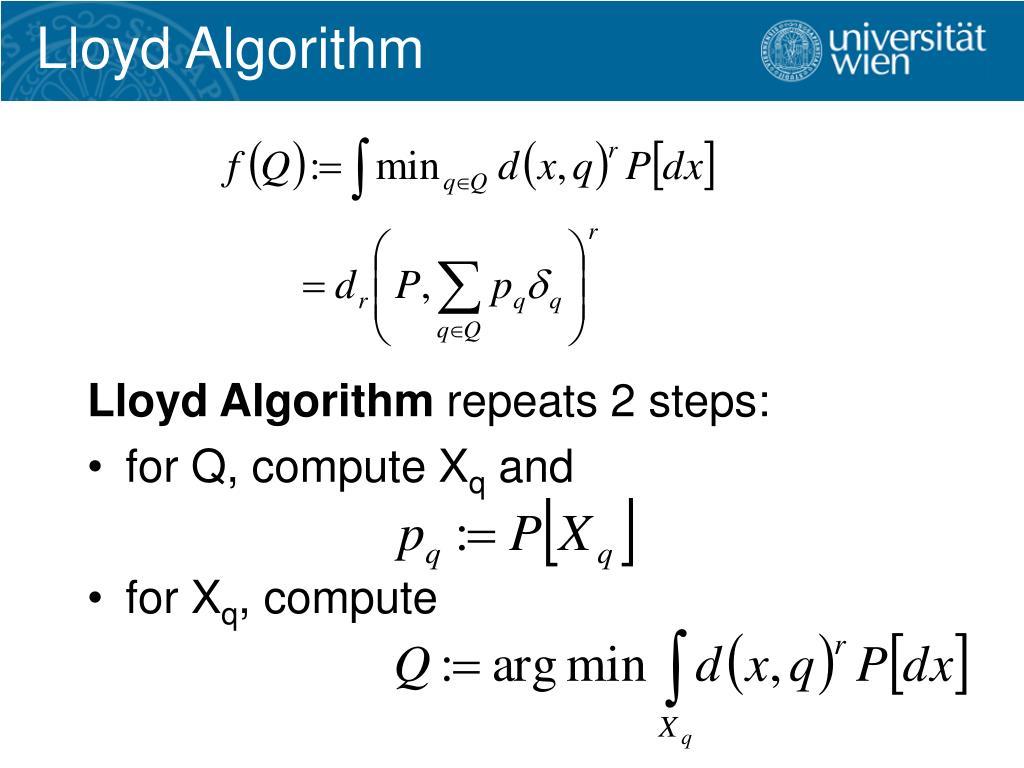

  19. Lloyd Algorithm Lloyd Algorithm repeats 2 steps: • for Q, compute Xq and • for Xq, compute

  20. Example Optimal supporting nodes and Voronoi Diagram for the Bivariate Normal Distribution

  21. Selected Solutions Optimal supporting nodes are known in a few selected sitations only. They include (r=1) • Uniform distribution • Exponential distribution

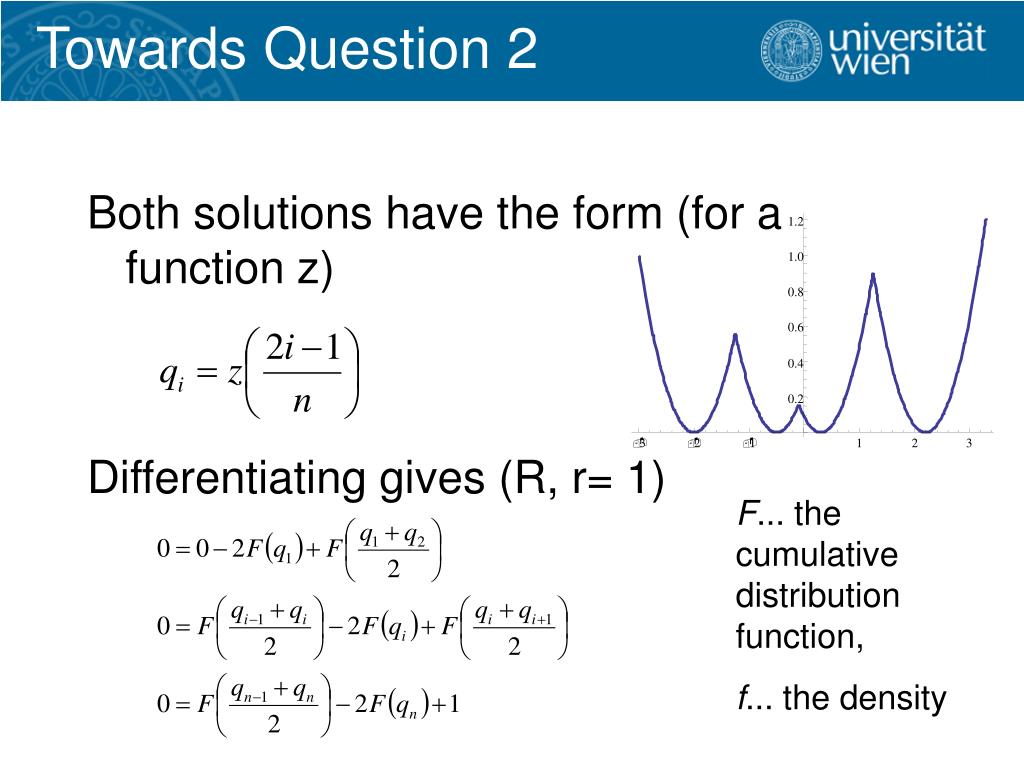

  22. Towards Question 2 Both solutions have the form (for a function z) 1.2 1.0 0.8 0.6 0.4 0.2 - 3 - 2 - 1 1 2 3 Differentiating gives (R, r= 1) F... the cumulative distribution function, f... the density

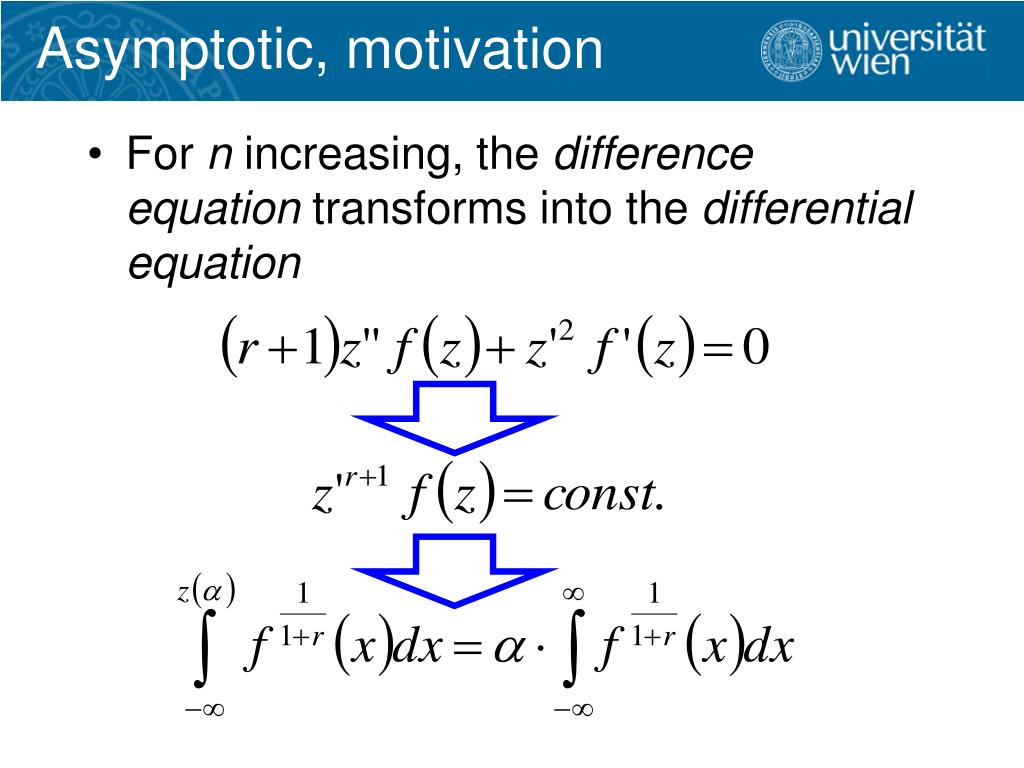

  23. Asymptotic, motivation • For n increasing, the difference equation transforms into the differential equation

  24. again... If P has density ... ... then the supporting nodes have (asymptotic) density ... dimension As a consequence, tails get higher attention if r is chosen big enough.

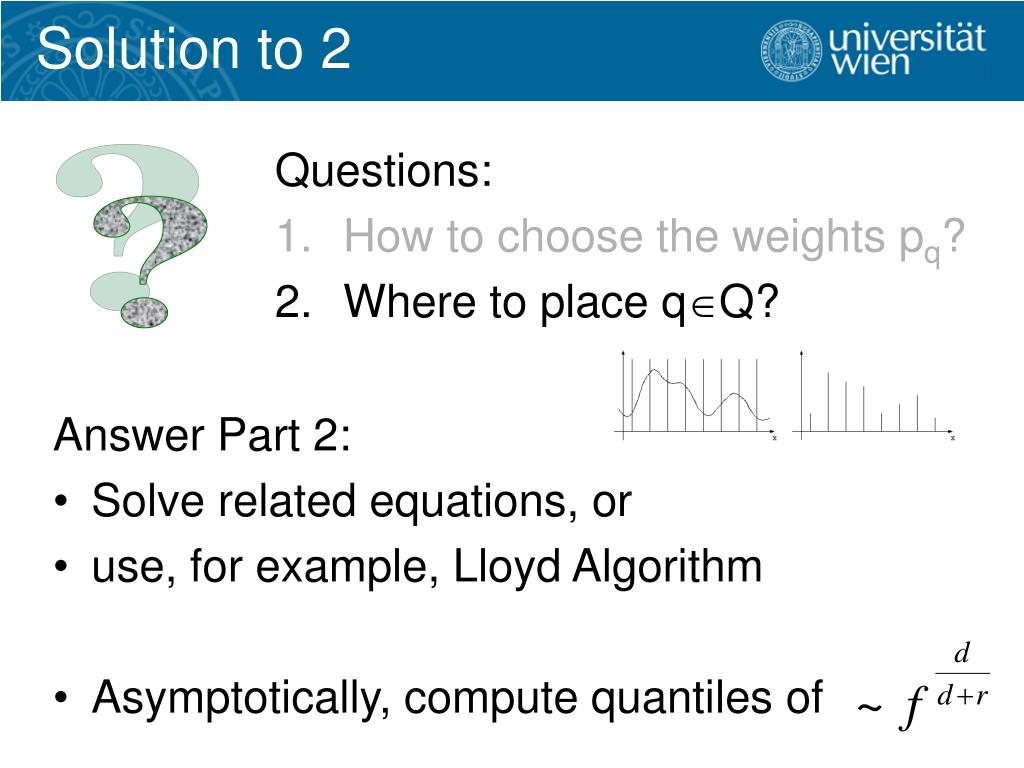

  25. Solution to 2 ? Questions: • How to choose the weights pq? • Where to place qQ? Answer Part 2: • Solve related equations, or • use, for example, Lloyd Algorithm • Asymptotically, compute quantiles of

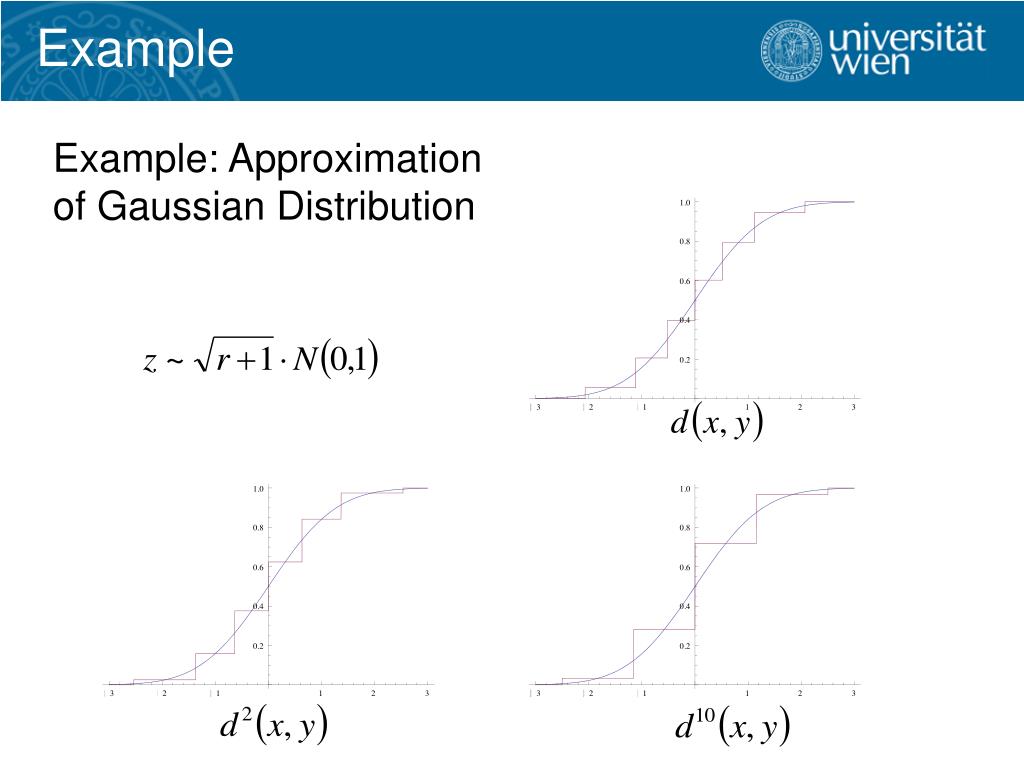

  26. Example Example: Approximation of Gaussian Distribution

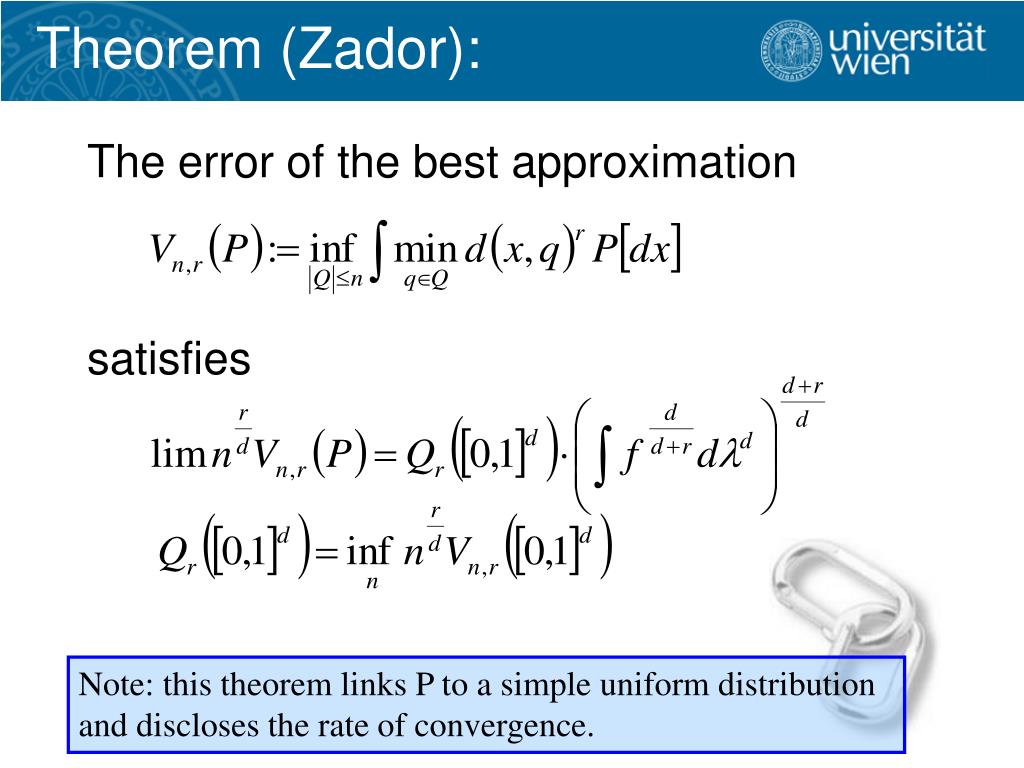

  27. Theorem (Zador): The error of the best approximation satisfies Note: this theorem links P to a simple uniform distribution and discloses the rate of convergence.

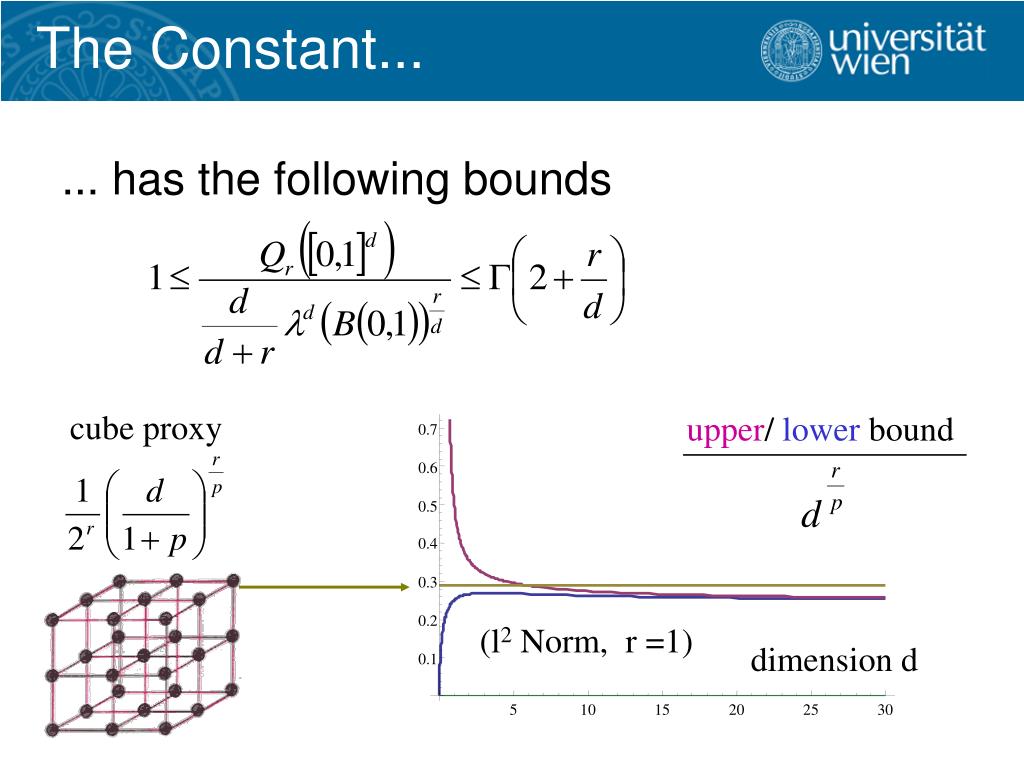

  28. The Constant... ... has the following bounds cube proxy upper/ lower bound 0.7 0.6 0.5 0.4 0.3 0.2 (l2 Norm, r =1) dimension d 0.1 5 10 15 20 25 30

  29. Outline of this Talk • Approximation of Probability measures • Quantization • Trees, Scenario Generation

  30. A tree is a Quantizer Xt-1 Xt Xt+1 A tree is a special quantizer on the multidimensional space Assume, there exist stochastic kernels describing the transition

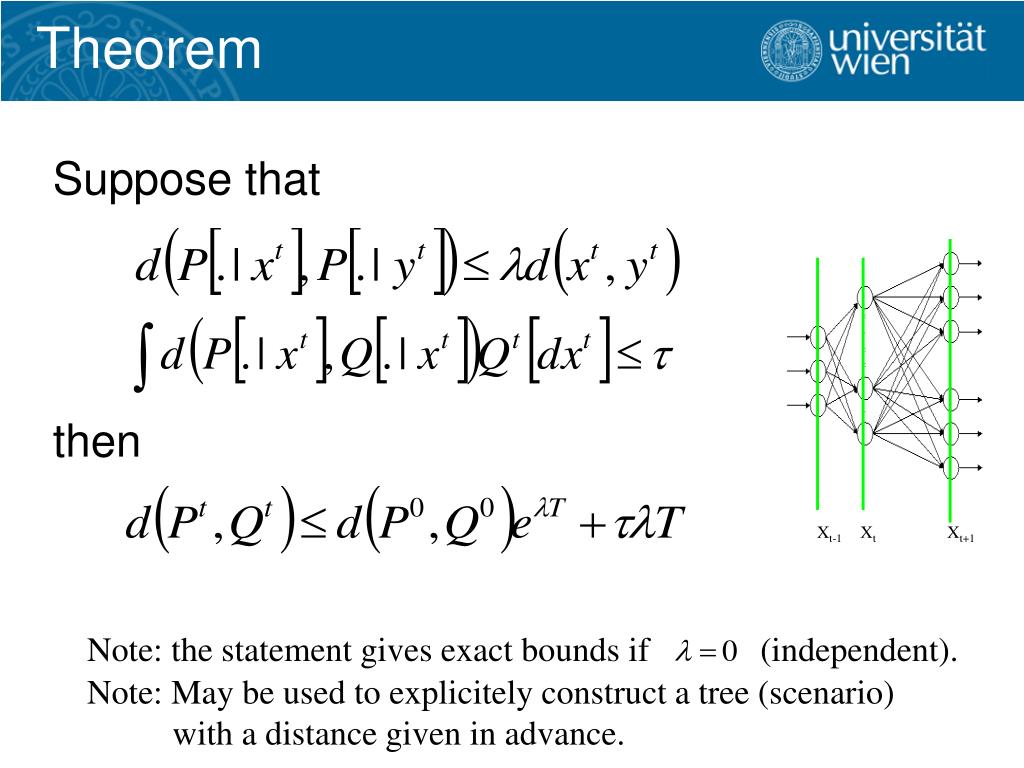

  31. Theorem Xt-1 Xt Xt+1 Suppose that then Note: the statement gives exact bounds if (independent). Note: May be used to explicitely construct a tree (scenario) with a distance given in advance.

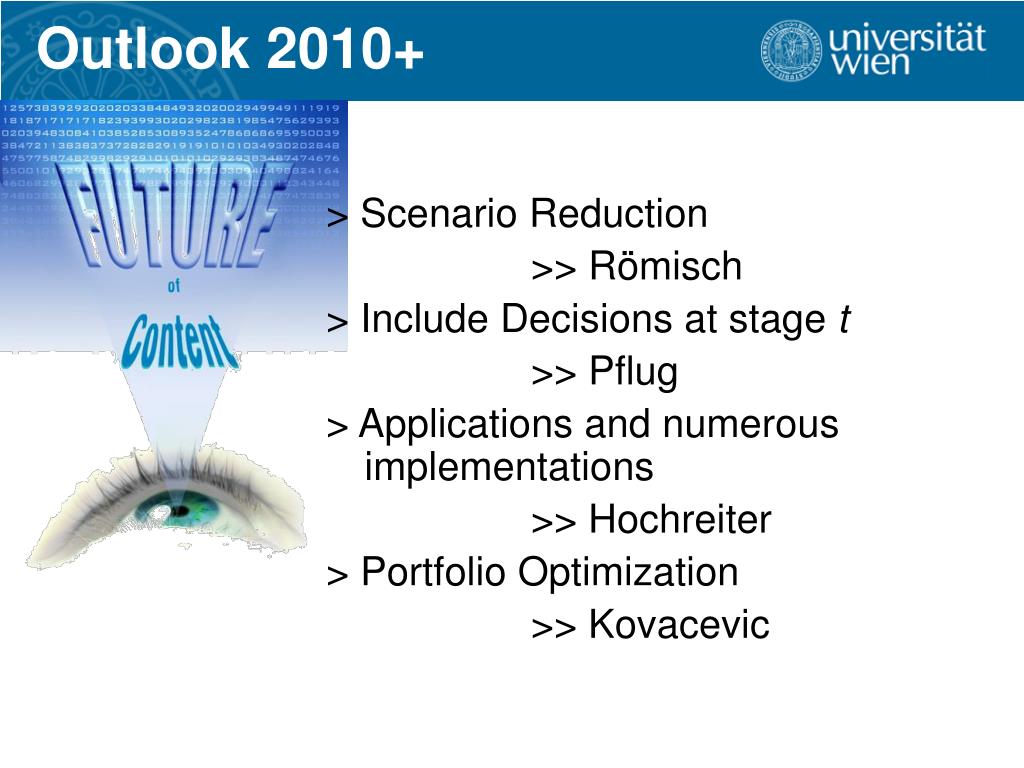

  32. Outlook 2010+ > Scenario Reduction >> Römisch > Include Decisions at stage t >> Pflug > Applications and numerous implementations >> Hochreiter > Portfolio Optimization >> Kovacevic

  33. Thanks For Your Attention.
