  1. BBA231 / BBA236 Bench Scale Series January 2014

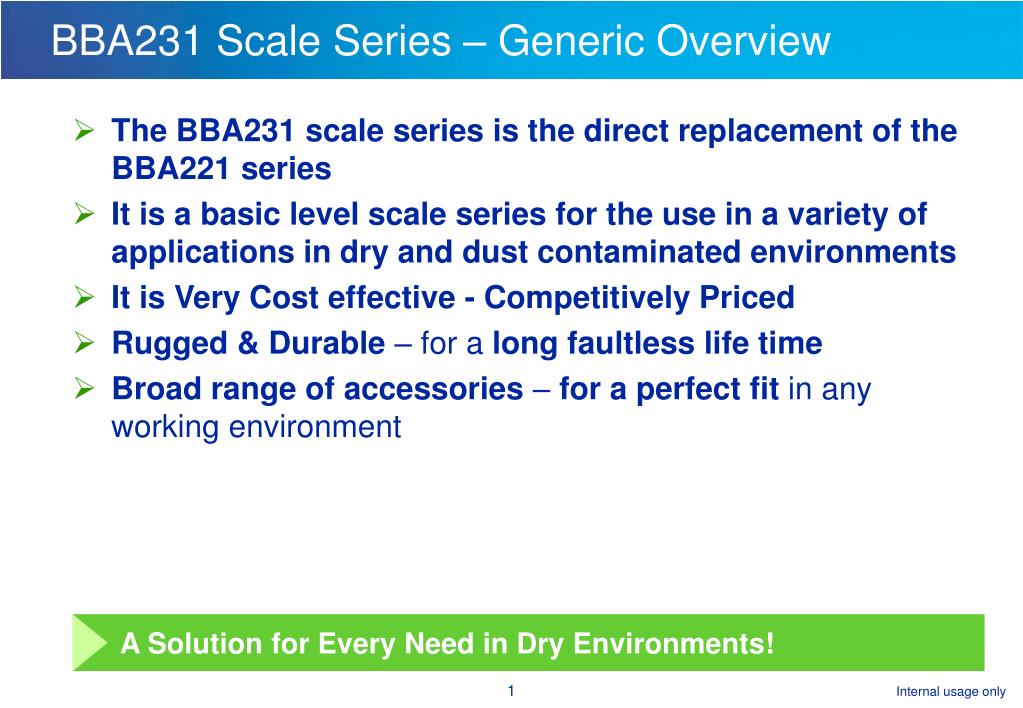

  2. A Solution for Every Need in Dry Environments! BBA231 Scale Series – Generic Overview • The BBA231 scale series is the direct replacement of the BBA221 series • It is a basic level scale series for the use in a variety of applications in dry and dust contaminated environments • It is Very Cost effective - Competitively Priced • Rugged & Durable – for a long faultless life time • Broad range of accessories – for a perfect fit in any working environment

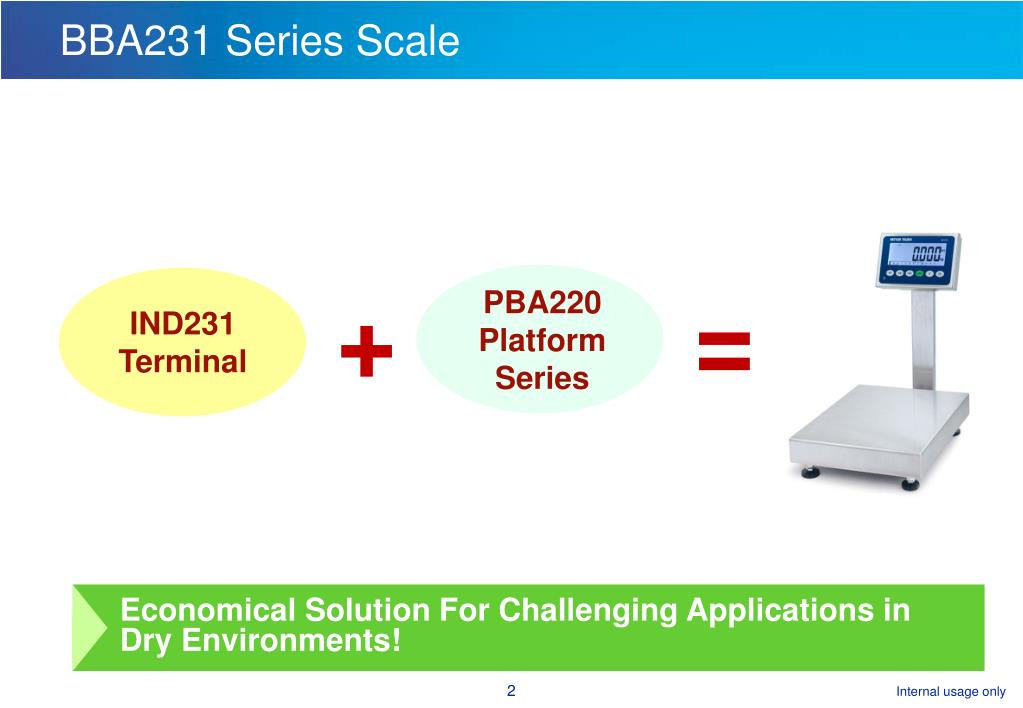

  3. Economical Solution For Challenging Applications in Dry Environments! BBA231 Series Scale + = PBA220 Platform Series IND231 Terminal

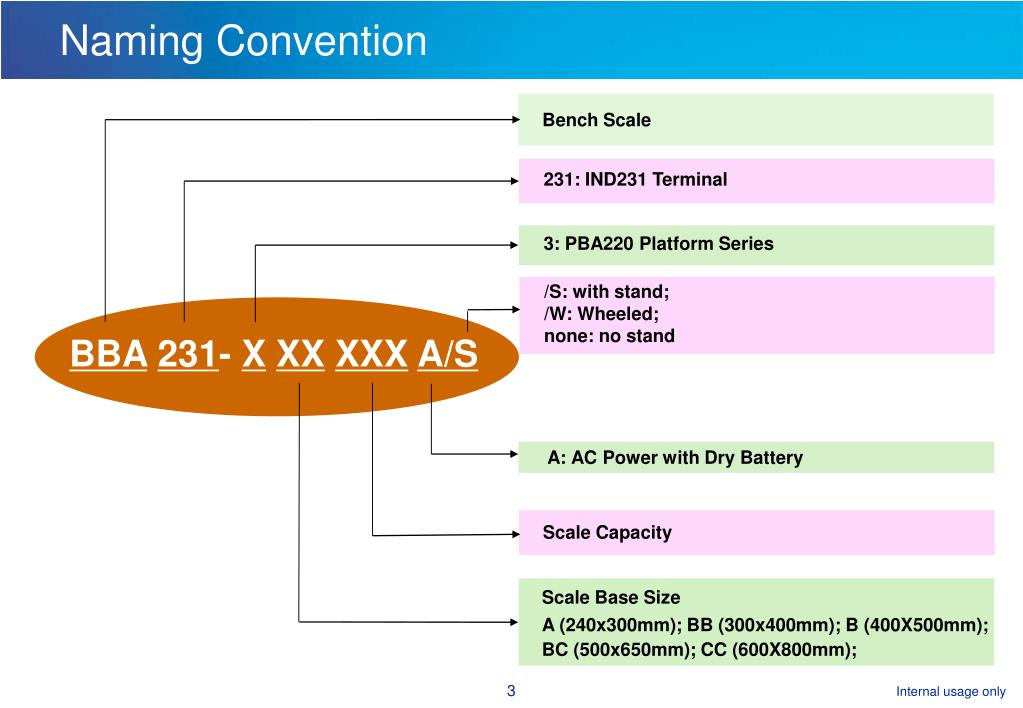

  4. Naming Convention Bench Scale 231: IND231 Terminal 3: PBA220 Platform Series /S: with stand; /W: Wheeled; none: no stand BBA231- XXXXXXA/S A: AC Power with Dry Battery Scale Capacity Scale Base SizeA (240x300mm); BB (300x400mm); B (400X500mm); BC (500x650mm); CC (600X800mm);

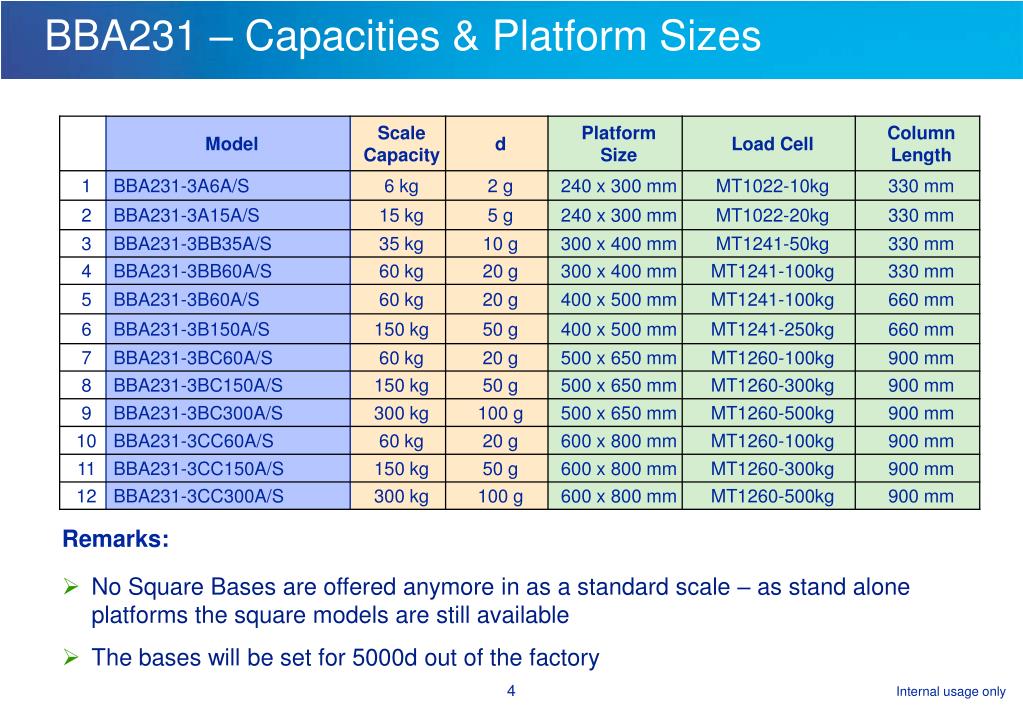

  5. BBA231 – Capacities & Platform Sizes • Remarks: • No Square Bases are offered anymore in as a standard scale – as stand alone platforms the square models are still available • The bases will be set for 5000d out of the factory

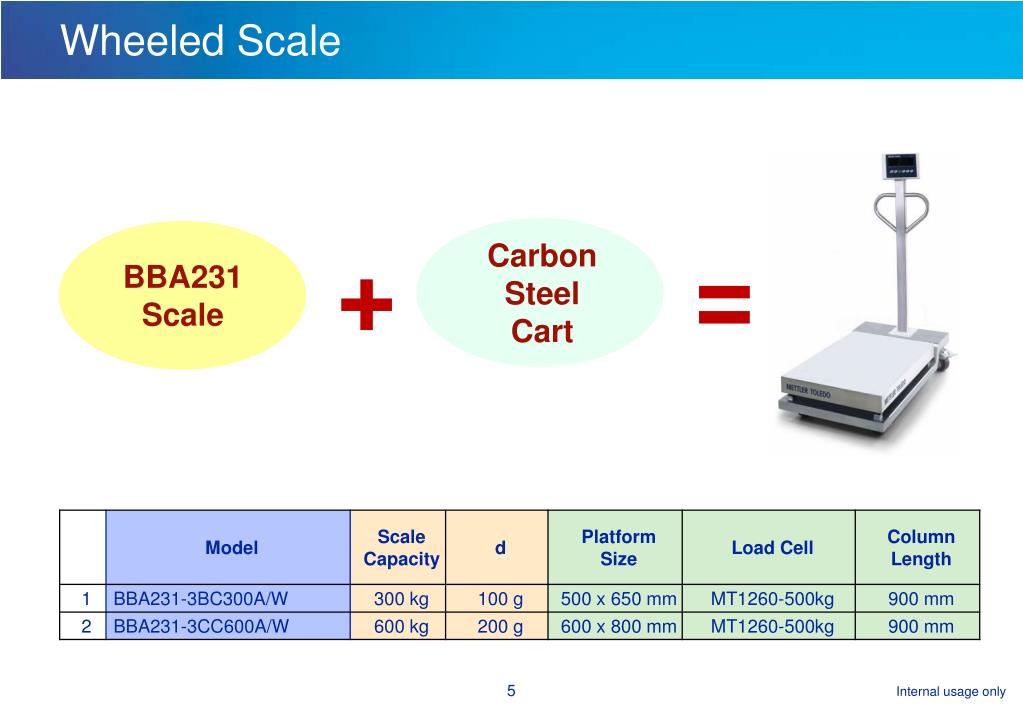

  6. Wheeled Scale + = Carbon Steel Cart BBA231 Scale

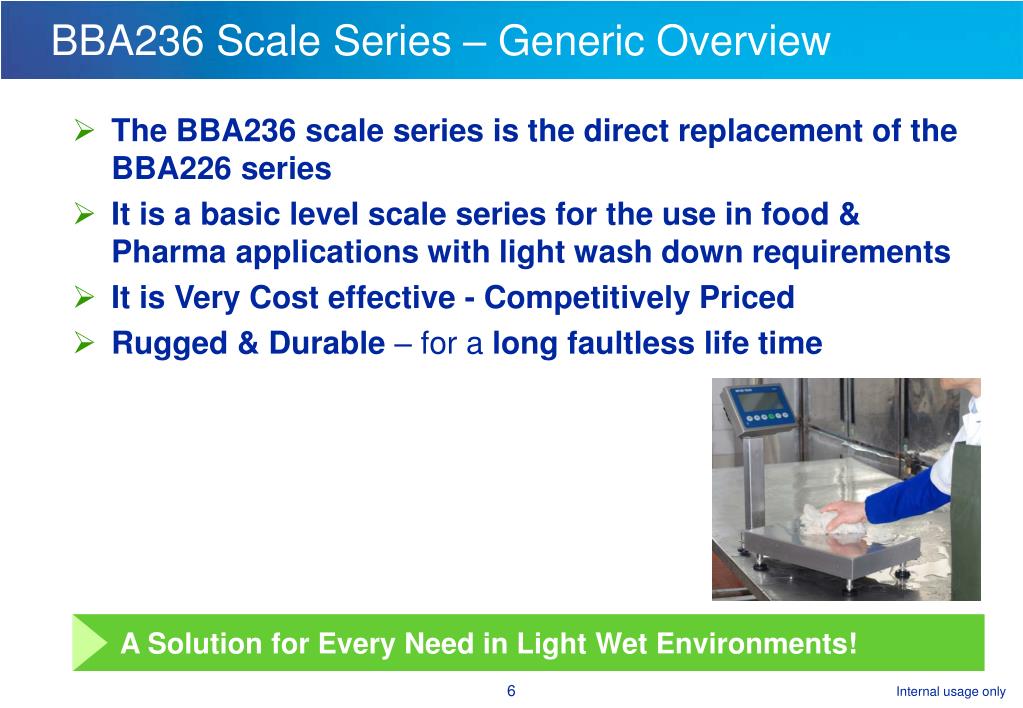

  7. A Solution for Every Need in Light Wet Environments! BBA236 Scale Series – Generic Overview • The BBA236 scale series is the direct replacement of the BBA226 series • It is a basic level scale series for the use in food & Pharma applications with light wash down requirements • It is Very Cost effective - Competitively Priced • Rugged & Durable – for a long faultless life time

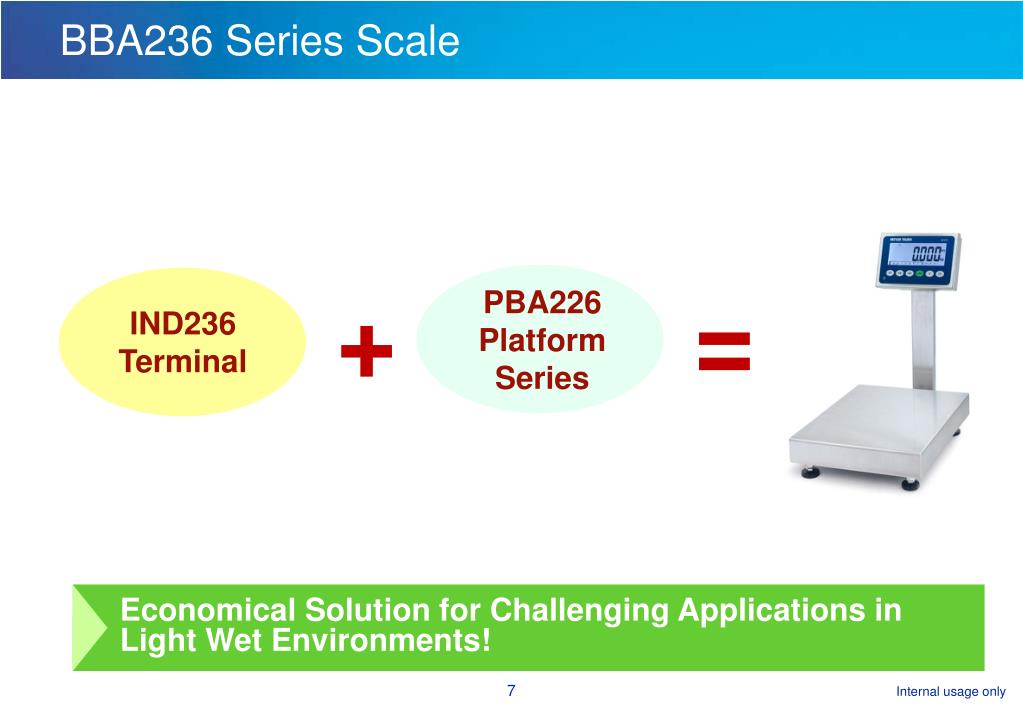

  8. Economical Solution for Challenging Applications in Light Wet Environments! BBA236 Series Scale + = PBA226 Platform Series IND236 Terminal

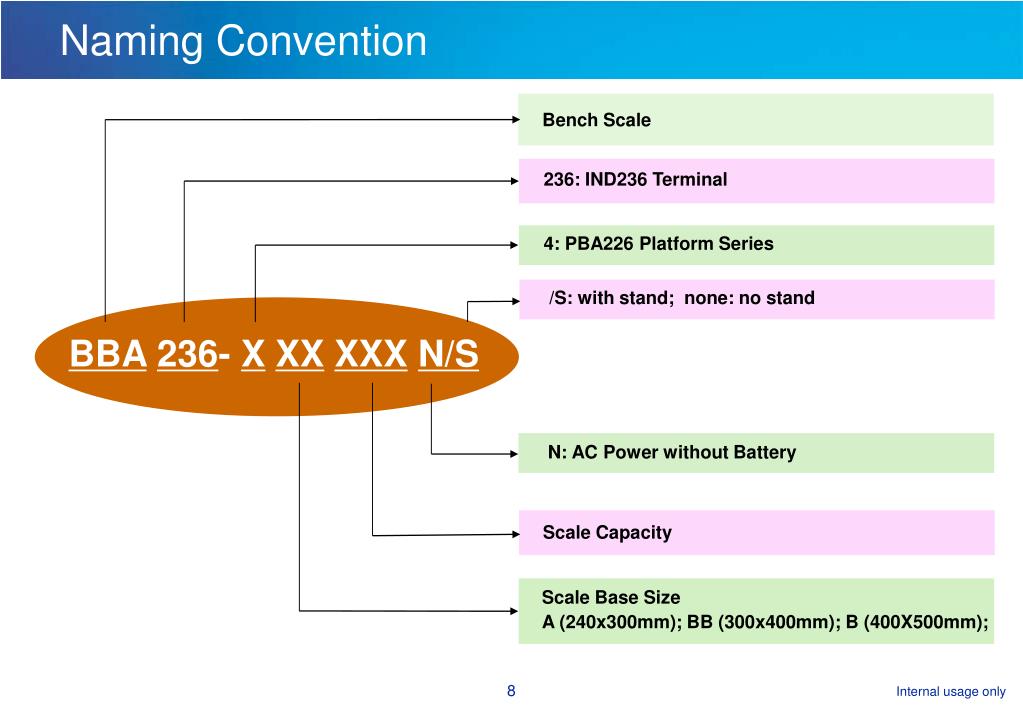

  9. Naming Convention Bench Scale 236: IND236 Terminal 4: PBA226 Platform Series /S: with stand; none: no stand BBA236- XXXXXXN/S N: AC Power without Battery Scale Capacity Scale Base Size A (240x300mm); BB (300x400mm); B (400X500mm);

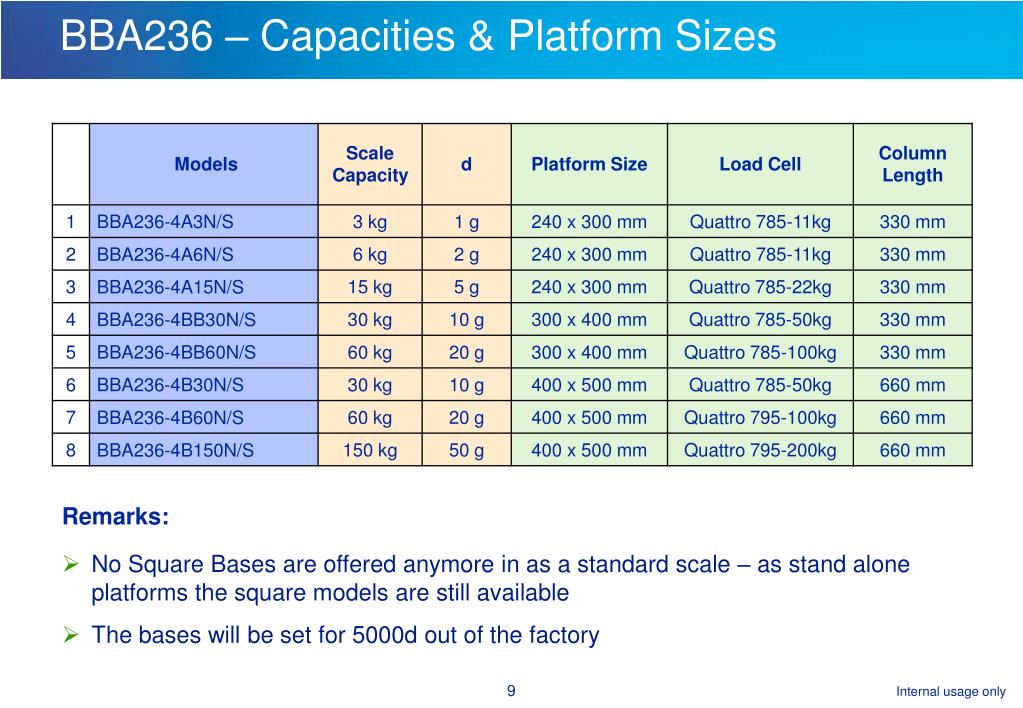

  10. BBA236 – Capacities & Platform Sizes • Remarks: • No Square Bases are offered anymore in as a standard scale – as stand alone platforms the square models are still available • The bases will be set for 5000d out of the factory

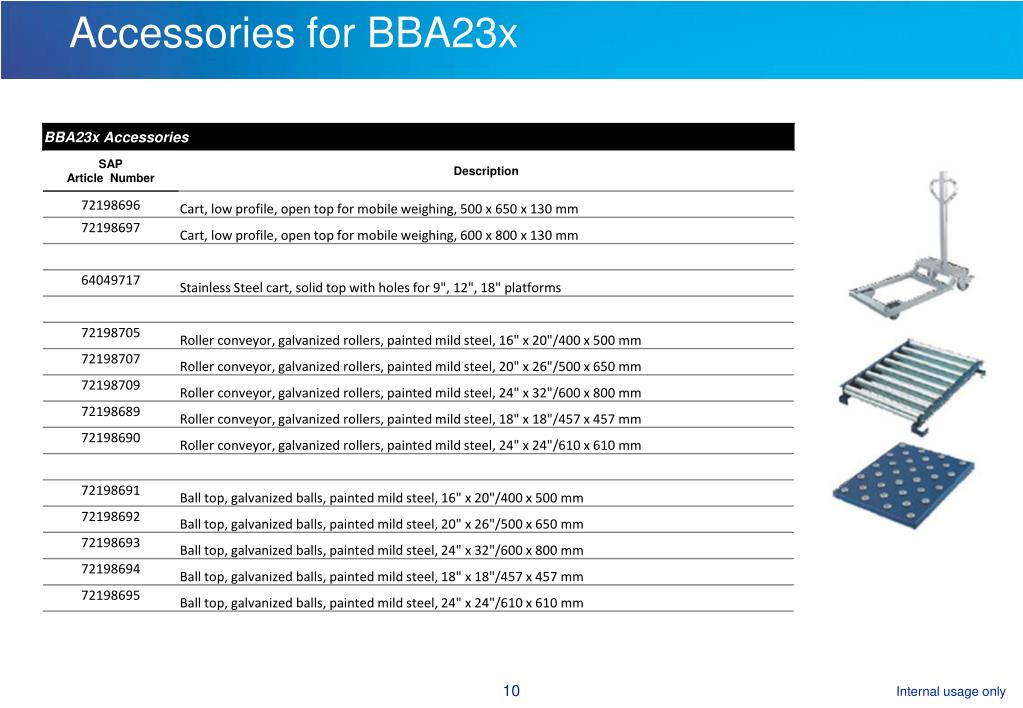

  11. Accessories for BBA23x

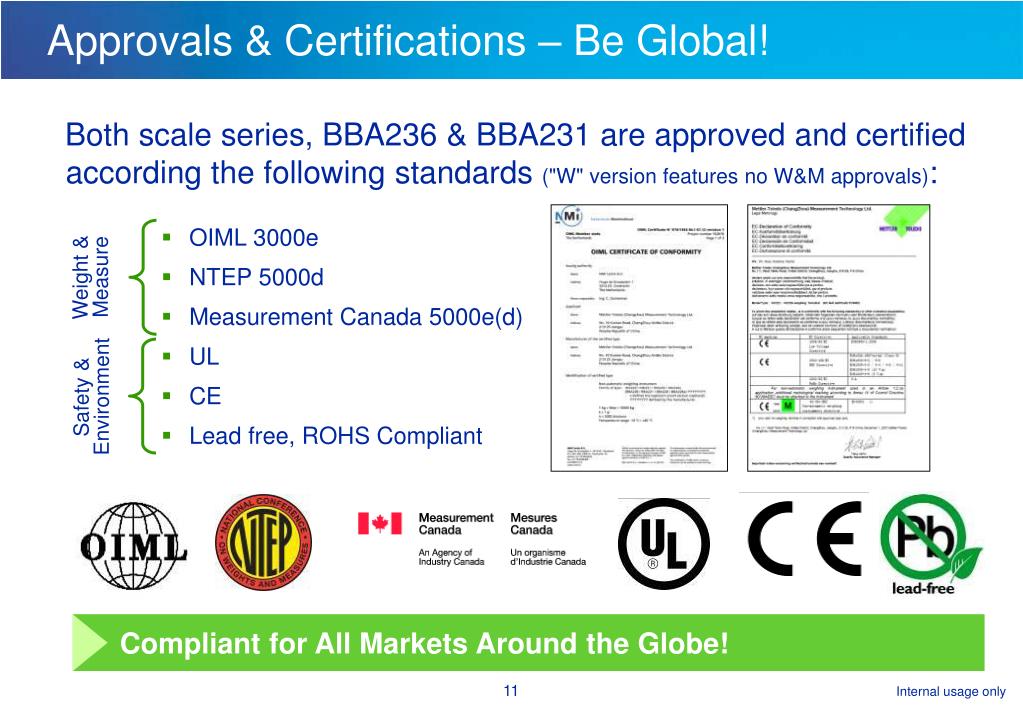

  12. Compliant for All Markets Around the Globe! Approvals & Certifications – Be Global! Both scale series, BBA236 & BBA231 are approved and certified according the following standards ("W" version features no W&M approvals): • OIML 3000e • NTEP 5000d • Measurement Canada 5000e(d) • UL • CE • Lead free, ROHS Compliant Weight & Measure Safety & Environment

  13. Thank You!
