  1. Landform Geography Landforms of the Fluvial System

  2. Stream Gradation • Streams evolve to carry just the amount of sediment produced by their drainage basin

  3. Meandering Stream • Stream carrying mostly suspended load usually has deep channel curving side-to-side

  4. Braided Stream • Streams with mostly bed load will have braided appearance – wide, shallow channel

  5. Graded Stream • A stream with just enough discharge to carry its average sediment load – at equilibrium • Aggradation – deposition on the bed of the channel due to added load or decreased discharge • Degradation – erosion of channel bed due to increased discharge or decreased load

  6. Evolution of a Graded Stream Base Level – lowest level at which a stream can erode its channel bed – can rise & fall with changes in sea or land level

  7. Niagara Falls • Upstream (Lake Erie) 571 ft elev • Downstream (Lake Ontario) 243 ft elev • Has retreated almost 7 miles in past 12,000 yrs

  8. Stream Meandering

  9. Oxbow Lake

  10. Floodplain Features

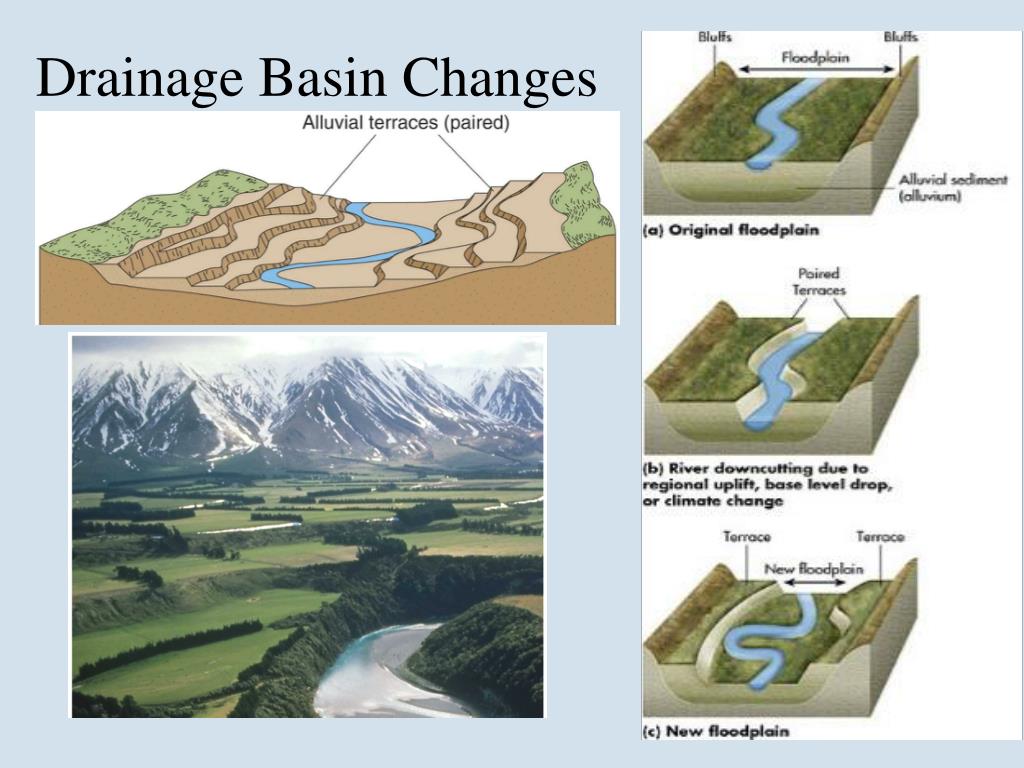

  11. Drainage Basin Changes

  12. Alluvial Fans • Created by alluvial aggradation in areas of high relief where bedload-dominated streams flow out of mts onto plain – stream sweeps side to side over time, making fan shape – most common in desert climates

  13. Deltas • River water slows as it enters ocean, depositing large amts of sediment in triangular pattern called delta – smaller particles farther out in delta

  14. Mississippi River

  15. Human Interaction with Streams • Urbanization • More impervious surfaces • After heavy rain, shorter lag time, higher peak flow – more serious flooding

  16. Dams and Reservoirs • Dam – engineered obstruction across a river to control its flow – usu. holds back lake or reservoir • Why dams? • 1. Hydroelectric energy • 2. Flood control • 3. Enhance river navigation • 4. Surface water supply Hoover Dam

  17. Chattahoochee and Buford Dam

  18. Negatives of Dams • Expense • Refugees from areas flooded by dam • Loss of ecosystems & scenery • No floods/No soil replenishment in floodplain • Stop spawning fish from going upstream

  19. Overland Flow • Perennial Streams – water runs all year • Ephemeral Streams – water runs only part of year • Sources of stream water: • Groundwater • Melting Ice • Surface Runoff

  20. Drainage Basins • Drainage Basin – area contributing groundwater and runoff to a stream • Drainage basins are divided from each other by topographic barriers called watersheds • Drainage Divide – elevated terrain forming rim around a drainage basin • Drainage basins vary tremendously in size • Basins are nested, smaller within larger

  21. Small, Nested Drainage Basins

  22. Common Drainage Pattern Types

  23. Major US Watersheds

  24. Drainage Density Total length of all streams Drainage Density = Area of drainage basin

  25. Stream Ordering • Represents stream size • Smallest streams in basin order 1 – order rises when 2 streams of same order come together at confluence

  26. Hydraulic Geometry • Geometric attributes of river channels • Variables: • w = channel width • d = channel depth • v = velocity of water • s = slope (steepness) also called gradient • Q = discharge (amt of water flowing) • Q = w x d x v (units m3/s or ft3/s)

  27. Hydraulic Variables

  28. Stream Hydrograph • Graph showing fluctuation in stream discharge over time • Lag between storm event and highest discharge • Base flow – flow rate sustained by groundwater influx

  29. Flooding • Flood Stage – stream discharge increases so that water spills out of channel onto adjoining ground • Return Period – time between events of a given magnitude, e.g. annual flood, 50-year flood, 100-year flood • Larger floods occur less frequently

  30. Mississippi River Floods - 1993 • At least 100-year flood, perhaps a 500-year flood • Heavy winter rains saturated ground • Stationary high pressure in Southeast in summer, blocking mid-latitude jet stream over Midwest • Cool, dry air collided with warm, moist air along jet stream, creating constant precipitation • Precipitation ran off into stream channels & rivers

  31. Mississippi River Floods - 1993

  32. 2009 Carrollton Floods

  33. Fluvial Processes and Landforms • Running water is most important geomorphic (landform shaping) process on Earth’s surface • All landforms due to either erosion or deposition • Erosional landforms occur when sediment, soil, or rock is stripped away from land • Depositional landforms occur where sediment accumulates after being dropped

  34. Depositional vs. Erosional Landforms

  35. Hillslopes • Most active zones of fluvial erosion due to high relief creating fast-moving, powerful water Rills Gully

  36. Ravine Canyon
