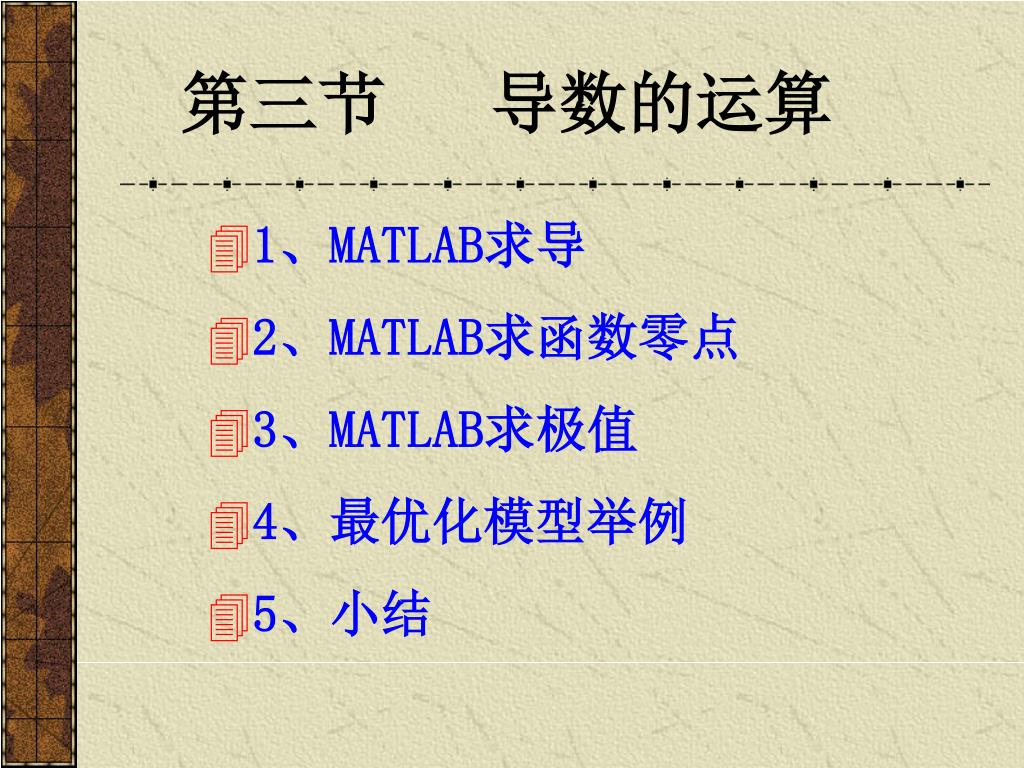

  1. 第三节 导数的运算 • 1、MATLAB求导 • 2、MATLAB求函数零点 • 3、MATLAB求极值 • 4、最优化模型举例 • 5、小结

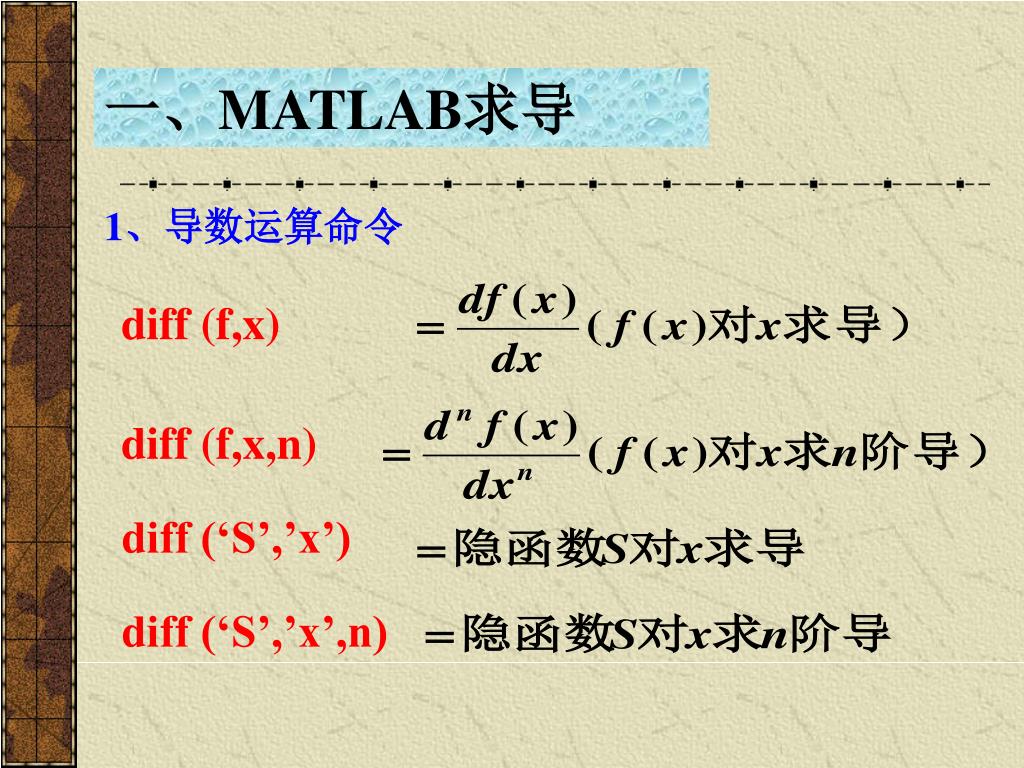

  2. 一、MATLAB求导 1、导数运算命令 diff (f,x) diff (f,x,n) diff (‘S’,’x’) diff (‘S’,’x’,n)

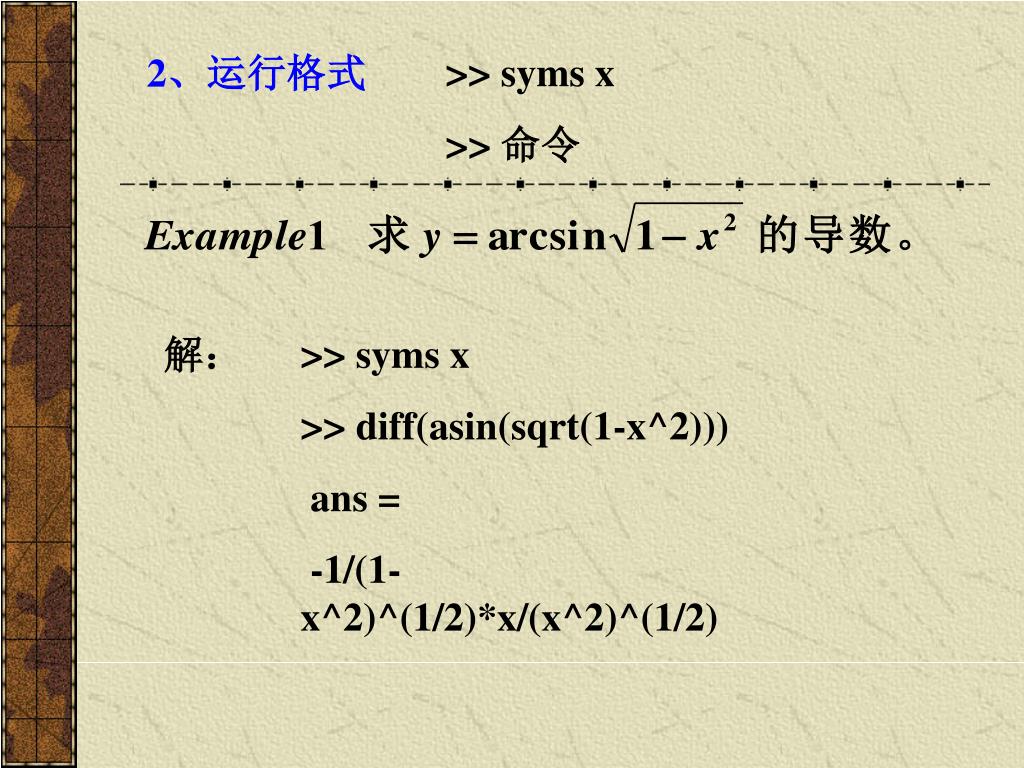

  3. 2、运行格式 >> syms x >> 命令 解: >> syms x >> diff(asin(sqrt(1-x^2))) ans = -1/(1-x^2)^(1/2)*x/(x^2)^(1/2)

  4. >> syms x >> y=((1-(1-x^2)^2)/(1+(1-x^2)^2))^3;diff(y) ans = 12*(1-(1-x^2)^2)^2/(1+(1-x^2)^2)^3*(1-x^2)*x+12*(1-(1-x^2)^2)^3/(1+(1-x^2)^2)^4*(1-x^2)*x

  5. >> syms x >> diff((cos(x))^2*log(x),x,3) ans = 8*cos(x)*log(x)*sin(x)+6*sin(x)^2/x+6*cos(x)/x^2*sin(x)-6*cos(x)^2/x+2*cos(x)^2/x^3

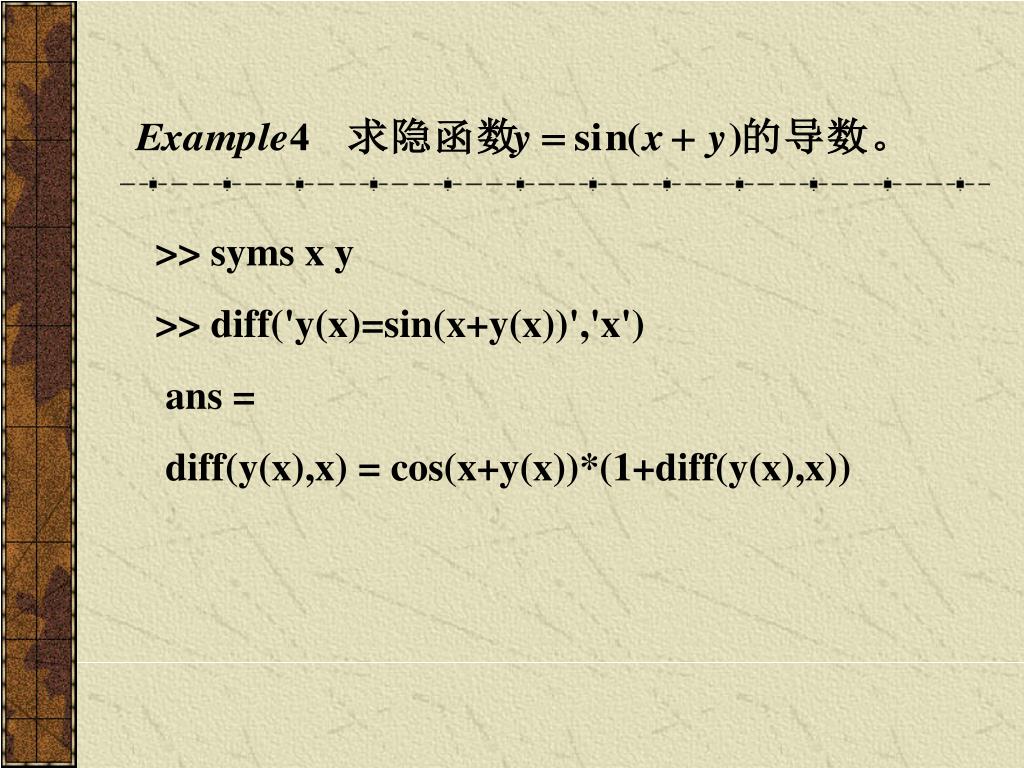

  6. >> syms x y >> diff('y(x)=sin(x+y(x))','x') ans = diff(y(x),x) = cos(x+y(x))*(1+diff(y(x),x))

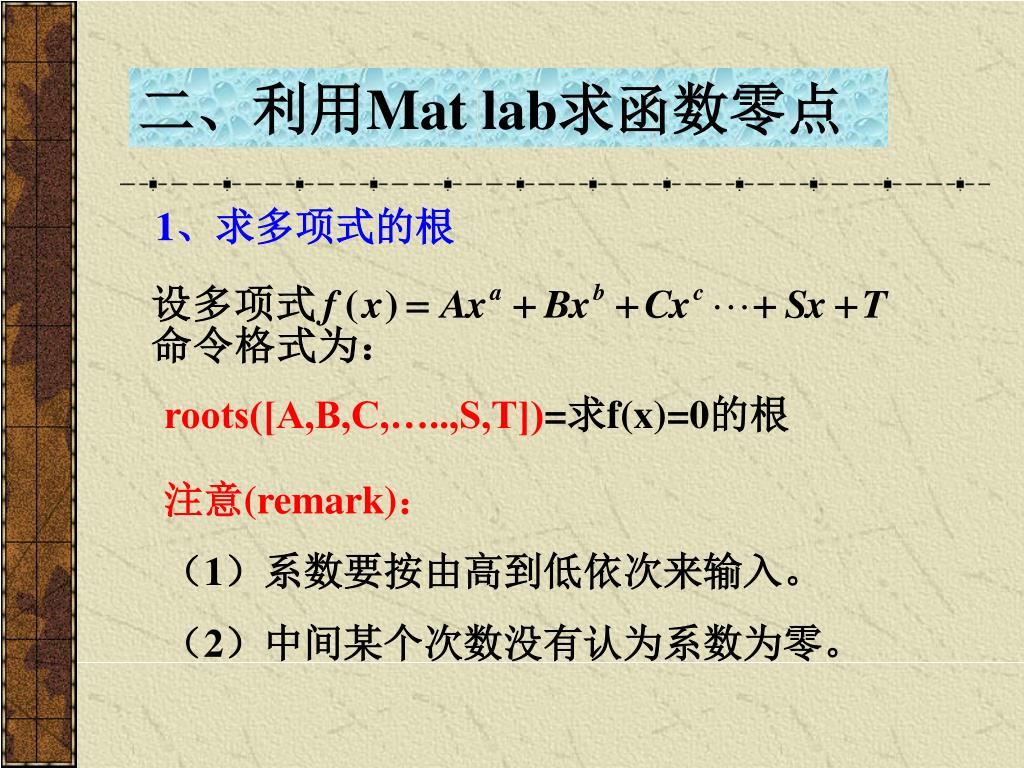

  7. 二、利用Mat lab求函数零点 1、求多项式的根 roots([A,B,C,…..,S,T])=求f(x)=0的根 注意(remark): (1)系数要按由高到低依次来输入。 (2)中间某个次数没有认为系数为零。

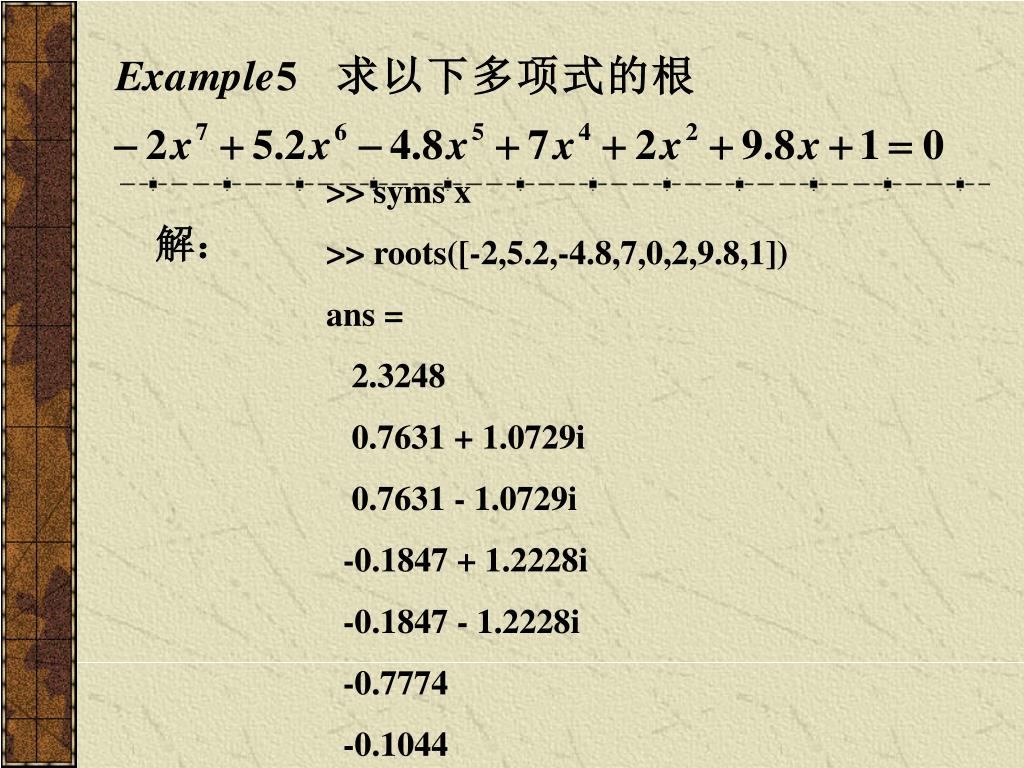

  8. >> syms x >> roots([-2,5.2,-4.8,7,0,2,9.8,1]) ans = 2.3248 0.7631 + 1.0729i 0.7631 - 1.0729i -0.1847 + 1.2228i -0.1847 - 1.2228i -0.7774 -0.1044 解:

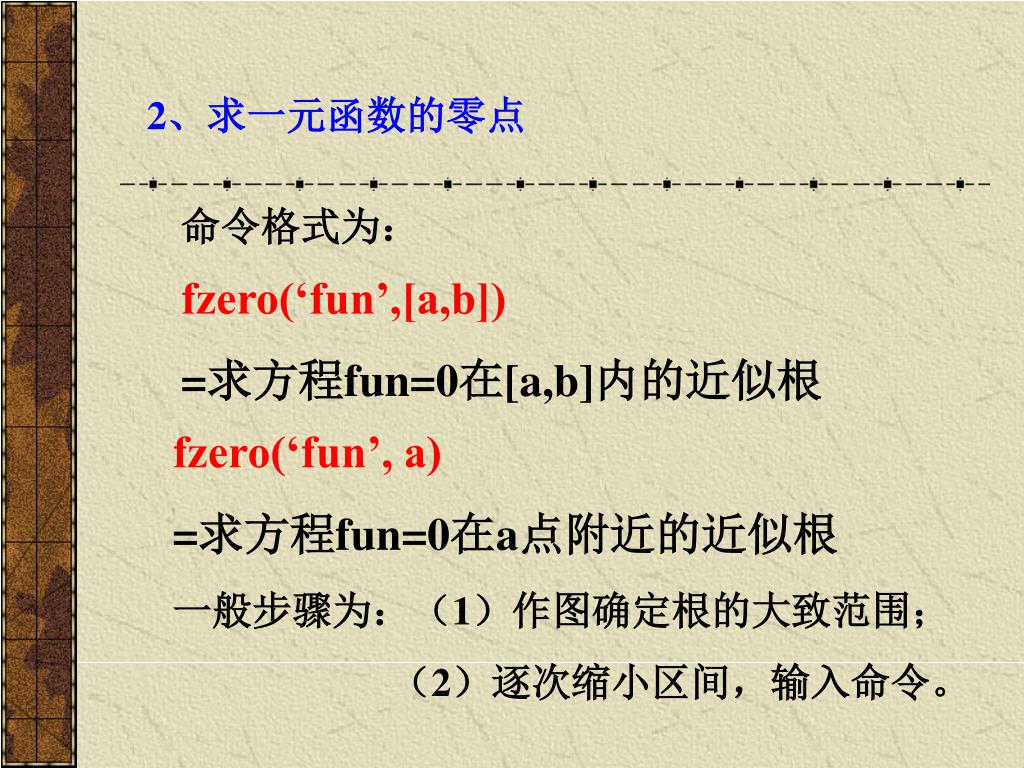

  9. 2、求一元函数的零点 命令格式为: fzero(‘fun’,[a,b]) =求方程fun=0在[a,b]内的近似根 fzero(‘fun’, a) =求方程fun=0在a点附近的近似根 一般步骤为:(1)作图确定根的大致范围; (2)逐次缩小区间,输入命令。

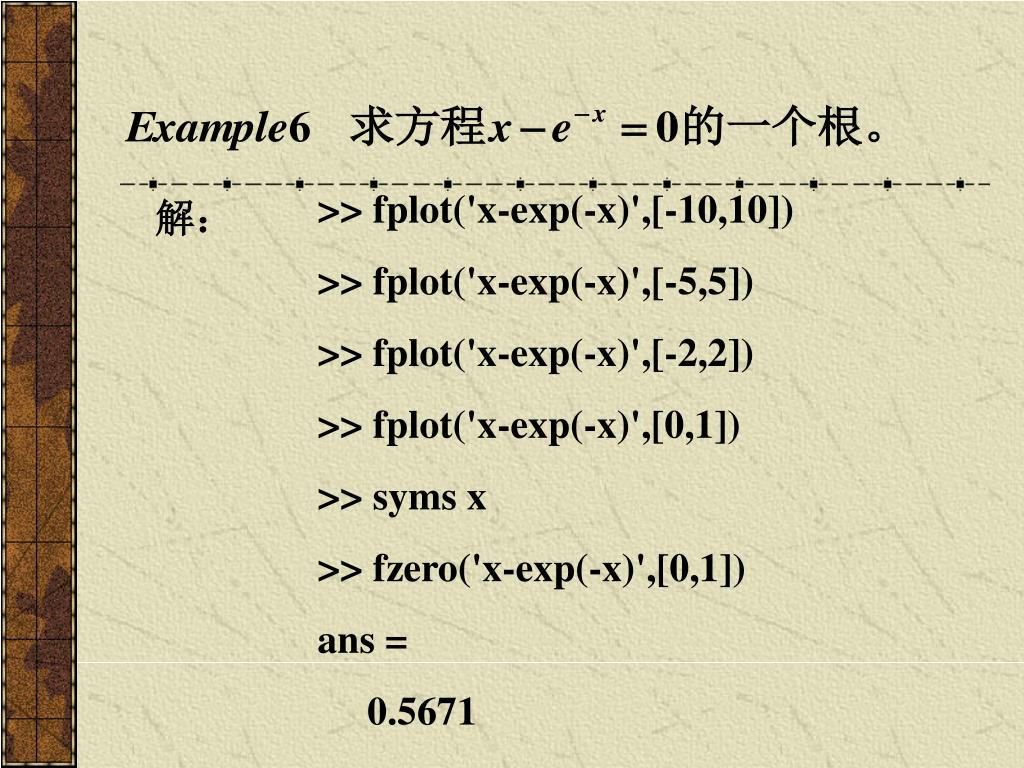

  10. >> fplot('x-exp(-x)',[-10,10]) >> fplot('x-exp(-x)',[-5,5]) >> fplot('x-exp(-x)',[-2,2]) >> fplot('x-exp(-x)',[0,1]) >> syms x >> fzero('x-exp(-x)',[0,1]) ans = 0.5671 解:

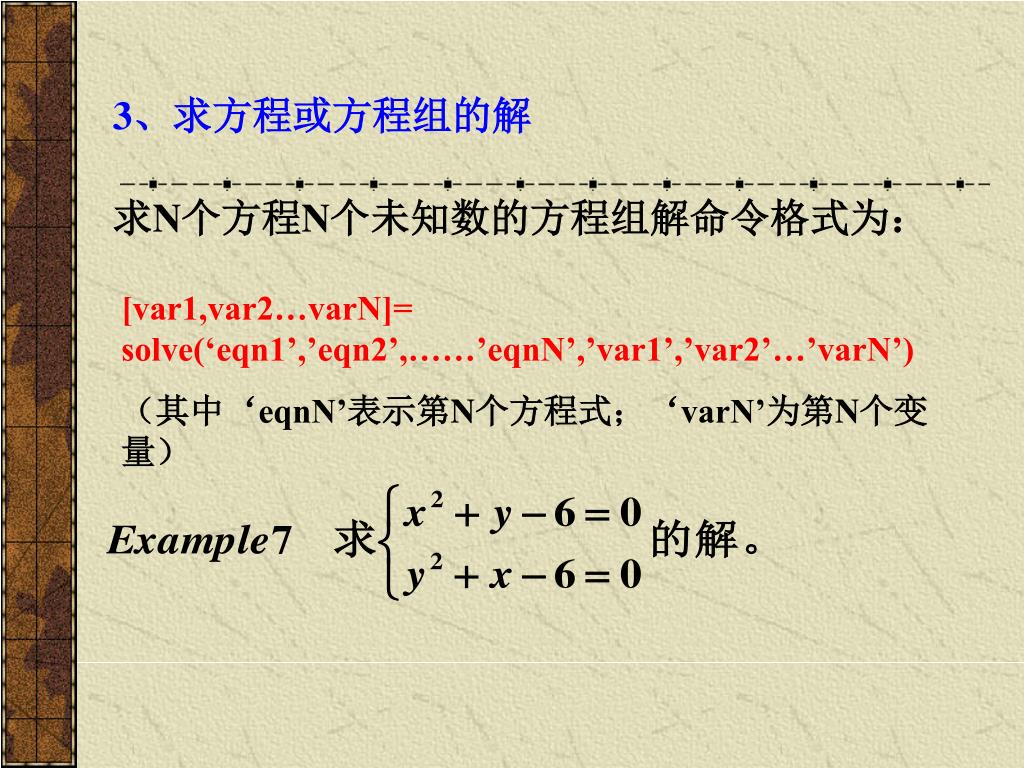

  11. 3、求方程或方程组的解 求N个方程N个未知数的方程组解命令格式为: [var1,var2…varN]= solve(‘eqn1’,’eqn2’,……’eqnN’,’var1’,’var2’…’varN’) (其中‘eqnN’表示第N个方程式;‘varN’为第N个变量)

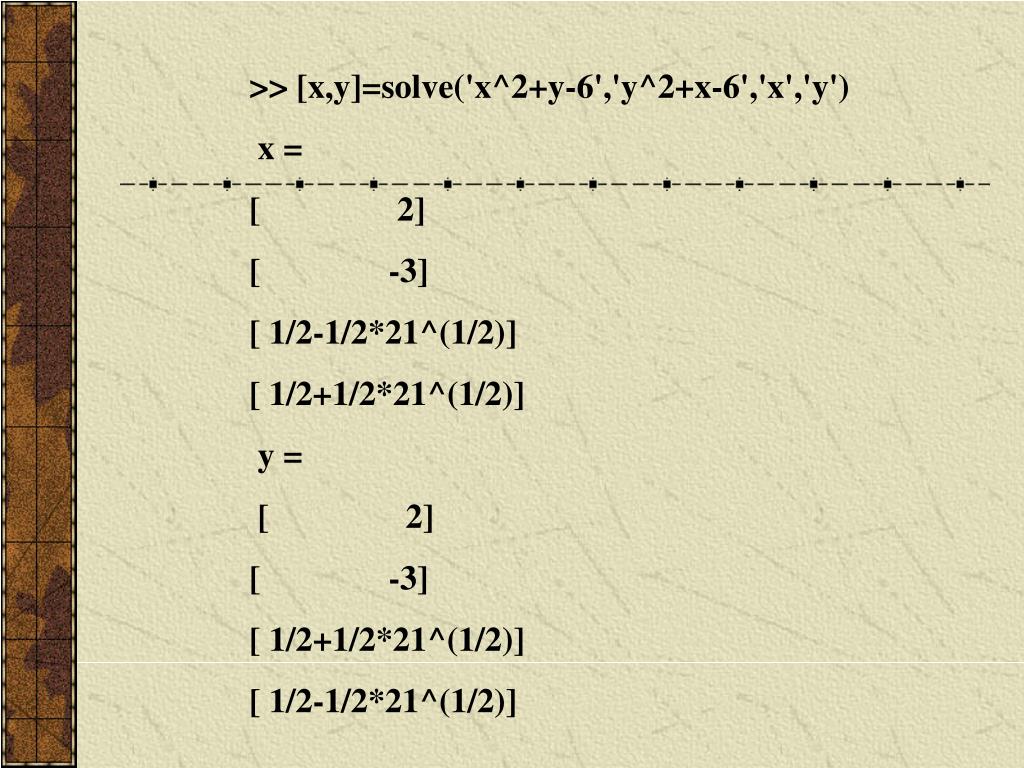

  12. >> [x,y]=solve('x^2+y-6','y^2+x-6','x','y') x = [ 2] [ -3] [ 1/2-1/2*21^(1/2)] [ 1/2+1/2*21^(1/2)] y = [ 2] [ -3] [ 1/2+1/2*21^(1/2)] [ 1/2-1/2*21^(1/2)]

  13. Example8:某实验室用500只老鼠做某一传染性疾病实验,以检验它的传播理论。由实验分析得到 t天后,感染数目N的数学模型如下: (1)实验开始时,有多少只老鼠感染此疾病? (2)什么时候有一半的老鼠感染此疾病? (3)预测很多天后,传染病的传播数量。

  14. >> syms t >> t=0;N=500/(1+99*exp(-0.2*t)) N = 5 >> solve('500/(1+99*exp(-0.2*t))=250','t') ans = 22.975599250672949634262170259051 >> limit(500/(1+99*exp(-0.2*t)),t,inf) ans = 500

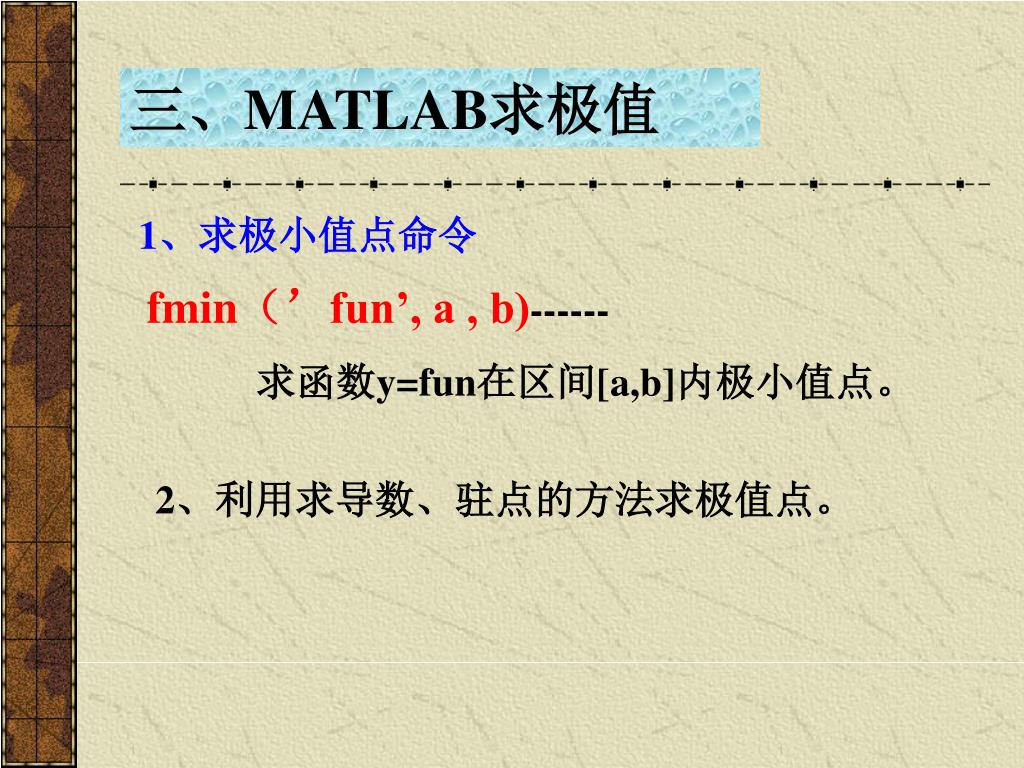

  15. 三、MATLAB求极值 1、求极小值点命令 fmin(’fun’, a , b)------ 求函数y=fun在区间[a,b]内极小值点。 2、利用求导数、驻点的方法求极值点。

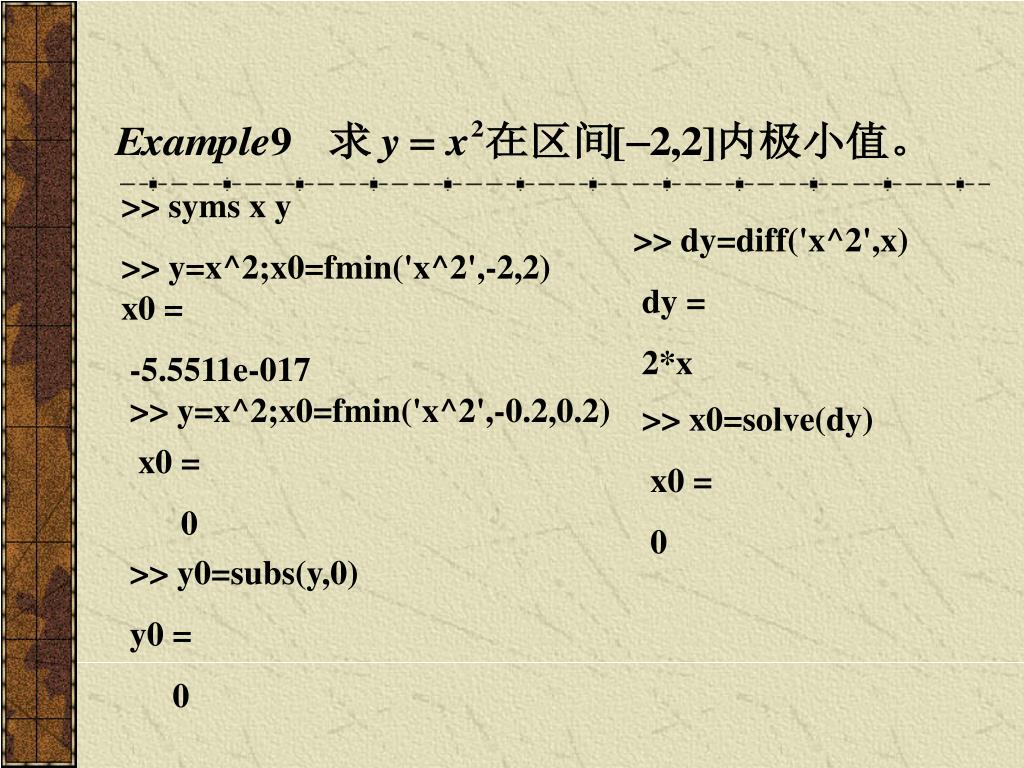

  16. >> syms x y >> y=x^2;x0=fmin('x^2',-2,2) >> dy=diff('x^2',x) dy = 2*x x0 = -5.5511e-017 >> y=x^2;x0=fmin('x^2',-0.2,0.2) >> x0=solve(dy) x0 = 0 x0 = 0 >> y0=subs(y,0) y0 = 0

  17. 四、最优化模型举例 最优问题求解步骤: (1)建立目标函数(对问题建立数学模型); (2)求最值;

  18. 解:(1)问题假设:设截掉小正方形边长为x;方盒容积为V解:(1)问题假设:设截掉小正方形边长为x;方盒容积为V (2)模型建立: (3)模型求解:

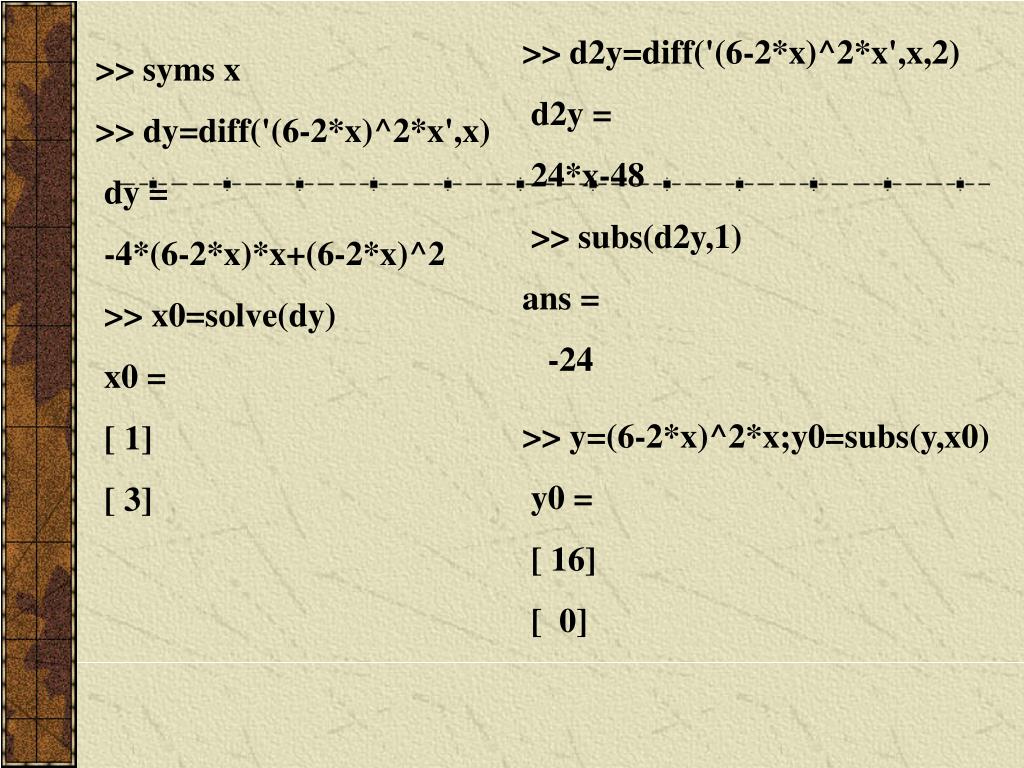

  19. >> d2y=diff('(6-2*x)^2*x',x,2) d2y = 24*x-48 >> subs(d2y,1) ans = -24 >> syms x >> dy=diff('(6-2*x)^2*x',x) dy = -4*(6-2*x)*x+(6-2*x)^2 >> x0=solve(dy) x0 = [ 1] [ 3] >> y=(6-2*x)^2*x;y0=subs(y,x0) y0 = [ 16] [ 0]

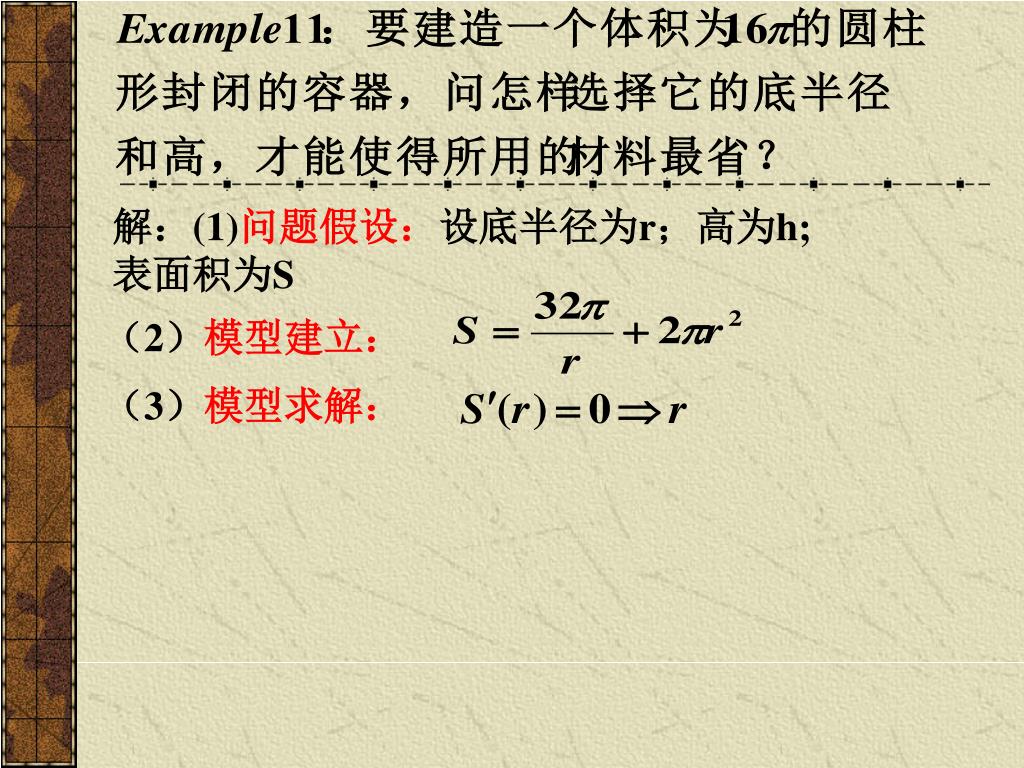

  20. 解:(1)问题假设:设底半径为r;高为h; 表面积为S (2)模型建立: (3)模型求解:

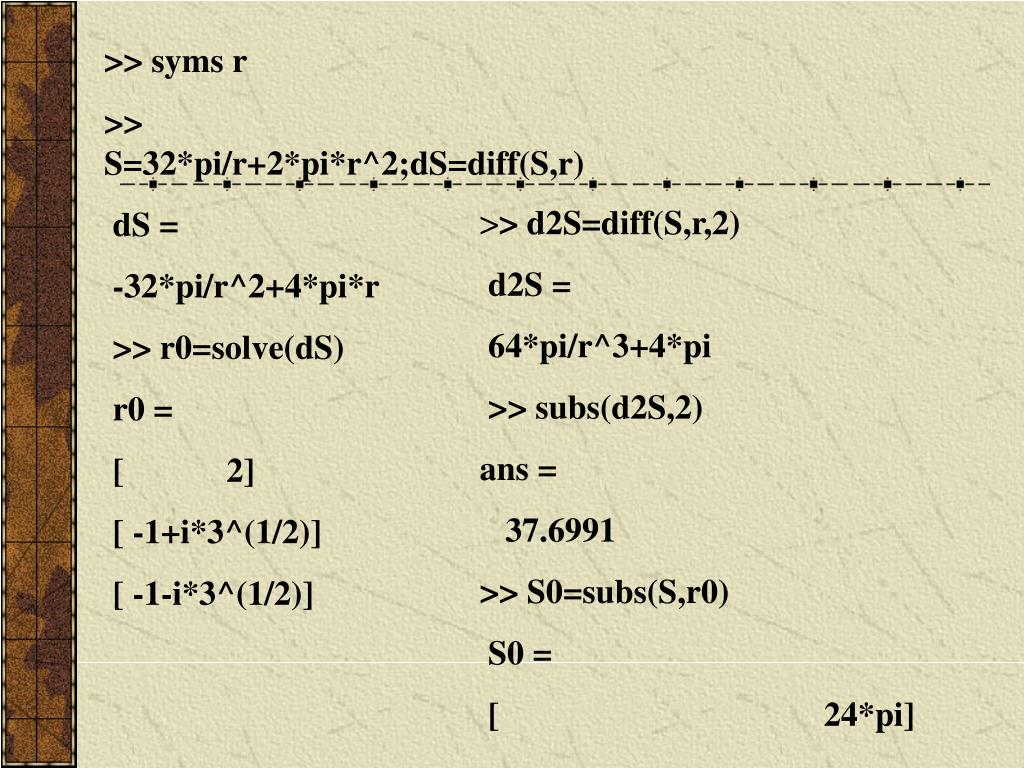

  21. >> syms r >> S=32*pi/r+2*pi*r^2;dS=diff(S,r) dS = -32*pi/r^2+4*pi*r >> r0=solve(dS) r0 = [ 2] [ -1+i*3^(1/2)] [ -1-i*3^(1/2)] >> d2S=diff(S,r,2) d2S = 64*pi/r^3+4*pi >> subs(d2S,2) ans = 37.6991 >> S0=subs(S,r0) S0 = [ 24*pi]

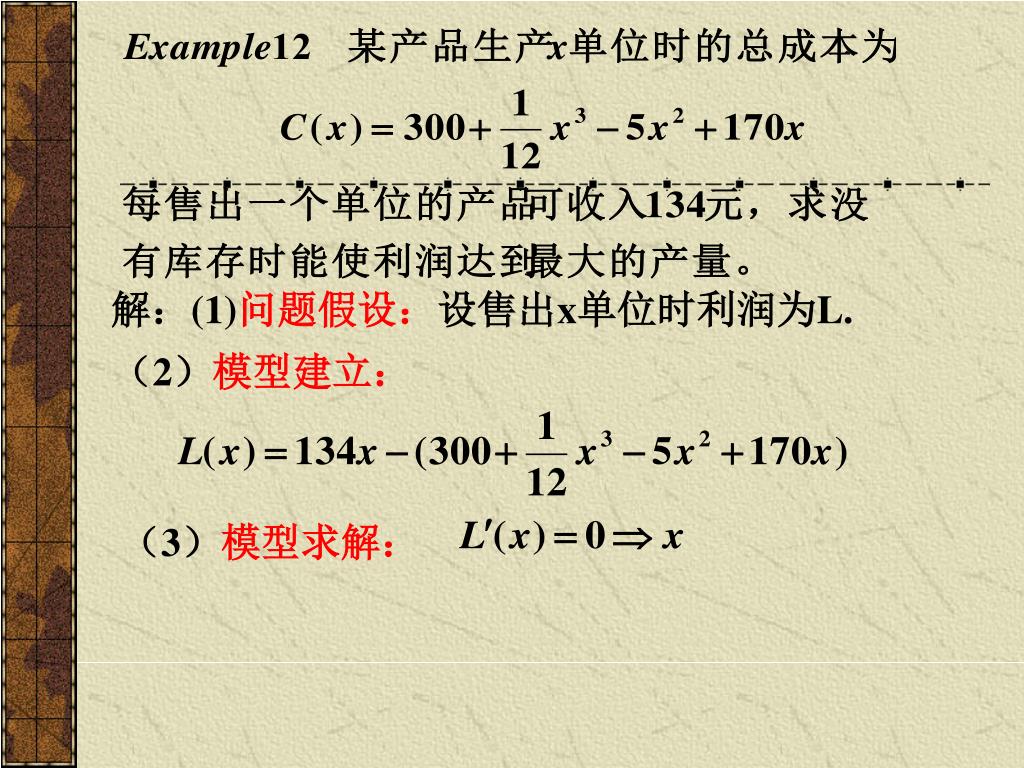

  22. 解:(1)问题假设:设售出x单位时利润为L. (2)模型建立: (3)模型求解:

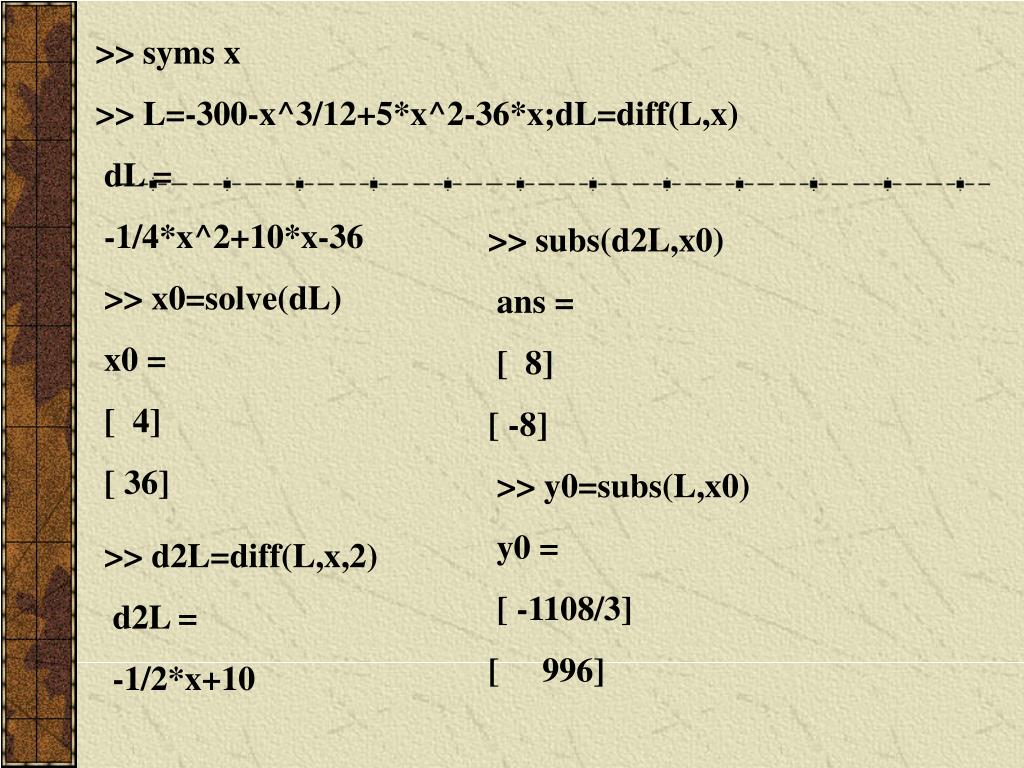

  23. >> syms x >> L=-300-x^3/12+5*x^2-36*x;dL=diff(L,x) dL = -1/4*x^2+10*x-36 >> x0=solve(dL) x0 = [ 4] [ 36] >> subs(d2L,x0) ans = [ 8] [ -8] >> y0=subs(L,x0) y0 = [ -1108/3] [ 996] >> d2L=diff(L,x,2) d2L = -1/2*x+10

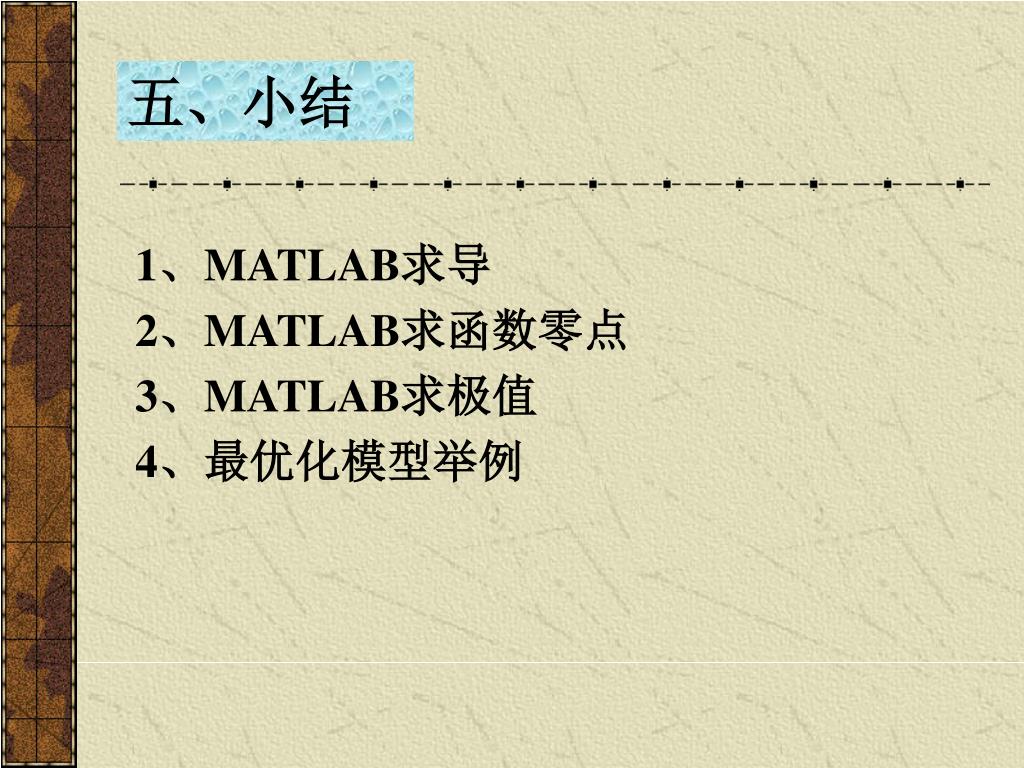

  24. 五、小结 1、MATLAB求导 2、MATLAB求函数零点 3、MATLAB求极值 4、最优化模型举例
