  1. Update to Idaho Hospital Association June 25th, 2010

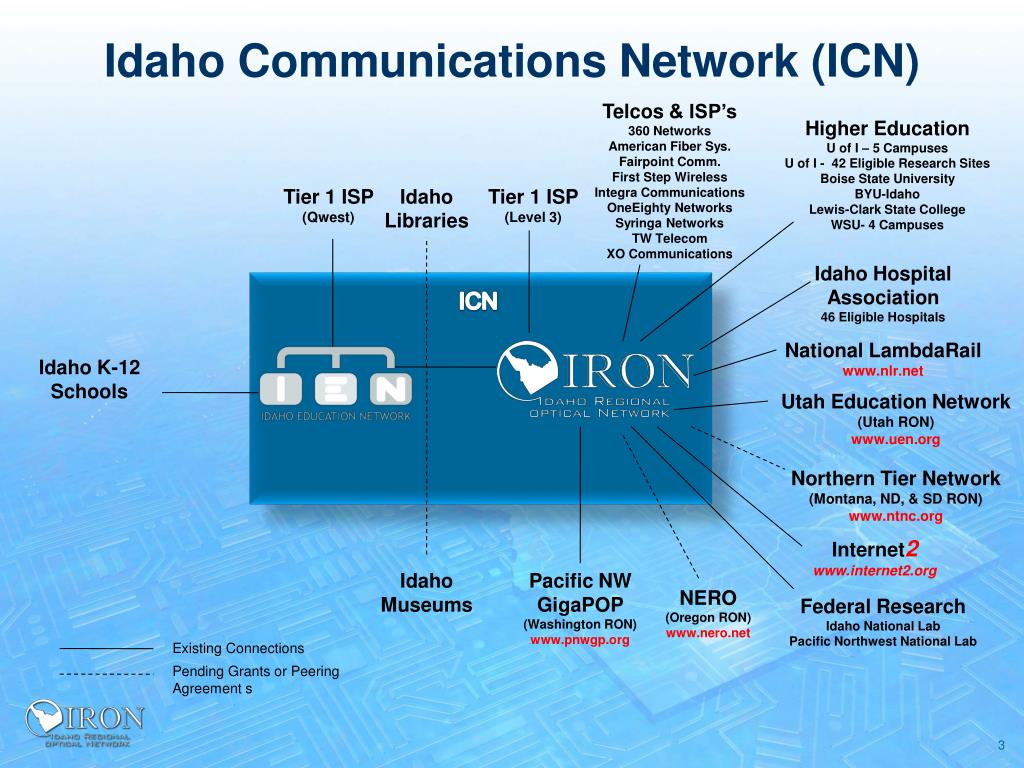

  2. Idaho Communications Network (ICN) Telcos & ISP’s 360 Networks American Fiber Sys. Fairpoint Comm. First Step Wireless Integra Communications OneEighty Networks Syringa Networks TW Telecom XO Communications Higher EducationU of I – 5 Campuses U of I - 42 Eligible Research Sites Boise State University BYU-Idaho Lewis-Clark State College WSU- 4 Campuses Tier 1 ISP(Qwest) IdahoLibraries Tier 1 ISP (Level 3) Idaho Hospital Association 46 Eligible Hospitals ICN National LambdaRail www.nlr.net Idaho K-12 Schools Utah Education Network (Utah RON) www.uen.org Northern Tier Network (Montana, ND, & SD RON) www.ntnc.org Internet2 www.internet2.org IdahoMuseums Pacific NW GigaPOP (Washington RON) www.pnwgp.org NERO (Oregon RON) www.nero.net Federal ResearchIdaho National Lab Pacific Northwest National Lab Existing Connections Pending Grants or Peering Agreement s

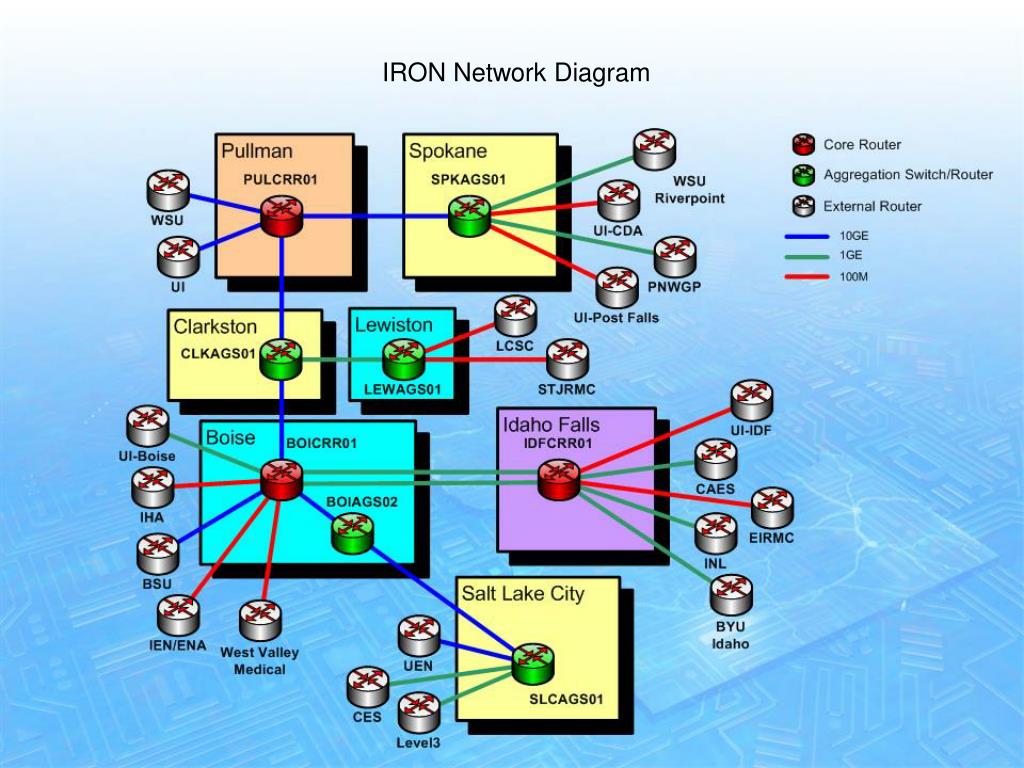

  3. Network Diagram June 2010 IRON Network Diagram

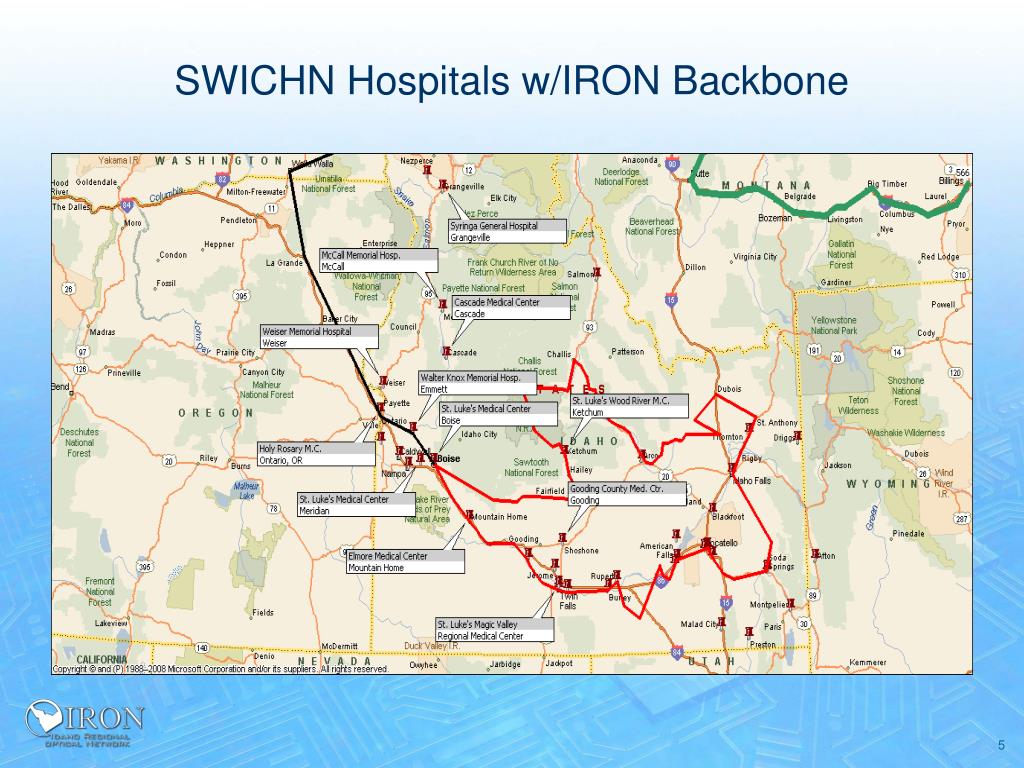

  4. SWICHN Hospitals w/IRON Backbone

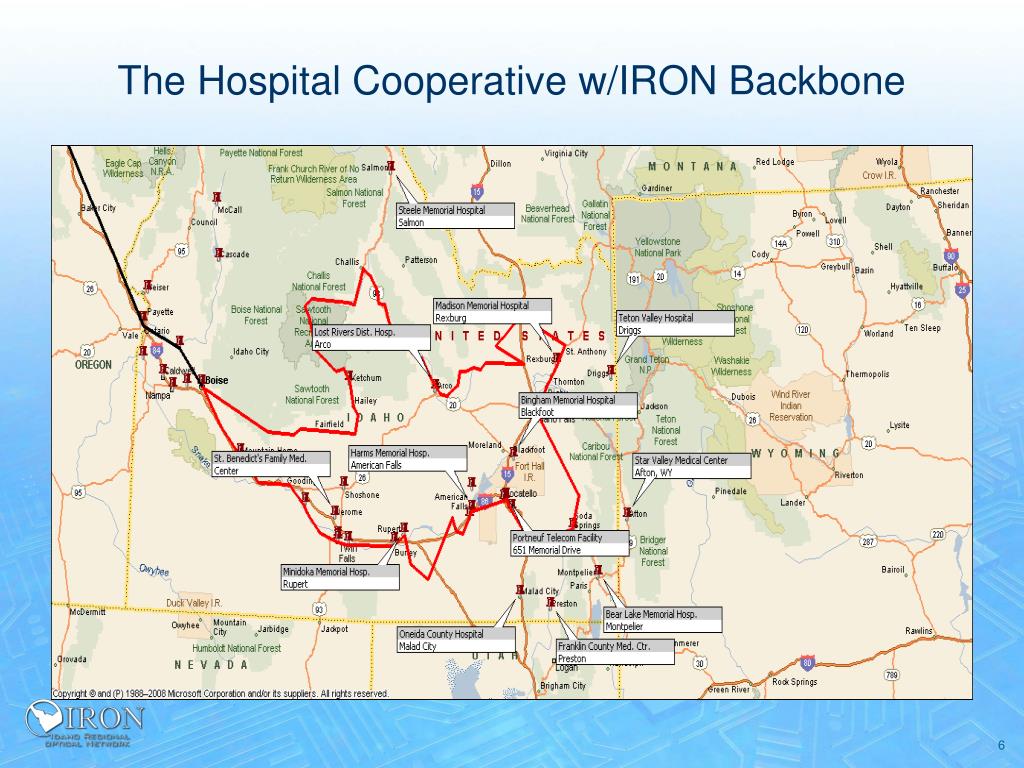

  5. The Hospital Cooperative w/IRON Backbone

  6. Clearwater Valley Hospitals w/IRON Backbone

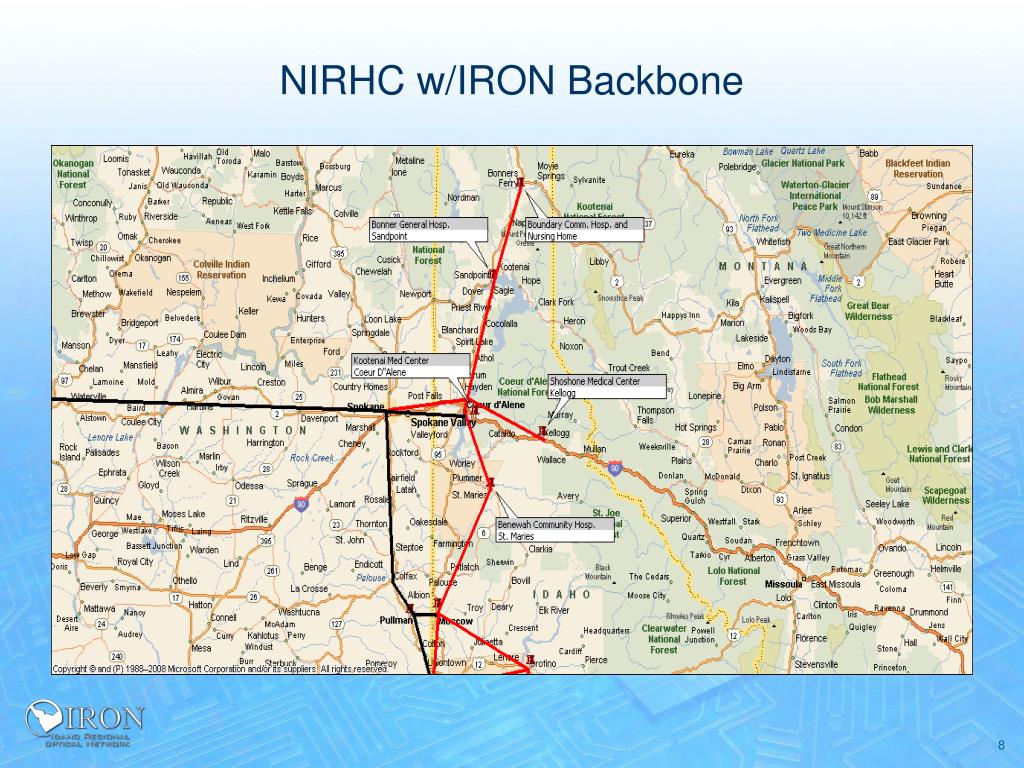

  7. NIRHC w/IRON Backbone

  8. Other IHA Member Hospitals w/IRON Backbone

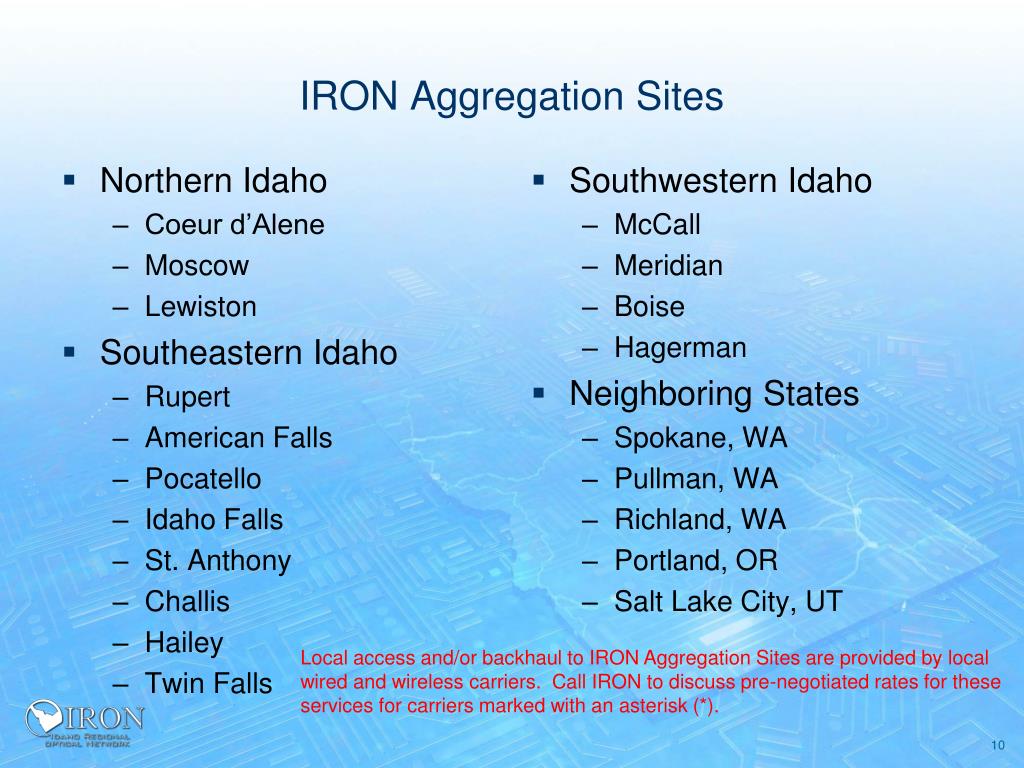

  9. IRON Aggregation Sites • Northern Idaho • Coeur d’Alene • Moscow • Lewiston • Southeastern Idaho • Rupert • American Falls • Pocatello • Idaho Falls • St. Anthony • Challis • Hailey • Twin Falls • Southwestern Idaho • McCall • Meridian • Boise • Hagerman • Neighboring States • Spokane, WA • Pullman, WA • Richland, WA • Portland, OR • Salt Lake City, UT Local access and/or backhaul to IRON Aggregation Sites are provided by local wired and wireless carriers. Call IRON to discuss pre-negotiated rates for these services for carriers marked with an asterisk (*).

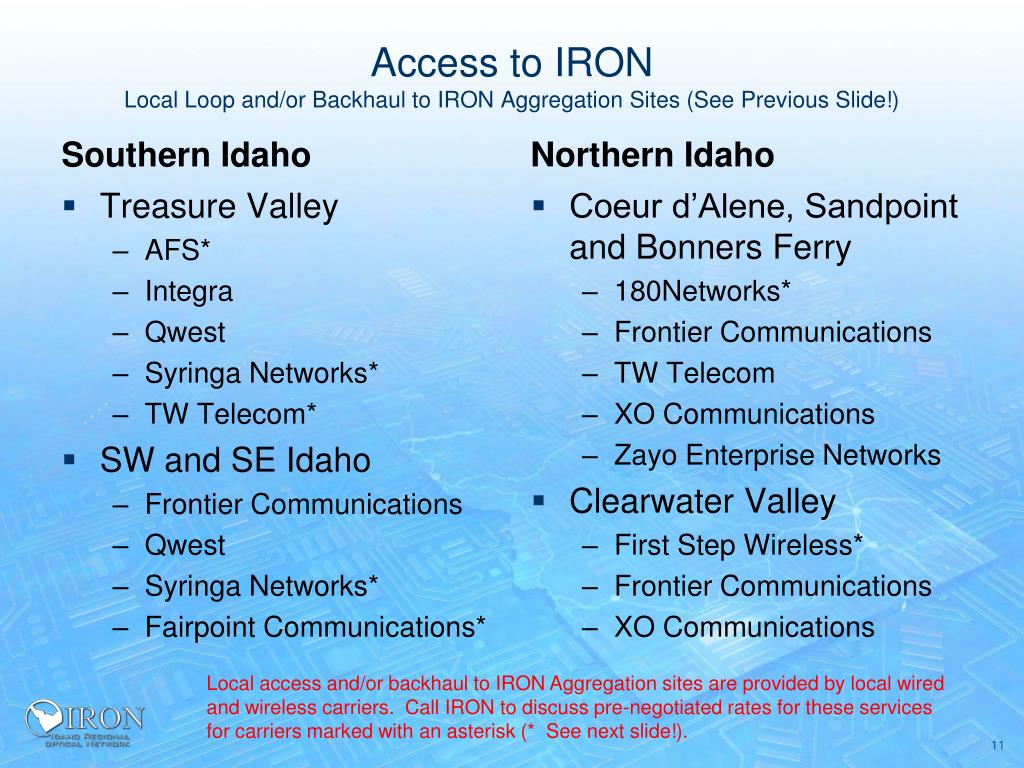

  10. Access to IRONLocal Loop and/or Backhaul to IRON Aggregation Sites (See Previous Slide!) Southern Idaho Northern Idaho Coeur d’Alene, Sandpoint and Bonners Ferry 180Networks* Frontier Communications TW Telecom XO Communications Zayo Enterprise Networks Clearwater Valley First Step Wireless* Frontier Communications XO Communications • Treasure Valley • AFS* • Integra • Qwest • Syringa Networks* • TW Telecom* • SW and SE Idaho • Frontier Communications • Qwest • Syringa Networks* • Fairpoint Communications* Local access and/or backhaul to IRON Aggregation sites are provided by local wired and wireless carriers. Call IRON to discuss pre-negotiated rates for these services for carriers marked with an asterisk (* See next slide!).

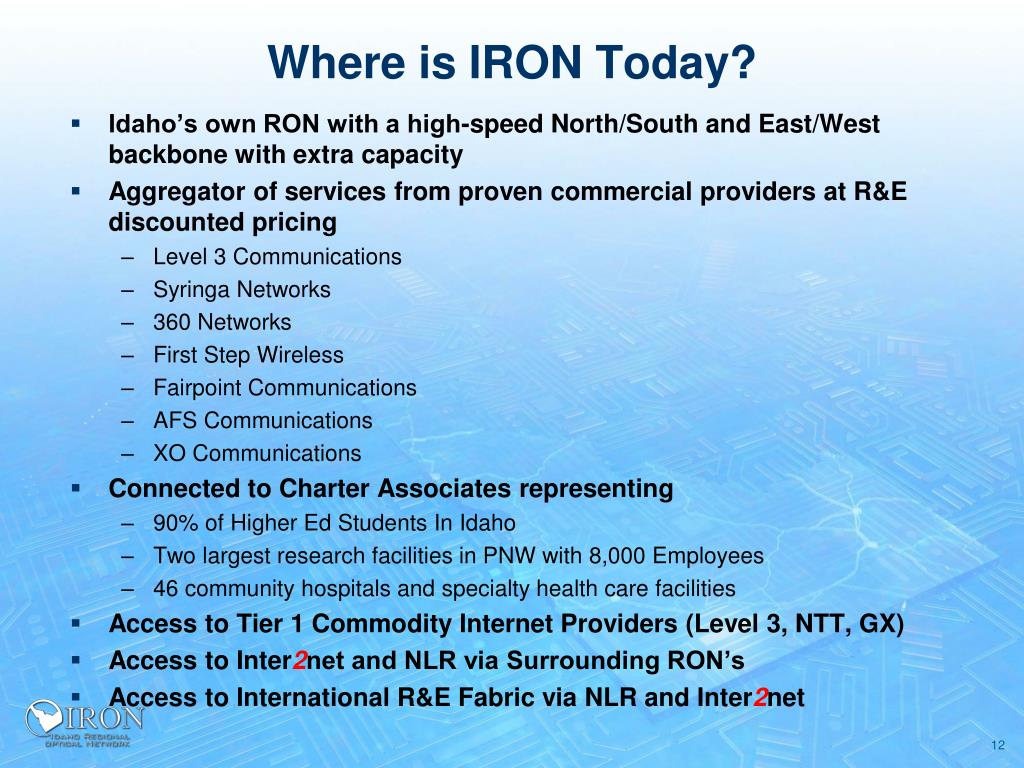

  11. Where is IRON Today? • Idaho’s own RON with a high-speed North/South and East/West backbone with extra capacity • Aggregator of services from proven commercial providers at R&E discounted pricing • Level 3 Communications • Syringa Networks • 360 Networks • First Step Wireless • Fairpoint Communications • AFS Communications • XO Communications • Connected to Charter Associates representing • 90% of Higher Ed Students In Idaho • Two largest research facilities in PNW with 8,000 Employees • 46 community hospitals and specialty health care facilities • Access to Tier 1 Commodity Internet Providers (Level 3, NTT, GX) • Access to Inter2net and NLR via Surrounding RON’s • Access to International R&E Fabric via NLR and Inter2net

  12. IRON Connectors as of 7/20/2010 • Telcos • National (Qwest, Level 3, 360, XO, TW Telecom) • Regional (Syringa, Fairpoint, 180, AFS) • National R&E Networks • Internet2 • National Lambda Rail • Other RON’s • Pacific Northwest GigaPOP • Utah Education Network • Research Facilities • Idaho National Laboratory • PNNL • Idaho Education Network • 84High Schools • Idaho Hospital Ass’n. • St. Joseph’s RMC • West Valley Regional M.C. • Eastern Idaho Med. Ctr. • Higher Ed • University of Idaho • Moscow • Idaho Falls • Boise • Coeur d’Alene • Post Falls • Boise State University • BYU-Idaho • WSU (4 campuses)
