  1. ChelsioCommunications Ethernet Unified Wire November 15, 2006 Kianoosh Naghshineh, CEO kianoosh@chelsio.com www.chelsio.com

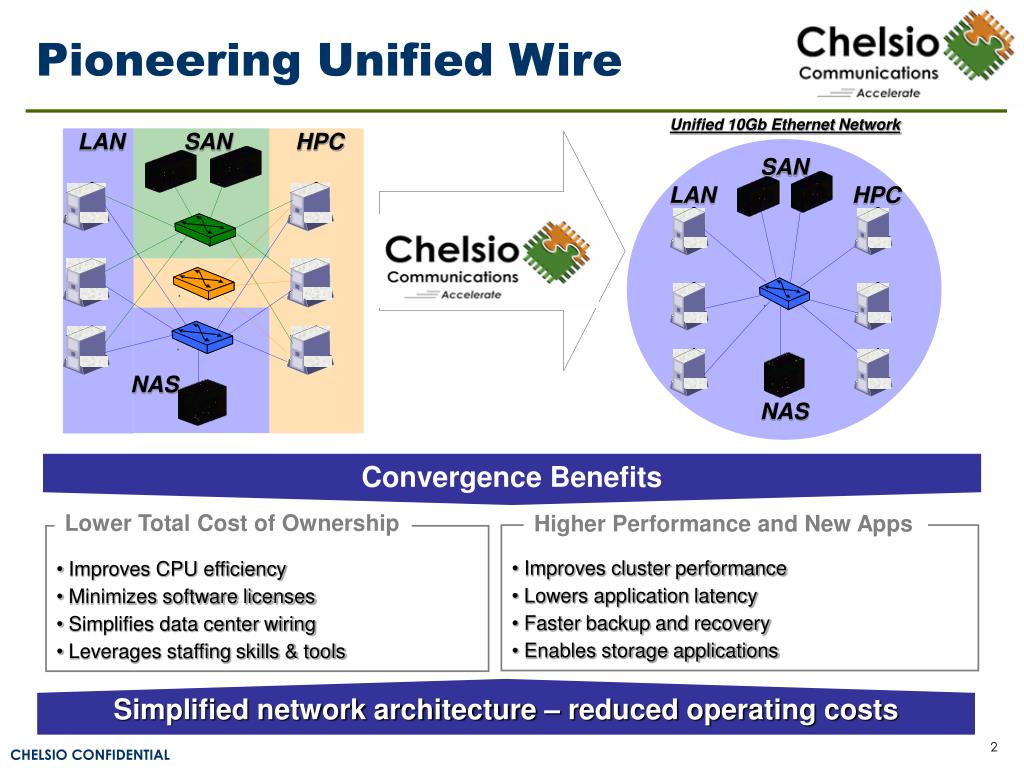

  2. LAN SAN HPC SAN LAN HPC NAS NAS Convergence Benefits Pioneering Unified Wire Unified 10Gb Ethernet Network Simplified network architecture – reduced operating costs Lower Total Cost of Ownership Higher Performance and New Apps • Improves cluster performance • Lowers application latency • Faster backup and recovery • Enables storage applications • Improves CPU efficiency • Minimizes software licenses • Simplifies data center wiring • Leverages staffing skills & tools

  3. Key Market Drivers

  4. Full TCP/IP Offload (TOE) Full iSCSI Target solution CX4 copper or XFP fiber Highest performance and CPU efficiency Current Shipping Products CX4 copper orXFP SR/LR optics PCI-Express orPCI-X bus interface T210 10GbEProtocol Engine N210 10GbEServer Adapter T204 4GbEProtocol Engine 10Gb Ethernet NICLinux, Windows, SolarisTurn-key software drivers Easy-to-use server adapter for 10GbE connectivity 4-port Gigabit Ethernet Full TCP/IP Offload (TOE)Full iSCSI Target solution Best price/performance for servers & IP SANs • 2nd generation products shipping in volume since Feb 2005 • Over 140 customers in 20 countries using Chelsio adapters • Strong foundation for 3rd generation ‘unified wire’ solution • Holder of all but one of the current Land Speed Records

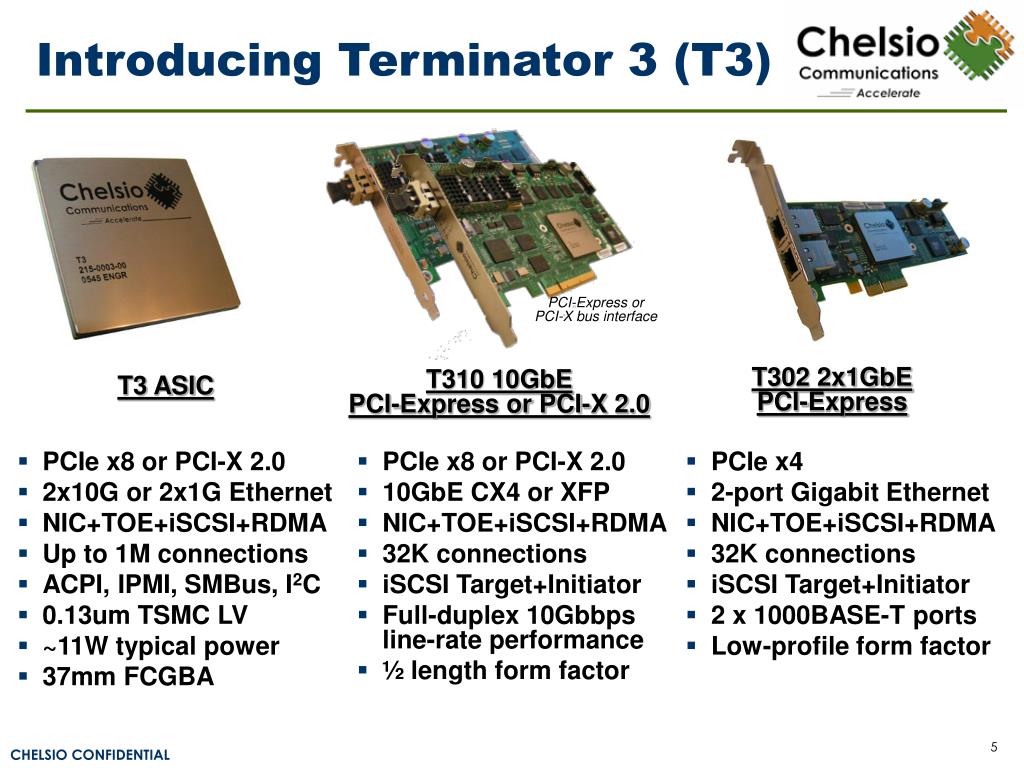

  5. Introducing Terminator 3 (T3) PCI-Express orPCI-X bus interface T302 2x1GbEPCI-Express T310 10GbEPCI-Express or PCI-X 2.0 T3 ASIC • PCIe x8 or PCI-X 2.0 • 2x10G or 2x1G Ethernet • NIC+TOE+iSCSI+RDMA • Up to 1M connections • ACPI, IPMI, SMBus, I2C • 0.13um TSMC LV • ~11W typical power • 37mm FCGBA • PCIe x8 or PCI-X 2.0 • 10GbE CX4 or XFP • NIC+TOE+iSCSI+RDMA • 32K connections • iSCSI Target+Initiator • Full-duplex 10Gbbps line-rate performance • ½ length form factor • PCIe x4 • 2-port Gigabit Ethernet • NIC+TOE+iSCSI+RDMA • 32K connections • iSCSI Target+Initiator • 2 x 1000BASE-T ports • Low-profile form factor

  6. Performed May 2003 by the world’s leading independent lab, VeriTest, Inc. TOE delivers ~2X network throughput vs. 10GbE NICs TOE shows ~1/2X CPU utilization vs. 10GbE NICs Net-net: TOE shows ~4X network efficiency vs. NICs No Jumbos, one connection to thousands of connections Superior Performance Chelsio T110 TOE versus 10GbE NIC Network Performance Source: Independently verified by VeriTest, Inc. Test tool: netperf Test configuration: 2 systems connected through 10GbE switch running single TCP channel with 1500-byte Ethernet frames System configuration: AMD Opteron 248 2.2GHz uniprocessor running Linux kernel 2.6.6

  7. Independent HPC Benchmarks Validate Performance 10GbE has higher bandwidth than Infiniband & Myrinet 10GbE has lower latency than Infiniband Testing performed by Los Alamos National Laboratory and The Ohio State University

  8. RDMA & iSCSI • PCI-X 133MHZ • 1.8GHZ Dual CPU OPTERON • 1GB Memory • Mellanox 4X SDR IB PCI-X HCA • Chelsio T320X 10GbE PCI-X RNIC • Point to point networks • Using Open-IB derivative benchmarks • 20 Initiators – MS iSCSI 2.0, 1GbE • Dell 2950, 2 x Intel 3GHz EM64T Dual Core Woodcrest, 8GB DDR-II 667MHz memory • Linux 2.6.17 SMP x86_64. • T320e (T3b). • iSCSI Target 2.0 release. • Ramdisk. No CRC, TOE mode

  9. T3 Feature Summary

  10. Competitive Analysis • Chelsio competes primarily with companies that develop Ethernet adapter cards and/or integrated circuits • Indirect competition from other fabric technologies such as InfiniBand and Fibre Channel • Chelsio delivers a best-in-class, full-featured and seasoned solution

  11. Why Chelsio • Very High Performance • Very Low Latency • High Transaction Rate • High Bandwidth • Correct architecture • Data Flow Processor produces a Scalable and Ideal Performance Profile • Value added features • Integrated Traffic Manager • Filtering • Virtualization • 3rd Generation – Robust, Seasoned • Maximum guarantee of no late arriving QA bugs • Integrated High Performance ULP solutions – run IB or FC apps unmodified • Commercial grade iSCSI stack integrated with hardware DDP facilities • Fully integrated OpenFabrics RDMA software stack • Broad product offering – future protection • 2x1Gb or 2x10Gb, iSCSI, RDMA, TOE, Chimney, NIC • PCI-Express, PC-X 2.0, PCI-X 1.0 • Reliable, predictable supplier (ISO 9001 certified) • The only vendor with experience shipping Offload products to enterprise OEMs • Availability of software-only products
