  1. Significant Figures Dealing with uncertainty in measurements.

  2. What values are shown below?

  3. Why is it difficult to be certain about some of the measurements you make? • All measurements have some degree of uncertainty due to limits associated with the measuring device. • Generally, uncertainty begins with the LAST DIGIT of the measurement.

  4. In a measurement, all the digits known for certain plus the first estimated digit are known as the SIGNIFICANT FIGURES of the measurement. • It is generally accepted that when a measurement is given, all non-zero digits are considered significant. For example 175.4 grams Digits known for certain. First estimated digit.

  5. The Problem with Zero • While all non-zero digits are considered significant, ZEROS present a particular problem. • Zeros can be measurements • Zeros can be place holders • How do you decide whether or not a zero is significant?

  6. Rules for Significant Figures • 1. ALL non-zero digits are considered significant. • Examples 125.45 5648 1.1211 • 2. Zeros BETWEEN non-zero digits are significant parts of a measurement. • Examples 5005 120301

  7. 3. Zeros both to the right of a non-zero digit AND a written decimal are significant. • Examples 124.000 5.000 • 4. Zeros that serve only as PLACEHOLDERS are not significant. • Examples 0.000003432 0.0021111

  8. 5. Zeros to the right of a non-zero digit BUT to the left of an UNDERSTOOD decimal are NOT SIGNIFICANT…..they can be the result of rounding off! • If a BAR is placed ABOVE A ZERO it makes ALL digits over to and including the ZERO WITH THE BAR SIGNIFICANT. _ • Example 3400 1250000 • NOTE – If the number is in SCIENTIFIC NOTATION only consider the COEFFICIENT when determining SFs.

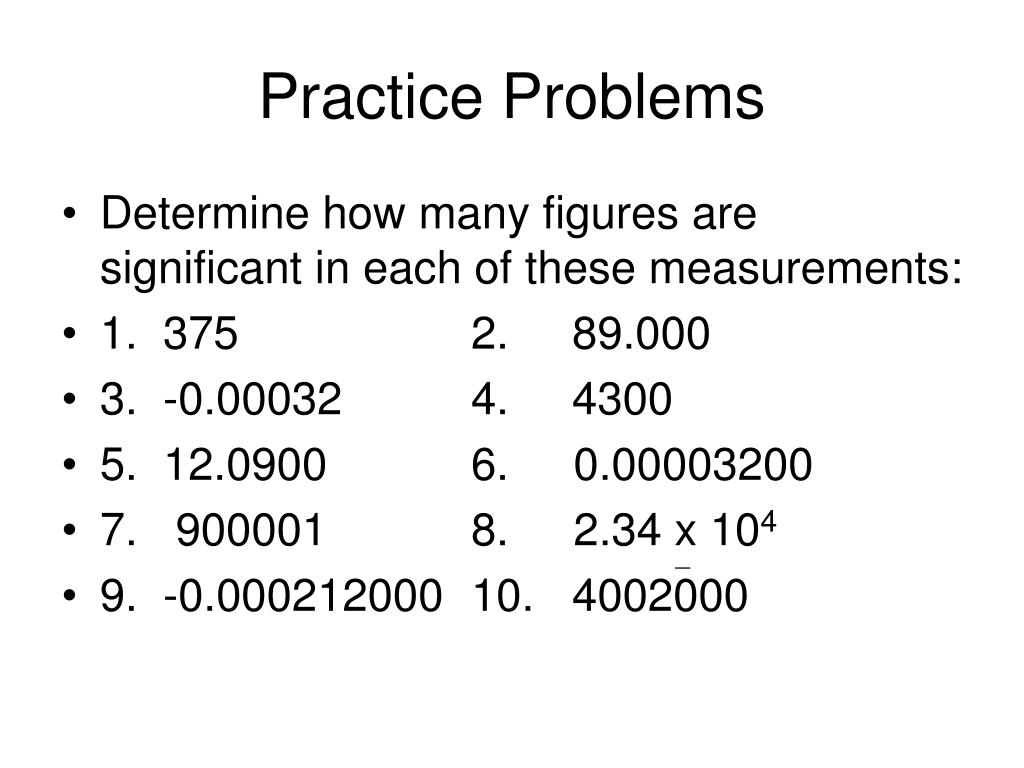

  9. Practice Problems • Determine how many figures are significant in each of these measurements: • 1. 375 2. 89.000 • 3. -0.00032 4. 4300 • 5. 12.0900 6. 0.00003200 • 7. 900001 8. 2.34 x 104 • 9. -0.000212000 10. 4002000 _

  10. Mathematical Operations with Significant Figures

  11. When completing math calculation, the final answer must be reported rounded to the appropriate number of significant figures. • The answer is rounded according to the LAST mathematical operation completed.

  12. Rules • 1. Complete calculations following the order of operations. • 2. If the FINAL step is MULTIPLICATION or DIVISION: • A. Look at each value given in the problem and find the one with the LEAST number of significant figures. • B. Round the FINAL ANSWER to the same number of significant figures. • DO NOT ROUND UNTIL THE FINAL STEP!

  13. Mult/Div Examples • 4.59 X 1.22 = 5.5998 = 5.5998 =5.60 • 3 sf 3sf 3sf 3sf • 3 sf 45.6 = 18581.90709 • 4 sf 0.002454 • = 18587.90709 3sf • = 186003sf

  14. ADD/SUBTRACT • Complete calculations following order of operations. • If the FINAL step is addition or subtraction: • A. Only consider digits to the RIGHT of the decimal. • B. Determine the fewest SF to the right of the decimal. • C. Round final answer to this number of SF.

  15. ADD/SUBTRACT EXAMPLES 25.4 (1 sf) 15.000 – 2.3791 = 12.6209 63.66 (2 sf)(3 sf)(4 sf) = 12.621 + 102.44(2 sf) 191.50 = 191.5
