Illumimote: A High Performance & Multi-Modal Light Sensor Module for Wireless Sensor Networks

Illumimote: A High Performance & Multi-Modal Light Sensor Module for Wireless Sensor Networks. Developed a new light sensing module for wireless embedded platform (Mica) that provides wireless sensing and sensor networks (WSN) capabilities

edison
Download Presentation

Illumimote: A High Performance & Multi-Modal Light Sensor Module for Wireless Sensor Networks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

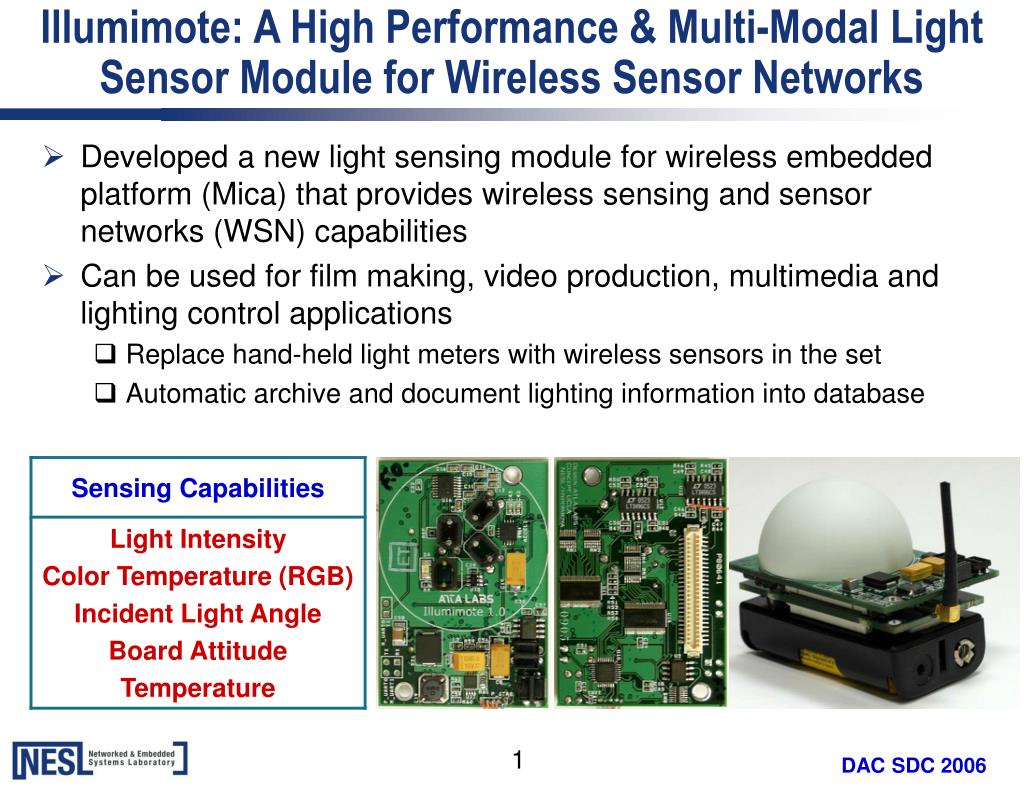

  1. Illumimote: A High Performance & Multi-Modal Light Sensor Module for Wireless Sensor Networks • Developed a new light sensing module for wireless embedded platform (Mica) that provides wireless sensing and sensor networks (WSN) capabilities • Can be used for film making, video production, multimedia and lighting control applications • Replace hand-held light meters with wireless sensors in the set • Automatic archive and document lighting information into database

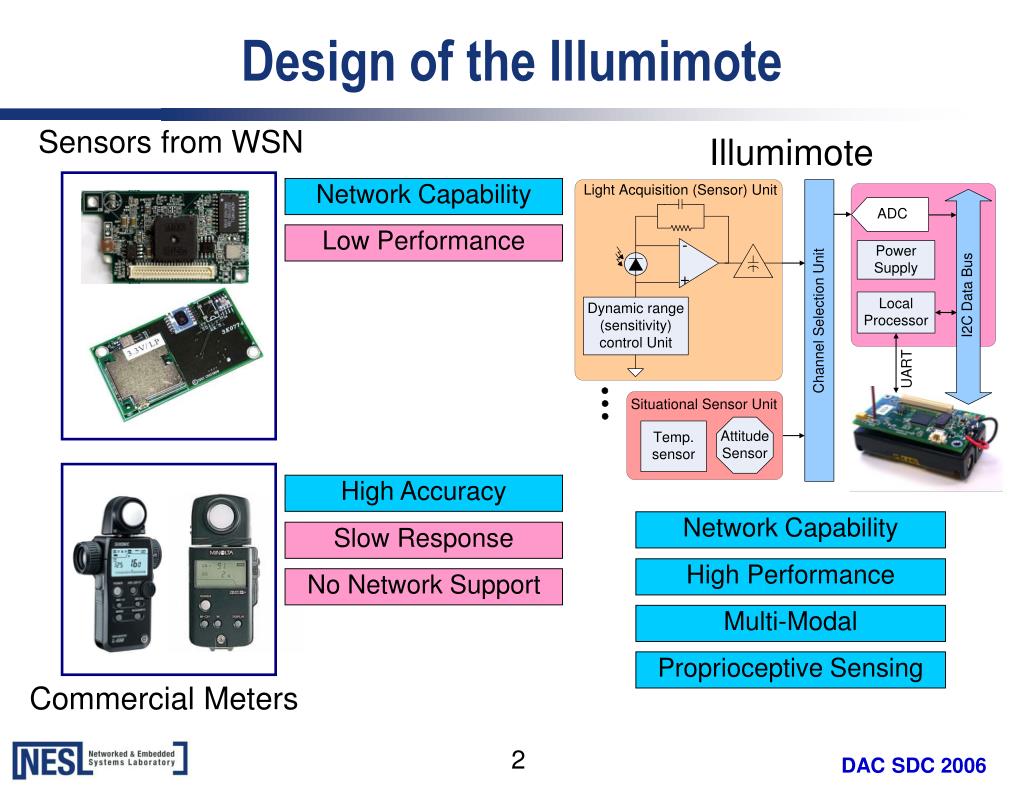

  2. Design of the Illumimote Sensors from WSN Illumimote Network Capability Low Performance High Accuracy Network Capability Slow Response High Performance No Network Support Multi-Modal Proprioceptive Sensing Commercial Meters

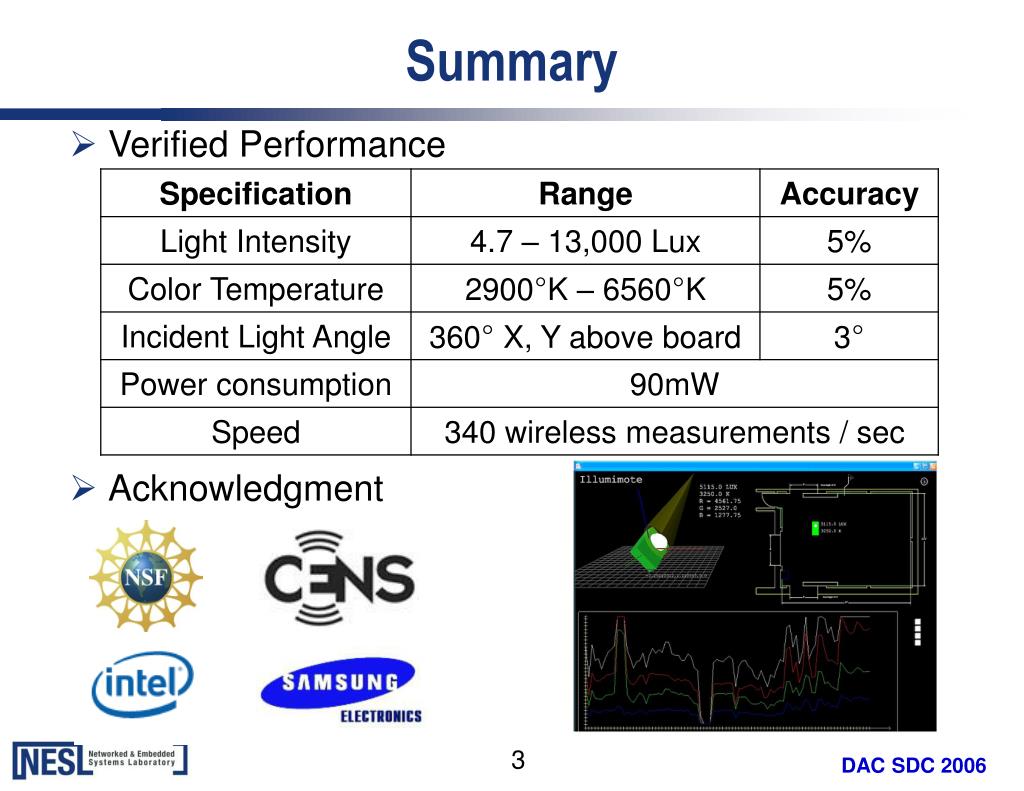

  3. Summary • Verified Performance • Acknowledgment
